Model Whirlpool YKBMC140HS0 30`` BUILT-IN MICROWAVE – Common Parts & Diagrams

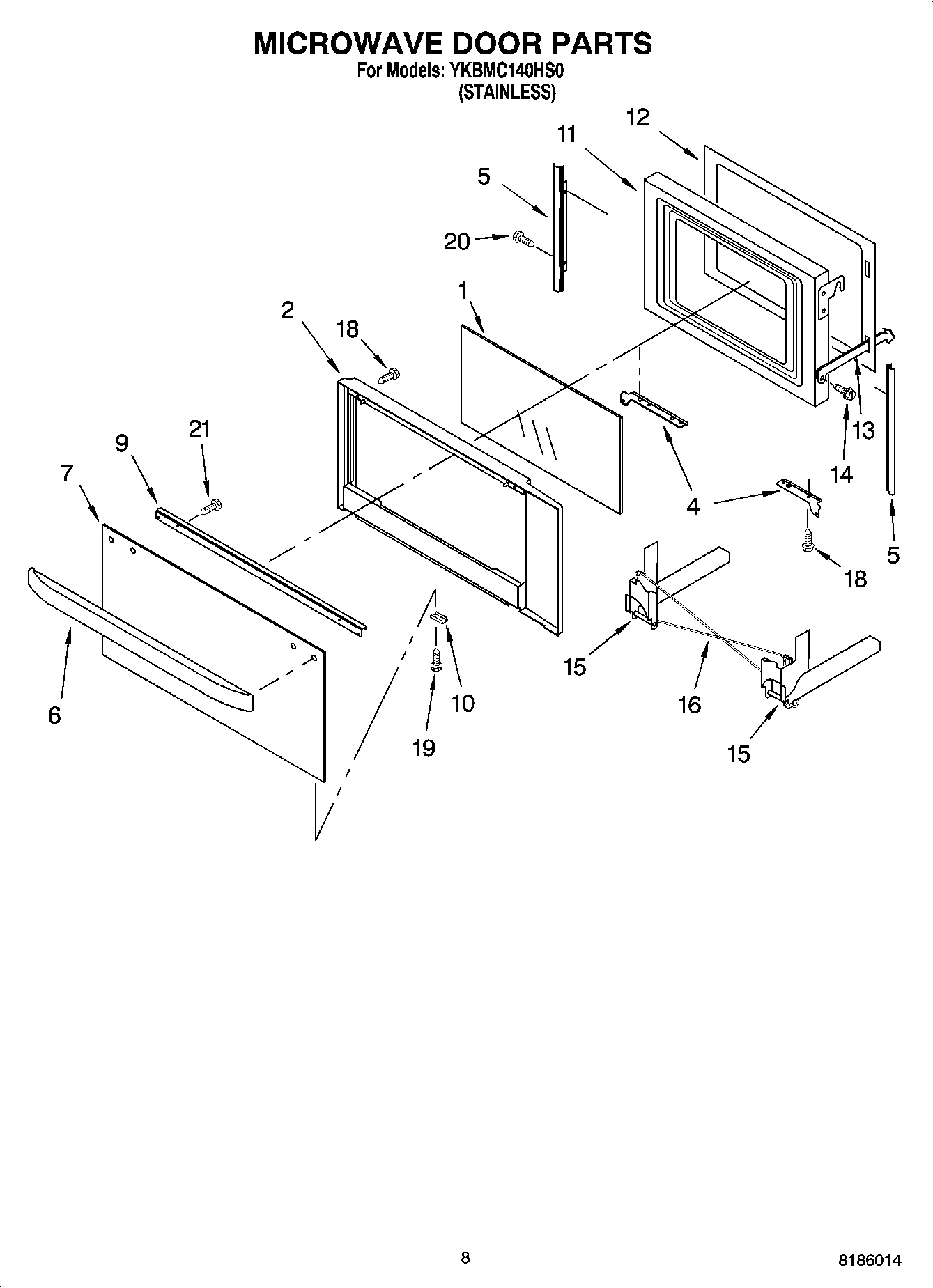

06 - MICROWAVE DOOR PARTS, OPTIONAL PARTS

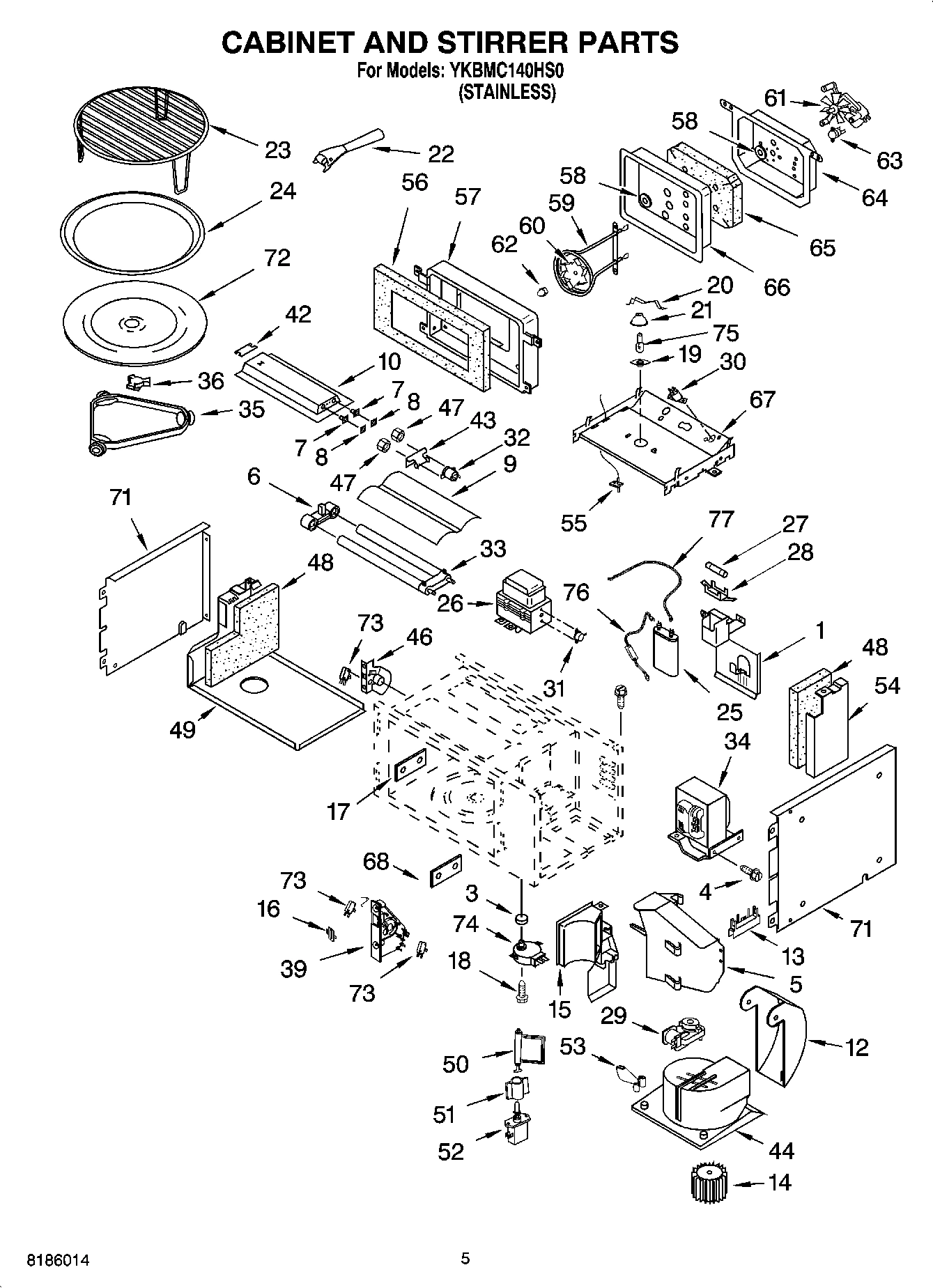

04 - CABINET AND STIRRER PARTS

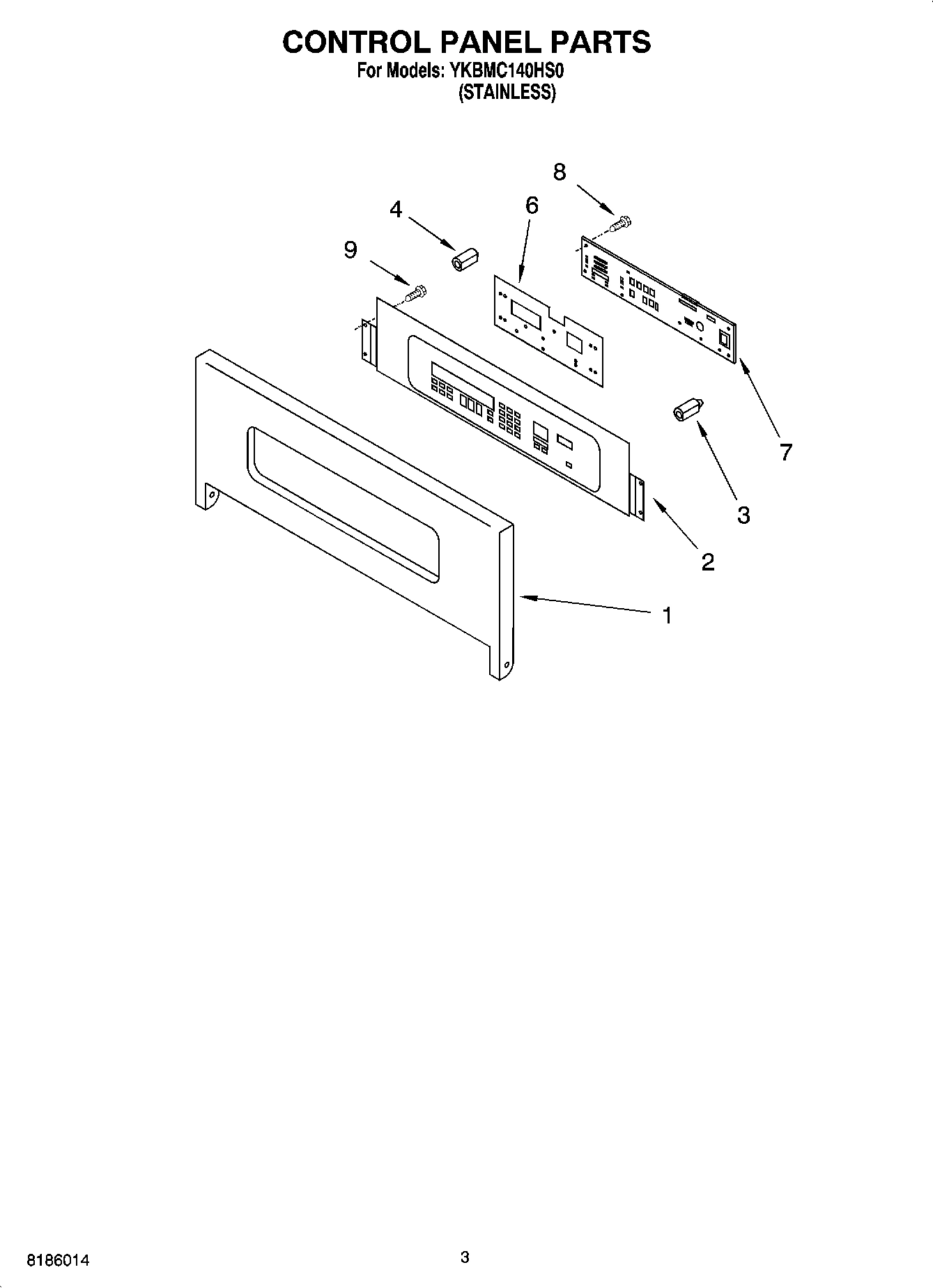

02 - CONTROL PANEL PARTS

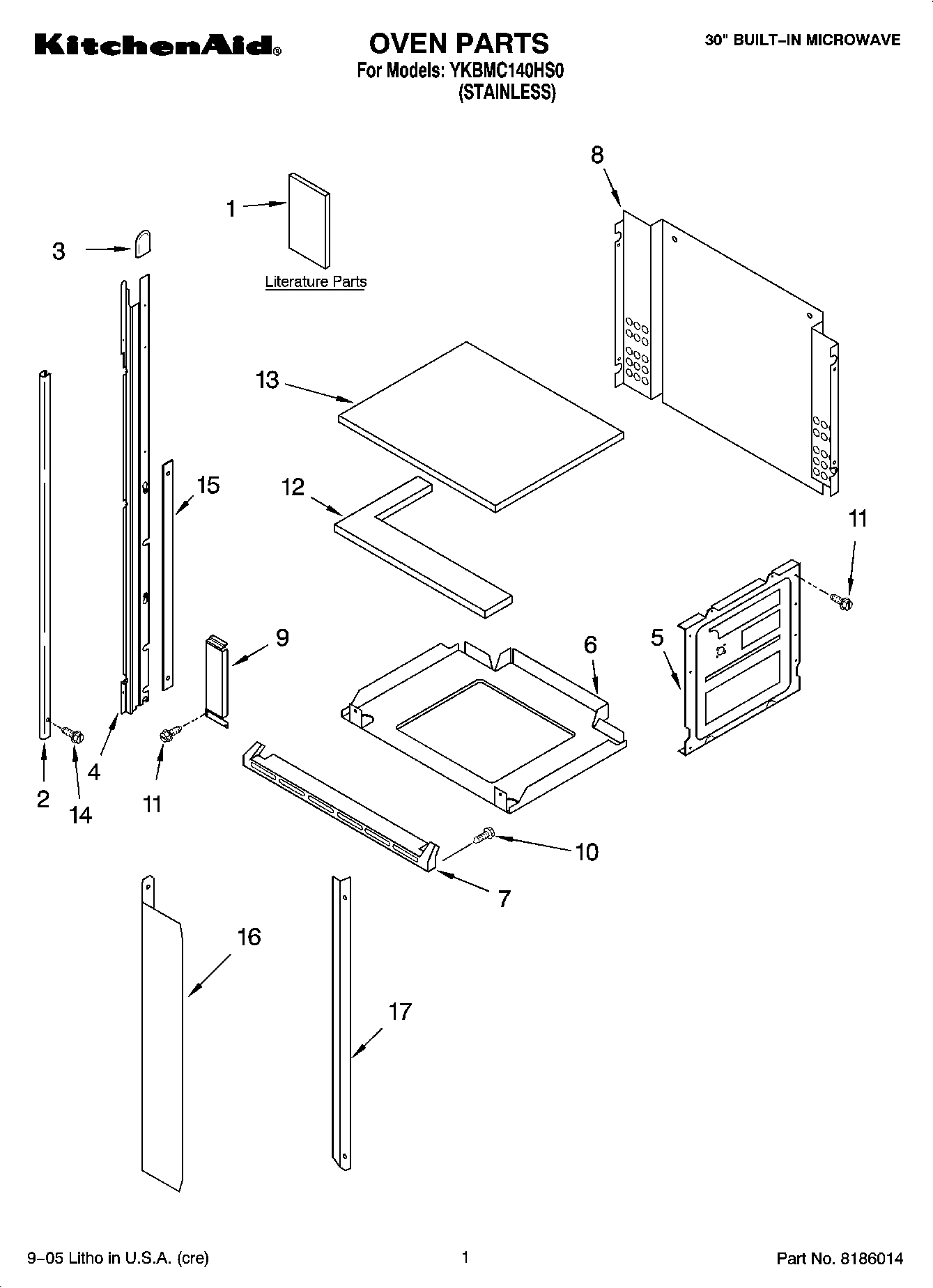

01 - OVEN PARTS

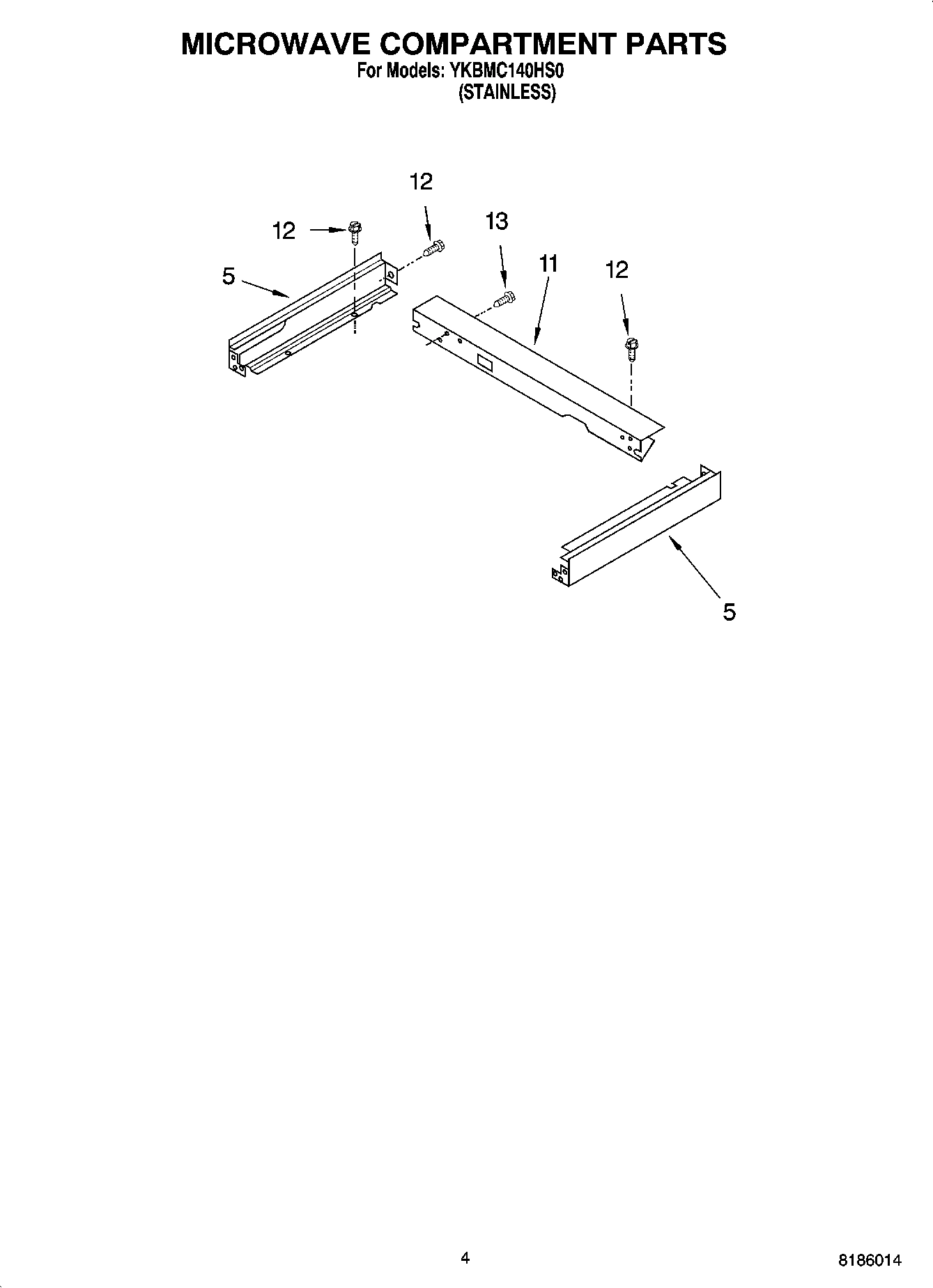

03 - MICROWAVE COMPARTMENT PARTS

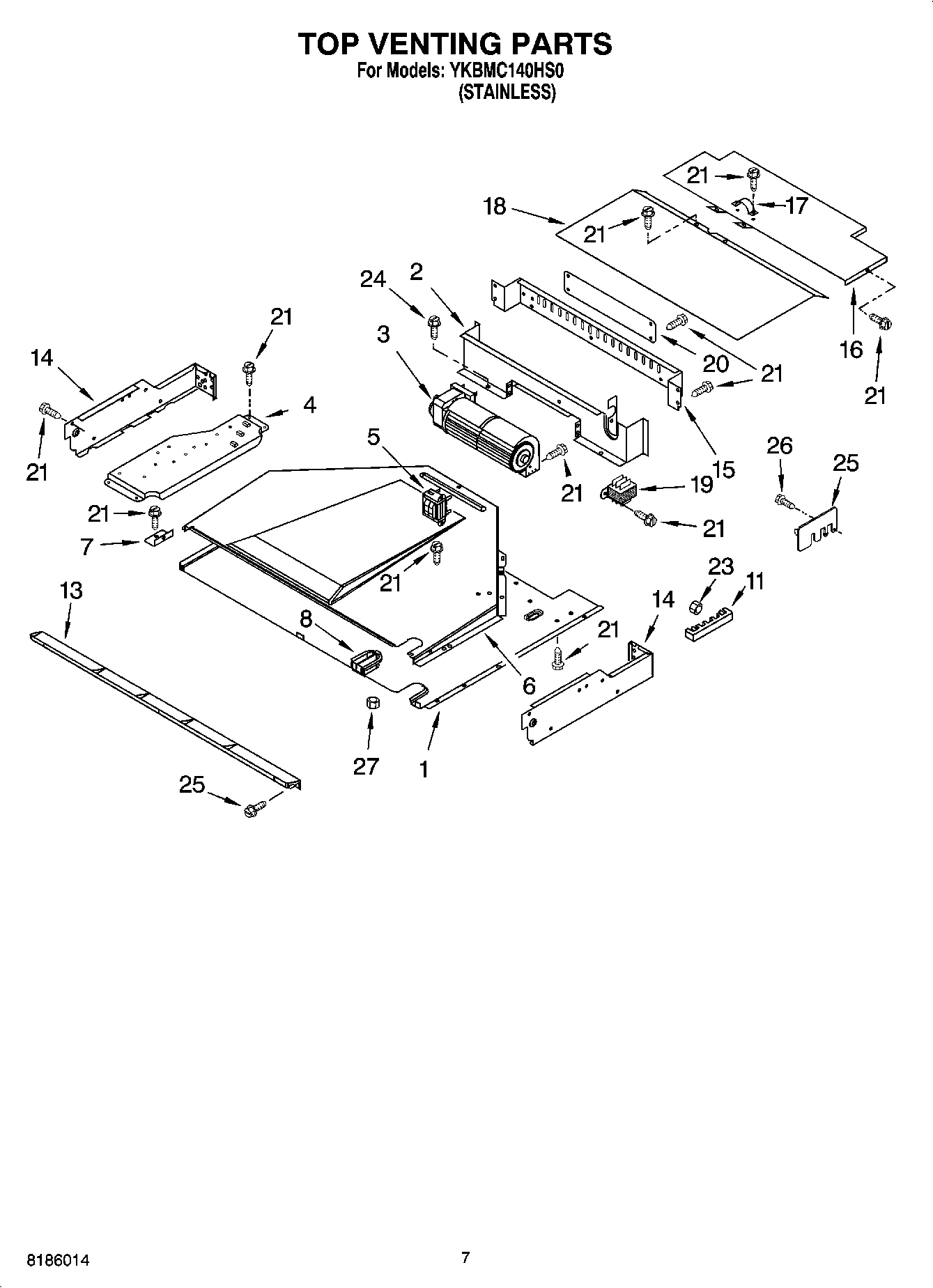

05 - TOP VENTING PARTS
Common parts from model Whirlpool YKBMC140HS0 30`` BUILT-IN MICROWAVE
1
Glass, Middle WPL 4448937 Contact Us For Availability
1
Panel, Control WPL 4451791 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Easy Set Guide (French)) WPL LIT4448687 Contact Us For Availability
1
Literature Parts (Easy Set Guide (English)) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Chart, HS Cook) WPL LIT4451052 Contact Us For Availability
1
Literature Parts (Use & Care Guide Microwave WPL LIT4452614 Contact Us For Availability
1
Literature Parts (Use & Care Guide (French)) WPL LIT4452618 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT4453330 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4455988 Contact Us For Availability
1
Literature Parts (Tech Sheet (English)) WPL LIT8300488 Contact Us For Availability
1
Literature Parts (Tech Sheet (French)) WPL LIT8300544 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
2
Switch, Membrane WPL 4453420 Contact Us For Availability
2
Trim, Side (RH Stainless) WPL 4452556 Contact Us For Availability
2
Trim, Side (LH Stainless) WPL 4452557 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Rubber Ring WPL 4375252 Contact Us For Availability
3
Insulator, Board WPL 4452248 Contact Us For Availability
3
Cap, Spacer WPL 4451605 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Insulator, Board Support WPL 4452249 Contact Us For Availability
4
Rail, Side (Right Side) WPL 4452549 Contact Us For Availability
4
Rail, Side (Left Side) WPL 4452550 Contact Us For Availability
4
Plate, Mounting WPL 4451789 Contact Us For Availability
5
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
5
Filler, Side (Left Side) WPL 4449086 Contact Us For Availability
5
Side, Chassis (R.H. & L.H.) WPL 4452559 Contact Us For Availability
5
Support Rails (Right Side) WPL 4452551 Contact Us For Availability
5
Support Rails (Left Side) WPL 4452552 Contact Us For Availability
6
Insulator, Dialectric WPL 4452345 Contact Us For Availability
6
Base, Chassis WPL 4452541 Contact Us For Availability
6
Exhaust Duct WPL 4451634 Contact Us For Availability
7
Glass, Outer (Black) WPL 4452211 Contact Us For Availability
7
Microcomputer WPL 4453377 Contact Us For Availability
7
Trim, Bottom WPL 4452569 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Screw WPL 3400406 Contact Us For Availability
8
Chassis, Back WPL 4452554 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Bracket, Handle WPL 4452331 Contact Us For Availability
9
Extension Filler WPL 4449906 Contact Us For Availability
11
Rear Channel WPL 4452548 Contact Us For Availability
12
Insulation-Grill WPL 4452492 Contact Us For Availability
13
Insulation-Top WPL 4452491 Contact Us For Availability
13
Vent-Cntrl Panel WPL 4450791 Contact Us For Availability
15
Spacer, Rail (2) WPL 4455471 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Bracket WPL 4455476 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
17
Bracket WPL 4455475 Contact Us For Availability
19
Screw WPL 4449040 Contact Us For Availability
19
Transformer-Cntrl Control WPL 4455038 Contact Us For Availability
20
Cover, Plate WPL 4452247 Contact Us For Availability
25
Suppressor WPL 4451934 Contact Us For Availability
26
Screw WPL 3400080 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
54
Shield, Heat Right WPL 4375439 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
56
Insulation WPL 4375420 Contact Us For Availability
57
Duct, Heater WPL 4375419 Contact Us For Availability
58
Washer WPL 4375416 Contact Us For Availability
59
Element, Heater WPL 4375417 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI136944A Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat WPL 4375433 Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
77
Cable WPL 4375435 Contact Us For Availability
× ![]()
