Model Maytag YJMV9196CS3 MICROWAVE HOOD, 1.9 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

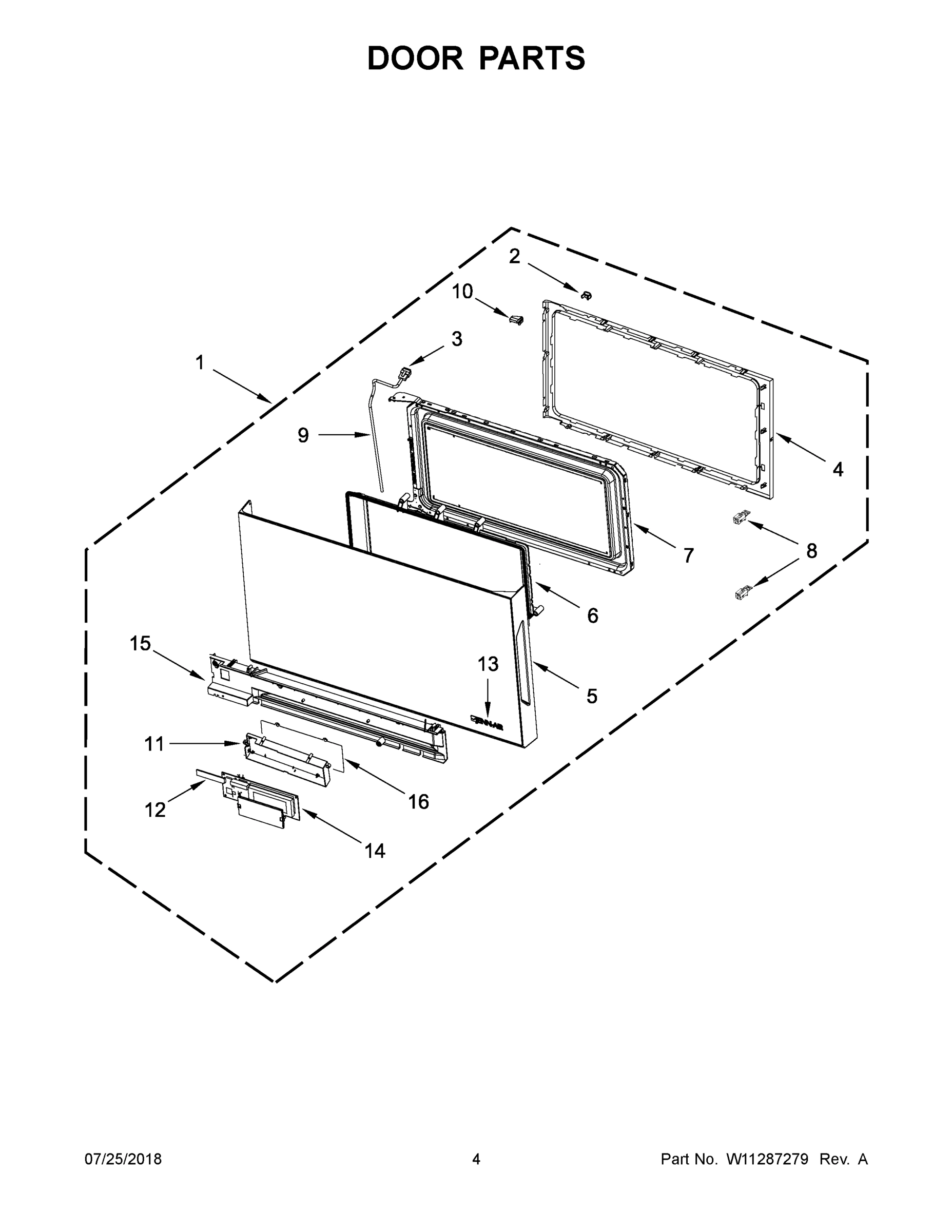

03 - DOOR PARTS

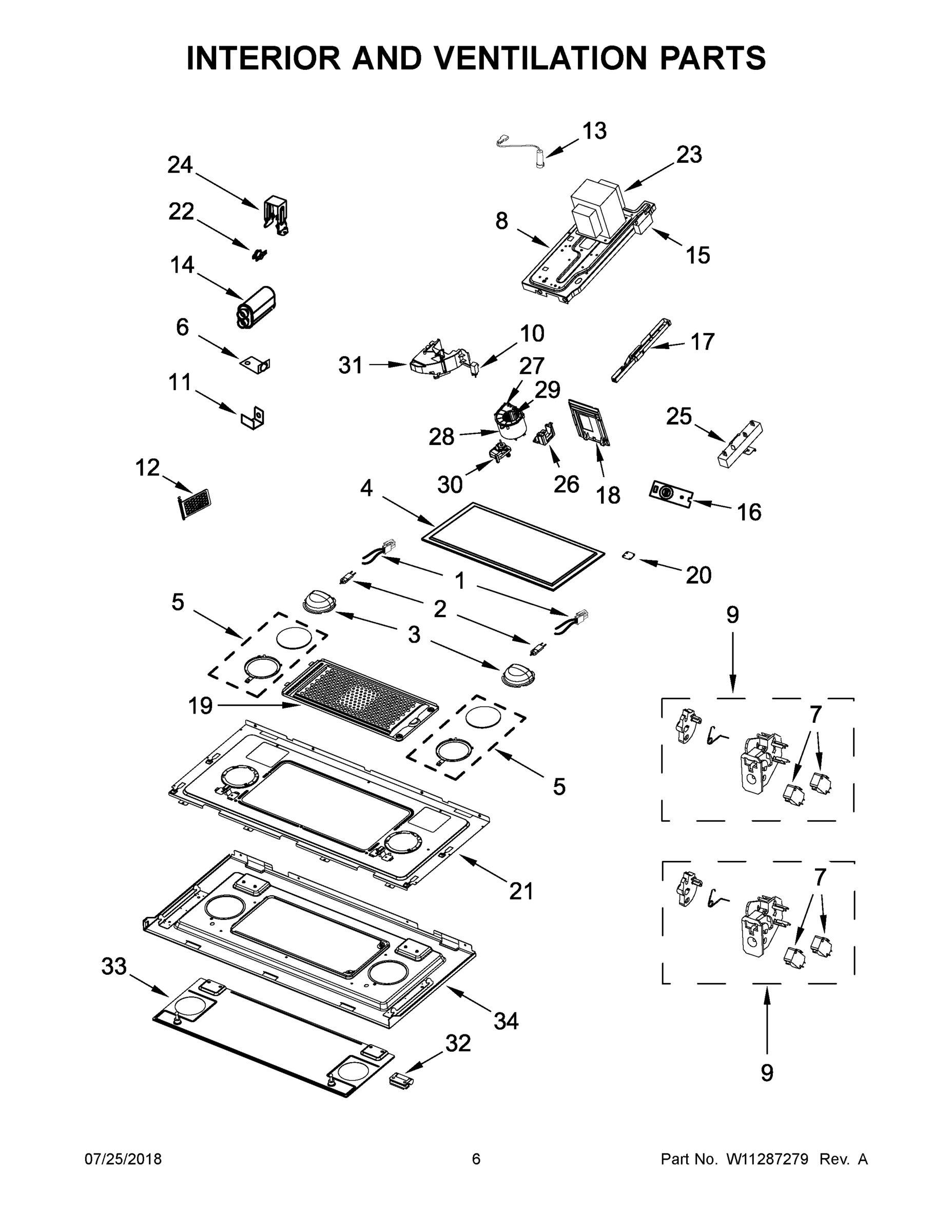

04 - INTERIOR AND VENTILATION PARTS

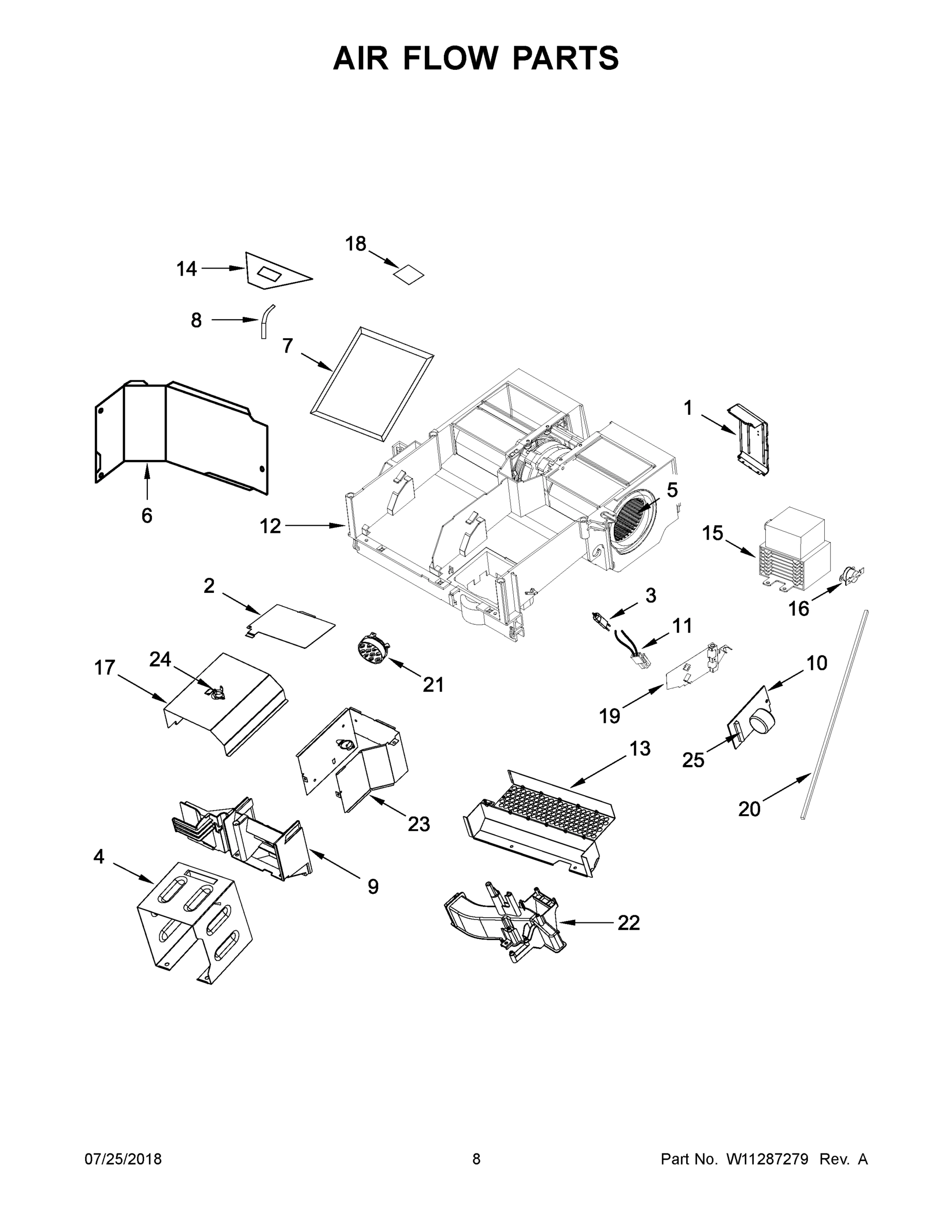

05 - AIR FLOW PARTS

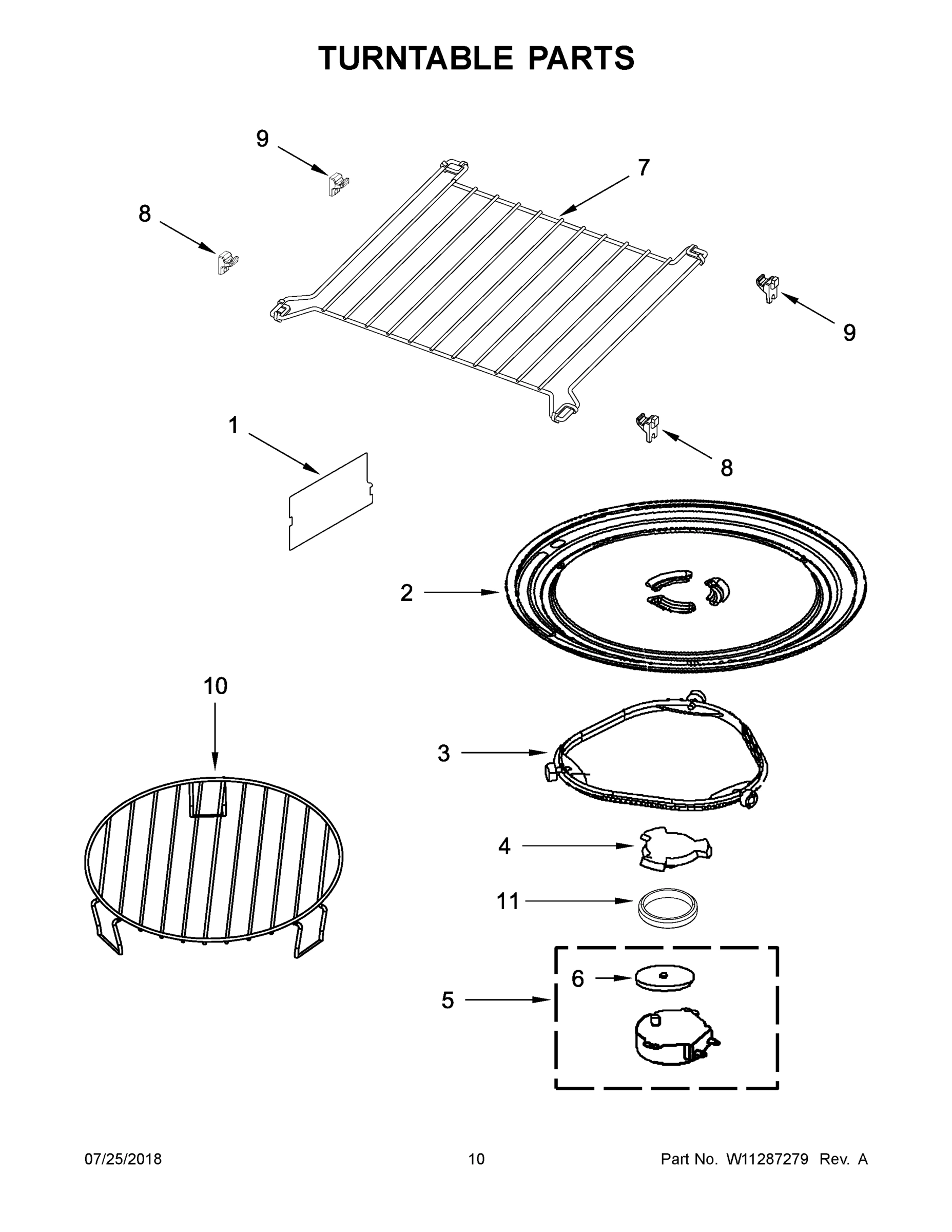

06 - TURNTABLE PARTS

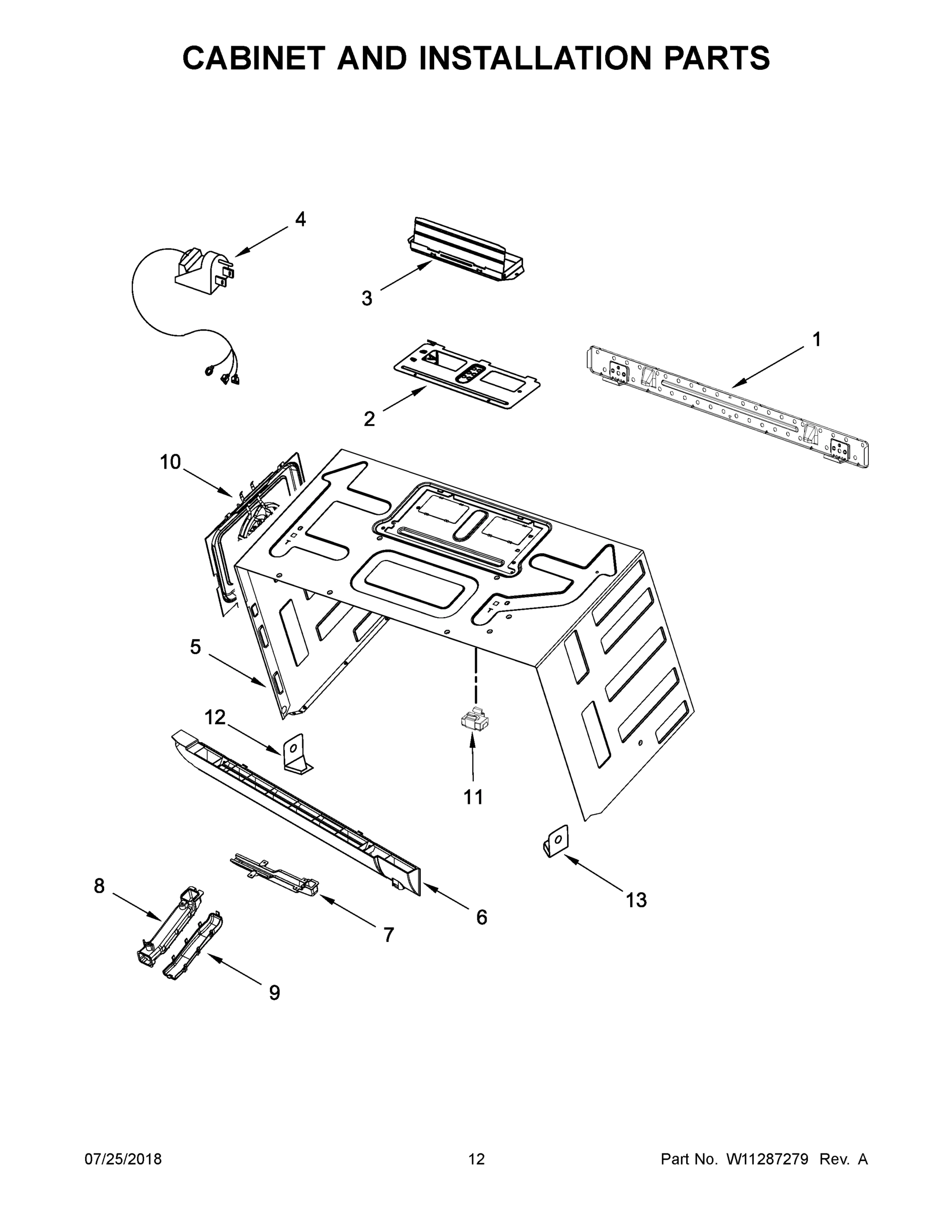

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag YJMV9196CS3 MICROWAVE HOOD, 1.9 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10856330 Contact Us For Availability
1
MAY W11205118 MAY W11205118 Contact Us For Availability
1
WIRE, CAVITY LAMP MAY W10572351 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10631698 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W11085126 Contact Us For Availability
1
PLATE, MOUNTING MAY W11025649 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10662687 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10662683 Contact Us For Availability
1C
MAY W11193638 MAY W11193638 Contact Us For Availability
2
MICROCOMPUTER MAY W10881553 Contact Us For Availability
2
COVER, SCREW MAY W10542546 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10531726 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
3
DUCT, COOLING FRONT MAY W10533504 Contact Us For Availability
3
HOLDER, DOOR CABLE MAY W10770972 Contact Us For Availability
3
LAMP, HALOGEN MAY W10709921 Contact Us For Availability
3
SHADE, LAMP MAY W10574986 Contact Us For Availability
3
RING, TURNTABLE MAY W10679313 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
SEAL, CONTROL MAY W10540721 Contact Us For Availability
4
FRAME, INNER MAY W10540764 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
HOUSING, DAMPER MAY W10556824 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
4
CORD, POWER MAY W10708076 Contact Us For Availability
5
PANEL, BOTTOM MAY W10570582 Contact Us For Availability
5
DOOR, OUTER (STAINLESS) MAY W10861385 Contact Us For Availability
5
ASSEMBLY, LAMP GLASS MAY W10666614 Contact Us For Availability
5
MOTOR, FAN MAY W10830695 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10466420 Contact Us For Availability
5
CASE, OUTER (BLACK) MAY W11178713 Contact Us For Availability
6
BACKGROUND, CONTROL MAY W10540727 Contact Us For Availability
6
PLATE, STEAM PROTECTION MAY W10478647 Contact Us For Availability
6
COVER, THERMOSTAT MAY W10259248 Contact Us For Availability
6
PLATE, AIR GUIDE MAY W10869224 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (BLACK) MAY W10701701 Contact Us For Availability
7
PANEL, CONTROL (BLACK) MAY W10478239 Contact Us For Availability
7
BODY, DOOR (WITH GLASS) MAY W10568846 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10249618 Contact Us For Availability
7
AIR DUCT, TURNTABLE MOTOR MAY W10570212 Contact Us For Availability
8
HOOK, DOOR MAY W10740455 Contact Us For Availability
8
CHASSIS MAY W10908578 Contact Us For Availability
8
SENSOR, CONVECTION MAY W10557537 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) MAY W10740485 Contact Us For Availability
8
DUCT, COOLING (UPPER) MAY W10740434 Contact Us For Availability
9
WIRE, DOOR CONTROL CABLE MAY W10658871 Contact Us For Availability
9
ASSEMBLY, INTERLOCK (INCLUDES SWITCHES) MAY W11187757 Contact Us For Availability
9
DUCT, CAVITY (FRONT) MAY W10892383 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR & RIGHT REAR) MAY W10573936 Contact Us For Availability
9
DUCT, COOLING (BOTTOM) MAY W10533489 Contact Us For Availability
10
STOPPER, DOOR MAY W10643976 Contact Us For Availability
10
ACTUATOR MAY W10458325 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
RACK, CONVECTION MAY W10440082 Contact Us For Availability
10
ASSEMBLY, CONVECTION MOTOR AND FAN MAY W10722311 Contact Us For Availability
11
HOLDER, UI MAY W10770970 Contact Us For Availability
11
CLIP MAY 8206223 Contact Us For Availability
11
HARNESS, FADE IN / FADE OUT MAY W10670896 Contact Us For Availability
11
SEAL, TURNTABLE BLOCK MAY W10568148 Contact Us For Availability
11
ASSEMBLY, MOUNTING NUT MAY W11122643 Contact Us For Availability
12
CABLE, TOUCH SENSOR MAY W10509362 Contact Us For Availability
12
VALVE, DOOR MAY W10533486 Contact Us For Availability
12
BASEPLATE, AIR GUIDE MAY W10632409 Contact Us For Availability
12
VENT HOLDER, LEFT (BLACK) MAY W10703285 Contact Us For Availability
13
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W10575765 Contact Us For Availability
13
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
13
VENT HOLDER, RIGHT (BLACK) MAY W10703283 Contact Us For Availability
14
PCBA, USER INTERFACE MAY W11202850 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10654462 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
COVER, UI MAY W10617743 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W11188557 Contact Us For Availability
16
PLATE, UI INSULATION MAY W10540298 Contact Us For Availability
16
THERMISTOR, PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10591803 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533112 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533107 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
BRACKET, FILTER MAY W10614204 Contact Us For Availability
19
COVER, DUCT (RIGHT) MAY W10869222 Contact Us For Availability
20
PCBA, CAVITY LIGHT FADE IN FADE OUT MAY W10523009 Contact Us For Availability
20
SEAL, FOAM MAY W10571180 Contact Us For Availability
21
PLATE, INNER BOTTOM MAY W10614209 Contact Us For Availability
21
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
22
THERMOSTAT, CONVECTION MAY W10599629 Contact Us For Availability
22
ASSEMBLY, AIRGUIDE GRILLE MAY W10758887 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W11087316 Contact Us For Availability
23
DUCT, CAVITY (REAR) MAY W10533483 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10633730 Contact Us For Availability
24
THERMOSTAT, CAVITY MAY W10654514 Contact Us For Availability
25
RESISTOR, CEMENT MAY W10568805 Contact Us For Availability
25
FUSE MAY W10138793 Contact Us For Availability
26
HOLDER, NTC MAY W10533480 Contact Us For Availability
27
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
28
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
29
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
30
MOTOR, COOLING FAN MAY W11169357 Contact Us For Availability
31
AIR GUIDE, MAGNETRON MAY W10631701 Contact Us For Availability
32
HINGE, PANEL MAY W10574978 Contact Us For Availability
33
PANEL, PERIMETRIC (STAINLESS) MAY W10614211 Contact Us For Availability
34
PLATE, OUTER BOTTOM MAY W10614222 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE MAY W10508741 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, DOOR CONTROL LI MAY W10508747 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
INSULATION, BACK MAY W10571450 Contact Us For Availability
NI
INSULATION, TOP MAY W10571451 Contact Us For Availability
NI
INSULATION, SIDE MAY W10571453 Contact Us For Availability
NI
ACCESSORIES, PLATE, DOOR BAFFLE (HEAT REFLECT MAY W10737014 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND T MAY W10877901 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10892377 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W11185442 Contact Us For Availability
× ![]()
