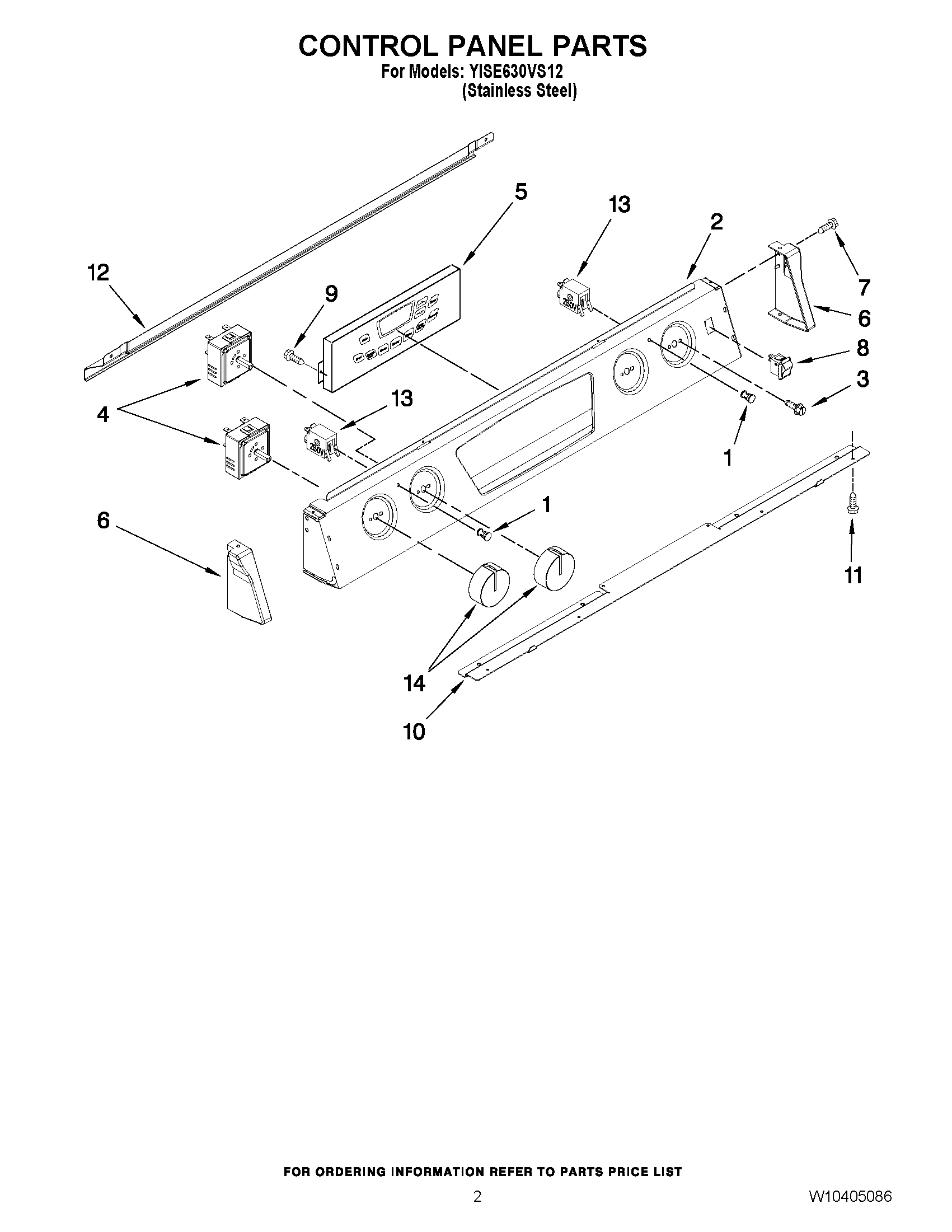

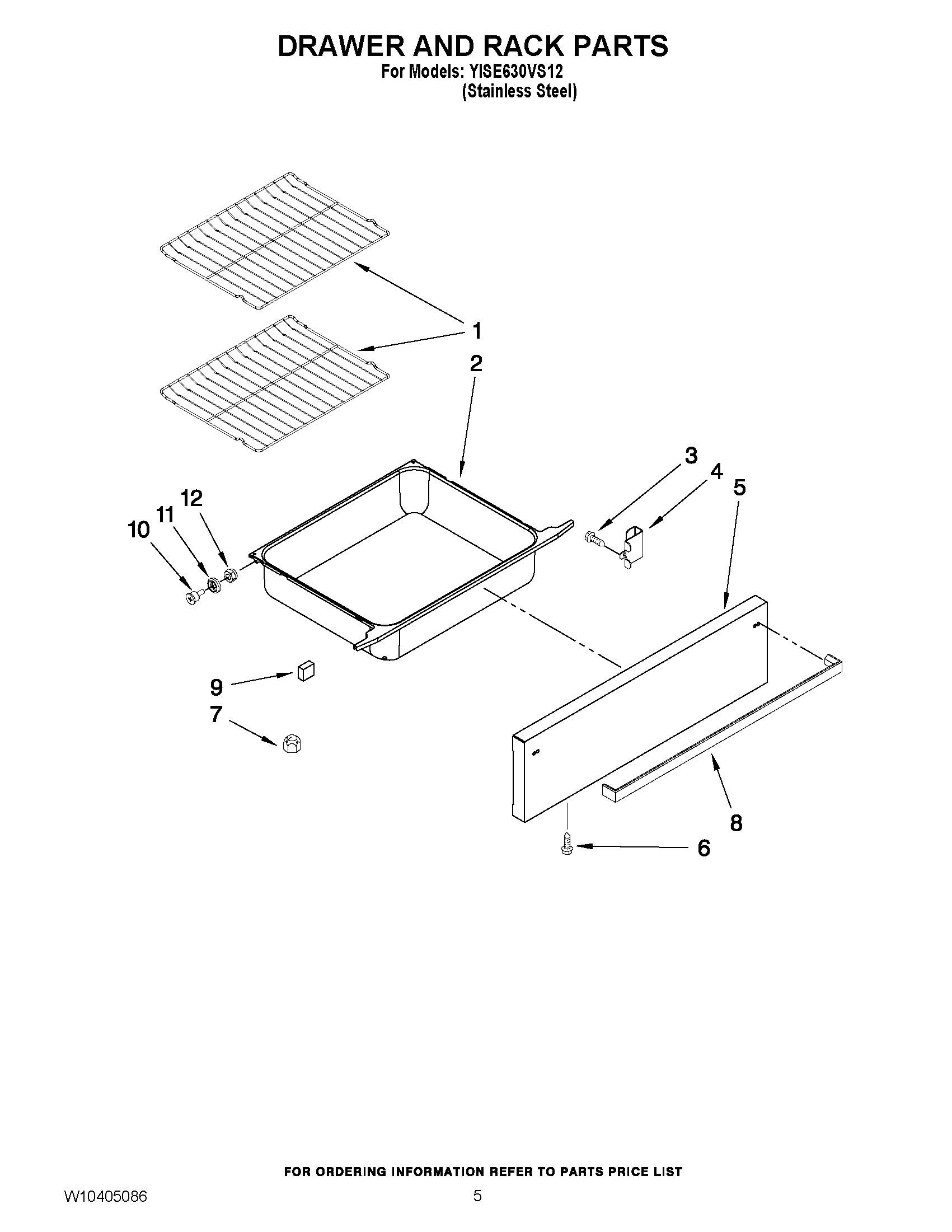

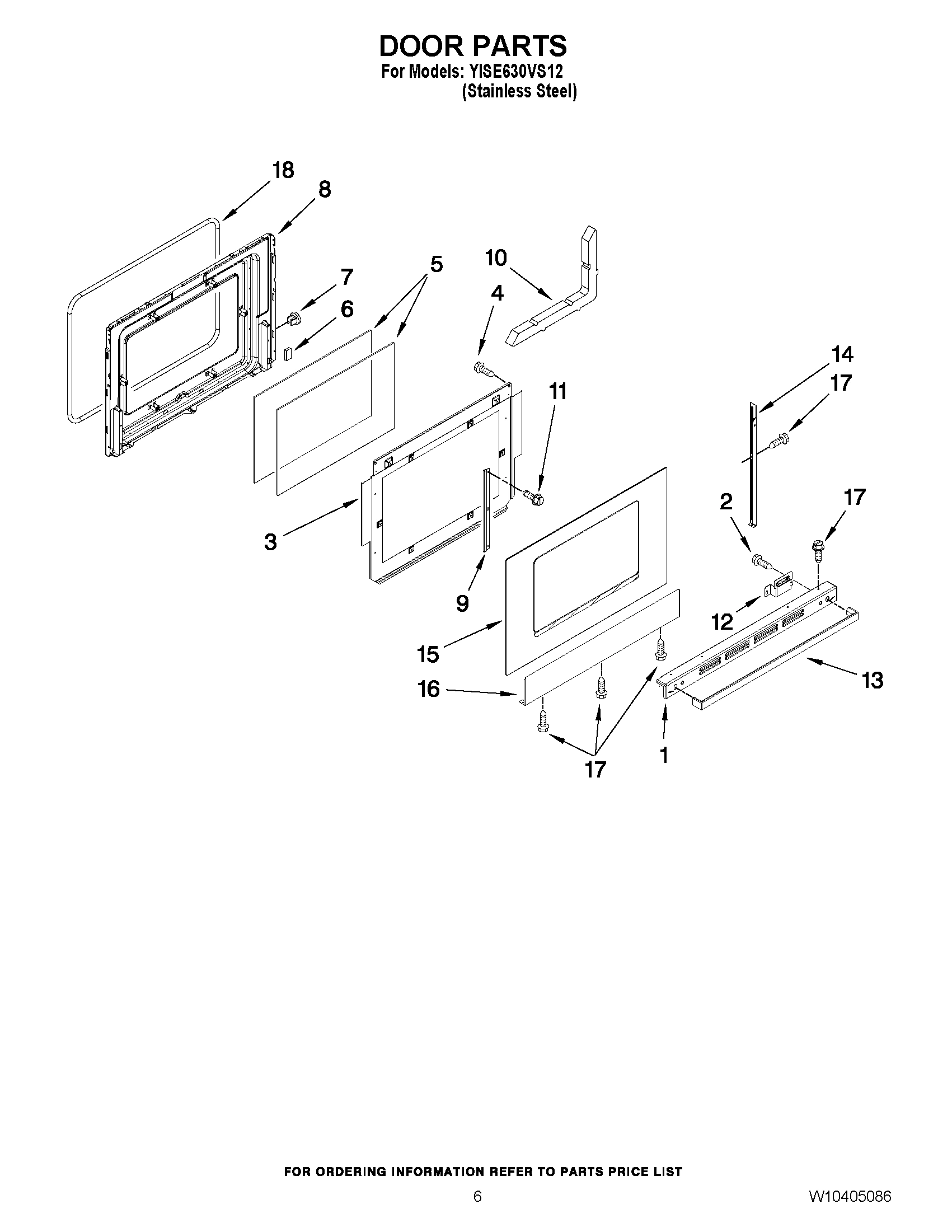

Model Whirlpool YISE630VS12 30`` SLIDE-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Trim, Door Top WPL W10165419 Contact Us For Availability

1

Lens WPL 7730P01160 Contact Us For Availability

2

Screw, Handle (2) WPL 7101P54460 Contact Us For Availability

2

Panel, Control WPL W10159611 Contact Us For Availability

2

DRAWER, STORAGE WPL 3405F03360 Contact Us For Availability

3

BAFFLE, RETAINER WPL 3601F35345 Contact Us For Availability

3

Screw, Panel WPL 7101P07260 Contact Us For Availability

3

Screw, Switch (10) WPL 7101P30960 Contact Us For Availability

4

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

4

SWITCH, INFINITE (8`` (RF/LR)(2)) WPL 7403P37260 Contact Us For Availability

4

SWITCH, INFINITE (6`` (LF/RR)(2)) WPL 7403P37360 Contact Us For Availability

4

Bracket, Drawer WPL 3801F88751 Contact Us For Availability

5

W10769823-includeCORE Whirlpool W10769823 Ran Backorder WPL W10769823-includeCORE $199.23

5

PANEL, DRAWER WPL W10272160 Contact Us For Availability

5

GLASS, INNER (2) WPL 7902P47260 Contact Us For Availability

6

SCREW WPL 7101P42660 Contact Us For Availability

6

END CAP (RIGHT) WPL 7726P40060 Contact Us For Availability

6

END CAP (LEFT) WPL 7726P40160 Contact Us For Availability

7

Nut, Lock WPL 7103P19060 Contact Us For Availability

7

Nut, Snap (4) WPL 7103P14160 Contact Us For Availability

7

Screw, End Cap WPL 7101P63360 Contact Us For Availability

8

Handle,Storage Dwr WPL W10184494 Contact Us For Availability

8

Switch, Rocker WPL 7403P79860 Contact Us For Availability

9

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

9

Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability

9

Screw, Control WPL 7101P07760 Contact Us For Availability

10

INSULATION, DOOR WPL 7002P22160 Contact Us For Availability

10

Support, Control Panel WPL 3807F60151 Contact Us For Availability

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

11

Shaft, Roller (2) WPL 7118P03260 Contact Us For Availability

BLOCK, BARE WIRE WPL 8255P41260 Contact Us For Availability

Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability

Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability

SHIELD, VENT WPL 3604F42151 Contact Us For Availability

Nut WPL 7103P08260 Contact Us For Availability

13

Light, Indicator WPL 7407P13660 Contact Us For Availability

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $71.80

Knob (4) WPL W10159625 Contact Us For Availability

Trim, Door Side (Right) WPL 3608F11670 Contact Us For Availability

Trim, Door Side (Left) WPL 3608F11770 Contact Us For Availability

15

Sensor, Oven WPL 7430P04260 Contact Us For Availability

15

GLASS, DOOR WPL 2402W27119 Contact Us For Availability

16

Panel, Oven Door (Bottom) WPL W10190750 Contact Us For Availability

16

Tube, Vent Lower WPL 8026P09660 Contact Us For Availability

17

Tube, Vent Upper WPL 8026P08560 Contact Us For Availability

17

SCREW, TRIM WPL NP Contact Us For Availability

18

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $69.03

19

Holder, Vent Tube WPL 3605F34551 Contact Us For Availability

20

SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability

21

PLATE, SMOKE ELM. WPL 3605F34445 Contact Us For Availability

22

Light Assembly WPL 7407P18260 Contact Us For Availability

23

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.71

24

BULB-OVEN WPL 7407P10360 Contact Us For Availability

25

Trim, Side WPL 3608F13870 Contact Us For Availability

26

Screw WPL 7101P50060 Contact Us For Availability

27

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $56.66

28

SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability

29

Screw WPL 7101P43460 Contact Us For Availability

30

Hinge (2) WPL 7106P14160 Contact Us For Availability

31

Screw, Hinge (4) WPL 7101P28260 Contact Us For Availability

32

Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability

33

SCREW, LEVER (2) WPL 7101P23060 Contact Us For Availability

34

Extension, Shield WPL 3826F06451 Contact Us For Availability

35

Support, Element WPL 3807F49445 Contact Us For Availability

36

Leg, Leveling WPL 7101P66060 Contact Us For Availability

37

Pedestal, Bottom WPL 4020W03580 Contact Us For Availability

38

PEDESTAL, FRONT WPL 4020F03580 Contact Us For Availability

39

SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability

40

Runner, Drawer (2) WPL W10182835 Contact Us For Availability

41

ROLLER, DRAWER (2) WPL W10272883 Contact Us For Availability

44

RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability

45

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

46

Screw w/ Washer WPL 7101P12460 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

Cleaner, Glass WPL W10355051 No Longer Available

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $12.59

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

INSULATION, BACK WPL 7002P45560 Contact Us For Availability

Insulation, Oven Bottom WPL 7002P45660 Contact Us For Availability

Insulation, Wrap WPL 7002P47160 Contact Us For Availability

REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

Harness, Sensor WPL 5171P54060 Contact Us For Availability

HARNESS,SWITCH(RT) WPL 5171P55360 Contact Us For Availability

HARNESS,SWITCH(LT) WPL 5171P56260 Contact Us For Availability

Harness, Main WPL 5171P93160 Contact Us For Availability

CABLE, ASSY (FLEX) WPL 5700P82260 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability
