Model Whirlpool YIDC865VM0 30`` IKEA DUAL FUEL – Common Parts & Diagrams
04 - OVEN DOOR PARTS
06 - COOKTOP PARTS
02 - TOP VENTING PARTS

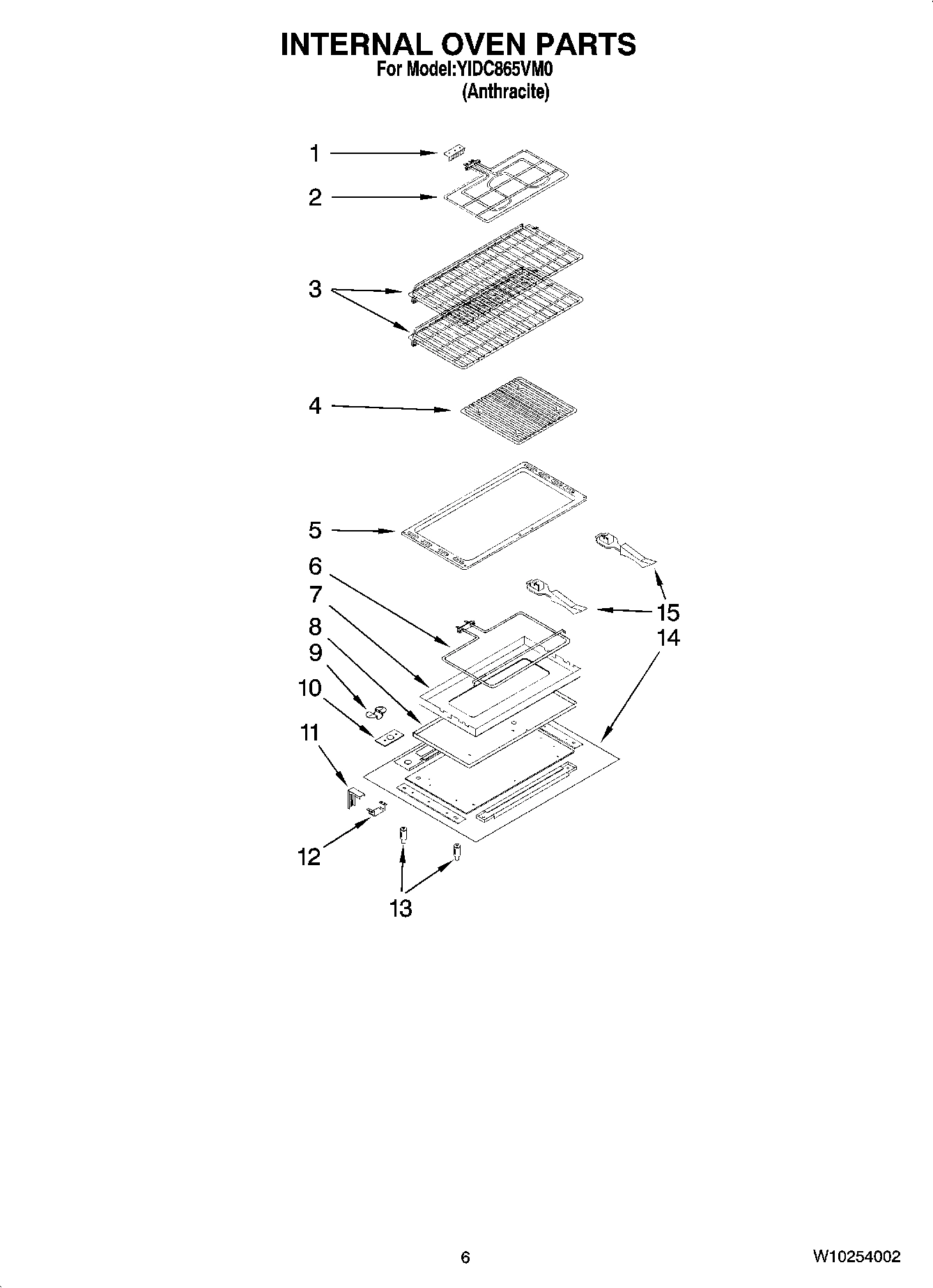

05 - INTERNAL OVEN PARTS

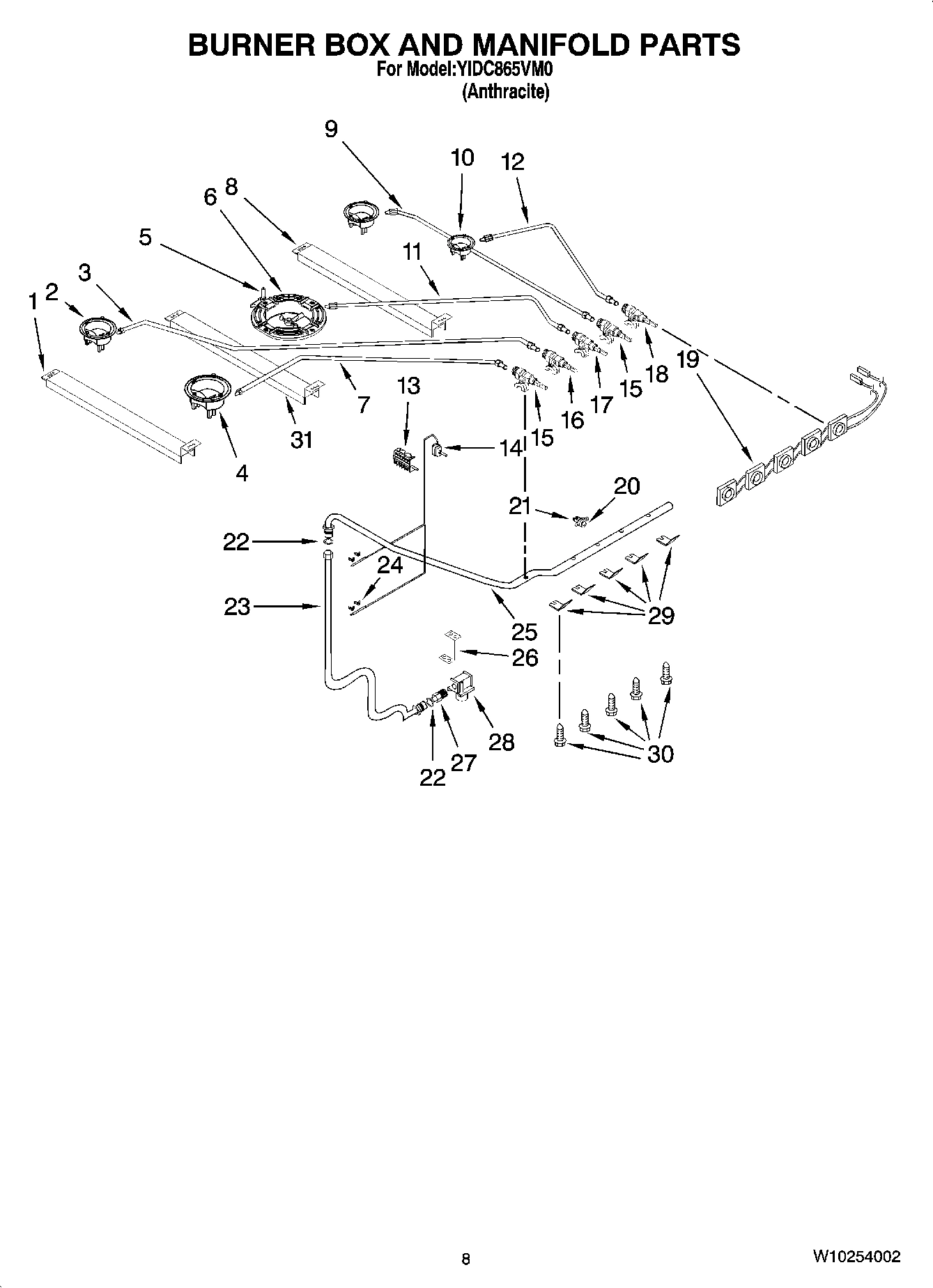

07 - BURNER BOX AND MANIFOLD PARTS

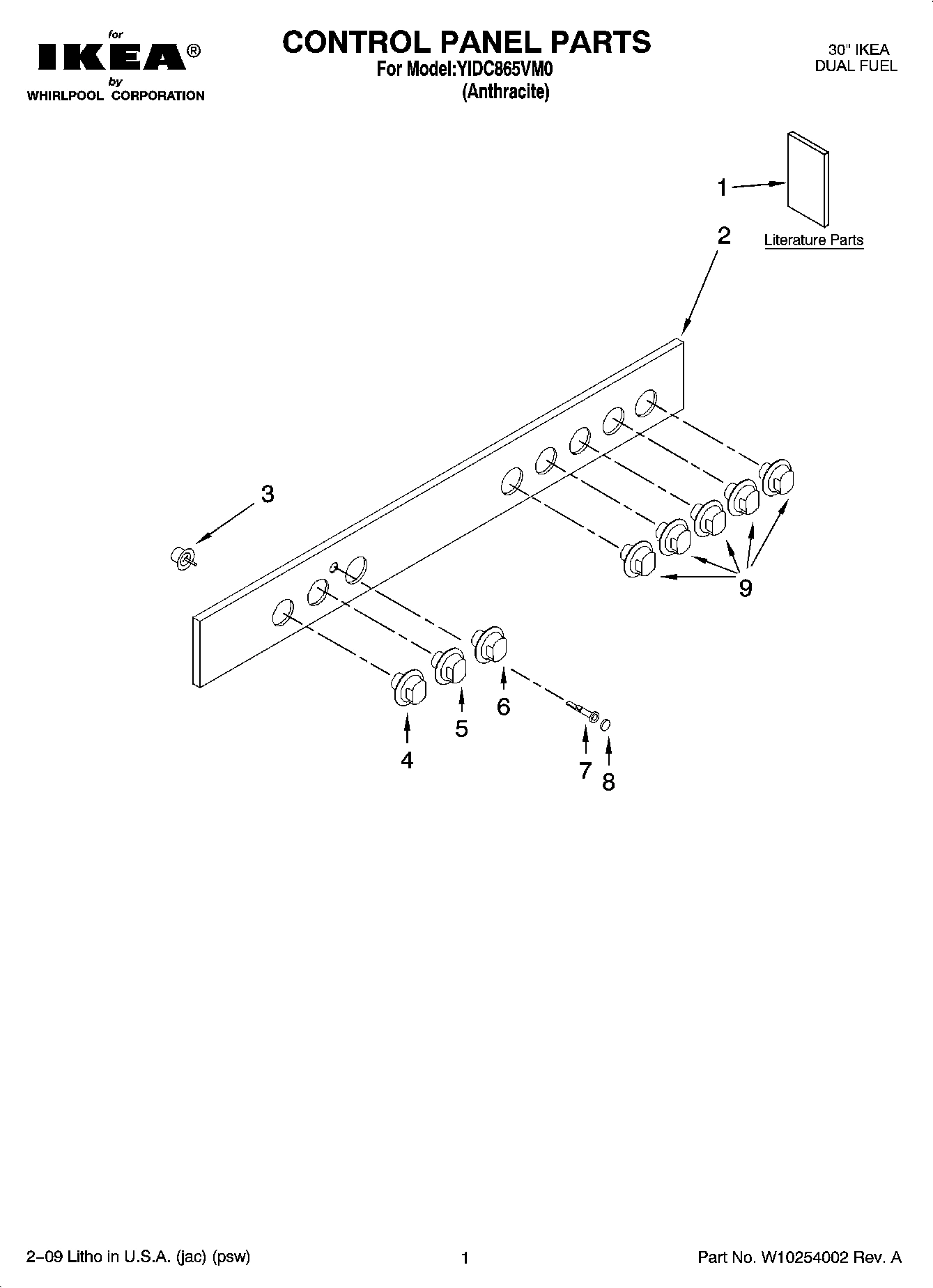

01 - CONTROL PANEL PARTS

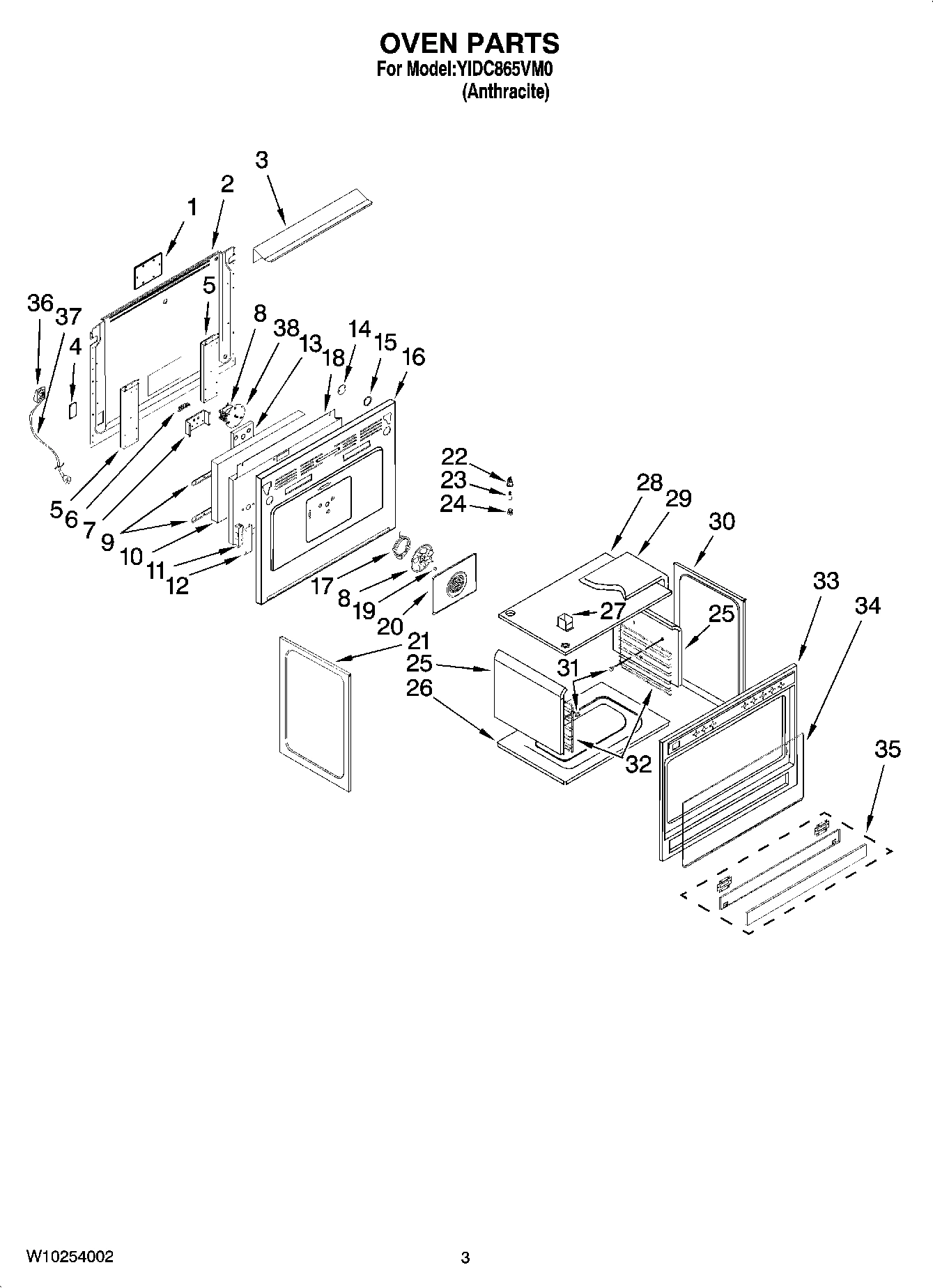

03 - OVEN PARTS
Common parts from model Whirlpool YIDC865VM0 30`` IKEA DUAL FUEL
Following Parts Not Illustrated WPL ARI136914A Contact Us For Availability
LP Kit WPL W10252734 Contact Us For Availability
Orifice NG 1.5 WPL W10253502 Contact Us For Availability
Orifice NG 1.2 (2) WPL W10253503 Contact Us For Availability
Orifice NG 0.9 WPL W10253504 Contact Us For Availability
Orifice NG 1.55 WPL W10253505 Contact Us For Availability
1
Cap, Burner-Rapid WPL W10204400 Contact Us For Availability
1
Bracket, Mounting WPL W10250633 Contact Us For Availability
1
Bracket, Element WPL W10202952 Contact Us For Availability
1
Support, Burner WPL W10250318 Contact Us For Availability
1
Owners Manual WPL W10253498 Contact Us For Availability
1
Tech Sheet WPL W10253501 Contact Us For Availability
1
Cover, Terminal WPL W10250220 Contact Us For Availability
2
Element, Broil WPL W10204055 Contact Us For Availability
2
Panel, Control WPL W10251101 Contact Us For Availability
2
Cover, Rear WPL W10202951 Contact Us For Availability
3
Duct, Air WPL W10250322 Contact Us For Availability
3
Rack, Oven WPL W10204402 Contact Us For Availability
3
Tubing, Gas-LR WPL W10204071 Contact Us For Availability
3
SUPPORT WPL W10250320 Contact Us For Availability
4
Glass, Outer Asy WPL W10245759 Contact Us For Availability
4
Clip, Igniter WPL W10250249 Contact Us For Availability
4
Gasket WPL W10250891 Contact Us For Availability
4
Rack, Oven WPL W10204407 Contact Us For Availability
4
Base, Burner (2) WPL W10204301 Contact Us For Availability
4
Knob, Timer WPL W10245735 Contact Us For Availability
4
Cover, Access WPL W10250251 Contact Us For Availability
5
Clip, Spring (Spring (8)) WPL W10250223 Contact Us For Availability
5
Clip, Spring (Double Clip (2)) WPL W10250224 Contact Us For Availability
5
Clip, Spring (Small Double (2)) WPL W10250826 Contact Us For Availability
5
Cap, Brnr-Semi Rap WPL W10204401 Contact Us For Availability
5
Tray, Drip WPL W10204409 Contact Us For Availability
5
Igniter, TCB WPL W10204406 Contact Us For Availability
5
Knob, Functions WPL W10245734 Contact Us For Availability
5
Duct, Air (Right) WPL W10250631 Contact Us For Availability
5
Duct, Air (Left) WPL W10250632 Contact Us For Availability
6
Burner, Semi-Rapid WPL W10204045 Contact Us For Availability
6
Element, Bake WPL W10204054 Contact Us For Availability
6
Knob, Thermostat WPL W10251102 Contact Us For Availability
6
Block, Terminal WPL W10204066 Contact Us For Availability
7
Cover, Roller WPL W10205085 Contact Us For Availability
7
Cap, Small TCB WPL W10205091 Contact Us For Availability
7
Tray, Bake Element WPL W10250216 Contact Us For Availability
7
Tubing, Gas-LF WPL W10204069 Contact Us For Availability
7
Light, Indicator WPL W10250213 Contact Us For Availability
7
Bracket, Mounting WPL W10205086 Contact Us For Availability
8
Roller, Hinge WPL W10204408 Contact Us For Availability
8
Cap, Large TCB WPL W10205090 Contact Us For Availability
8
Shield, Heat WPL W10250218 Contact Us For Availability
8
Support, Burner WPL W10250313 Contact Us For Availability
8
Lens, Light WPL W10250215 Contact Us For Availability
8
Motor, Fan-Assy WPL W10202965 Contact Us For Availability
9
Hinge, Door WPL W10202961 Contact Us For Availability
9
Clamp, Wire WPL W10250226 Contact Us For Availability
9
Tubing, Gas-RR WPL W10204070 Contact Us For Availability
9
Knob, Burner WPL W10245757 Contact Us For Availability
9
Brace (4) WPL W10250624 Contact Us For Availability
10
Support, Bttm Rght WPL W10250228 Contact Us For Availability
10
Bracket, Support WPL W10250248 Contact Us For Availability
10
Base, Burner-Aux WPL W10204300 Contact Us For Availability
10
INSULATION WPL W10250219 Contact Us For Availability
11
Spacer, Handle WPL W10204297 Contact Us For Availability
11
Cap, Burner-Aux WPL W10204399 Contact Us For Availability
11
Tubing, Gas-CTR WPL W10250210 Contact Us For Availability
11
Module, Spark WPL W10204065 Contact Us For Availability
12
Handle, Door WPL W10250208 Contact Us For Availability
12
Burner, Auxiliary WPL W10204047 Contact Us For Availability
12
Tubing, Gas-RF WPL W10204068 Contact Us For Availability
12
Bracket, Mounting WPL W10250243 Contact Us For Availability
13
Spacer (Glass) WPL W10250246 Contact Us For Availability
13
Spacer (Handle) WPL W10250247 Contact Us For Availability
13
Grate, Burner (2) WPL W10202963 Contact Us For Availability
13
Foot (4) WPL W10250206 Contact Us For Availability
13
Switch, Oven WPL W10204064 Contact Us For Availability
13
INSULATION WPL W10250230 Contact Us For Availability
14
Grate, Burner WPL W10202962 Contact Us For Availability
14
Bottom, Main WPL W10250217 Contact Us For Availability
14
Thermostat, Oven WPL W10202967 Contact Us For Availability
14
Cover, Access WPL W10250627 Contact Us For Availability
15
Brace, Rear WPL W10250974 Contact Us For Availability
15
Handle (Pan, Little) WPL W10250831 Contact Us For Availability
15
Handle (Tray, Drip) WPL W10250832 Contact Us For Availability
15
Valve, Gas-LF, RR WPL W10203801 Contact Us For Availability
15
Seal, Rear WPL W10250242 Contact Us For Availability
16
COOKTOP WPL W10245753 Contact Us For Availability
16
Liner, Back WPL W10205082 Contact Us For Availability
17
Thermostat - 60C WPL W10204052 Contact Us For Availability
17
Valve, Gas-CTR WPL W10204295 Contact Us For Availability
17
Element, Convction WPL W10202964 Contact Us For Availability
18
Panel, Rear Wall WPL W10250830 Contact Us For Availability
19
Support, Cooktop (Left) WPL W10250319 Contact Us For Availability
19
Support, Cooktop (Right) WPL W10250321 Contact Us For Availability
19
Support, Cooktop (Rear (2)) WPL W10251104 Contact Us For Availability
19
Harness, Switch WPL W10204304 Contact Us For Availability
19
Nut M5 WPL W10250250 Contact Us For Availability
20
Bracket, Thermstat WPL W10250620 Contact Us For Availability
20
Grate, Coffee WPL W10250822 Contact Us For Availability
20
Cover, Fan WPL W10202966 Contact Us For Availability
21
Igniter, Surface WPL W10250835 Contact Us For Availability
21
Thermostat - 130C WPL W10204053 Contact Us For Availability
21
Side, Left WPL W10245737 Contact Us For Availability
22
Gasket, Igniter WPL W10250892 Contact Us For Availability
22
WASHER WPL W10250222 Contact Us For Availability
22
Socket, Light WPL W10204404 Contact Us For Availability
23
Tubing, Gas WPL W10250244 Contact Us For Availability
23
Bulb, Light WPL W10204403 Contact Us For Availability
24
Clip, Spring WPL W10250245 Contact Us For Availability
24
Lens, Light WPL W10250212 Contact Us For Availability
25
Pipe, Manifold WPL W10255330 Contact Us For Availability
25
Side, Oven (2) WPL W10205079 Contact Us For Availability
26
Bracket, Mounting WPL W10250324 Contact Us For Availability
26
Bottom, Oven WPL W10250205 Contact Us For Availability
27
Fitting, Gas WPL W10205089 Contact Us For Availability
27
Box, Wiring WPL W10250221 Contact Us For Availability
28
REGULATOR WPL W10204056 Contact Us For Availability
28
Top, Oven WPL W10202953 Contact Us For Availability
29
Bracket, Valve WPL W10250323 Contact Us For Availability
29
INSULATION WPL W10205084 Contact Us For Availability
30
SCREW WPL W10250315 Contact Us For Availability
30
Side, Right WPL W10245738 Contact Us For Availability
31
Support, Burner WPL W10250317 Contact Us For Availability
31
Clamp, Rack Supprt WPL W10250227 Contact Us For Availability
32
Support, Rack WPL W10250225 Contact Us For Availability
33
Frame, Front WPL W10202954 Contact Us For Availability
34
Gasket, Door WPL W10250211 Contact Us For Availability
35
Panel, Outer Drwr WPL W10245754 Contact Us For Availability
36
Board, Terminal WPL W10251100 Contact Us For Availability
37
Cord, Power WPL W10251113 Contact Us For Availability
38
Bracket, Fan Mtr WPL W10250231 Contact Us For Availability
× ![]()
