Model Whirlpool YGY397LXUB03 30`` Slide-In Electric Range – Common Parts & Diagrams
01 - COOKTOP PARTS
04 - DOOR PARTS

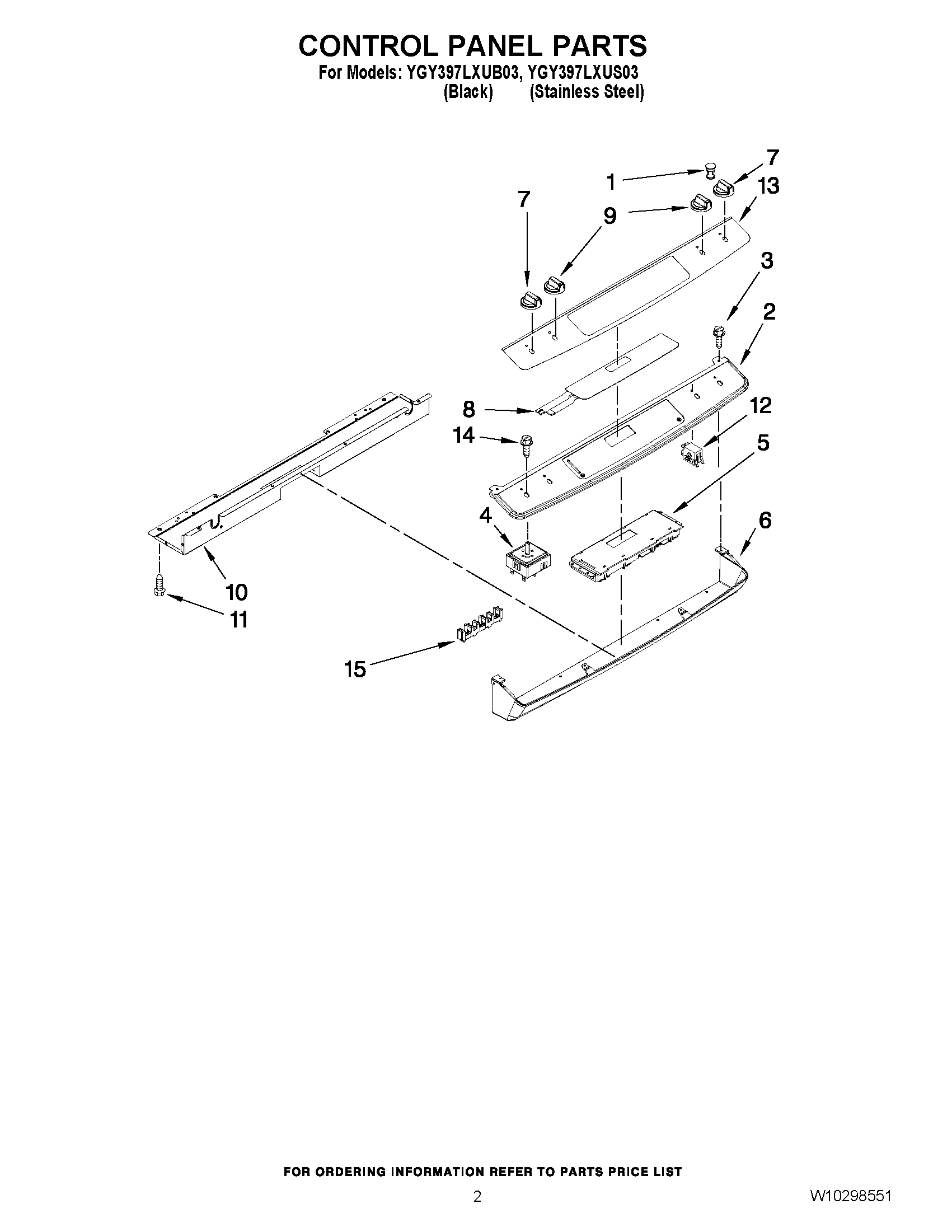

02 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

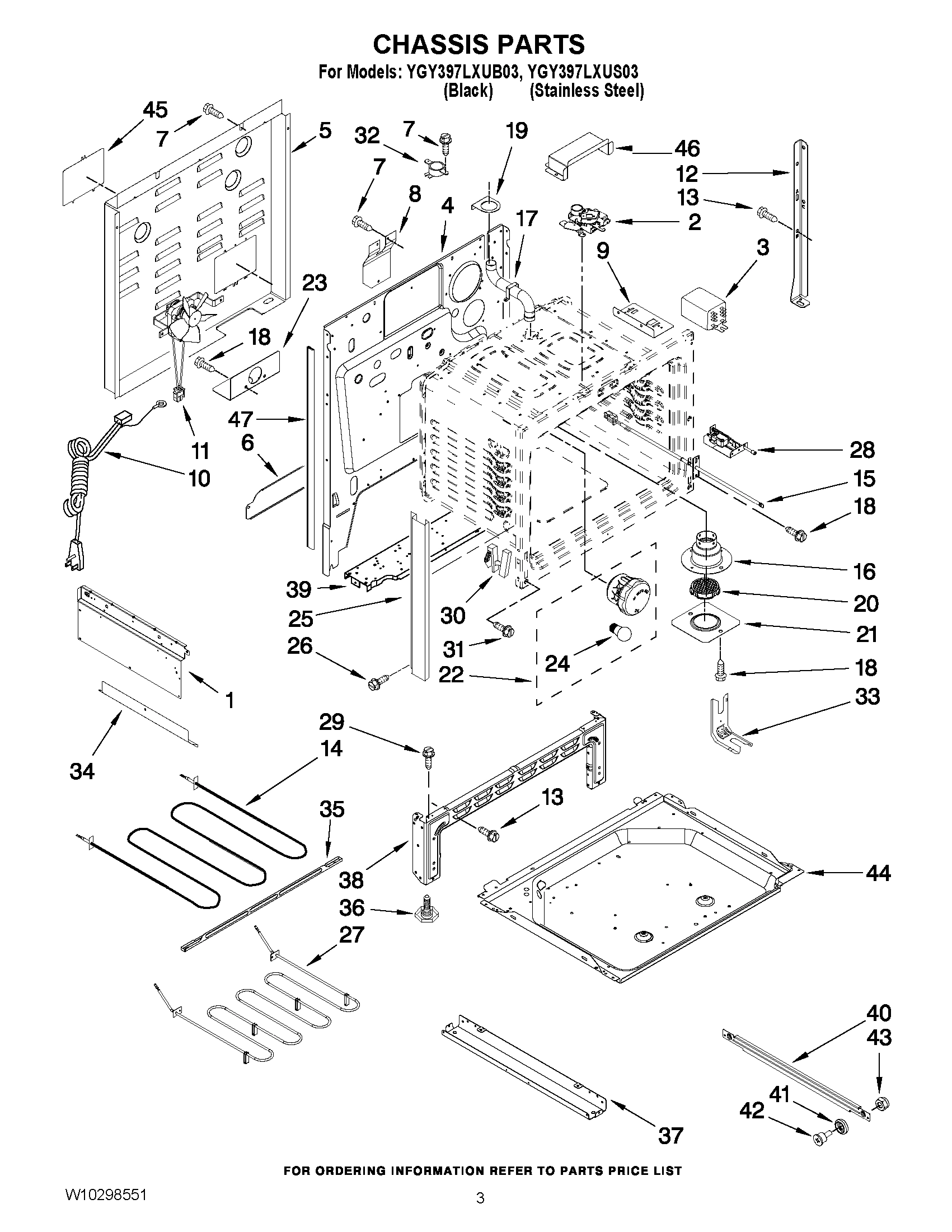

03 - CHASSIS PARTS

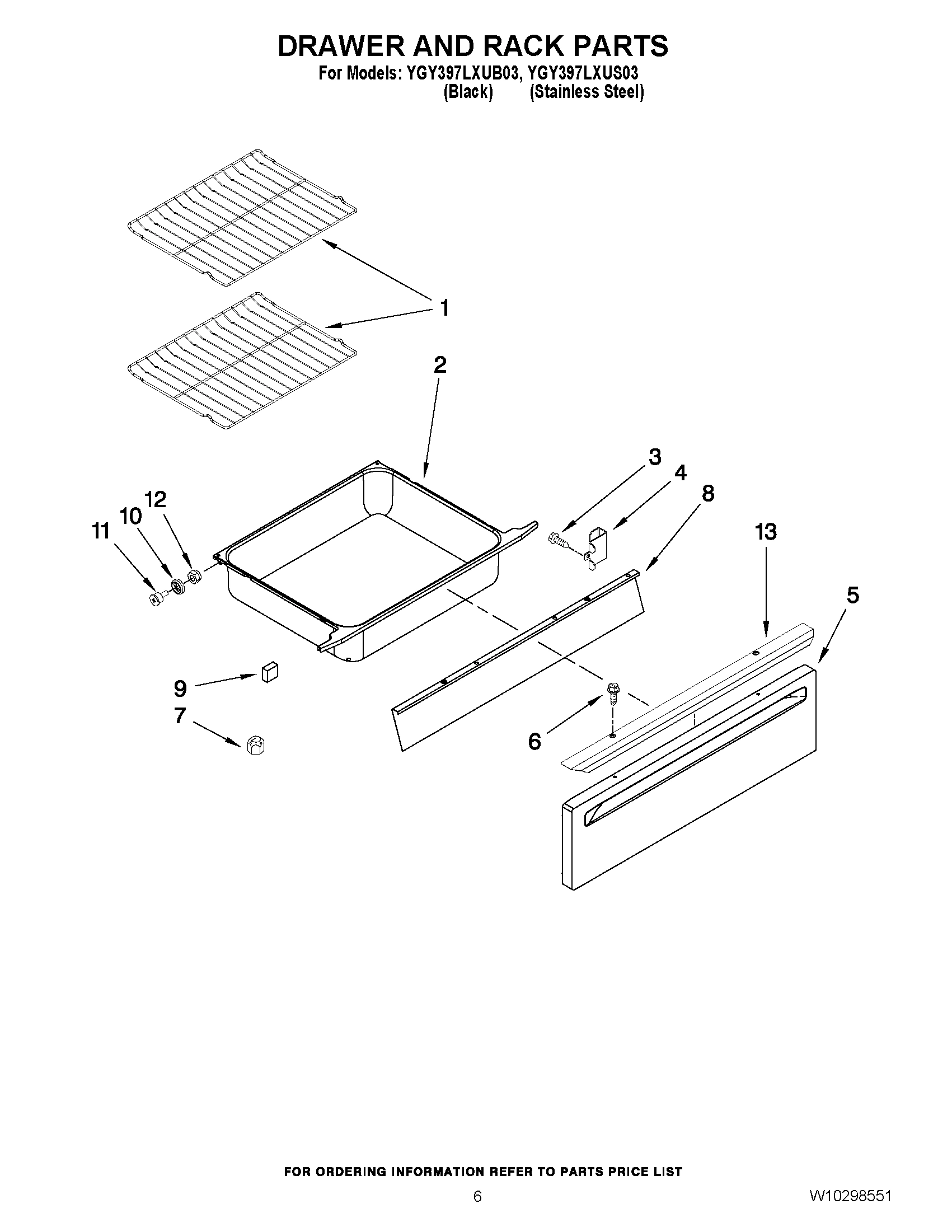

05 - DRAWER AND RACK PARTS
Common parts from model Whirlpool YGY397LXUB03 30`` Slide-In Electric Range
1
LENS WPL 7730P03160 Contact Us For Availability
1
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
1
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
2
COOKTOP WPL W10170210 Contact Us For Availability
2
Panel, Control (Black) WPL 7720P53560 Contact Us For Availability
2
PANEL, CONTROL (STAINLESS) WPL W10182766 Contact Us For Availability
2
LATCH ASSEMBLY WPL 8002P09860 Contact Us For Availability
2
Drawer, Storage WPL 3405F03380 Contact Us For Availability
3
Screw WPL 7101P07760 Contact Us For Availability
3
RELAY, AUX WPL 7428P08260 Contact Us For Availability
3
Screw, Panel WPL 7101P07260 Contact Us For Availability
4
SWITCH, INFINTE 6`` (LF,RR) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINTE (8`` (RF,LR)) WPL 7450P01160 Contact Us For Availability
4
Main Back WPL 3804F31351 Contact Us For Availability
4
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
5
PANEL, DRAWER (STAINLESS) WPL W10253205 Contact Us For Availability
5
CONTROL WPL 8507P39060 Contact Us For Availability
5
Cover, Main Wire WPL 4005F81051 Contact Us For Availability
5
Panel, Drawer (Black) WPL 2416F05970 Contact Us For Availability
6
Panel,Control(LWR) WPL W10185606 Contact Us For Availability
6
Extension, Back WPL 3826F06651 Contact Us For Availability
6
Screw, Panel WPL 7101P63460 Contact Us For Availability
7
KNOB (LF,RR) WPL 7737P41460 Contact Us For Availability
7
Nut, Lock WPL 7103P13960 Contact Us For Availability
8
Insulator, Cord WPL 7003P10160 Contact Us For Availability
8
Lining, Drawer WPL 2404F03051 Contact Us For Availability
9
KNOB (RF,LR) WPL 7737P41760 Contact Us For Availability
9
SUPPORT, SPARK MODULE WPL 3807F75245 Contact Us For Availability
9
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F76951 Contact Us For Availability
10
CORD, POWER WPL W10221103 Contact Us For Availability
11
Fan, Cooling WPL 7427P09460 Contact Us For Availability
11
Shaft, Roller WPL 7118P03260 Contact Us For Availability
12
Light, Indicator WPL 7407P13660 Contact Us For Availability
12
SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability
12
Nut WPL 7103P08260 Contact Us For Availability
13
OVERLAY (SS MODEL ONLY) WPL W10279070 Contact Us For Availability
13
HANDLE, DRAWER STAINLESS MODEL WPL W10180296 Contact Us For Availability
14
SCREW WPL 7101P67660 Contact Us For Availability
15
SCREW WPL 7101P20860 Contact Us For Availability
15
Sensor, Oven WPL 7430P04260 Contact Us For Availability
16
Trim, Door Bottom WPL 3807F70870 Contact Us For Availability
16
Tube, Vent Lower WPL 8026P09660 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63360 Contact Us For Availability
17
Tube, Vent Upper WPL 8026P08560 Contact Us For Availability
18
SCREW WPL 7101P42660 Contact Us For Availability
19
PANEL, OUTER DOOR WPL 7902P81560 Contact Us For Availability
19
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
GLASS, DOOR (SS MODEL ONLY) WPL 7902P76860 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F34445 Contact Us For Availability
22
GLASS. OUTER DOOR (SS MODEL ONLY) WPL 7902P46860 Contact Us For Availability
22
Light Assembly WPL 7407P18260 Contact Us For Availability
23
NAMEPLATE, LOGO WPL W10175320 Contact Us For Availability
24
BULB-OVEN WPL 7407P10360 Contact Us For Availability
25
Trim, Side WPL 3608F13870 Contact Us For Availability
28
LIGHT SWITCH ASSEMBLY WPL 7450P10960 Contact Us For Availability
29
Screw WPL 7101P43460 Contact Us For Availability
30
HINGE WPL 7106P14160 Contact Us For Availability
31
SCREW, HINGE WPL 7101P33660 Contact Us For Availability
32
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
33
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
34
Extention, Shield WPL 3826F06451 Contact Us For Availability
35
Support, Element WPL 3807F49445 Contact Us For Availability
36
Leg, Leveling WPL 7101P66060 Contact Us For Availability
37
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
38
PEDESTAL, FRONT WPL W10271711 Contact Us For Availability
39
Support WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
41
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
43
Nut, Lock WPL 7103P19060 Contact Us For Availability
44
Retainer, Bottom WPL 3804F23151 Contact Us For Availability
45
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
46
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
47
GUARD, EDGE WPL W10183566 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
U3, HARNESS (RT) WPL 5171P55060 Contact Us For Availability
NI
COIL,HARNESS (LT) WPL 5171P55760 Contact Us For Availability
NI
Harness,Sensor WPL 5171P56060 Contact Us For Availability
NI
Harness, Top WPL 5171P97460 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
HARNESS, MAIN WPL W10161860 Contact Us For Availability
NI
RETAINER, WRAP WPL 3804F28951 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
× ![]()
