Model Whirlpool YGH7155XHS1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
03 - CABINET PARTS
04 - MAGNETRON AND AIR FLOW PARTS

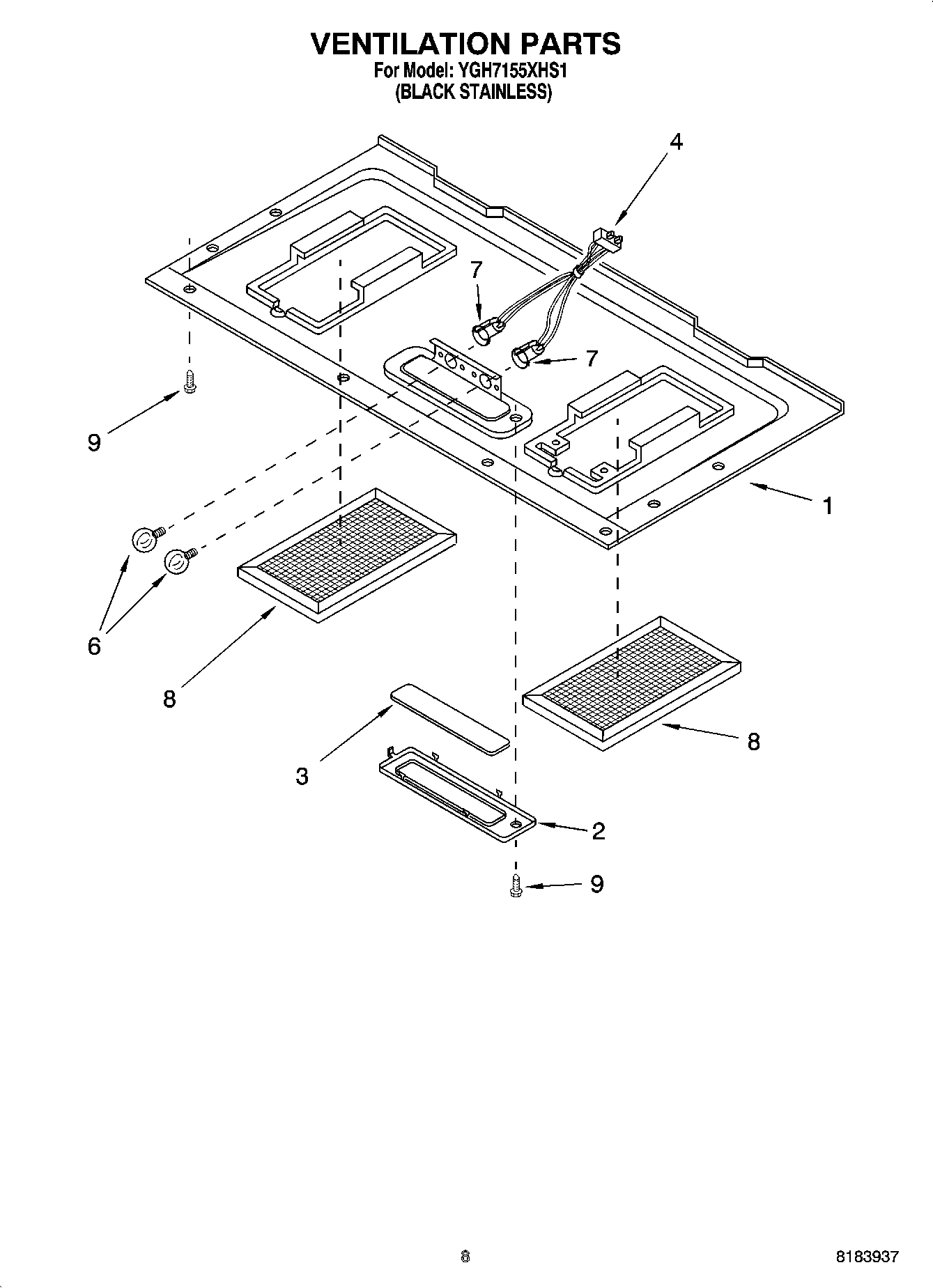

07 - VENTILATION PARTS
02 - DOOR PARTS

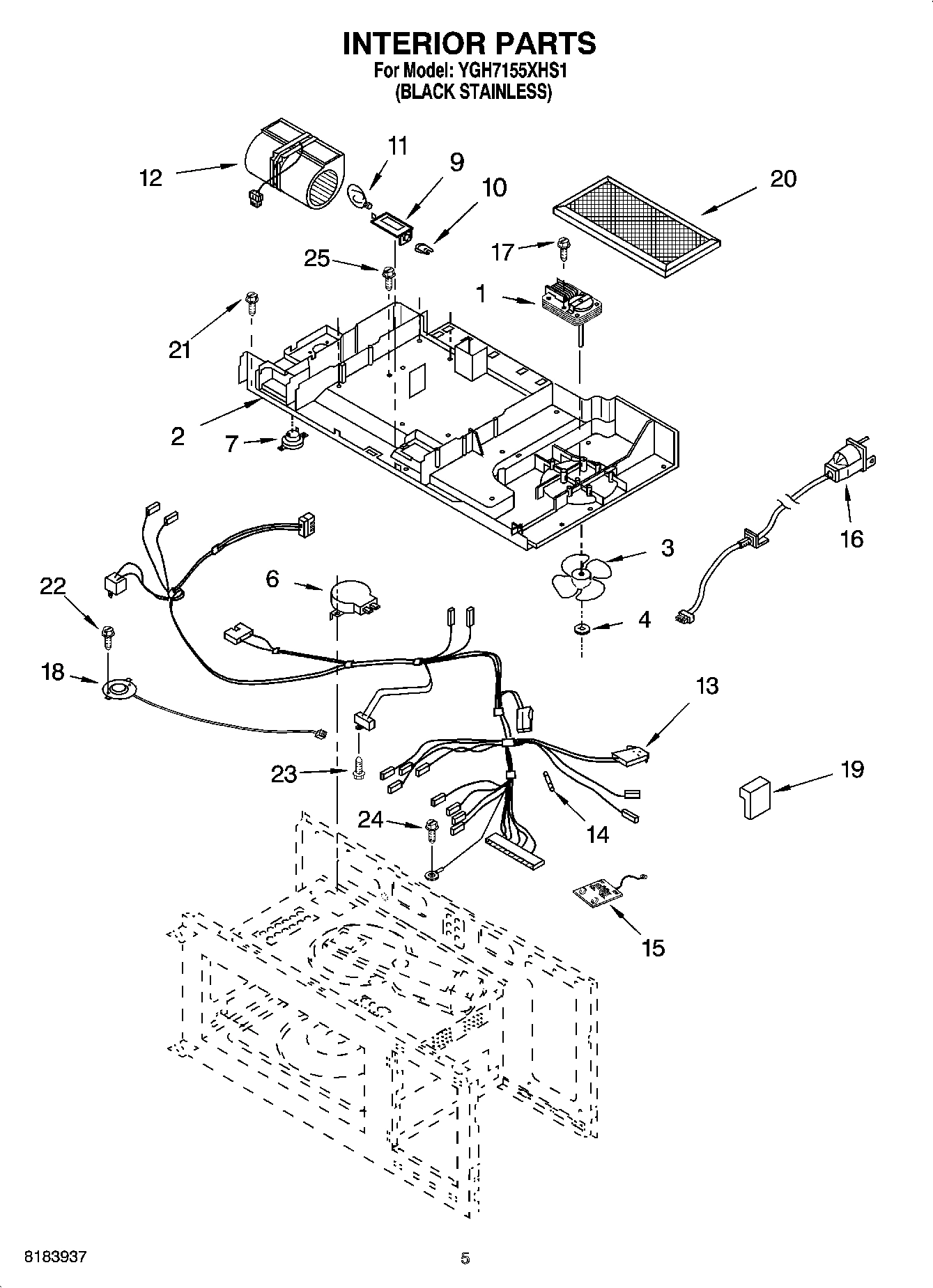

05 - INTERIOR PARTS

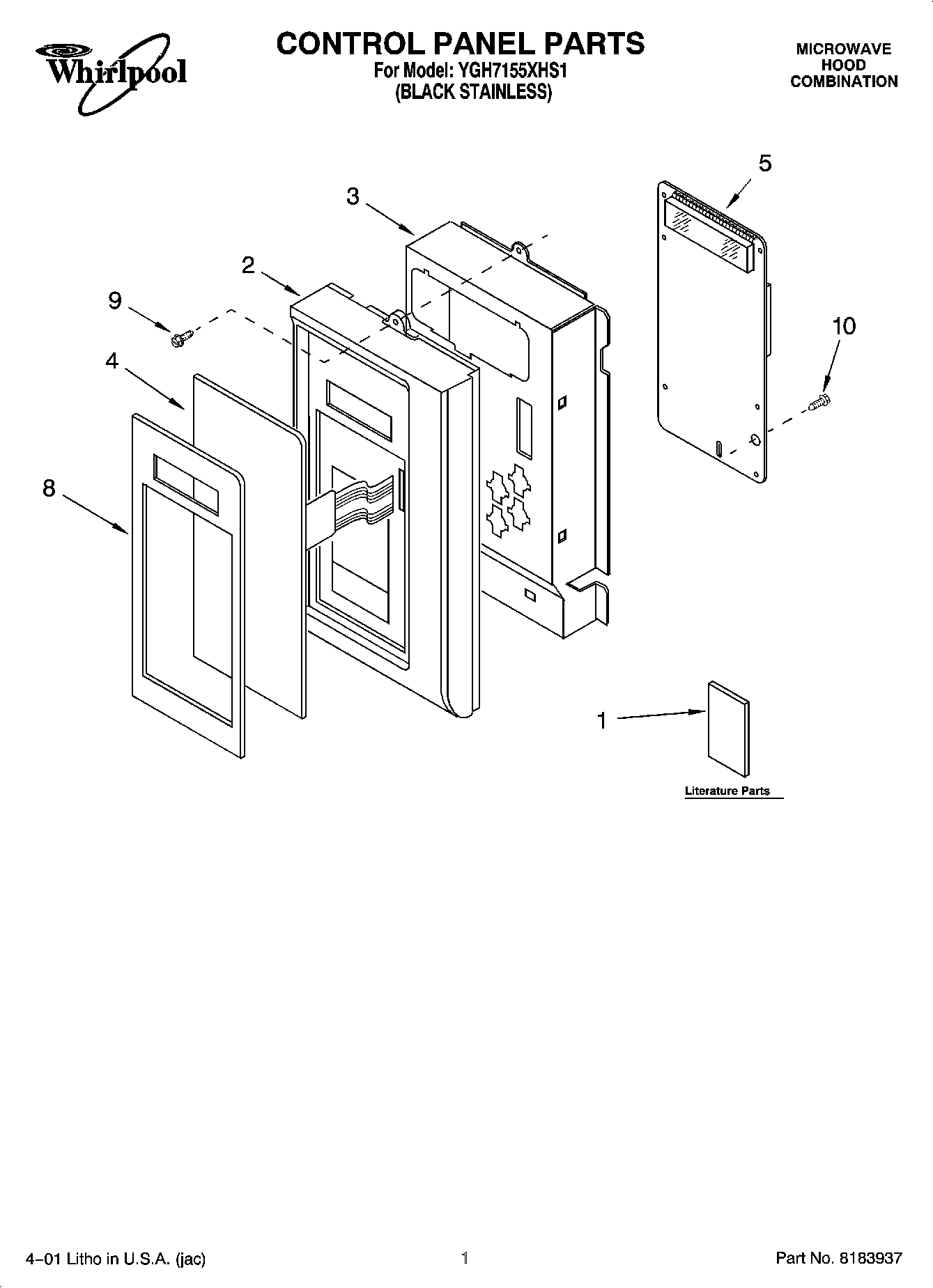

01 - CONTROL PANEL PARTS

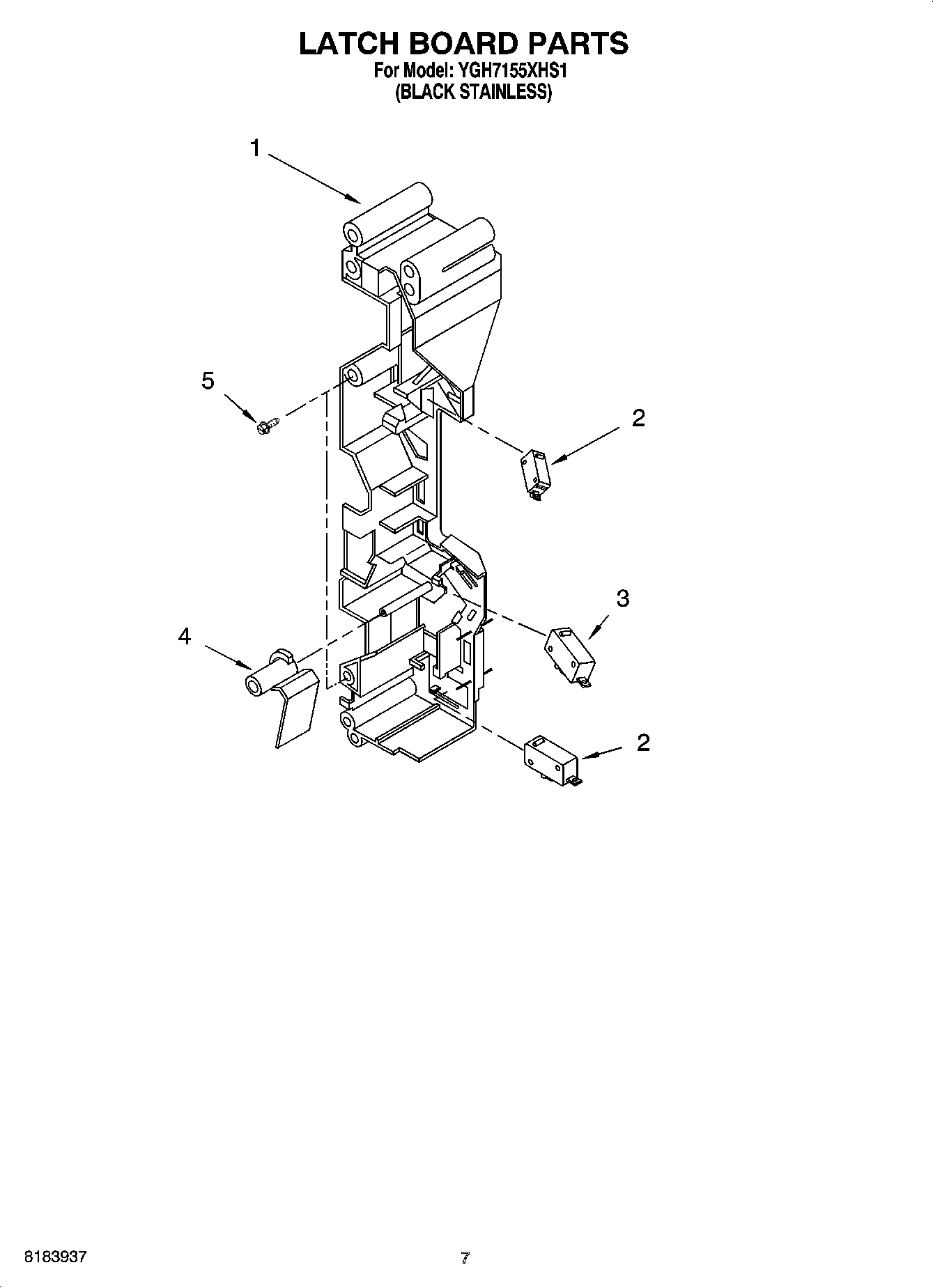

06 - LATCH BOARD PARTS

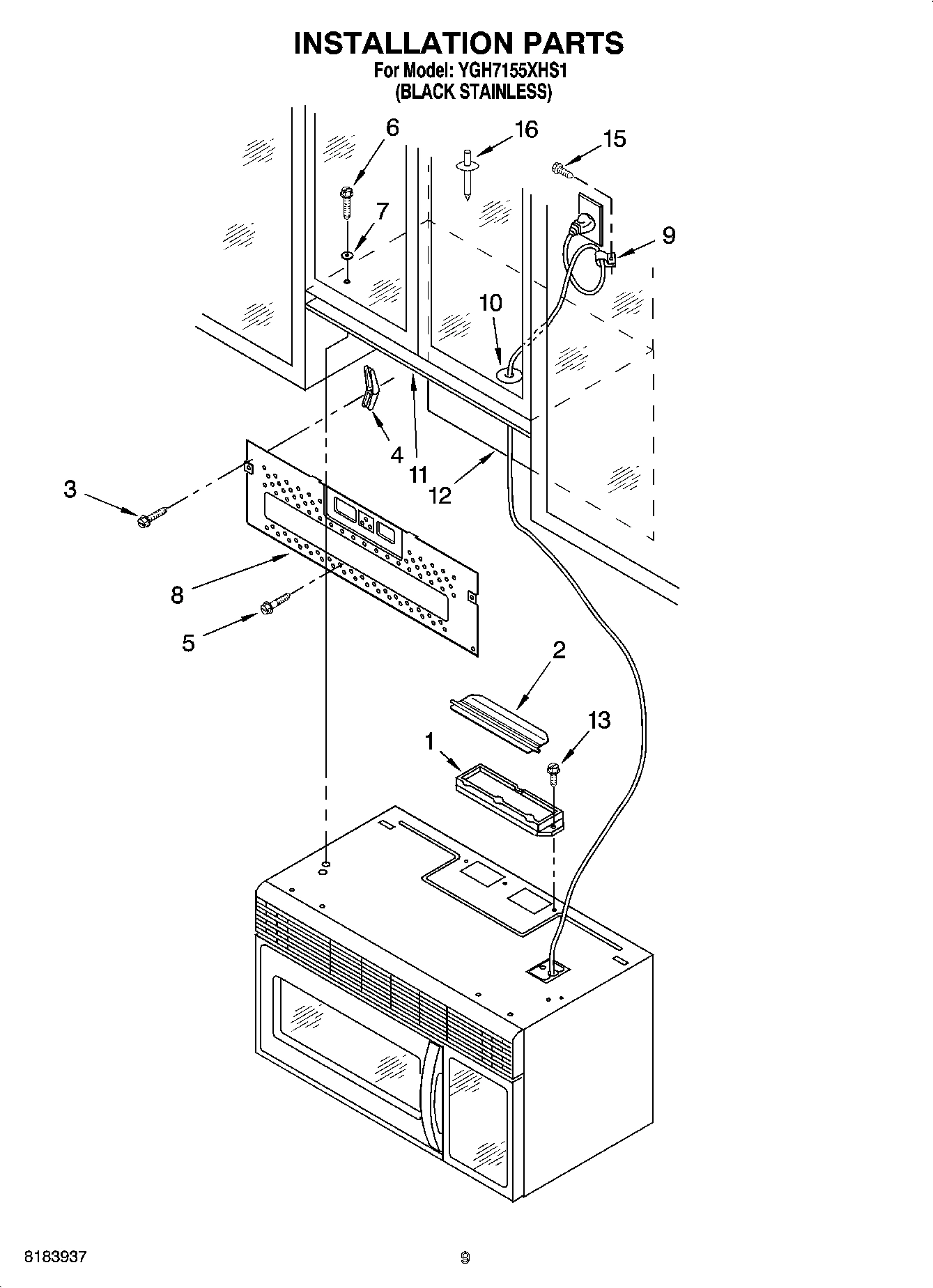

08 - INSTALLATION PARTS
Common parts from model Whirlpool YGH7155XHS1 MICROWAVE HOOD COMBINATION
1
Base Plate WPL 8183978 Contact Us For Availability
1
Door Assembly WPL 8171847 Contact Us For Availability
1
Motor, Fan WPL 4359511 Contact Us For Availability
1
Literature Parts (Cookbook (English)) WPL LIT4359076 Contact Us For Availability
1
Literature Parts (Cookbook (French)) WPL LIT4359077 Contact Us For Availability
1
Literature Parts (Guide, Cooking (English)) WPL LIT4359969 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT4359994 Contact Us For Availability
1
Literature Parts (Guide, Cooking (French)) WPL LIT4359995 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8171839 Contact Us For Availability
1
Literature Parts (Instructions, Installation WPL LIT8171840 Contact Us For Availability
1
Literature Parts (Instructions, Installation WPL LIT8171974 Contact Us For Availability
1
Board, Latch WPL 8171866 Contact Us For Availability
1
Exhaust Adapter WPL 4158541 Contact Us For Availability
2
H.V. Transformer WPL 8183972 Contact Us For Availability
2
Bracket WPL 4359527 Contact Us For Availability
2
Frame, Door WPL 8183976 Contact Us For Availability
2
Air Duct WPL 8171871 Contact Us For Availability
2
Control Panel WPL 8171853 Contact Us For Availability
2
Exhaust Damper WPL 4158319 Contact Us For Availability
3
Bracket, H.V. WPL 4359497 Contact Us For Availability
3
Glass, Cooktop Lamp WPL 4359528 Contact Us For Availability
3
Bracket, Control WPL 8171855 Contact Us For Availability
4
Push Nut WPL 4358055 Contact Us For Availability
4
Capacitor, H.V. WPL 8183536 Contact Us For Availability
4
Lead Wire Assy WPL 4359529 Contact Us For Availability
4
Latch WPL 8171850 Contact Us For Availability
4
Key Membrane WPL 8171856 Contact Us For Availability
4
Lever Monitor WPL 4358795 Contact Us For Availability
4
Toggle Wing WPL 4158326 Contact Us For Availability
5
Base Thermostat WPL 4158368 Contact Us For Availability
5
Spring, Latch WPL 8183882 Contact Us For Availability
5
PCB Sub Assy. WPL 8171857 Contact Us For Availability
5
Screw WPL 4358051 Contact Us For Availability
5
Screw WPL 4158323 Contact Us For Availability
6
Motor, Turntable WPL 4359498 Contact Us For Availability
6
Panel, Door WPL 8171849 Contact Us For Availability
6
Motor, Synchronous WPL 4359515 Contact Us For Availability
6
Screw WPL 4158315 Contact Us For Availability
7
Plate WPL 8171868 Contact Us For Availability
7
Glass, Door WPL 8171851 Contact Us For Availability
7
Washer WPL 4158314 Contact Us For Availability
8
Seal, Water WPL 8171805 Contact Us For Availability
8
Handle, Door WPL 8171848 Contact Us For Availability
8
Cover, Front WPL 8171852 Contact Us For Availability
8
Plate, Mounting Wing WPL 4358924 Contact Us For Availability
9
Choke, Cover WPL 8171846 Contact Us For Availability
9
Cover WPL 4359964 Contact Us For Availability
9
Screw WPL 4358762 Contact Us For Availability
10
Lead Wire WPL 4359503 Contact Us For Availability
10
Lamp Holder WPL 4359518 Contact Us For Availability
10
Cover, Front WPL 8171845 Contact Us For Availability
10
Bushing WPL 4358012 Contact Us For Availability
11
Guide WPL 8171864 Contact Us For Availability
11
Screw WPL 4358188 Contact Us For Availability
11
Sheet-Top Cabinet Template WPL 4359579 Contact Us For Availability
12
Cover WPL 8171869 Contact Us For Availability
12
Motor, Ventilation WPL 8171860 Contact Us For Availability
12
Sheet-Wall Template WPL 4359071 Contact Us For Availability
13
Holder WPL 8171870 Contact Us For Availability
13
Lead, Wire WPL 8183755 Contact Us For Availability
13
Screw WPL 4358381 Contact Us For Availability
14
Stirrer Fan WPL 8171872 Contact Us For Availability
15
Thermostat WPL 8183694 Contact Us For Availability
15
Filter, Noise WPL 4359200 Contact Us For Availability
16
Pin, Locking WPL 4358933 Contact Us For Availability
16
Power Cord WPL 8171875 Contact Us For Availability
17
Rotating Ring WPL 4359509 Contact Us For Availability
18
Turntable Shaft WPL 4359618 Contact Us For Availability
18
Sensor Assy. WPL 8171878 Contact Us For Availability
19
Filter, Choke WPL 4359624 Contact Us For Availability
20
Charcoal Filter WPL 4359331 Contact Us For Availability
20
Resistor, Cement WPL 8171858 Contact Us For Availability
22
Screw WPL 8171882 Contact Us For Availability
22
Screw WPL 4358376 Contact Us For Availability
23
Screw WPL 4358883 Contact Us For Availability
24
Installation Hardware WPL 4358404 Contact Us For Availability
24
Following Parts Not Illustrated WPL ARI136479A Contact Us For Availability
× ![]()
