Model Whirlpool YG208KA GAS DRYER – Common Parts & Diagrams

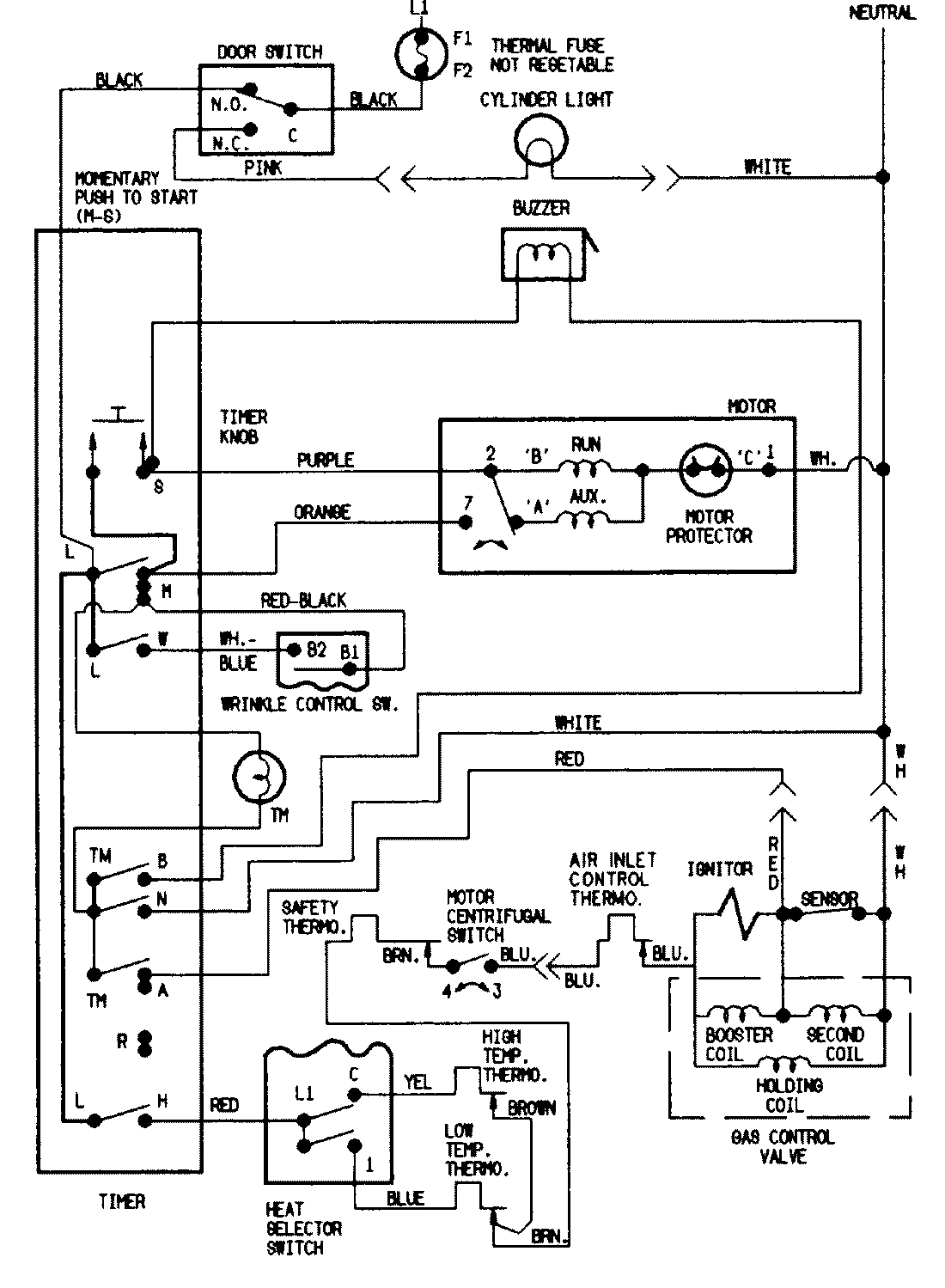

05 - WIRING INFORMATION

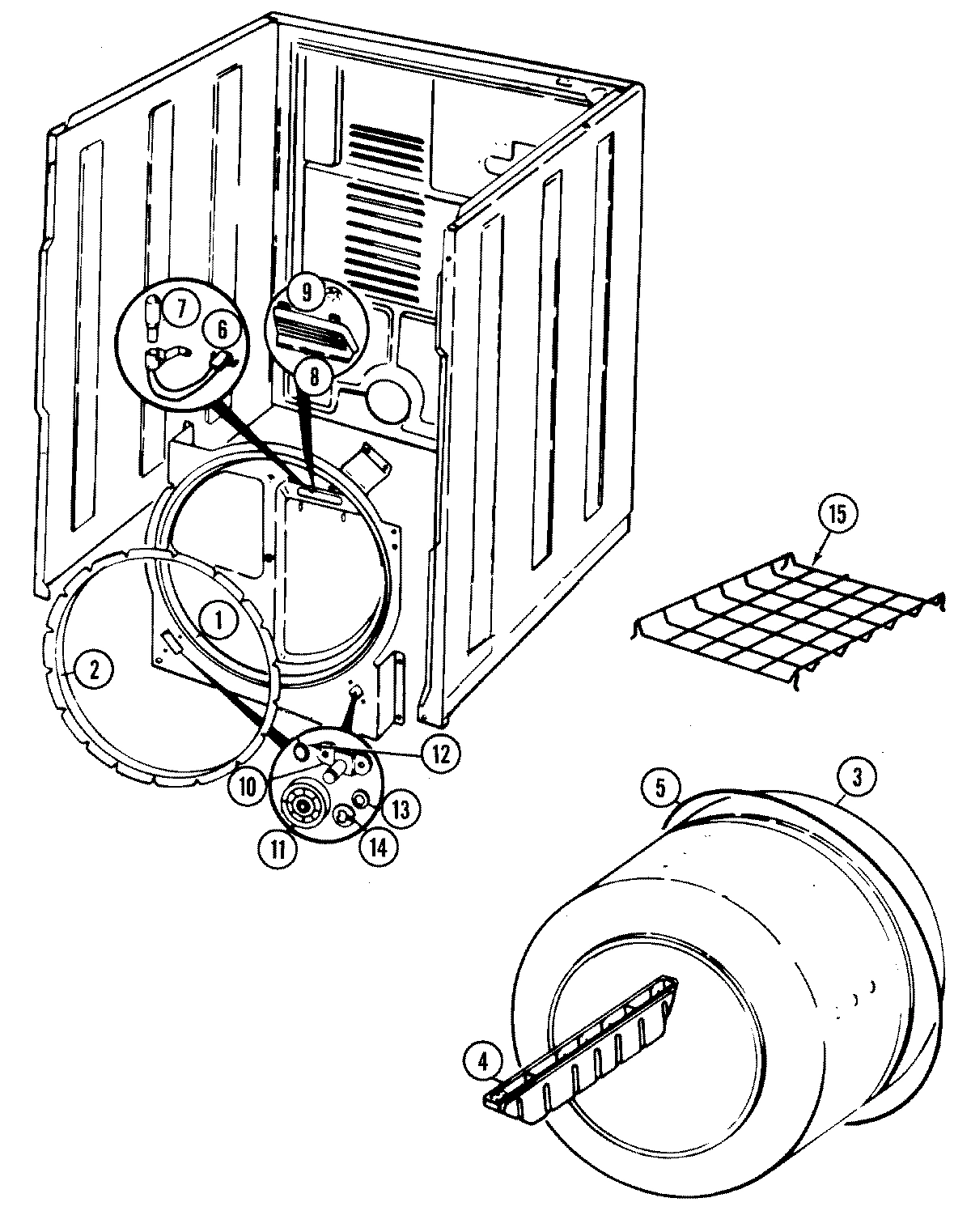

04 - TUMBLER
02 - GAS CARRYING
03 - MOTOR & DRIVE

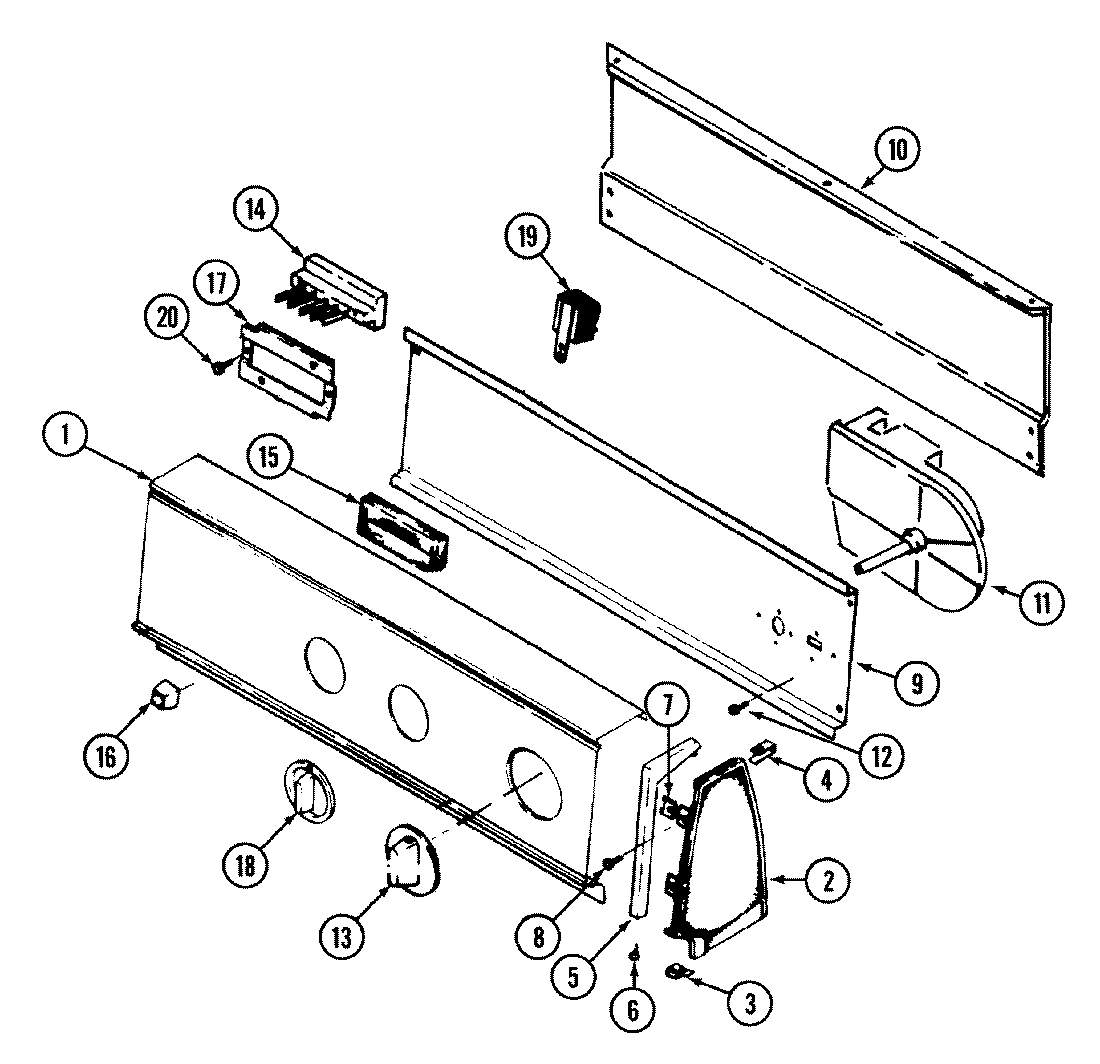

01 - CONTROL PANEL
Common parts from model Whirlpool YG208KA GAS DRYER
1
SCREW WPL 257733 Contact Us For Availability
1
BULKHEAD W/CYLINDER LIGHT WHT WPL 531709 Contact Us For Availability
1
UNION NUT WPL 606846 Contact Us For Availability
1
TAIL PIECE WPL 632098 Contact Us For Availability
1
GAS VALVE WPL 636786N Contact Us For Availability
1
LEG, LEVELING WPL 635834 Contact Us For Availability
1
PANEL, CONTROL WPL 532474 Contact Us For Availability
2
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW WPL 257496 Contact Us For Availability
2
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
SECONDARY COIL WPL 636614 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE, WHITE WPL 531249 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
SHIELD, WIRING WPL 531921 Contact Us For Availability
4
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
5
BELT, CYLINDER WPL 531589 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
5
END TRIM R.H. (BLK) WPL 532412 Contact Us For Availability
5
END TRIM L.H. (BLK) WPL 532413 Contact Us For Availability
6
BLADE-FAN WPL 531580 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
7
CYL LIGHT BULB WPL 530570 Contact Us For Availability
7
CLIP, WIRING WPL 253034 Contact Us For Availability
7
SCREW WPL 257744 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
7
SCREW WPL 257811 Contact Us For Availability
8
LENS, BULB WPL 530174 Contact Us For Availability
8
SHUTOFF VALVE WPL 530101 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
9
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
9
GAS PIPE WPL 530173 Contact Us For Availability
9
MAIN GAS LINE ASSY WPL 532362 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
SCREW WPL 257101 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
10
HOUSING, HEATER WPL 531884 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
11
CYL ROLLER WPL 531578 Contact Us For Availability
11
HEATER SUPPORT WPL 530139 Contact Us For Availability
11
SUPPORT, HEATER HOUSING WPL 532363 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
11
TIMER WPL 531816 Contact Us For Availability
12
SPACER WPL 257813 Contact Us For Availability
12
HI LMT TSTAT WPL 530143 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
12
SCREW WPL 257435 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
13
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
13
KNOB & SKIRT ASSY WPL 532501 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
14
CORD, POWER WPL 636259 Contact Us For Availability
14
BLOWER WHEEL WPL 530106 Contact Us For Availability
14
SWITCH, 5 PUSHBUTTON WPL 532416 Contact Us For Availability
15
RACK, DRYING WPL 530772 Contact Us For Availability
15
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
15
INLET AIR DUCT ASSY WPL 531706 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
PAD, SWITCH WPL 353394 Contact Us For Availability
16
WIRING CLIP WPL 253032 Contact Us For Availability
16
SCREW WPL 250168 Contact Us For Availability
16
THRMST-FIX WPL 531096 Contact Us For Availability
16
FUSE, THERMAL WPL 531182 Contact Us For Availability
16
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
17
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
17
SCREW WPL 257807 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
17
BRACKET, SWITCH WPL 336621 Contact Us For Availability
18
SCREW WPL 252134 Contact Us For Availability
18
CONVERSION KIT (LP-NAT) WPL 12001031 Contact Us For Availability
18
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
18
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
18
KNOB, SELECTOR WPL 353960 Contact Us For Availability
19
SCREW WPL 253092 Contact Us For Availability
19
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
19
BUZZER - ADJUSTABLE WPL 531666 Contact Us For Availability
20
SCREW WPL 257712 Contact Us For Availability
21
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
21
MANUAL, USE & CARE WPL 31001050 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
22
MANUAL, USE & CARE WPL 532489 Contact Us For Availability
23
COUNTERWEIGHT WPL 530645 Contact Us For Availability
23
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
24
SCREW WPL 257732 Contact Us For Availability
24
BRACKET WPL 530644 Contact Us For Availability
25
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
27
ROLLER WPL LA1008 Contact Us For Availability
28
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
33
STRAIN RELIEF WPL 257699 Contact Us For Availability
34
SCREW WPL 257674 Contact Us For Availability
× ![]()
