Model Whirlpool YE20HV3 ELECTRIC DRYER – Common Parts & Diagrams

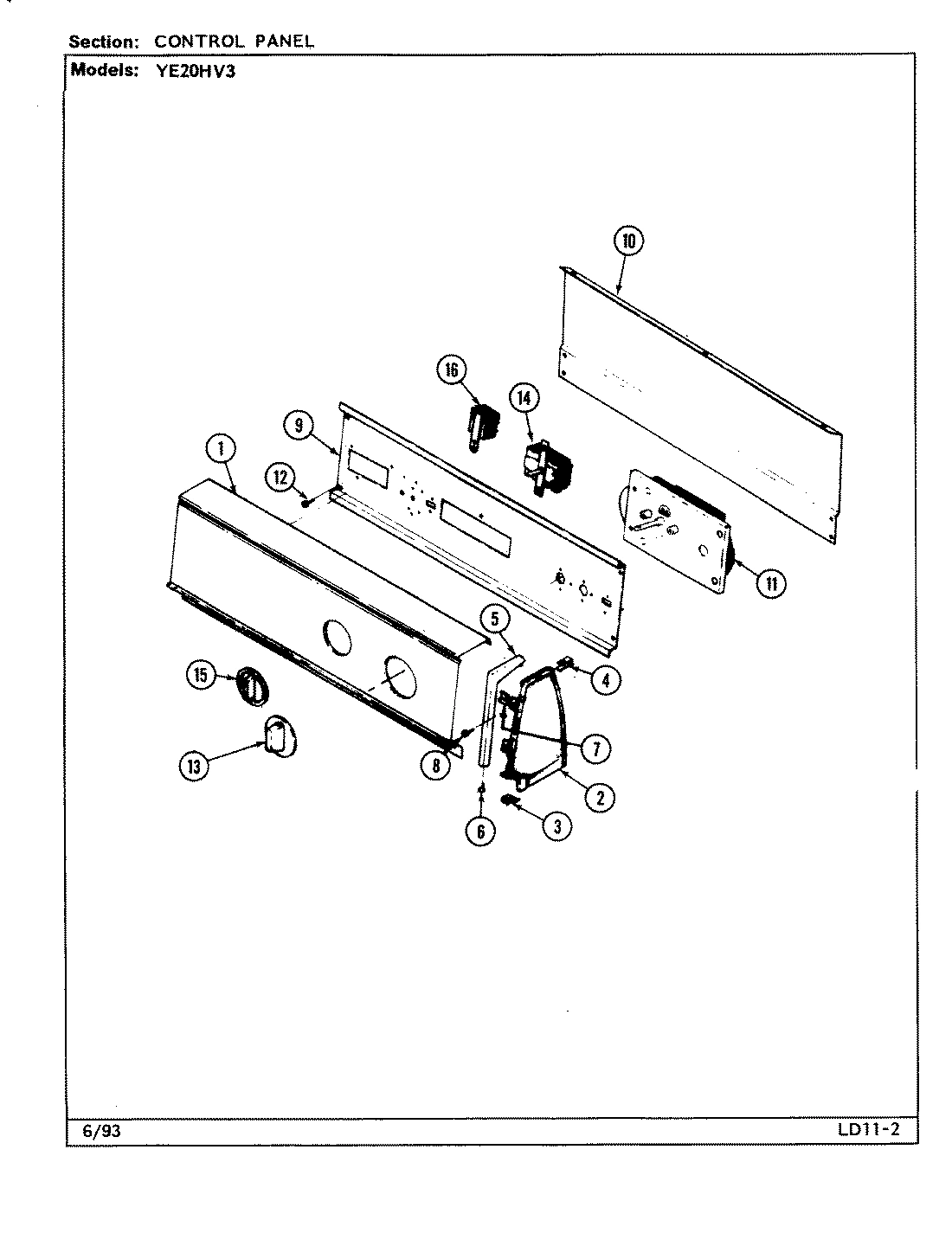

02 - CONTROL PANEL (YE20HV3)

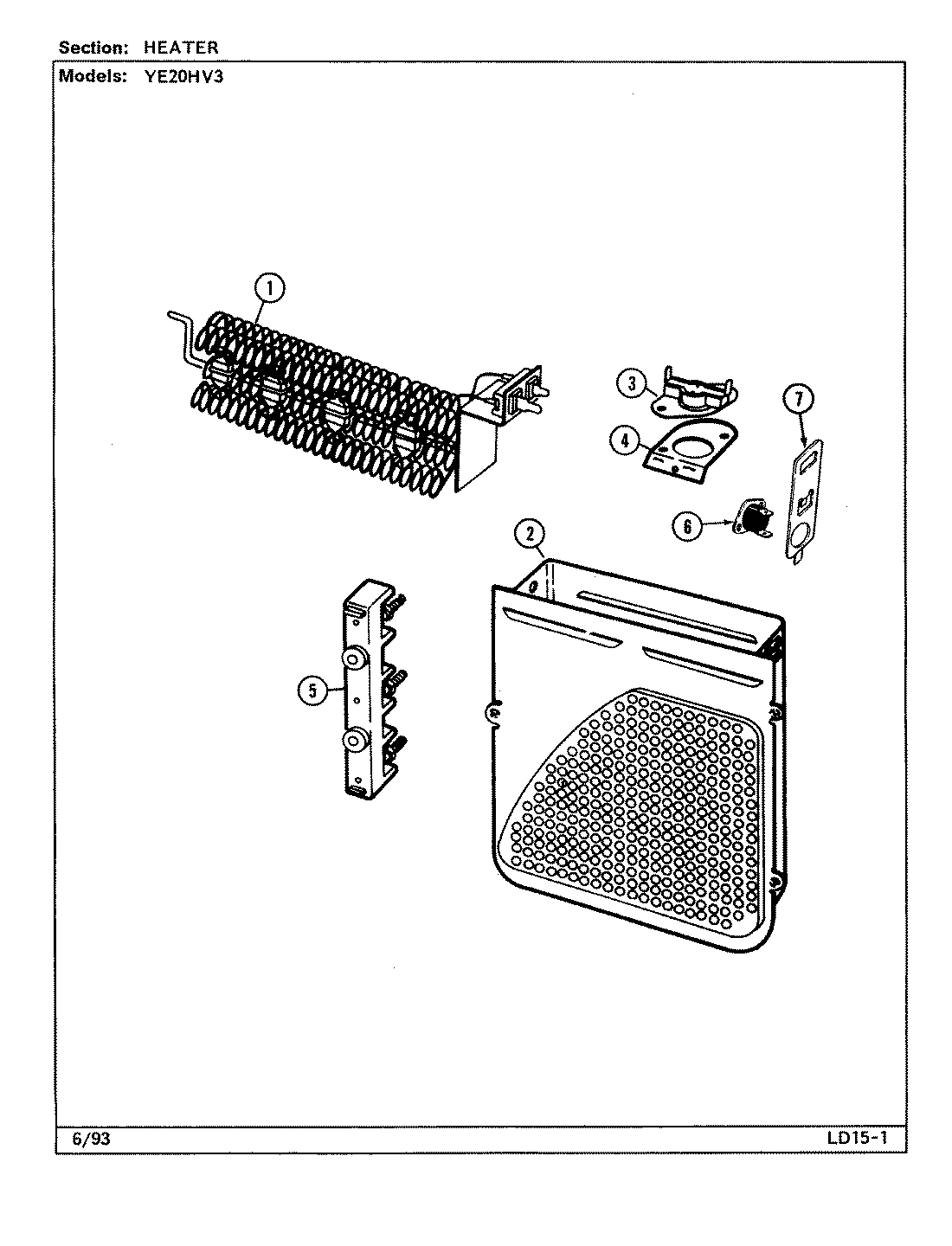

04 - HEATER (YE20HV3)
05 - MOTOR & DRIVE (YE20HV3)
01 - CABINET (YE20HV3)
03 - DOOR (YE20HV3)
06 - TUMBLER (YE20HV3)
Common parts from model Whirlpool YE20HV3 ELECTRIC DRYER
1
SCREW WPL 257863 Contact Us For Availability
1
HEATER ELEMENT WPL 530919 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
CABINET TOP (DRYER) WPL 531711 Contact Us For Availability
1
PANEL, FRONT (WHT)GAS WPL 530727 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
BULKHEAD W/CYLINDER LIGHT WHT WPL 531709 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
CAP, END (RT)(WHT) WPL 352668 Contact Us For Availability
2
CAP, END (LT)(WHT) WPL 352669 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
CABINET & BASE ASSY. (WHT) WPL 531644 Contact Us For Availability
2
CLIP, U-TYPE WPL 257817 Contact Us For Availability
2
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
2
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
4
SCREW WPL 257435 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
SCREW WPL 253092 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
PIN, LOCATOR WPL 636148 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE, WHITE WPL 531249 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
5
CYLINDER BELT WPL 531080 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
5
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
5
BELT, CYLINDER WPL 531589 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
FUSE, THERMAL WPL 531182 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
SCREW, SEMS WPL 253457 Contact Us For Availability
6
COLLECTOR DUCT WPL 531299 Contact Us For Availability
6
BLADE-FAN WPL 531580 Contact Us For Availability
7
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
SCREW WPL 257811 Contact Us For Availability
7
CYL LIGHT BULB WPL 530570 Contact Us For Availability
8
CLAMP, MOTOR WPL 530214 Contact Us For Availability
8
CLIP WPL 530123 Contact Us For Availability
8
LENS, BULB WPL 530174 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
9
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
9
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
10
SCREW WPL 257857 Contact Us For Availability
10
COVER, SUPPLY CORD WPL 530136 Contact Us For Availability
10
SCREW WPL 257101 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
11
TIMER WPL 531758 Contact Us For Availability
11
DUCT, EXHAUST WPL 530134 Contact Us For Availability
11
SHIELD, HEAT WPL 530133 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
11
CYL ROLLER WPL 530642 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
12
INNER PANEL WPL 530104 Contact Us For Availability
12
SPACER WPL 257813 Contact Us For Availability
13
TIMER KNOB & SKIRT WPL 531671 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
14
SWITCH, TEMPERATURE WPL 530344 Contact Us For Availability
14
BLOWER WHEEL WPL 530106 Contact Us For Availability
14
ROLLER WPL LA1008 Contact Us For Availability
14
PAD, DOOR WPL 530251 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
15
KNOB, SELECTOR (WHT) WPL 352673 Contact Us For Availability
15
CLAMP WPL 257823 Contact Us For Availability
15
PAD, DOOR WPL 530252 Contact Us For Availability
16
BUZZER ASSY. WPL 531639 Contact Us For Availability
16
RESISTOR ASSY. WPL 636743 Contact Us For Availability
16
RING, RETAINING WPL 257855 Contact Us For Availability
16
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
16
DOOR SEAL WPL 530112 Contact Us For Availability
17
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
17
MANUAL, USE & CARE WPL 532384 Contact Us For Availability
17
SCREW WPL 257807 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
17
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
18
MANUAL, USE & CARE WPL 531040 Contact Us For Availability
18
SCREW WPL 252134 Contact Us For Availability
18
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
18
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability
19
LH CYL GLIDE WPL 530185 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DOOR WPL 530122 Contact Us For Availability
20
RH GLD CUSHION WPL 530724 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
21
RH CYL GLIDE WPL 530183 Contact Us For Availability
21
STRIKE, DOOR WPL 730033 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
22
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
22
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
23
STRAIN RELIEF WPL 257699 Contact Us For Availability
23
SWITCH, DOOR WPL 530148 Contact Us For Availability
24
SCREW WPL 257674 Contact Us For Availability
24
CLIP, SWITCH WPL 635990 Contact Us For Availability
25
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
25
BUMPER, CABINET WPL 332653 Contact Us For Availability
26
PLUG, GAS ACCESS (WHT) WPL 530155 Contact Us For Availability
27
BUTTON, GAS ACCESS (WHT) WPL 530156 Contact Us For Availability
28
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
28
CYL SUPT REINFORCE BRACE KIT WPL LA2010 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
× ![]()
