Model Maytag YAES6603SFS1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

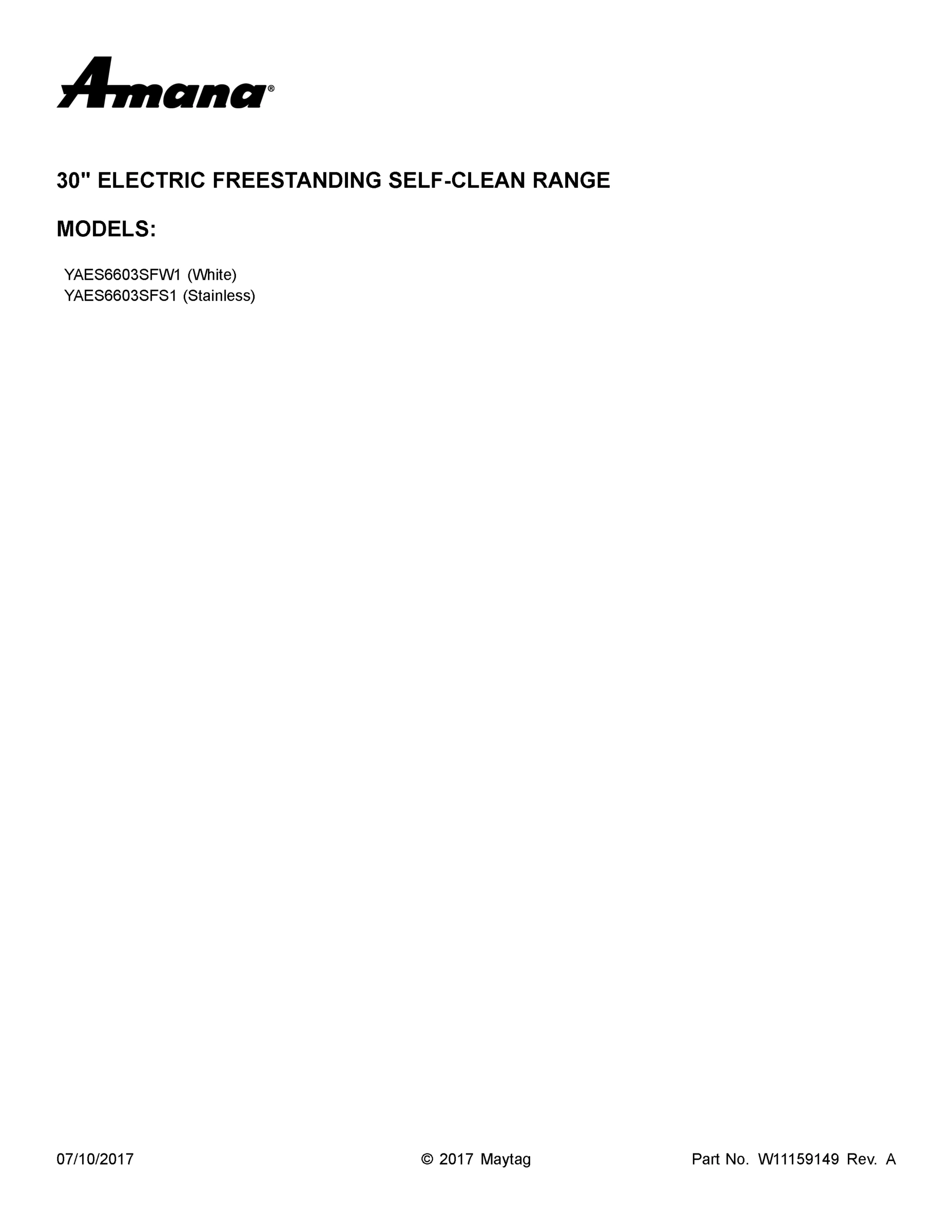

01 - COVER SHEET

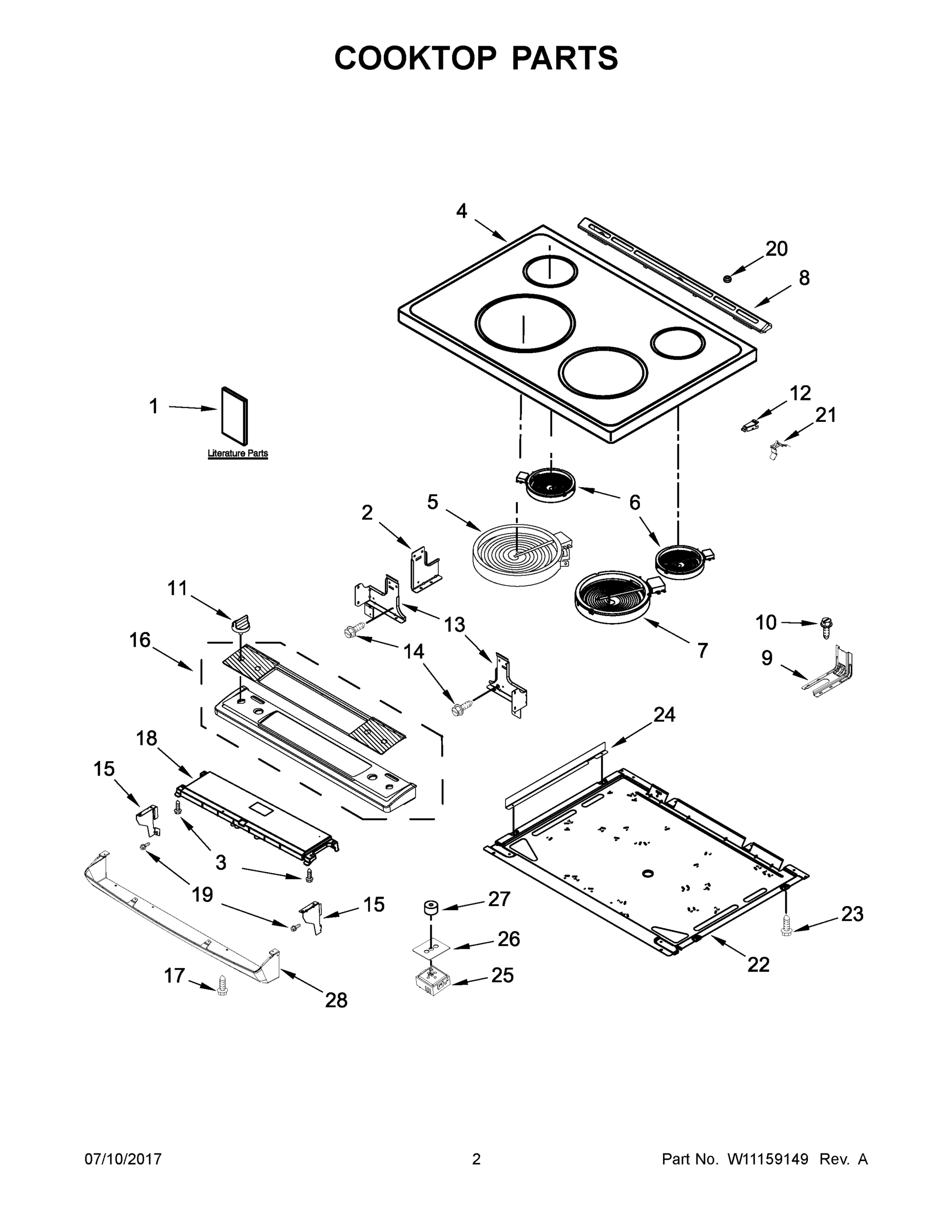

02 - COOKTOP PARTS
03 - CHASSIS PARTS
04 - DOOR PARTS
05 - DRAWER PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YAES6603SFS1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10842014 Contact Us For Availability
1
SCREEN, VENT MAY 9761301 Contact Us For Availability
1
SCREW MAY W10031790 Contact Us For Availability
1
PANEL, FRONT (STAINLESS) MAY W10330069 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10887090 Contact Us For Availability
1B
SHEET, TECH MAY W10842032 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
WIRING DIAGRAM MAY W10842030 Contact Us For Availability
2
BRACKET, CONSOLE (CENTER) MAY W10814305 Contact Us For Availability
2
CHANNEL, REAR MAY W10162241 Contact Us For Availability
2
LINER, DOOR MAY 9761344 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3
SCREW MAY 9780274 Contact Us For Availability
3
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
3
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
3
BRACKET, MOUNTING (WHITE MODEL) MAY W10462911 Contact Us For Availability
3A
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3A
BRACKET, MOUNTING (STAINLESS MODEL) MAY W10462909 Contact Us For Availability
4
COOKTOP (WHITE) MAY W10825865 Contact Us For Availability
4
SEAL, DOOR MAY W10658354 Contact Us For Availability
4
SCREW MAY W10200660 Contact Us For Availability
4
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
4A
COOKTOP (BLACK) MAY W10825864 Contact Us For Availability
5
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
5
ELEMENT, BROIL MAY W10583047 Contact Us For Availability
5
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
5
PANEL, FRONT (WHITE) MAY 8053336 Contact Us For Availability
6
ELEMENT (1200W) (LEFT REAR AND RIGHT REAR) MAY 8273994 Contact Us For Availability
6
BAKE, ELEMENT MAY W10535148 Contact Us For Availability
6
SCREW MAY W10168559 Contact Us For Availability
6
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
7
ELEMENT (1800W) (RIGHT FRONT) MAY 8273993 Contact Us For Availability
7
SCREW MAY 3196169 Contact Us For Availability
7
SCREW MAY W10031780 Contact Us For Availability
7
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
8
VENT, TRIM TOP (WHITE) MAY W10636527 Contact Us For Availability
8
SCREW MAY 3196178 Contact Us For Availability
8
GLASS, INNER MAY 9758162 Contact Us For Availability
8A
VENT, TRIM TOP (BLACK) MAY W10636528 Contact Us For Availability
9
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
9
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
9
HANDLE, OVEN DOOR (WHITE) MAY W10323588 Contact Us For Availability
9A
HANDLE, OVEN DOOR (STAINLESS) MAY W10144883 Contact Us For Availability
10
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
10
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
10
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
11
KNOB (WHITE) MAY W10844797 Contact Us For Availability
11
SCREW MAY W10067840 Contact Us For Availability
11
SCREW MAY W10362924 Contact Us For Availability
11A
KNOB (STAINLESS) MAY W10844799 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
TRAY, INSULATION MAY W10312471 Contact Us For Availability
12
GLASS, WINDOW (BLACK) MAY W10886896 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
12A
GLASS, WINDOW (WHITE) MAY W10851723 Contact Us For Availability
13
SUPPORT, COOKTOP (RIGHT) MAY W10814304 Contact Us For Availability
13
CLIP, PANEL MAY W10137382 Contact Us For Availability
13
TRIM, OVEN DOOR VENT (WHITE) MAY W10310920 Contact Us For Availability
13A
SUPPORT, COOKTOP (LEFT) MAY W10814303 Contact Us For Availability
13A
TRIM, OVEN DOOR VENT (BLACK) MAY W10310922 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
14
STRAP, DOOR MAY W10544179 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
15
FOOT, LEVELING MAY W10058460 Contact Us For Availability
15
TRIM, DOOR (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
15A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
15A
TRIM, DOOR (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
16
CONSOLE (WHITE) MAY W10825349 Contact Us For Availability
16
SCREW MAY W10327235 Contact Us For Availability
16
FRAME, GLASS MAY W10316950 Contact Us For Availability
16A
CONSOLE (STAINLESS) MAY W10825358 Contact Us For Availability
17
SCREW MAY W10516115 Contact Us For Availability
17
BRACKET, OVEN SUPPORT MAY W10355173 Contact Us For Availability
17
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10890951 Contact Us For Availability
18
ELECTRONIC, CONTROL (LCX) (BLACK) MAY W10806866 Contact Us For Availability
18
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
18
HINGE, DOOR (ACTIVE) MAY W10440013 Contact Us For Availability
18A
ELECTRONIC, CONTROL (LCX) (WHITE) MAY W10806862 Contact Us For Availability
19
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
19
TRIM, DOOR (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
19A
TRIM, DOOR (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
20
BUMPER MAY W10854253 Contact Us For Availability
20
BACK, MAIN MAY W10289166 Contact Us For Availability
20
BADGE (WHITE) MAY W10849465 Contact Us For Availability
20A
BADGE (STAINLESS) MAY W10846752 Contact Us For Availability
21
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
21
COVER, WIRE MAY W10162248 Contact Us For Availability
22
PAN, RADIANT MAY W10536275 Contact Us For Availability
22
BAFFLE, UPPER CHASSIS MAY W10853401 Contact Us For Availability
23
SENSOR MAY W10586204 Contact Us For Availability
24
BRACKET, RADIANT MAY W10613286 Contact Us For Availability
25
SWITCH, INFINITE (LEFT REAR AND RIGHT REAR) MAY W10578768 Contact Us For Availability
25
SCREW MAY 3400080 Contact Us For Availability
25A
SWITCH, INFINITE (LEFT FRONT) MAY W10437092 Contact Us For Availability
25B
SWITCH, INFINITE (RIGHT FRONT) MAY W10843843 Contact Us For Availability
26
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
27
GASKET, SWITCH STEM MAY W10702912 Contact Us For Availability
27
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
28
PANEL, FRONT (WHITE) MAY W10816942 Contact Us For Availability
28
SWITCH, DOOR MAY W10627802 Contact Us For Availability
28A
PANEL, FRONT (BLACK) MAY W10816943 Contact Us For Availability
29
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
30
RETAINER, INSULATION (RIGHT) MAY 9761448 Contact Us For Availability
30A
RETAINER, INSULATION (LEFT) MAY 9761449 Contact Us For Availability
31
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
32
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
33
ROD, PUSH LATCH MAY W10078370 Contact Us For Availability
34
ASSEMBLY, LATCH (REAR) MAY W10107840 Contact Us For Availability
35
FUSE, THERMAL MAY 3196548 Contact Us For Availability
36
SCREW MAY 3196172 Contact Us For Availability
37
SCREW MAY 3196560 Contact Us For Availability
38
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
39
RACK, OVEN MAY W10268578 Contact Us For Availability
40
SHIELD, POWER CORD MAY W10655441 Contact Us For Availability
41
CHASSIS, UPPER INSULATION MAY W10848443 Contact Us For Availability
42
ASSEMBLY, FLUE MAY W10824557 Contact Us For Availability
43
SPACER, DOOR MAY 9758701 Contact Us For Availability
44
CHASSIS, SUPPORT UPPER MAY W10814301 Contact Us For Availability
45
PANEL, CLIP MAY W10866583 Contact Us For Availability
46
COVER, BACK MAY W10289172 Contact Us For Availability
47
CORD, POWER MAY W10624591 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, HARNESS MAY W10664316 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10800458 Contact Us For Availability
NI
HARNESS, CONSOLE MAY W10800464 Contact Us For Availability
NI
HARN MAY W10817973 Contact Us For Availability
NI
INSULATION, BACK MAY W10815385 Contact Us For Availability
NI
INSULATION, WRAP MAY W10830993 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
× ![]()
