Model Maytag YACS4303MFS0 RANGE/OVEN, ELECTRIC, FREESTANDING – Common Parts & Diagrams

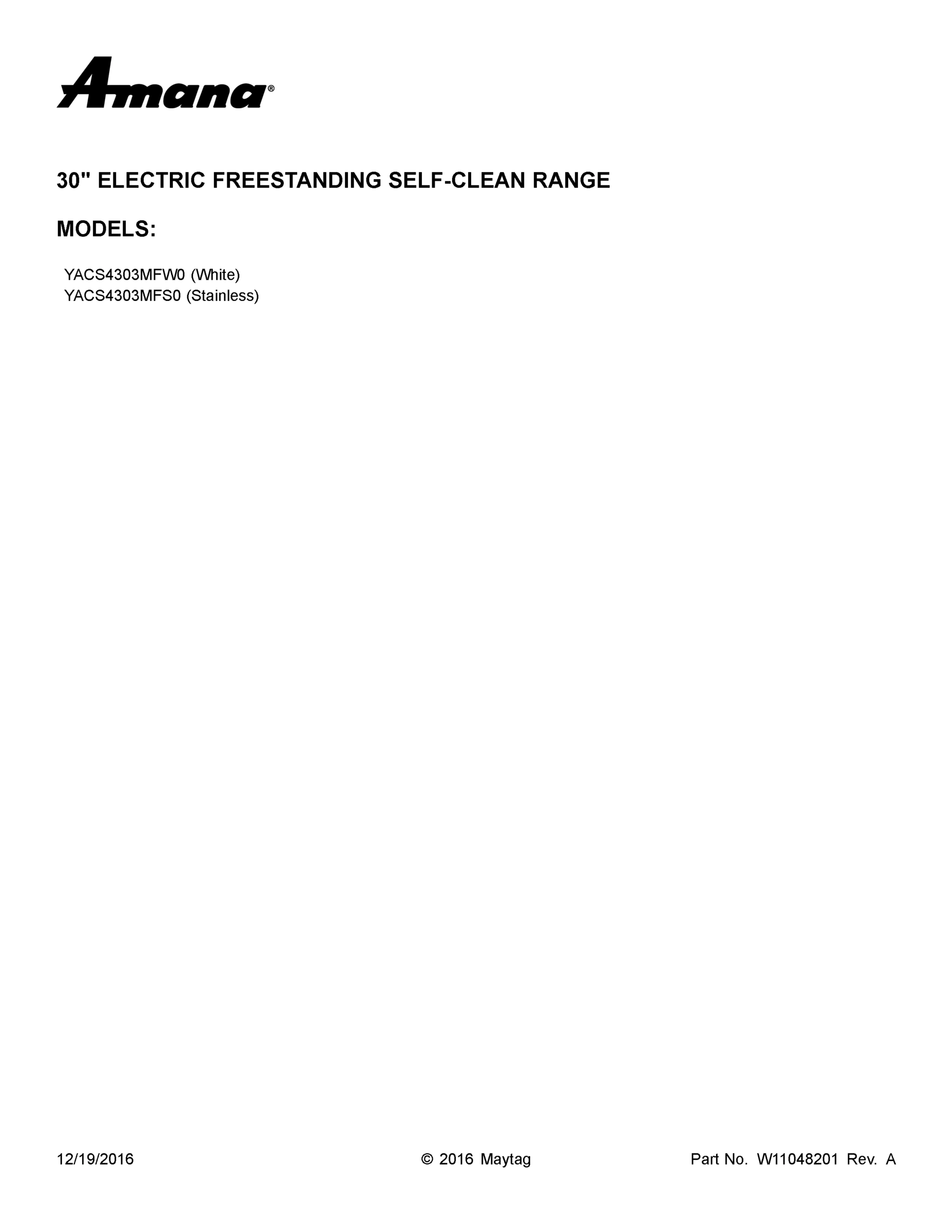

01 - COVER SHEET

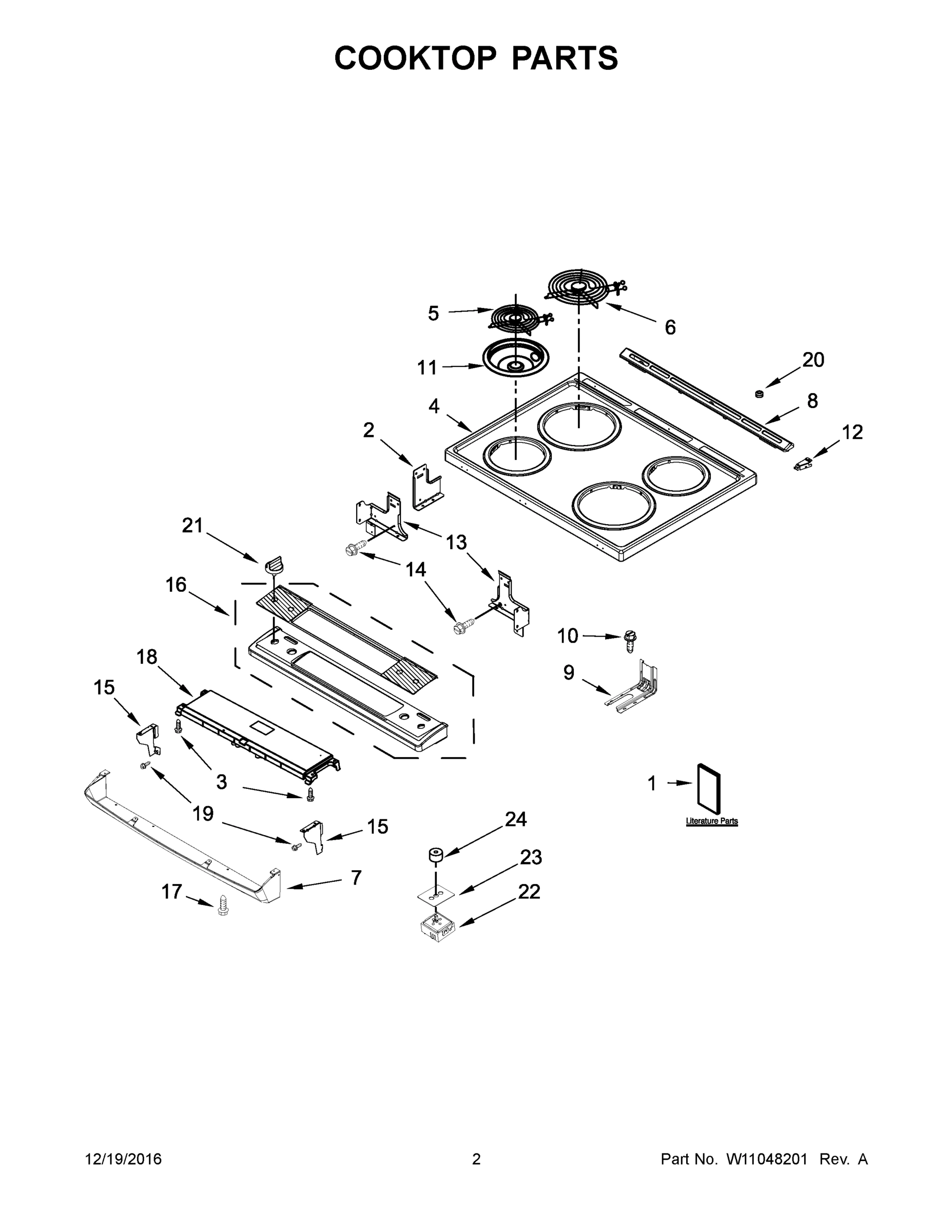

02 - COOKTOP PARTS

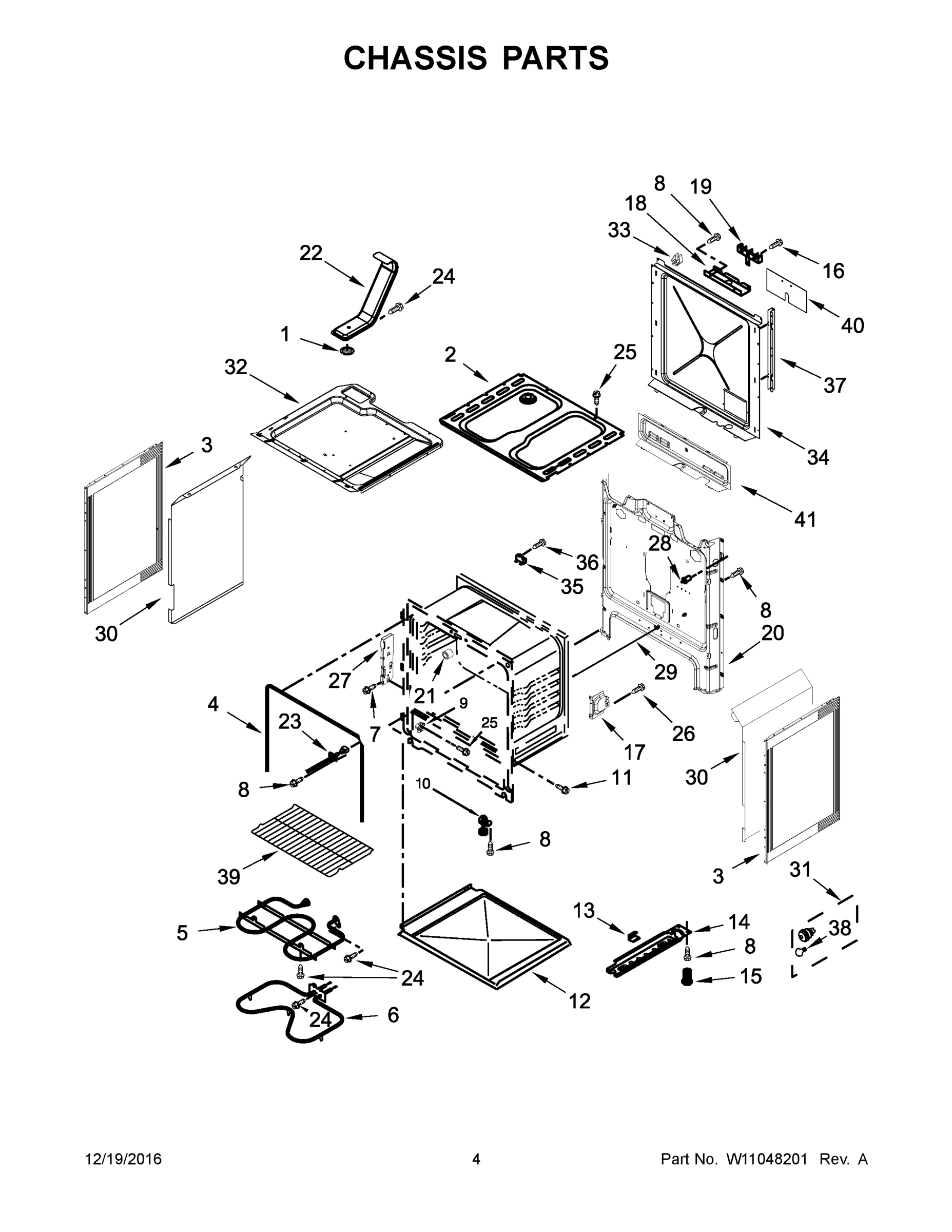

03 - CHASSIS PARTS

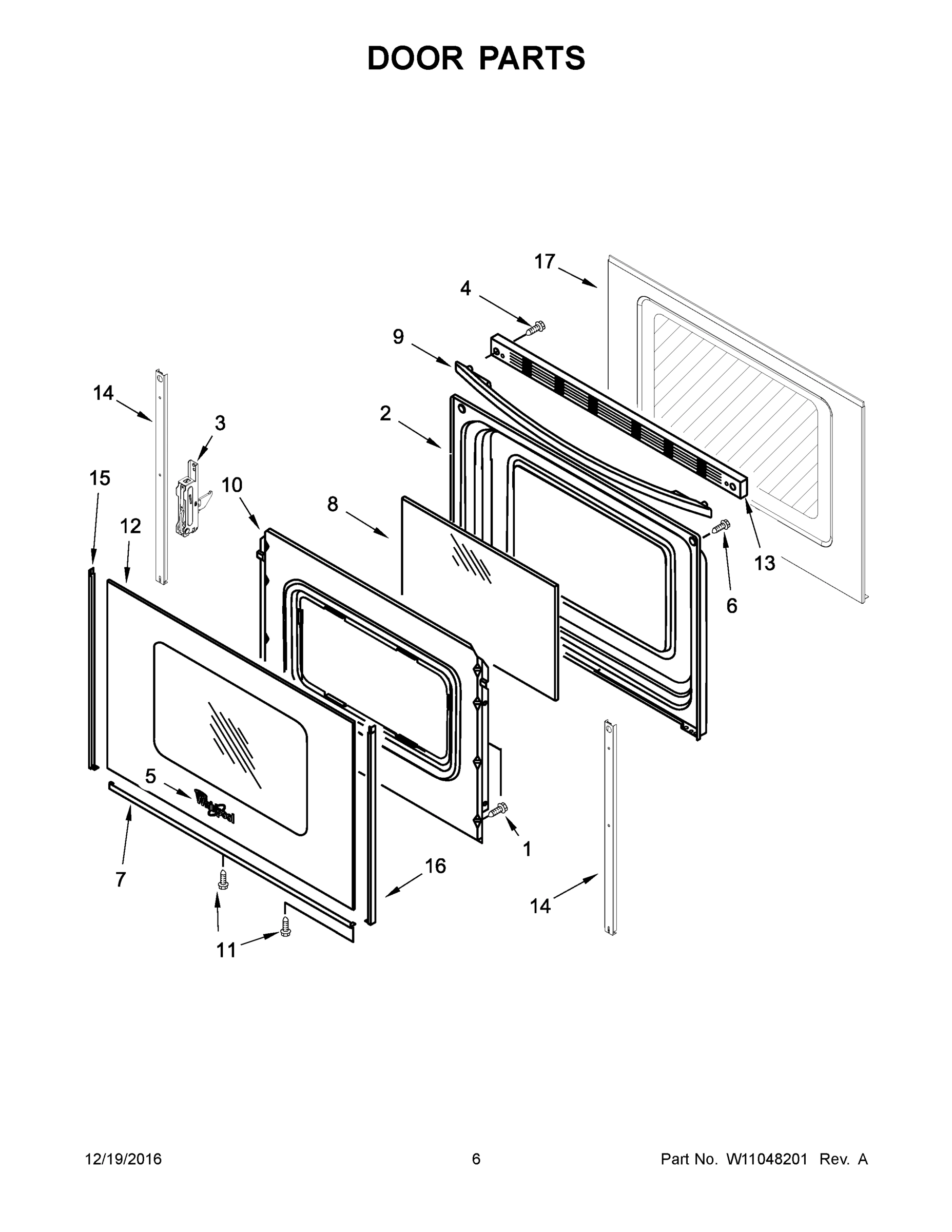

04 - DOOR PARTS

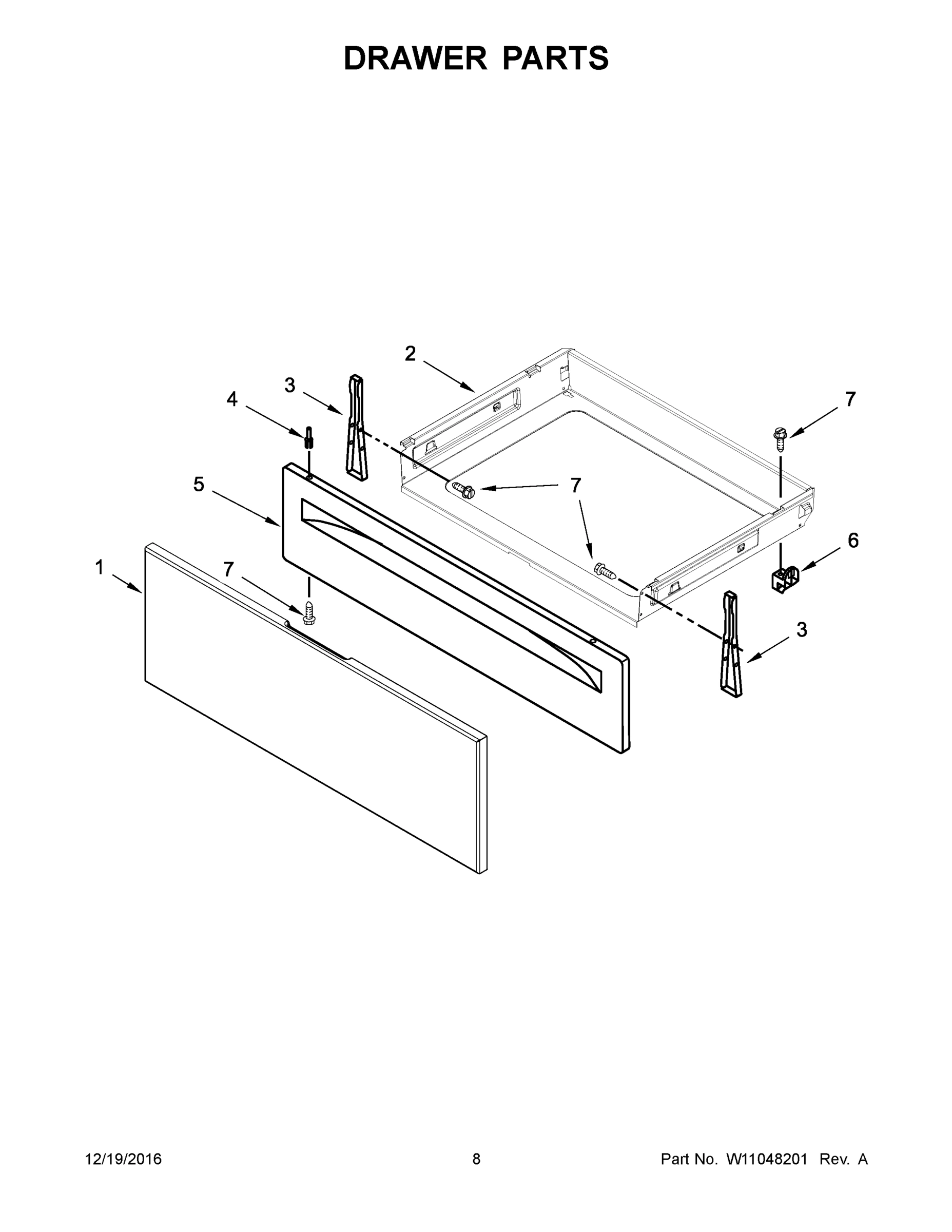

05 - DRAWER PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YACS4303MFS0 RANGE/OVEN, ELECTRIC, FREESTANDING
1
MAY W10842014 MAY W10842014 Contact Us For Availability
1
MAY 9761301 MAY 9761301 Contact Us For Availability
1
MAY W10031790 MAY W10031790 Contact Us For Availability
1
PANEL, FRONT (STAINLESS) MAY W10330069 Contact Us For Availability
1A
MAY W10887090 MAY W10887090 Contact Us For Availability
1B
MAY W10842032 MAY W10842032 Contact Us For Availability
1C
MAY 9762761 MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
MAY W10850073 MAY W10850073 Contact Us For Availability
2
MAY W10814305 MAY W10814305 Contact Us For Availability
2
MAY W10536273 MAY W10536273 Contact Us For Availability
2
MAY 9761344 MAY 9761344 Contact Us For Availability
2
MAY W10688022 MAY W10688022 Contact Us For Availability
3
SCREW MAY 9780274 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10440013 MAY W10440013 Contact Us For Availability
3
BRACKET, DRAWER MOUNTING (WHITE MODEL) MAY W10462911 Contact Us For Availability
3A
MAY W10575396 MAY W10575396 Contact Us For Availability
3A
BRACKET, DRAWER MOUNTING (STAINLESS MODEL) MAY W10462909 Contact Us For Availability
4
MAY W10536327 MAY W10536327 Contact Us For Availability
4
MAY W10658354 MAY W10658354 Contact Us For Availability
4
MAY W10200660 MAY W10200660 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4A
MAY W10536268 MAY W10536268 Contact Us For Availability
5
ELEMENT, SURFACE (6") (LEFT FRONT AND RIGHT R MAY W10259870 Contact Us For Availability
5
MAY W10583047 MAY W10583047 Contact Us For Availability
5
MAY W10849465 MAY W10849465 Contact Us For Availability
5
PANEL, DRAWER FRONT (WHITE) MAY 8053336 Contact Us For Availability
5A
MAY W10846752 MAY W10846752 Contact Us For Availability
6
ELEMENT, SURFACE (8") (RIGHT FRONT AND LEFT R MAY W10259867 Contact Us For Availability
6
MAY W10535148 MAY W10535148 Contact Us For Availability
6
MAY W10168559 MAY W10168559 Contact Us For Availability
6
MAY W10674708 MAY W10674708 Contact Us For Availability
7
MAY W10816943 MAY W10816943 Contact Us For Availability
7
MAY 3196169 MAY 3196169 Contact Us For Availability
7
MAY W10031780 MAY W10031780 Contact Us For Availability
7
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
7A
MAY W10816942 MAY W10816942 Contact Us For Availability
8
MAY W10636528 MAY W10636528 Contact Us For Availability
8
MAY 3196178 MAY 3196178 Contact Us For Availability
8
MAY W10620754 MAY W10620754 Contact Us For Availability
8A
MAY W10636527 MAY W10636527 Contact Us For Availability
9
BRACKET, ANTI-TIP MAY W10606241 Contact Us For Availability
9
MAY W10674705 MAY W10674705 Contact Us For Availability
9
HANDLE, OVEN DOOR (WHITE) MAY W10323588 Contact Us For Availability
9A
HANDLE, OVEN DOOR (STAINLESS) MAY W10144883 Contact Us For Availability
10
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
10
MAY W10341186 MAY W10341186 Contact Us For Availability
10
RETAINER, INSULATION MAY 9761505 Contact Us For Availability
11
BOWL, DRIP (8") MAY W10196405 Contact Us For Availability
11
MAY W10067840 MAY W10067840 Contact Us For Availability
11
MAY W10362924 MAY W10362924 Contact Us For Availability
11A
BOWL, DRIP (6") MAY W10196406 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
MAY W10312471 MAY W10312471 Contact Us For Availability
12
GLASS, WINDOW (BLACK) MAY W10886896 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
12A
GLASS, WINDOW (WHITE) MAY W10851723 Contact Us For Availability
13
MAY W10814304 MAY W10814304 Contact Us For Availability
13
MAY W10137382 MAY W10137382 Contact Us For Availability
13
TRIM, OVEN DOOR VENT (BLACK) MAY W10310922 Contact Us For Availability
13A
MAY W10814303 MAY W10814303 Contact Us For Availability
13A
TRIM, OVEN DOOR VENT (WHITE) MAY W10310920 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
14
MAY W10544179 MAY W10544179 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
15
MAY W10058460 MAY W10058460 Contact Us For Availability
15
TRIM, DOOR (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
15A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
16
MAY W10825291 MAY W10825291 Contact Us For Availability
16
MAY 3400016 MAY 3400016 Contact Us For Availability
16
TRIM, DOOR (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
16A
MAY W10825321 MAY W10825321 Contact Us For Availability
17
MAY W10516115 MAY W10516115 Contact Us For Availability
17
BRACKET, OVEN SUPPORT MAY W10355173 Contact Us For Availability
17
MAY W10890951 MAY W10890951 Contact Us For Availability
18
MAY W10806855 MAY W10806855 Contact Us For Availability
18
MAY 3186034 MAY 3186034 Contact Us For Availability
18A
MAY W10806848 MAY W10806848 Contact Us For Availability
19
MAY W10246624 MAY W10246624 Contact Us For Availability
20
MAY W10854253 MAY W10854253 Contact Us For Availability
20
BACK, MAIN MAY W10289166 Contact Us For Availability
21
MAY W10844797 MAY W10844797 Contact Us For Availability
21
SPACER, DOOR MAY 9758701 Contact Us For Availability
21A
MAY W10844799 MAY W10844799 Contact Us For Availability
22
SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) MAY W10578768 Contact Us For Availability
22
MAY W10824557 MAY W10824557 Contact Us For Availability
22A
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY W10600015 Contact Us For Availability
23
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
23
MAY W10586204 MAY W10586204 Contact Us For Availability
24
MAY W10702912 MAY W10702912 Contact Us For Availability
25
MAY 3400080 MAY 3400080 Contact Us For Availability
27
MAY W10289077 MAY W10289077 Contact Us For Availability
28
MAY W10627802 MAY W10627802 Contact Us For Availability
29
MAY 9757239 MAY 9757239 Contact Us For Availability
30
MAY 9761448 MAY 9761448 Contact Us For Availability
30A
MAY 9761449 MAY 9761449 Contact Us For Availability
31
MAY W10454648 MAY W10454648 Contact Us For Availability
32
MAY W10814301 MAY W10814301 Contact Us For Availability
33
MAY W10866583 MAY W10866583 Contact Us For Availability
34
MAY W10289172 MAY W10289172 Contact Us For Availability
35
MAY 3196548 MAY 3196548 Contact Us For Availability
36
MAY 3196172 MAY 3196172 Contact Us For Availability
37
MAY W10162241 MAY W10162241 Contact Us For Availability
38
MAY 311255 MAY 311255 Contact Us For Availability
39
MAY W10268578 MAY W10268578 Contact Us For Availability
40
MAY W10655441 MAY W10655441 Contact Us For Availability
41
MAY W10162248 MAY W10162248 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10664316 MAY W10664316 Contact Us For Availability
NI
MAY W10800451 MAY W10800451 Contact Us For Availability
NI
MAY W10876368 MAY W10876368 Contact Us For Availability
NI
MAY W10815385 MAY W10815385 Contact Us For Availability
NI
MAY W10830993 MAY W10830993 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
× ![]()
