Model Maytag YACR4503SFS0 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

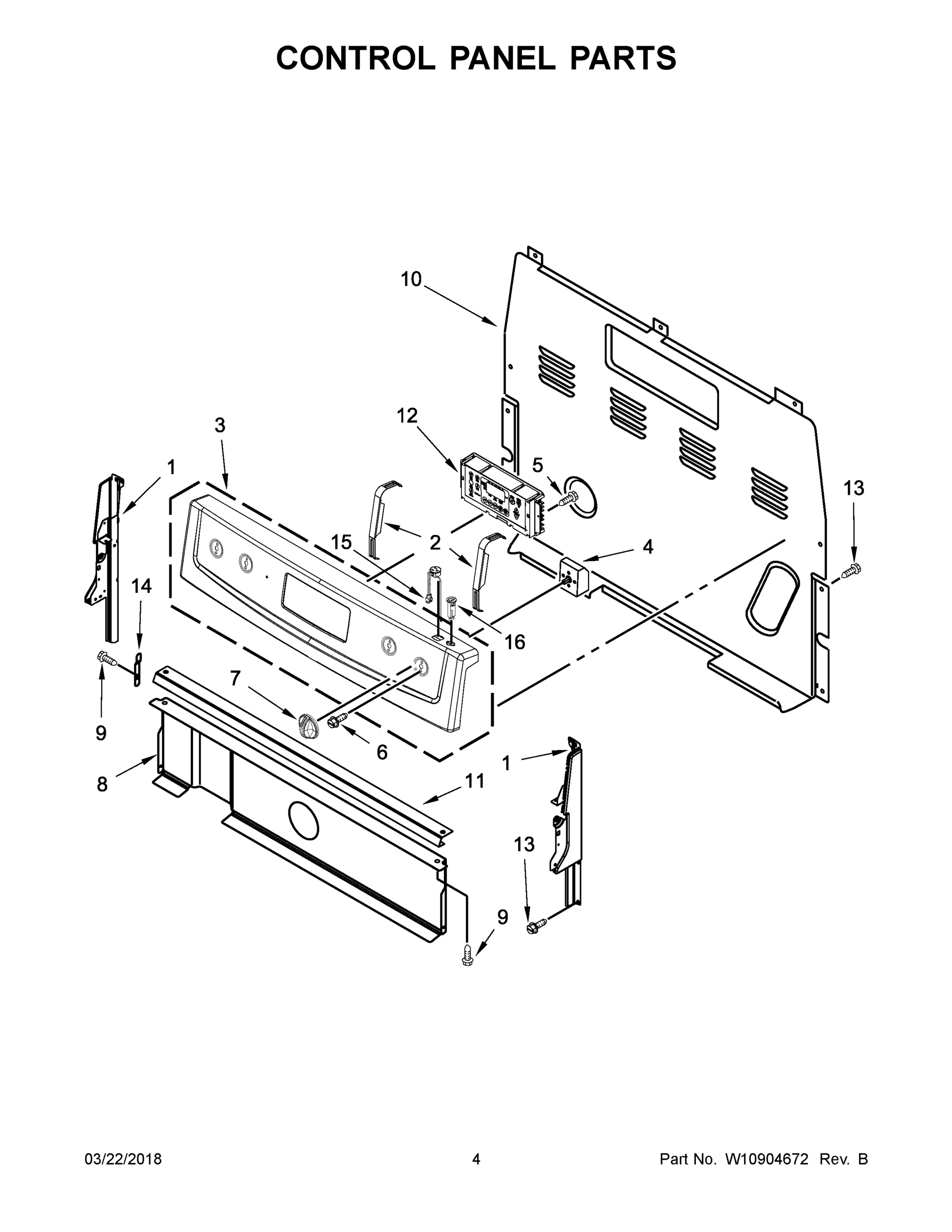

03 - CONTROL PANEL PARTS

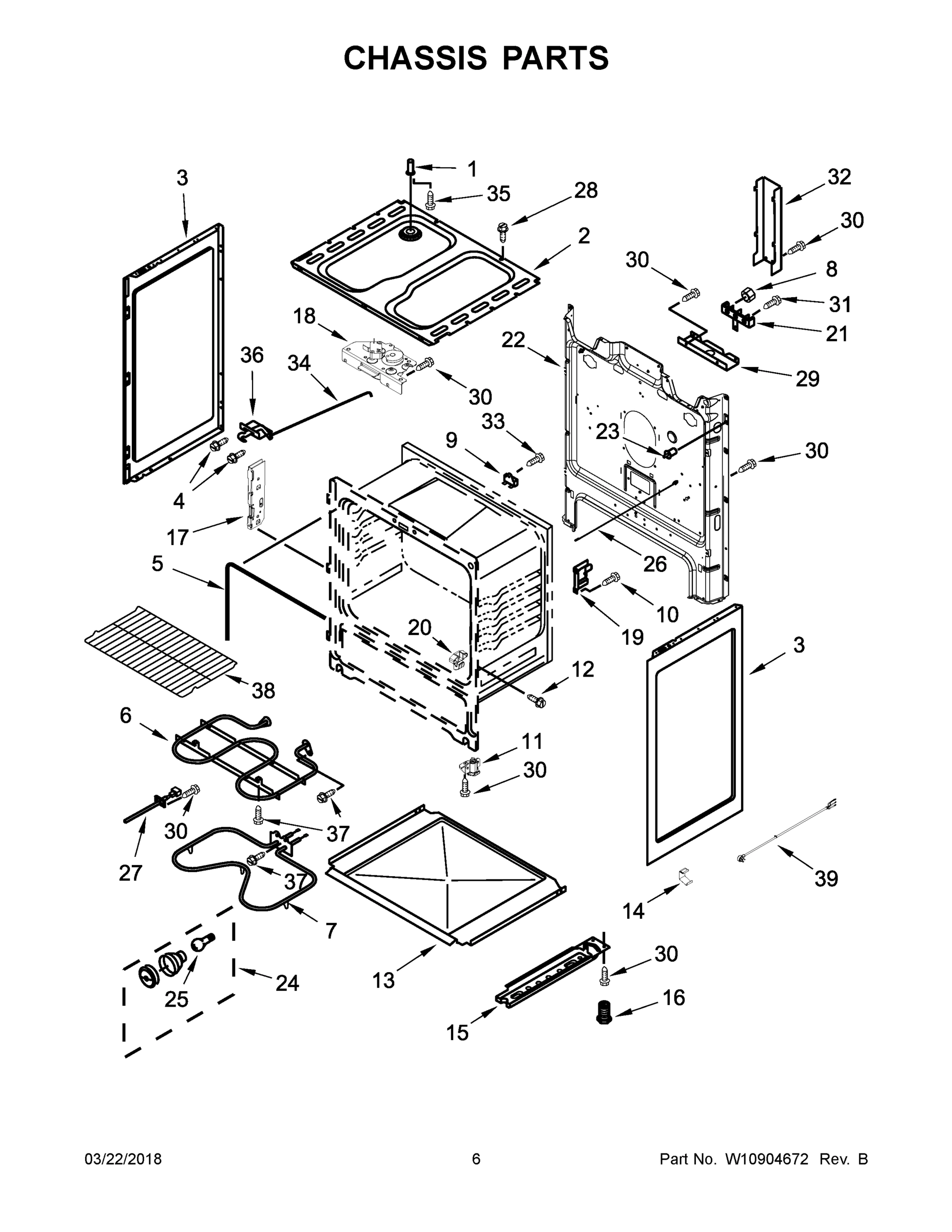

04 - CHASSIS PARTS

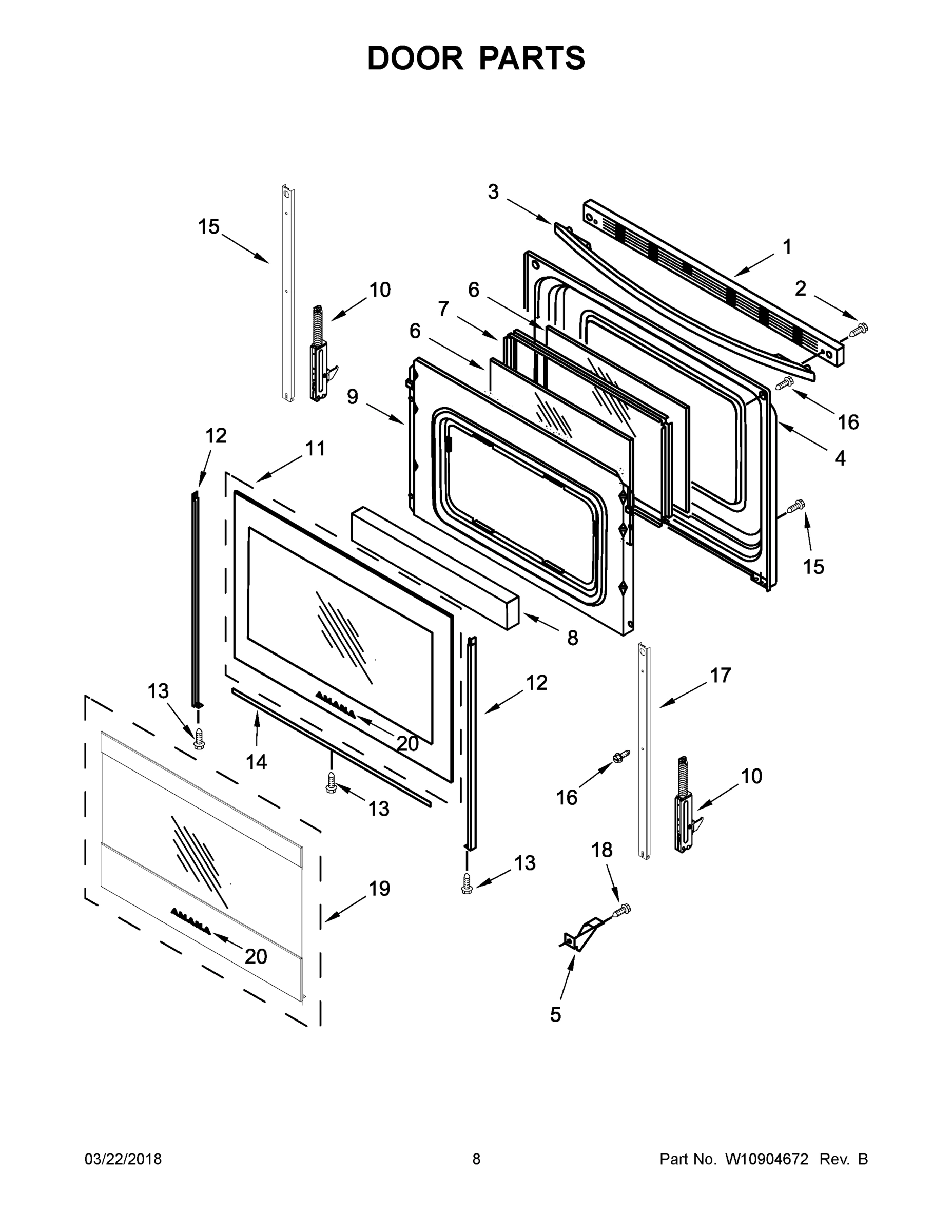

05 - DOOR PARTS

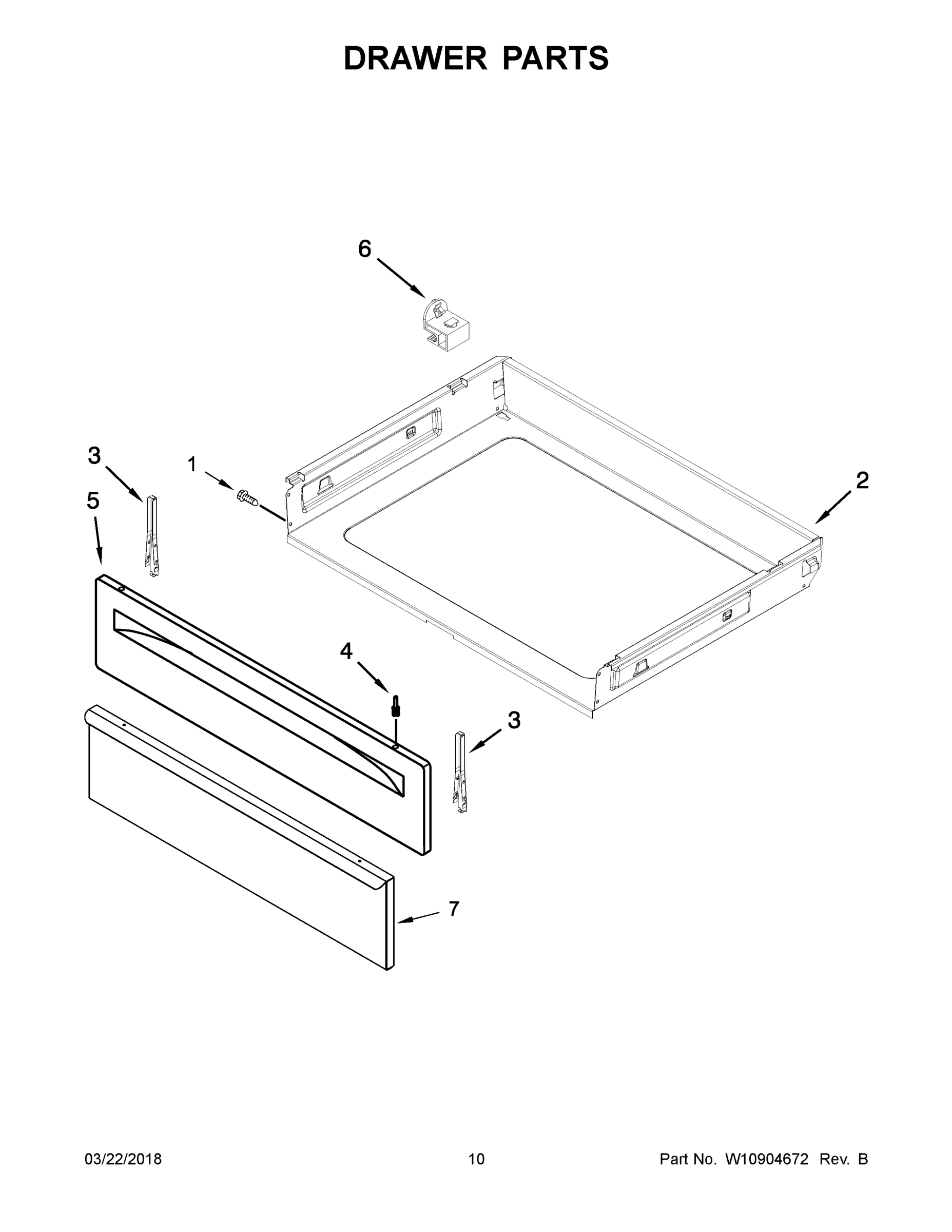

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag YACR4503SFS0 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
USER INSTRUCTIONS MAY W10866298 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
SCREW MAY 3196165 Contact Us For Availability
1
VENT TUBE MAY 9755804 Contact Us For Availability
1
TRIM, TOP (BLACK) MAY W10310922 Contact Us For Availability
1A
SHEET, TECH MAY W10842032 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1A
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1B
DIAGRAM, WIRING MAY W10873906 Contact Us For Availability
1B
ENDCAP (WHITE (LEFT)) MAY W11130371 Contact Us For Availability
1C
INSTRUCTIONS, INSTALLATION MAY W10877842 Contact Us For Availability
1C
ENDCAP (WHITE (RIGHT)) MAY W11130378 Contact Us For Availability
2
BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR) MAY W10196406 Contact Us For Availability
2
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
2
BOX, BURNER MAY W10209613 Contact Us For Availability
2
SCREW MAY W10155511 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
2A
BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR) MAY W10196405 Contact Us For Availability
3
COOKTOP (BLACK) MAY 3186233 Contact Us For Availability
3
MAY W11157116 MAY W11157116 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
HANDLE, DOOR (WHITE) MAY W10323588 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462910 Contact Us For Availability
3A
COOKTOP (WHITE) MAY 3186231 Contact Us For Availability
3A
MAY W11157121 MAY W11157121 Contact Us For Availability
3A
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
3A
HANDLE, DOOR (STAINLESS) MAY W10144883 Contact Us For Availability
4
HINGE, COOKTOP MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (GREEN) (RIGHT FRONT AND LEF MAY 3148953 Contact Us For Availability
4
SCREW MAY 3196560 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) MAY 3148951 Contact Us For Availability
5
SEAL, DOOR MAY W10658354 Contact Us For Availability
5
CLIP, PANEL MAY W10137382 Contact Us For Availability
5
PANEL, DRAWER FRONT (WHITE) MAY 8053339 Contact Us For Availability
6
ROD, SUPPORT MAY 3195812 Contact Us For Availability
6
SCREW MAY 3400882 Contact Us For Availability
6
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
6
GLASS, INNER MAY 9758162 Contact Us For Availability
6
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
7
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10844800 Contact Us For Availability
7
ELEMENT, BAKE MAY W11022836 Contact Us For Availability
7
FRAME, GLASS MAY W10316950 Contact Us For Availability
7
PANEL, FRONT (STAINLESS) MAY W10330070 Contact Us For Availability
7A
KNOB, INFINITE (STAINLESS) MAY W10844802 Contact Us For Availability
8
SCREW MAY 3196154 Contact Us For Availability
8
SHIELD, HEAT MAY W10134247 Contact Us For Availability
8
NUT MAY 3400029 Contact Us For Availability
8
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
9
ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT R MAY W10259870 Contact Us For Availability
9
FUSE, THERMAL MAY 3196548 Contact Us For Availability
9
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
9A
ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT R MAY W10259867 Contact Us For Availability
10
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
10
SCREW MAY 3196169 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
10A
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
11
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (BLACK) MAY W10831686 Contact Us For Availability
11A
GLASS, OUTER (WHITE) MAY W10851723 Contact Us For Availability
12
CONTROL (LCC95) (BLACK) MAY W10837803 Contact Us For Availability
12
SCREW MAY W10067840 Contact Us For Availability
12
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
12A
CONTROL (LCC95) (WHITE) MAY W10837802 Contact Us For Availability
12A
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
12B
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
12C
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
13
RETAINER, INSULATION MAY 8054068 Contact Us For Availability
13
SCREW MAY W10327235 Contact Us For Availability
14
CLIP, SPRING MAY 3196200 Contact Us For Availability
14
TRIM, LOWER (WHITE) MAY 8523175 Contact Us For Availability
15
RECEPTACLE, FUSED (BLACK) MAY W10749729 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
SCREW MAY W10031790 Contact Us For Availability
15A
RECEPTACLE, FUSED (WHITE) MAY W10749727 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
SCREW MAY W10200660 Contact Us For Availability
16A
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
17
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
17
STRAP, DOOR MAY W10544179 Contact Us For Availability
18
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
19
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
19
MAY W11167875 MAY W11167875 Contact Us For Availability
20
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
20
BADGE (STAINLESS) MAY W10846752 Contact Us For Availability
20A
BADGE (WHITE) MAY W10849465 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
22
BACK, MAIN MAY W10289149 Contact Us For Availability
23
SWITCH, DOOR MAY W10627802 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
26
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
27
SENSOR, OVEN MAY W10181986 Contact Us For Availability
29
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
30
SCREW MAY 3196178 Contact Us For Availability
31
SCREW MAY 3400016 Contact Us For Availability
32
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
33
SCREW MAY 3196172 Contact Us For Availability
34
ROD, LATCH MAY W10078380 Contact Us For Availability
35
SCREW MAY 3196567 Contact Us For Availability
36
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
37
SCREW MAY 3196174 Contact Us For Availability
38
RACK, OVEN MAY W10268578 Contact Us For Availability
39
CORD, POWER MAY W10624591 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W10295595 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) MAY W10848997 Contact Us For Availability
NI
INSULATION, BACK MAY 8272612 Contact Us For Availability
NI
INSULATION, WRAP MAY W10774939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GLASS MAY 3184478 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
