Model Whirlpool YACQ088MR0 AIR CONDITIONER – Common Parts & Diagrams

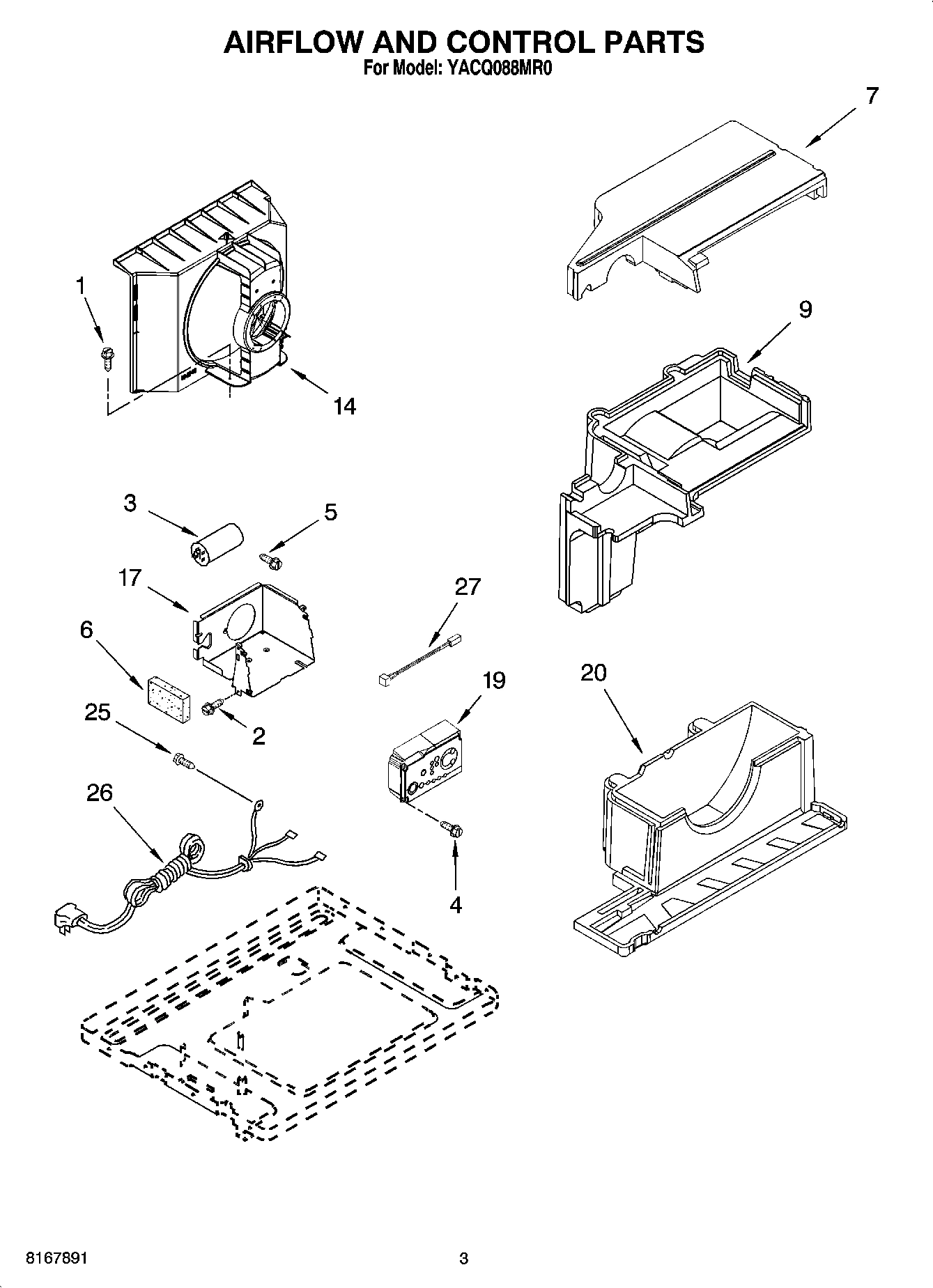

02 - AIR FLOW AND CONTROL PARTS

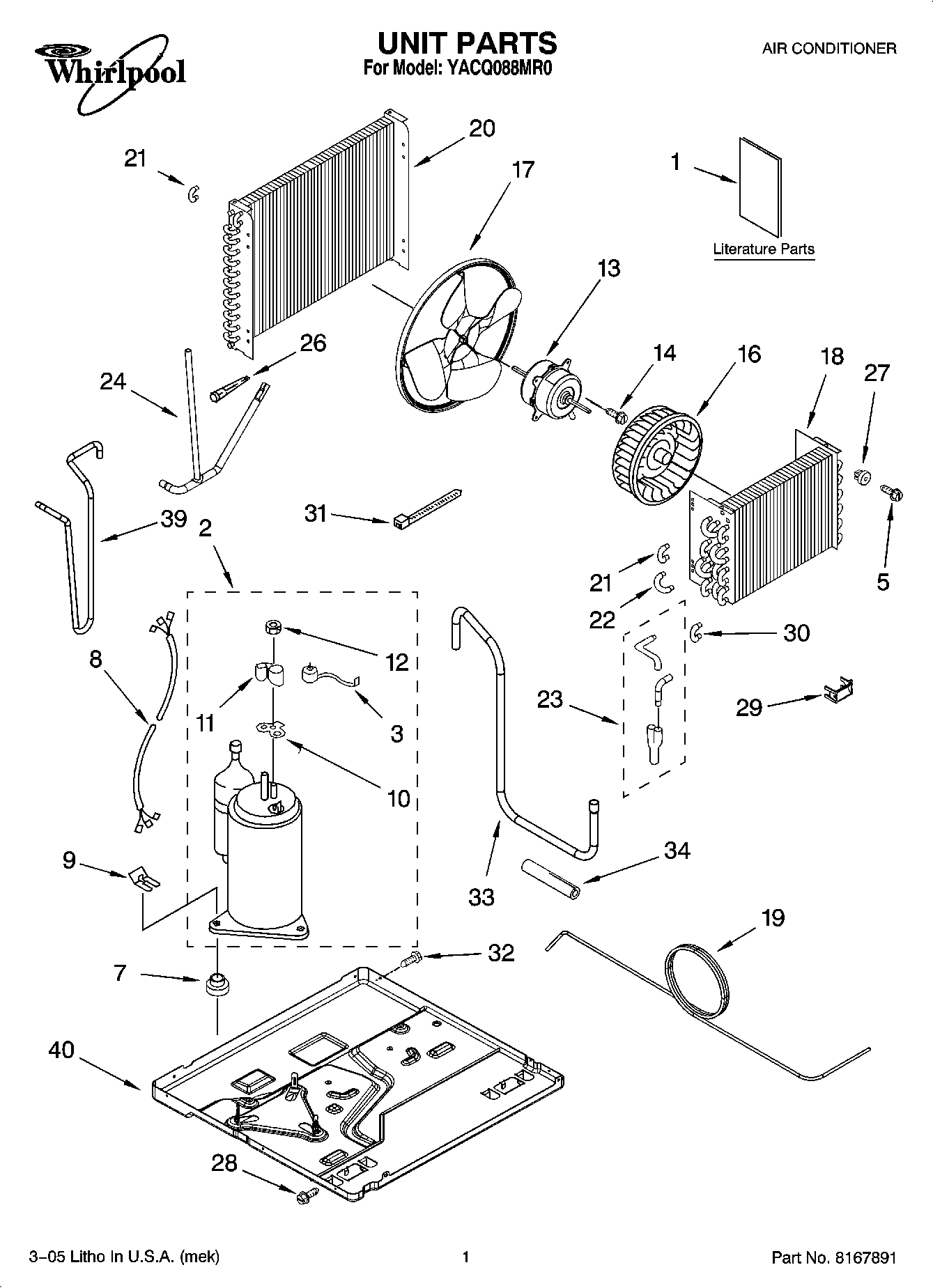

01 - UNIT PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
03 - CABINET PARTS
Common parts from model Whirlpool YACQ088MR0 AIR CONDITIONER
1
Wiring Diagram WPL 8209223 Contact Us For Availability
1
Use & Care Guide WPL 8209256 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 8209206 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 8209232 Contact Us For Availability
2
Seal, Meeting Rail WPL 8209207 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 8209235 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Channel, Top WPL 8209209 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Frame, Curtain (Right Side) WPL 8209210 Contact Us For Availability
5
Frame, Curtain (Left Side) WPL 8209211 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Grommet WPL 8209242 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Screw, WPL 8209213 Contact Us For Availability
8
Wiring Harness, Compressor WPL 8209244 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Front, Assembly WPL 8209226 Contact Us For Availability
9
Clip, Compressor WPL 8209246 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Filter WPL 8209216 Contact Us For Availability
10
Gasket, Terminal Cover WPL 8209189 Contact Us For Availability
10
Louver, Vertical WPL 8209276 Contact Us For Availability
11
Cover, Terminal WPL 8209188 Contact Us For Availability
11
Louver, Horizontal WPL 8209251 Contact Us For Availability
13
Motor, Fan WPL 8209257 Contact Us For Availability
13
Curtain WPL 8209220 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw WPL 8209258 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Control, Remote WPL 4312641 Contact Us For Availability
16
Wheel, Blower WPL 8209261 Contact Us For Availability
16
Bag, Accessory WPL 8209217 Contact Us For Availability
17
Blade, Fan WPL 8209262 Contact Us For Availability
17
Bag, Accessory For Curtains WPL 8209218 Contact Us For Availability
18
Evaporator WPL 8209264 Contact Us For Availability
18
Screw WPL 8209221 Contact Us For Availability
19
Tube, Restrictor WPL 8209265 Contact Us For Availability
19
Bracket, Window Lock WPL 8209214 Contact Us For Availability
20
Condenser WPL 8209268 Contact Us For Availability
21
Bend, Return WPL 8209269 Contact Us For Availability
22
Bend, Return WPL 8209270 Contact Us For Availability
23
Manifold Assembly WPL 8209260 Contact Us For Availability
24
Tube, Outlet WPL 8209272 Contact Us For Availability
26
Cable, Appliance WPL 8209300 Contact Us For Availability
27
Thermistor WPL 8209304 Contact Us For Availability
27
Grommet, Screw WPL 8209275 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 8209277 Contact Us For Availability
30
Bend, Return WPL 8209279 Contact Us For Availability
31
Tie, Cable WPL 4312425 Contact Us For Availability
33
Tube, Suction (Includes Item 34) WPL 8209250 Contact Us For Availability
34
Seal, Suction Tube WPL 8209252 Contact Us For Availability
39
Tube, Discharge WPL 8209239 Contact Us For Availability
40
Base WPL 8209241 Contact Us For Availability
40
REFRIGERANT CHARGE 18.50 oz. WPL ARI166443A Contact Us For Availability
× ![]()
