Model Whirlpool YACQ082XK1 AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL PARTS (NOT INCLUDED)
03 - CABINET PARTS

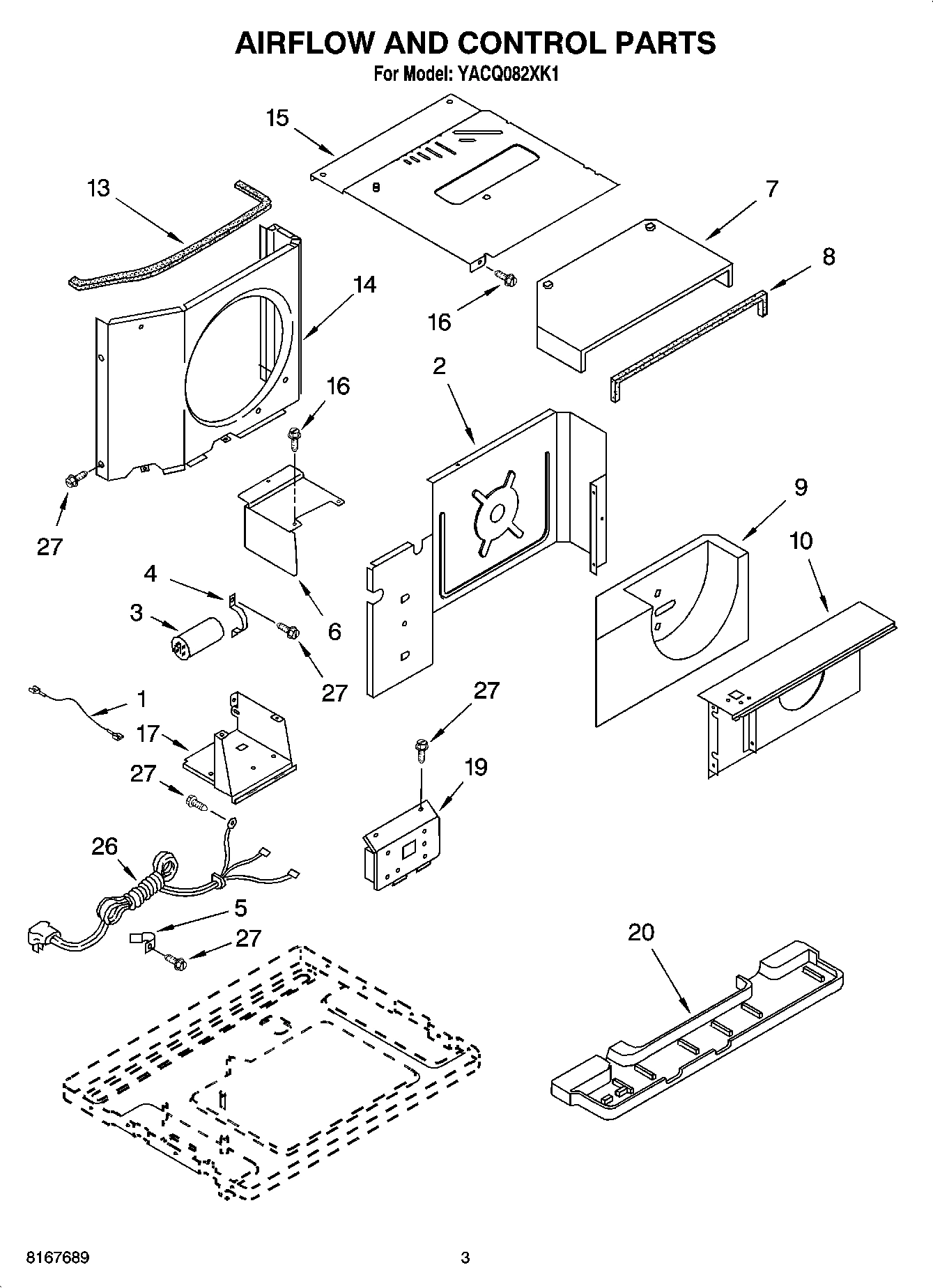

02 - AIR FLOW AND CONTROL PARTS

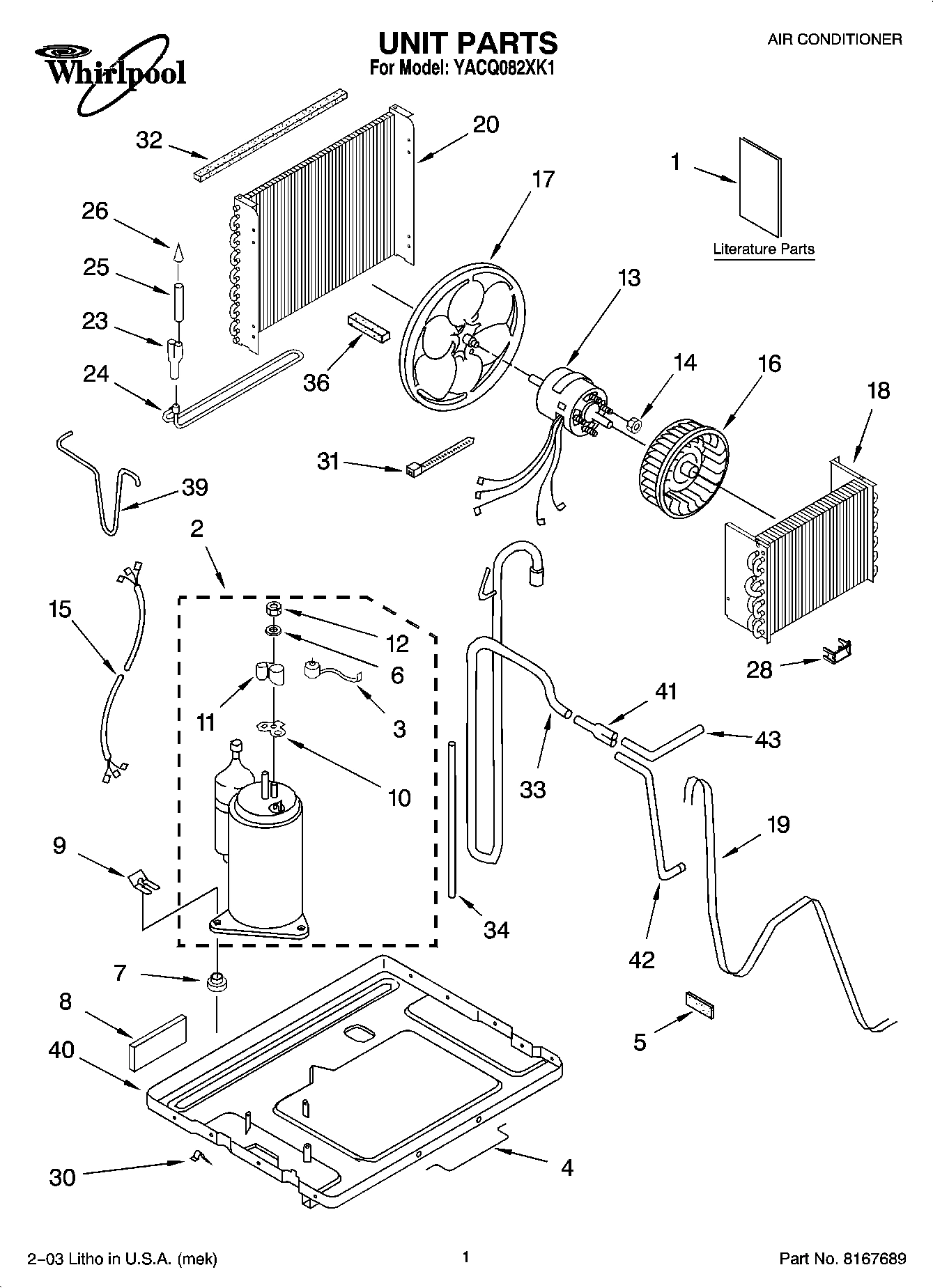

01 - UNIT PARTS
Common parts from model Whirlpool YACQ082XK1 AIR CONDITIONER
1
Cabinet WPL 8031388 Contact Us For Availability
1
Wire, Jumper WPL 1186569 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1184690 Contact Us For Availability
1
Literature Parts (Use & Care Guide (English)) WPL LIT1184698 Contact Us For Availability
1
Literature Parts (Use & Care Guide (French)) WPL LIT1187071 Contact Us For Availability
1
Energy Guide WPL LIT1187078 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
2
Compressor WPL 1185601 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability
3
Capacitor, Running WPL 1186928 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031397 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031399 Contact Us For Availability
5
Seal, Anti-Rub WPL 1184625 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Cover, Control Box WPL 1186666 Contact Us For Availability
6
Gasket, Nut WPL 1182120 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
8
Front WPL 1184692 Contact Us For Availability
8
Seal WPL 1187084 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Housing, Air WPL 8031586 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
10
Grille, Front WPL 8031124 Contact Us For Availability
10
Shroud, Evaporator WPL 8031109 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1184748 Contact Us For Availability
12
Control, Remote WPL 1186156 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
13
Motor, Fan WPL 1186564 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
15
Cover, Unit WPL 1186766 Contact Us For Availability
15
Wiring Harness, Compressor WPL 1186574 Contact Us For Availability
16
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
16
Wheel, Blower WPL 8031154 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Bag, Accessory WPL 1157654 Contact Us For Availability
17
Box, Control WPL 1184600 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
18
Evaporator WPL 8031218 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
19
Control, Electronic WPL 1186192 Contact Us For Availability
19
Tube, Restrictor WPL 1185685 Contact Us For Availability
20
Seal, Top Cover WPL 8031322 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
20
Condenser WPL 8031230 Contact Us For Availability
21
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
23
Wire, Ground WPL 1186626 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 1155460 Contact Us For Availability
26
Cable, Appliance WPL 1186582 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Clip, Thermistor WPL 1185337 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal, Condenser Top WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1185664 Contact Us For Availability
34
Seal, Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1185665 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Flow Divider WPL 1159832 Contact Us For Availability
42
Tube, Outlet (Bottom) WPL 8031329 Contact Us For Availability
43
Tube, Outlet (Top) WPL 8031289 Contact Us For Availability
43
REFRIGERANT CHARGE 10.75 oz. WPL ARI166442A Contact Us For Availability
× ![]()
