Model Whirlpool XST2092K ELECTRIC CARTRIDGE – Common Parts & Diagrams

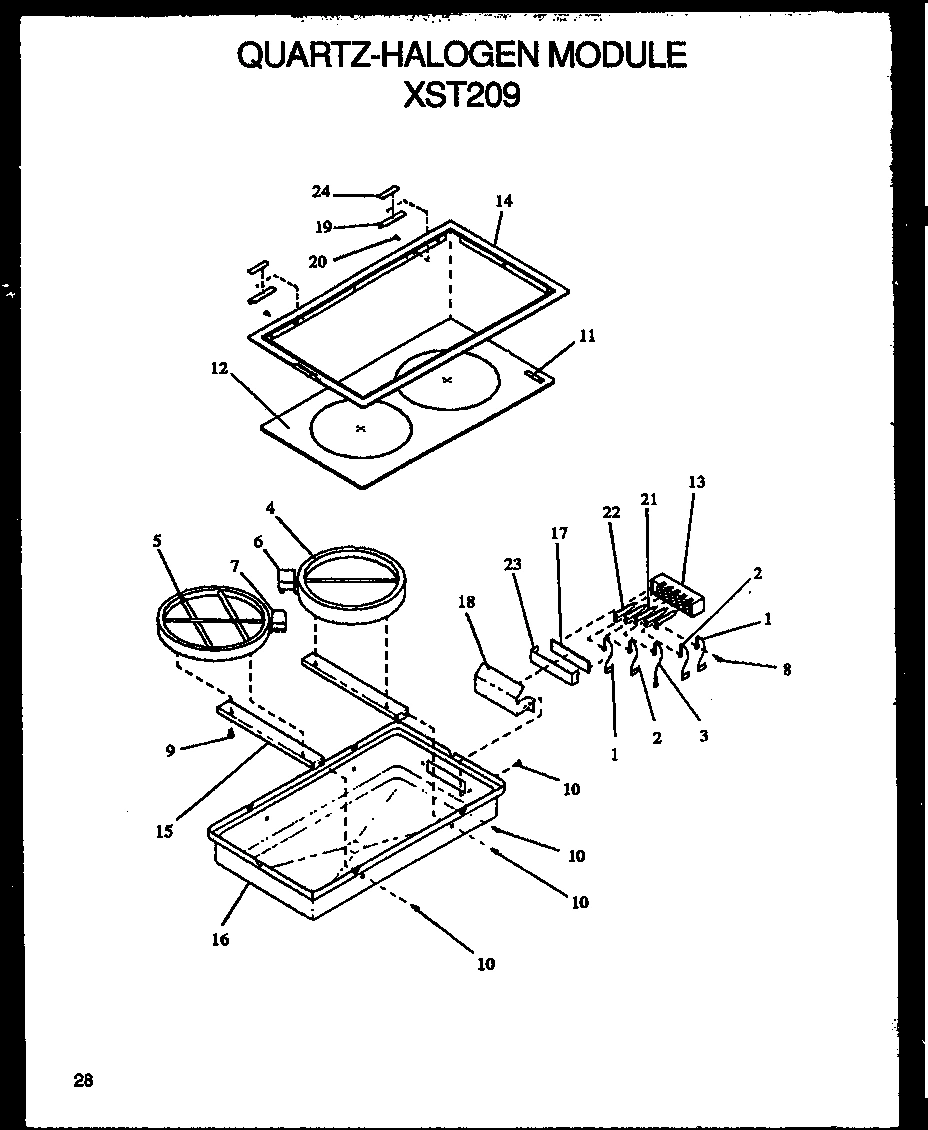

01 - QUARTZ-HALOGEN MODULE
Common parts from model Whirlpool XST2092K ELECTRIC CARTRIDGE
1
JUMPER WIRE WPL D8601235 Contact Us For Availability
2
JUMPER WIRE WPL D8601236 Contact Us For Availability
3
JUMPER WIRE WPL D8601237 Contact Us For Availability
4
ASS`Y, RADIANT HEATER ELEMENT WPL Y0307264 Contact Us For Availability
5
ASSY, HALOGEN WPL Y0307396 Contact Us For Availability
6
LIMITER WPL 10061019 Contact Us For Availability
7
LIMITER, HALOGEN ELEMENT WPL 10061010 Contact Us For Availability
9
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
10
SCREW WPL M0230015 Contact Us For Availability
11
TAPE, VINYL FOAM, ROLL WPL Y0307330 Contact Us For Availability
12
COOKTOP, CERAMIC WPL 307740B Contact Us For Availability
13
MODULE, PLUG BLOCK WPL Y0042211 Contact Us For Availability
14
MODULE FRAME, CHROME WPL 300752K Contact Us For Availability
15
ELEMENT MTG. BRKT WPL 0040970 Contact Us For Availability
16
BURNER PAN, MODULE WPL 300747E Contact Us For Availability
17
INSULATOR-COOKTOP MODULE WPL Y0041994 Contact Us For Availability
18
PLUG BLOCK MTG BRKT WPL Y0040964 Contact Us For Availability
19
SUPPORT GLASS WPL 10296101 Contact Us For Availability
20
SCREW, No.6-20 X .375 PANHD(BLK) WPL Y0092373 Contact Us For Availability
21
CONTACT, SPADE-GROUND WPL Y0052041 Contact Us For Availability
22
CONTACT, SPADE-POWER WPL Y0052040 Contact Us For Availability
23
TAPE, GLASS CLOTH, 1/2`` X 60 Y WPL Y0078470 Contact Us For Availability
24
GASKET WPL C8870701 Contact Us For Availability
NI
METAL SCREW 6X3/8 PHIL PAN HD WPL Y0041796 Contact Us For Availability
NI
RTV (BLK) WPL Y0043430 Contact Us For Availability
NI
RTV (BLK) WPL Y0308058 Contact Us For Availability
× ![]()
