Model LG XBV323 DVD+VCR Combi(Leader) – Common Parts & Diagrams
Diagram 0
Diagram 1

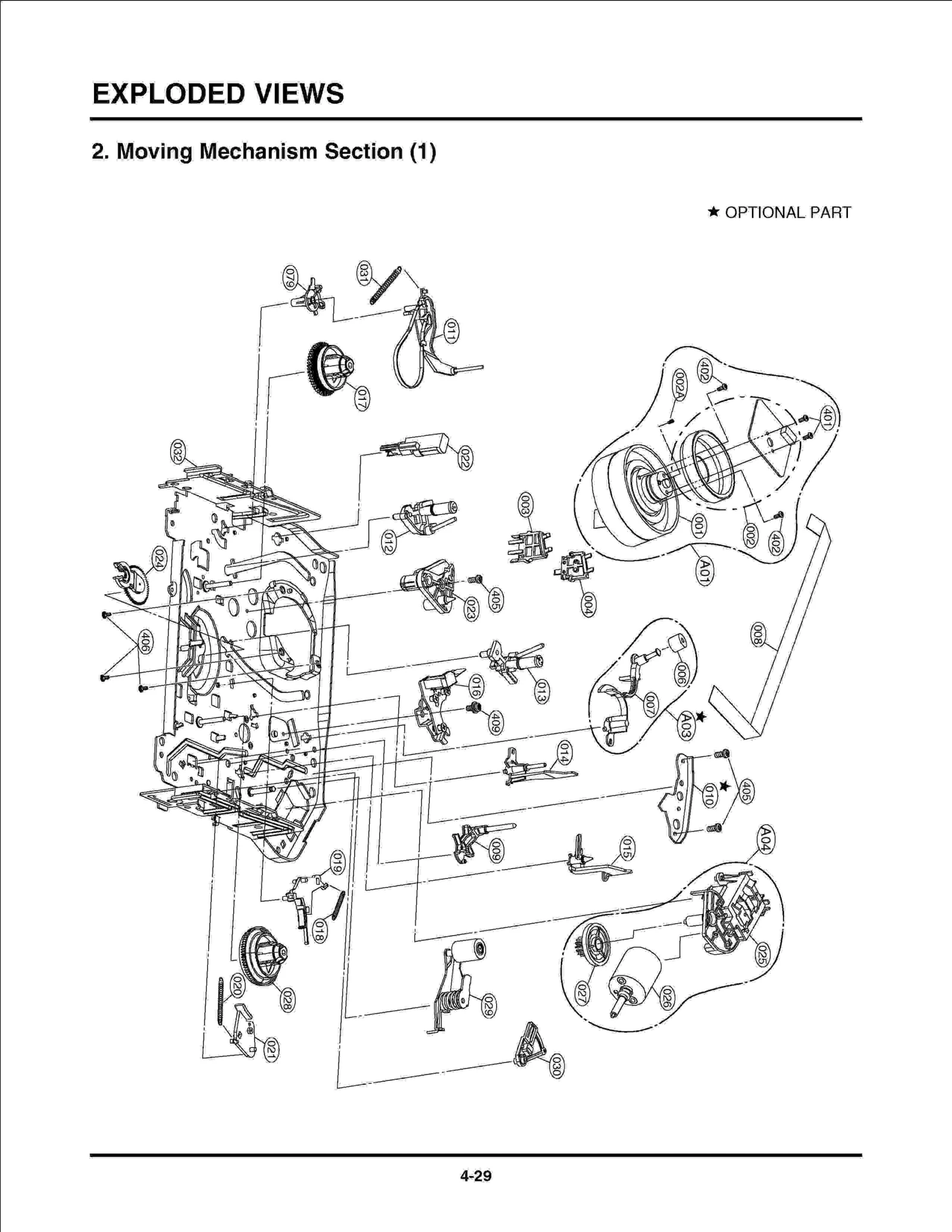

Diagram 2

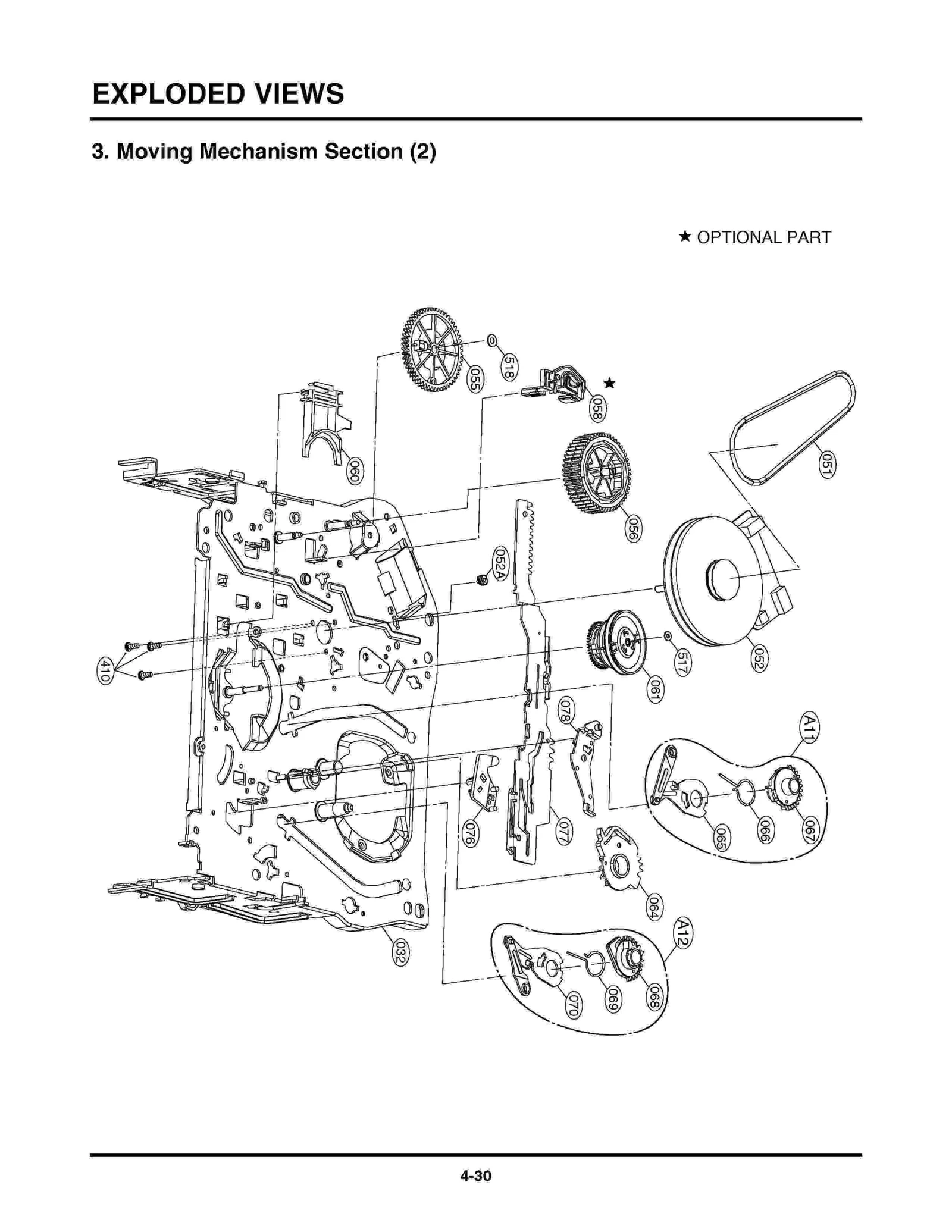

Diagram 3

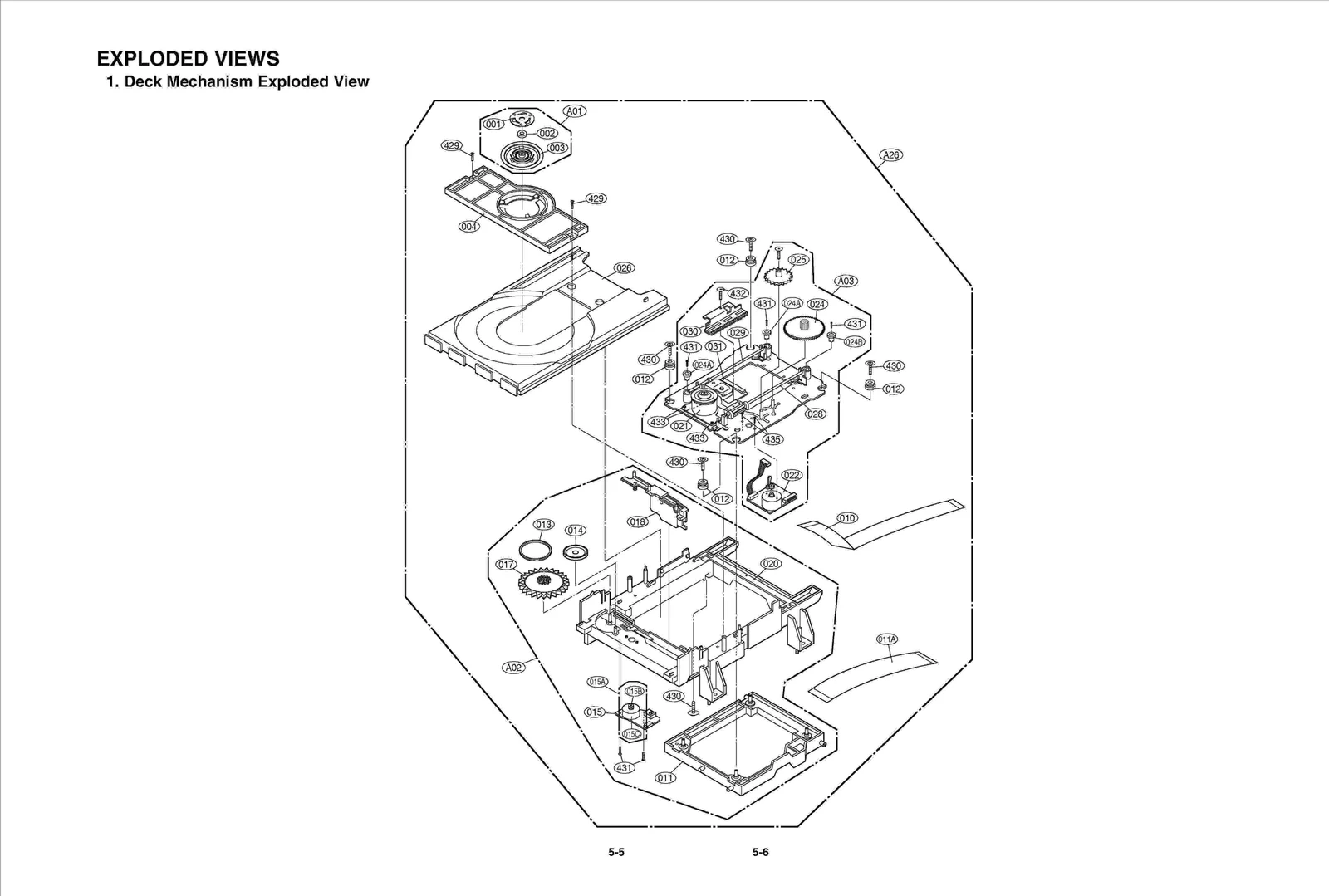

Diagram 4
Diagram 5
Common parts from model LG XBV323 DVD+VCR Combi(Leader)
001
PLATE LGE 3300R-0547A Contact Us For Availability
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
002
LGE 4680R-B010A LGE 4680R-B010A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14E Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,TO LGE 6871R-4415D Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
LGE 4681R-0038B LGE 4681R-0038B Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0014A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019C Contact Us For Availability
029
LGE 4261R-0019D LGE 4261R-0019D Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
030
LGE 4471R-0013B LGE 4471R-0013B Contact Us For Availability
031
PICK UP,DVD LGE 6716DPH005A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A010A Contact Us For Availability
052
LGE 4680R-A009A LGE 4680R-A009A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A011A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
250
LGE 3110R-V004F LGE 3110R-V004F Contact Us For Availability
260
FRAME LGE 3210R-V002A Contact Us For Availability
276
HOLDER,SHELF LGE 4930R-0298B Contact Us For Availability
283
LGE 3580R-V074Q LGE 3580R-V074Q Contact Us For Availability
285
LGE 3580R-T087E LGE 3580R-T087E Contact Us For Availability
300
POWER CORD LGE 6410RAHX02A Contact Us For Availability
330
CHASSIS LGE 3140R-V001A Contact Us For Availability
405
SCREW,DRAWING LGE 1SZZR-0031B Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
452
SCREW SPECIAL(3X10)R-E41M 1US LGE 353-051A Contact Us For Availability
462
SCREW,DRAWING LGE 353-051G Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RM0060Z Contact Us For Availability
802
LGE 3890R-H543L LGE 3890R-H543L Contact Us For Availability
803
LGE 3920R-E080A LGE 3920R-E080A Contact Us For Availability
804
LGE 292-053D LGE 292-053D Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA81 Contact Us For Availability
808
BATTERY,MN LGE 841-0021 Contact Us For Availability
811
PLUG ASSEMBLY LGE 6611R1D003A Contact Us For Availability
812
PLUG ASSEMBLY LGE 6611R2D003A Contact Us For Availability
900
REMOTE CONTROL LGE 6711R1P065G Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RF0740D Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A02
LGE 3041R-M013B LGE 3041R-M013B Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M022B Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RH0377A Contact Us For Availability
A42
LGE 3501R-9909A LGE 3501R-9909A Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721R-F365H Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-8430J Contact Us For Availability
A46A
SUB PWB(PCB) ASSEMBL LGE 6885R-2202C Contact Us For Availability
A48
PWB(PCB) ASSEMBLY,TO LGE 6871R-8511H Contact Us For Availability
A49
BOARD ASSEMBLY LGE 3501R-9908A Contact Us For Availability
BD01
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C5C2
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
C103
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR LGE 624-087B Contact Us For Availability
C108
CAPACITOR,ELECTROLYTIC LGE 0CE336BH638 Contact Us For Availability
C109
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE477BH630 Contact Us For Availability
C126
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C152
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C161
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C163
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C243
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C260
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C264
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C272
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C273
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C274
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C276
Capacitor,Ceramic,Chip LGE 0CH4100K112 Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C308
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C316
LGE 0CH1272K516 LGE 0CH1272K516 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CH4391K416 Contact Us For Availability
C323
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C348
Capacitor,Ceramic,Chip LGE 0CH1473K516 Contact Us For Availability
C408
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C414
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C421
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C501
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C523
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C533
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C566
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C569
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C586
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
LGE 0CH4120K416 LGE 0CH4120K416 Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C597
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C599
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C612
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C614
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C615
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C616
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C707
LGE 0CH4300K416 LGE 0CH4300K416 Contact Us For Availability
C822
Capacitor,Ceramic,Chip LGE 0CH1222K516 Contact Us For Availability
C841
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C875
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C887
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D110
DIODE,RECTIFIER LGE 0DR302000AB Contact Us For Availability
D111
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D113
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D115
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D118
DIODE,RECTIFIER LGE 0DR104510AA Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
D601
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
F501
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F604
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC5A1
IC,MEMORIES LGE 0IMMRFU010A Contact Us For Availability
IC5A1
LGE 0IMMRBA001A LGE 0IMMRBA001A Contact Us For Availability
IC5A1A
LGE 6957R-254AS LGE 6957R-254AS Contact Us For Availability
IC5C1
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC151
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGJR007A Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC302
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI003B Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
LGE 0IMCRMI051C LGE 0IMCRMI051C Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF007A Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC503
IC,ELITE MEMORY TECH LGE 0IEB121616B Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC505
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC510
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRPY001A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00025E Contact Us For Availability
JK601
JACK,RCA LGE 6612JH003AC Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
L102
FILTER(CIRC),DRAWING LGE 616-145P Contact Us For Availability
L123
COIL,CHOKE LGE 633-088G Contact Us For Availability
L125
Coil,Choke LGE 633-088D Contact Us For Availability
L203
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L504
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L601
INDUCTOR RADIAL LEAD 470M K 6X LGE 0LR4700K035 Contact Us For Availability
L603
INDUCTOR AXIAL LEAD * R-V422M LGE 0LA1000K018 Contact Us For Availability
L706
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L822
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
LD501
HOLDER ASSY LGE 4931R-0017A Contact Us For Availability
LD601
LGE 6301R2U008B LGE 6301R2U008B Contact Us For Availability
LED601
LGE 0DL112000AK LGE 0DL112000AK Contact Us For Availability
LED602
LED LGE 0DL342009DA Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
Q150
LGE 0TR115100AC LGE 0TR115100AC Contact Us For Availability
Q150
TRANSISTOR LGE 0TR115100AA Contact Us For Availability
Q156
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q162
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q162
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q162
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q202
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q302
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q304
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q305
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q404
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q507
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q601
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q703
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
R5C5
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R113
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R115
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R116
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R117
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R119
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R132
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R155
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R159
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R170
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R204
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R205
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R213
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R216
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R233
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R236
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R237
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R305
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R306
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R310
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R311
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R317
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R318
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R319
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R320
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R327
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R339
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R348
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R407
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R411
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R416
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R418
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R421
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R427
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R503
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R507
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R515
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R516
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R524
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R544
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R553
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R565
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R567
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R574
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R577
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R578
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R584
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R585
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R588
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R598
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R601
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R604
Resistor,Carbon Film LGE 0RD5602F608 Contact Us For Availability
R612
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R613
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R616
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R617
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R618
Resistor,Carbon Film LGE 0RD8201F608 Contact Us For Availability
R619
Resistor,Carbon Film LGE 0RD1502F608 Contact Us For Availability
R620
Resistor,Carbon Film LGE 0RD2702F608 Contact Us For Availability
R621
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R622
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R623
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R624
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R627
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R631
RESISTOR FIXED CARBON FILM 15 LGE 0RD1500F608 Contact Us For Availability
R706
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R752
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R811
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R836
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R858
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
RS502
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
SW603
SWITCH,TACT LGE 556-219B Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW12A Contact Us For Availability
TU701
LGE 6700NFNG04A LGE 6700NFNG04A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X301
CRYSTAL,STANDARD LGE 6202R1357AC Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X502
LGE 6212AA2143F LGE 6212AA2143F Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ132609AB Contact Us For Availability
ZD502
LGE 0DZ560009CJ LGE 0DZ560009CJ Contact Us For Availability
ZD751
LGE 0DZ102609BB LGE 0DZ102609BB Contact Us For Availability
× ![]()
Login and Registration Form
