Model LG XBS444 – Common Parts & Diagrams
Diagram 0
Diagram 1

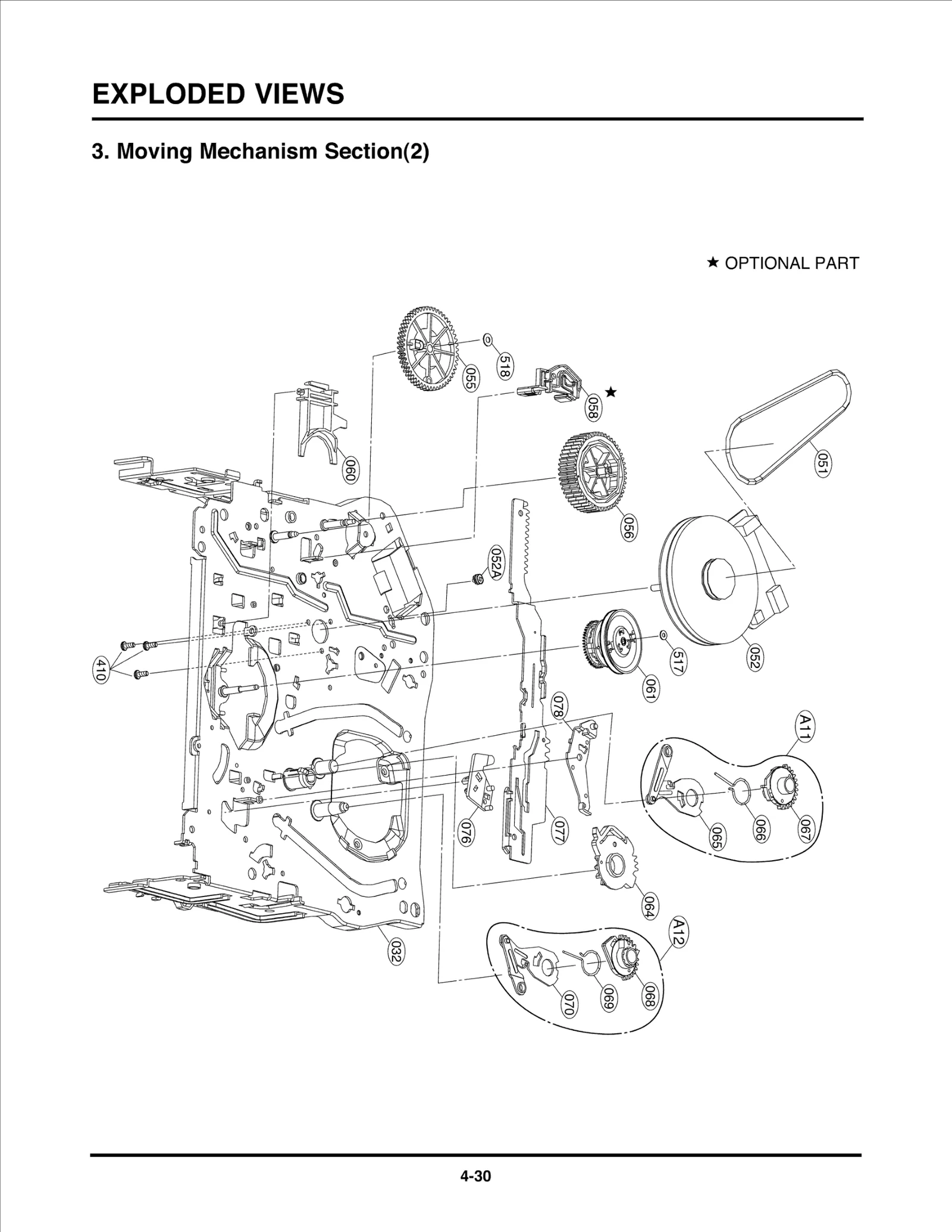

Diagram 2

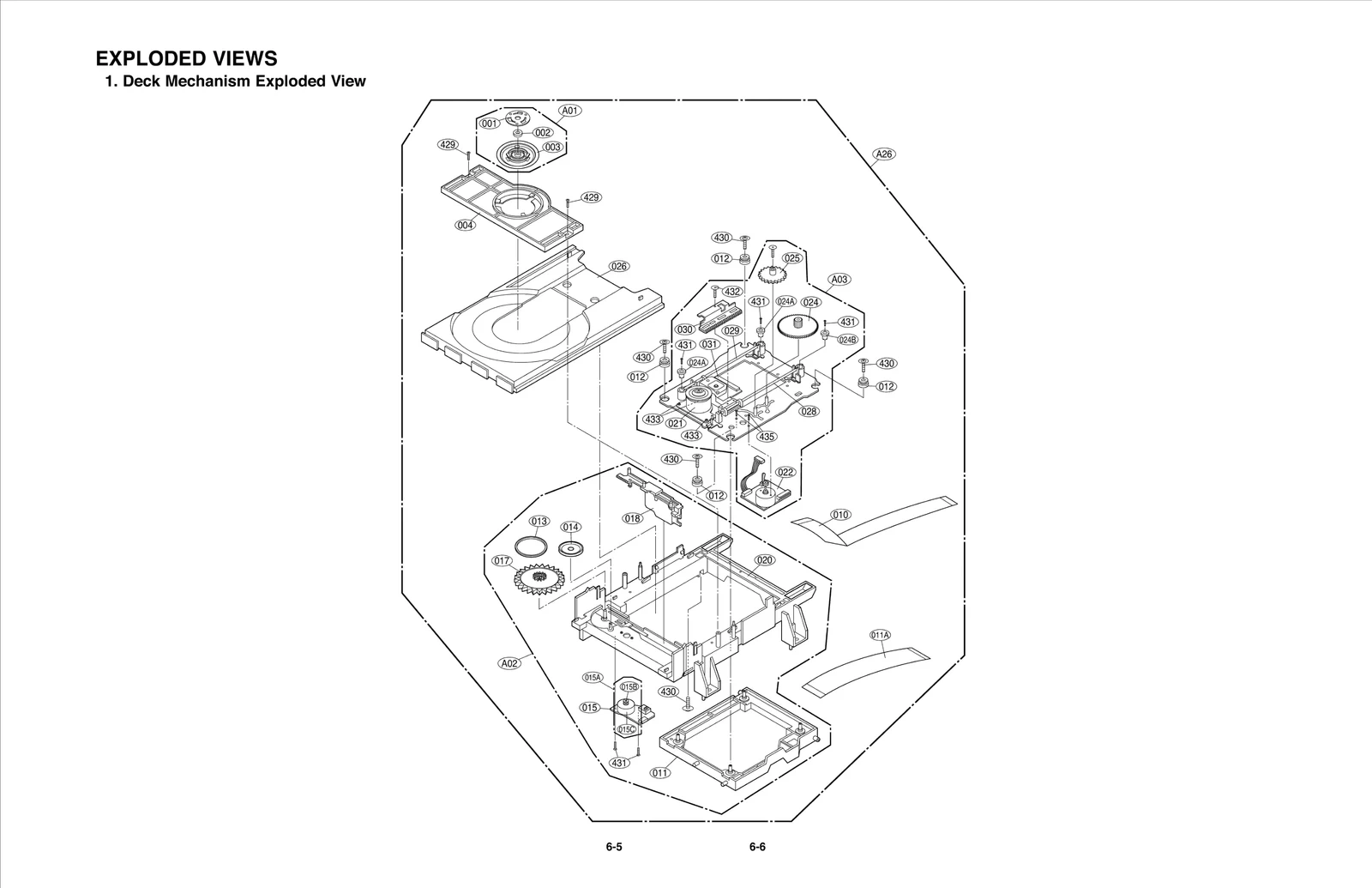

Diagram 3

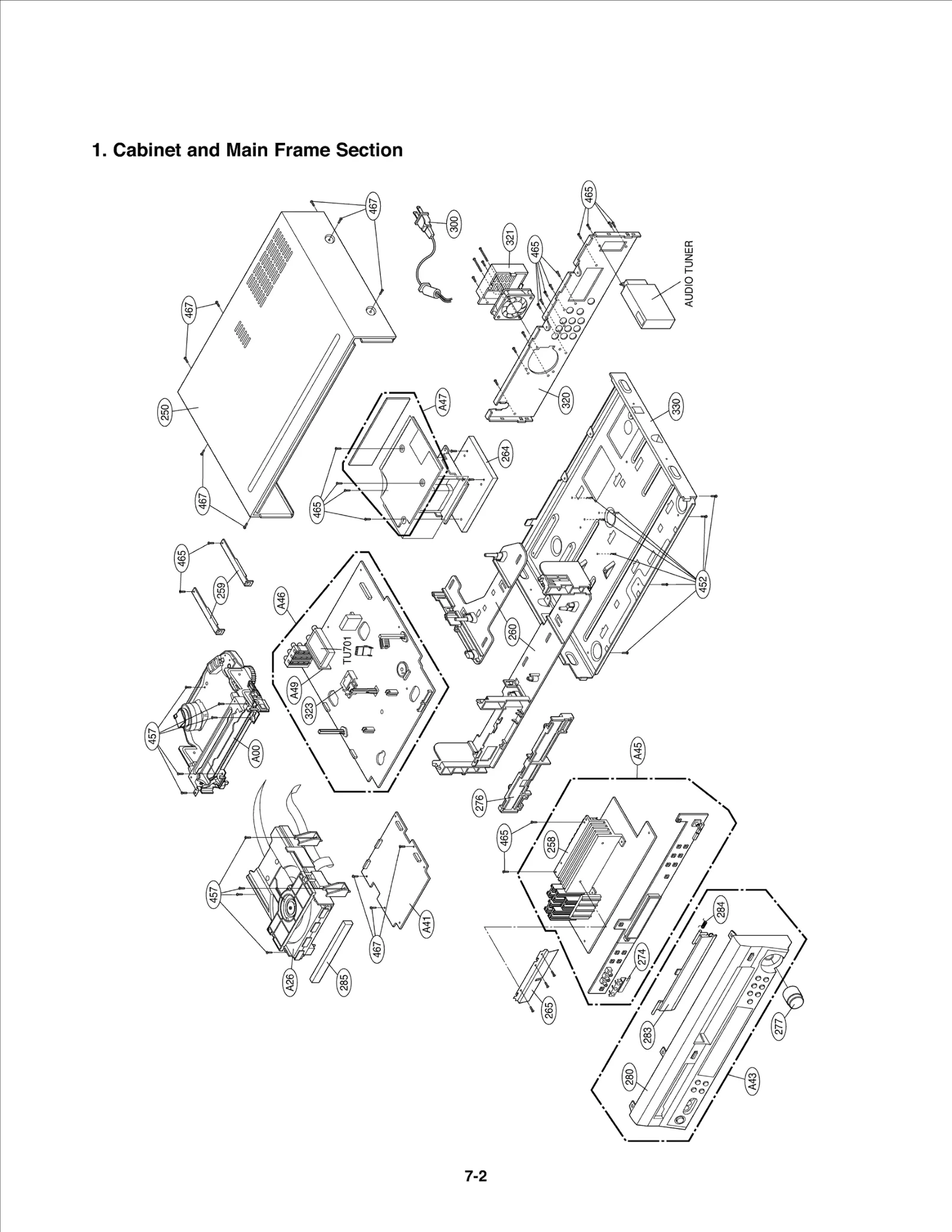

Diagram 4

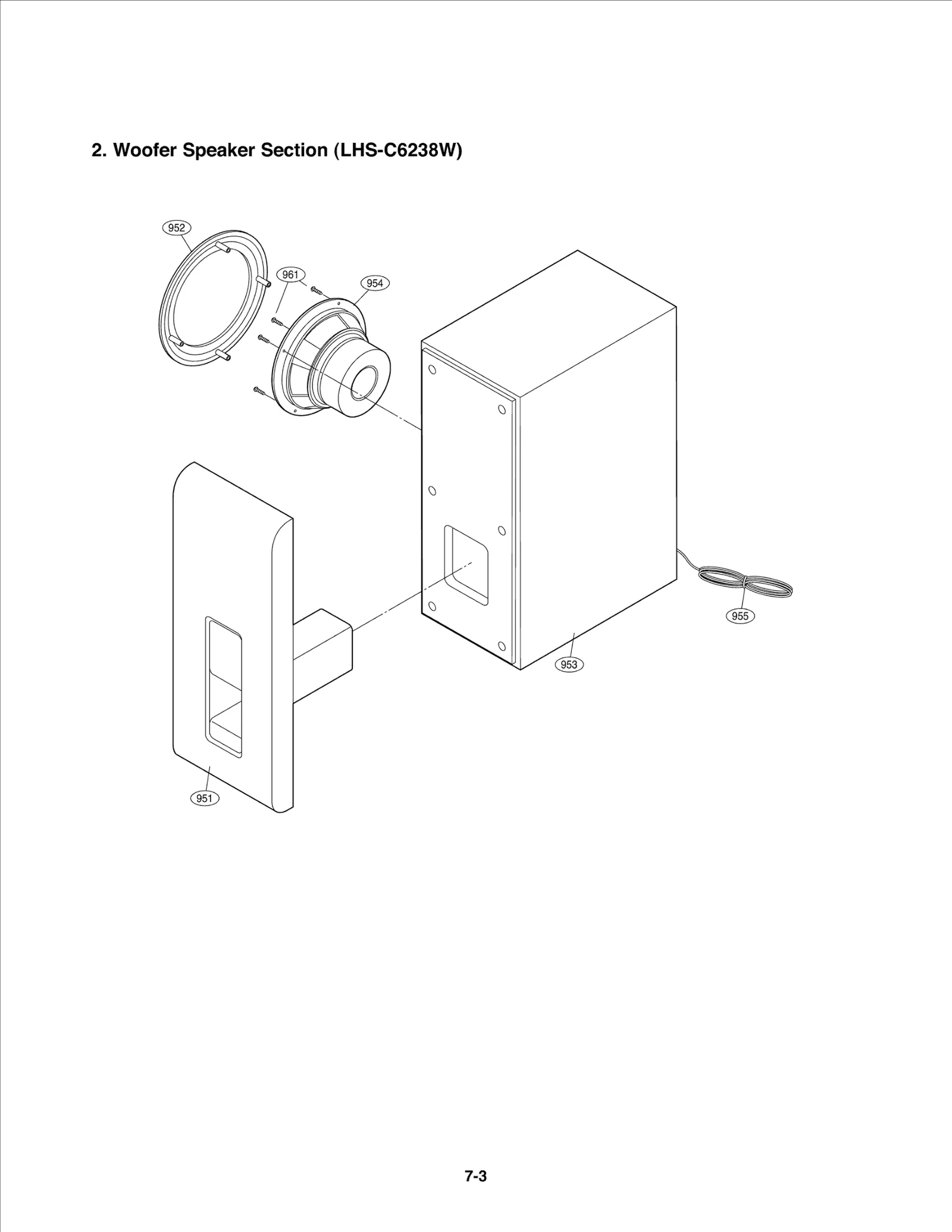

Diagram 5

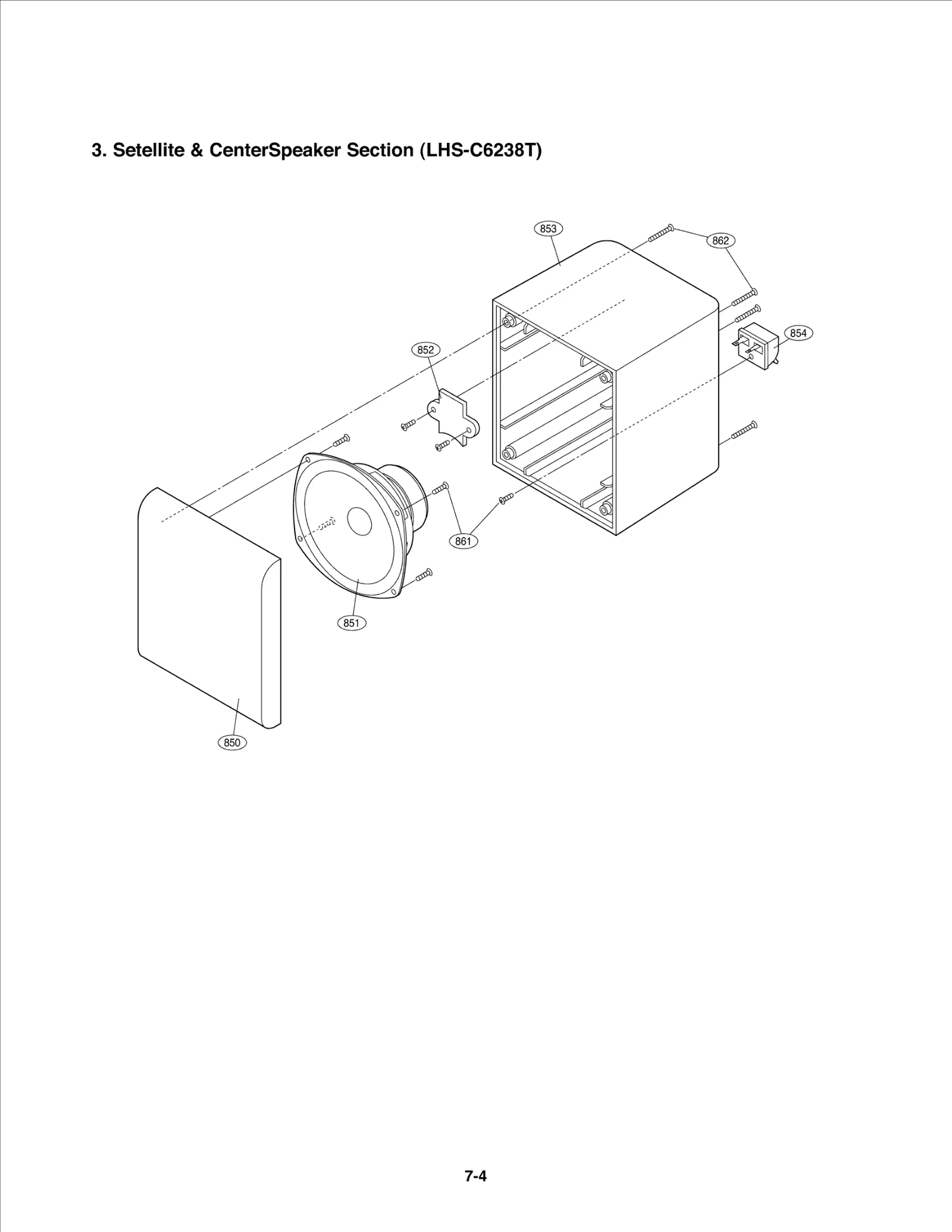

Diagram 6

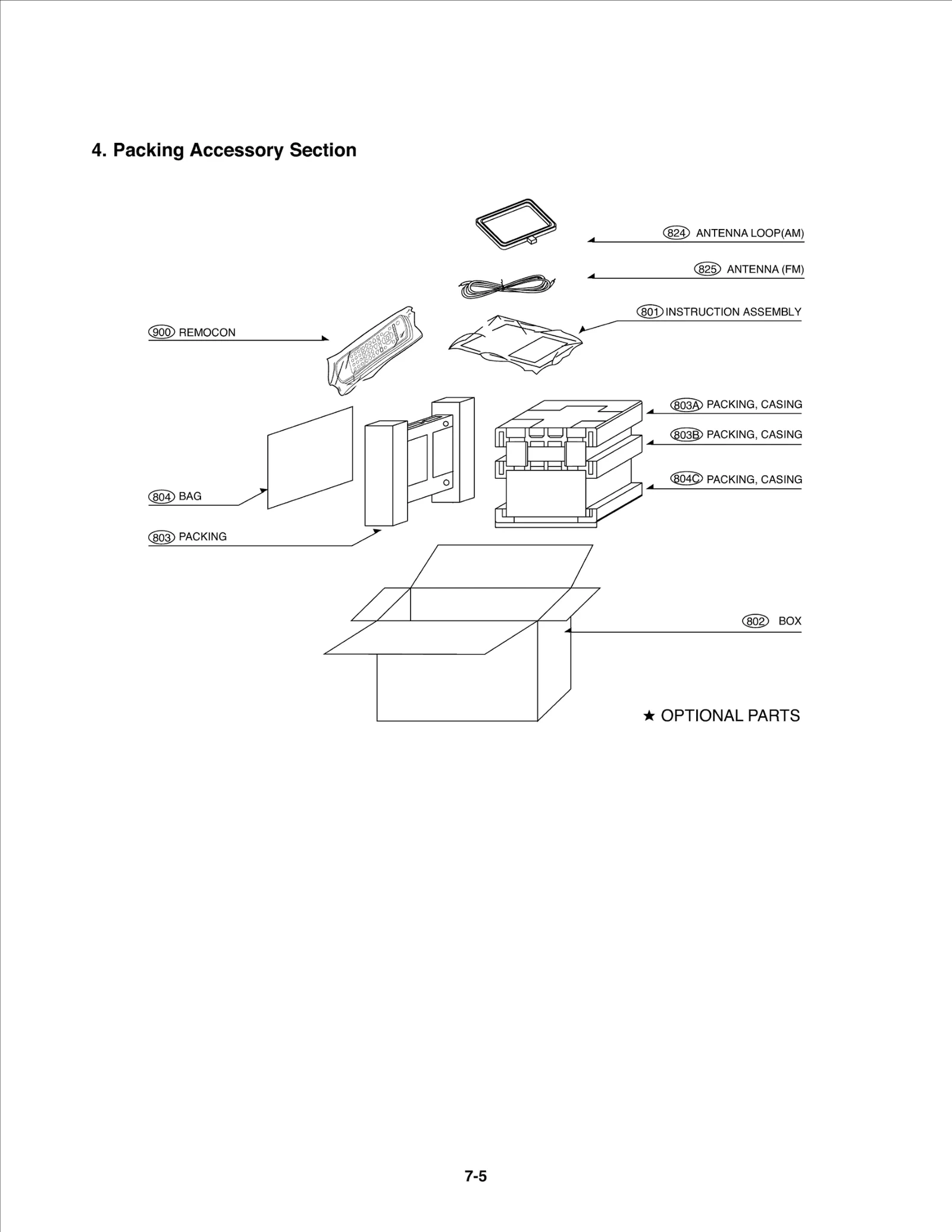

Diagram 7
Diagram 8
Common parts from model LG XBS444
001
PLATE LGE 3300R-0547A Contact Us For Availability
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
002A
BRUSH,CARBON LGE 5202R00002C Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Z Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011
ARM ASSY LGE 4261R-0022A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW16B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
012
BASE ASSY LGE 3041R-0037A Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
013
BASE ASSY LGE 3041R-0038A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
014
BASE ASSY LGE 3041R-0039A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,OT LGE 6871RZ5130A Contact Us For Availability
015
OPENER LGE 5870R-0005A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023E Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
015C
Motor,Unclassified LGE 4680R-D003A Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-0036B Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-0036A Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-0036C Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
017
REEL LGE 4408R-0003A Contact Us For Availability
018
SPRING LGE 4970R-0140A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
019
BRAKE ASSEMBLY LGE 4421R-0008A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
020
SPRING LGE 4970R-0128A Contact Us For Availability
021
BRAKE ASSY LGE 4421R-0006A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034C Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
LGE 4810R-0118A LGE 4810R-0118A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0014A Contact Us For Availability
027
LGE 4470R-0093A LGE 4470R-0093A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
028
LGE 4408R-0004A LGE 4408R-0004A Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019C Contact Us For Availability
029
LGE 4261R-0019D LGE 4261R-0019D Contact Us For Availability
030
GEAR ASSEMBLY LGE 4471R-0013C Contact Us For Availability
030
LEVER LGE 4510R-0043A Contact Us For Availability
031
SPRING LGE 4970R-0123A Contact Us For Availability
051
BELT LGE 4400R-0005A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A011A Contact Us For Availability
052
LGE 4680R-A009A LGE 4680R-A009A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A010A Contact Us For Availability
052A
SUPPORTER LGE 4980R-0023A Contact Us For Availability
054
LGE 4470R-0100A LGE 4470R-0100A Contact Us For Availability
054A
LGE 4970R-0124B LGE 4970R-0124B Contact Us For Availability
058
BRAKE ASSY LGE 4421R-0007A Contact Us For Availability
060
LGE 4510R-0040A LGE 4510R-0040A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
064
LGE 4470R-0098A LGE 4470R-0098A Contact Us For Availability
065
LGE 4261R-0021A LGE 4261R-0021A Contact Us For Availability
067
LGE 4470R-0095A LGE 4470R-0095A Contact Us For Availability
068
LGE 4470R-0094A LGE 4470R-0094A Contact Us For Availability
069
SPRING LGE 4970R-0122A Contact Us For Availability
070
LGE 4261R-0020A LGE 4261R-0020A Contact Us For Availability
076
LGE 4510R-0047A LGE 4510R-0047A Contact Us For Availability
077
PLATE LGE 3300R-M116A Contact Us For Availability
078
LEVER LGE 4510R-0041A Contact Us For Availability
079
BASE LGE 3040R-0056A Contact Us For Availability
102
SPRING LGE 4970R-0130A Contact Us For Availability
107
LGE 4510R-0044A LGE 4510R-0044A Contact Us For Availability
110
Arm LGE 4260R-0035A Contact Us For Availability
112
BODY LGE 3070R-0002A Contact Us For Availability
113
Spring LGE 4970R-0127A Contact Us For Availability
114
LGE 4260R-0036A LGE 4260R-0036A Contact Us For Availability
117
PLATE LGE 3300R-M137A Contact Us For Availability
250
CASE LGE 3110R-H001C Contact Us For Availability
258
HEAT SINK LGE 4920R-E008A Contact Us For Availability
260
LGE 3210R-V005A LGE 3210R-V005A Contact Us For Availability
264
BRACKET LGE 4810R-0173A Contact Us For Availability
265
BRACKET LGE 4810R-0175A Contact Us For Availability
274
PLATE LGE 3300R-V032A Contact Us For Availability
276
HOLDER,SHELF LGE 4930R-0298B Contact Us For Availability
277
KNOB LGE 4940RDV001A Contact Us For Availability
280
PANEL,FRONT LGE 3720RDF001A Contact Us For Availability
283
DOOR,CASE LGE 3580RDV001A Contact Us For Availability
284
SPRING DOOR P-705M P-710M LGE 442-681A Contact Us For Availability
285
DOOR,CASE LGE 3580RDC001A Contact Us For Availability
300
POWER CORD LGE 6410RAHP02D Contact Us For Availability
320
PANEL,AUDIO LGE 3720RDP001A Contact Us For Availability
321
COVER LGE 3550R-4056A Contact Us For Availability
330
CHASSIS LGE 3140R-H001A Contact Us For Availability
401
SCREW MACHINE,PAN HE LGE 1MEC0261518 Contact Us For Availability
402
LGE 1MPC0261418 LGE 1MPC0261418 Contact Us For Availability
405
SCREW,DRAWING LGE 1SZZR-0031B Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
409
SCREW,DRAWING LGE 1SZZR-0032B Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0023B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098B Contact Us For Availability
457
SCREW,DRAWING LGE 1SZZR-0098E Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
517
WASHER,DRAWING LGE 1WZZR-0004F Contact Us For Availability
517
WASHER LGE 1WZZR-0004D Contact Us For Availability
518
WASHER LGE 1WZZR-0004A Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RH0018R Contact Us For Availability
802
BOX,MASTER LGE 3890RCC180K Contact Us For Availability
803
PACKING,CASING LGE 3920R-E079A Contact Us For Availability
804
BAG LGE 292-053B Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
824
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
825
ANTENNA,T LGE 5010SCT001A Contact Us For Availability
850
NET ASSEMBLY LGE 3701RM0059A Contact Us For Availability
851
SPEAKER,FULLRANGE LGE 6400FTTC02A Contact Us For Availability
853
CASE LGE 3110RMP026A Contact Us For Availability
861
SCREW LGE 353M025G Contact Us For Availability
862
SCREW,DRAWING LGE 353M025U Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710RCAM22A Contact Us For Availability
951
PANEL,FRONT LGE 3720RMF010B Contact Us For Availability
952
NET ASSEMBLY LGE 3701RM0060A Contact Us For Availability
953
CABINET ASSEMBLY LGE 3091RMW068A Contact Us For Availability
954
SPEAKER,WOOFER LGE 6400WTTJ03A Contact Us For Availability
955
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271F Contact Us For Availability
961
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
A00
LGE 6721RF0740C LGE 6721RF0740C Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016C Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M013C Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016I Contact Us For Availability
A04
BRACKET ASSEMBLY LGE 4811RF0038A Contact Us For Availability
A04
LGE 4811RF0038B LGE 4811RF0038B Contact Us For Availability
A11
GEAR ASSY LGE 4471R-0005A Contact Us For Availability
A12
GEAR ASSY LGE 4471R-0004A Contact Us For Availability
A22
GEAR ASSY LGE 4471R-0006A Contact Us For Availability
A23
ARM ASSY LGE 4261R-0023A Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RF0378C Contact Us For Availability
A41
SUB PWB(PCB) ASSEMBL LGE 6885R-7435E Contact Us For Availability
A42
LGE 6874RZ7235B LGE 6874RZ7235B Contact Us For Availability
A42B
HAND INS PWB(PCB) ASSEMBLY LGE 6874RF7235B Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721RDF237N Contact Us For Availability
A45
PWB(PCB) ASSEMBLY,TO LGE 6871R-7235C Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-7240C Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-7238C Contact Us For Availability
A49
PWB(PCB) ASSEMBLY,TO LGE 6871R-7330A Contact Us For Availability
A800
SPEAKER ASSEMBLY (XBS444) LGE 6401RM0069A Contact Us For Availability
ACCE1
PWB(PCB) ASSEMBLY,SU LGE 6871RU4116B Contact Us For Availability
ACCE2
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271A Contact Us For Availability
ACCE3
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271B Contact Us For Availability
ACCE4
PWB(PCB) ASSEMBLY,SU LGE 6871RU9271D Contact Us For Availability
ACCE5
WIRE R,L LGE 6871RU9271E Contact Us For Availability
ACCE6
PWB(PCB) ASSEMBLY,SU LGE 6871RU9303C Contact Us For Availability
BC601
Filter,Bead LGE 636-004C Contact Us For Availability
BD701
LGE 0DR610000AA LGE 0DR610000AA Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CH4101K416 Contact Us For Availability
C114
Capacitor,AL,Radial LGE 0CE4746K618 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C119
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C172
Capacitor,AL,Radial LGE 0CE4765K618 Contact Us For Availability
C202
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C241
LGE 0CE477CF638 LGE 0CE477CF638 Contact Us For Availability
C241
Capacitor,AL,Radial LGE 0CE4775F638 Contact Us For Availability
C253
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C272
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C273
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C274
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C276
Capacitor,Ceramic,Chip LGE 0CH4100K112 Contact Us For Availability
C277
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C301
Capacitor,Film,DIP LGE 0CQ2232L559 Contact Us For Availability
C302
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C309
CAPACITOR ELECTROLYTIC 47M SMS LGE 0CE4766F638 Contact Us For Availability
C309
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C310
Capacitor,Ceramic,Axial LGE 0CN4730K948 Contact Us For Availability
C310
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C312
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C316
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1030K945 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C318
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C319
Capacitor,Ceramic,Axial LGE 0CN1050K948 Contact Us For Availability
C320
LGE 0CN2230H948 LGE 0CN2230H948 Contact Us For Availability
C339
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C341
Capacitor,Ceramic,Chip LGE 0CH1103K516 Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CH1473K516 Contact Us For Availability
C362
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C408
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C412
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C428
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C459
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C473
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C533
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C537
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C546
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C563
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C570
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C584
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
LGE 0CH4120K416 LGE 0CH4120K416 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C597
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C602
Capacitor,AL,Radial LGE 0CE4766D618 Contact Us For Availability
C617
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C621
Capacitor,Ceramic,Axial LGE 0CN1010K518 Contact Us For Availability
C704
LGE 0CE4786H650 LGE 0CE4786H650 Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH4150K416 Contact Us For Availability
C708
CAPACITOR,AL.ELECTROLYTIC LGE 0CE477CD638 Contact Us For Availability
C709
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C710
LGE 0CE228CF630 LGE 0CE228CF630 Contact Us For Availability
C713
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C715
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C723
LGE 0CE1076J618 LGE 0CE1076J618 Contact Us For Availability
C724
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C728
CAPACITOR,FIXED ELEC LGE 0CE688CF650 Contact Us For Availability
C795
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C797
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C798
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C834
Capacitor,Ceramic,Chip LGE 0CH1472K516 Contact Us For Availability
C851
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
C875
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C879
Capacitor,AL,Radial LGE 0CE2254K638 Contact Us For Availability
C881
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C887
Capacitor,AL,Radial LGE 0CE3354K638 Contact Us For Availability
C998
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
CABL12
CABLE,FLAT LGE 6850R-GL22E Contact Us For Availability
CABL12
CABLE,FLAT LGE 6850R-HL06Y Contact Us For Availability
CABL12
CABLE,FLAT LGE 6850R-HL08A Contact Us For Availability
CABL17
CABLE,FLAT LGE 6850R-HQ26Z Contact Us For Availability
CN303
CONNECTOR (CIRC),BOA LGE 6630BK00215 Contact Us For Availability
CN703
CONNECTOR(CIRC),DRAW LGE 561-712O Contact Us For Availability
CONNECTOR
CONNECTOR (CIRC),WAF LGE 561-712E Contact Us For Availability
CONNECTOR
CONNECTOR (CIRC),FFC LGE 6630R-FB05K Contact Us For Availability
CONNECTOR
CONNECTOR ASSEMBLY LGE 6631R-E055B Contact Us For Availability
CS501
SWITCH,PUSH LGE 6600M000026 Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
D501
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D501
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D706
LGE 0DR154020AA LGE 0DR154020AA Contact Us For Availability
D709
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D802
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
DG601
DIGITRON LGE 6302R-V212A Contact Us For Availability
ES501
HOLDER ASSEMBLY LGE 4931R-0050C Contact Us For Availability
F502
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F616
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
F701
FUSE,SLOW BLOW LGE 0FS6301B51D Contact Us For Availability
F703
Fuse,Time Delay LGE 0FS4001B51D Contact Us For Availability
FB104
FILTER(CIRC),EMI LGE 6200S-JC01B Contact Us For Availability
FH700B
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL301
COIL LGE 633-032K Contact Us For Availability
IC5A1A
LGE 6957R-743AC LGE 6957R-743AC Contact Us For Availability
IC5C1
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC102
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC103
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC105
IC,MITSUBISHI LGE 0IMI624460B Contact Us For Availability
IC160
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC162
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC162
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC300
IC,SGS-THOMSON LGE 0ISG726500A Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC302
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI003B Contact Us For Availability
IC451
LGE 0IPRPBB004A LGE 0IPRPBB004A Contact Us For Availability
IC454
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF007A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRSA045C Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRMI066A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRHY001A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC503
IC,CATALYST LGE 0ICS241600B Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC505
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC506
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPPY002A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPNE001A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC701
IC,KEC LGE 0IKE790900A Contact Us For Availability
IC702
IC,KEC LGE 0IKE780900M Contact Us For Availability
IC703
IC,KEC LGE 0IKE781200P Contact Us For Availability
IC704
IC,KEC LGE 0IKE781200R Contact Us For Availability
IC707
IC,POWER MANAGEMENT LGE 0IPMGKE012A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013B Contact Us For Availability
J6
CONNECTOR FH-R20R UG3 LGE 561-711D Contact Us For Availability
JK303
JACK,DIN LGE 6612R-H001A Contact Us For Availability
JK400
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
JK601
JACK,RCA LGE 6612JH003AC Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK801
JACK,RCA LGE 6612JH003DH Contact Us For Availability
L203
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L501
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L501
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L706
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
LD501
LGE 4931R-0017C LGE 4931R-0017C Contact Us For Availability
LED601
LED LGE 0DL325319AA Contact Us For Availability
LED603
LED,DIP LGE 0DLAU0249AA Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P3D02
CONNECTOR(CIRC),DRAW LGE 6630R5S008J Contact Us For Availability
P3D03
Connector,BtoB LGE 561-251B Contact Us For Availability
P6M01
CONNECTOR (CIRC) LGE 561-844L Contact Us For Availability
P6602
Connector,BtoB LGE 6630S-BC01H Contact Us For Availability
P6603
Connector,BtoB LGE 6630S-BC02H Contact Us For Availability
PDA01
CONNECTOR (CIRC),FFC LGE 561-686Q Contact Us For Availability
PDA02
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
PDA02
LGE 6630R-FB02L LGE 6630R-FB02L Contact Us For Availability
PDM01
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
PDM02
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PDV03
Connector,Wafer LGE 561-711J Contact Us For Availability
PMC01
Connector,BtoB LGE 6630R-BE01L Contact Us For Availability
PN101
CONNECTOR (CIRC),FFC LGE 561-687Q Contact Us For Availability
PN103
CONNECTOR (CIRC),FFC LGE 6630R-FB05L Contact Us For Availability
PN300
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PN303
CONNECTOR (CIRC),BOA LGE 6630BK00115 Contact Us For Availability
PN701
CONNECTOR (CIRC),WAF LGE 561-7150 Contact Us For Availability
PN703
CONNECTOR ASSEMBLY LGE 6631R-E051B Contact Us For Availability
PN706
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
PTV01
Connector,BtoB LGE 561-844F Contact Us For Availability
PV601
CONNECTOR (CIRC) LGE 561-843L Contact Us For Availability
PV602
CONNECTOR(CIRC),DRAW LGE 561-843F Contact Us For Availability
PVD01
CONNECTOR ASSEMBLY LGE 6631R-E051N Contact Us For Availability
PVD03
CONNECTOR (CIRC),FFC LGE 561-686L Contact Us For Availability
PVS02
Connector,Wafer LGE 561-036B Contact Us For Availability
Q163
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q169
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q202
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q205
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q300
TRANSISTOR CD-340A UG8 CD-945A LGE 0TR126609AB Contact Us For Availability
Q303
TRANSISTOR FH-R20R UG3 CD-340A LGE 0TR319809AB Contact Us For Availability
Q304
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q305
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q307
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q307
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q309
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q309
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q400
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q405
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q405
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q504
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q504
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q601
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q602
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R5C4
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R104
RESISTOR CHIP 56K 1/10W 5 D.R LGE 0RH5602D622 Contact Us For Availability
R114
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R150
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R169
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R172
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R176
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R210
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R215
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R216
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R220
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R232
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R234
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R236
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R243
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R253
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R304
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
R305
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R306
Resistor,Carbon Film LGE 0RD5602F608 Contact Us For Availability
R306
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R307
Resistor,Carbon Film LGE 0RD1502F608 Contact Us For Availability
R308
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R311
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R312
RESISTOR CHIP 3.9K 1/10W 5 D. LGE 0RH3901D622 Contact Us For Availability
R313
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R314
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R316
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R327
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R328
Resistor,Carbon Film LGE 0RD6802F608 Contact Us For Availability
R329
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R335
RESISTOR CHIP GVC-C425 1UG1 GS LGE 0RH8201D622 Contact Us For Availability
R337
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R408
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R411
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R418
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R423
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R440
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R453
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R460
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R465
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R474
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R477
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R503
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R513
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R515
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R518
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RH5601D622 Contact Us For Availability
R524
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R527
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R554
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R555
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R565
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R575
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R580
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R580
RESISTOR CHIP 12K 1/10W 5 D.R LGE 0RH1202D622 Contact Us For Availability
R587
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R597
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R598
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R606
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R609
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R610
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R612
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R613
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R615
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R616
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R617
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R618
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R619
Resistor,Carbon Film LGE 0RD8201F608 Contact Us For Availability
R627
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R630
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R635
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R641
Resistor,Carbon Film LGE 0RD0752F608 Contact Us For Availability
R704
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R706
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R780
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R809
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R822
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R836
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R838
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R858
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
RC601
Receiver Module LGE 6712R1638GD Contact Us For Availability
RC601
REMOTE CONTROLLER RE LGE 6712R1638GB Contact Us For Availability
RS501
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
SW635
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW635
Switch,Tact LGE 6600RRT001Q Contact Us For Availability
SW635
LGE 6600RRT001H LGE 6600RRT001H Contact Us For Availability
T701
TRANSFORMER,POWER LGE 6170RCT06LS Contact Us For Availability
T701
LGE 6170RCT10LD LGE 6170RCT10LD Contact Us For Availability
TH300
THERMISTOR,PTC LGE 6322R-0005A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
TUNER
TUNER LGE 6700FM0029A Contact Us For Availability
VR601
VOLUME,ROTARY LGE 6110R-ER01A Contact Us For Availability
VR601
VOLUME,ROTARY LGE 6110S-ET01A Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
ZD161
Diode,Zener LGE 0DZ560009CB Contact Us For Availability
ZD162
Diode,Zener LGE 0DZ100009AA Contact Us For Availability
ZD163
Diode,Zener LGE 0DZ130009AA Contact Us For Availability
ZD302
Diode,Zener LGE 0DZ510009EC Contact Us For Availability
ZD704
Diode,Zener LGE 0DZ330009CA Contact Us For Availability
ZD711
Diode,Zener LGE 0DZ270009CC Contact Us For Availability
ZD712
Diode,Zener LGE 0DZ337729AA Contact Us For Availability
× ![]()
Login and Registration Form
