Model Broan Nutone XB110L1-A Ultra Green Series Fan/Light - 110 CFM / <0.3 Sones – Common Parts & Diagrams

Common parts from model Broan Nutone XB110L1-A Ultra Green Series Fan/Light - 110 CFM / <0.3 Sones

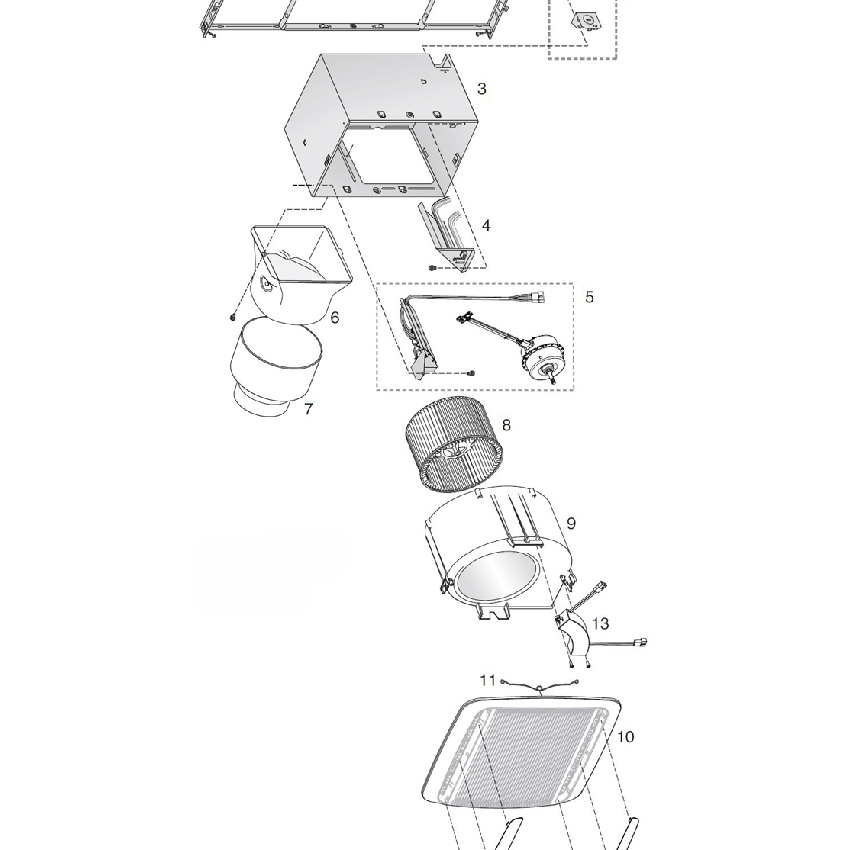

Exploded View

Print

• This Diagram
• All Diagrams

2

S97018721 Broan Parts Bag Backorder BRN S97018721 View Details $43.20

View on Model

3

Housing BRN S97018382 Contact Us For Availability

View on Model

4

Wiring Panel / Harness Assembly - Includes Re BRN S97020893 Contact Us For Availability

View on Model

5

S97020847 Broan Range Control and Motor Board Backorder BRN S97020847 View Details $407.70

View on Model

6

Damper / Duct Connector - 6inch Round BRN S97018331 Contact Us For Availability

View on Model

8

S99020301 Broan Range Blower Wheel Backorder BRN S99020301 View Details $54.00

View on Model

9

Scroll Assembly BRN S97018768 Contact Us For Availability

View on Model

10

Grille Assembly - Includes Grille Springs, Li BRN S97020827 Contact Us For Availability

View on Model

11

S99140208 Broan Spring Assembly Backorder BRN S99140208 View Details $43.20

View on Model

13

LED Driver BRN S99271625 Contact Us For Availability

View on Model

×
