Model LG X3NC14BNLE0.AT3AUSH – Common Parts & Diagrams

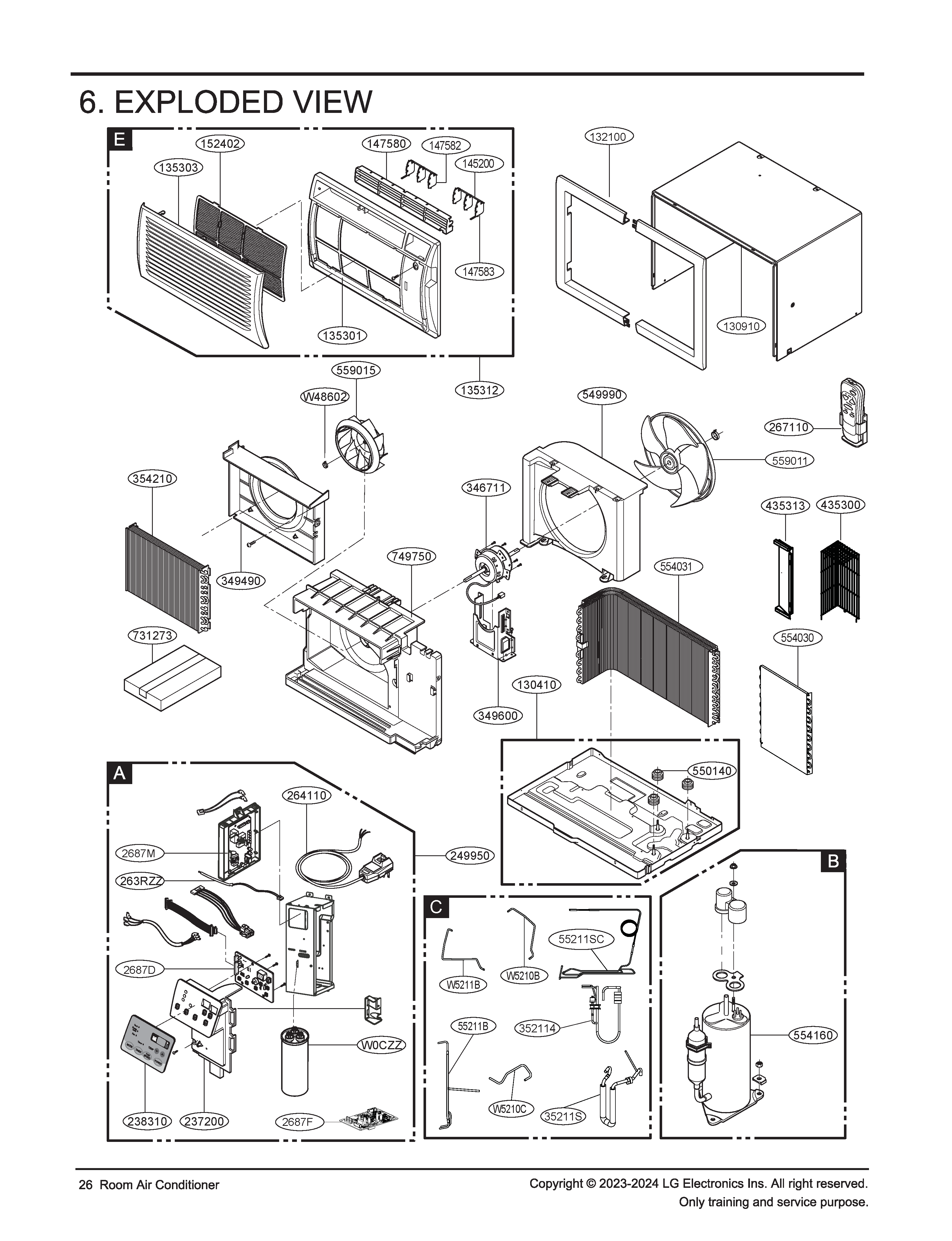

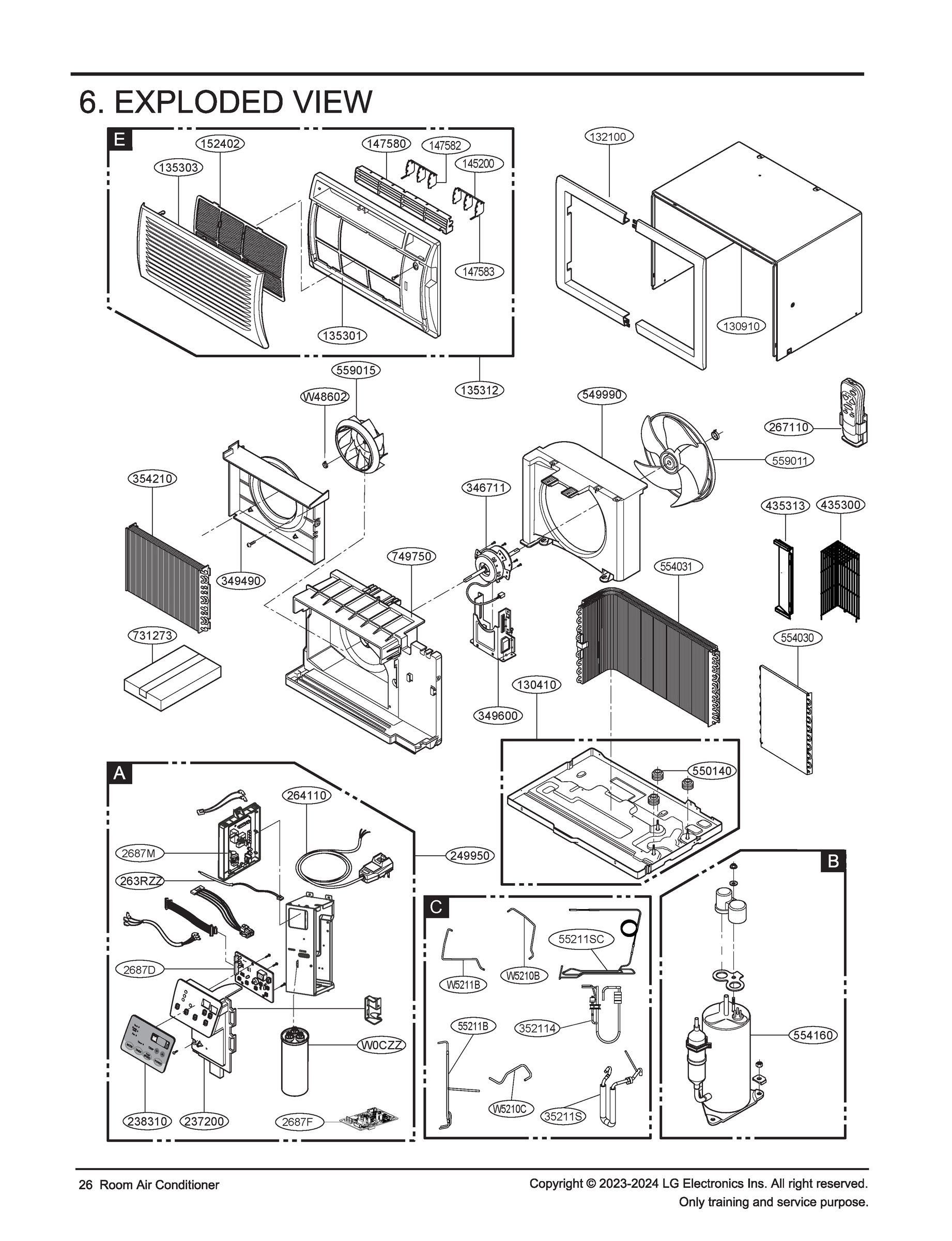

DIAGRAM 1
Common parts from model LG X3NC14BNLE0.AT3AUSH
263RZZ
Thermistor,NTC LGE 6323A20012F Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR75743906 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR75743913 Contact Us For Availability
55211B
Tube Assembly,Condenser(Out) LGE AJR75704501 Contact Us For Availability
55211B
Tube Assembly,Condenser(Out) LGE AJR75704504 Contact Us For Availability
55211SC
Tube Assembly,Condenser(Out) LGE AJR75724606 Contact Us For Availability
55211SC
Tube Assembly,Condenser(Out) LGE AJR75724609 Contact Us For Availability
130410
Base Assembly,Single LGE AAN73212139 Contact Us For Availability
130410
Base Assembly,Single LGE AAN73212141 Contact Us For Availability
130910
Cabinet Assembly,Single LGE ABJ75367209 Contact Us For Availability
132100
Frame LGE MDQ63677202 Contact Us For Availability
135301
Grille,Front LGE 3530A11003F Contact Us For Availability
135303
Grille,Inlet LGE 3530A10272F Contact Us For Availability
135312
Grille Assembly,Front LGE 3531A18004V Contact Us For Availability
145200
Link LGE 4520A20007C Contact Us For Availability
145200
Link LGE 4520A20007E Contact Us For Availability
147580
Louver,Horizontal LGE 4758A20058E Contact Us For Availability
147582
Louver,Vertical LGE MFH63463706 Contact Us For Availability
147583
Louver,Vertical LGE MFH63463705 Contact Us For Availability
152402
Filter,Air LGE 5230A20041F Contact Us For Availability
237200
Panel,Control LGE MGC35987202 Contact Us For Availability
238310
Escutcheon LGE MDD62483308 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ74404935 Contact Us For Availability
264110
Power Cord Assembly LGE EAD63469530 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73016019 Contact Us For Availability
346711
Motor Assembly,DC LGE EAU64124107 Contact Us For Availability
349490
Orifice LGE MFX62982304 Contact Us For Availability
349600
Bracket,Motor LGE MAZ63728003 Contact Us For Availability
349600
Bracket,Motor LGE MAZ63728004 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR75022317 Contact Us For Availability
352114
Tube Assembly,Discharge LGE AJR75022322 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL73741705 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL73741708 Contact Us For Availability
435300
Grille,Rear LGE 3530A20101E Contact Us For Availability
435313
Grille Assembly,Rear LGE AEB75064802 Contact Us For Availability
549990
Shroud Assembly LGE AHV73849804 Contact Us For Availability
550140
Damper,Compressor LGE 4984AR4390B Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76528101 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76528102 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG76528201 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39168401 Contact Us For Availability
559011
Fan,Axial LGE 5900A10009E Contact Us For Availability
559011
Fan,Axial LGE 5900A10009H Contact Us For Availability
559015
Fan,Turbo LGE 5900A20009G Contact Us For Availability
731273
Install Part Assembly,Single LGE 3127A20017E Contact Us For Availability
731273
Install Part Assembly,Single LGE AET74151910 Contact Us For Availability
749750
Guide Assembly,Air LGE AEC73577511 Contact Us For Availability
W0CZZ
Capacitor,Film,Box LGE 2H01451M Contact Us For Availability
W5210B
Tube,Connector LGE MJU64971705 Contact Us For Availability
W5210B
Tube,Connector LGE MJU64971713 Contact Us For Availability
W5210C
Tube,Connector LGE MJU64928406 Contact Us For Availability
W5210C
Tube,Connector LGE MJU64928412 Contact Us For Availability
W5211B
Tube,Connector LGE MJU64971706 Contact Us For Availability
W5211B
Tube,Connector LGE MJU64971714 Contact Us For Availability
W48602
Clamp,Spring LGE 3H02932B Contact Us For Availability
W48602
Clamp,Spring LGE MBU64446301 Contact Us For Availability
× ![]()
