Model Whirlpool X12002V03 AIR CONDITIONER – Common Parts & Diagrams

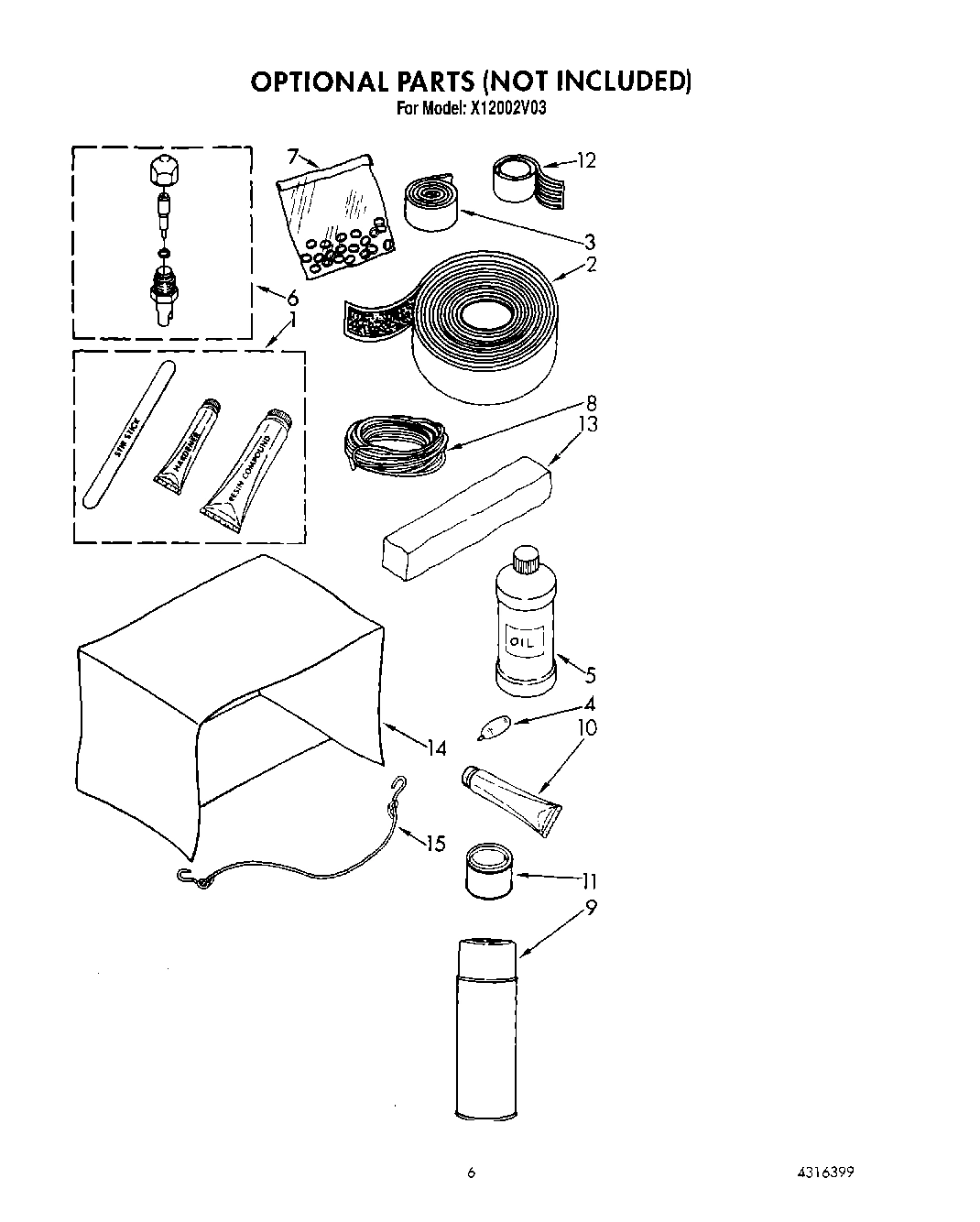

04 - OPTIONAL

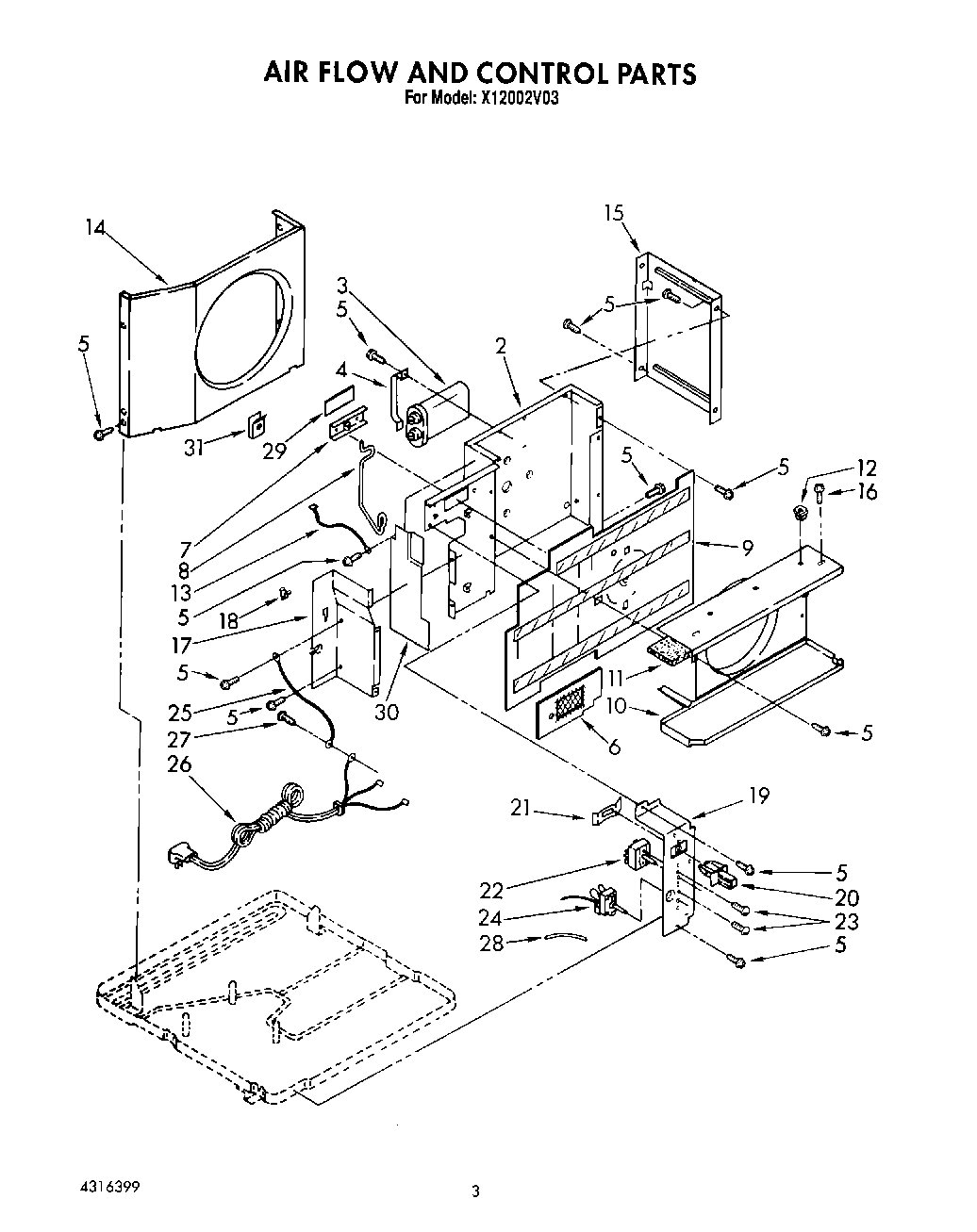

02 - AIR FLOW AND CONTROL PARTS

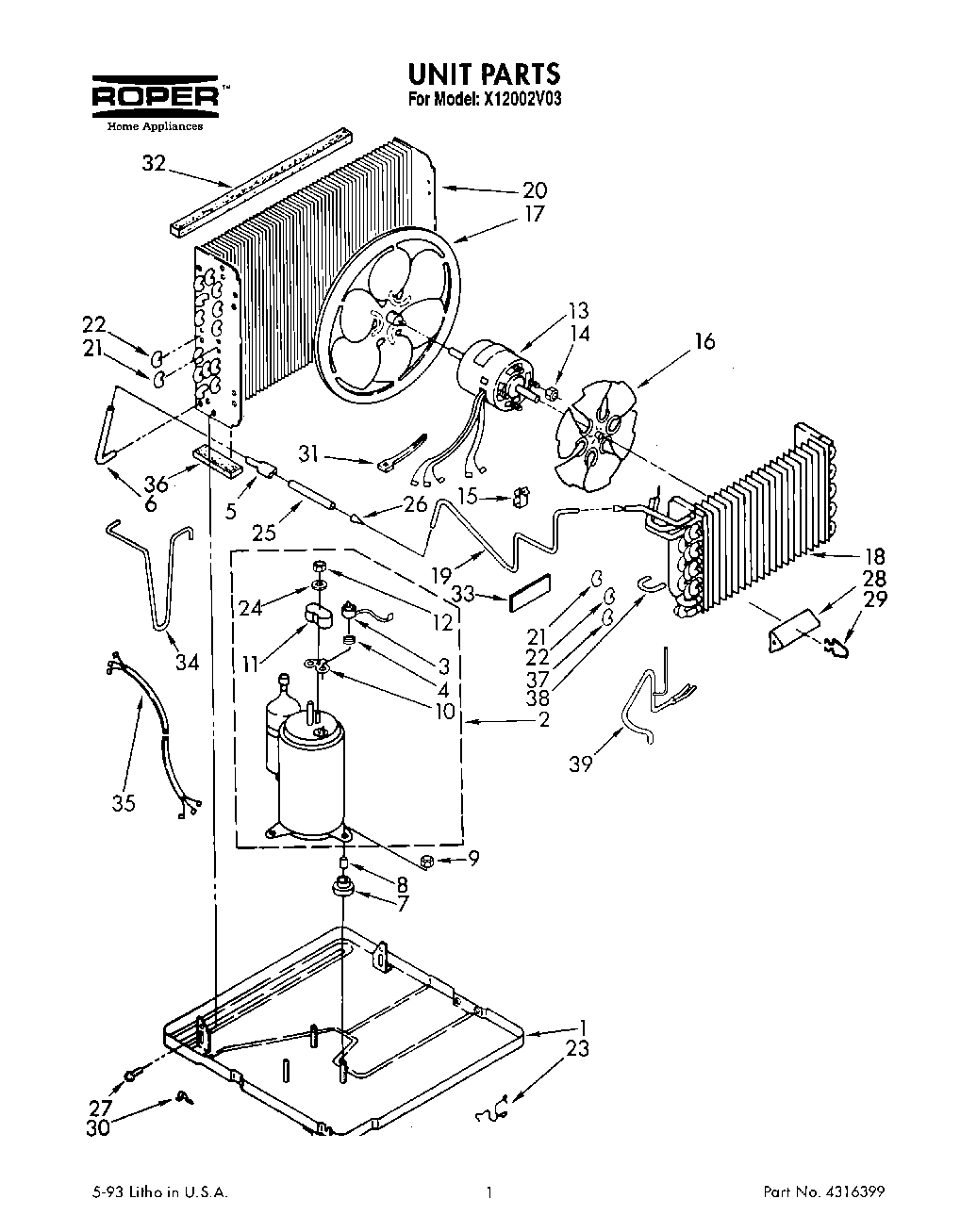

01 - UNIT PARTS, LITERATURE

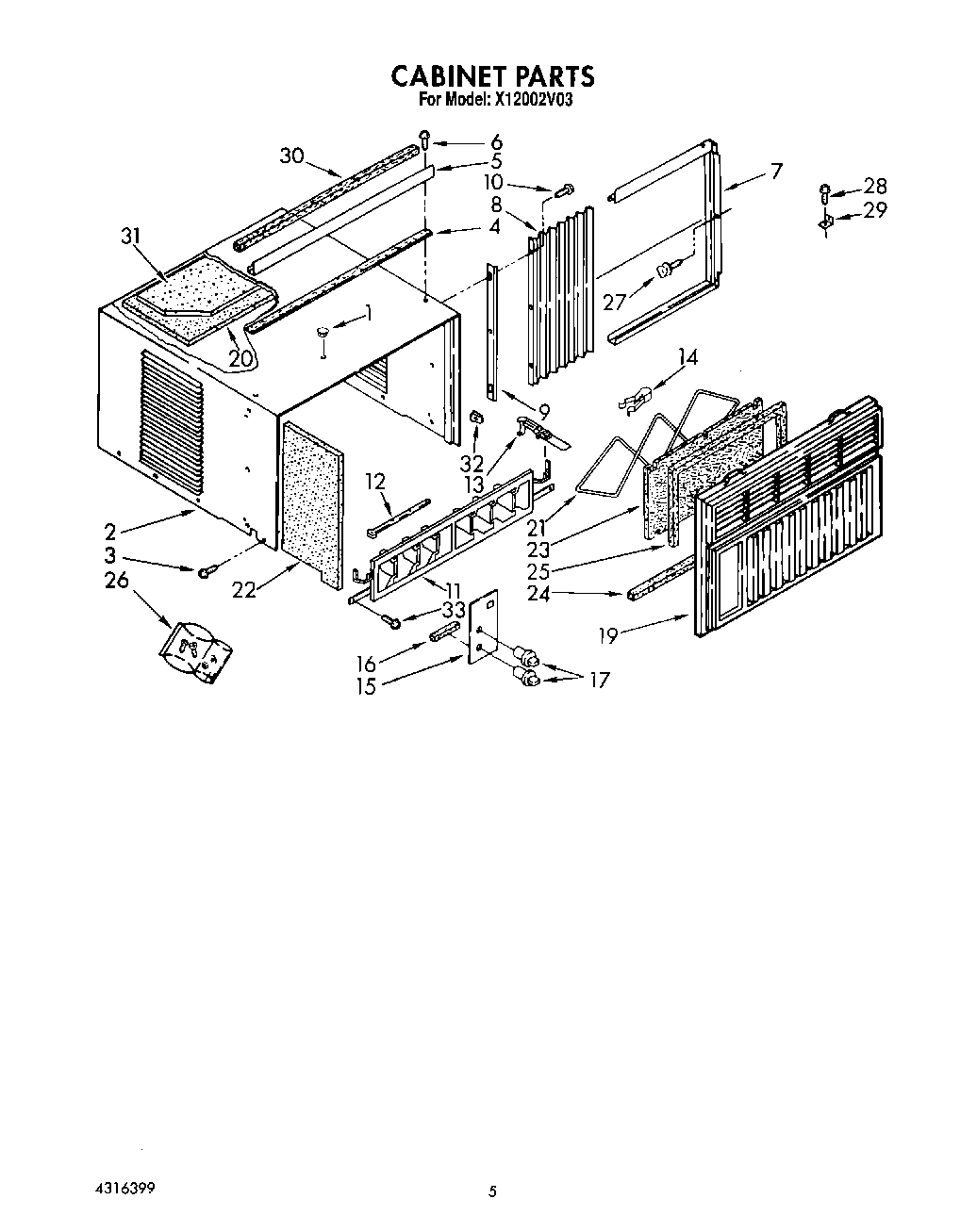

03 - CABINET
Common parts from model Whirlpool X12002V03 AIR CONDITIONER
Sheet, Tech WPL LIT1155834 Contact Us For Availability
Instruction, Installtion WPL LIT1155974 Contact Us For Availability
Guide, Operation WPL LIT1158169 Contact Us For Availability
List, Repair Parts WPL LIT4316399 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
1
Base WPL 950019 Contact Us For Availability
1
Plug, Hole WPL 1157126 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 1156321 Contact Us For Availability
2
Compressor WPL 1163573 Contact Us For Availability
2
Insulation (3) WPL 1157053 Contact Us For Availability
2
Cabinet (Also Order) WPL 1163513 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 952384 Contact Us For Availability
3
Overload (Production) WPL 1155700 Contact Us For Availability
3
Overload (Service) WPL 950031 Contact Us For Availability
4
Bracket, Running Capacitor WPL 856105 Contact Us For Availability
4
Spring, Overload WPL 950032 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
5
Tube, Flow Divider WPL 947364 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
6
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
7
Door, Exhaust WPL 644206 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 950020 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
9
Insulation, Divider Wall WPL 1163432 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
10
Shroud, Evaporator (Includes No.11) WPL 948219 Contact Us For Availability
10
Screw 3/8 SG WPL 1161561 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
11
Louver, Vertical WPL 1159980 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
12
Nut WPL 950037 Contact Us For Availability
12
Link, Vertical Louver WPL 855158 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Motor, Fan WPL 947852 Contact Us For Availability
13
Handle, Vertical Louver WPL 1161636 Contact Us For Availability
14
Winter Cover (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Winter Cover (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Winter Cover (19 x 12 x 14``) WPL 484067 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Dent WPL 644006 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit (2) WPL 1156536 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Plate, Escutcheon WPL 1158167 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 1161594 Contact Us For Availability
17
Knob, Control (2) WPL 1162672 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Tube, Restrictor (2) WPL 1156745 Contact Us For Availability
19
Front, Cabinet WPL 1158196 Contact Us For Availability
20
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
20
Condenser WPL 1156741 Contact Us For Availability
20
Insulation Cabinet Top WPL 1163429 Contact Us For Availability
21
Retainer, Dent Spring WPL 858765 Contact Us For Availability
21
Bend, Return Condenser (4) Evaporator (14) WPL 708532 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
22
Bend, Return Condenser (16) Evaporator (5) WPL 708531 Contact Us For Availability
22
Cabinet, Insul. (Right Side) WPL 1163430 Contact Us For Availability
22
Cabinet, Insul. (Left, Side) WPL 1163431 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Clip, Mtg. (2) (Base to Front) WPL 949634 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet WPL 1155460 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 646306 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw (Repair) No.10 x 3/8A WPL 488481 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
Insulator, Sleeve Temp. Control WPL 475841 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
Spacer WPL 1159175 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
Insulation, Dividing Wall WPL 1163514 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
31
Clip, Exhaust Door WPL 1162627 Contact Us For Availability
31
Cabinet, Insul. WPL 1158501 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
32
Clip, Vert. Louver WPL 1158294 Contact Us For Availability
33
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
33
Screw WPL 1159222 Contact Us For Availability
34
Tube, Discharge WPL 1155564 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend Return WPL 1158407 Contact Us For Availability
38
Bend Return WPL 1156533 Contact Us For Availability
39
Tube, Suction Asy. WPL 1163983 Contact Us For Availability
× ![]()
