Model Whirlpool X12002V0 AIR CONDITIONER – Common Parts & Diagrams
03 - AIRFLOW AND CONTROL
05 - LIT/OPTIONAL

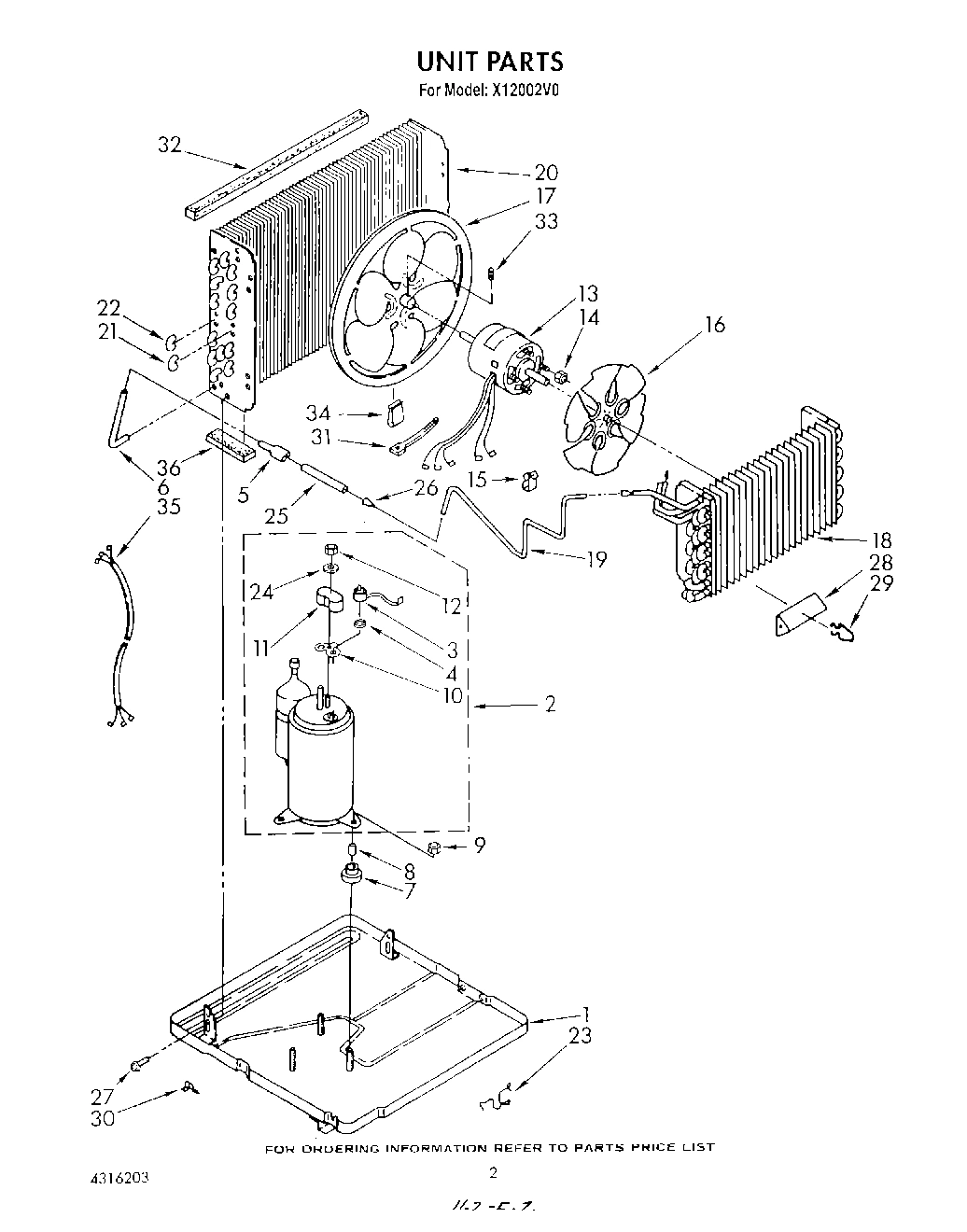

02 - UNIT

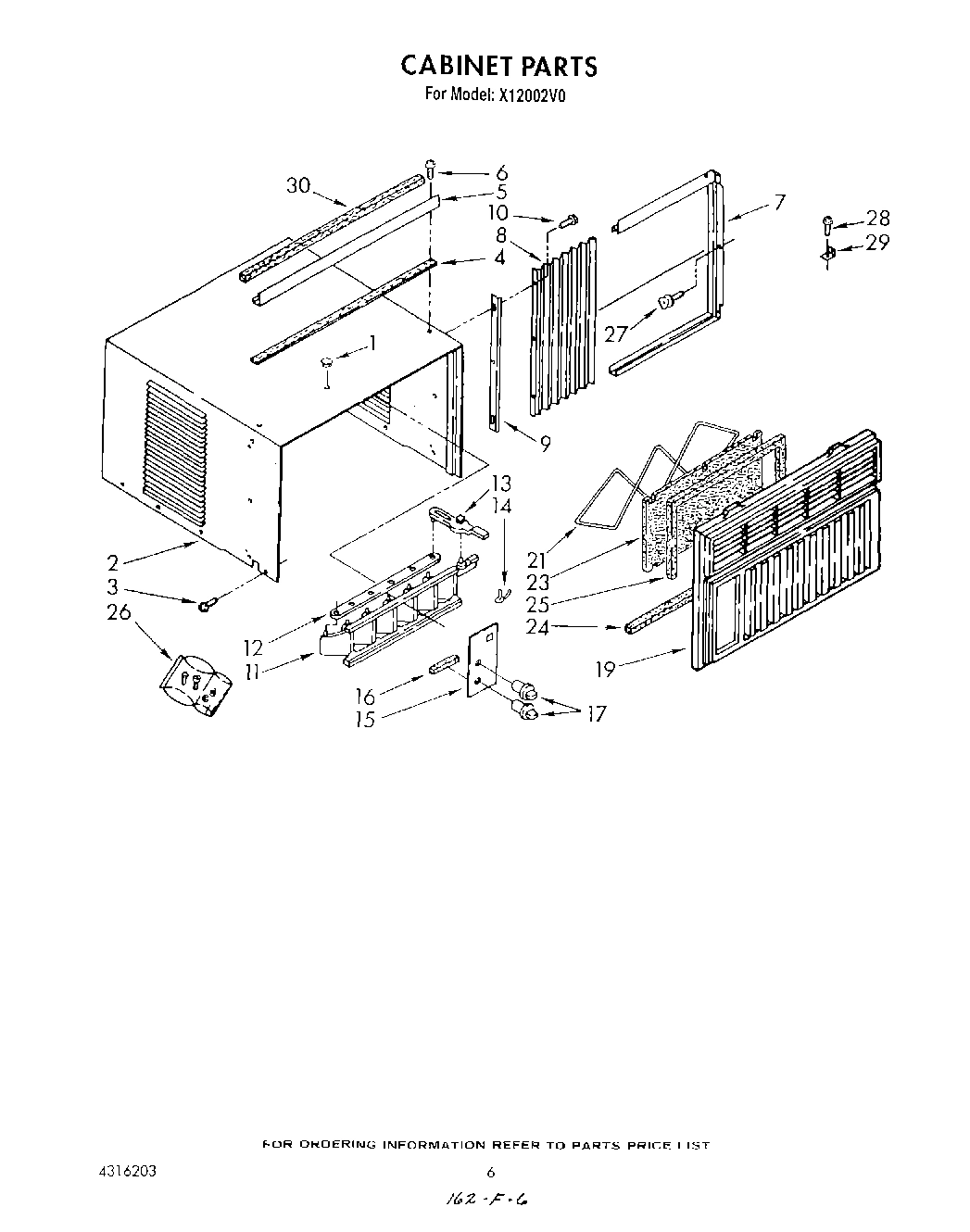

04 - CABINET

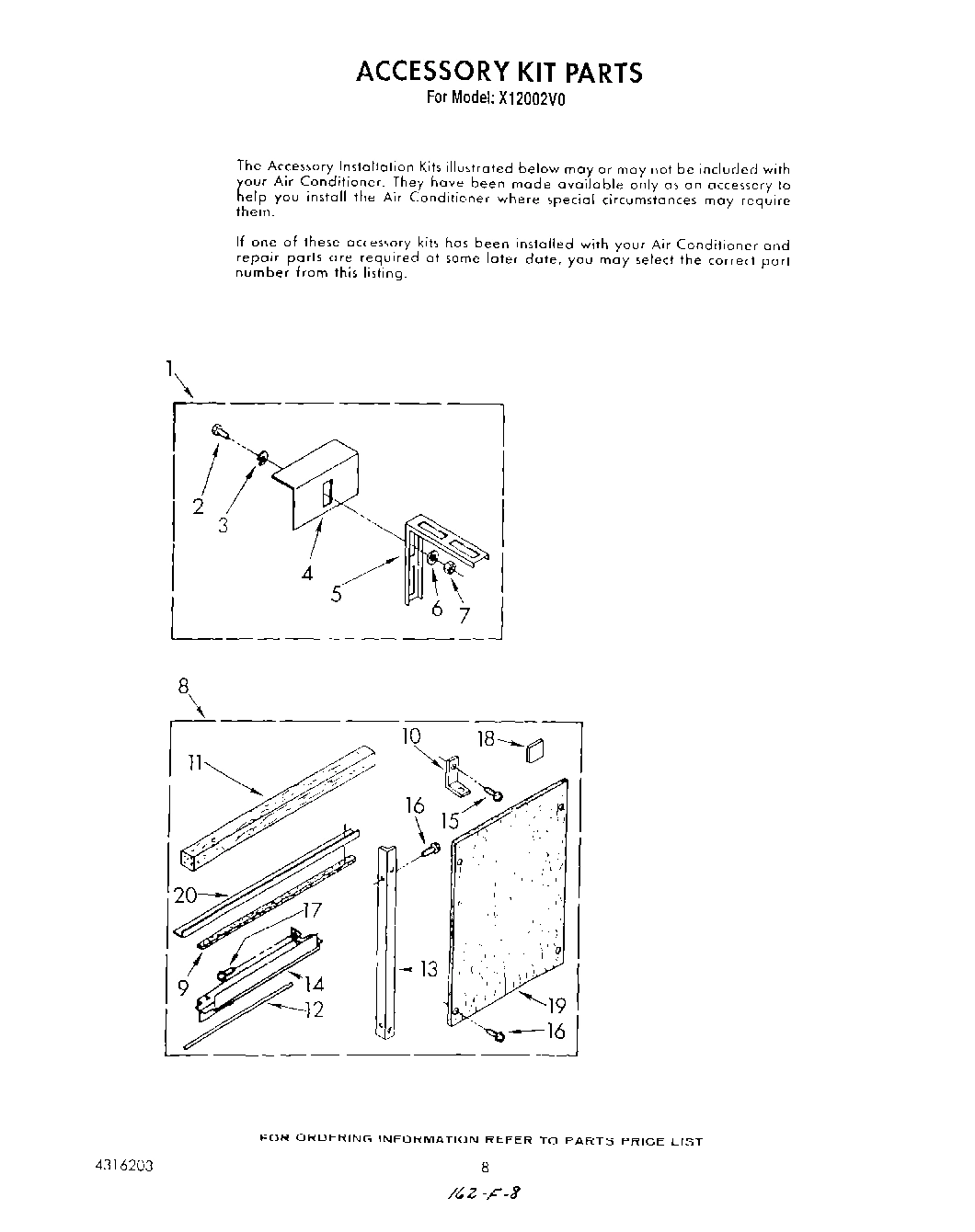

06 - ACCESSORY KIT
Common parts from model Whirlpool X12002V0 AIR CONDITIONER
Sheet, Tech WPL LIT1155834 Contact Us For Availability
Instruction, Installtion WPL LIT1155974 Contact Us For Availability
Guide, Use And Care WPL LIT1158169 Contact Us For Availability
List, Repair Parts WPL LIT4316203 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
Instructions Installation (Economy Mounting K WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Base WPL 950019 Contact Us For Availability
1
Plug, Hole WPL 1157126 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1155367 Contact Us For Availability
2
Cabinet Also Order Insulation No. 1157053 (3) WPL 1157124 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1155700 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Flow Divider WPL 947364 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, 90o Connect WPL 1155580 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 950020 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Kit, Economy Installation WPL 1155851 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Strip, Seal WPL 855266 Contact Us For Availability
10
Gasket, Terminal Cover WPL 950032 Contact Us For Availability
10
Screw, No.8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Bracket, Window Lock WPL 644228 Contact Us For Availability
11
Paint, Touch-Up Starlight Gray 1/2 Paint (Lac WPL 485426 Contact Us For Availability
11
Louver, Vertical WPL 641481 Contact Us For Availability
11
Seal, Meeting Rail WPL 469877 Contact Us For Availability
12
Nut WPL 950037 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
Motor, Fan WPL 947852 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
13
Angle, Side Mounting (2) WPL 646233 Contact Us For Availability
14
27 x 19 x 6 to 27`` WPL 484069 Contact Us For Availability
14
28 x 19 x 31`` WPL 484066 Contact Us For Availability
14
19 x 12 x 14`` WPL 484067 Contact Us For Availability
14
Spring, Dent WPL 641484 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Plate, Escutcheon WPL 1158167 Contact Us For Availability
15
Screw, Wood No.8 x 3/4 (6) WPL 488255 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1157116 Contact Us For Availability
16
Screw S.M. No.10 x 3/8 (6) WPL 488481 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Knob, Control (2) WPL 953054 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Evaporator WPL 947893 Contact Us For Availability
18
Spacer, Filler Board (2) WPL 995274 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Tube, Restrictor (2) (Length 40.0``) WPL 1155702 Contact Us For Availability
19
Front, Cabinet WPL 1158196 Contact Us For Availability
19
Board, Filler, (2) WPL 646237 Contact Us For Availability
20
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
20
Condenser WPL 1155550 Contact Us For Availability
20
Channel, Top WPL 646232 Contact Us For Availability
21
Retainer, Dent Spring WPL 858765 Contact Us For Availability
21
Bend, Return (4) WPL 708532 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
22
Bend, Return (16) WPL 708531 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Clip, Mtg. (2) (Base to Front) WPL 949634 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet WPL 1155460 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 646306 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
Guard, Evaporator Impeller WPL 856912 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
33
Screw, Set 5/16 - 28 X 1/4 WPL 595085 Contact Us For Availability
34
Clip, Fan Balancing WPL 876034 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
× ![]()
