Model Whirlpool X07502V0 AIR CONDITIONER – Common Parts & Diagrams

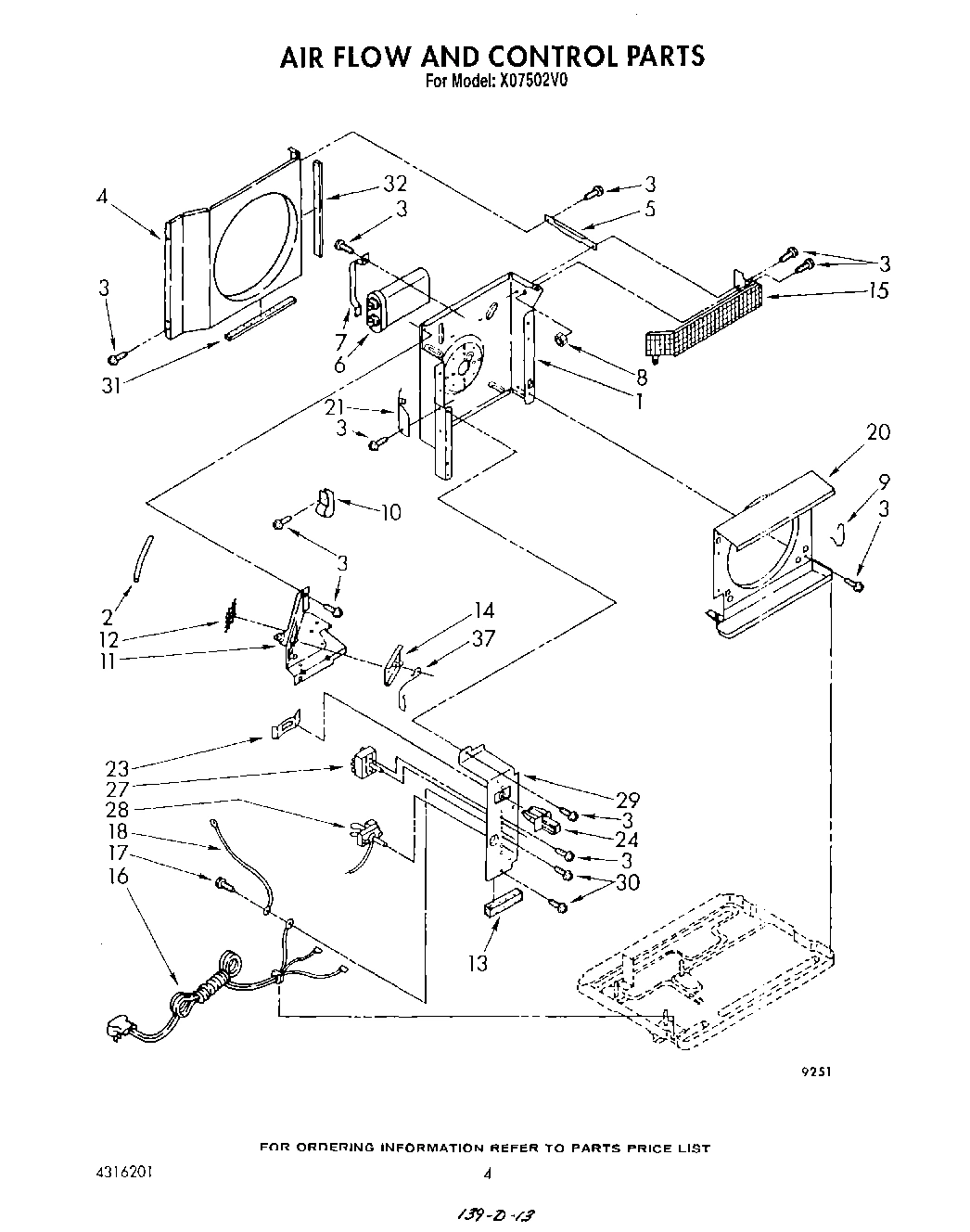

03 - AIRFLOW AND CONTROL

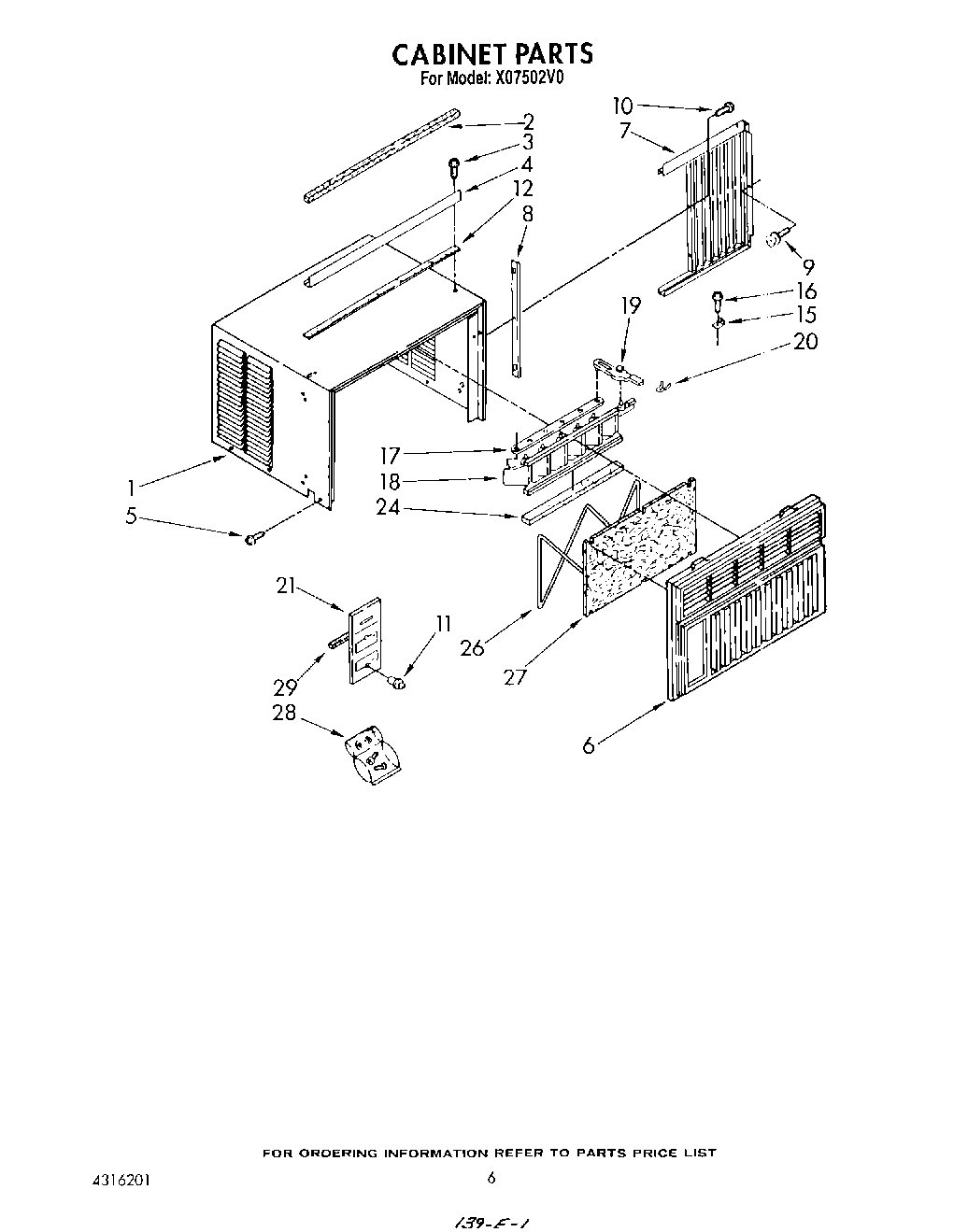

04 - CABINET
02 - UNIT
05 - INSTALLATION
06 - LIT/OPTIONAL
Common parts from model Whirlpool X07502V0 AIR CONDITIONER
Guide, Use And Care WPL LIT1155974 Contact Us For Availability
Guide, Energy WPL LIT1158329 Contact Us For Availability
List, Repair Parts WPL LIT4316201 Contact Us For Availability
Sheet, Tech And Wiring Diagram WPL LIT950846 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT48506 Contact Us For Availability
1
Cabinet WPL 1157276 Contact Us For Availability
1
Condenser WPL 950844 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return Condenser (2) Evaporator (7) WPL 854624 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Condenser (15) Evaporator (5) WPL 855199 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Outlet (Includes No.4) WPL 484230 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 No Longer Available
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet WPL 1158195 Contact Us For Availability
6
Tube, Restrictor WPL 950843 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Housing, Curtain (L.S.) WPL 646158 Contact Us For Availability
7
Blade, Fan WPL 997885 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 486035 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
8
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Thumbscrew (2) WPL 475581 Contact Us For Availability
9
Clip, Balancing WPL 876034 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
10
Motor, Fan WPL 949678 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Knob, Control (2) WPL 953054 Contact Us For Availability
11
Bag, Accessory WPL 858358 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood No.8 x 3/8 (8) WPL 488255 Contact Us For Availability
12
Tube, 90~ Connect (1) WPL 950814 Contact Us For Availability
13
Evaporator WPL 950840 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Plate, Mounting WPL 646497 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Guard, Evaporator Impeller WPL 996685 Contact Us For Availability
15
Spring, Mounting WPL 643179 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Cord, Appliance WPL 646306 Contact Us For Availability
16
Anticipator, Temperature WPL 994262 Contact Us For Availability
16
Strip, Seal WPL 856979 Contact Us For Availability
16
Hard Start Kit (Use With 485397 Compressor) WPL 485884 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Relay, Start WPL 484177 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Louver, Vertical WPL 1157284 Contact Us For Availability
18
Base WPL 950323 Contact Us For Availability
18
Board, Filler (2) WPL 648854 Contact Us For Availability
18
Capacitor, Start WPL 467614 Contact Us For Availability
19
Seal, Meeting Rail WPL 469877 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Shroud, Evaporator WPL 646123 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Plate, Dividing Wall WPL 859955 Contact Us For Availability
21
Plate, Escutcheon WPL 1158176 Contact Us For Availability
21
Compressor WPL 485397 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
21
Bracket, Capacitor WPL 35564 Contact Us For Availability
22
Grommet (3) WPL 646499 Contact Us For Availability
22
Mult WPL 90654 Contact Us For Availability
23
Retainer, Detent Spring WPL 858765 Contact Us For Availability
23
Sleeve (3) WPL 949990 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Gasket, Terminal Cover WPL 647154 Contact Us For Availability
25
WPL 45571 WPL 45571 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
26
Overload WPL 950834 Contact Us For Availability
26
WPL 484220 WPL 484220 Contact Us For Availability
27
Switch, Rotary WPL 950283 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
27
Spring, Overload WPL 994171 Contact Us For Availability
28
Control, Temperature WPL 949411 Contact Us For Availability
28
Bag, Accessory WPL 476180 Contact Us For Availability
28
Cover, Terminal WPL 647152 Contact Us For Availability
29
Panel, Control WPL 993398 Contact Us For Availability
29
Retainer, Terminal Cover WPL 643299 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Fan, Blade Evaporator WPL 997887 Contact Us For Availability
31
Seal, Condenser WPL 859931 Contact Us For Availability
31
Clamp, Wiring WPL 852451 Contact Us For Availability
32
Seal, Condenser Shroud R.S. WPL 857923 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Screw, Repair WPL 488481 Contact Us For Availability
35
Clip, Front Mtg. (2) WPL 949634 Contact Us For Availability
36
Seal, Condensate (Base R.H. Flange) WPL 646870 Contact Us For Availability
37
Arm, Exhaust Door WPL 950255 Contact Us For Availability
37
Seal, Strip (Base Rear Flange) WPL 854841 Contact Us For Availability
× ![]()
