Model Electrolux WWX645RBD2 WASHER – Common Parts & Diagrams

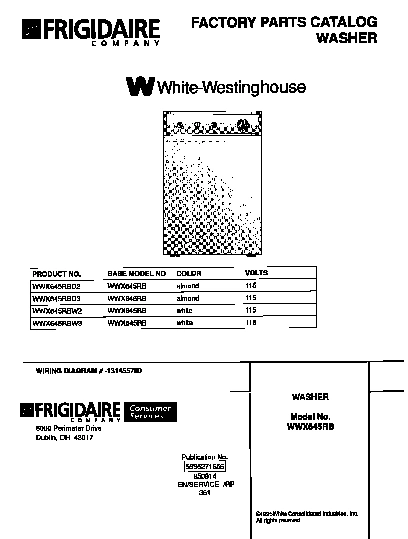

01 - COVER

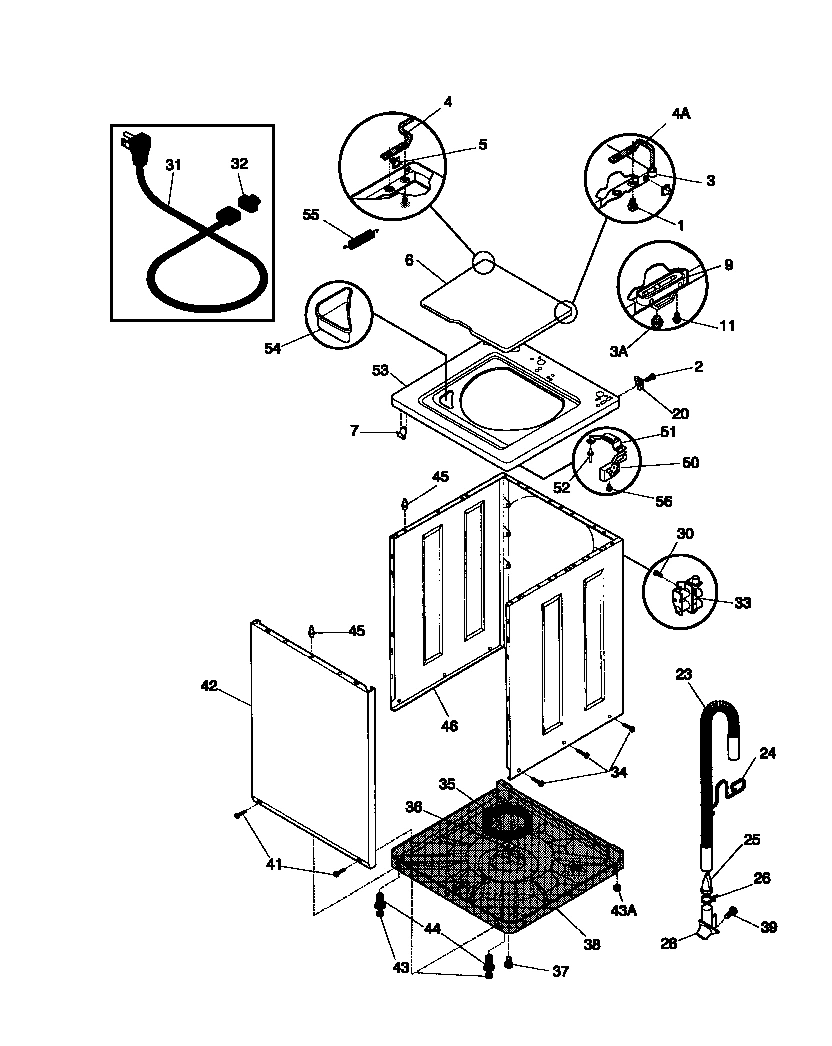

02 - CABINET/TOP
03 - MOTOR/TUB
04 - TRANSMISSION
05 - CONTROL PANEL
06 - WIRING DIAGRAM
Common parts from model Electrolux WWX645RBD2 WASHER
*10320
CLIP-BACKSHEET WCI 5303309503 Contact Us For Availability
*10321
INSERT-SPRING ADJ WCI 5303212877 Contact Us For Availability
1
WCI 131206800 WCI 131206800 Contact Us For Availability
1
WCI 5303208779 WCI 5303208779 Contact Us For Availability
2
SCREW, PPH B ST/Z, 8-18 X .31 WCI 131168200 Contact Us For Availability
2
WCI 3204396 WCI 3204396 Contact Us For Availability
4
SEAL-UPPER, LIP WCI 5303161307 Contact Us For Availability
4
WCI 131385910 WCI 131385910 Contact Us For Availability
5
GROMMET-LID WCI 5303208743 Contact Us For Availability
5
RING-RETAINING WCI 5303161223 Contact Us For Availability
7
WCI 3205821 WCI 3205821 Contact Us For Availability
7
WASHER-INLET HOSE WCI 5303161296 Contact Us For Availability
9
STRIKE-LID WCI 131390000 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
11
SCREW-STRIKE, PFH B, 6-20 X .375 WCI 3204368 Contact Us For Availability
12
SCREW-TIMER, PTH ST, 8-32NC-2A X .25 WCI 3161188 Contact Us For Availability
14
WASHER-THRUST WCI 5303161226 Contact Us For Availability
15
SWITCH-TEMPERATURE WCI 131081200 Contact Us For Availability
17
WCI 131297306 WCI 131297306 Contact Us For Availability
18
WCI 131415500 WCI 131415500 Contact Us For Availability
19
SCREW, 10-16 X .75 WCI 131205300 Contact Us For Availability
20
END CAP, BLACK, LH WCI 5303291344 Contact Us For Availability
20
SCREW-TUB BEARING, PPH B ST/Z, 8-12 X .75 WCI 3205150 Contact Us For Availability
20
HINGE-REAR CABINET WCI 5303208751 Contact Us For Availability
21
WCI 5308002401 WCI 5308002401 Contact Us For Availability
21
WCI 131118400 WCI 131118400 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
22
WCI 131266300 WCI 131266300 Contact Us For Availability
23
WCI 131210200 WCI 131210200 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
24
RETAINER-DRAIN HOSE WCI 5303204987 Contact Us For Availability
25
VALVE CHECK WCI 3204375 Contact Us For Availability
25
WCI 131118502 WCI 131118502 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
BEARING-OUTER TUB WCI 3204405 Contact Us For Availability
26
WCI 5308015493 WCI 5308015493 Contact Us For Availability
27
WCI 131197000 WCI 131197000 Contact Us For Availability
29
WCI 131454600 WCI 131454600 Contact Us For Availability
30
SCREW-WATER VALVE, PPH AB, 10-16 X .625 WCI 131202300 Contact Us For Availability
31
END CAP, BLACK, RH WCI 5303291352 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
32
PIN-ROLL WCI 3204424 Contact Us For Availability
32
BUSHING-SERVICE CORD WCI 5303209428 Contact Us For Availability
33
WCI 3204425 WCI 3204425 Contact Us For Availability
34
SCREW-BODY, 1/4-14 X .625 WCI 131205500 Contact Us For Availability
35
WCI 5308002385 WCI 5308002385 Contact Us For Availability
35
RING-RETAINING WCI 3161433 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
WASHER-SPRING WCI 5303161306 Contact Us For Availability
38
WCI 5303311213 WCI 5303311213 Contact Us For Availability
39
Screw,No.8 pan head ,10-10B x 0.50 ,cr/sq dri WCI 131205100 Contact Us For Availability
43
WCI 131422100 WCI 131422100 Contact Us For Availability
43A
PAD-LEVEL LEG WCI 131422200 Contact Us For Availability
45
WCI 131346400 WCI 131346400 Contact Us For Availability
45
HOSE-PMP TO COUPLER WCI 3204454 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
54
WCI 5303208778 WCI 5303208778 Contact Us For Availability
56
SCREW, PAN HD LOCKING, 8-32CA X 0.375, CR/SQ WCI 131243800 Contact Us For Availability
NI
WCI 131455700 WCI 131455700 Contact Us For Availability
× ![]()
