Model GE WWP1180GAW Washer – Common Parts & Diagrams

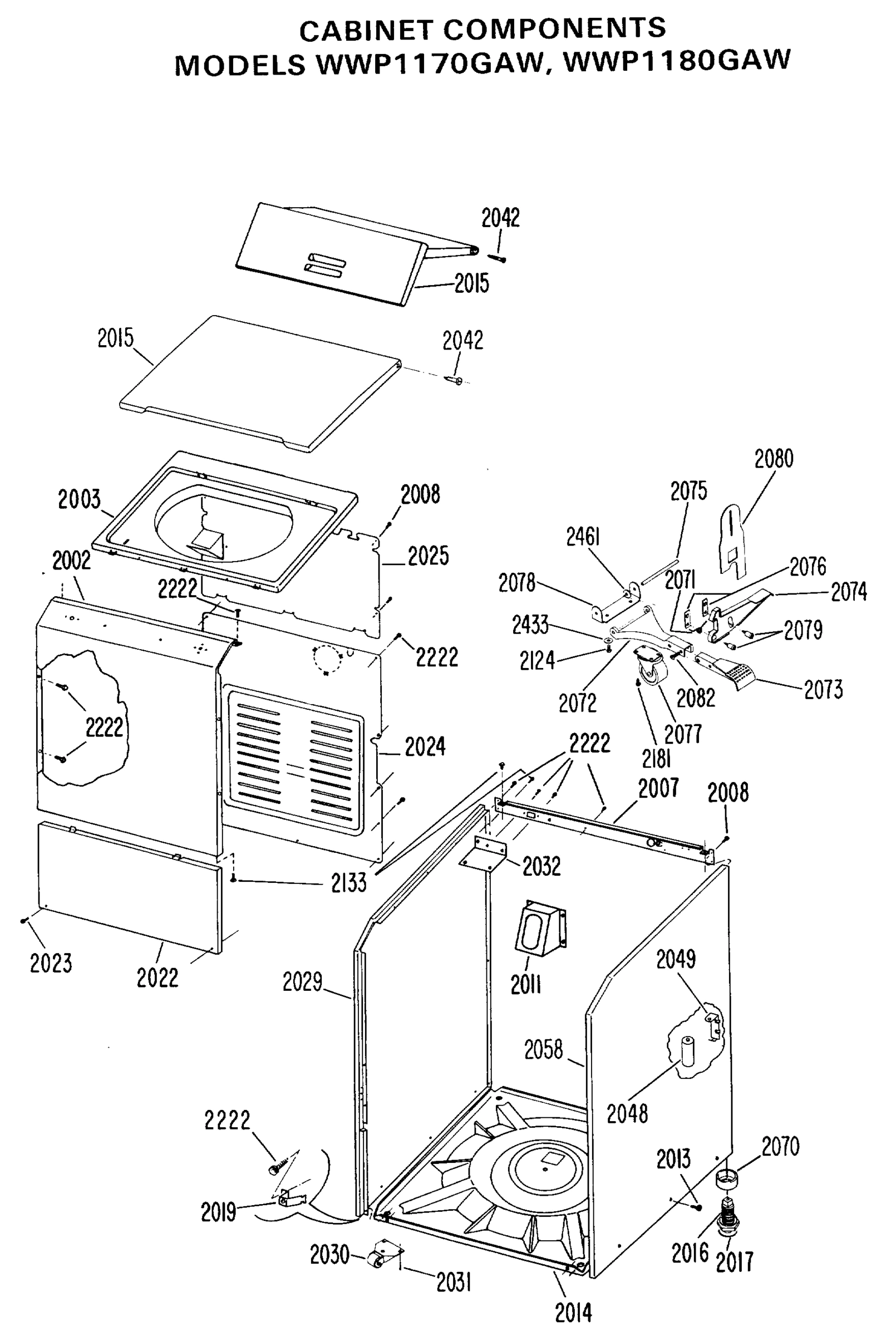

CABINET COMPONENTS

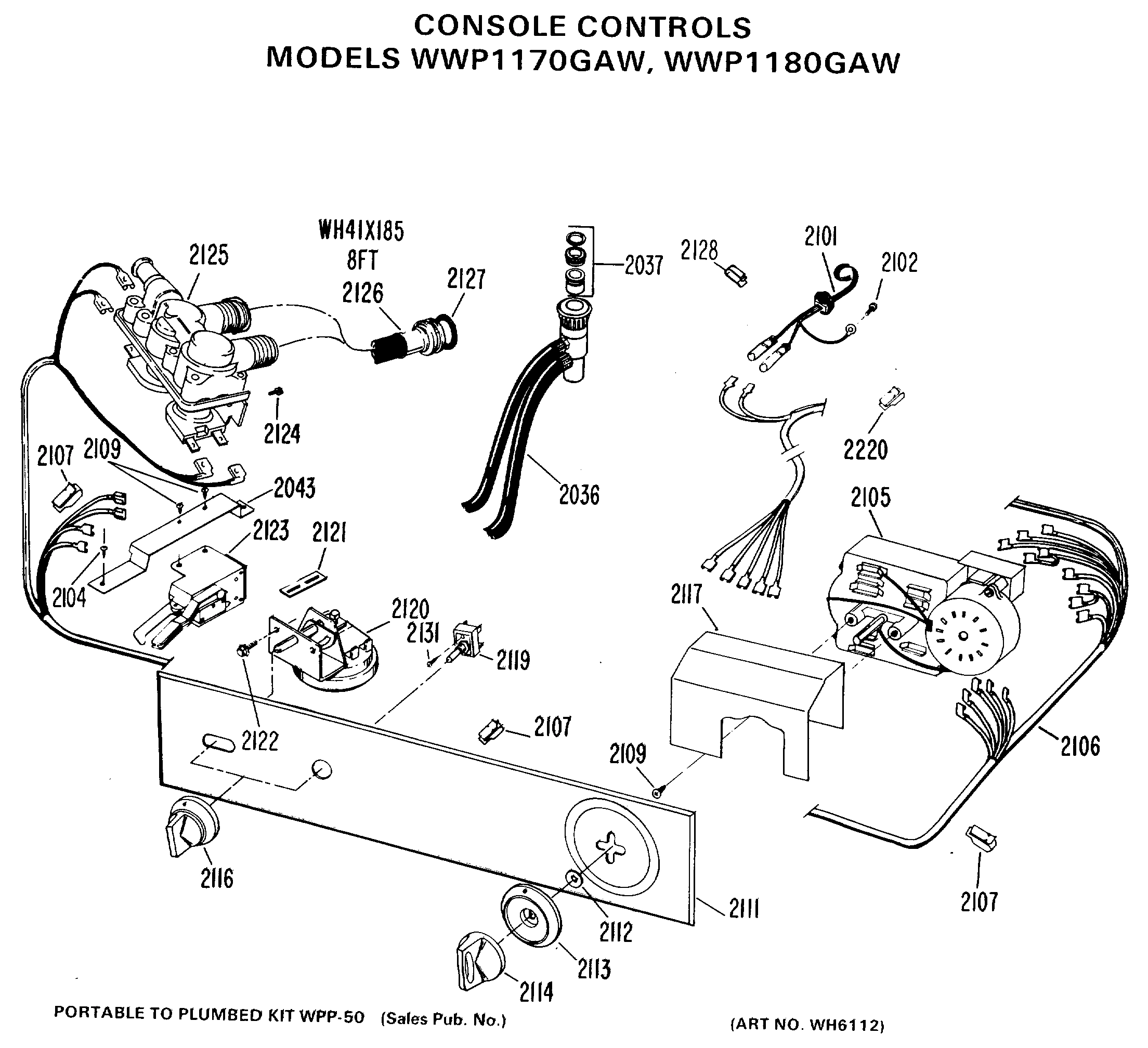

CONSOLE CONTROLS

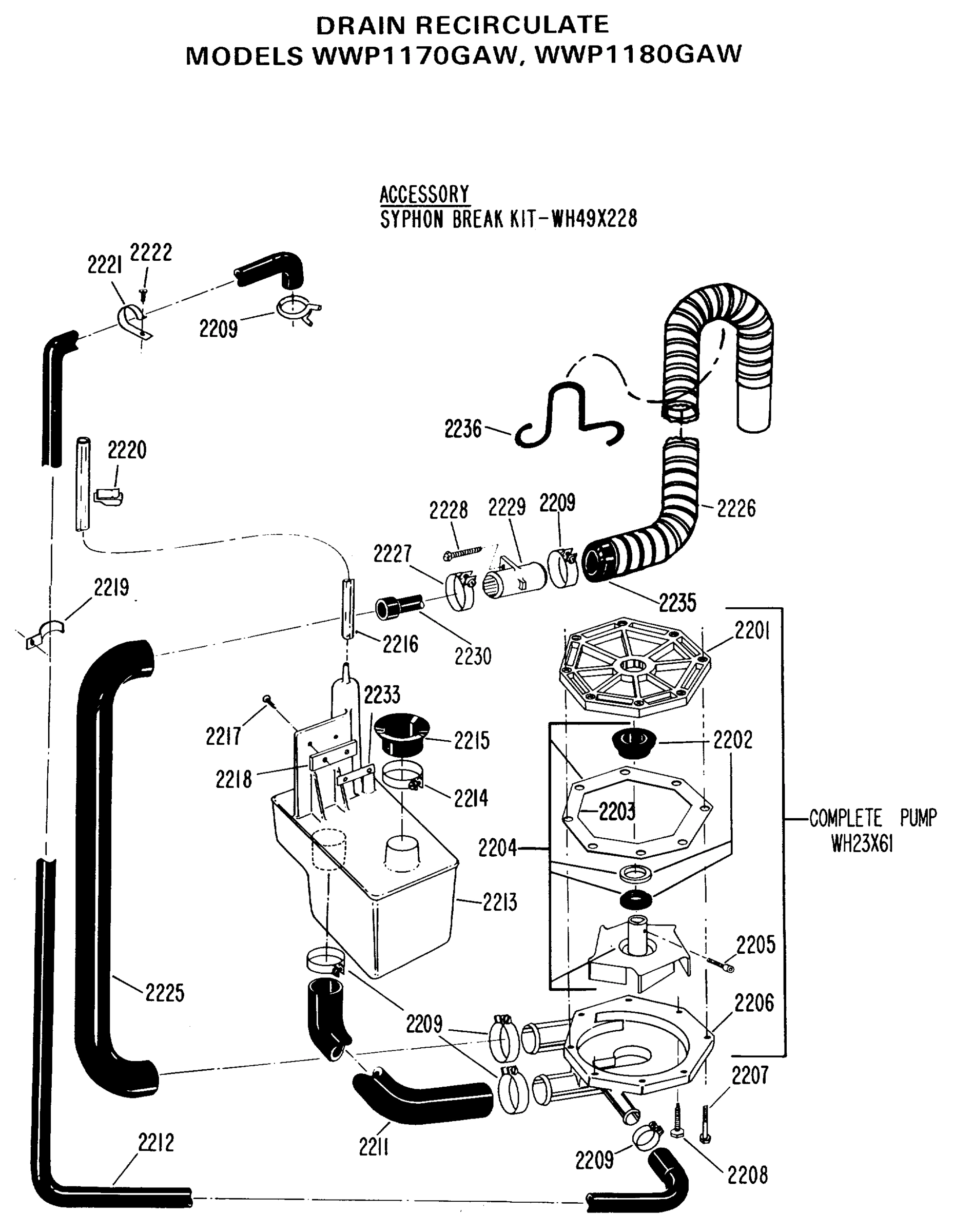

DRAIN RECIRCULATE

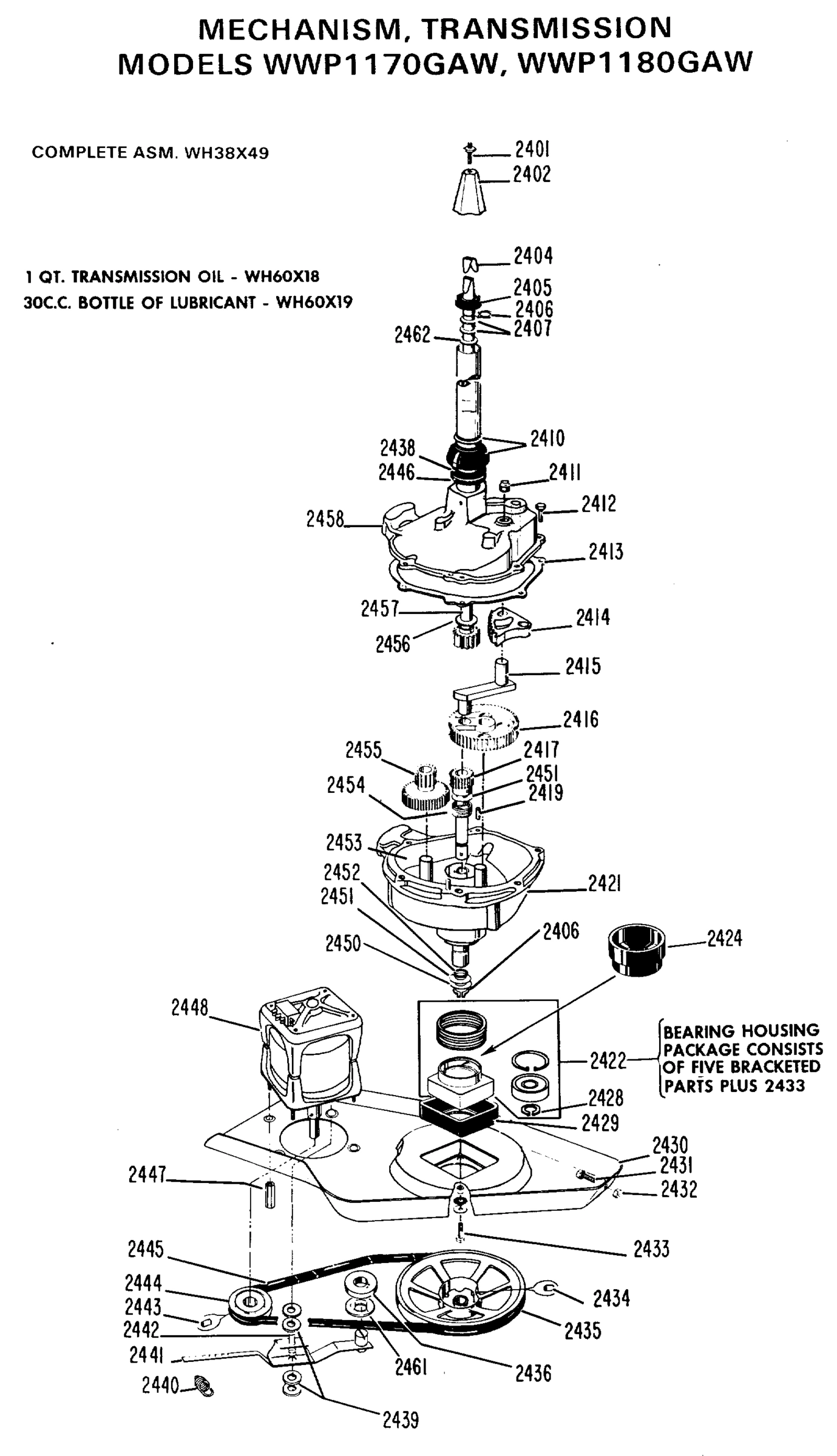

MECHANISM, TRANSMISSION

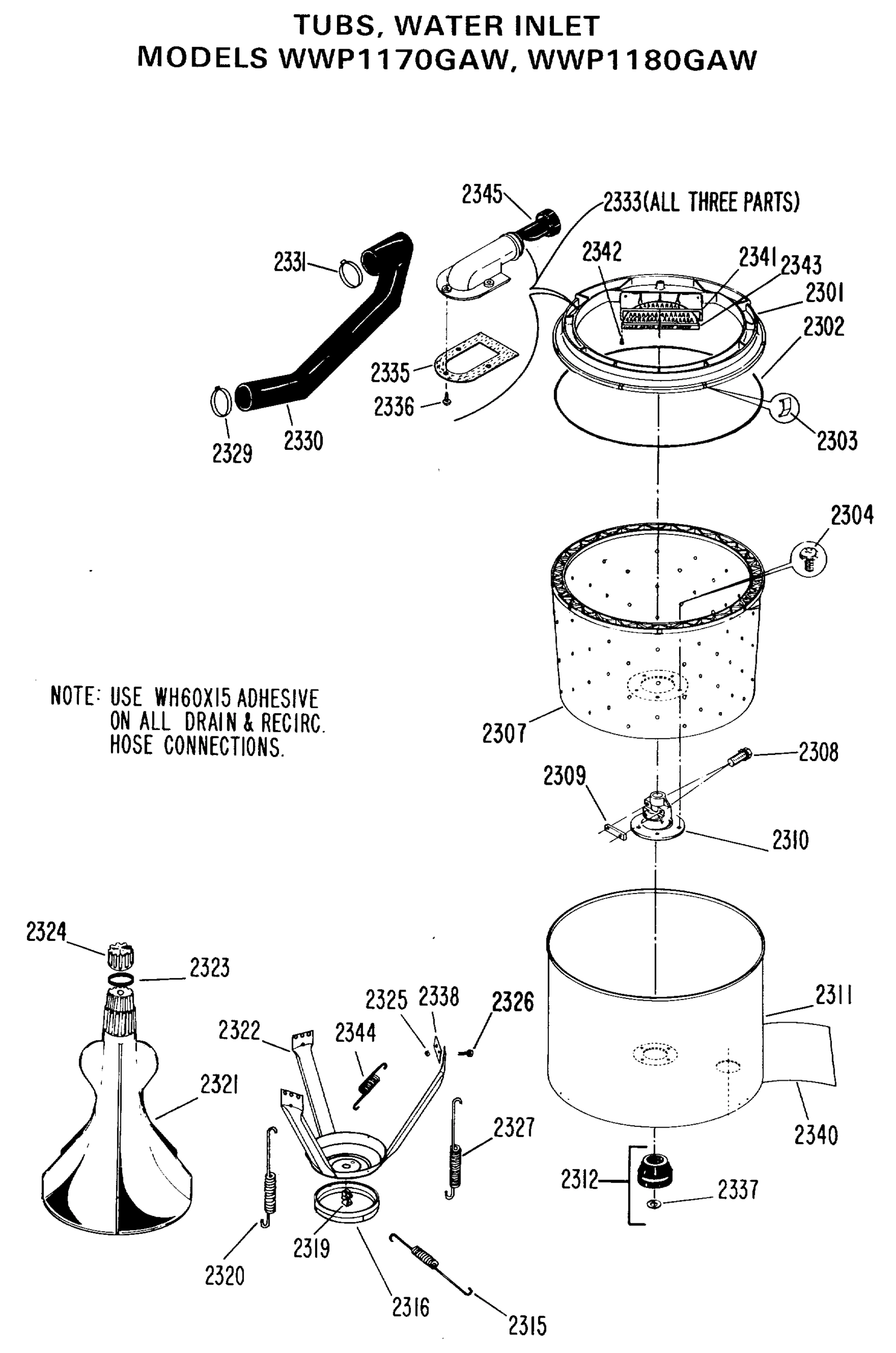

TUBS, WATER INLET
Common parts from model GE WWP1180GAW Washer
2002
CONTROL PANEL WH GEN WH46X0219 Contact Us For Availability
2003
TOP PANEL (WHITE) GEN WH44X1063 Contact Us For Availability
2007
REAR CABINET SUPPORT GEN WH16X0443 Contact Us For Availability
2011
WATER VALVE BRACKET GEN WH16X0444 Contact Us For Availability
2014
GEN WH46X0254 GEN WH46X0254 Contact Us For Availability
2015
BI FOLD LID ASMY (WHITE) GEN WH44X1061 Contact Us For Availability
2016
LEG LEVELING & CUSHION GEN WH01X2293 Contact Us For Availability
2017
GEN WH01X2294 GEN WH01X2294 Contact Us For Availability
2019
SPEEDNUT GEN WH02X0978 Contact Us For Availability
2022
ACCESS PANEL (WHITE) GEN WE20X0630 Contact Us For Availability
2024
GEN WH46X0253 GEN WH46X0253 Contact Us For Availability
2025
UPPER REAR PANEL GEN WH46X0235 Contact Us For Availability
2029
GEN WE20X0677 GEN WE20X0677 Contact Us For Availability
2042
SCREW GEN WH02X1055 Contact Us For Availability
2043
BRACKET GEN WH16X0462 Contact Us For Availability
2048
GEN WH12X0845 GEN WH12X0845 Contact Us For Availability
2049
GEN WH16X0476 GEN WH16X0476 Contact Us For Availability
2058
R.H.SIDE PANEL (WHITE) GEN WE20X0679 Contact Us For Availability
2101
GEN WH19X0270 GEN WH19X0270 Contact Us For Availability
2105
GEN WH12X0844 GEN WH12X0844 Contact Us For Availability
2106
GEN WH19X0272 GEN WH19X0272 Contact Us For Availability
2107
GEN WH02X0989 GEN WH02X0989 Contact Us For Availability
2111
GEN WH42X2133 GEN WH42X2133 Contact Us For Availability
2112
GEN WH02X1104 GEN WH02X1104 Contact Us For Availability
2113
GEN WH11X0131 GEN WH11X0131 Contact Us For Availability
2114
GEN WH01X2553 GEN WH01X2553 Contact Us For Availability
2116
GEN WH01X2299 GEN WH01X2299 Contact Us For Availability
2117
GEN WH01X2552 GEN WH01X2552 Contact Us For Availability
2119
GEN WH12X0738 GEN WH12X0738 Contact Us For Availability
2120
GEN WH12X0740 GEN WH12X0740 Contact Us For Availability
2121
TERMINAL SHIELD GEN WH01X2300 Contact Us For Availability
2124
GEN BUY-LOCAL GEN BUY-LOCAL Contact Us For Availability
2128
CLIP GEN WH02X0994 Contact Us For Availability
2201
GEN WH23X0060 GEN WH23X0060 Contact Us For Availability
2202
GEN WH08X0320 GEN WH08X0320 Contact Us For Availability
2203
GEN WH08X0321 GEN WH08X0321 Contact Us For Availability
2204
GEN WH01X2302 GEN WH01X2302 Contact Us For Availability
2205
GEN WH02X0969 GEN WH02X0969 Contact Us For Availability
2206
GEN WH01X2303 GEN WH01X2303 Contact Us For Availability
2211
GEN WH41X0201 GEN WH41X0201 Contact Us For Availability
2212
GEN WH41X0293 GEN WH41X0293 Contact Us For Availability
2213
GEN WH01X2305 GEN WH01X2305 Contact Us For Availability
2215
GEN WH01X2306 GEN WH01X2306 Contact Us For Availability
2216
PRESSURE HOSE GEN WH41X0203 Contact Us For Availability
2218
GEN WH01X2307 GEN WH01X2307 Contact Us For Availability
2219
GEN WH01X2333 GEN WH01X2333 Contact Us For Availability
2220
CLIP GEN WH02X0988 Contact Us For Availability
2221
GEN WH01X2334 GEN WH01X2334 Contact Us For Availability
2225
GEN WH41X0291 GEN WH41X0291 Contact Us For Availability
2226
DRAIN HOSE & BUSHING ASM GEN WH41X0260 Contact Us For Availability
2229
COUPLING GEN WH41X0294 Contact Us For Availability
2230
GEN WH41X0292 GEN WH41X0292 Contact Us For Availability
2235
BUSHING DR HOSE GEN WH41X0261 Contact Us For Availability
2236
GEN WH01X2433 GEN WH01X2433 Contact Us For Availability
2301
GEN WH01X2554 GEN WH01X2554 Contact Us For Availability
2302
GEN WH08X0322 GEN WH08X0322 Contact Us For Availability
2303
GEN WH02X1001 GEN WH02X1001 Contact Us For Availability
2307
GEN WH45X0109 GEN WH45X0109 Contact Us For Availability
2308
SCR GEN WH02X1107 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X0085 GEN WH17X0085 Contact Us For Availability
2311
GEN WH45X0110 GEN WH45X0110 Contact Us For Availability
2312
GEN WH02X0970 GEN WH02X0970 Contact Us For Availability
2315
GEN WH01X2311 GEN WH01X2311 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2319
GEN WH02X1003 GEN WH02X1003 Contact Us For Availability
2320
GEN WH01X2313 GEN WH01X2313 Contact Us For Availability
2321
GEN WH43X0114 GEN WH43X0114 Contact Us For Availability
2322
GEN WH01X2314 GEN WH01X2314 Contact Us For Availability
2323
GEN WH08X0323 GEN WH08X0323 Contact Us For Availability
2324
GEN WH43X0107 GEN WH43X0107 Contact Us For Availability
2325
GEN WH02X1004 GEN WH02X1004 Contact Us For Availability
2327
GEN WH01X2315 GEN WH01X2315 Contact Us For Availability
2330
GEN WH41X0207 GEN WH41X0207 Contact Us For Availability
2333
GEN WH41X0208 GEN WH41X0208 Contact Us For Availability
2335
GEN WH08X0324 GEN WH08X0324 Contact Us For Availability
2336
SCR #6-20X3/8 TYPE B GEN BUY LOCAL Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2338
GEN WH16X0449 GEN WH16X0449 Contact Us For Availability
2341
GEN WH01X2550 GEN WH01X2550 Contact Us For Availability
2343
GEN WH01X2551 GEN WH01X2551 Contact Us For Availability
2344
GEN WH01X2318 GEN WH01X2318 Contact Us For Availability
2345
GEN WH41X0262 GEN WH41X0262 Contact Us For Availability
2374
SUPPORT PLATE GEN WH01X2578 Contact Us For Availability
2401
GEN WH02X0972 GEN WH02X0972 Contact Us For Availability
2402
DRIVE BLOCK GEN WH40X0173 Contact Us For Availability
2405
GEN WH08X0364 GEN WH08X0364 Contact Us For Availability
2406
GEN WH02X1011 GEN WH02X1011 Contact Us For Availability
2410
GEN WH08X0326 GEN WH08X0326 Contact Us For Availability
2411
GEN WH01X2320 GEN WH01X2320 Contact Us For Availability
2413
GEN WH08X0327 GEN WH08X0327 Contact Us For Availability
2414
GEN WH05X0240 GEN WH05X0240 Contact Us For Availability
2415
GEN WH40X0162 GEN WH40X0162 Contact Us For Availability
2416
GEN WH05X0241 GEN WH05X0241 Contact Us For Availability
2417
GEN WH40X0172 GEN WH40X0172 Contact Us For Availability
2419
GEN WH01X2331 GEN WH01X2331 Contact Us For Availability
2421
LWR HSNG ASM & GASKET GEN WH39X0038 Contact Us For Availability
2422
GEN WH04X0094 GEN WH04X0094 Contact Us For Availability
2424
GEN WH01X2519 GEN WH01X2519 Contact Us For Availability
2428
SNAP RING GEN WH01X2321 Contact Us For Availability
2429
GEN WH01X2322 GEN WH01X2322 Contact Us For Availability
2432
GEN WH02X1019 GEN WH02X1019 Contact Us For Availability
2433
GEN WH02X1021 GEN WH02X1021 Contact Us For Availability
2433
SCREW GEN NOT STOCKD Contact Us For Availability
2434
GEN WH02X1024 GEN WH02X1024 Contact Us For Availability
2435
GEN WH07X0109 GEN WH07X0109 Contact Us For Availability
2436
GEN WH07X0108 GEN WH07X0108 Contact Us For Availability
2437
GEN WH02X1022 GEN WH02X1022 Contact Us For Availability
2438
GEN WH01X2332 GEN WH01X2332 Contact Us For Availability
2439
WASHER GEN WH02X1026 Contact Us For Availability
2440
GEN WH01X2434 GEN WH01X2434 Contact Us For Availability
2441
IDLER ARM & SHAFT ASM GEN WH40X0164 Contact Us For Availability
2443
GEN WH02X1028 GEN WH02X1028 Contact Us For Availability
2444
GEN WH07X0085 GEN WH07X0085 Contact Us For Availability
2446
GEN WH02X1029 GEN WH02X1029 Contact Us For Availability
2447
GEN WH02X1023 GEN WH02X1023 Contact Us For Availability
2448
GEN WH20X0085 GEN WH20X0085 Contact Us For Availability
2449
GEN WH12X0840 GEN WH12X0840 Contact Us For Availability
2450
GEN WH02X1031 GEN WH02X1031 Contact Us For Availability
2451
GEN WH02X1016 GEN WH02X1016 Contact Us For Availability
2452
GEN WH08X0328 GEN WH08X0328 Contact Us For Availability
2453
TRANSMISSION OIL (1 QT) GEN WH60X0018 Contact Us For Availability
2454
GEN WH01X2324 GEN WH01X2324 Contact Us For Availability
2455
GEN WH05X0242 GEN WH05X0242 Contact Us For Availability
2456
GEN WH02X1095 GEN WH02X1095 Contact Us For Availability
2457
GEN WH40X0171 GEN WH40X0171 Contact Us For Availability
2458
GEN WH37X0042 GEN WH37X0042 Contact Us For Availability
2461
GEN WH02X1094 GEN WH02X1094 Contact Us For Availability
2462
GEN WH02X1032 GEN WH02X1032 Contact Us For Availability
2465
GEN WH38X49 GEN WH38X49 Contact Us For Availability
× ![]()
