Model GE WWP1170GDW Washer – Common Parts & Diagrams

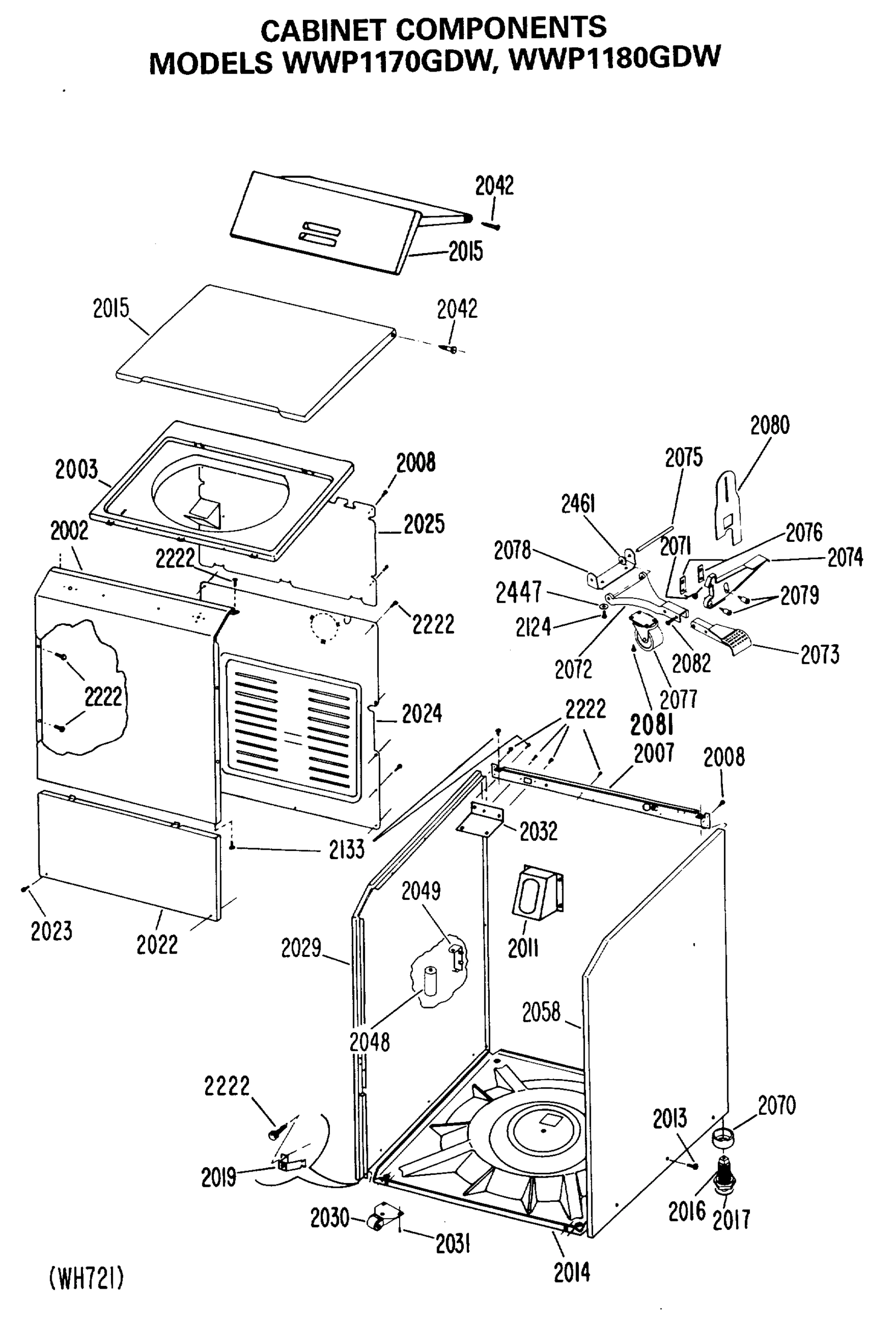

CABINET COMPONENTS

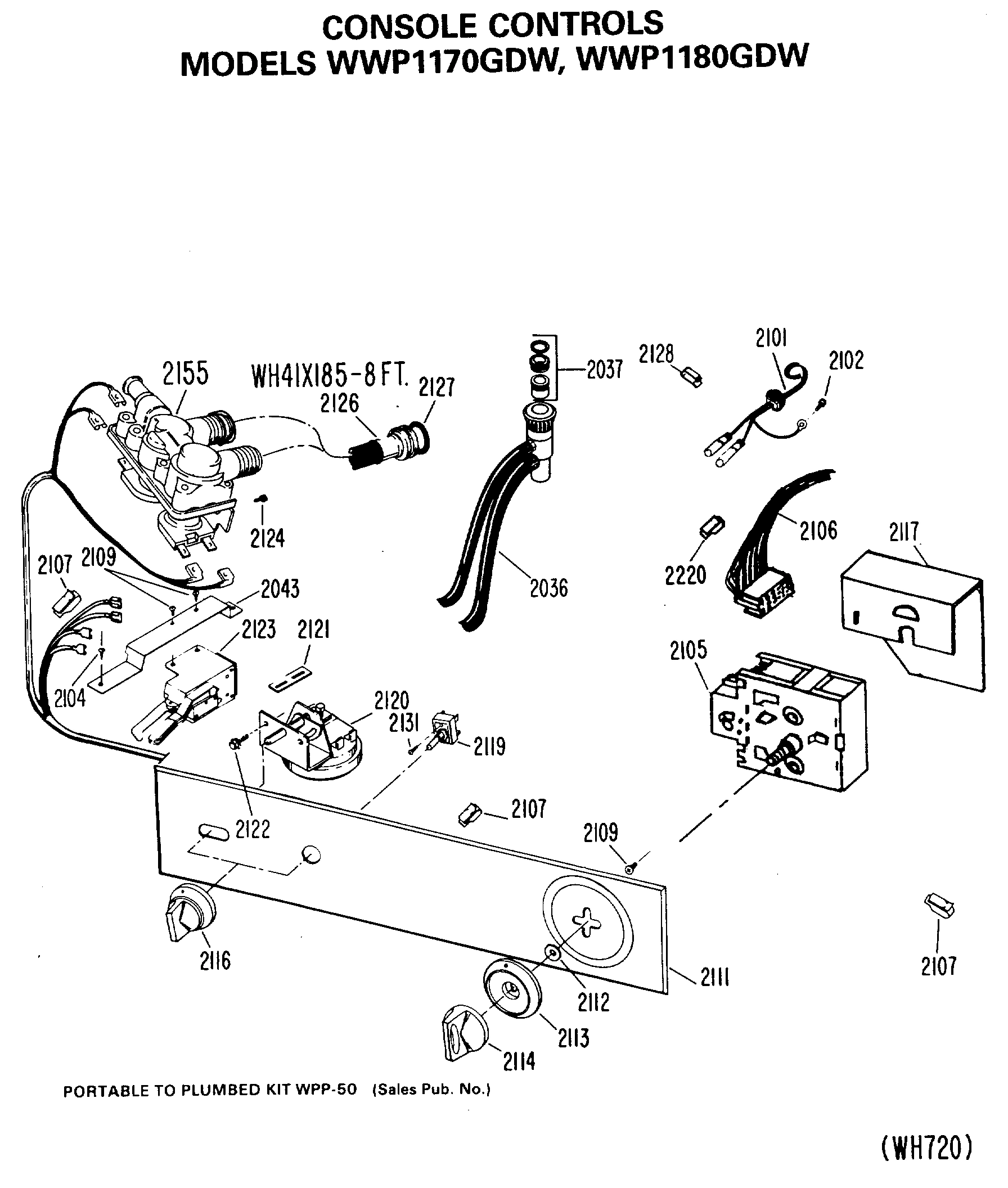

CONSOLE CONTROLS

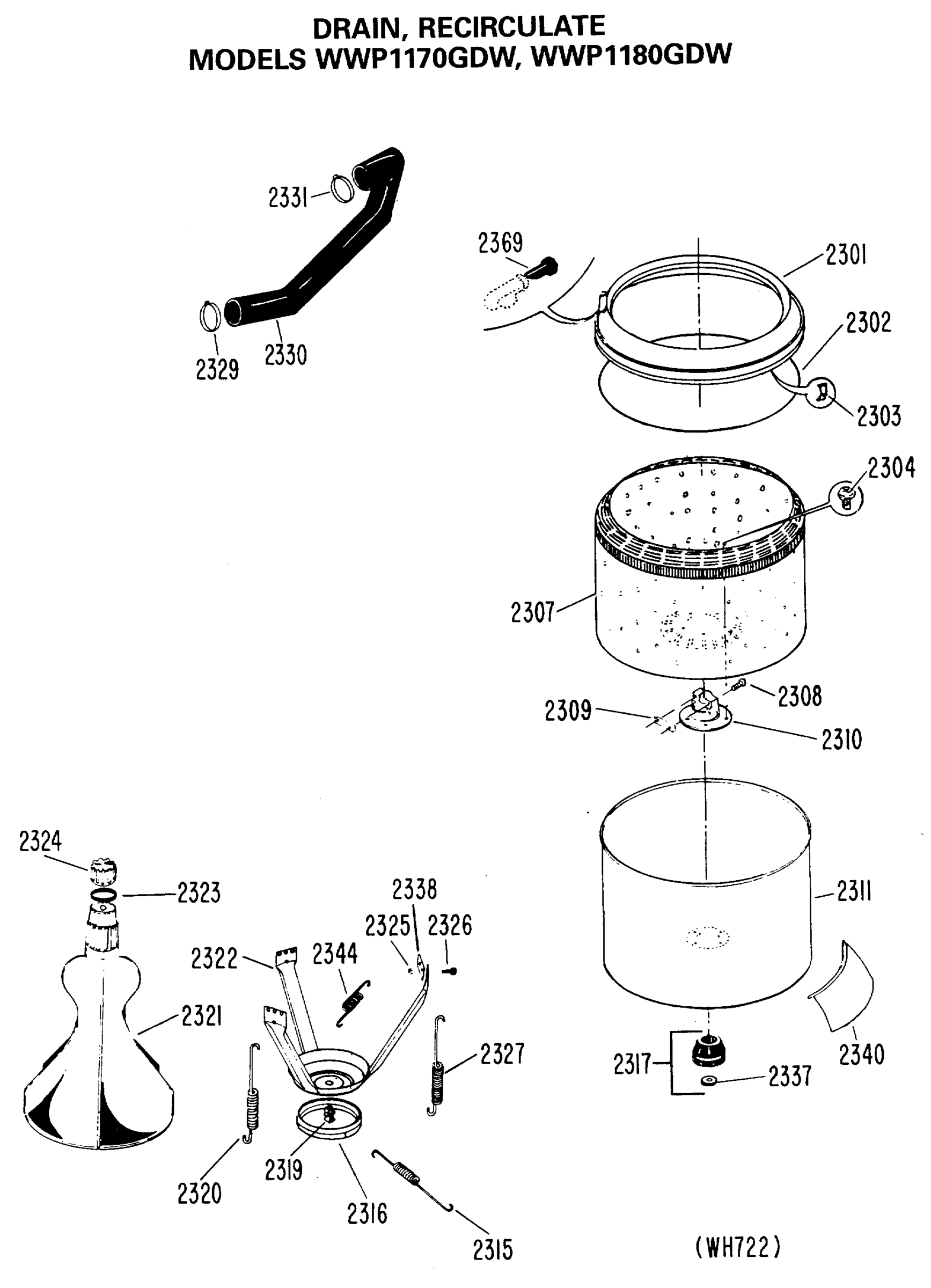

DRAIN, RECIRCULATE

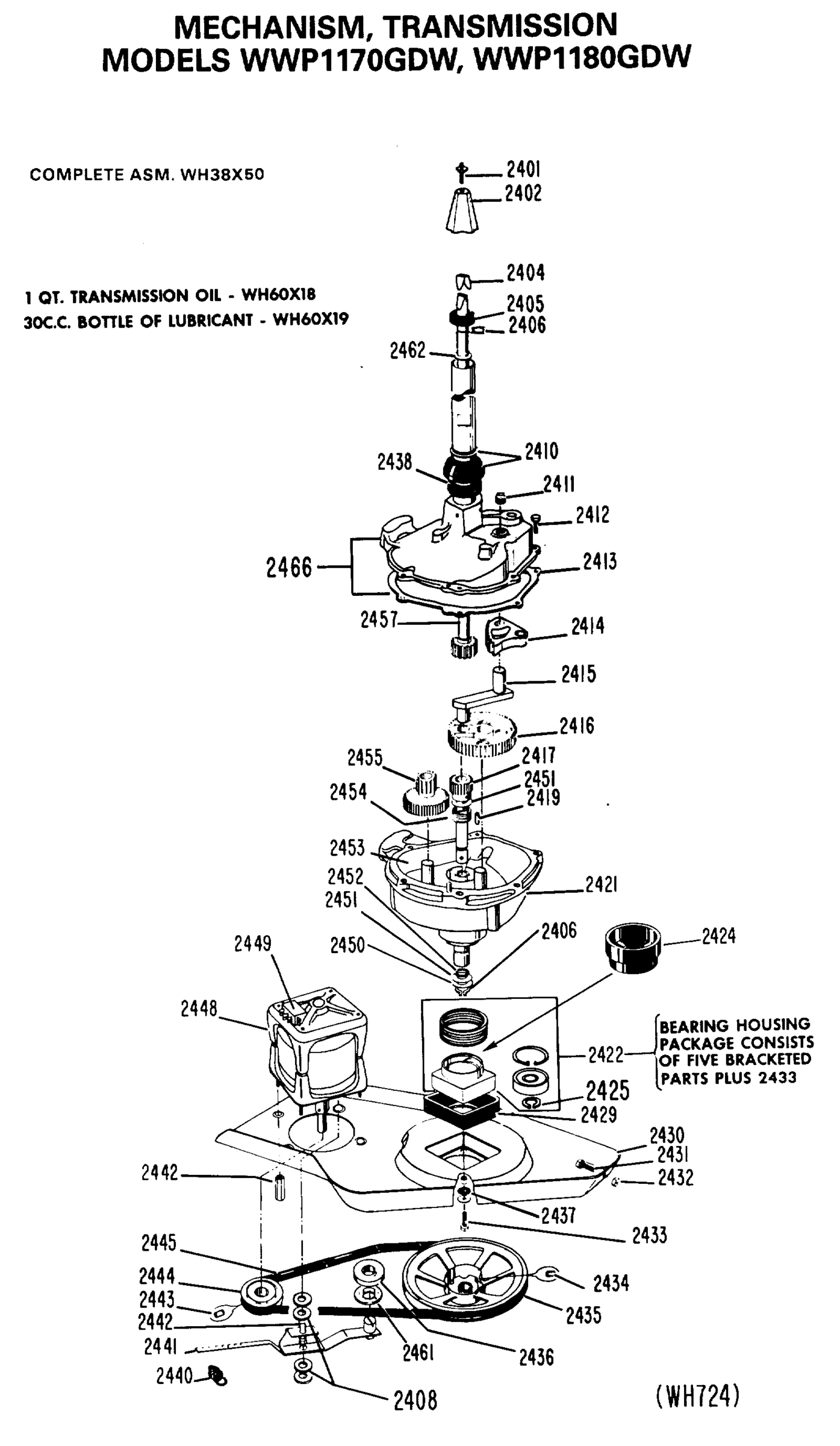

MECHANISM, TRANSMISSION

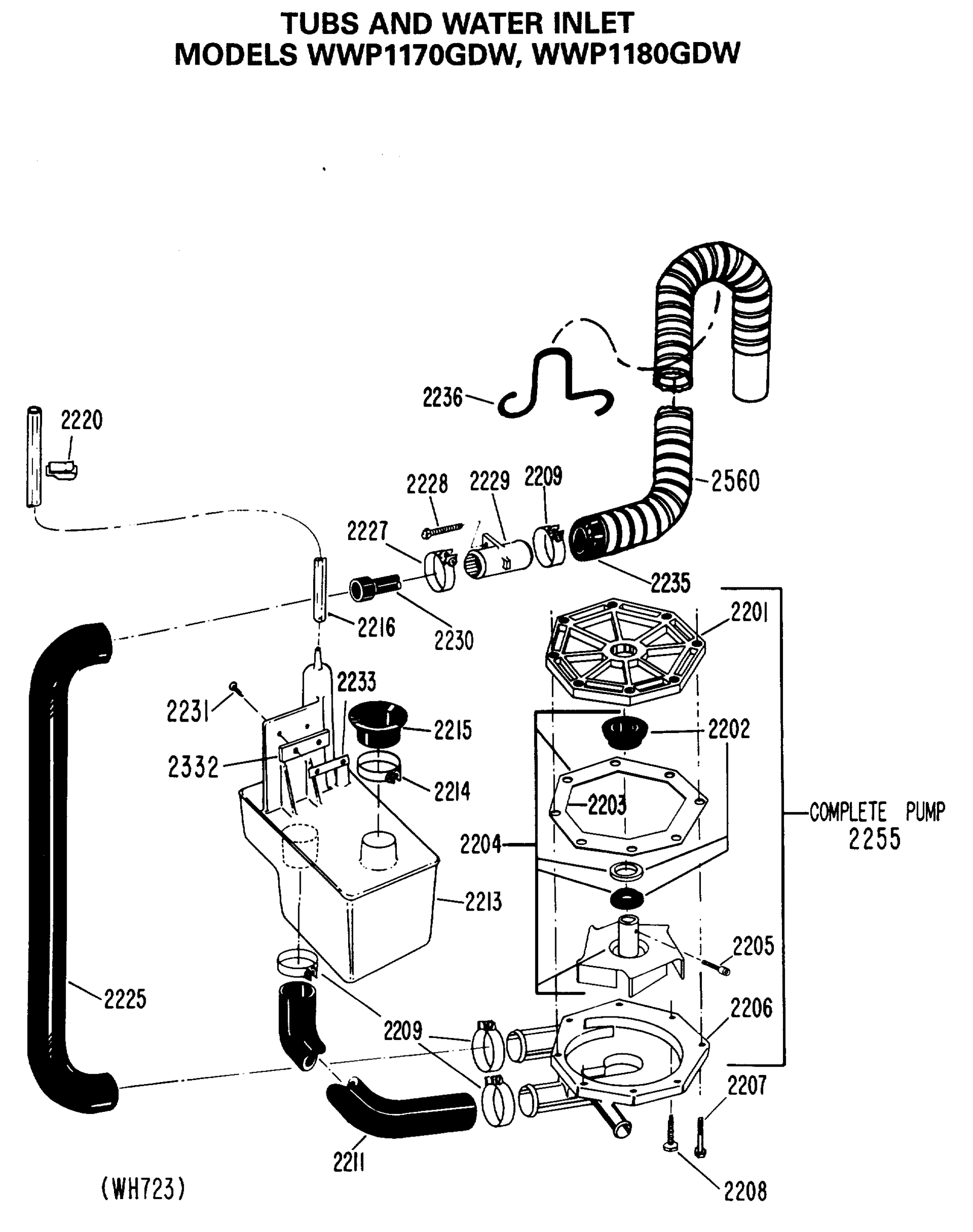

TUBS AND WATER INLET
Common parts from model GE WWP1170GDW Washer
2011
HOSE STORAGE BRACKET GEN WH16X0445 Contact Us For Availability
2014
GEN WH46X0251 GEN WH46X0251 Contact Us For Availability
2016
LEVELING LEG PACKAGE GEN WH01X2293 Contact Us For Availability
2022
PANEL ACCESS WH GEN WE20X0630 Contact Us For Availability
2024
GEN WH46X0252 GEN WH46X0252 Contact Us For Availability
2025
UPPER REAR PANEL GEN WH46X0234 Contact Us For Availability
2029
GEN WE20X0677 GEN WE20X0677 Contact Us For Availability
2030
FRONT CASTER ASMY GEN WH09X0020 Contact Us For Availability
2037
GEN WH01X2325 GEN WH01X2325 Contact Us For Availability
2042
GEN WH02X1055 GEN WH02X1055 Contact Us For Availability
2048
GEN WH12X0845 GEN WH12X0845 Contact Us For Availability
2049
GEN WH16X0476 GEN WH16X0476 Contact Us For Availability
2058
GEN WE20X0679 GEN WE20X0679 Contact Us For Availability
2071
GEN WH01X2545 GEN WH01X2545 Contact Us For Availability
2072
GEN WH01X2546 GEN WH01X2546 Contact Us For Availability
2073
GEN WH01X2547 GEN WH01X2547 Contact Us For Availability
2074
GEN WH01X2548 GEN WH01X2548 Contact Us For Availability
2075
GEN WH02X1102 GEN WH02X1102 Contact Us For Availability
2076
GEN WH02X1103 GEN WH02X1103 Contact Us For Availability
2077
GEN WH09X0036 GEN WH09X0036 Contact Us For Availability
2078
GEN WH16X0475 GEN WH16X0475 Contact Us For Availability
2079
GEN WH02X1106 GEN WH02X1106 Contact Us For Availability
2080
GEN WH01X2556 GEN WH01X2556 Contact Us For Availability
2101
SERVICE CORD GEN WH19X0259 Contact Us For Availability
2104
SCREW #8BX5/16 HX W GEN BUY LOCAL Contact Us For Availability
2105
GEN WH12X0857 GEN WH12X0857 Contact Us For Availability
2107
GEN WH02X0989 GEN WH02X0989 Contact Us For Availability
2111
GEN WH42X2134 GEN WH42X2134 Contact Us For Availability
2112
GEN WH02X1104 GEN WH02X1104 Contact Us For Availability
2113
GEN WH11X0131 GEN WH11X0131 Contact Us For Availability
2114
GEN WH01X2553 GEN WH01X2553 Contact Us For Availability
2116
GEN WH01X2299 GEN WH01X2299 Contact Us For Availability
2117
GEN WH01X2552 GEN WH01X2552 Contact Us For Availability
2119
WATER TEMPERATURE SWITCH GEN WH12X0739 Contact Us For Availability
2123
GEN WH12X0865 GEN WH12X0865 Contact Us For Availability
2124
GEN BUY-LOCAL GEN BUY-LOCAL Contact Us For Availability
2128
CLIP GEN WH02X0994 Contact Us For Availability
2132
GEN WH01X2328 GEN WH01X2328 Contact Us For Availability
2155
WATER VALVE GEN WH13X0066 Contact Us For Availability
2201
GEN WH23X0060 GEN WH23X0060 Contact Us For Availability
2202
GEN WH08X0320 GEN WH08X0320 Contact Us For Availability
2203
GEN WH08X0321 GEN WH08X0321 Contact Us For Availability
2204
GEN WH01X2302 GEN WH01X2302 Contact Us For Availability
2205
GEN WH02X0969 GEN WH02X0969 Contact Us For Availability
2211
GEN WH41X0201 GEN WH41X0201 Contact Us For Availability
2213
GEN WH01X2305 GEN WH01X2305 Contact Us For Availability
2215
GEN WH01X2306 GEN WH01X2306 Contact Us For Availability
2216
PRESSURE HOSE GEN WH41X0203 Contact Us For Availability
2220
CLIP GEN WH02X0988 Contact Us For Availability
2231
SCREW 10-12 X 7/8 PPH GEN NOT STOCKD Contact Us For Availability
2233
GEN WH02X1093 GEN WH02X1093 Contact Us For Availability
2302
GEN WH08X0322 GEN WH08X0322 Contact Us For Availability
2303
GEN WH02X1001 GEN WH02X1001 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X0085 GEN WH17X0085 Contact Us For Availability
2311
GEN WH45X0110 GEN WH45X0110 Contact Us For Availability
2315
GEN WH01X2311 GEN WH01X2311 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2319
GEN WH02X1003 GEN WH02X1003 Contact Us For Availability
2320
GEN WH01X2313 GEN WH01X2313 Contact Us For Availability
2322
GEN WH01X2314 GEN WH01X2314 Contact Us For Availability
2323
GEN WH08X0323 GEN WH08X0323 Contact Us For Availability
2324
GEN WH43X0107 GEN WH43X0107 Contact Us For Availability
2325
GEN WH02X1004 GEN WH02X1004 Contact Us For Availability
2327
GEN WH01X2315 GEN WH01X2315 Contact Us For Availability
2330
GEN WH41X0206 GEN WH41X0206 Contact Us For Availability
2332
GEN WH01X2575 GEN WH01X2575 Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2338
GEN WH16X0449 GEN WH16X0449 Contact Us For Availability
2344
GEN WH01X2318 GEN WH01X2318 Contact Us For Availability
2369
GEN WH41X0306 GEN WH41X0306 Contact Us For Availability
2374
SUPPORT PLATE & HDWR GEN WH01X2578 Contact Us For Availability
2401
GEN WH02X0972 GEN WH02X0972 Contact Us For Availability
2402
GEN WH40X0173 GEN WH40X0173 Contact Us For Availability
2405
GEN WH08X0364 GEN WH08X0364 Contact Us For Availability
2406
GEN WH02X1011 GEN WH02X1011 Contact Us For Availability
2408
GEN WH02X1026 GEN WH02X1026 Contact Us For Availability
2410
GEN WH08X0326 GEN WH08X0326 Contact Us For Availability
2411
GEN WH01X2320 GEN WH01X2320 Contact Us For Availability
2413
GEN WH08X0365 GEN WH08X0365 Contact Us For Availability
2414
GEN WH05X0240 GEN WH05X0240 Contact Us For Availability
2415
GEN WH40X0162 GEN WH40X0162 Contact Us For Availability
2416
GEN WH05X0241 GEN WH05X0241 Contact Us For Availability
2417
GEN WH40X0174 GEN WH40X0174 Contact Us For Availability
2419
GEN WH01X2331 GEN WH01X2331 Contact Us For Availability
2421
GEN WH39X0045 GEN WH39X0045 Contact Us For Availability
2422
GEN WH04X0094 GEN WH04X0094 Contact Us For Availability
2424
GEN WH01X2519 GEN WH01X2519 Contact Us For Availability
2429
GEN WH01X2322 GEN WH01X2322 Contact Us For Availability
2432
GEN WH02X1019 GEN WH02X1019 Contact Us For Availability
2433
GEN WH02X1021 GEN WH02X1021 Contact Us For Availability
2434
GEN WH02X1111 GEN WH02X1111 Contact Us For Availability
2435
GEN WH07X0109 GEN WH07X0109 Contact Us For Availability
2436
GEN WH07X0108 GEN WH07X0108 Contact Us For Availability
2437
GEN WH02X1022 GEN WH02X1022 Contact Us For Availability
2438
GEN WH01X2332 GEN WH01X2332 Contact Us For Availability
2440
GEN WH01X2323 GEN WH01X2323 Contact Us For Availability
2441
GEN WH40X0164 GEN WH40X0164 Contact Us For Availability
2442
GEN WH02X1105 GEN WH02X1105 Contact Us For Availability
2443
GEN WH02X1028 GEN WH02X1028 Contact Us For Availability
2444
GEN WH07X0085 GEN WH07X0085 Contact Us For Availability
2445
GEN WH07X0086 GEN WH07X0086 Contact Us For Availability
2447
GEN WH02X1023 GEN WH02X1023 Contact Us For Availability
2448
GEN WH20X0085 GEN WH20X0085 Contact Us For Availability
2449
GEN WH12X0840 GEN WH12X0840 Contact Us For Availability
2450
GEN WH02X1031 GEN WH02X1031 Contact Us For Availability
2451
GEN WH02X1016 GEN WH02X1016 Contact Us For Availability
2452
GEN WH08X0328 GEN WH08X0328 Contact Us For Availability
2454
GEN WH01X2324 GEN WH01X2324 Contact Us For Availability
2455
GEN WH05X0242 GEN WH05X0242 Contact Us For Availability
2461
GEN WH02X1094 GEN WH02X1094 Contact Us For Availability
2462
GEN WH02X1032 GEN WH02X1032 Contact Us For Availability
2466
GEN WH37X0043 GEN WH37X0043 Contact Us For Availability
× ![]()
