Model GE WWP1170FAW – Common Parts & Diagrams

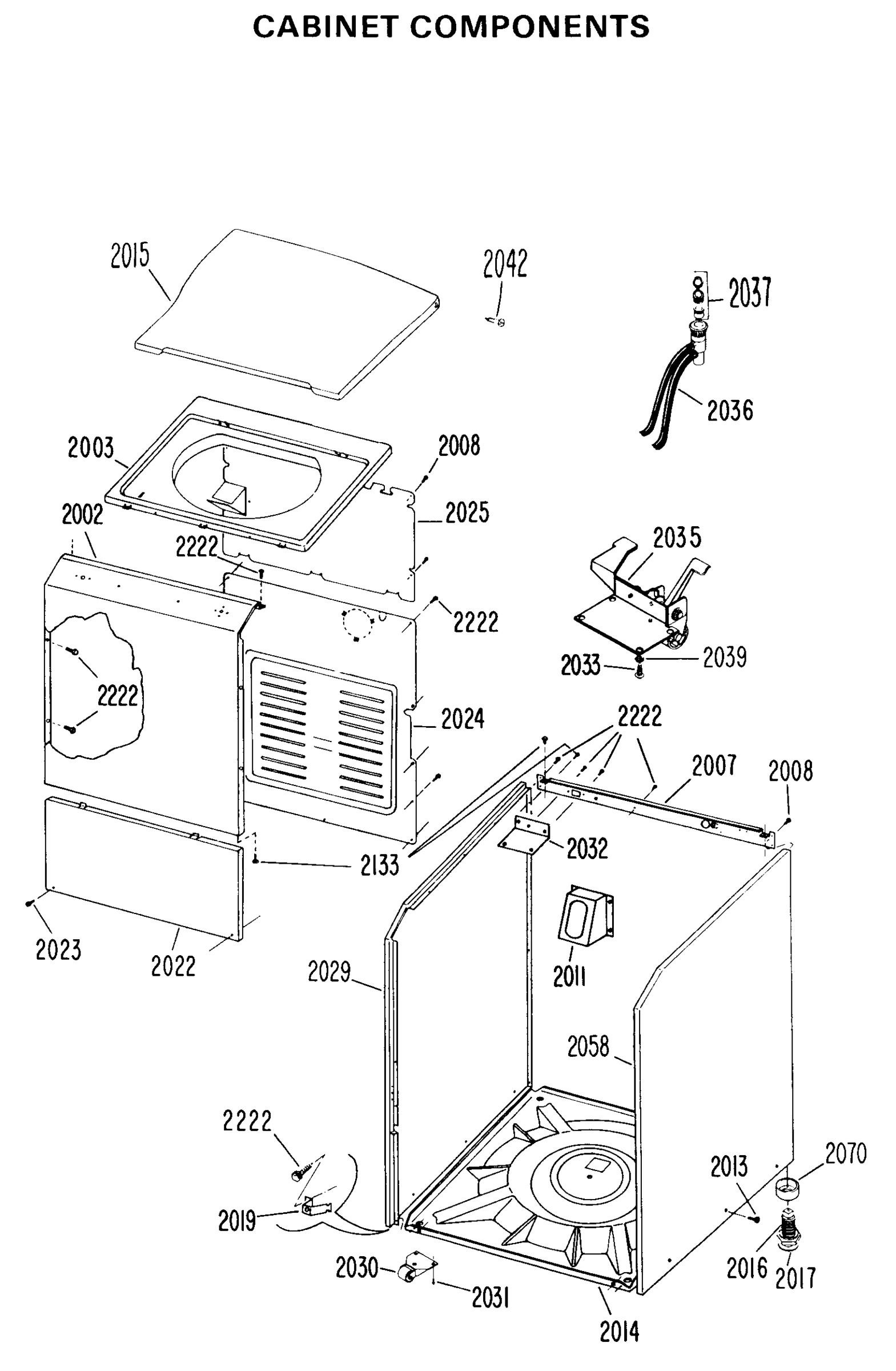

CABINET COMPONENTS

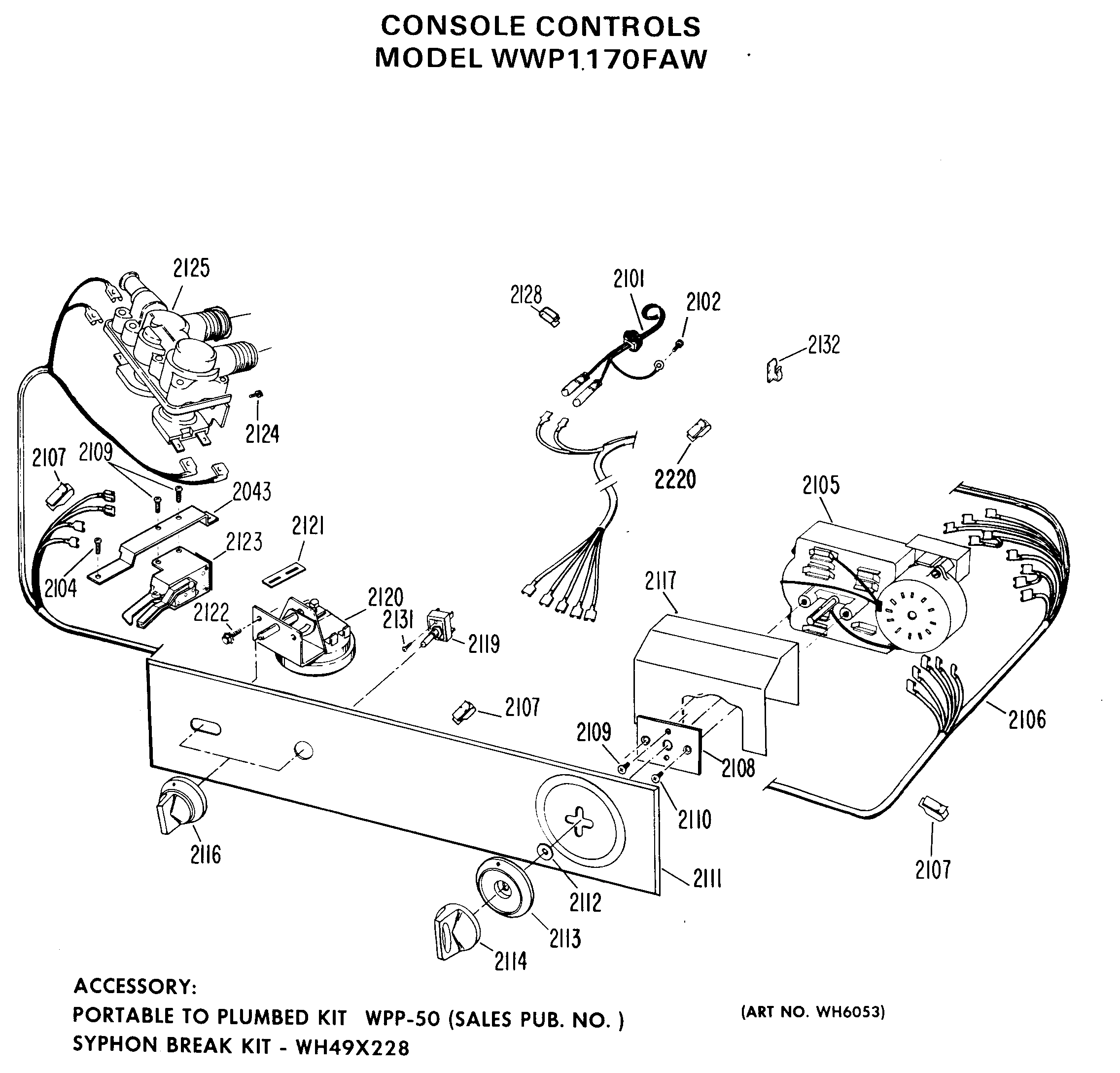

CONSOLE CONTROLS

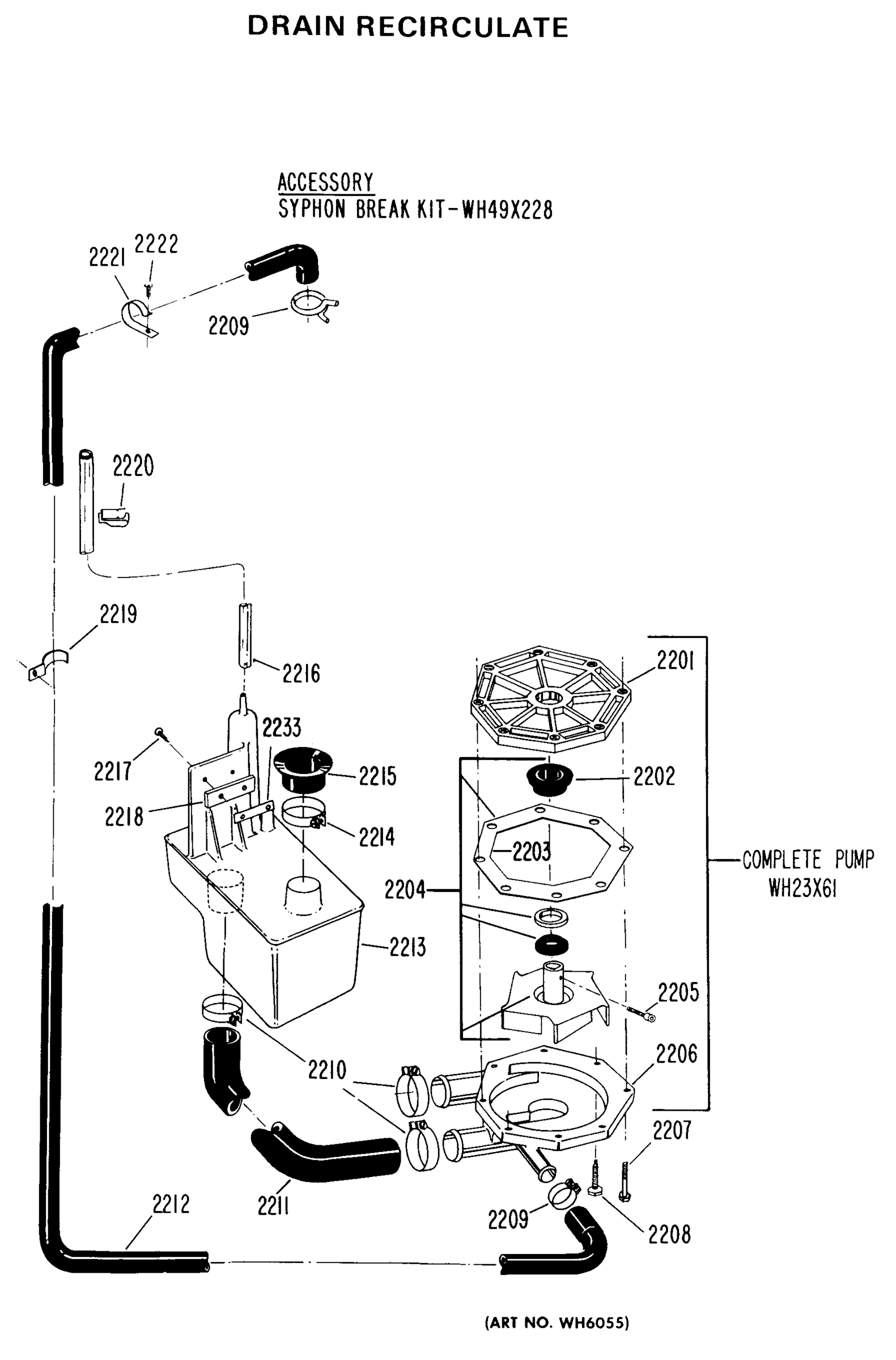

DRAIN RECIRCULATE

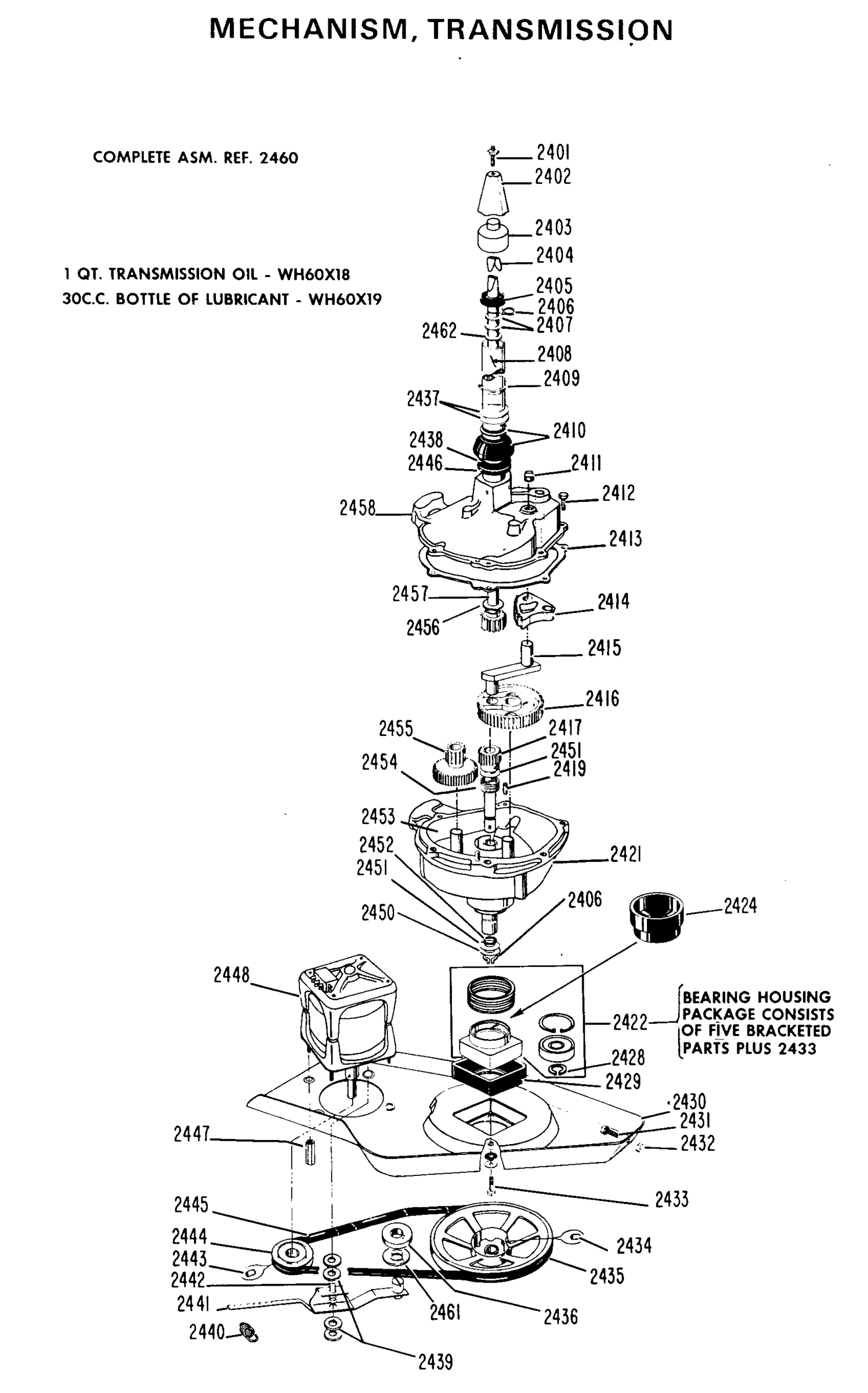

MECHANISM, TRANSMISSION

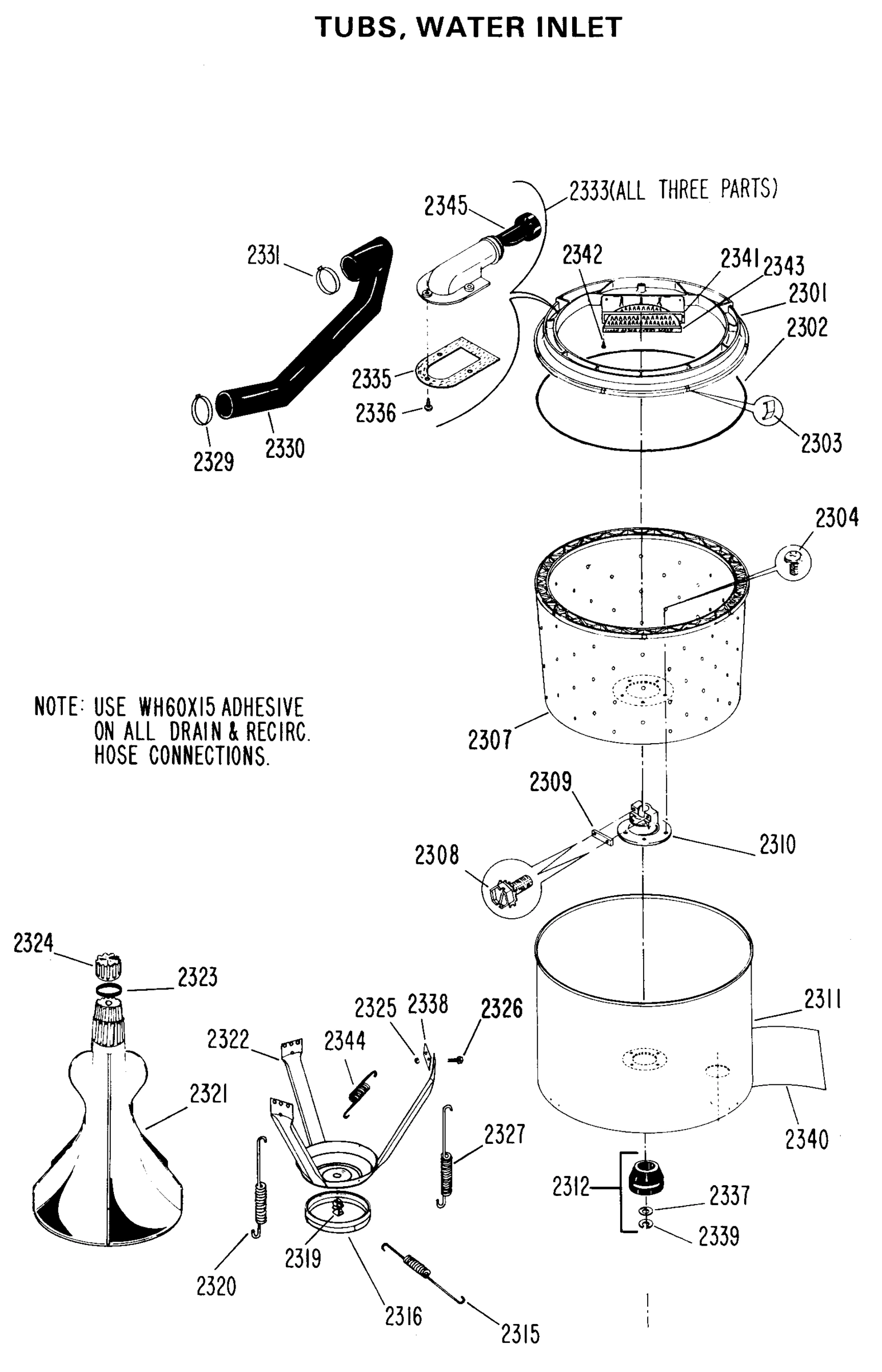

TUBS, WATER INLET
Common parts from model GE WWP1170FAW
2002
CONTROL PANEL WH GEN WH46X0219 Contact Us For Availability
2002
CONTROL PANEL AD GEN WH46X0221 Contact Us For Availability
2003
TOP PANEL (WHITE) GEN WH44X1063 Contact Us For Availability
2003
TOP PANEL (ALMOND) GEN WH44X1064 Contact Us For Availability
2007
REAR CABINET SUPPORT GEN WH16X0443 Contact Us For Availability
2011
HOSE STORAGE BRACKET GEN WH16X0445 Contact Us For Availability
2014
GEN WH42X0225 GEN WH42X0225 Contact Us For Availability
2015
LID WH GEN WH44X1067 Contact Us For Availability
2015
LID AD GEN WH44X1069 Contact Us For Availability
2016
LEVELING LEG PACKAGE GEN WH01X2293 Contact Us For Availability
2017
GEN WH01X2294 GEN WH01X2294 Contact Us For Availability
2019
GEN WH02X0978 GEN WH02X0978 Contact Us For Availability
2022
PANEL ACCESS WH GEN WE20X0630 Contact Us For Availability
2022
PANEL ACCESS AD GEN WE20X0632 Contact Us For Availability
2024
LOWER REAR PANEL GEN WH46X0233 Contact Us For Availability
2025
UPPER REAR PANEL GEN WH46X0234 Contact Us For Availability
2029
GEN WE20X0677 GEN WE20X0677 Contact Us For Availability
2029
GEN WE20X0678 GEN WE20X0678 Contact Us For Availability
2030
FRONT CASTER ASMY GEN WH09X0020 Contact Us For Availability
2032
GEN WH16X0446 GEN WH16X0446 Contact Us For Availability
2035
RETRACTABLE CASTER ASMY GEN WH09X0021 Contact Us For Availability
2036
HOSE ASSEMBLY GEN WH41X0199 Contact Us For Availability
2037
GEN WH01X2325 GEN WH01X2325 Contact Us For Availability
2039
GEN WH02X0985 GEN WH02X0985 Contact Us For Availability
2042
GEN WH02X1055 GEN WH02X1055 Contact Us For Availability
2043
BRACKET GEN WH16X0462 Contact Us For Availability
2058
GEN WE20X0679 GEN WE20X0679 Contact Us For Availability
2058
GEN WE20X0680 GEN WE20X0680 Contact Us For Availability
2070
GEN WH01X2520 GEN WH01X2520 Contact Us For Availability
2101
SERVICE CORD GEN WH19X0259 Contact Us For Availability
2105
GEN WH12X0736 GEN WH12X0736 Contact Us For Availability
2105
GEN WH12X0737 GEN WH12X0737 Contact Us For Availability
2106
GEN WH19X0262 GEN WH19X0262 Contact Us For Availability
2107
GEN WH02X0989 GEN WH02X0989 Contact Us For Availability
2108
TIMER BRACKET GEN WH16X0448 Contact Us For Availability
2111
GEN WH42X2094 GEN WH42X2094 Contact Us For Availability
2112
GEN WH01X2339 GEN WH01X2339 Contact Us For Availability
2113
GEN WH11X0118 GEN WH11X0118 Contact Us For Availability
2114
GEN WH01X2298 GEN WH01X2298 Contact Us For Availability
2116
GEN WH01X2299 GEN WH01X2299 Contact Us For Availability
2117
GEN WH01X2338 GEN WH01X2338 Contact Us For Availability
2119
WATER TEMPERATURE SWITCH GEN WH12X0739 Contact Us For Availability
2120
GEN WH12X0741 GEN WH12X0741 Contact Us For Availability
2121
TERMINAL SHIELD GEN WH01X2300 Contact Us For Availability
2124
GEN BUY-LOCAL GEN BUY-LOCAL Contact Us For Availability
2125
SCREEN GEN WH01X2267 Contact Us For Availability
2128
CLIP GEN WH02X0994 Contact Us For Availability
2132
GEN WH01X2328 GEN WH01X2328 Contact Us For Availability
2155
WATER VALVE GEN WH13X0066 Contact Us For Availability
2201
GEN WH23X0060 GEN WH23X0060 Contact Us For Availability
2202
GEN WH08X0320 GEN WH08X0320 Contact Us For Availability
2203
GEN WH08X0321 GEN WH08X0321 Contact Us For Availability
2204
GEN WH01X2302 GEN WH01X2302 Contact Us For Availability
2205
GEN WH02X0969 GEN WH02X0969 Contact Us For Availability
2206
GEN WH01X2303 GEN WH01X2303 Contact Us For Availability
2211
GEN WH41X0201 GEN WH41X0201 Contact Us For Availability
2212
GEN WH41X0202 GEN WH41X0202 Contact Us For Availability
2213
GEN WH01X2305 GEN WH01X2305 Contact Us For Availability
2215
GEN WH01X2306 GEN WH01X2306 Contact Us For Availability
2216
PRESSURE HOSE GEN WH41X0203 Contact Us For Availability
2218
GEN WH01X2307 GEN WH01X2307 Contact Us For Availability
2219
GEN WH01X2333 GEN WH01X2333 Contact Us For Availability
2220
CLIP GEN WH02X0988 Contact Us For Availability
2221
GEN WH01X2334 GEN WH01X2334 Contact Us For Availability
2233
GEN WH02X1093 GEN WH02X1093 Contact Us For Availability
2240
ADHESIVE (1 OZ) GEN WH60X0015 Contact Us For Availability
2301
SPLASH TUB COVER GEN WH01X2308 Contact Us For Availability
2302
GEN WH08X0322 GEN WH08X0322 Contact Us For Availability
2303
GEN WH02X1001 GEN WH02X1001 Contact Us For Availability
2307
GEN WH45X0109 GEN WH45X0109 Contact Us For Availability
2309
GEN WH01X2309 GEN WH01X2309 Contact Us For Availability
2310
GEN WH01X2310 GEN WH01X2310 Contact Us For Availability
2311
GEN WH45X0110 GEN WH45X0110 Contact Us For Availability
2312
GEN WH02X0970 GEN WH02X0970 Contact Us For Availability
2315
GEN WH01X2311 GEN WH01X2311 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2319
GEN WH02X1003 GEN WH02X1003 Contact Us For Availability
2320
GEN WH01X2313 GEN WH01X2313 Contact Us For Availability
2321
GEN WH43X0106 GEN WH43X0106 Contact Us For Availability
2322
GEN WH01X2314 GEN WH01X2314 Contact Us For Availability
2323
GEN WH08X0323 GEN WH08X0323 Contact Us For Availability
2324
GEN WH43X0107 GEN WH43X0107 Contact Us For Availability
2325
GEN WH02X1004 GEN WH02X1004 Contact Us For Availability
2327
GEN WH01X2315 GEN WH01X2315 Contact Us For Availability
2330
GEN WH41X0206 GEN WH41X0206 Contact Us For Availability
2333
GEN WH41X0208 GEN WH41X0208 Contact Us For Availability
2335
GEN WH08X0324 GEN WH08X0324 Contact Us For Availability
2336
SCREW 6-20X3/8 ST STL GEN BUY LOCAL Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2338
GEN WH16X0449 GEN WH16X0449 Contact Us For Availability
2339
GEN WH02X0971 GEN WH02X0971 Contact Us For Availability
2341
GEN WH01X2316 GEN WH01X2316 Contact Us For Availability
2343
GEN WH01X2317 GEN WH01X2317 Contact Us For Availability
2344
GEN WH01X2318 GEN WH01X2318 Contact Us For Availability
2345
GEN WH41X0262 GEN WH41X0262 Contact Us For Availability
2371
GEN WH12X0853 GEN WH12X0853 Contact Us For Availability
2374
SUPPORT PLATE & HDWR GEN WH01X2578 Contact Us For Availability
2401
GEN WH02X0972 GEN WH02X0972 Contact Us For Availability
2402
DRIVE LUG GEN WH40X0161 Contact Us For Availability
2403
GEN WH01X2319 GEN WH01X2319 Contact Us For Availability
2405
GEN WH08X0325 GEN WH08X0325 Contact Us For Availability
2406
GEN WH02X1011 GEN WH02X1011 Contact Us For Availability
2408
GEN WH02X1012 GEN WH02X1012 Contact Us For Availability
2409
SNAP RING GEN WH02X1013 Contact Us For Availability
2410
GEN WH08X0326 GEN WH08X0326 Contact Us For Availability
2411
GEN WH01X2320 GEN WH01X2320 Contact Us For Availability
2413
GEN WH08X0327 GEN WH08X0327 Contact Us For Availability
2414
GEN WH05X0240 GEN WH05X0240 Contact Us For Availability
2415
GEN WH40X0162 GEN WH40X0162 Contact Us For Availability
2416
GEN WH05X0241 GEN WH05X0241 Contact Us For Availability
2417
LOWER SHAFT GEN WH40X0163 Contact Us For Availability
2419
GEN WH01X2331 GEN WH01X2331 Contact Us For Availability
2421
LWR HSNG ASM & GASKET GEN WH39X0038 Contact Us For Availability
2422
GEN WH04X0094 GEN WH04X0094 Contact Us For Availability
2424
GEN WH01X2519 GEN WH01X2519 Contact Us For Availability
2428
SNAP RING GEN WH01X2321 Contact Us For Availability
2429
GEN WH01X2322 GEN WH01X2322 Contact Us For Availability
2432
GEN WH02X1019 GEN WH02X1019 Contact Us For Availability
2433
GEN WH02X1021 GEN WH02X1021 Contact Us For Availability
2434
GEN WH02X1024 GEN WH02X1024 Contact Us For Availability
2435
GEN WH07X0083 GEN WH07X0083 Contact Us For Availability
2436
GEN WH07X0108 GEN WH07X0108 Contact Us For Availability
2437
GEN WH02X1022 GEN WH02X1022 Contact Us For Availability
2438
GEN WH01X2332 GEN WH01X2332 Contact Us For Availability
2439
WASHER GEN WH02X1026 Contact Us For Availability
2440
GEN WH01X2323 GEN WH01X2323 Contact Us For Availability
2441
IDLER ARM & SHAFT ASM GEN WH40X0164 Contact Us For Availability
2442
ROUND SPACER GEN WH02X1027 Contact Us For Availability
2443
GEN WH02X1028 GEN WH02X1028 Contact Us For Availability
2444
GEN WH07X0085 GEN WH07X0085 Contact Us For Availability
2445
GEN WH07X0086 GEN WH07X0086 Contact Us For Availability
2446
GEN WH02X1029 GEN WH02X1029 Contact Us For Availability
2447
GEN WH02X1023 GEN WH02X1023 Contact Us For Availability
2447
GEN WH02X1030 GEN WH02X1030 Contact Us For Availability
2448
MOTOR SWITCH (G E) GEN WH12X0743 Contact Us For Availability
2448
MOTOR GEN WH20X0065 Contact Us For Availability
2450
GEN WH02X1031 GEN WH02X1031 Contact Us For Availability
2451
GEN WH02X1016 GEN WH02X1016 Contact Us For Availability
2452
GEN WH08X0328 GEN WH08X0328 Contact Us For Availability
2453
TRANSMISSION OIL (1 QT) GEN WH60X0018 Contact Us For Availability
2454
GEN WH01X2324 GEN WH01X2324 Contact Us For Availability
2455
GEN WH05X0242 GEN WH05X0242 Contact Us For Availability
2456
GEN WH02X1095 GEN WH02X1095 Contact Us For Availability
2457
AGITATOR SHAFT ASMY GEN WH40X0165 Contact Us For Availability
2458
UPPER HOUSING ASMY GEN WH39X0039 Contact Us For Availability
2460
COMPLETE TRANSMISSION PN GEN WH38X0040 Contact Us For Availability
2461
GEN WH02X1094 GEN WH02X1094 Contact Us For Availability
2462
GEN WH02X1032 GEN WH02X1032 Contact Us For Availability
2544
SCREW 10-12 X 1/2 AB PPH GEN NOT STOCKD Contact Us For Availability
32767
GEN 49-9099 GEN 49-9099 Contact Us For Availability
32767
GEN 49-9462 GEN 49-9462 Contact Us For Availability
× ![]()
