Model GE WWC8000PBL – Common Parts & Diagrams
0

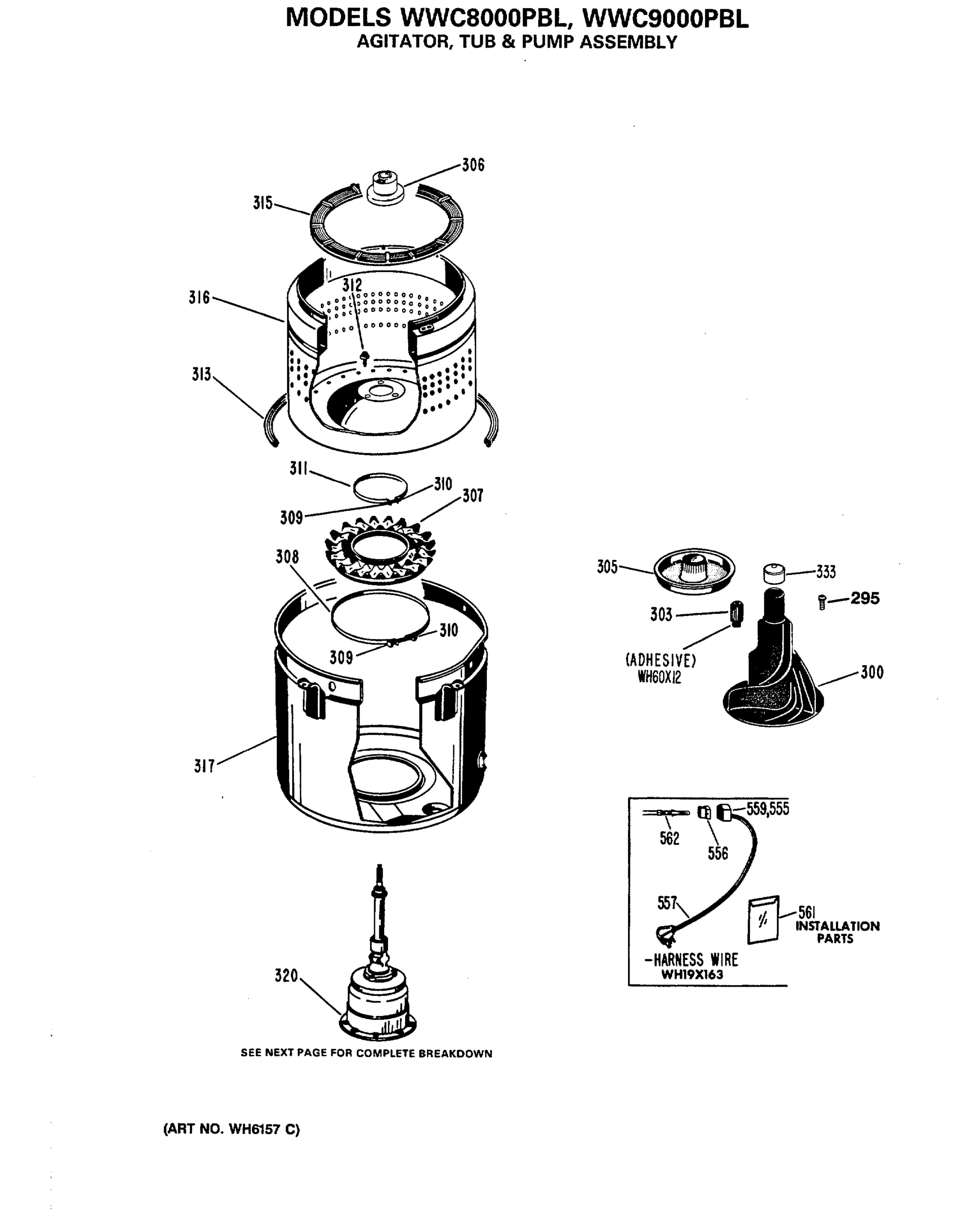

AGITATOR, TUB & PUMP ASSEMBLY
BACKSPLASH & COIN BOX ASSEMBLY
CABINET ASM.
Common parts from model GE WWC8000PBL
1
GEN 31-2112 GEN 31-2112 Contact Us For Availability
1
GEN 31-2532 GEN 31-2532 Contact Us For Availability
2
GEN WH42X2214 GEN WH42X2214 Contact Us For Availability
10
GEN WH12X0887 GEN WH12X0887 Contact Us For Availability
14
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
18
GEN WR01X1569 GEN WR01X1569 Contact Us For Availability
35
SWITCH & BUTTON ASM 3 GEN WH12X0848 Contact Us For Availability
36
GEN WH01X2562 GEN WH01X2562 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
70
GEN WH02X0937 GEN WH02X0937 Contact Us For Availability
100
GEN WH12X0888 GEN WH12X0888 Contact Us For Availability
101
GEN WH12X0673 GEN WH12X0673 Contact Us For Availability
103
GEN WH12X0827 GEN WH12X0827 Contact Us For Availability
105
GEN WH12X0889 GEN WH12X0889 Contact Us For Availability
110
GEN WH12X0707 GEN WH12X0707 Contact Us For Availability
111
GEN WH12X0705 GEN WH12X0705 Contact Us For Availability
112
GEN WZ05X0248 GEN WZ05X0248 Contact Us For Availability
123
GEN WH12X0706 GEN WH12X0706 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
150
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
151
GEN WE13X0133 GEN WE13X0133 Contact Us For Availability
153
GEN WH46X0263 GEN WH46X0263 Contact Us For Availability
154
GEN WE01X0913 GEN WE01X0913 Contact Us For Availability
155
GEN WE01X0948 GEN WE01X0948 Contact Us For Availability
156
GEN WE01X0949 GEN WE01X0949 Contact Us For Availability
157
GEN WE01X0950 GEN WE01X0950 Contact Us For Availability
157
GEN WH12X0624 GEN WH12X0624 Contact Us For Availability
158
GEN WE01X0951 GEN WE01X0951 Contact Us For Availability
159
GEN WE01X0952 GEN WE01X0952 Contact Us For Availability
160
GEN WE01X0953 GEN WE01X0953 Contact Us For Availability
161
GEN WE02X0273 GEN WE02X0273 Contact Us For Availability
162
GEN WE02X0274 GEN WE02X0274 Contact Us For Availability
163
GEN WE09X0048 GEN WE09X0048 Contact Us For Availability
164
GEN WH08X0371 GEN WH08X0371 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
168
GEN WZ02X0468 GEN WZ02X0468 Contact Us For Availability
169
GEN WH01X2194 GEN WH01X2194 Contact Us For Availability
172
GEN WH02X0735 GEN WH02X0735 Contact Us For Availability
173
GEN WH02X0932 GEN WH02X0932 Contact Us For Availability
174
GEN WH02X0934 GEN WH02X0934 Contact Us For Availability
175
GEN WH02X0933 GEN WH02X0933 Contact Us For Availability
176
GEN WH02X0931 GEN WH02X0931 Contact Us For Availability
177
NUT CLIP GEN WH02X0923 Contact Us For Availability
178
GEN WH02X0939 GEN WH02X0939 Contact Us For Availability
180
GEN * 72-33-4 GEN * 72-33-4 Contact Us For Availability
182
GEN * 74-05 GEN * 74-05 Contact Us For Availability
183
GEN 8-32X5/16 GEN 8-32X5/16 Contact Us For Availability
187
GEN WH02X0946 GEN WH02X0946 Contact Us For Availability
197
GEN WE01X0956 GEN WE01X0956 Contact Us For Availability
202
HINGE PIVOT L.H. GEN WH01X2085 Contact Us For Availability
203
HINGE PIVOT R.H. GEN WH01X2222 Contact Us For Availability
204
PAD-HINGE L.H. GEN WH01X2087 Contact Us For Availability
205
PAD-HINGE R.H. GEN WH01X2086 Contact Us For Availability
206
GEN WH02X0819 GEN WH02X0819 Contact Us For Availability
207
GEN WH01X1654 GEN WH01X1654 Contact Us For Availability
208
GEN WH01X2088 GEN WH01X2088 Contact Us For Availability
209
GEN WH02X0820 GEN WH02X0820 Contact Us For Availability
212
GEN WH12X0494 GEN WH12X0494 Contact Us For Availability
214
GEN WH01X2090 GEN WH01X2090 Contact Us For Availability
215
GEN WH01X2089 GEN WH01X2089 Contact Us For Availability
216
GEN WH16X0376 GEN WH16X0376 Contact Us For Availability
218
GEN WH16X0413 GEN WH16X0413 Contact Us For Availability
219
GEN WH16X0370 GEN WH16X0370 Contact Us For Availability
220
GEN WH08X0366 GEN WH08X0366 Contact Us For Availability
257
GEN NOT STOCK GEN NOT STOCK Contact Us For Availability
295
SCREW (YL) GEN WH02X1147 Contact Us For Availability
300
GEN WH43X0126 GEN WH43X0126 Contact Us For Availability
303
GEN WH01X2641 GEN WH01X2641 Contact Us For Availability
305
GEN WH01X2269 GEN WH01X2269 Contact Us For Availability
306
GEN WH08X0292 GEN WH08X0292 Contact Us For Availability
307
GEN WH08X0246 GEN WH08X0246 Contact Us For Availability
308
GEN WH01X1580 GEN WH01X1580 Contact Us For Availability
309
GEN WH02X0935 GEN WH02X0935 Contact Us For Availability
310
GEN WH02X0936 GEN WH02X0936 Contact Us For Availability
311
GEN WH01X1292 GEN WH01X1292 Contact Us For Availability
312
GEN WH02X0681 GEN WH02X0681 Contact Us For Availability
313
GEN WH08X0305 GEN WH08X0305 Contact Us For Availability
315
GEN WH42X1062 GEN WH42X1062 Contact Us For Availability
316
BASKET ASM STD CAP GEN WH45X0103 Contact Us For Availability
317
GEN WH45X0069 GEN WH45X0069 Contact Us For Availability
320
GEN WH38X0053 GEN WH38X0053 Contact Us For Availability
333
CAP AGITATOR WH GEN WH43X0128 Contact Us For Availability
357
GEN WH01X2187 GEN WH01X2187 Contact Us For Availability
376
GEN WH01X2568 GEN WH01X2568 Contact Us For Availability
381
CAP FRONT PANEL ASM AD GEN WH46X0260 Contact Us For Availability
381
CAP FRONT PANEL ASM HA GEN WH46X0261 Contact Us For Availability
381
CAP FRONT PANEL ASM WH GEN WH46X0262 Contact Us For Availability
382
DOOR MTR CASE ACCESS WH GEN WH42X2090 Contact Us For Availability
382
DOOR MTR CASE ACCESS AD GEN WH42X2091 Contact Us For Availability
382
DOOR MTR CASE ACCESS HA GEN WH42X2092 Contact Us For Availability
384
FRONT PANEL ASM AD GEN WH46X0257 Contact Us For Availability
384
FRONT PANEL ASM HA GEN WH46X0258 Contact Us For Availability
384
FRONT PANEL ASM WH GEN WH46X0259 Contact Us For Availability
391
GEN WH44X1099 GEN WH44X1099 Contact Us For Availability
391
GEN WH44X1100 GEN WH44X1100 Contact Us For Availability
391
GEN WH44X1101 GEN WH44X1101 Contact Us For Availability
394
GEN WH44X1105 GEN WH44X1105 Contact Us For Availability
394
GEN WH44X1106 GEN WH44X1106 Contact Us For Availability
394
GEN WH44X1107 GEN WH44X1107 Contact Us For Availability
397
GEN WH42X2083 GEN WH42X2083 Contact Us For Availability
397
GEN WH42X2085 GEN WH42X2085 Contact Us For Availability
397
GEN WH42X2086 GEN WH42X2086 Contact Us For Availability
400
GEN WH07X0040 GEN WH07X0040 Contact Us For Availability
401
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
402
GEN WH01X1633 GEN WH01X1633 Contact Us For Availability
403
GEN WH07X0041 GEN WH07X0041 Contact Us For Availability
406
CABLE STD CAPACITY GEN WH16X0374 Contact Us For Availability
407
GEN WH01X2081 GEN WH01X2081 Contact Us For Availability
407
GEN WH01X2082 GEN WH01X2082 Contact Us For Availability
408
GEN WH01X2060 GEN WH01X2060 Contact Us For Availability
409
GEN WL39X0003 GEN WL39X0003 Contact Us For Availability
413
GEN WH01X1923 GEN WH01X1923 Contact Us For Availability
414
SCR 12-14 B HX 3/4 S GEN WH02X0715 Contact Us For Availability
416
GEN WH12X0629 GEN WH12X0629 Contact Us For Availability
419
GEN WH16X0483 GEN WH16X0483 Contact Us For Availability
420
GEN WH02X0893 GEN WH02X0893 Contact Us For Availability
421
GEN WH46X0255 GEN WH46X0255 Contact Us For Availability
422
GEN WH01X2296 GEN WH01X2296 Contact Us For Availability
423
GEN WH01X1951 GEN WH01X1951 Contact Us For Availability
424
GEN WH01X1862 GEN WH01X1862 Contact Us For Availability
425
GEN WH01X1953 GEN WH01X1953 Contact Us For Availability
426
GEN WH02X0882 GEN WH02X0882 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
430
GEN WZ07X0040 GEN WZ07X0040 Contact Us For Availability
431
GEN WH02X1137 GEN WH02X1137 Contact Us For Availability
432
GEN WL02X0071 GEN WL02X0071 Contact Us For Availability
551
GEN WH12X0417 GEN WH12X0417 Contact Us For Availability
553
INSULATOR GEN WH01X2010 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
× ![]()
