Model GE WWC7000FBL – Common Parts & Diagrams
AGITATOR, TUB & MOTOR/CLUTCH ASM.

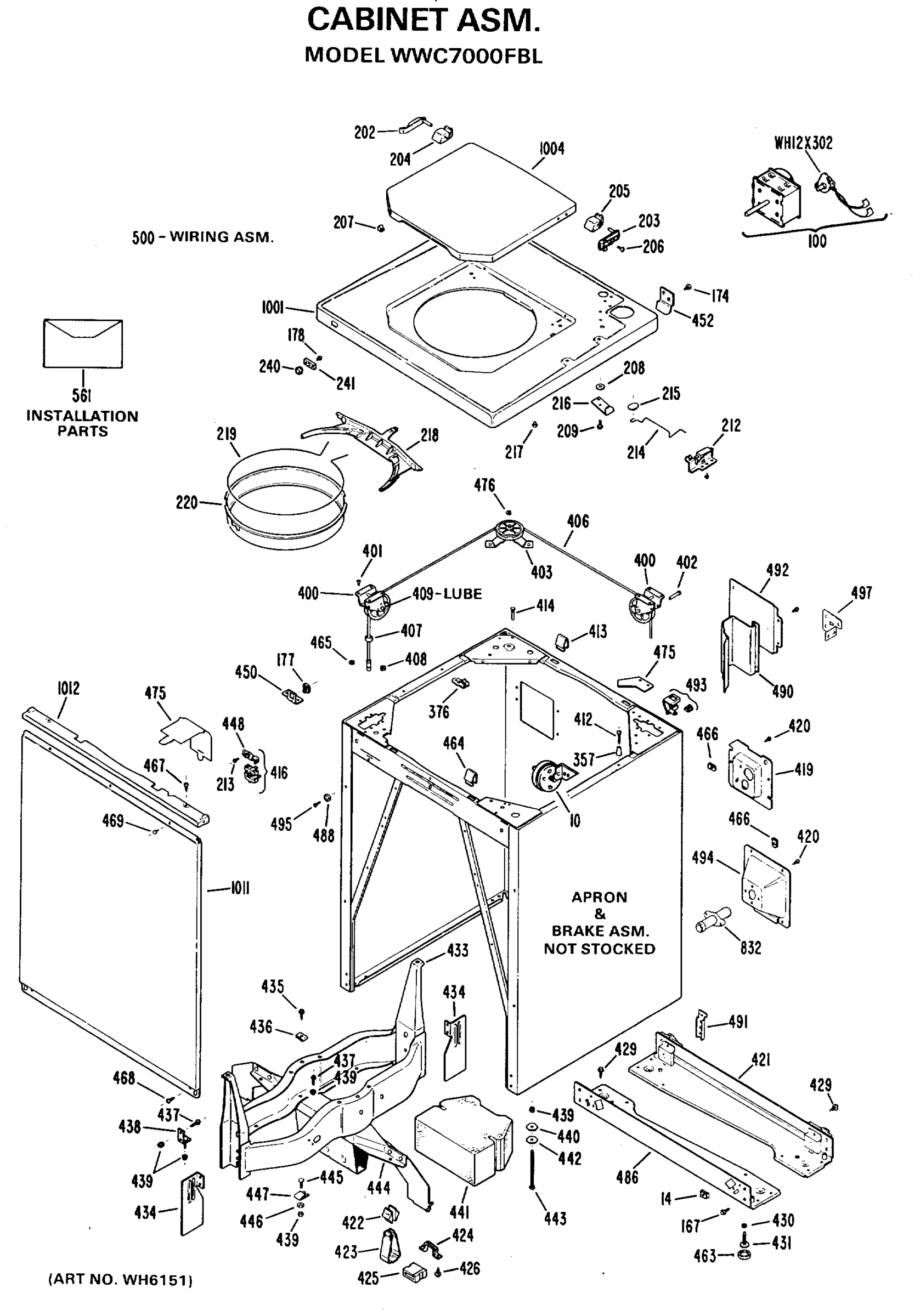

CABINET ASM.
HYDRAULIC SYSTEM ASSEMBLY
Common parts from model GE WWC7000FBL
10
GEN WH12X0638 GEN WH12X0638 Contact Us For Availability
14
CLIP GROUND GEN WE01X0762 Contact Us For Availability
46
SCR 8-18 AB HX 1/2 S GEN WZ04X0238 Contact Us For Availability
70
SCR 10-15 A HXW 7/16 S GEN WH02X0937 Contact Us For Availability
100
GEN WH12X0735 GEN WH12X0735 Contact Us For Availability
150
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
167
SCR 1/4-14 AB HXW 9/16 S GEN WE02X0186 Contact Us For Availability
176
GEN WH02X0931 GEN WH02X0931 Contact Us For Availability
178
GEN WH02X0939 GEN WH02X0939 Contact Us For Availability
179
SCR 10-16 BT HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
202
GEN WH01X2085 GEN WH01X2085 Contact Us For Availability
203
GEN WH01X2222 GEN WH01X2222 Contact Us For Availability
204
PAD-HINGE L.H. GEN WH01X2087 Contact Us For Availability
205
PAD-HINGE R.H. GEN WH01X2086 Contact Us For Availability
206
SCR 8-18 B RT 1/2 SS GEN WH02X0819 Contact Us For Availability
207
GEN WH01X1654 GEN WH01X1654 Contact Us For Availability
208
GEN WH01X2088 GEN WH01X2088 Contact Us For Availability
209
SCR 1/4-14 BT HXW 3/4 SS GEN WH02X0820 Contact Us For Availability
212
GEN WH12X0494 GEN WH12X0494 Contact Us For Availability
214
GEN WH01X2090 GEN WH01X2090 Contact Us For Availability
215
GEN WH01X2089 GEN WH01X2089 Contact Us For Availability
216
GEN WH16X0376 GEN WH16X0376 Contact Us For Availability
217
BUMPER LID GEN WH01X1480 Contact Us For Availability
218
GEN WH16X0413 GEN WH16X0413 Contact Us For Availability
219
WIRE GEN WH16X0370 Contact Us For Availability
220
GEN WH08X0366 GEN WH08X0366 Contact Us For Availability
229
GEN WH12X0183 GEN WH12X0183 Contact Us For Availability
300
GEN WH43X0087 GEN WH43X0087 Contact Us For Availability
303
GEN WH01X1944 GEN WH01X1944 Contact Us For Availability
305
GEN WH01X2269 GEN WH01X2269 Contact Us For Availability
306
GEN WH08X0292 GEN WH08X0292 Contact Us For Availability
307
GEN WH08X0246 GEN WH08X0246 Contact Us For Availability
308
GEN WH01X1580 GEN WH01X1580 Contact Us For Availability
309
GEN WH02X0935 GEN WH02X0935 Contact Us For Availability
310
GEN WH02X0936 GEN WH02X0936 Contact Us For Availability
311
GEN WH01X1292 GEN WH01X1292 Contact Us For Availability
312
SCR 5/16-18 HX 7/8 S GEN WH02X0681 Contact Us For Availability
313
GEN WH08X0305 GEN WH08X0305 Contact Us For Availability
315
GEN WH42X1062 GEN WH42X1062 Contact Us For Availability
316
BASKET ASM STD CAPACITY GEN WH45X0103 Contact Us For Availability
317
TUB ASM GEN WH45X0069 Contact Us For Availability
318
NUT SHEET METAL GEN WL02X0071 Contact Us For Availability
319
SUPPORT AGITATOR GEN WH01X1986 Contact Us For Availability
320
GEN WH38X0038 GEN WH38X0038 Contact Us For Availability
333
GEN WH43X0089 GEN WH43X0089 Contact Us For Availability
357
GEN WH01X2187 GEN WH01X2187 Contact Us For Availability
376
GEN WH01X2568 GEN WH01X2568 Contact Us For Availability
381
CAP FRONT PANEL ASM AD GEN WH46X0260 Contact Us For Availability
381
CAP FRONT PANEL ASM HA GEN WH46X0261 Contact Us For Availability
381
CAP FRONT PANEL ASM WH GEN WH46X0262 Contact Us For Availability
384
FRONT PANEL ASM AD GEN WH46X0257 Contact Us For Availability
384
FRONT PANEL ASM HA GEN WH46X0258 Contact Us For Availability
384
FRONT PANEL ASM WH GEN WH46X0259 Contact Us For Availability
391
GEN WH44X1102 GEN WH44X1102 Contact Us For Availability
391
GEN WH44X1104 GEN WH44X1104 Contact Us For Availability
394
GEN WH44X1105 GEN WH44X1105 Contact Us For Availability
394
GEN WH44X1106 GEN WH44X1106 Contact Us For Availability
394
GEN WH44X1107 GEN WH44X1107 Contact Us For Availability
400
GEN WH07X0040 GEN WH07X0040 Contact Us For Availability
401
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
402
GEN WH01X1633 GEN WH01X1633 Contact Us For Availability
403
GEN WH07X0041 GEN WH07X0041 Contact Us For Availability
406
CABLE STD CAPACITY GEN WH16X0374 Contact Us For Availability
407
GEN WH01X2081 GEN WH01X2081 Contact Us For Availability
407
GEN WH01X2082 GEN WH01X2082 Contact Us For Availability
408
RETAINER SEAT GEN WH01X2060 Contact Us For Availability
409
GEN WL39X0003 GEN WL39X0003 Contact Us For Availability
413
GEN WH01X1923 GEN WH01X1923 Contact Us For Availability
414
SCR 12-14 B HX 3/4 S GEN WH02X0715 Contact Us For Availability
416
GEN WH12X0235 GEN WH12X0235 Contact Us For Availability
419
GEN WH16X0483 GEN WH16X0483 Contact Us For Availability
421
GEN WH46X0255 GEN WH46X0255 Contact Us For Availability
422
PAD FRICTION GEN WH01X2296 Contact Us For Availability
423
GEN WH01X1951 GEN WH01X1951 Contact Us For Availability
424
GEN WH01X1862 GEN WH01X1862 Contact Us For Availability
425
GEN WH01X1953 GEN WH01X1953 Contact Us For Availability
426
SCR 14-10 A HX 3/4 S GEN WH02X0882 Contact Us For Availability
429
SCR 1/4-14 B HX 3/8 S GEN WH02X0795 Contact Us For Availability
430
GEN WZ07X0040 GEN WZ07X0040 Contact Us For Availability
431
GEN WH01X0209 GEN WH01X0209 Contact Us For Availability
433
GEN WH17X0067 GEN WH17X0067 Contact Us For Availability
434
DAMPING FIN STD. CAP. GEN WH16X0364 Contact Us For Availability
435
GEN WH02X1056 GEN WH02X1056 Contact Us For Availability
436
GEN WH02X0739 GEN WH02X0739 Contact Us For Availability
437
GEN WZ02X0514 GEN WZ02X0514 Contact Us For Availability
438
GEN WH16X0405 GEN WH16X0405 Contact Us For Availability
439
NUT GEN WH02X0707 Contact Us For Availability
440
GEN WH02X0810 GEN WH02X0810 Contact Us For Availability
441
GEN WH01X2056 GEN WH01X2056 Contact Us For Availability
442
GEN WH02X0811 GEN WH02X0811 Contact Us For Availability
443
SCR 1/4-20 HX 5 S GEN WH02X0812 Contact Us For Availability
444
GEN WH16X0361 GEN WH16X0361 Contact Us For Availability
445
SCR 1/4-20 M RD 11/16 S GEN WH02X0798 Contact Us For Availability
446
WASHER FLAT GEN WE02X0279 Contact Us For Availability
447
GEN WH02X0801 GEN WH02X0801 Contact Us For Availability
448
GEN WH01X1998 GEN WH01X1998 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
464
CLIP COVER GEN WH01X2563 Contact Us For Availability
465
RING E GEN WZ13X0024 Contact Us For Availability
467
SCR 10-16 AB 1/2 S PH GEN BUY LOCAL Contact Us For Availability
468
GEN WH02X1112 GEN WH02X1112 Contact Us For Availability
476
RING E GEN WZ13X0031 Contact Us For Availability
486
GEN WH46X0256 GEN WH46X0256 Contact Us For Availability
488
GEN WH01X2564 GEN WH01X2564 Contact Us For Availability
490
GEN WH01X2565 GEN WH01X2565 Contact Us For Availability
491
NUTSTRIP GEN WH02X1109 Contact Us For Availability
492
GEN WH01X2567 GEN WH01X2567 Contact Us For Availability
494
GEN WH16X0479 GEN WH16X0479 Contact Us For Availability
495
GEN WR01X1569 GEN WR01X1569 Contact Us For Availability
497
GEN WH01X2569 GEN WH01X2569 Contact Us For Availability
500
GEN WH19X0233 GEN WH19X0233 Contact Us For Availability
500
GEN WH19X0278 GEN WH19X0278 Contact Us For Availability
548
TERMINAL GEN WB17 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
CORD POWER ASM GEN WH19X0225 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
561
GEN WH49X0263 GEN WH49X0263 Contact Us For Availability
600
GEN WH01X1621 GEN WH01X1621 Contact Us For Availability
601
GEN WH01X1722 GEN WH01X1722 Contact Us For Availability
602
GEN WH02X0941 GEN WH02X0941 Contact Us For Availability
604
GEN WH07X0045 GEN WH07X0045 Contact Us For Availability
605
GEN WH02X0190 GEN WH02X0190 Contact Us For Availability
606
PIN ROLL GEN WZ11X0050 Contact Us For Availability
607
GEN WH04X0012 GEN WH04X0012 Contact Us For Availability
613
GEN WH01X1309 GEN WH01X1309 Contact Us For Availability
614
GEN WH02X0539 GEN WH02X0539 Contact Us For Availability
615
GEN WH07X0101 GEN WH07X0101 Contact Us For Availability
618
GEN WH40X0151 GEN WH40X0151 Contact Us For Availability
619
GEN WH02X0543 GEN WH02X0543 Contact Us For Availability
620
GEN WH01X1169 GEN WH01X1169 Contact Us For Availability
621
NUT & WASHER GEN WZ08X0006 Contact Us For Availability
629
GEN WH17X0086 GEN WH17X0086 Contact Us For Availability
630
GEN WH20X0064 GEN WH20X0064 Contact Us For Availability
638
GEN WH05X0174 GEN WH05X0174 Contact Us For Availability
639
GEN WH02X0581 GEN WH02X0581 Contact Us For Availability
650
GEN WH23X0042 GEN WH23X0042 Contact Us For Availability
651
GEN WH02X0888 GEN WH02X0888 Contact Us For Availability
653
SCR 10-16 AB HXW 1 3/8 S GEN WH02X0938 Contact Us For Availability
654
GEN WH16X0432 GEN WH16X0432 Contact Us For Availability
801
SCR 8-18 B HXW 15/32 S GEN WD02X5063 Contact Us For Availability
802
GEN WH41X0301 GEN WH41X0301 Contact Us For Availability
803
GEN WH41X0132 GEN WH41X0132 Contact Us For Availability
804
GEN WH41X0170 GEN WH41X0170 Contact Us For Availability
806
GEN WH01X1400 GEN WH01X1400 Contact Us For Availability
809
GEN WH08X0253 GEN WH08X0253 Contact Us For Availability
810
GEN WH01X1807 GEN WH01X1807 Contact Us For Availability
811
GEN WH41X0128 GEN WH41X0128 Contact Us For Availability
812
GEN WH01X1584 GEN WH01X1584 Contact Us For Availability
813
GEN WH01X1980 GEN WH01X1980 Contact Us For Availability
816
GEN WH16X0372 GEN WH16X0372 Contact Us For Availability
818
NOZZLE-DRAIN GEN WH41X0035 Contact Us For Availability
827
GEN WH01X1966 GEN WH01X1966 Contact Us For Availability
828
GEN WH41X0296 GEN WH41X0296 Contact Us For Availability
829
HOSE RECIRC INLET GEN WH41X0140 Contact Us For Availability
832
GEN WH41X0298 GEN WH41X0298 Contact Us For Availability
833
GEN WH41X0302 GEN WH41X0302 Contact Us For Availability
840
SCREEN & WASHER GEN WH01X2267 Contact Us For Availability
854
GEN WH41X0304 GEN WH41X0304 Contact Us For Availability
855
GEN WH41X0303 GEN WH41X0303 Contact Us For Availability
857
GEN WH41X0194 GEN WH41X0194 Contact Us For Availability
858
GEN WH41X0091 GEN WH41X0091 Contact Us For Availability
859
GEN WH41X0130 GEN WH41X0130 Contact Us For Availability
950
GEN WH01X1732 GEN WH01X1732 Contact Us For Availability
× ![]()
