Model Whirlpool WW2780B ELECTRIC WALL OVEN – Common Parts & Diagrams

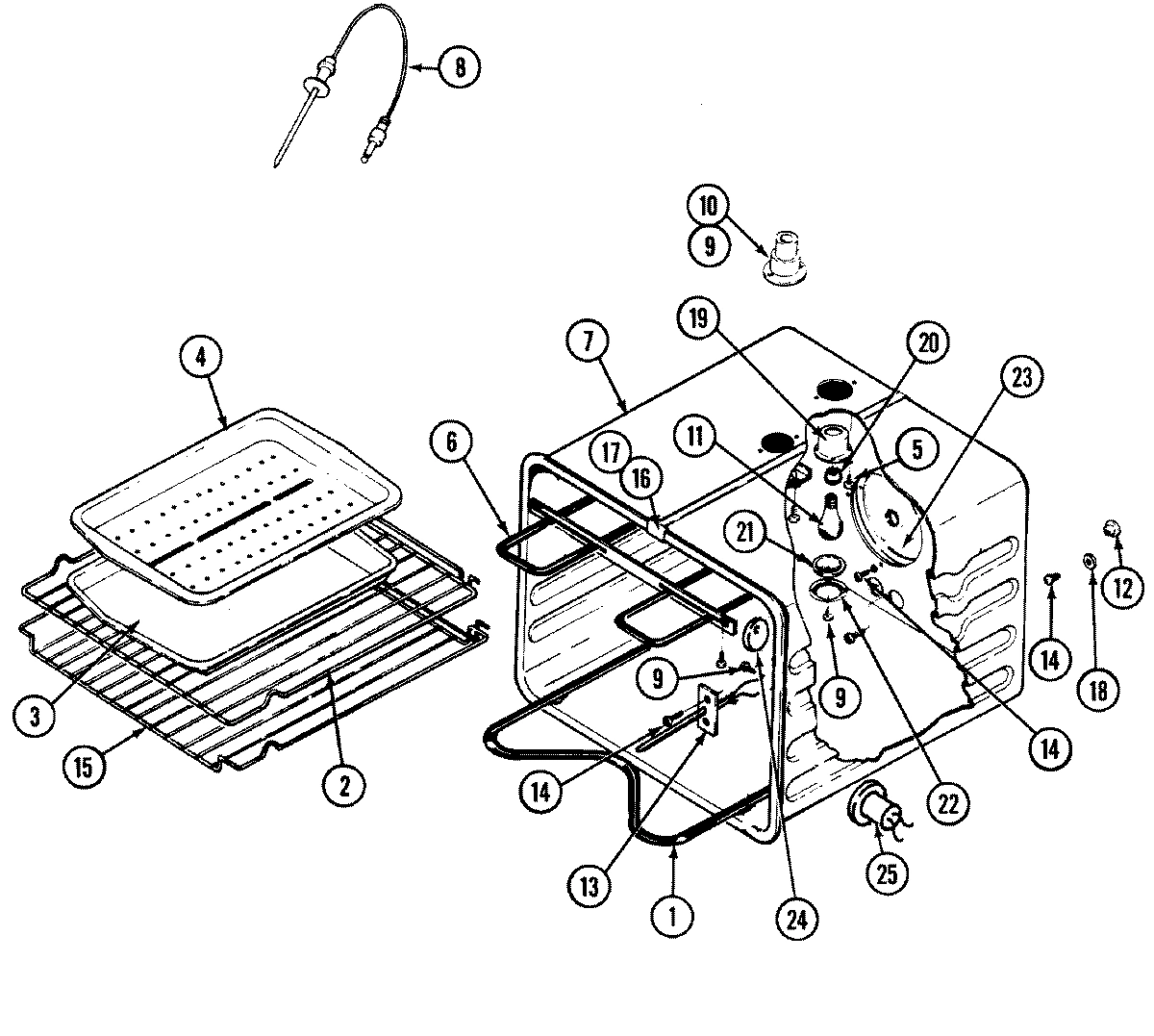

07 - OVEN
02 - BLOWER MOTOR (COOLING)
01 - BLOWER MOTOR (CONVECTION)

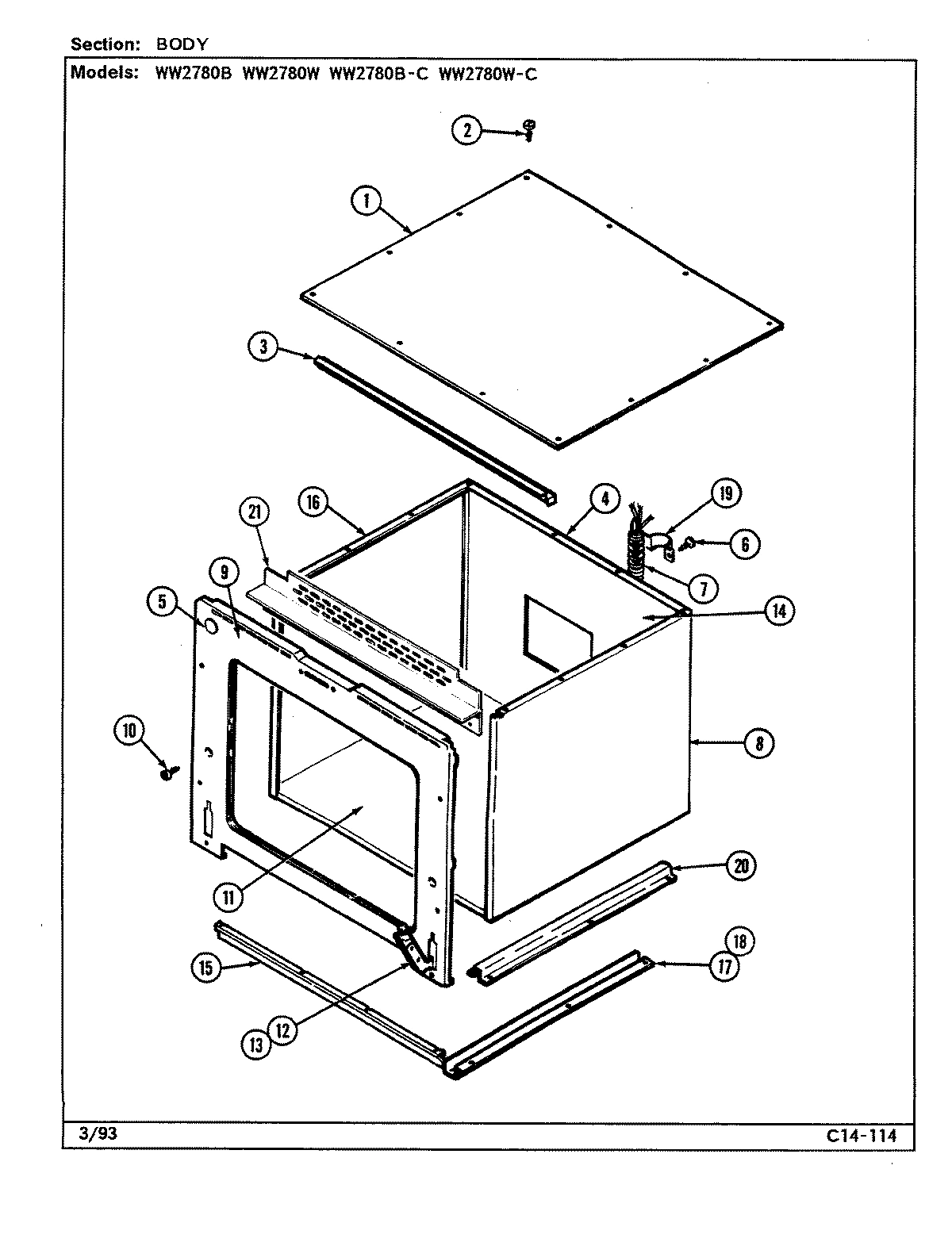

03 - BODY

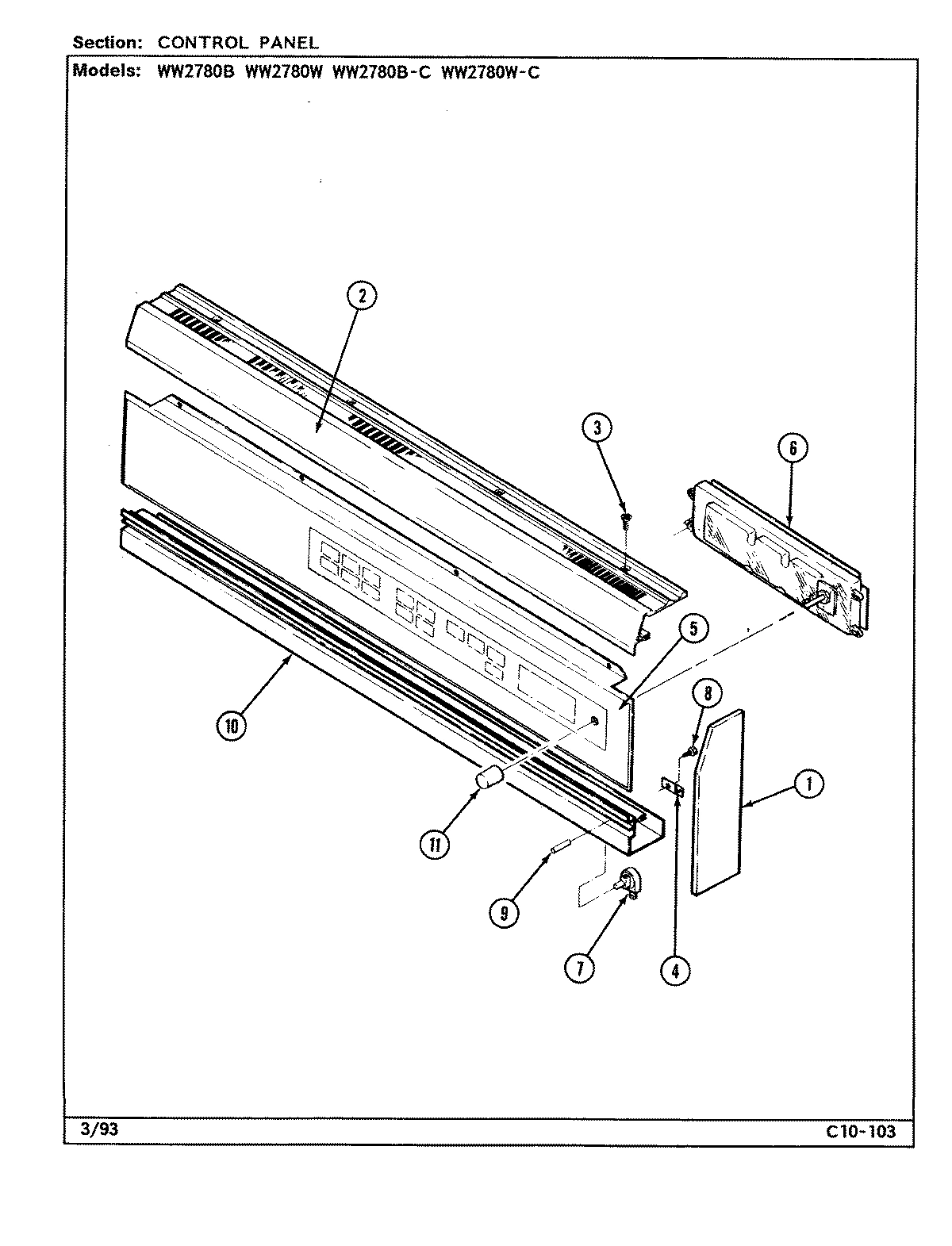

04 - CONTROL PANEL

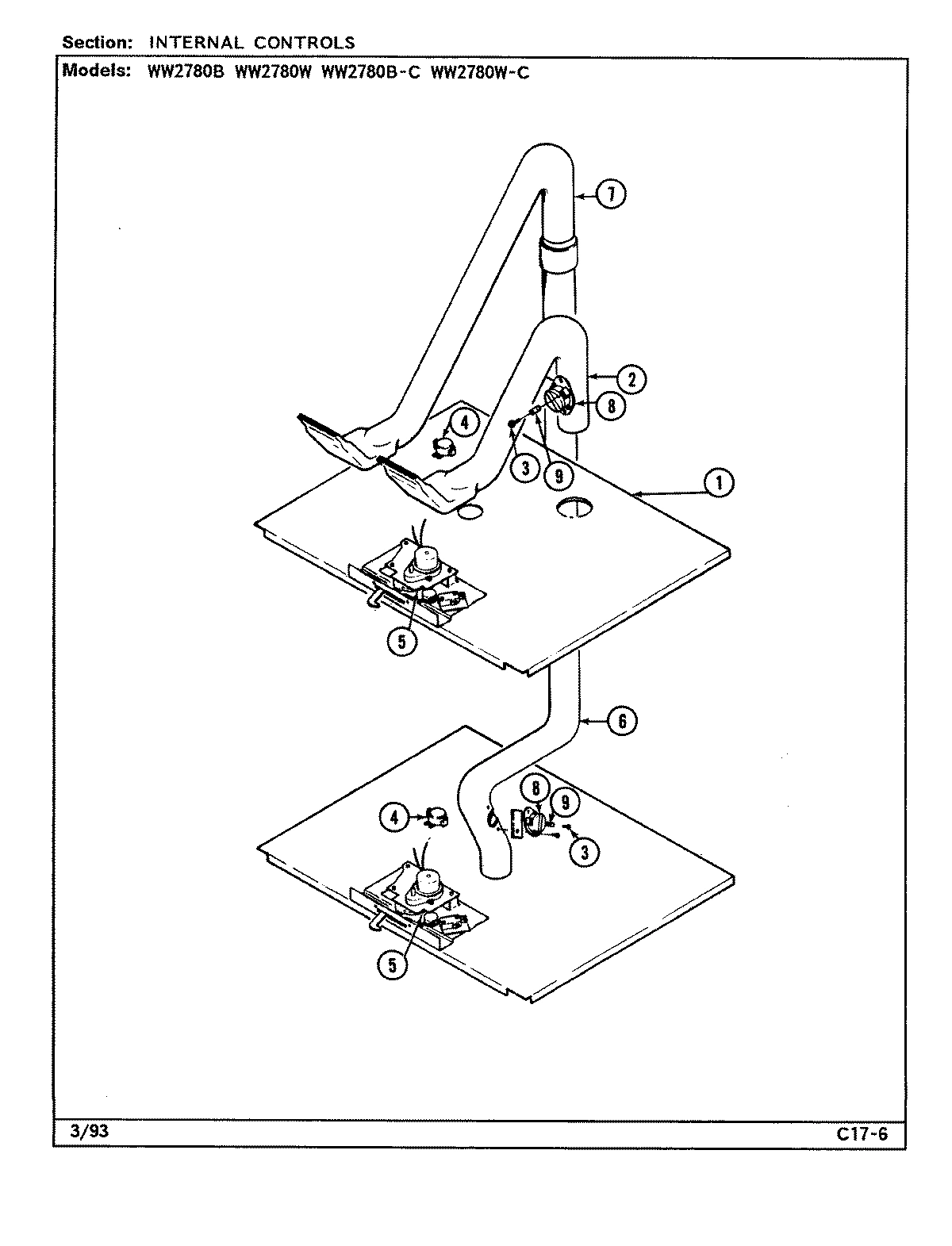

06 - INTERNAL CONTROLS

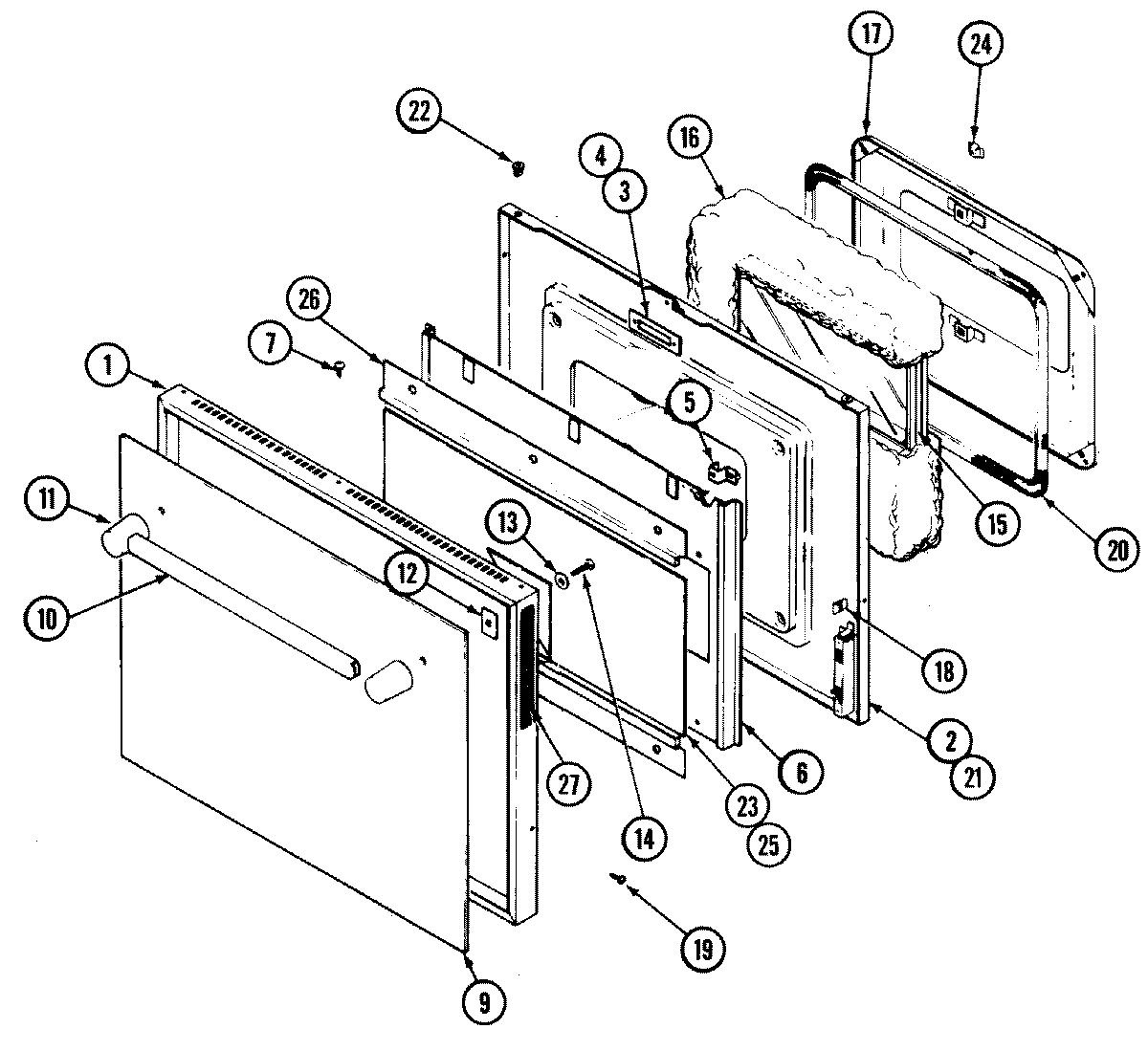

05 - DOOR
Common parts from model Whirlpool WW2780B ELECTRIC WALL OVEN
1
SHROUD, FAN WPL 04100560 Contact Us For Availability
1
PLATE, CONVECTION FRONT WPL 71001378 Contact Us For Availability
1
TOP, UNIT (OUTER) WPL 04100567 Contact Us For Availability
1
CAP, END (LT/BLK) WPL Y704691 Contact Us For Availability
1
CAP, END (RT/BLK) WPL Y704692 Contact Us For Availability
1
PANEL, INNER TOP WPL 04100559 Contact Us For Availability
1
FRAME, DOOR (BLK) WPL 04100544 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
EXTRUSION, TOP WPL 04100786 Contact Us For Availability
2
TUBE, VENT (UPR OVEN) WPL 04100539 Contact Us For Availability
2
LINER, DOOR WPL Y04100543 Contact Us For Availability
3
MOUNT, MOTOR WPL Y704732 Contact Us For Availability
3
SUPPORT, TOP WPL 703095 Contact Us For Availability
3
SCREW, TRIM WPL 704714 Contact Us For Availability
3
PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability
4
WHEEL, CONVECTION WPL 701711 Contact Us For Availability
4
BACK, OUTER WPL 04100665 Contact Us For Availability
4
BACK, OUTER WPL 04100666 Contact Us For Availability
4
ANGLE, ATTACHMENT WPL 701609 Contact Us For Availability
4
LIMIT, THERMOSTAT WPL 703259 Contact Us For Availability
5
SWITCH, DOOR WPL 701666 Contact Us For Availability
5
HARNESS, WIRE (J2) WPL 704704 Contact Us For Availability
5
HARNESS, WIRE LOWER WPL 704709 Contact Us For Availability
5
PANEL, CONTROL (BLK) WPL Y04100040 Contact Us For Availability
5
LATCH, AUTOMATIC (UPPER) WPL Y704689 Contact Us For Availability
5
LATCH, AUTOMATIC (LOWER) WPL Y704915 Contact Us For Availability
5
BRACKET, STAND-OFF WPL 701652 Contact Us For Availability
6
PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability
6
MOTOR, FAN WPL Y701721 Contact Us For Availability
6
TIMER, ELECTRONICS WPL Y04100264 Contact Us For Availability
6
TUBE, VENT WPL 04100660 Contact Us For Availability
6
BAFFLE, DOOR WPL 71001291 Contact Us For Availability
7
OVEN WELD ASSEMBLY WPL 04100572 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71001490 Contact Us For Availability
7
COVER, MOTOR FRONT WPL 701713 Contact Us For Availability
7
WIRE CABLE ASSY. WPL 04100674 Contact Us For Availability
7
BRACKET, SWITCH WPL 704730 Contact Us For Availability
7
SWITCH, PUSH (BLK) WPL 704797 Contact Us For Availability
7
TUBE, VENT (LWR OVEN) WPL 04100661 Contact Us For Availability
7
HARNESS, WIRE (LWR) WPL 704802 Contact Us For Availability
7
WIRE, GRAY WPL 704974 Contact Us For Availability
7
WIRE, GREEN WPL 705060 Contact Us For Availability
7
ADAPTOR WPL Y04100259 Contact Us For Availability
7
WIRE, BROWN W/RESISTOR WPL Y04100594 Contact Us For Availability
7
HARNESS, WIRE SENSOR WPL Y704801 Contact Us For Availability
8
STANDOFF WPL 703007 Contact Us For Availability
8
BLADE, FAN WPL 702944 Contact Us For Availability
8
PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability
8
PANEL, SIDE (RH) WPL 04100558 Contact Us For Availability
8
THERMOSTAT WPL 701687 Contact Us For Availability
8
BUMPER, BUTTON WPL Y704223 Contact Us For Availability
9
RELAY WPL Y04100261 Contact Us For Availability
9
SUPPORT, CIRCUIT BOARD WPL Y704706 Contact Us For Availability
9
MOTOR, CONVECT WPL Y704972 Contact Us For Availability
9
BRACKET WPL 04100566 Contact Us For Availability
9
FRT, CLOSURE (UPPER) WPL 04100662 Contact Us For Availability
9
FRT, CLOSURE (LOWER) WPL 04100663 Contact Us For Availability
9
CLOSURE, FRONT (UPR) WPL 71001488 Contact Us For Availability
9
CLOSURE, FRONT (LWR) WPL 71001489 Contact Us For Availability
9
EXTENSION, SWITCH (BLK) WPL 704798 Contact Us For Availability
9
TAPE, FOAM WPL 704491 Contact Us For Availability
9
GLASS (LOWER) WPL 704712 Contact Us For Availability
10
TUBE, VENT WPL 701738 Contact Us For Availability
10
WIRE, ORANGE WPL 704973 Contact Us For Availability
10
HARNESS, WIRE WPL 705031 Contact Us For Availability
10
RELAY, TRANSFORMER ASSY. WPL Y04100260 Contact Us For Availability
10
FOAM, URETHANE WPL Y715957 Contact Us For Availability
10
COVER, MOTOR WPL 701716 Contact Us For Availability
10
EXTRUSION, BOTTOM WPL 704688 Contact Us For Availability
10
HANDLE WPL Y704225 Contact Us For Availability
11
PANEL, BOTTOM WPL 04100562 Contact Us For Availability
11
END CAP (BLK) WPL Y704224 Contact Us For Availability
12
NUT, TEE WPL 715294 Contact Us For Availability
12
WASHER, LOCK WPL 715910 Contact Us For Availability
12
BACKPLATE, HINGE WPL 04100577 Contact Us For Availability
12
SCREW WPL 71001395 Contact Us For Availability
12
HINGE, OVEN DOOR WPL Y04100337 Contact Us For Availability
12
WASHER WPL Y703449 Contact Us For Availability
12
BUSHING WPL Y704489 Contact Us For Availability
13
WASHER WPL 701736 Contact Us For Availability
13
GUSSET----NA WPL 704805 Contact Us For Availability
14
BACK, INNER WPL 04100561 Contact Us For Availability
14
INSULATION WRAP WPL 04100565 Contact Us For Availability
14
SCREW WPL 704963 Contact Us For Availability
15
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
15
TRIM, OVEN (LWR-BLK) WPL 704642 Contact Us For Availability
15
TRIM, OVEN (LT/BLK) WPL 71001454 Contact Us For Availability
15
TRIM, OVEN (RT/BLK) WPL 71001455 Contact Us For Availability
15
TRIM, OVEN (LT/BLK) WPL 71001464 Contact Us For Availability
15
TRIM, OVEN (RT/BLK) WPL 71001465 Contact Us For Availability
16
CLIP, OVEN WPL Y702618 Contact Us For Availability
16
PANEL, SIDE (LH) WPL 04100557 Contact Us For Availability
16
INSULATION, DOOR WPL 71001289 Contact Us For Availability
17
RAIL, BOTTOM WPL 700596 Contact Us For Availability
17
PLUG WPL 04100600 Contact Us For Availability
18
CLIP, J WPL Y700556 Contact Us For Availability
18
CLIP WPL 704487 Contact Us For Availability
19
RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability
19
CLAMP, CONDUIT WPL 701692 Contact Us For Availability
19
ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability
19
SCREW (BLACK) WPL Y704488 Contact Us For Availability
20
RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability
20
RAIL, SUPPORT WPL 04100563 Contact Us For Availability
21
LENS, LIGHT WPL Y704143 Contact Us For Availability
21
EXTRUSION (CTR-BLK) WPL 04100671 Contact Us For Availability
21
RIVET, ACCORDION WPL 701641 Contact Us For Availability
22
RETAINER, LENS WPL Y704144 Contact Us For Availability
22
NUT, PUSH IN WPL 701643 Contact Us For Availability
23
PLATE, OUTER COVER WPL 04100597 Contact Us For Availability
23
BUTTON, PLUG WPL 702929 Contact Us For Availability
23
PLATE, NON-CONVECT WPL 705343 Contact Us For Availability
23
GLASS, BAFFLE WPL Y704820 Contact Us For Availability
24
COVER, MEAT PROBE WPL 712088 Contact Us For Availability
24
CLIP WPL 705404 Contact Us For Availability
25
PLATE, PROBE RECEPTACLE WPL Y04100596 Contact Us For Availability
25
JACK, PROBE WPL Y700883 Contact Us For Availability
25
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
25
SCREW WPL 715870 Contact Us For Availability
26
RETAINER, GLASS WPL 71001290 Contact Us For Availability
27
INSERT, FRAME (BLK)----NA WPL Y04100580 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
HARNESS, WIRE (LWR) WPL 704799 Contact Us For Availability
NI
HARNESS, WIRE (UPR) WPL 704800 Contact Us For Availability
NI
HARNESS, PROBE WPL 704822 Contact Us For Availability
NI
MANUAL, USE & CARE WPL OU2780UA Contact Us For Availability
NI
LIMIT, FAN WPL Y702750 Contact Us For Availability
× ![]()
