Model Whirlpool WUR50X24HZ0 REFRIGERATOR, UNDERCOUNTER – Common Parts & Diagrams
02 - CABINET PARTS
03 - DOOR PARTS

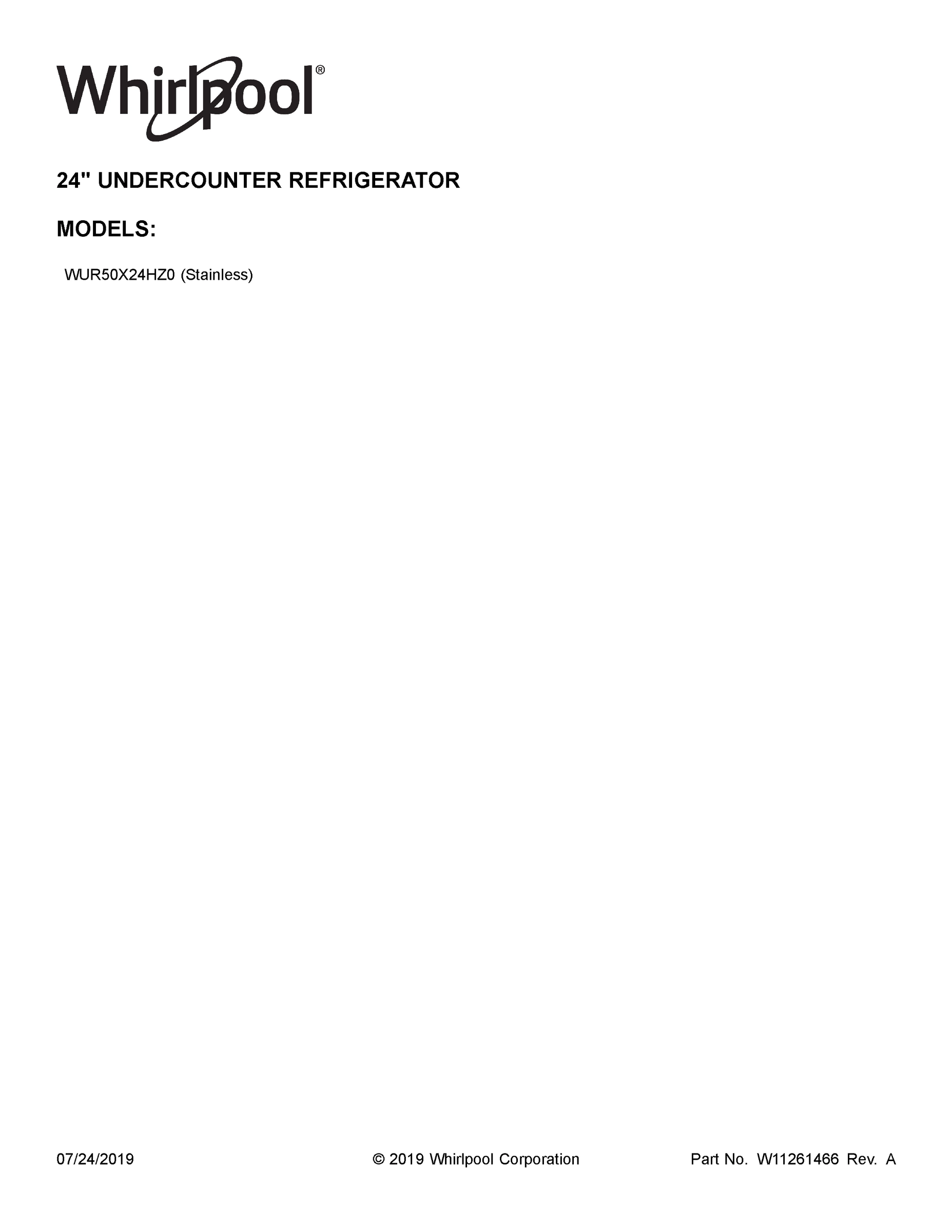

01 - COVER SHEET

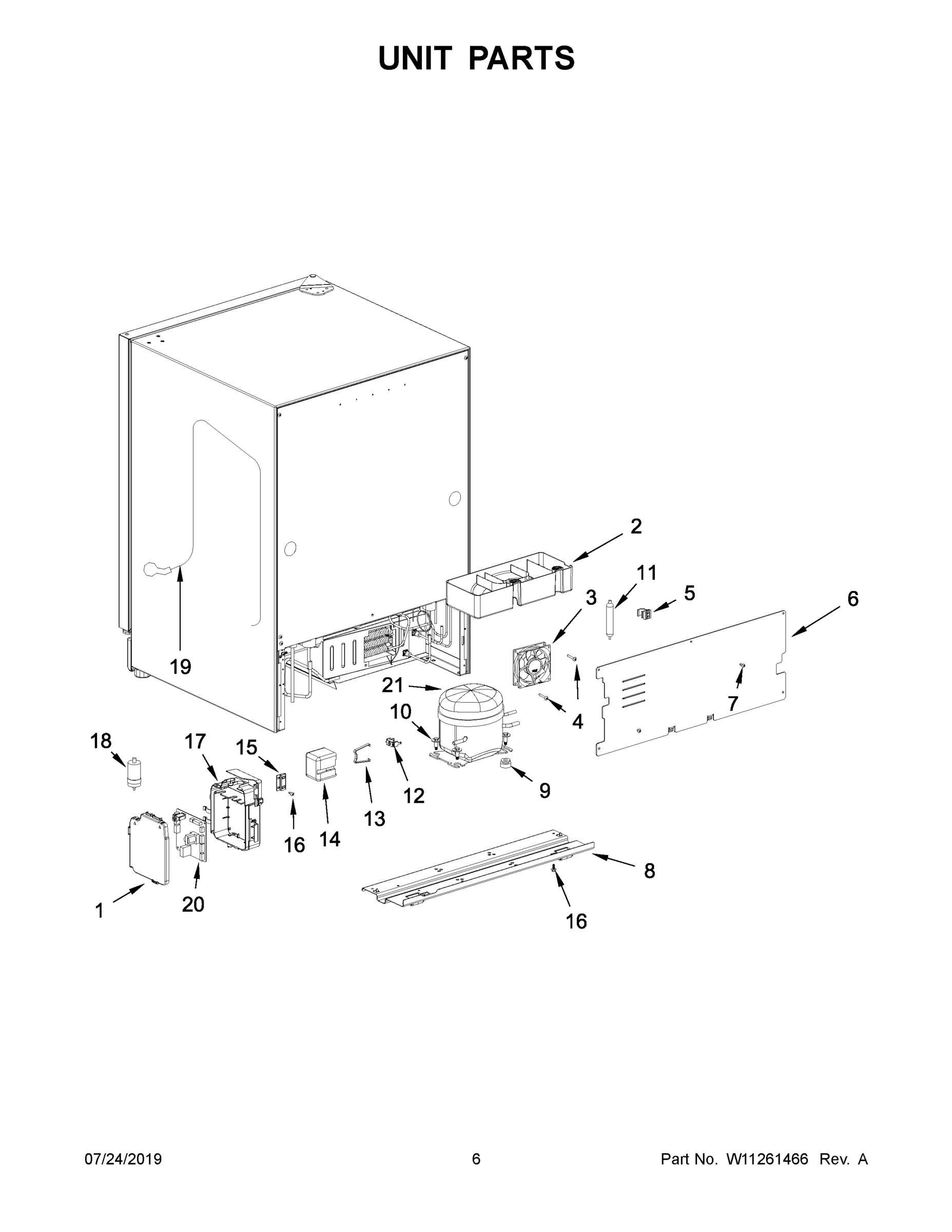

04 - UNIT PARTS
Common parts from model Whirlpool WUR50X24HZ0 REFRIGERATOR, UNDERCOUNTER
1
SCREW WPL W11371345 Contact Us For Availability
2
PAN, DRAIN WPL W11264698 Contact Us For Availability
4
SCREW WPL W11371341 Contact Us For Availability
5
CLAMP WPL W11265569 Contact Us For Availability
6
ASSEMBLY, CONTROL WPL W11263883 Contact Us For Availability
6
DOOR BIN, MIDDLE WPL W10319176 Contact Us For Availability
6
COVER, REAR WPL W11264703 Contact Us For Availability
8
CABINET BASE PLATE WPL W11264700 Contact Us For Availability
10
DOOR GASKET WPL W11264679 Contact Us For Availability
11
DOOR ASSEMBLY WPL W11264643 Contact Us For Availability
12
WRAP, DOOR (STAINLESS) WPL W11264683 Contact Us For Availability
13
CLIP, RELAY COVER WPL W10778971 Contact Us For Availability
14
COVER, RELAY WPL W10778967 Contact Us For Availability
15
SUPPORT, SIDE WPL W11313093 Contact Us For Availability
15
CLAMP, CORD WPL W10270517 Contact Us For Availability
16
SEAL, CONDENSER WPL W11265577 Contact Us For Availability
17
SCREW WPL W11371101 Contact Us For Availability
17
PCB BOX WPL W11313209 Contact Us For Availability
18
SCREW WPL W11371103 Contact Us For Availability
19
BRACE WPL W11265575 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.5 OZ. (R-134A) WPL NP Contact Us For Availability
× ![]()
