Model Electrolux WU180TH1 DISHWASHER – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - CAM

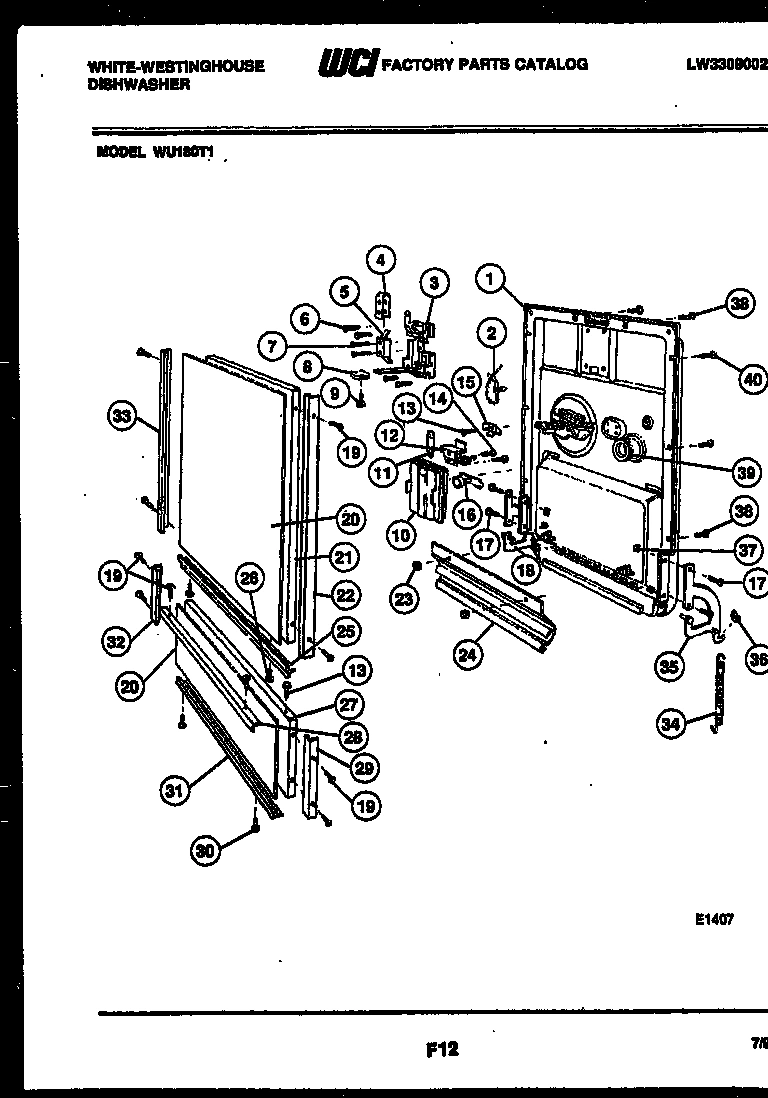

04 - DOOR PARTS

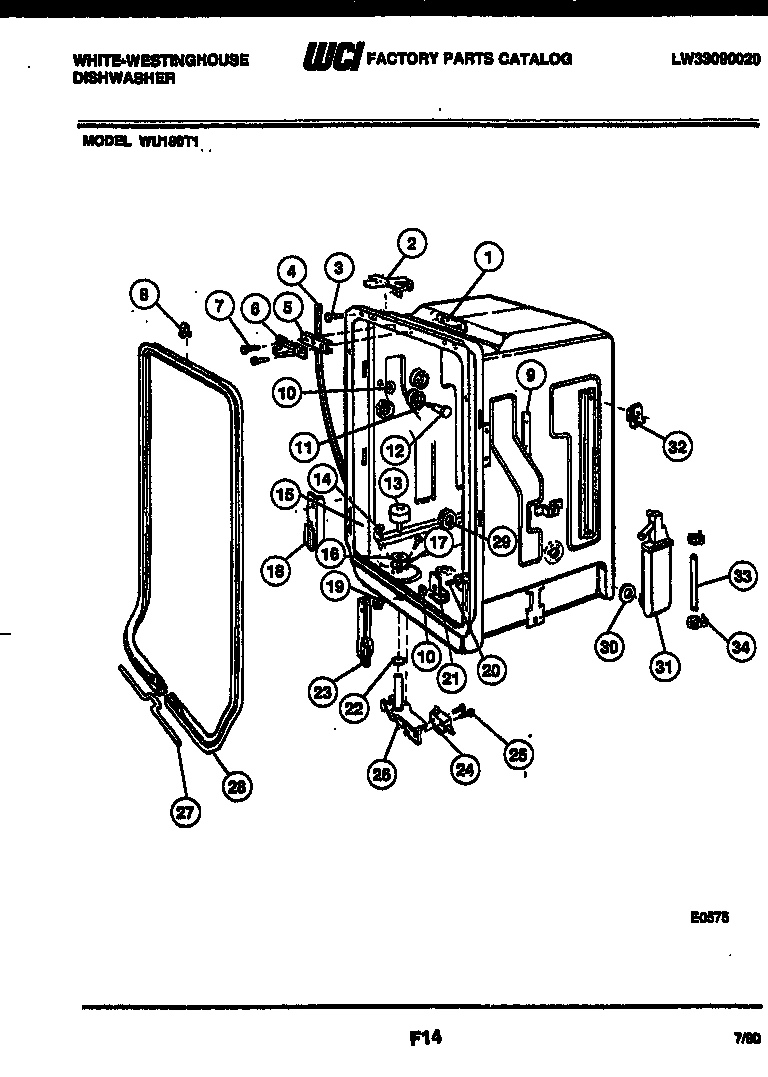

05 - TUB AND FRAME PARTS

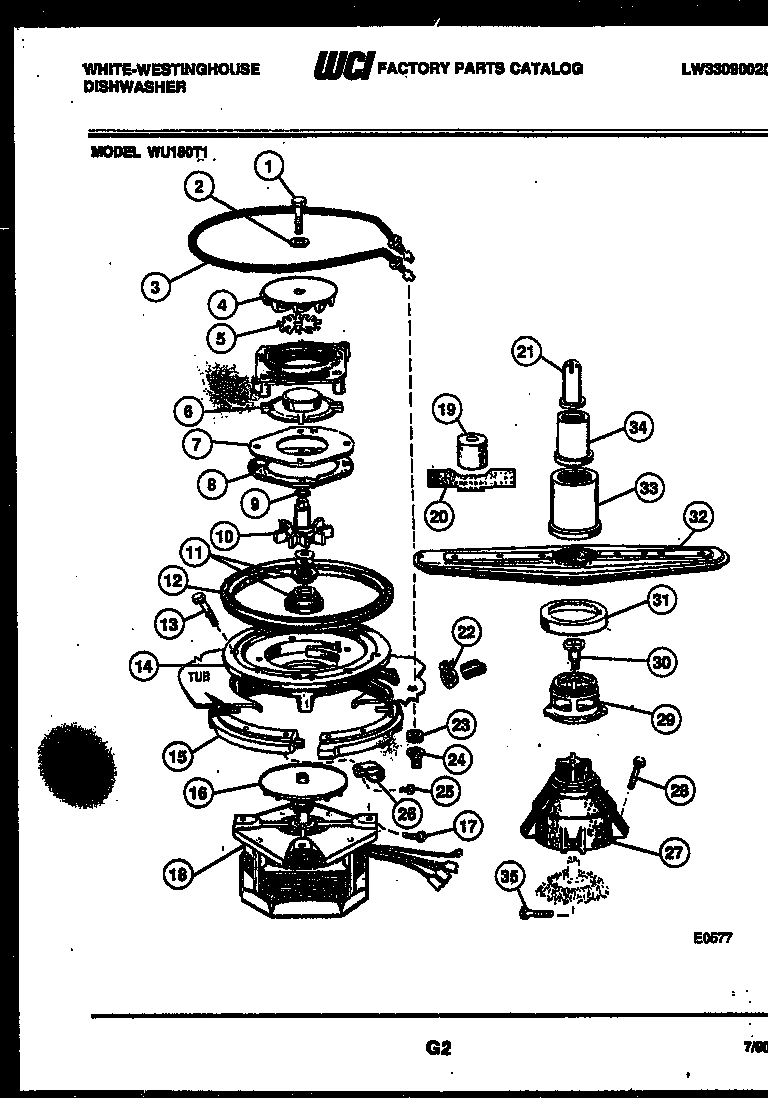

06 - MOTOR PUMP PARTS

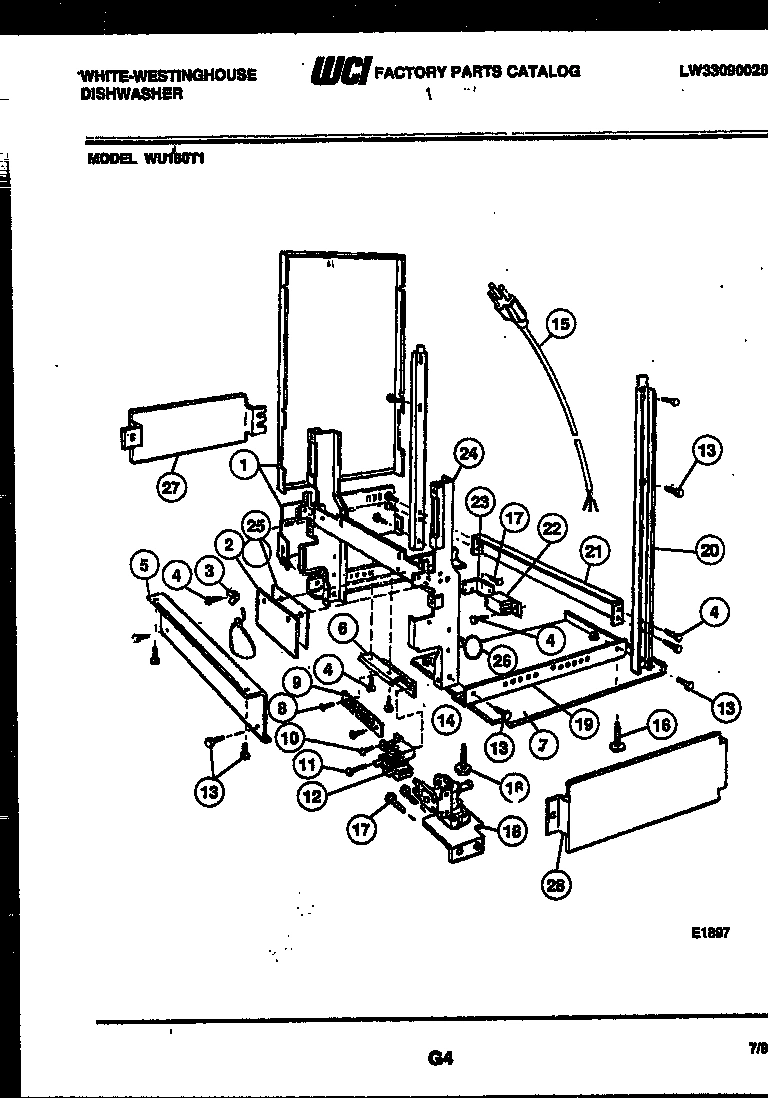

07 - POWER DRY AND MOTOR PARTS

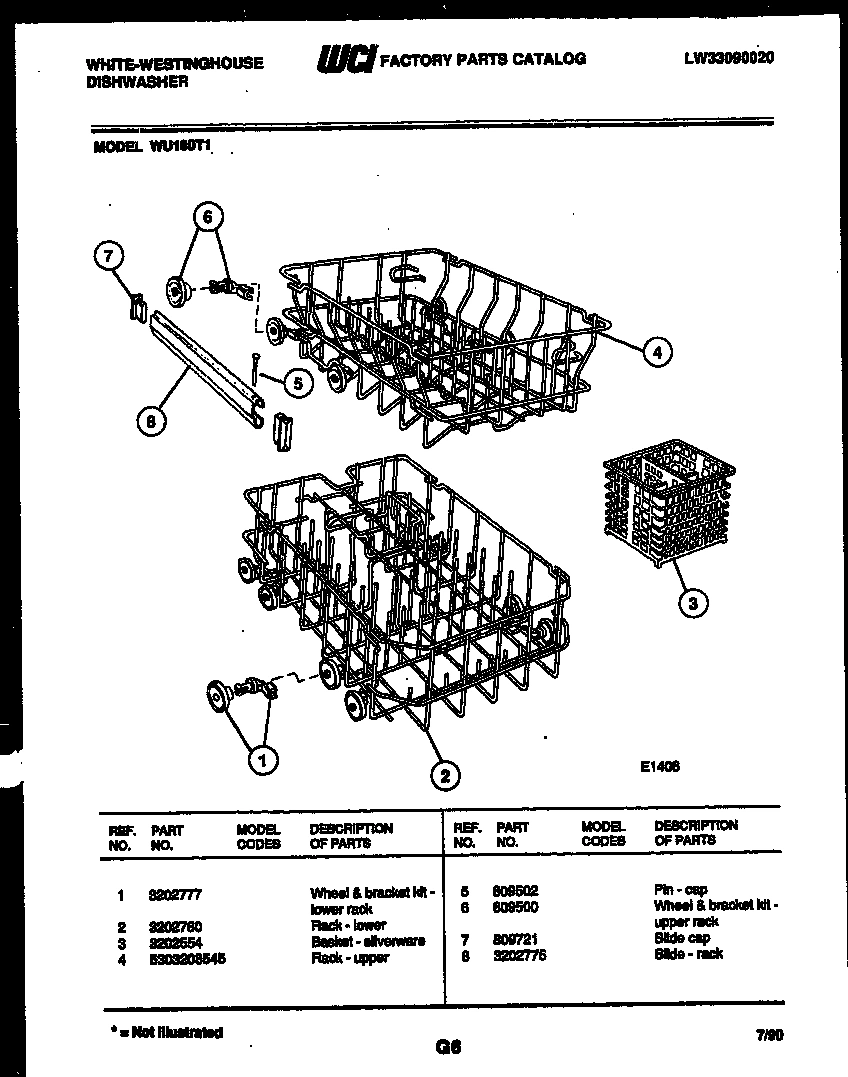

08 - RACKS AND TRAYS
Common parts from model Electrolux WU180TH1 DISHWASHER
*33066
WOOD DOOR KIT (OPTIONAL) WCI 5300808935 Contact Us For Availability
1
WCI 809175 WCI 809175 Contact Us For Availability
1
WCI 808827 WCI 808827 Contact Us For Availability
1
WCI 3202663 WCI 3202663 Contact Us For Availability
1
WCI 808868 WCI 808868 Contact Us For Availability
1
WCI 807353 WCI 807353 Contact Us For Availability
1
WCI 3018191 WCI 3018191 Contact Us For Availability
2
END CAP-LH BLACK WCI 3018022 Contact Us For Availability
2
WCI 806566 WCI 806566 Contact Us For Availability
2
WCI 809075 WCI 809075 Contact Us For Availability
2
WCI 5300809677 WCI 5300809677 Contact Us For Availability
2
WCI 3018102 WCI 3018102 Contact Us For Availability
2
WCI 809144 WCI 809144 Contact Us For Availability
2
WCI 3202760 WCI 3202760 Contact Us For Availability
3
WCI 5303208538 WCI 5303208538 Contact Us For Availability
3
WCI 805227 WCI 805227 Contact Us For Availability
3
LATCH WCI 807016 Contact Us For Availability
3
TERMINAL GROUNDING WCI 3018047 Contact Us For Availability
3
HEATER (INCLUDES 23 & 24) WCI 806864 Contact Us For Availability
3
BASKET-SILVERWARE WCI 3202554 Contact Us For Availability
4
VENT - GRILL WCI 3018026 Contact Us For Availability
4
WCI 3018034 WCI 3018034 Contact Us For Availability
4
WCI 3018041 WCI 3018041 Contact Us For Availability
4
WCI 3018070 WCI 3018070 Contact Us For Availability
4
WCI 5303018103 WCI 5303018103 Contact Us For Availability
4
WCI 5303208545 WCI 5303208545 Contact Us For Availability
5
WCI 3018025 WCI 3018025 Contact Us For Availability
5
WCI 3202537 WCI 3202537 Contact Us For Availability
5
WCI 5303018043 WCI 5303018043 Contact Us For Availability
5
WCI 3018071 WCI 3018071 Contact Us For Availability
5
WCI 3018104 WCI 3018104 Contact Us For Availability
5
WCI 3018137 WCI 3018137 Contact Us For Availability
5
WCI 809502 WCI 809502 Contact Us For Availability
6
WCI 5300809827 WCI 5300809827 Contact Us For Availability
6
WCI 3202541 WCI 3202541 Contact Us For Availability
6
WCI 809029 WCI 809029 Contact Us For Availability
6
WCI 3014689 WCI 3014689 Contact Us For Availability
6
WCI 5303014671 WCI 5303014671 Contact Us For Availability
6
WCI 3018138 WCI 3018138 Contact Us For Availability
6
WHEEL & BRACKET KIT-UPPER RACK WCI 809500 Contact Us For Availability
7
WCI 5300809828 WCI 5300809828 Contact Us For Availability
7
WCI 3202542 WCI 3202542 Contact Us For Availability
7
WCI 3018042 WCI 3018042 Contact Us For Availability
7
WCI 5303018105 WCI 5303018105 Contact Us For Availability
7
WCI 5300808436 WCI 5300808436 Contact Us For Availability
7
SLIDE CAP WCI 809721 Contact Us For Availability
8
END CAP-RH BLACK WCI 3018029 Contact Us For Availability
8
WCI 3202543 WCI 3202543 Contact Us For Availability
8
WCI 808712 WCI 808712 Contact Us For Availability
8
WCI 3018065 WCI 3018065 Contact Us For Availability
8
WCI 3014661 WCI 3014661 Contact Us For Availability
8
WCI 3202775 WCI 3202775 Contact Us For Availability
9
SHIELD-VENT SLOT WCI 3018039 Contact Us For Availability
9
WCI 3202538 WCI 3202538 Contact Us For Availability
9
WCI 3018073 WCI 3018073 Contact Us For Availability
9
WCI 3014675 WCI 3014675 Contact Us For Availability
9
WCI 3018139 WCI 3018139 Contact Us For Availability
10
TERMINAL BOARD WCI 3018038 Contact Us For Availability
10
WCI 3014680 WCI 3014680 Contact Us For Availability
10
WCI 3018074 WCI 3018074 Contact Us For Availability
10
PUMP SEAL KIT (INCLUDED 2, 4, 5, 9, 11 & 20) WCI 5303018107 Contact Us For Availability
10
SCREW WCI 3018140 Contact Us For Availability
11
HOUSING TERMINAL WCI 3018037 Contact Us For Availability
11
WCI 5303018172 WCI 5303018172 Contact Us For Availability
11
WCI 807180 WCI 807180 Contact Us For Availability
11
WCI 803903 WCI 803903 Contact Us For Availability
11
SCREW WCI 3018141 Contact Us For Availability
12
HOUSING - TIMER TERMINAL WCI 3018036 Contact Us For Availability
12
WCI 5303018173 WCI 5303018173 Contact Us For Availability
12
WCI 5300809048 WCI 5300809048 Contact Us For Availability
12
WCI 3018108 WCI 3018108 Contact Us For Availability
12
WCI 5303014653 WCI 5303014653 Contact Us For Availability
13
WCI 809662 WCI 809662 Contact Us For Availability
13
WCI 3014636 WCI 3014636 Contact Us For Availability
13
WCI 3014699 WCI 3014699 Contact Us For Availability
13
WCI 3018142 WCI 3018142 Contact Us For Availability
14
WCI 5300809059 WCI 5300809059 Contact Us For Availability
14
WCI 3018143 WCI 3018143 Contact Us For Availability
15
WCI 3018035 WCI 3018035 Contact Us For Availability
15
TUB & GASKET ASSY WCI 3202858 Contact Us For Availability
15
CLAMP RING (2) WCI 5303018064 Contact Us For Availability
15
POWER CORD KIT (USE ONLY WHEN LOCAL CODES PER WCI 3018144 Contact Us For Availability
16
WCI 3018030 WCI 3018030 Contact Us For Availability
16
PLUG-DISPENSER FILL WCI 3018176 Contact Us For Availability
16
WCI 3018077 WCI 3018077 Contact Us For Availability
16
WATERSHIELD WCI 3018110 Contact Us For Availability
16
WCI 3018145 WCI 3018145 Contact Us For Availability
17
SCREW WCI 5300803311 Contact Us For Availability
17
WCI 3018078 WCI 3018078 Contact Us For Availability
17
WCI 809022 WCI 809022 Contact Us For Availability
17
WCI 3018146 WCI 3018146 Contact Us For Availability
18
WCI 807281 WCI 807281 Contact Us For Availability
18
WCI 3018048 WCI 3018048 Contact Us For Availability
18
WCI 3018079 WCI 3018079 Contact Us For Availability
18
MOTOR (INCLUDED 1, 9, 16 & 20) WCI 5300809100 Contact Us For Availability
18
WCI 5300809460 WCI 5300809460 Contact Us For Availability
19
WCI 3018169 WCI 3018169 Contact Us For Availability
19
WCI 809752 WCI 809752 Contact Us For Availability
19
WCI 3018080 WCI 3018080 Contact Us For Availability
19
SEAL INSTALLATION TOOL (REQUIRED WHEN INSTALL WCI 5303018114 Contact Us For Availability
19
WCI 5300807564 WCI 5300807564 Contact Us For Availability
20
WCI 3018170 WCI 3018170 Contact Us For Availability
20
INSERT-DOOR & ACCESS PANEL-WHEAT WCI 3018178 Contact Us For Availability
20
WCI 3018081 WCI 3018081 Contact Us For Availability
20
WCI 3018115 WCI 3018115 Contact Us For Availability
20
WCI 3018149 WCI 3018149 Contact Us For Availability
21
WCI 3018082 WCI 3018082 Contact Us For Availability
21
WCI 3018116 WCI 3018116 Contact Us For Availability
21
REAR BRACE WCI 3018150 Contact Us For Availability
22
WCI 3018044 WCI 3018044 Contact Us For Availability
22
WCI 3018083 WCI 3018083 Contact Us For Availability
22
CLAMP-HOSE WCI 3018117 Contact Us For Availability
22
WCI 3018151 WCI 3018151 Contact Us For Availability
23
WCI 5300809695 WCI 5300809695 Contact Us For Availability
23
WCI 3018084 WCI 3018084 Contact Us For Availability
23
WCI 5303351028 WCI 5303351028 Contact Us For Availability
23
WCI 3018152 WCI 3018152 Contact Us For Availability
24
WCI 3202856 WCI 3202856 Contact Us For Availability
24
WCI 5303018085 WCI 5303018085 Contact Us For Availability
24
WCI 3018153 WCI 3018153 Contact Us For Availability
25
WCI 3202661 WCI 3202661 Contact Us For Availability
25
WCI 3018086 WCI 3018086 Contact Us For Availability
25
WIRE BARRIER WCI 5303208543 Contact Us For Availability
26
FLOAT SWITCH KIT (INCLUDES 16, 17, 22, 24 & 2 WCI 3018087 Contact Us For Availability
26
WCI 809711 WCI 809711 Contact Us For Availability
27
JUNCTION ROD WCI 3202776 Contact Us For Availability
27
HOUSING - IMPELLER KIT (INCLUDES 6 & 7) WCI 3018120 Contact Us For Availability
27
WCI 5300808438 WCI 5300808438 Contact Us For Availability
28
WCI 3018186 WCI 3018186 Contact Us For Availability
28
TUB GASKET & WIRE ASSY. (INCLUDES 8 & 27) WCI 3202756 Contact Us For Availability
28
WCI 3018154 WCI 3018154 Contact Us For Availability
28
WCI 5300808437 WCI 5300808437 Contact Us For Availability
29
TRIM - ACCESS - RH WCI 3018185 Contact Us For Availability
29
WCI 3018090 WCI 3018090 Contact Us For Availability
29
WCI 5303018121 WCI 5303018121 Contact Us For Availability
30
GASKET - WATER INLET WCI 3018091 Contact Us For Availability
30
WCI 3018122 WCI 3018122 Contact Us For Availability
31
WCI 3018183 WCI 3018183 Contact Us For Availability
31
WATER INLET ASSY. WCI 5303018092 Contact Us For Availability
31
WCI 3018123 WCI 3018123 Contact Us For Availability
32
WCI 3018182 WCI 3018182 Contact Us For Availability
32
WCI 3018093 WCI 3018093 Contact Us For Availability
32
WCI 3018124 WCI 3018124 Contact Us For Availability
33
WCI 3018061 WCI 3018061 Contact Us For Availability
33
TUBING - WATER INLET (INCLUDED 34) WCI 3018094 Contact Us For Availability
33
WCI 3018125 WCI 3018125 Contact Us For Availability
34
WCI 3018126 WCI 3018126 Contact Us For Availability
35
WCI 3018054 WCI 3018054 Contact Us For Availability
35
WCI 3018127 WCI 3018127 Contact Us For Availability
36
PAD-SPRING WCI 5300805884 Contact Us For Availability
38
WCI 3202534 WCI 3202534 Contact Us For Availability
39
WCI 3018174 WCI 3018174 Contact Us For Availability
40
WCI 3018058 WCI 3018058 Contact Us For Availability
× ![]()
