Model Whirlpool WU1800XX0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

Leveler (Thinner) WPL 350941 Contact Us For Availability

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability

Instructions, Installation WPL LIT965139 Contact Us For Availability

Parts List WPL LIT965401 Contact Us For Availability

Guide, Use & Care WPL LIT965408 Contact Us For Availability

1

Lower Rack Assembly (Includes Item 7) WPL 965366 Contact Us For Availability

1

Screw, 8 x 7/16 WPL 965333 Contact Us For Availability

1

Attach Clip (2) WPL 965210 Contact Us For Availability

1

Power Cord (optional) WPL 965337 Contact Us For Availability

1

Spiral Pin WPL 965312 Contact Us For Availability

1

Latch Assembly WPL 965404 Contact Us For Availability

2

Silverware Basket WPL 965290 Contact Us For Availability

2

End Cap, L.H. WPL 965144 Contact Us For Availability

2

Clamp, Wiring WPL 965248 Contact Us For Availability

2

Cam WPL 965199 Contact Us For Availability

2

Screw, 8 x 5/8 WPL 4340832 Contact Us For Availability

3

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $31.90

3

Upper Rack Assembly (Includes Item 4) WPL 965392 Contact Us For Availability

3

Drain Hose WPL 965406 Contact Us For Availability

3

Spring, Cam WPL 965201 Contact Us For Availability

3

Switch Cover WPL 965165 Contact Us For Availability

4

Wheel Assembly, Upper Rack (4) WPL 965394 Contact Us For Availability

4

Vent Grille WPL 965146 Contact Us For Availability

4

Shim WPL 4340875 Contact Us For Availability

4

Screw, 8 x 3/8 WPL 965301 Contact Us For Availability

4

Spring, Cam Compression WPL 965202 Contact Us For Availability

4

Screw, 6-32 x 1 WPL 965166 Contact Us For Availability

5

Spacer Plate WPL 965385 Contact Us For Availability

5

End Cap, Slide (4) WPL 965368 Contact Us For Availability

5

Clip WPL 965147 Contact Us For Availability

5

Strike WPL 965213 Contact Us For Availability

5

Toeplate WPL 965249 Contact Us For Availability

5

Switch WPL 965167 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

6

Macerator WPL 965390 Contact Us For Availability

6

Slide, Rack (2) WPL 965393 Contact Us For Availability

6

Timer Knob WPL 4342579 Contact Us For Availability

6

Screw, 10-24 x 3/4 WPL 965214 Contact Us For Availability

6

Terminal Bracket WPL 965334 Contact Us For Availability

6

Bi-Metal Assembly WPL 4340844 Contact Us For Availability

7

Pump Plate WPL 4340510 Contact Us For Availability

7

Wheel Assembly, Lower Rack (4) WPL 965365 Contact Us For Availability

7

Gasket Clip Kit (Includes Item 20) WPL 965215 Contact Us For Availability

7

Clamp, Wire WPL 965161 Contact Us For Availability

7

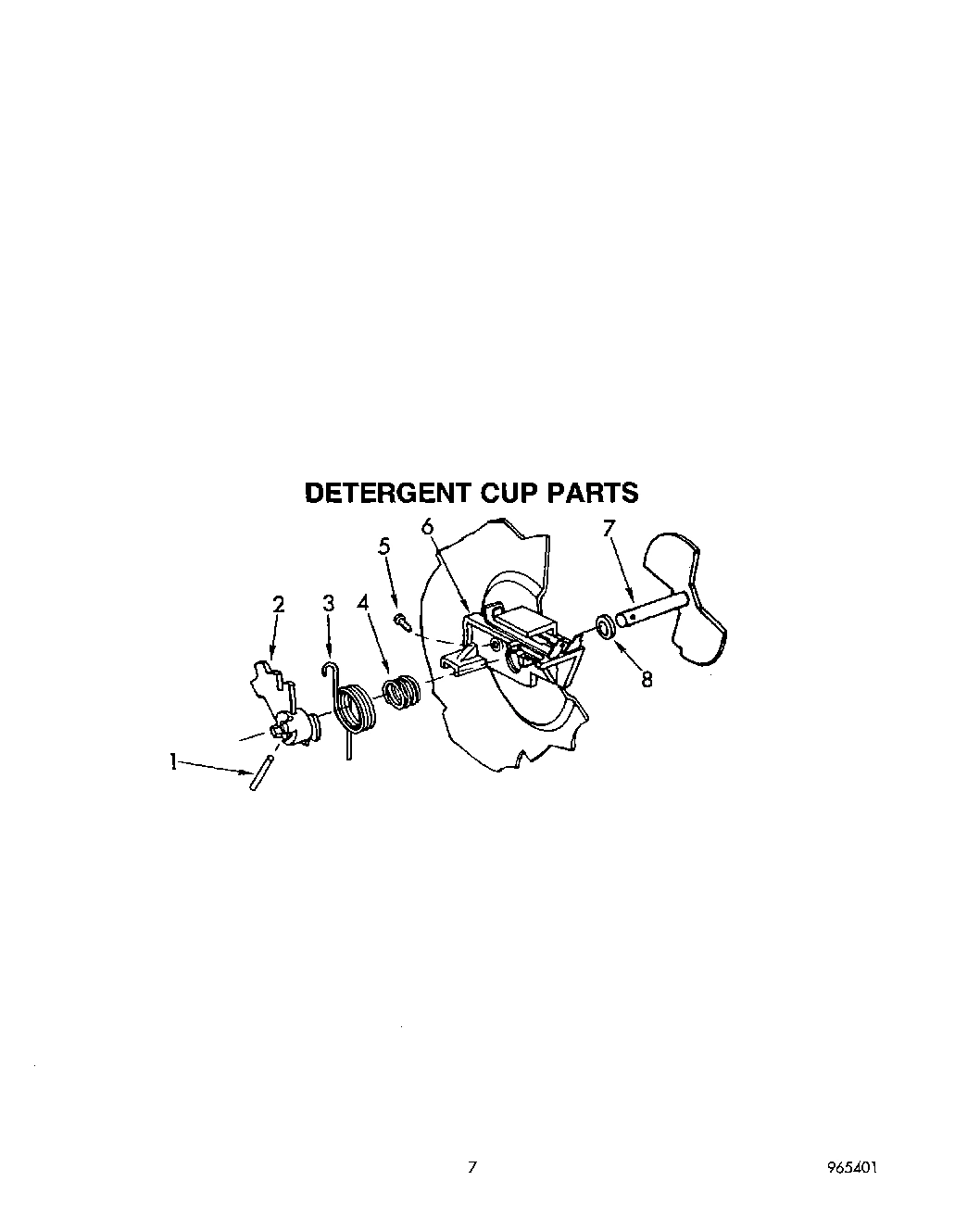

Dispenser Lid WPL 4340831 Contact Us For Availability

7

Latch Knob WPL 965169 Contact Us For Availability

8

Pump Gasket WPL 4340487 Contact Us For Availability

8

End Cap, R.H. WPL 965150 Contact Us For Availability

8

Sealing Washer WPL 965315 Contact Us For Availability

8

``O`` Ring WPL 965207 Contact Us For Availability

8

Screw, 8-32 x 5/16 WPL 4340864 Contact Us For Availability

9

O-Ring WPL 4340254 Contact Us For Availability

9

Terminal Board WPL 965151 Contact Us For Availability

9

Terminal Block WPL 965251 Contact Us For Availability

9

Screw, 8 x 7/16 WPL 4340841 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Pump Seal Kit WPL 4342618 Contact Us For Availability

Timer Terminal Housing WPL 4343141 Contact Us For Availability

Roller WPL 965391 Contact Us For Availability

Terminal, Grounding WPL 965300 Contact Us For Availability

Water Seal WPL 4340106 Contact Us For Availability

Housing, Terminal WPL 965382 Contact Us For Availability

Shoulder Screw (Includes Item 8) WPL 965219 Contact Us For Availability

Screw, 8-32 x 1-1/4 WPL 965253 Contact Us For Availability

Counterbalance Arm, L.H. WPL 965172 Contact Us For Availability

12

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

12

Gasket WPL 4340818 Contact Us For Availability

12

Motor Relay WPL 965254 Contact Us For Availability

Screw, 10 x 1 WPL 4340398 Contact Us For Availability

Float WPL 965375 Contact Us For Availability

Screw, 1/4-20 x 1/2 WPL 965255 Contact Us For Availability

Baffle Seal WPL 965358 Contact Us For Availability

WP487939 Whirlpool Refrigerator Nut In Stock WPL WP487939 $2.51

Housing, Pump WPL 965386 Contact Us For Availability

Timer WPL 965374 Contact Us For Availability

Screw, 10 x 1 WPL 965222 Contact Us For Availability

Door, Inner WPL 965357 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

Clamp Ring (2) WPL 4340490 Contact Us For Availability

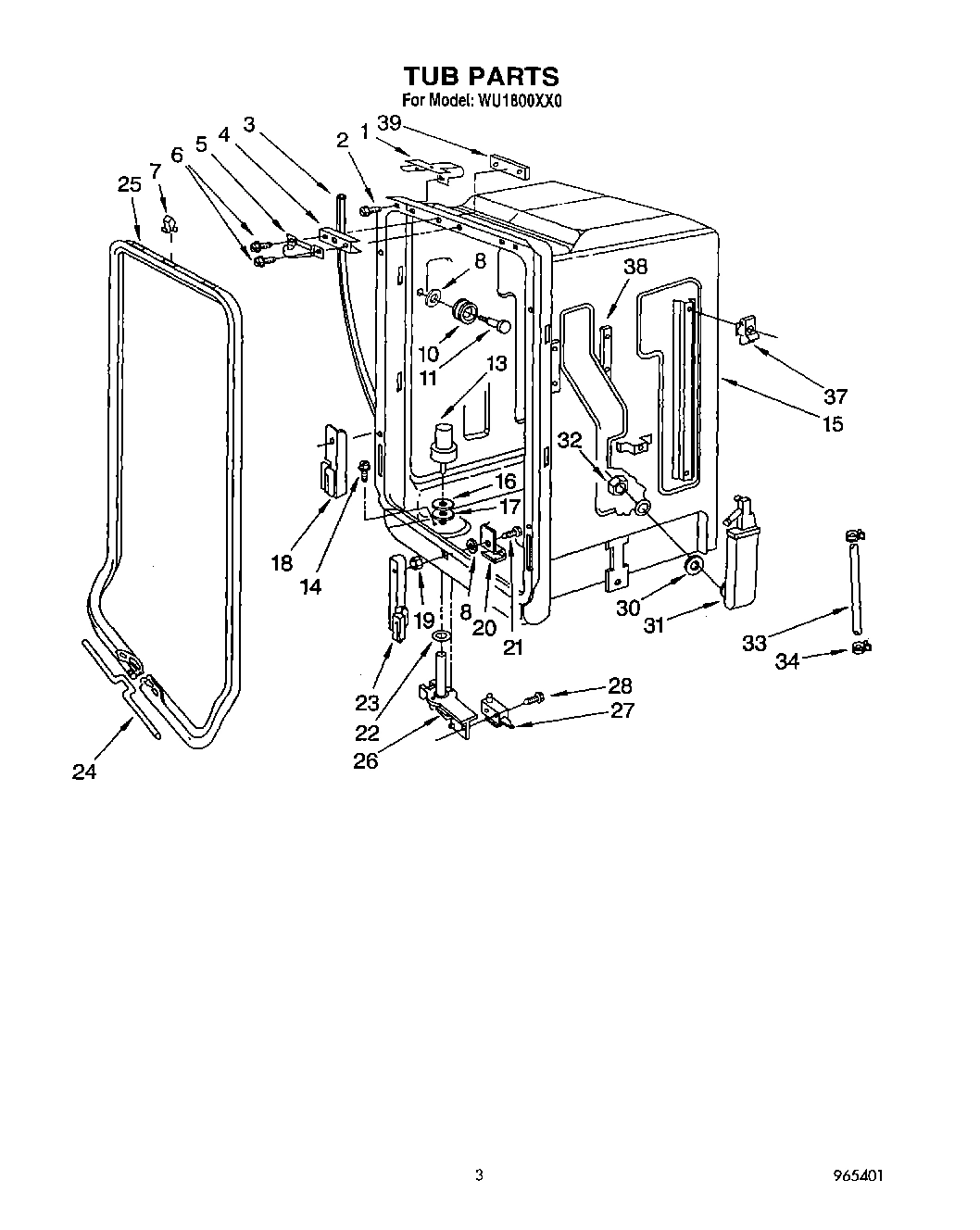

Tub & Gasket Assembly (Includes Item 25) WPL 965362 Contact Us For Availability

Retainer, Insulation WPL 965370 Contact Us For Availability

16

Watershield Assembly WPL 4340785 Contact Us For Availability

16

Splash Pan WPL 965158 Contact Us For Availability

16

Float Tube Plate WPL 965224 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Shield, Vent Slot WPL 965159 Contact Us For Availability

Float Tube Gasket WPL 965225 Contact Us For Availability

Counterbalance Arm, R.H. WPL 965178 Contact Us For Availability

Motor Assembly WPL 4340848 Contact Us For Availability

Clamp, Wire WPL 965160 Contact Us For Availability

Arm Guide, L.H. WPL 965226 Contact Us For Availability

Wire Tie WPL 4342590 Contact Us For Availability

Door Spring (2) WPL 965179 Contact Us For Availability

WP486255 Whirlpool Air Conditioner Nut Backorder WPL WP486255 $2.38

Seal Installation Tool WPL 4340107 Contact Us For Availability

Clamp, Wire WPL 4340643 Contact Us For Availability

Screw, 10-24 x 5/8 WPL 965180 Contact Us For Availability

20

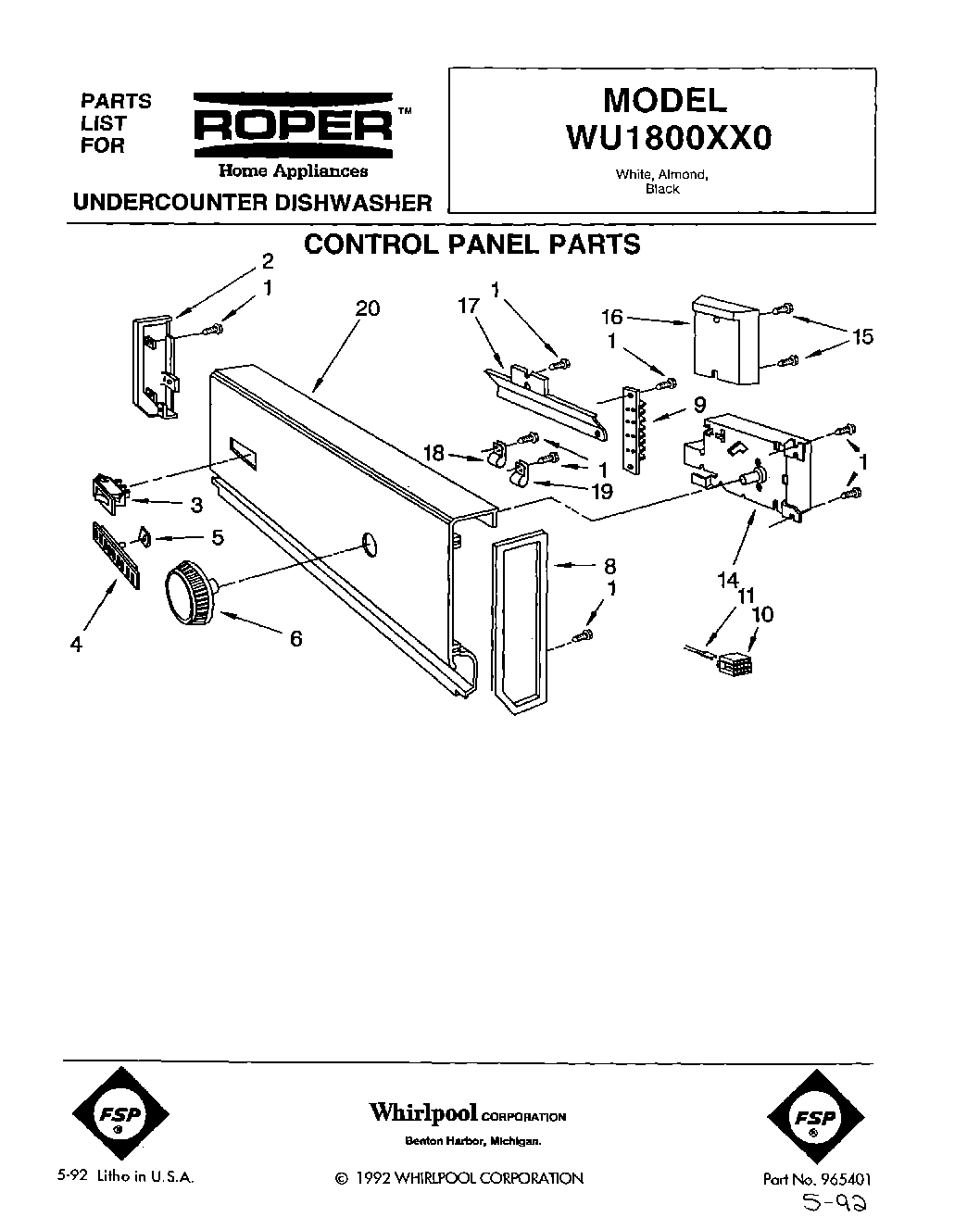

Console Panel WPL 965403 Contact Us For Availability

20

Gasket Clip WPL 965228 Contact Us For Availability

20

Spring Pad (2) WPL 965181 Contact Us For Availability

Hose Clamp WPL 4340499 Contact Us For Availability

Screw, 8-32 x 1/2 WPL 965229 Contact Us For Availability

Valve, Inlet WPL 965335 Contact Us For Availability

Clip WPL 965405 Contact Us For Availability

22

``O`` Ring WPL 965230 Contact Us For Availability

22

Levelers (4) WPL 965355 Contact Us For Availability

23

Heater Grommet WPL 4340295 Contact Us For Availability

23

Arm Guide, R.H. WPL 965231 Contact Us For Availability

24

Heater Nut, 1/2 WPL 4340296 Contact Us For Availability

24

Junction Rod WPL 965407 Contact Us For Availability

24

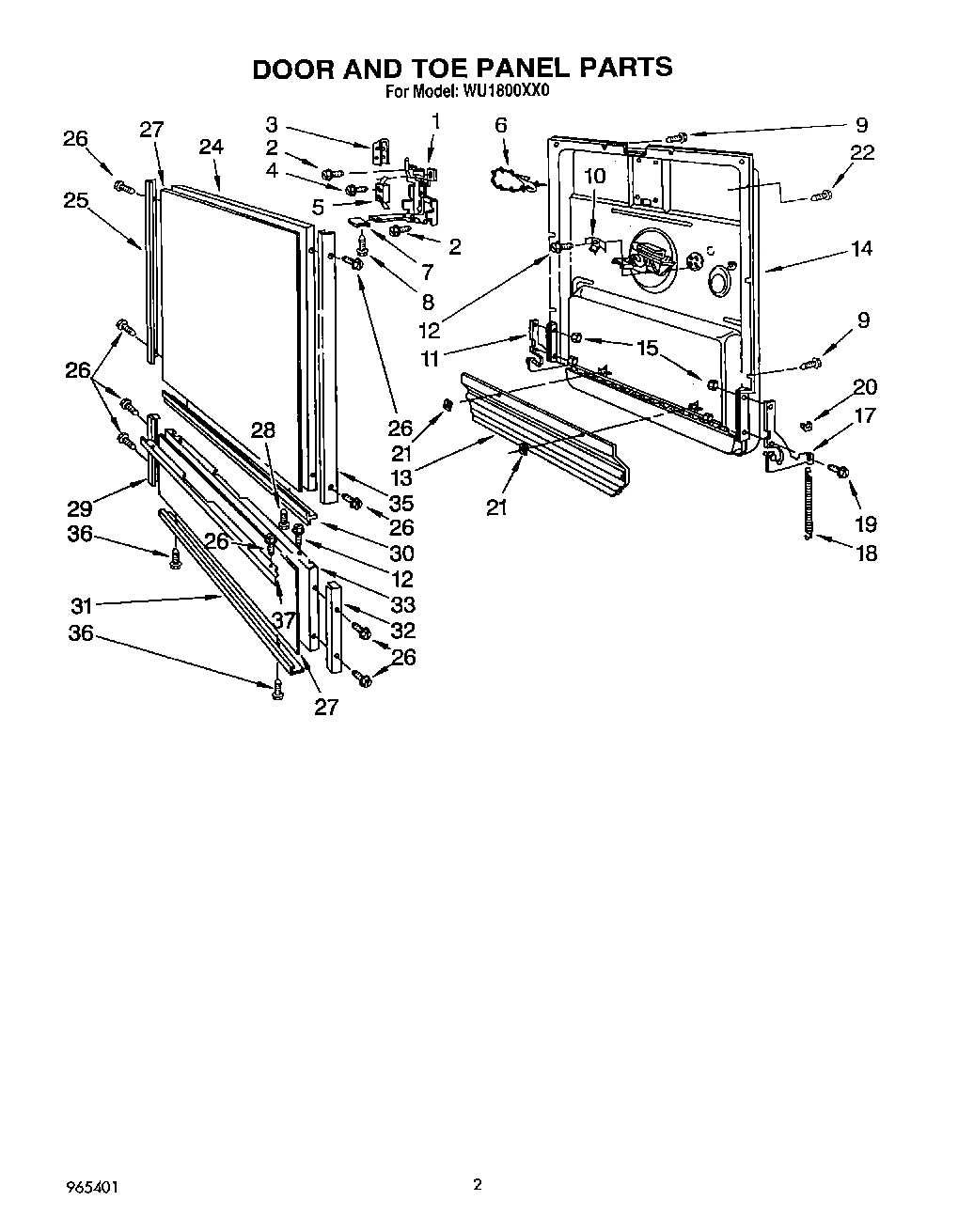

Door Panel (White) WPL 965184 Contact Us For Availability

25

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

25

Gasket, Tub (Includes Items 7 & 24) WPL 965364 Contact Us For Availability

25

Trim, Door Side L.H. WPL 965326 Contact Us For Availability

26

Float Assembly (Includes Items 16, 17, 22, 27 WPL 965378 Contact Us For Availability

26

Angle, Base (2) WPL 965356 Contact Us For Availability

26

Screw, 6 x 1/4 WPL 965186 Contact Us For Availability

Screw, 10 x 1 WPL 4340828 Contact Us For Availability

Switch WPL 965376 Contact Us For Availability

Shield, Wire WPL 4340862 Contact Us For Availability

Door Panel Insert (Almond & Black) WPL 965329 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Impeller Housing WPL 965387 Contact Us For Availability

Screw, 4-24 x 5/8 WPL 965377 Contact Us For Availability

Channel, Side (2) WPL 965269 Contact Us For Availability

29

Brace, Rear WPL 965270 Contact Us For Availability

29

Trim, Access Panel L.H. WPL 965189 Contact Us For Availability

Screw, 10 x 1-3/4 WPL 965388 Contact Us For Availability

Gasket, Inlet WPL 965342 Contact Us For Availability

Cover, Junction Box WPL 965271 Contact Us For Availability

Door Trim, Bottom WPL 965359 Contact Us For Availability

Screw, 8 x 3/4 WPL 4340857 Contact Us For Availability

Water Inlet WPL 965343 Contact Us For Availability

Bracket, Junction Box WPL 965272 Contact Us For Availability

Access Trim, Bottom WPL 965191 Contact Us For Availability

Shield Bearing WPL 4340801 Contact Us For Availability

Nut WPL 965341 Contact Us For Availability

Hinge Weld Assembly WPL 965336 Contact Us For Availability

Trim, Access Panel R.H. WPL 965192 Contact Us For Availability

33

Tubing, Inlet (Includes Item 34) WPL 965241 Contact Us For Availability

33

Access Panel (White) WPL 4340601 Contact Us For Availability

Bearing WPL 4340838 Contact Us For Availability

Clamp (2) WPL 965318 Contact Us For Availability

Side Panel Kit (White) WPL 965303 Contact Us For Availability

Side Panel Kit (Coffee) WPL 965304 Contact Us For Availability

Side Panel Kit (Avocado) WPL 965305 Contact Us For Availability

Side Panel Kit (Wheat) WPL 965306 Contact Us For Availability

Side Panel Kit (Almond) WPL 965307 Contact Us For Availability

35

Spray Arm Bolt WPL 4340825 Contact Us For Availability

35

Trim, Door Side R.H. WPL 965325 Contact Us For Availability

36

Sprayarm Assembly WPL 4340756 Contact Us For Availability

36

Screw, 8 x 3/8 WPL 965338 Contact Us For Availability

37

Tower Base WPL 4340565 Contact Us For Availability

37

Cage Nut WPL 965245 Contact Us For Availability

37

Trim, Access Panel Top WPL 965339 Contact Us For Availability

38

Tower Section WPL 4340566 Contact Us For Availability

38

Tapping Plate (4) WPL 965246 Contact Us For Availability

39

Tower Tip WPL 965389 Contact Us For Availability

39

Latch plate WPL 965313 Contact Us For Availability
