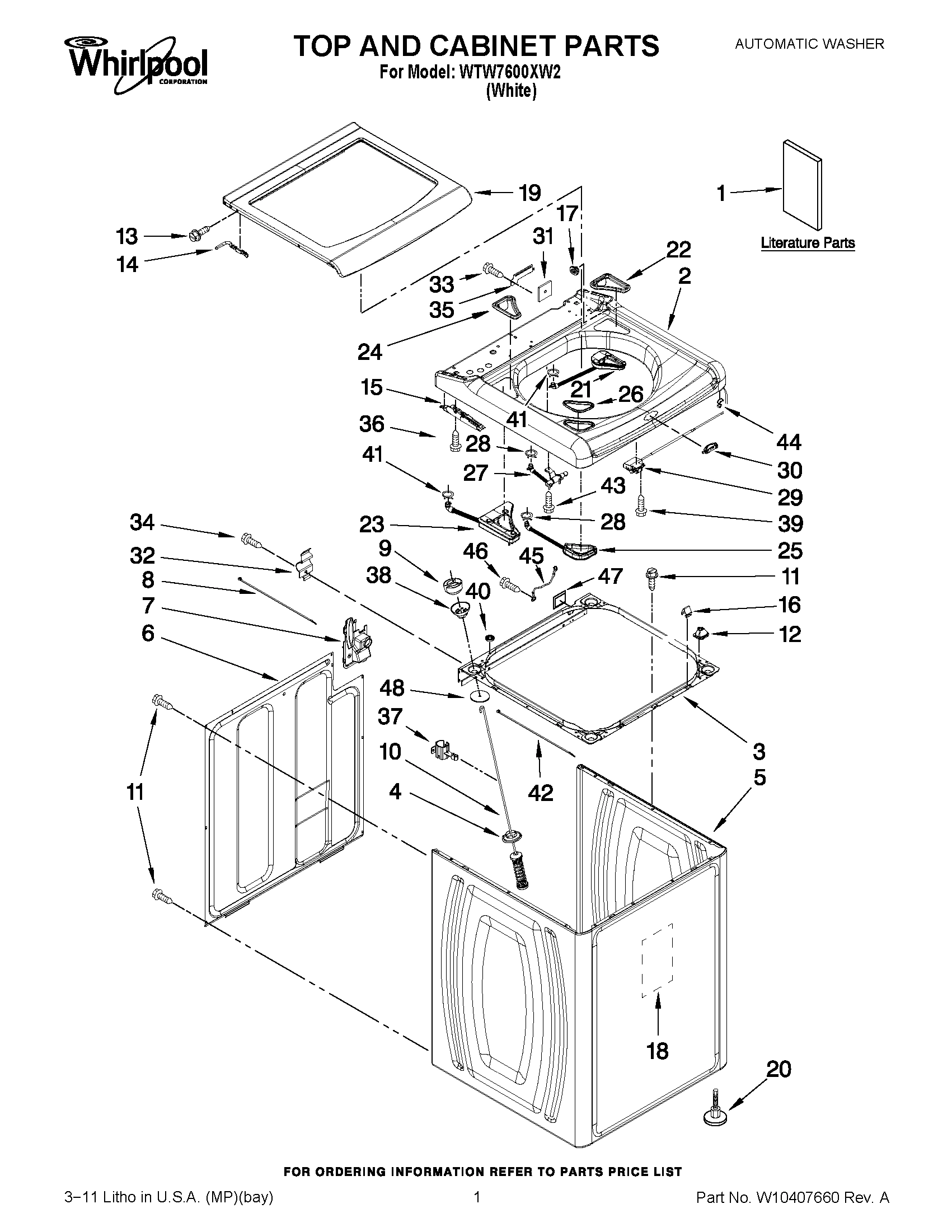

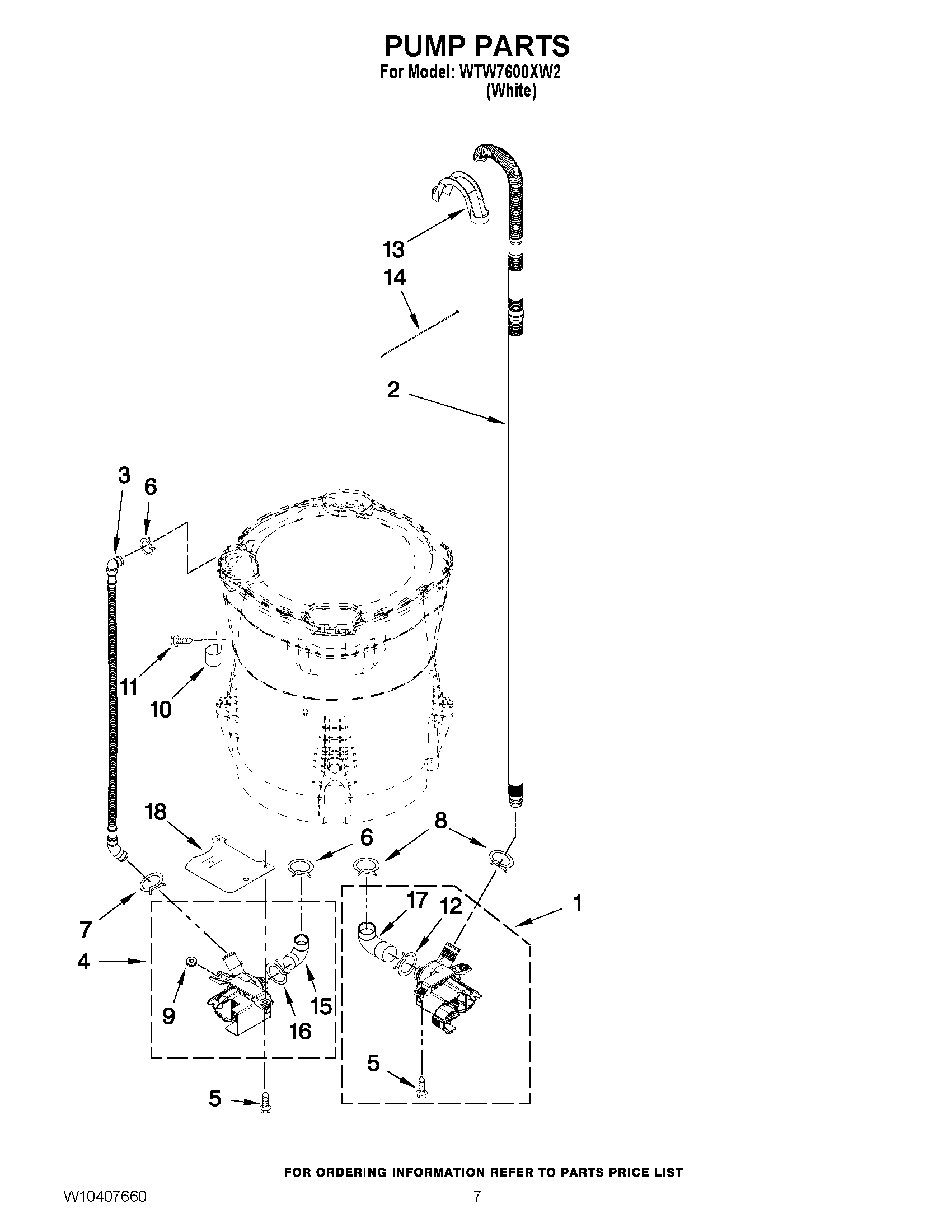

Model Whirlpool WTW7600XW2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

CONTROL UNIT ASSEMBLY, MACHINE & MOTOR WPL W10372181 Contact Us For Availability

2

WP3957177 Whirlpool Top Assembly Backorder WPL WP3957177 $181.42

2

WPW10236686 Whirlpool Hose Backorder WPL WPW10236686 $23.61

2

Screw & Washer Assembly WPL W10076270 Contact Us For Availability

2

Gasket, Valve Tray WPL W10130502 Contact Us For Availability

3

WP8543774 Whirlpool Hose Assembly Backorder WPL WP8543774 $29.08

3

WPW10076260 Whirlpool Washer Backorder WPL WPW10076260 $4.72

4

TUB RING (INCLUDES ITEM 25) WPL W10309696 Contact Us For Availability

5

W10853723 Whirlpool Water Valve In Stock WPL W10853723 $64.24

5

WPW10004910 Whirlpool Screw Backorder WPL WPW10004910 $2.51

6

W11252784 Whirlpool Washplate In Stock WPL W11252784 $105.86

6

WPW10211335 Whirlpool Knob Backorder WPL WPW10211335 $34.92

7

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $3.70

7

WP8533953 Whirlpool Screw In Stock WPL WP8533953 $2.51

7

WPW10160572 Whirlpool Connector Backorder WPL WPW10160572 $3.70

7

WPW10297398 Whirlpool Washer Electronic Contr Backorder WPL WPW10297398 $177.92

9

CONSOLE WPL W10211351 Contact Us For Availability

10

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

10

BASKET ASSEMBLY (INCLUDES ITEMS 7, 8, & 9) WPL W10310957 Contact Us For Availability

12

W10022060 Whirlpool Nut Assembly Backorder WPL W10022060 $9.13

12

LOCATOR, TOP WPL W10042120 Contact Us For Availability

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

13

Cord Assembly, Power WPL 3407203 Contact Us For Availability

14

8565324 Whirlpool Screw Backorder WPL 8565324 $9.59

14

WP8563964 Whirlpool Hinge In Stock WPL WP8563964 $3.70

14

Harness, Lower (Includes Item 5) WPL W10137697 Contact Us For Availability

WP8182769 Whirlpool Hose Assembly In Stock WPL WP8182769 $20.28

WPW10309357 Whirlpool Hinge In Stock WPL WPW10309357 $63.57

WPW10309358 Whirlpool Hinge Assembly In Stock WPL WPW10309358 $79.97

WPW10328039 Whirlpool Wire Harness Backorder WPL WPW10328039 $64.89

Shield, Drive Motor (Includes Item 16) WPL W10137698 Contact Us For Availability

16

WP8563785 Whirlpool Lock Backorder WPL WP8563785 $3.70

17

WP8182767 Whirlpool Drain Hose In Stock WPL WP8182767 $9.17

17

WP8546627 Whirlpool Bearing Backorder WPL WP8546627 $33.51

18

8578572 Whirlpool Shield Backorder WPL 8578572 $42.88

18

W11096159 Whirlpool Sound ABS Assembly Backorder WPL W11096159 $9.63

18

WP8557836 Whirlpool Plate Backorder WPL WP8557836 $39.49

19

WPW10110852 Whirlpool Lid Backorder WPL WPW10110852 $343.09

19

SCREW, 1/4-20 X .968 WPL 8534042 Contact Us For Availability

20

WPW10178988 Whirlpool Rotor Position Sensor In Stock WPL WPW10178988 $21.52

20

FOOT ASSEMBLY, LEVELING WPL W10240448 Contact Us For Availability

21

WPW10172146 Whirlpool Dispenser Assembly Backorder WPL WPW10172146 $93.20

22

WPW10136371 Whirlpool Bezel Backorder WPL WPW10136371 $9.37

23

WPW10187307 Whirlpool Dispenser In Stock WPL WPW10187307 $98.52

23

Filter, Dual Pump Hood WPL W10222008 Contact Us For Availability

24

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

24

WP8563876 Whirlpool Bezel Backorder WPL WP8563876 $10.61

25

W10205824 Whirlpool Absorber Backorder WPL W10205824 $30.25

25

WPW10172154 Whirlpool Dispenser Assembly In Stock WPL WPW10172154 $71.66

26

WP8563877 Whirlpool Bezel Backorder WPL WP8563877 $11.03

27

WPW10106990 Whirlpool Nozzle Backorder WPL WPW10106990 $37.73

29

WPW10619844 Whirlpool Washer Latch In Stock WPL WPW10619844 $49.93

30

Bezel, Lid Lock WPL 8572019 Contact Us For Availability

31

W10161707 Whirlpool Seal Backorder WPL W10161707 $6.62

32

WP8564456 Whirlpool Hinge Assembly Backorder WPL WP8564456 $34.26

36

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

37

Bracket, Drai WPL 8543784 Contact Us For Availability

39

WP8281136 Whirlpool Screw Backorder WPL WP8281136 $2.51

43

W11700520 Whirlpool Screw Backorder WPL W11700520 $8.11

44

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

46

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

285448A Whirlpool Washer In Stock WPL 285448A $2.73

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.64

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $21.61

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $11.53

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $13.93

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $8.78

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
