Model GE WSXH208H2WW – Common Parts & Diagrams

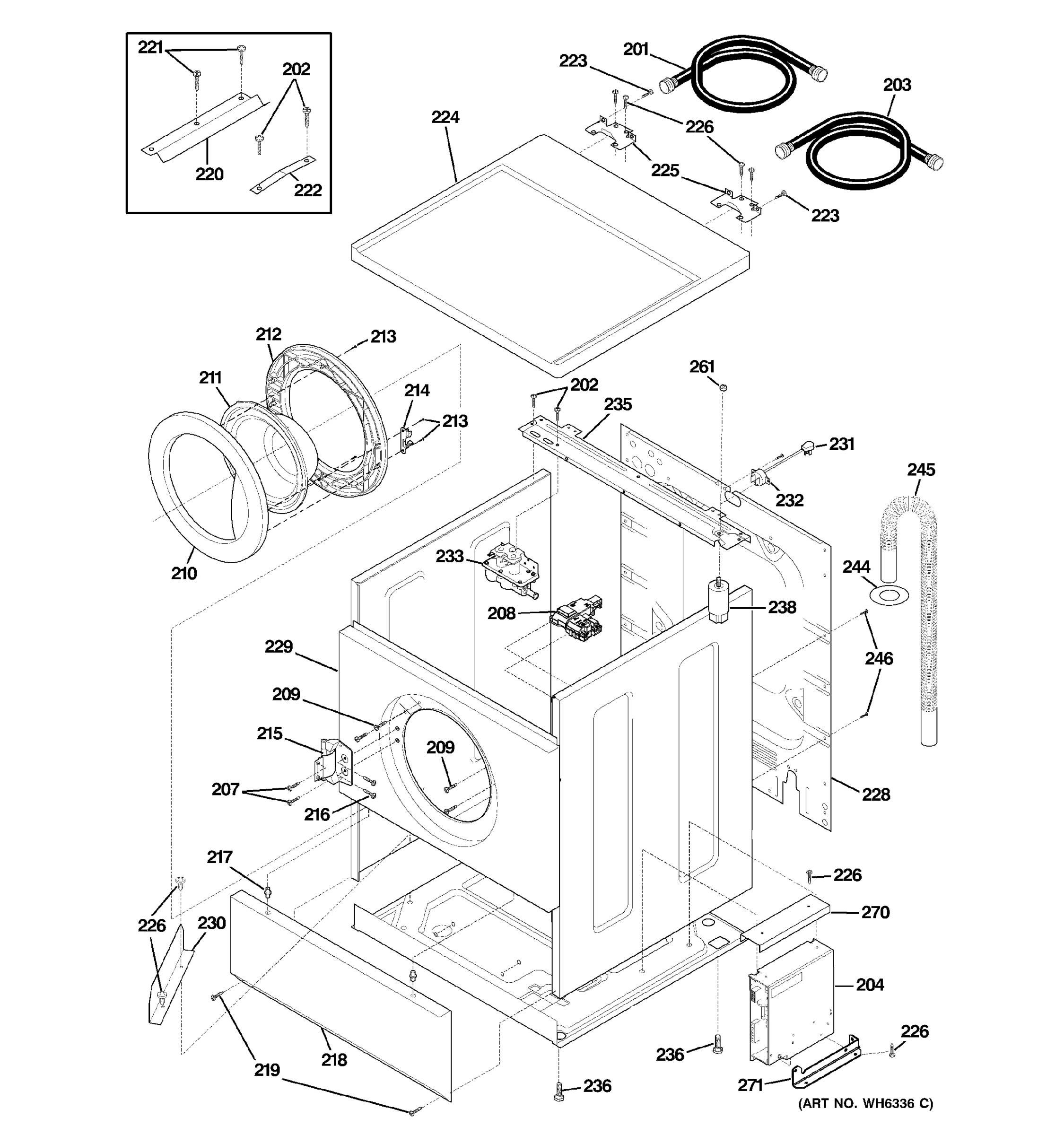

CABINET, DOOR & LID

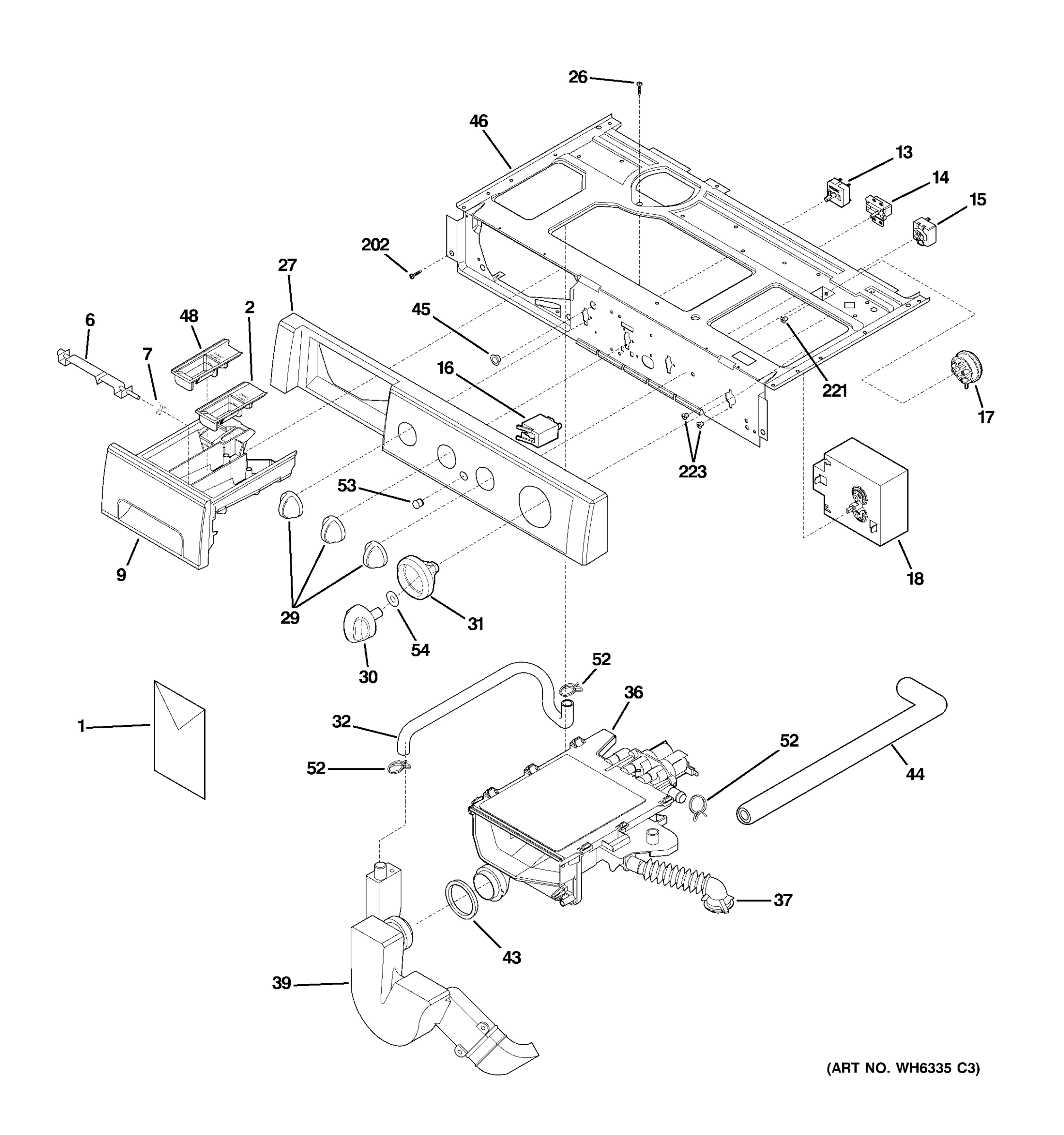

CONTROLS & DISPENSER

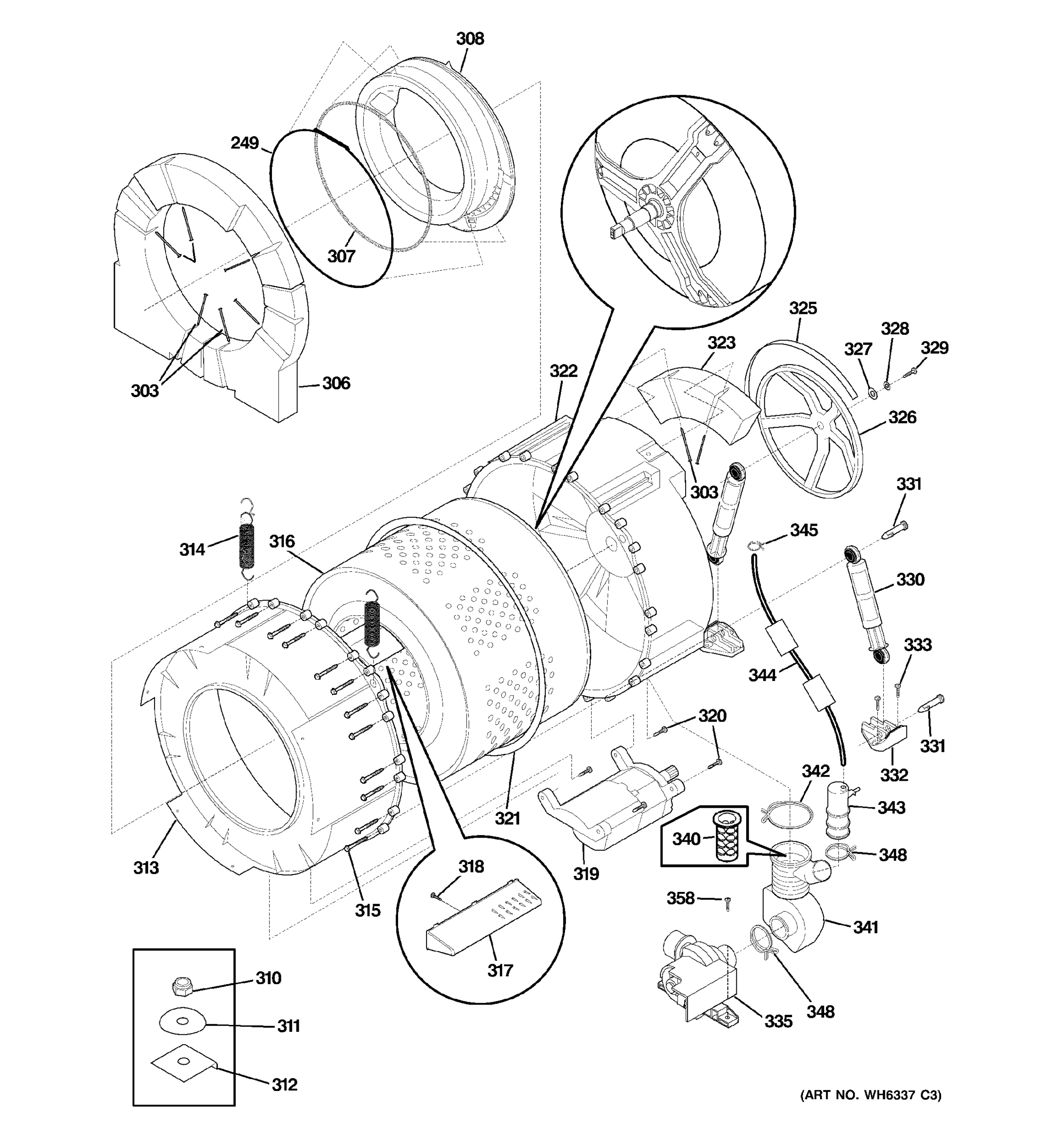

TUB & MOTOR
Common parts from model GE WSXH208H2WW
2
GEN WH41X10001 GEN WH41X10001 Contact Us For Availability
6
GEN WH01X10039 GEN WH01X10039 Contact Us For Availability
7
GEN WH01X10005 GEN WH01X10005 Contact Us For Availability
9
GEN WH41X10055 GEN WH41X10055 Contact Us For Availability
13
GEN WH12X10057 GEN WH12X10057 Contact Us For Availability
15
GEN WH12X10452 GEN WH12X10452 Contact Us For Availability
29
GEN WH01X10111 No Longer Available
30
KNOB - TIMER GEN WH01X10112 Contact Us For Availability
31
GEN WH11X10018 GEN WH11X10018 Contact Us For Availability
36
GEN WH41X10057 GEN WH41X10057 Contact Us For Availability
37
GEN WH41X10013 GEN WH41X10013 Contact Us For Availability
39
GEN WH41X10060 GEN WH41X10060 Contact Us For Availability
43
GEN WH41X10051 GEN WH41X10051 Contact Us For Availability
48
GEN WH41X10002 GEN WH41X10002 Contact Us For Availability
53
GEN WH01X10114 GEN WH01X10114 Contact Us For Availability
207
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
210
DOOR-OUTER WH GEN WH46X10002 Contact Us For Availability
212
GEN WH46X10004 GEN WH46X10004 Contact Us For Availability
214
GEN WH10X10004 GEN WH10X10004 Contact Us For Availability
215
HINGE-DOOR GEN WH01X10092 Contact Us For Availability
220
GEN WH16X10003 GEN WH16X10003 Contact Us For Availability
221
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
224
GEN WH44X10001 GEN WH44X10001 Contact Us For Availability
229
GEN WH46X10138 GEN WH46X10138 Contact Us For Availability
231
GEN WH19X10048 GEN WH19X10048 Contact Us For Availability
233
GEN WH13X10016 GEN WH13X10016 Contact Us For Availability
236
GEN WH01X10336 GEN WH01X10336 Contact Us For Availability
238
GEN WH12X10162 GEN WH12X10162 Contact Us For Availability
245
GEN WH01X10189 GEN WH01X10189 Contact Us For Availability
249
GEN WH08X10026 GEN WH08X10026 Contact Us For Availability
308
GEN WH45X10062 GEN WH45X10062 Contact Us For Availability
317
GEN WH16X10008 GEN WH16X10008 Contact Us For Availability
318
GEN WH02X10023 GEN WH02X10023 Contact Us For Availability
319
GEN WH20X10042 GEN WH20X10042 Contact Us For Availability
320
GEN WH02X10024 GEN WH02X10024 Contact Us For Availability
321
GEN WH08X10002 GEN WH08X10002 Contact Us For Availability
323
GEN WH01X10215 GEN WH01X10215 Contact Us For Availability
325
GEN WH08X10003 GEN WH08X10003 Contact Us For Availability
326
GEN WH07X10004 GEN WH07X10004 Contact Us For Availability
327
GEN WH02X10025 GEN WH02X10025 Contact Us For Availability
328
GEN WH02X10026 GEN WH02X10026 Contact Us For Availability
329
GEN WH02X10027 GEN WH02X10027 Contact Us For Availability
330
GEN WH17X10019 GEN WH17X10019 Contact Us For Availability
331
GEN WH01X10024 GEN WH01X10024 Contact Us For Availability
332
GEN WH16X10009 GEN WH16X10009 Contact Us For Availability
333
GEN WH02X10229 GEN WH02X10229 Contact Us For Availability
335
PUMP DRAIN GEN WH23X10016 Contact Us For Availability
340
GEN WH41X10136 GEN WH41X10136 Contact Us For Availability
341
GEN WH41X10010 GEN WH41X10010 Contact Us For Availability
342
GEN WH02X10238 GEN WH02X10238 Contact Us For Availability
343
GEN WH41X10011 GEN WH41X10011 Contact Us For Availability
344
GEN WH41X10012 GEN WH41X10012 Contact Us For Availability
345
GEN WH02X10030 GEN WH02X10030 Contact Us For Availability
348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
358
GEN WH02X10142 GEN WH02X10142 Contact Us For Availability
× ![]()
