Model GE WSSH300G2WW Washer – Common Parts & Diagrams
CABINET, DOOR & TOP
CONTROLS & DISPENSER

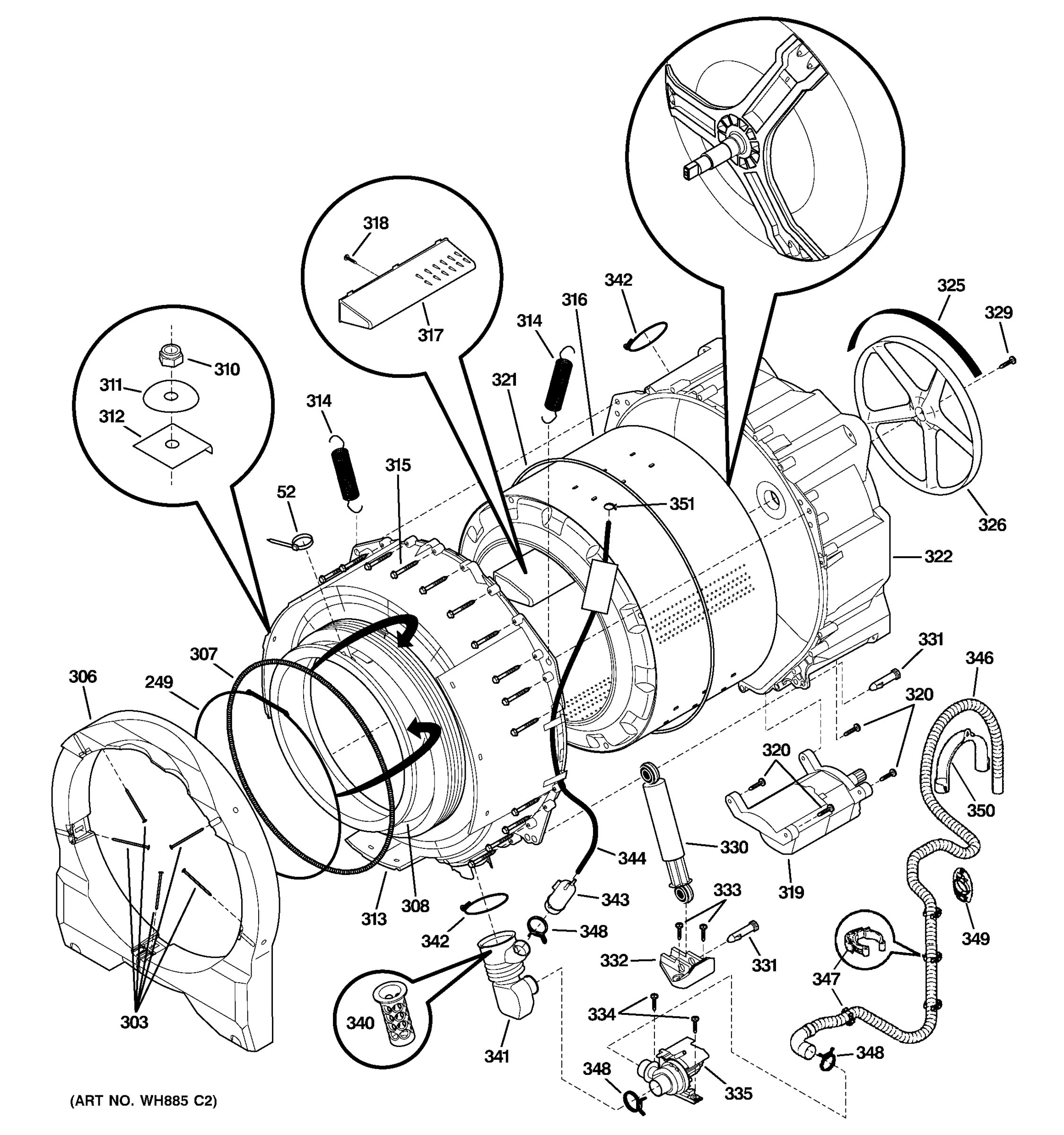

TUB & MOTOR
Common parts from model GE WSSH300G2WW Washer
3
GEN WH41X10145 GEN WH41X10145 Contact Us For Availability
4
GEN WE01X10223 GEN WE01X10223 Contact Us For Availability
10
GEN WE01X10229 GEN WE01X10229 Contact Us For Availability
11
GEN WE01X10230 GEN WE01X10230 Contact Us For Availability
12
GEN WE01X10231 GEN WE01X10231 Contact Us For Availability
13
GEN WE01X10232 GEN WE01X10232 Contact Us For Availability
16
GEN WH46X10154 GEN WH46X10154 Contact Us For Availability
17
GEN WH12X10353 GEN WH12X10353 Contact Us For Availability
19
SCREW, PHILLIPS, 6-19 X GEN WE02X10070 Contact Us For Availability
21
SCREW 8-18B x 0.31 GEN WR02X9494 Contact Us For Availability
23
GEN WH19X10052 GEN WH19X10052 Contact Us For Availability
26
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
27
GEN WH46X10158 GEN WH46X10158 Contact Us For Availability
28
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
29
GEN WH01X10334 GEN WH01X10334 Contact Us For Availability
31
GEN WE01X10221 GEN WE01X10221 Contact Us For Availability
32
GEN WH41X10142 GEN WH41X10142 Contact Us For Availability
36
GEN WH41X10150 GEN WH41X10150 Contact Us For Availability
37
GEN WH41X10148 GEN WH41X10148 Contact Us For Availability
38
GEN WH02X10244 GEN WH02X10244 Contact Us For Availability
41
GEN WH08X10031 GEN WH08X10031 Contact Us For Availability
43
GEN WH08X10030 GEN WH08X10030 Contact Us For Availability
44
GEN WH41X10147 GEN WH41X10147 Contact Us For Availability
46
GEN WH02X10241 GEN WH02X10241 Contact Us For Availability
47
GEN WH01X10331 GEN WH01X10331 Contact Us For Availability
48
GEN WH41X10146 GEN WH41X10146 Contact Us For Availability
49
GEN WH41X10149 GEN WH41X10149 Contact Us For Availability
98
GEN WH41X10152 GEN WH41X10152 Contact Us For Availability
121
GEN WH02X10245 GEN WH02X10245 Contact Us For Availability
136
GEN WH13X10030 GEN WH13X10030 Contact Us For Availability
146
GEN WH01X10504 GEN WH01X10504 Contact Us For Availability
150
GEN WH04X10005 GEN WH04X10005 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
210
GEN WH46X10156 GEN WH46X10156 Contact Us For Availability
211
GEN WH46X10155 GEN WH46X10155 Contact Us For Availability
212
GEN WH46X10157 GEN WH46X10157 Contact Us For Availability
213
GEN WH02X10010 GEN WH02X10010 Contact Us For Availability
214
GEN WH10X10004 GEN WH10X10004 Contact Us For Availability
215
GEN WE01X10233 GEN WE01X10233 Contact Us For Availability
218
GEN WE20X10088 GEN WE20X10088 Contact Us For Availability
223
GEN WH02X10250 GEN WH02X10250 Contact Us For Availability
226
GEN WH02X10248 GEN WH02X10248 Contact Us For Availability
231
GEN WH19X10048 GEN WH19X10048 Contact Us For Availability
236
GEN WH01X10336 GEN WH01X10336 Contact Us For Availability
240
GEN WE02X10071 GEN WE02X10071 Contact Us For Availability
249
GEN WH08X10032 GEN WH08X10032 Contact Us For Availability
253
GEN WH01X10335 GEN WH01X10335 Contact Us For Availability
303
GEN WH02X10240 GEN WH02X10240 Contact Us For Availability
306
GEN WH45X10077 GEN WH45X10077 Contact Us For Availability
307
GEN WH08X10029 GEN WH08X10029 Contact Us For Availability
308
GEN WH45X10075 GEN WH45X10075 Contact Us For Availability
310
GEN WH02X10019 GEN WH02X10019 Contact Us For Availability
311
GEN WH02X10020 GEN WH02X10020 Contact Us For Availability
312
GEN WH16X10088 GEN WH16X10088 Contact Us For Availability
313
GEN WH45X10076 GEN WH45X10076 Contact Us For Availability
314
GEN WH01X10507 GEN WH01X10507 Contact Us For Availability
315
GEN WH02X10021 GEN WH02X10021 Contact Us For Availability
317
GEN WH16X10091 GEN WH16X10091 Contact Us For Availability
318
GEN WH02X10023 GEN WH02X10023 Contact Us For Availability
319
GEN WH20X10039 GEN WH20X10039 Contact Us For Availability
320
GEN WH02X10024 GEN WH02X10024 Contact Us For Availability
321
GEN WH08X10028 GEN WH08X10028 Contact Us For Availability
322
GEN WH45X10078 GEN WH45X10078 Contact Us For Availability
325
BELT DRIVE POLY-V 6-R GEN WH08X10027 Contact Us For Availability
326
GEN WH07X10020 GEN WH07X10020 Contact Us For Availability
329
GEN WH02X10247 GEN WH02X10247 Contact Us For Availability
330
GEN WH17X10015 GEN WH17X10015 Contact Us For Availability
331
GEN WH01X10024 GEN WH01X10024 Contact Us For Availability
332
GEN WH16X10085 GEN WH16X10085 Contact Us For Availability
333
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
334
GEN WH02X10142 GEN WH02X10142 Contact Us For Availability
335
GEN WH23X10031 GEN WH23X10031 Contact Us For Availability
340
GEN WH41X10136 GEN WH41X10136 Contact Us For Availability
341
GEN WH41X10151 GEN WH41X10151 Contact Us For Availability
342
GEN WH02X10238 GEN WH02X10238 Contact Us For Availability
343
GEN WH41X10143 GEN WH41X10143 Contact Us For Availability
344
GEN WH41X10144 GEN WH41X10144 Contact Us For Availability
345
GEN WH02X10153 GEN WH02X10153 Contact Us For Availability
346
GEN WH41X10172 GEN WH41X10172 Contact Us For Availability
347
GEN WH01X10346 GEN WH01X10346 Contact Us For Availability
347
GEN WH02X10332 GEN WH02X10332 Contact Us For Availability
348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
349
GEN WH16X10103 GEN WH16X10103 Contact Us For Availability
350
GEN WH01X10361 GEN WH01X10361 Contact Us For Availability
351
GEN WH02X10030 GEN WH02X10030 Contact Us For Availability
× ![]()
