Model GE WSM2780WBAA Washer/Dryer Combo – Common Parts & Diagrams

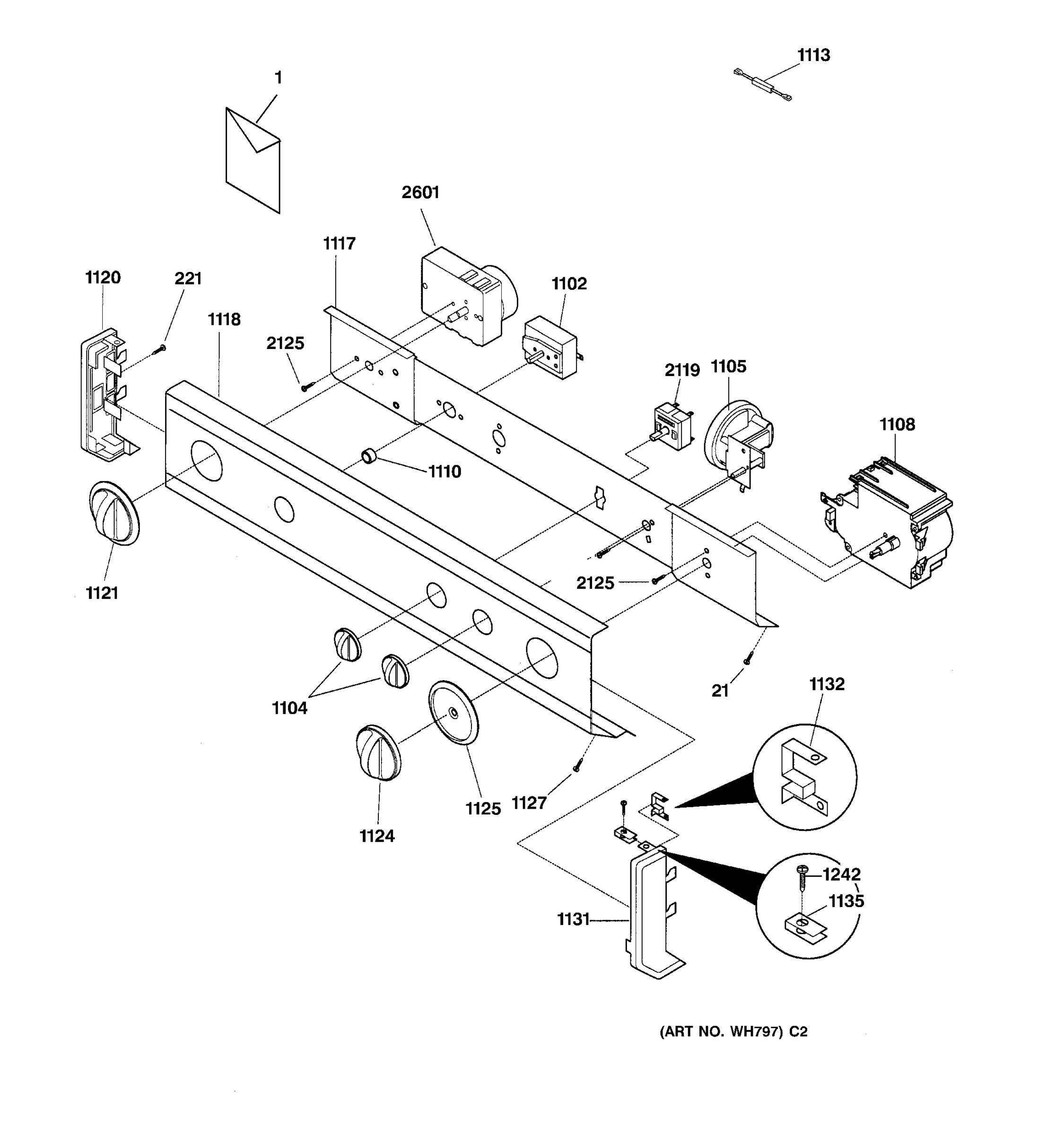

CONTROL PANEL

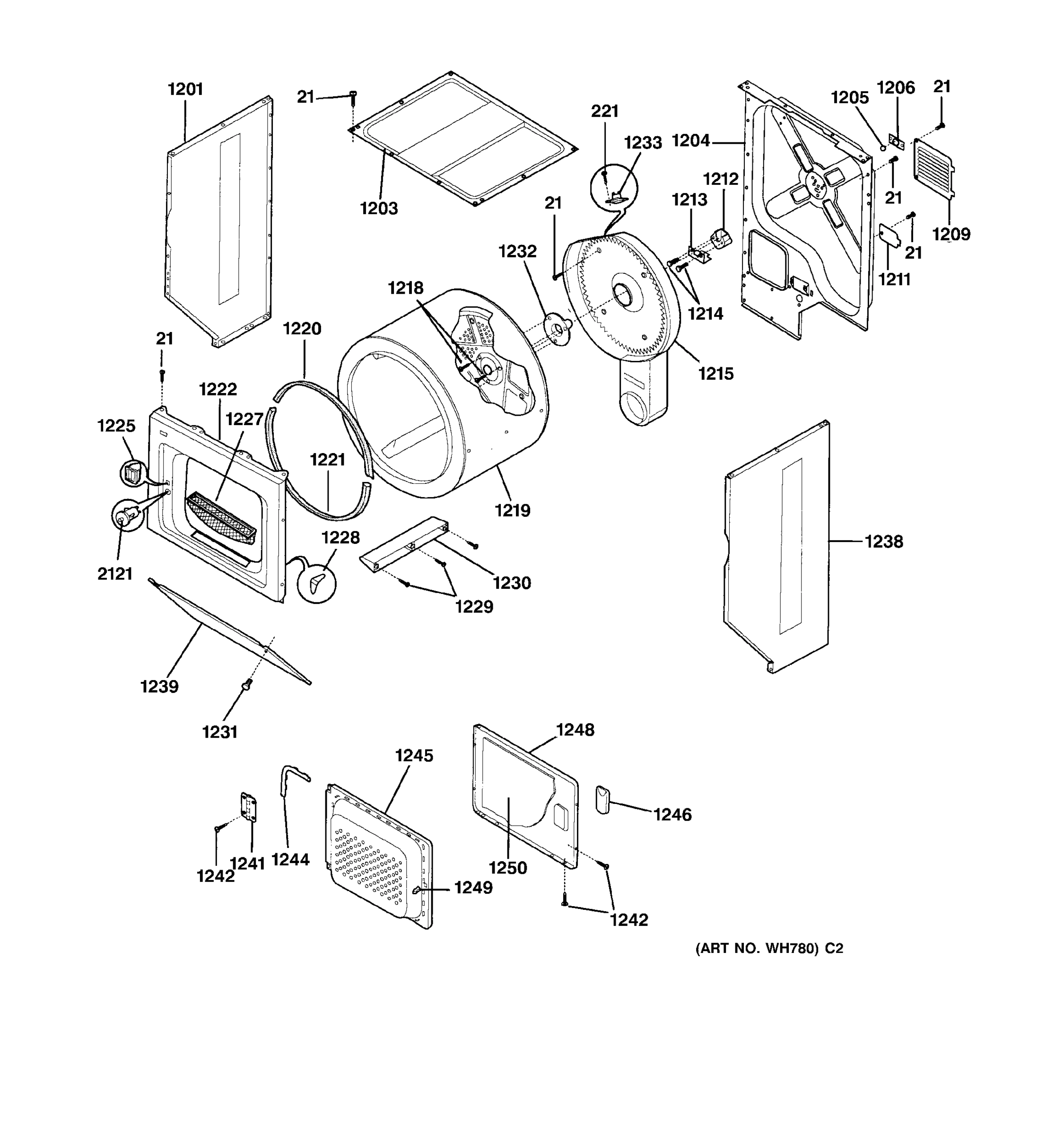

DRYER CABINET, DRUM & HEATER

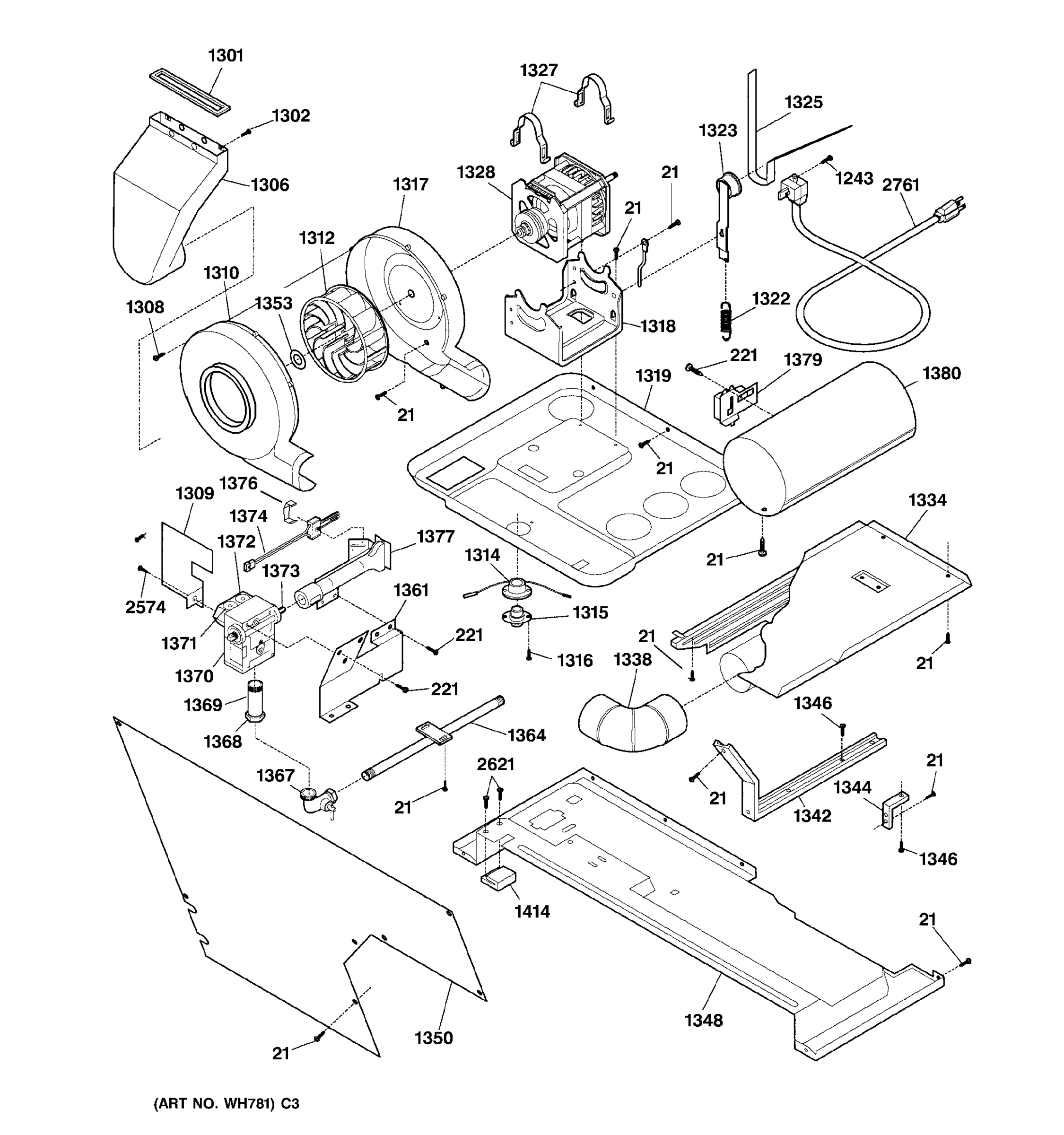

DRYER MOTOR, BLOWER & BELT

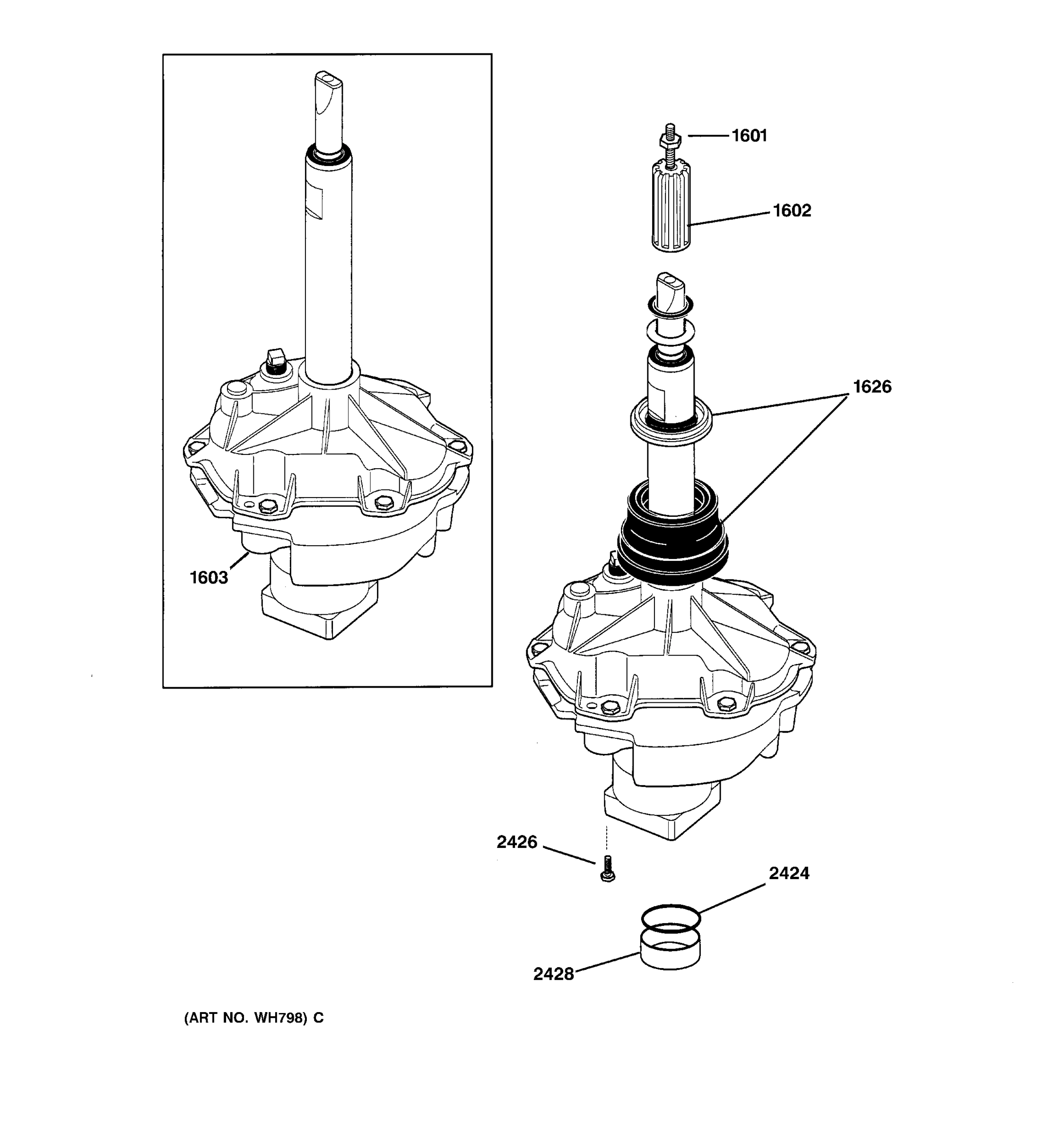

TRANSMISSION

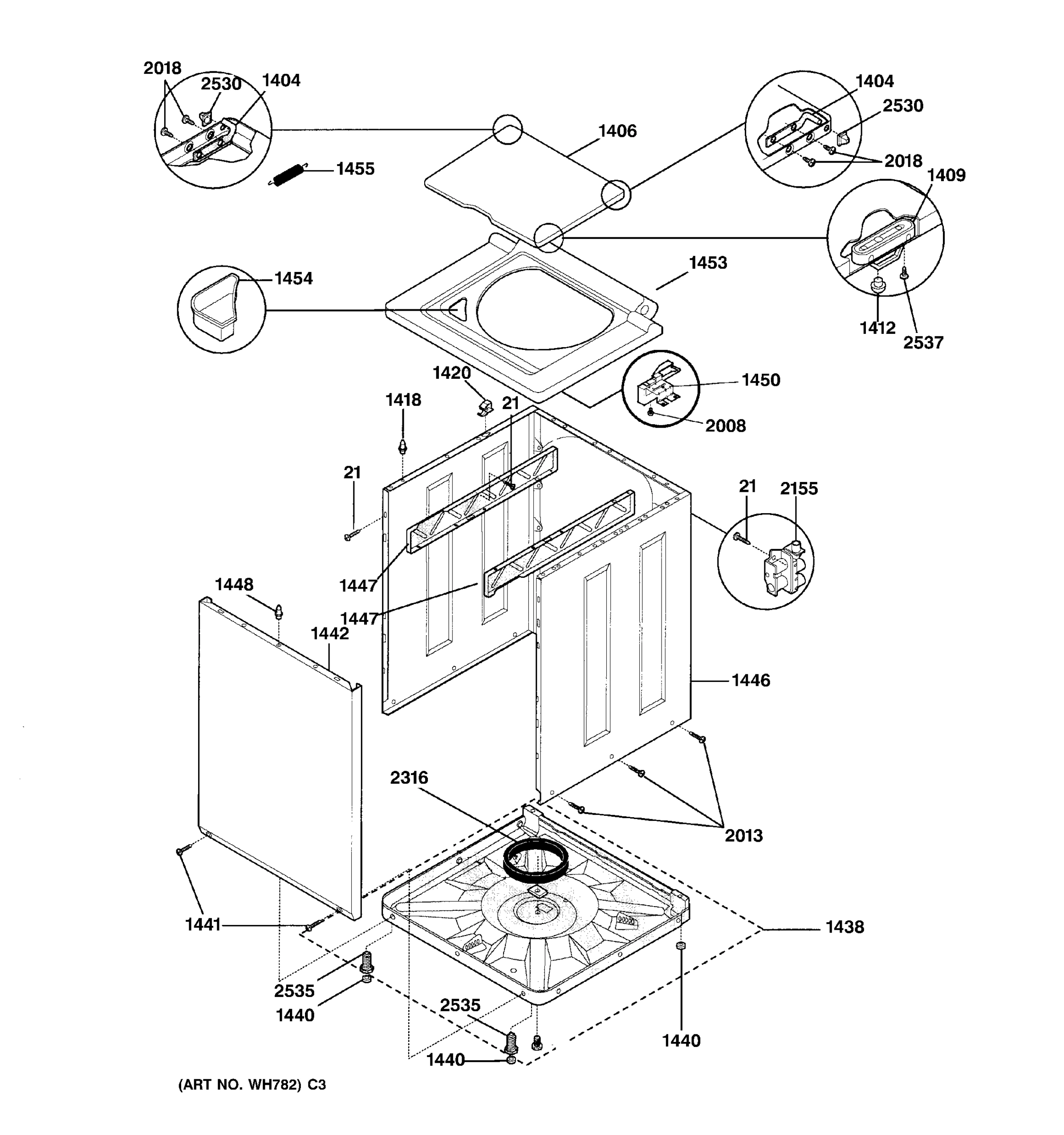

WASHER CABINET & TOP

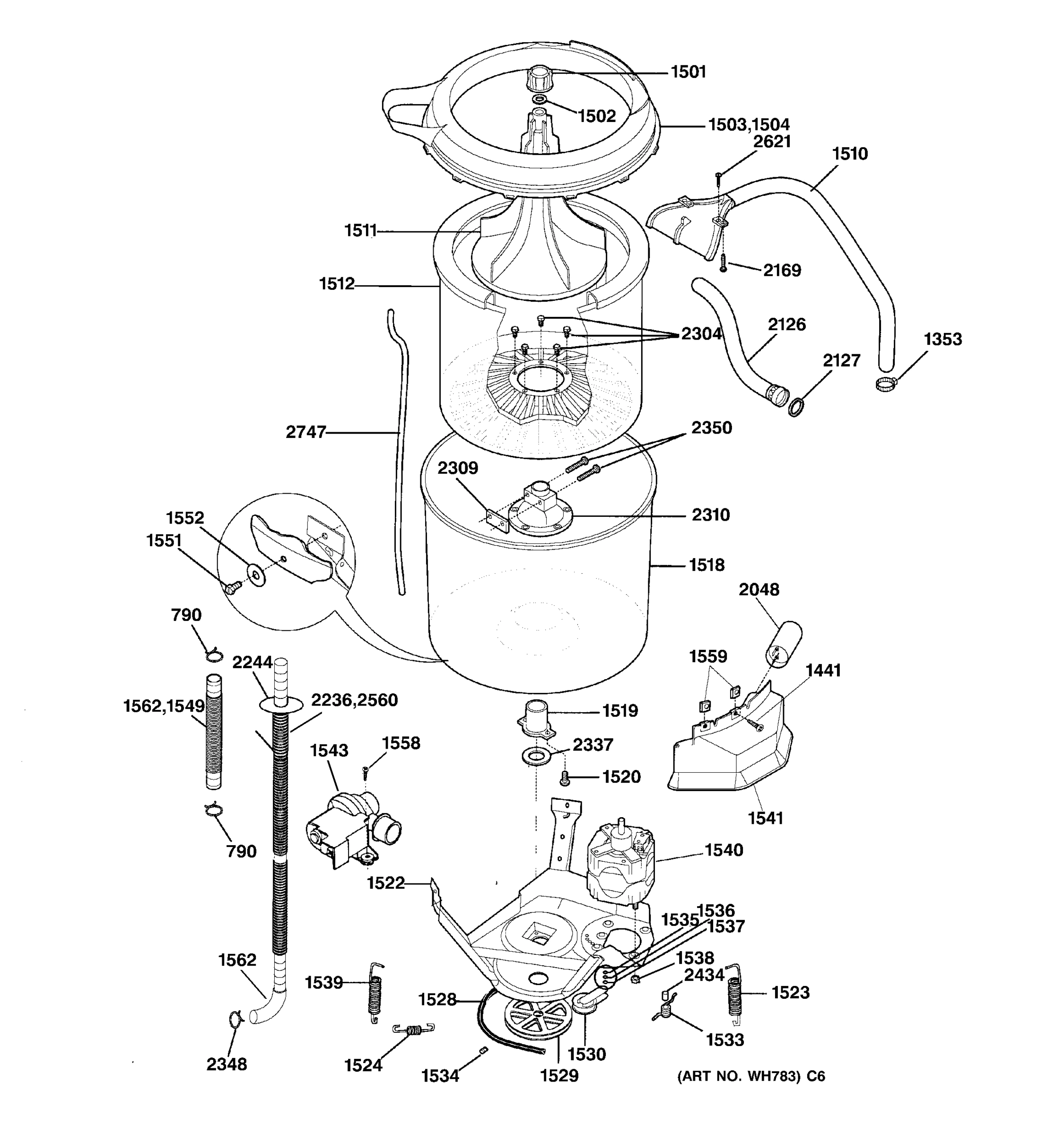

WASHER MOTOR & TUB
Common parts from model GE WSM2780WBAA Washer/Dryer Combo
21
SCREW 8-18 X .31 GEN WR02X9494 Contact Us For Availability
221
SCREW 8-18 AB X .375 GEN WH01X10004 Contact Us For Availability
1102
SWITCH-PUSH START GEN WE04X10057 Contact Us For Availability
1105
SWITCH-PRESSURE GEN WH12X10083 Contact Us For Availability
1124
GEN WH01X10126 GEN WH01X10126 Contact Us For Availability
1213
GEN WE13X10009 GEN WE13X10009 Contact Us For Availability
1214
SCREW 10-16B X 1.375 GEN WE02X10005 Contact Us For Availability
1218
SCREW 10-16 X .375 GEN WE02X10006 Contact Us For Availability
1225
CATCH-DOOR GEN WE01X10023 Contact Us For Availability
1229
SCREW 10-14 X 1.00 GEN WE02X10007 Contact Us For Availability
1233
THERMOSTAT-SAFETY GEN WE04X10040 Contact Us For Availability
1241
HINGE-DOOR GEN WE01X10012 Contact Us For Availability
1243
SCREW 10-32T X .375 GEN WE02X10020 Contact Us For Availability
1245
DOOR-INNER, AD GEN WE10X10006 Contact Us For Availability
1246
HANDLE-DOOR, AD GEN WE01X10049 Contact Us For Availability
1248
DOOR-OUTER AD GEN WE10X10011 Contact Us For Availability
1249
STRIKE-DOOR GEN WE01X1158 Contact Us For Availability
1250
SHIELD-HEAT GEN WE10X0322 Contact Us For Availability
1301
SEAL-AIR DUCT GEN WE09X10001 Contact Us For Availability
1302
FASTENER GEN WE01X1262 Contact Us For Availability
1306
DUCT-AIR GEN WE14X10019 Contact Us For Availability
1309
SHIELD-HEAT GEN WH16X10040 Contact Us For Availability
1310
ASMY,FRT BLW HSG/SEAL GEN WE14X10020 Contact Us For Availability
1314
THERMOSTAT-HEATER GEN WE04X10041 Contact Us For Availability
1315
THERMOSTAT-CONTROL GEN WE04X0747 Contact Us For Availability
1317
HOUSING-BLOWER, REAR GEN WE14X10004 Contact Us For Availability
1318
CRADLE & STUD GEN WE13X0211 Contact Us For Availability
1319
PAN-MOTOR CRADLE GEN WE13X0210 Contact Us For Availability
1322
SPRING-IDLER GEN WE01X1159 Contact Us For Availability
1327
CLAMP-MOTOR GEN WE01X10003 Contact Us For Availability
1328
MOTOR & PULLEY GEN WE17X0054 Contact Us For Availability
1334
SHIELD-ACCESS (GAS) GEN WE01X10078 Contact Us For Availability
1338
ELBOW-EXHAUST GEN WE14X0206 Contact Us For Availability
1342
BRACKET-MARRIAGE GEN WE13X0188 Contact Us For Availability
1344
BRACKET-EXTERNAL GEN WE13X0189 Contact Us For Availability
1348
PAN-BOTTOM GEN WE13X10012 Contact Us For Availability
1350
COVER-SAFETY GEN WE20X0753 Contact Us For Availability
1353
CLAMP GEN WH01X10048 Contact Us For Availability
1361
BRACKET-GAS VALVE GEN WE13X0191 Contact Us For Availability
1364
PIPE GEN WE01X1163 Contact Us For Availability
1367
VALVE-SHUT OFF GEN WE01X10007 Contact Us For Availability
1368
TAIL PIECE, BRASS GEN WE01X1166 Contact Us For Availability
1369
NUT-UNION, HEX GEN WE02X0371 Contact Us For Availability
1370
VALVE-GAS GEN WE14X0207 Contact Us For Availability
1371
COIL-SECONDARY GEN WE04X0748 Contact Us For Availability
1372
COIL-BOOSTER GEN WE04X10004 Contact Us For Availability
1373
GEN WE01X1167 GEN WE01X1167 Contact Us For Availability
1373
CONV. KIT -NAT. TO LP GEN WE25X0206 Contact Us For Availability
1376
GEN WE02X10023 GEN WE02X10023 Contact Us For Availability
1377
ASSY-BURNER GEN WE01X10051 Contact Us For Availability
1379
GEN WE04X0751 GEN WE04X0751 Contact Us For Availability
1380
TUBE-BURNER GEN WE14X10024 Contact Us For Availability
1404
HINGE-BAR GEN WH01X2600 Contact Us For Availability
1406
LID-ALMOND GEN WH44X1138 Contact Us For Availability
1409
STRIKE-LID GEN WH01X10041 Contact Us For Availability
1412
BUMPER-LID GEN WH01X2604 Contact Us For Availability
1414
GEN WH01X2622 GEN WH01X2622 Contact Us For Availability
1418
GEN WH01X10013 GEN WH01X10013 Contact Us For Availability
1420
PIN-SLIDE GEN WH01X2608 Contact Us For Availability
1438
GEN WH46X10025 GEN WH46X10025 Contact Us For Availability
1440
PAD-LEVEL LEG GEN WH01X10044 Contact Us For Availability
1440
PAD-LEVELING LEG GEN WH01X10043 Contact Us For Availability
1441
SCREW 10-16 X .500 GEN NOT STOCKD Contact Us For Availability
1442
PANEL-FRONT AD GEN WH46X0322 Contact Us For Availability
1447
BRACKET RH GEN WH16X0501 Contact Us For Availability
1447
BRACKET LH GEN WH16X0502 Contact Us For Availability
1448
PIN-LOCATING GEN WH01X10042 Contact Us For Availability
1450
LOCK-LID GEN WH12X10084 Contact Us For Availability
1453
PANEL-TOP AD GEN WH46X10027 Contact Us For Availability
1454
DISPENSER-BLEACH GEN WH47X0041 Contact Us For Availability
1455
SPRING-LID GEN WH01X2623 Contact Us For Availability
1501
CAP-AGITATOR GEN WH43X0118 Contact Us For Availability
1502
SEAL-CAP GEN WH08X0368 Contact Us For Availability
1503
ASMY-SPLASH TUB COVER GEN WH45X0150 Contact Us For Availability
1504
GEN WH45X10040 GEN WH45X10040 Contact Us For Availability
1510
HOSE AND NOZZLE GEN WH41X10039 Contact Us For Availability
1512
TUB-SPIN, AND TRUNNION GEN WH45X10017 Contact Us For Availability
1518
TUB-SPLASH,W\AIR BRNG GEN WH45X10018 Contact Us For Availability
1519
BEARING-OUTER TUB GEN WH04X0104 Contact Us For Availability
1520
SCREW 8-12 X .750 GEN WH01X10100 Contact Us For Availability
1522
LEG & DOME ASSY GEN WH01X2720 Contact Us For Availability
1523
SPRING-VERTICAL, SHORT GEN WH01X2624 Contact Us For Availability
1524
GEN WH01X2718 GEN WH01X2718 Contact Us For Availability
1529
PULLEY-TRANSMISSION GEN WH07X10006 Contact Us For Availability
1530
ARM-IDLER GEN WH07X10005 Contact Us For Availability
1533
SPRING-TORSION GEN WH01X2616 Contact Us For Availability
1534
SCREW 5/16-18 X .85 GEN WH01X10045 Contact Us For Availability
1535
GEN WH02X1132 GEN WH02X1132 Contact Us For Availability
1536
WASHER-PIVOT SHAFT GEN WH02X1133 Contact Us For Availability
1537
WASHER-SPRING GEN WH02X1094 Contact Us For Availability
1538
NUT-MOTOR GEN WH01X10101 Contact Us For Availability
1539
GEN WH01X2625 GEN WH01X2625 Contact Us For Availability
1540
MTR/PULLEY 1SP 1/2HP GEN WH20X10015 Contact Us For Availability
1541
SHIELD-MOTOR GEN WH16X0529 Contact Us For Availability
1543
ASMY-PUMP GEN WH23X10009 Contact Us For Availability
1549
HOSE-PUMP TO TUB GEN WH41X10027 Contact Us For Availability
1551
SCREW 5/16-18 X .875 GEN WH01X10102 Contact Us For Availability
1552
WASHER 1.25 OD X.335 GEN WH01X10103 Contact Us For Availability
1558
SCREW-PUMP-TO BRACKET GEN WE02X10004 Contact Us For Availability
1562
GEN WH01X2769 GEN WH01X2769 Contact Us For Availability
1601
STUD-AGITATOR CAP GEN WH02X10039 Contact Us For Availability
1602
HUB-DRIVE, AGITATOR GEN WH40X10001 Contact Us For Availability
1626
SEAL-TUB GEN WH08X10004 Contact Us For Availability
2008
SCREW 8-32CA X 0.375 GEN WE02X10016 Contact Us For Availability
2013
SCREW 1/4-14 X .625 GEN WE02X10003 Contact Us For Availability
2018
GEN WH02X10060 GEN WH02X10060 Contact Us For Availability
2048
GEN WH12X1039 GEN WH12X1039 Contact Us For Availability
2119
SWITCH-TEMPERATURE GEN WH12X10036 Contact Us For Availability
2121
SWITCH-DOOR GEN WE04X10003 Contact Us For Availability
2127
WASHER-INLET HOSE GEN WH02X10041 Contact Us For Availability
2155
VALVE-WATER GEN WH13X10002 Contact Us For Availability
2169
GEN WH02X10061 GEN WH02X10061 Contact Us For Availability
2236
GEN WH01X2768 GEN WH01X2768 Contact Us For Availability
2236
GEN WH01X2786 GEN WH01X2786 Contact Us For Availability
2304
GEN WH02X1142 GEN WH02X1142 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X10004 GEN WH17X10004 Contact Us For Availability
2316
RING-SNUBBER GEN WH01X2312 Contact Us For Availability
2337
WASHER SPIN BRNG GEN WH02X1009 Contact Us For Availability
2348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
2350
SCREW .312-18 X.1.625 GEN WH02X1107 Contact Us For Availability
2424
WASHER-TRANS-BRG GEN WH02X10086 Contact Us For Availability
2426
SCREW GEN WH02X10040 Contact Us For Availability
2428
SPACER-TRANS BRG GEN WH01X10094 Contact Us For Availability
2434
SLEEVE-IDLER GEN WH02X1111 Contact Us For Availability
2530
GROMMET-HINGE GEN WH01X2592 Contact Us For Availability
2535
LEG-LEVELING W/PAD GEN WH01X10049 Contact Us For Availability
2537
SCREW 6-20 X .375 GEN WH02X1126 Contact Us For Availability
2560
HOSE-DRAIN, 90 INCH GEN WH41X0378 Contact Us For Availability
2621
SCREW 10-10B X .50 , GEN WH02X10007 Contact Us For Availability
2747
TUBE-PRESSURE GEN WH41X10038 Contact Us For Availability
2761
CORD-POWER GEN WE08X0044 Contact Us For Availability
× ![]()
