Model GE WSM2780TCWAB – Common Parts & Diagrams
CONSOLE & CONTROLS
DRYER-CABINET, DRUM & HEATER

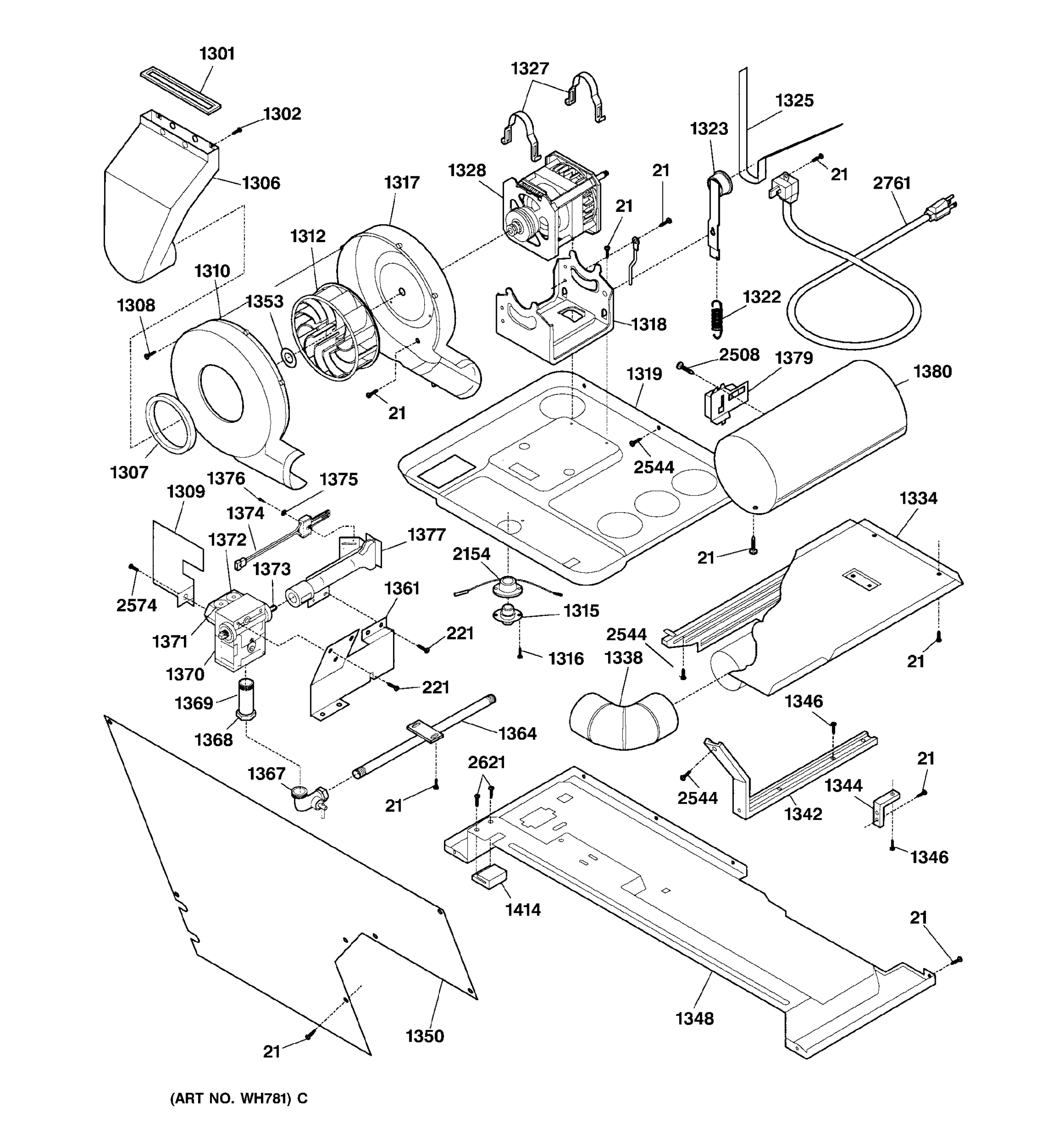

DRYER-MOTOR, BLOWER & BELT

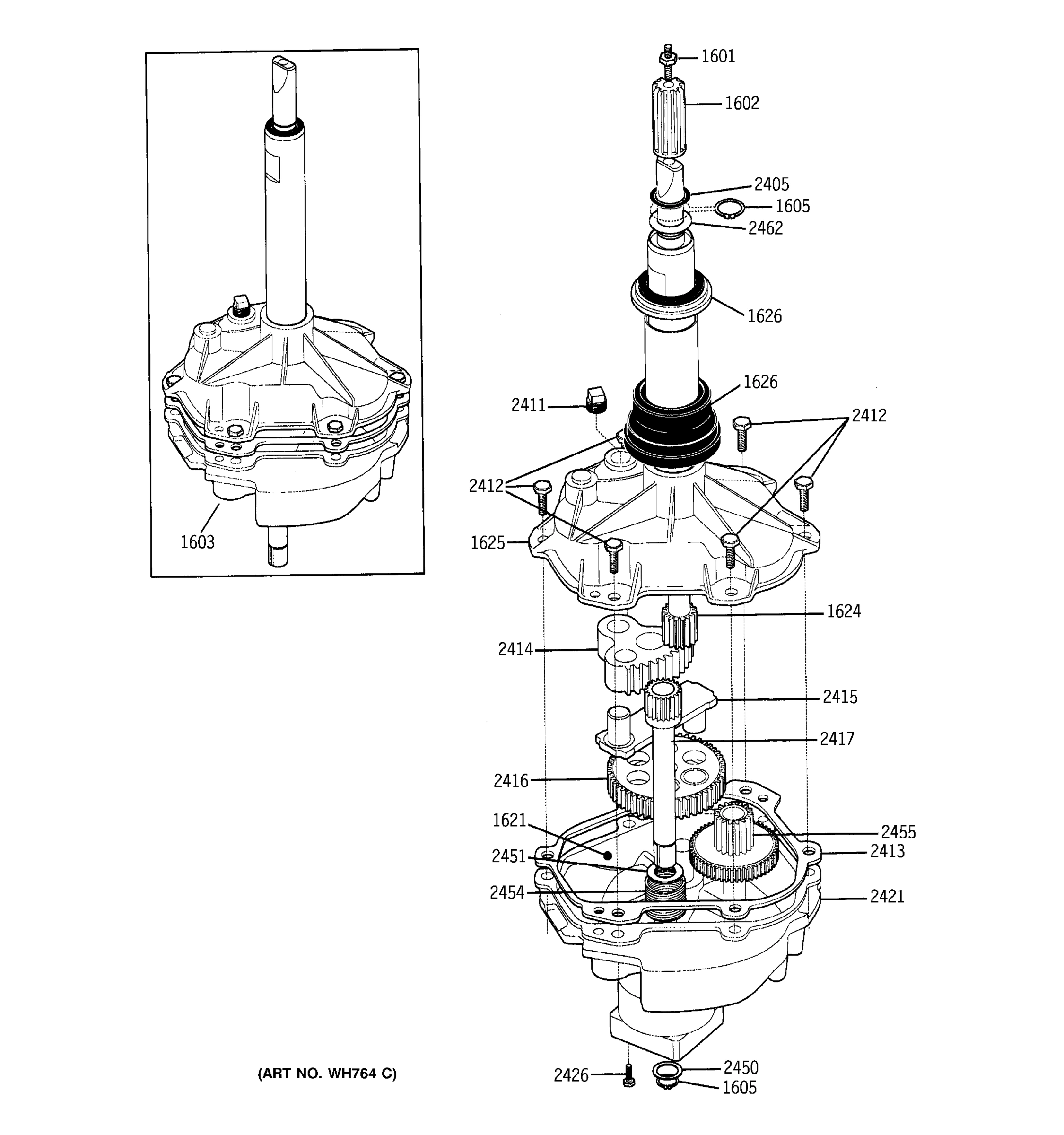

TRANSMISSION ASSEMBLY

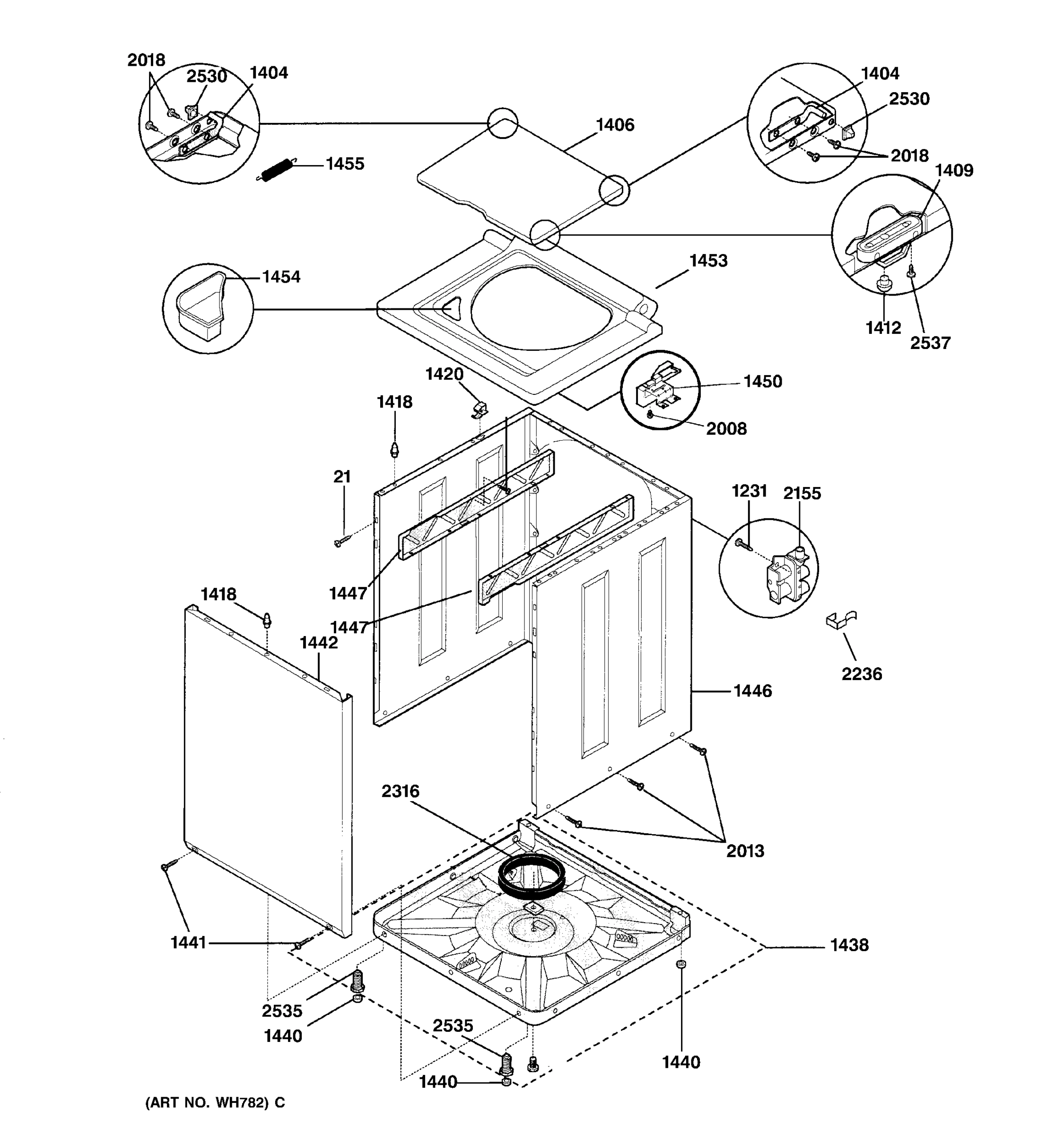

WASHER CABINET

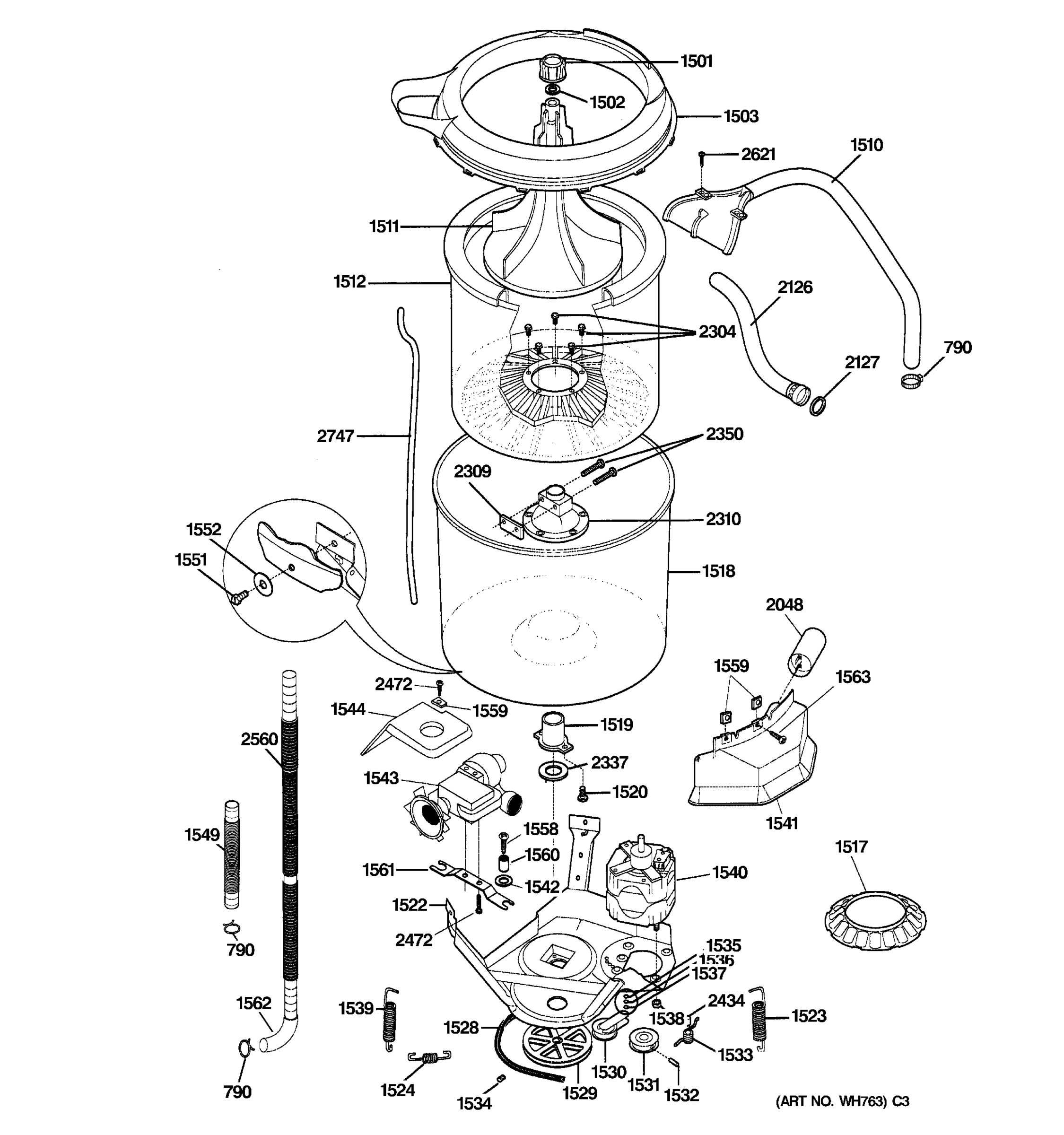

WASHER-TUBS, HOSES & MOTOR
Common parts from model GE WSM2780TCWAB
21
SCREW 8-18 X .31 GEN WR02X9494 Contact Us For Availability
221
SCREW PAN HD.8-18ABX.375 GEN WH01X10004 Contact Us For Availability
790
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
1108
GEN WH12X1040 GEN WH12X1040 Contact Us For Availability
1133
SCREW 8-18 AB X .044 GEN WH02X10038 Contact Us For Availability
1201
GEN WE20X0767 GEN WE20X0767 Contact Us For Availability
1203
GEN WE20X0741 GEN WE20X0741 Contact Us For Availability
1204
GEN WE20X0758 GEN WE20X0758 Contact Us For Availability
1205
GEN WE01X1152 GEN WE01X1152 Contact Us For Availability
1206
CLIP BALL GEN WE02X0358 Contact Us For Availability
1209
GEN WE20X0743 GEN WE20X0743 Contact Us For Availability
1211
GEN WE20X0744 GEN WE20X0744 Contact Us For Availability
1212
BEARING SHAFT GEN WE03X0070 Contact Us For Availability
1213
GEN WE13X0184 GEN WE13X0184 Contact Us For Availability
1214
SCREW 10-16 B X 1 3/8 GEN WE02X10005 Contact Us For Availability
1215
GEN WE14X0201 GEN WE14X0201 Contact Us For Availability
1218
SCREW 10-16 X 3/8 GEN WE02X10006 Contact Us For Availability
1219
GEN WE21X10004 GEN WE21X10004 Contact Us For Availability
1221
SEAL LOWER BASKET GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10007 GEN WE20X10007 Contact Us For Availability
1225
GEN WE01X1153 GEN WE01X1153 Contact Us For Availability
1227
GEN WE18X0053 GEN WE18X0053 Contact Us For Availability
1228
CLIP GUIDE GEN WE02X0361 Contact Us For Availability
1229
SCREW VANE 10-14 X 1 GEN WE02X10007 Contact Us For Availability
1230
VANE DRUM GEN WE21X0069 Contact Us For Availability
1231
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
1233
GEN WE04X0745 GEN WE04X0745 Contact Us For Availability
1238
PANEL SIDE RIGHT AD GEN WE20X0769 Contact Us For Availability
1239
PANEL ACCESS AD GEN WE20X0773 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
SCREW AB 10-16 X 1/2 GEN WE02X0365 Contact Us For Availability
1244
GASKET DOOR WH GEN WE09X0107 Contact Us For Availability
1245
GEN WE10X10006 GEN WE10X10006 Contact Us For Availability
1246
GEN WE01X10005 GEN WE01X10005 Contact Us For Availability
1248
GEN WE10X10007 GEN WE10X10007 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1250
SHEILD DOOR GEN WE10X0322 Contact Us For Availability
1301
GEN WE09X10001 GEN WE09X10001 Contact Us For Availability
1302
PLUG GEN WE01X1262 Contact Us For Availability
1306
GEN WE14X10002 GEN WE14X10002 Contact Us For Availability
1307
GEN WE09X0104 GEN WE09X0104 Contact Us For Availability
1309
GEN WH16X0515 GEN WH16X0515 Contact Us For Availability
1310
GEN WE14X10003 GEN WE14X10003 Contact Us For Availability
1315
GEN WE04X0747 GEN WE04X0747 Contact Us For Availability
1317
GEN WE14X10004 GEN WE14X10004 Contact Us For Availability
1318
GEN WE13X10001 GEN WE13X10001 Contact Us For Availability
1319
GEN WE13X0210 GEN WE13X0210 Contact Us For Availability
1322
GEN WE01X1159 GEN WE01X1159 Contact Us For Availability
1327
CLAMP MOTOR GEN WE01X10003 Contact Us For Availability
1328
GEN WE17X0054 GEN WE17X0054 Contact Us For Availability
1334
SHEILD ACCESS GEN WE01X1170 Contact Us For Availability
1338
GEN WE14X0206 GEN WE14X0206 Contact Us For Availability
1342
GEN WE13X0188 GEN WE13X0188 Contact Us For Availability
1344
GEN WE13X0189 GEN WE13X0189 Contact Us For Availability
1348
GEN WE13X10002 GEN WE13X10002 Contact Us For Availability
1350
GEN WE20X0753 GEN WE20X0753 Contact Us For Availability
1353
GEN WH01X10048 GEN WH01X10048 Contact Us For Availability
1361
GEN WE13X0191 GEN WE13X0191 Contact Us For Availability
1364
GEN WE01X1163 GEN WE01X1163 Contact Us For Availability
1367
GEN WE01X10007 GEN WE01X10007 Contact Us For Availability
1368
GEN WE01X1166 GEN WE01X1166 Contact Us For Availability
1369
NUT UNION GAS VALVE GEN WE02X0371 Contact Us For Availability
1370
GAS VALVE ASM GEN WE14X0207 Contact Us For Availability
1371
GEN WE04X0748 GEN WE04X0748 Contact Us For Availability
1372
GEN WE04X10004 GEN WE04X10004 Contact Us For Availability
1373
GEN WE01X1167 GEN WE01X1167 Contact Us For Availability
1373
NAT TO LP CONVERSION KIT GEN WE25X0206 Contact Us For Availability
1373
GEN WE25X0207 GEN WE25X0207 Contact Us For Availability
1375
GEN WE01X10021 GEN WE01X10021 Contact Us For Availability
1377
GEN WE01X10025 GEN WE01X10025 Contact Us For Availability
1379
GEN WE04X0751 GEN WE04X0751 Contact Us For Availability
1380
GEN WE14X0208 GEN WE14X0208 Contact Us For Availability
1404
GEN WH01X2600 GEN WH01X2600 Contact Us For Availability
1406
LID WASHER AD GEN WH44X1138 Contact Us For Availability
1409
GEN WH01X10041 GEN WH01X10041 Contact Us For Availability
1412
BUMPER LID GEN WH01X2604 Contact Us For Availability
1414
BLOCK HINGE GEN WH01X2622 Contact Us For Availability
1418
GEN WH01X10042 GEN WH01X10042 Contact Us For Availability
1418
GEN WH01X10013 GEN WH01X10013 Contact Us For Availability
1420
GEN WH01X2608 GEN WH01X2608 Contact Us For Availability
1438
BASE ASM GEN WH46X10025 Contact Us For Availability
1440
GEN WH01X10044 GEN WH01X10044 Contact Us For Availability
1440
GEN WH01X10043 GEN WH01X10043 Contact Us For Availability
1442
PANEL FRONT AD GEN WH46X0322 Contact Us For Availability
1447
BRACKET JOINER RH GEN WH16X0501 Contact Us For Availability
1447
BRACKET JOINER LH GEN WH16X0502 Contact Us For Availability
1450
GEN WH12X10035 GEN WH12X10035 Contact Us For Availability
1453
GEN WH46X10027 GEN WH46X10027 Contact Us For Availability
1454
GEN WH47X0041 GEN WH47X0041 Contact Us For Availability
1455
SPRING LID GEN WH01X2623 Contact Us For Availability
1501
GEN WH43X0118 GEN WH43X0118 Contact Us For Availability
1502
GEN WH08X0368 GEN WH08X0368 Contact Us For Availability
1503
GEN WH45X0150 GEN WH45X0150 Contact Us For Availability
1510
GEN WH41X0329 GEN WH41X0329 Contact Us For Availability
1512
GEN WH45X10017 GEN WH45X10017 Contact Us For Availability
1517
GEN WH01X10047 GEN WH01X10047 Contact Us For Availability
1518
GEN WH45X10018 GEN WH45X10018 Contact Us For Availability
1519
GEN WH04X0104 GEN WH04X0104 Contact Us For Availability
1522
GEN WH01X2720 GEN WH01X2720 Contact Us For Availability
1523
GEN WH01X2624 GEN WH01X2624 Contact Us For Availability
1524
GEN WH01X2718 GEN WH01X2718 Contact Us For Availability
1529
GEN WH07X0123 GEN WH07X0123 Contact Us For Availability
1530
IDLER PULLEY ASM GEN WH07X0115 Contact Us For Availability
1531
GEN WH07X0116 GEN WH07X0116 Contact Us For Availability
1532
GEN WH01X2615 GEN WH01X2615 Contact Us For Availability
1533
GEN WH01X2616 GEN WH01X2616 Contact Us For Availability
1534
GEN WH01X10045 GEN WH01X10045 Contact Us For Availability
1535
RNG RETAINING GEN WH02X1132 Contact Us For Availability
1536
GEN WH02X1133 GEN WH02X1133 Contact Us For Availability
1537
WASHER SPRING GEN WH02X1094 Contact Us For Availability
1539
SPRING VERTICAL GEN WH01X2625 Contact Us For Availability
1540
GEN WH20X0868 GEN WH20X0868 Contact Us For Availability
1541
GEN WH16X0529 GEN WH16X0529 Contact Us For Availability
1542
GEN WH01X2766 GEN WH01X2766 Contact Us For Availability
1543
GEN WH23X0082 GEN WH23X0082 Contact Us For Availability
1544
GEN WH16X0523 GEN WH16X0523 Contact Us For Availability
1549
GEN WH41X10027 GEN WH41X10027 Contact Us For Availability
1558
GEN WE02X10004 GEN WE02X10004 Contact Us For Availability
1559
CLIP SHIELD GEN WH02X1143 Contact Us For Availability
1560
GEN WH01X2767 GEN WH01X2767 Contact Us For Availability
1561
GEN WH16X0524 GEN WH16X0524 Contact Us For Availability
1562
BUSHING, SNAP GEN WH01X2769 Contact Us For Availability
1601
GEN WH02X10039 GEN WH02X10039 Contact Us For Availability
1602
GEN WH40X10001 GEN WH40X10001 Contact Us For Availability
1605
GEN WH02X1136 GEN WH02X1136 Contact Us For Availability
1621
GEN WH60X10003 GEN WH60X10003 Contact Us For Availability
1624
GEN WH40X0176 GEN WH40X0176 Contact Us For Availability
1625
GEN WH37X10001 GEN WH37X10001 Contact Us For Availability
2008
GEN WE02X10016 GEN WE02X10016 Contact Us For Availability
2013
GEN WE02X10003 GEN WE02X10003 Contact Us For Availability
2018
GEN WH02X10060 GEN WH02X10060 Contact Us For Availability
2048
GEN WH12X1039 GEN WH12X1039 Contact Us For Availability
2119
GEN WH12X10036 GEN WH12X10036 Contact Us For Availability
2121
GEN WE04X10003 GEN WE04X10003 Contact Us For Availability
2127
GEN WH02X10041 GEN WH02X10041 Contact Us For Availability
2154
HEATER THERMOSTAT GEN WE04X0746 Contact Us For Availability
2155
GEN WH13X10002 GEN WH13X10002 Contact Us For Availability
2236
CLIP, DR HOSE TO CAB GEN WH01X2786 Contact Us For Availability
2304
GEN WH02X1142 GEN WH02X1142 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X0095 GEN WH17X0095 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2350
GEN WH02X1107 GEN WH02X1107 Contact Us For Availability
2405
GEN WH08X0364 GEN WH08X0364 Contact Us For Availability
2411
GEN WH01X2320 GEN WH01X2320 Contact Us For Availability
2412
SCREW 5/16-18 X 1 GEN NOT STOCKD Contact Us For Availability
2413
GEN WH08X0365 GEN WH08X0365 Contact Us For Availability
2414
GEN WH05X0240 GEN WH05X0240 Contact Us For Availability
2415
GEN WH40X0162 GEN WH40X0162 Contact Us For Availability
2416
GEN WH05X0241 GEN WH05X0241 Contact Us For Availability
2421
GEN WH39X0048 GEN WH39X0048 Contact Us For Availability
2426
SCREW GEN WH02X10040 Contact Us For Availability
2434
SLEEVE IDLER GEN WH02X1111 Contact Us For Availability
2450
GEN WH02X1031 GEN WH02X1031 Contact Us For Availability
2451
GEN WH02X1016 GEN WH02X1016 Contact Us For Availability
2454
SMALL LGS SPRING GEN WH01X2324 Contact Us For Availability
2455
GEN WH05X0242 GEN WH05X0242 Contact Us For Availability
2462
GEN WH02X1032 GEN WH02X1032 Contact Us For Availability
2472
SCREW, PUMP/BRK./SHIELD GEN WH02X1139 Contact Us For Availability
2530
GEN WH01X2592 GEN WH01X2592 Contact Us For Availability
2535
LEVELIN LEG & PAD GEN WH01X10049 Contact Us For Availability
2537
SCREW 6-20 X 3/8 GEN WH02X1126 Contact Us For Availability
2560
GEN WH41X0378 GEN WH41X0378 Contact Us For Availability
2574
GEN WH02X10004 GEN WH02X10004 Contact Us For Availability
2621
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
2747
GEN WH41X0203 GEN WH41X0203 Contact Us For Availability
2761
GEN WE08X0044 GEN WE08X0044 Contact Us For Availability
× ![]()
