Model GE WSM2700WBAA Washer/Dryer Combo – Common Parts & Diagrams

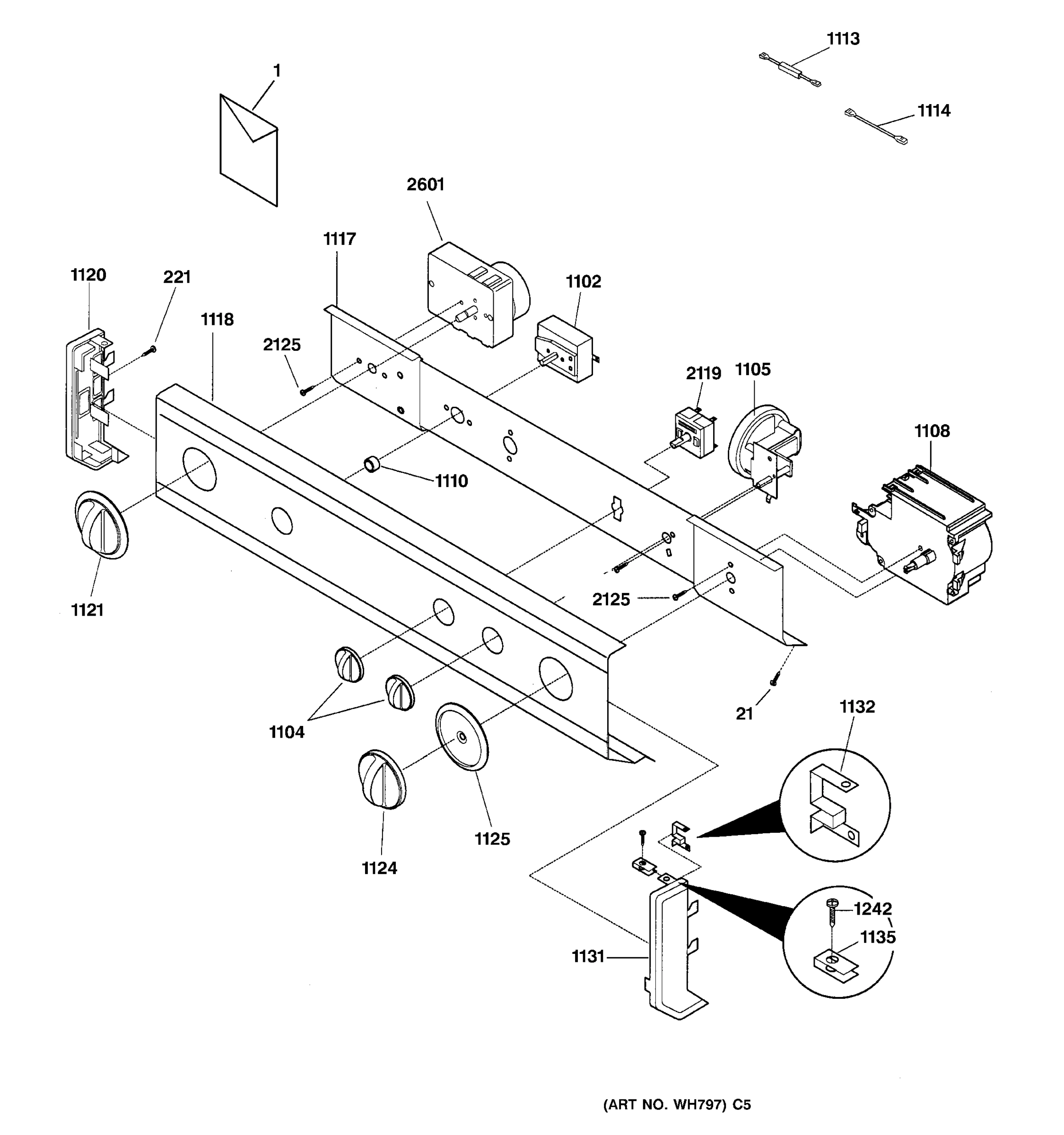

CONTROL PANEL

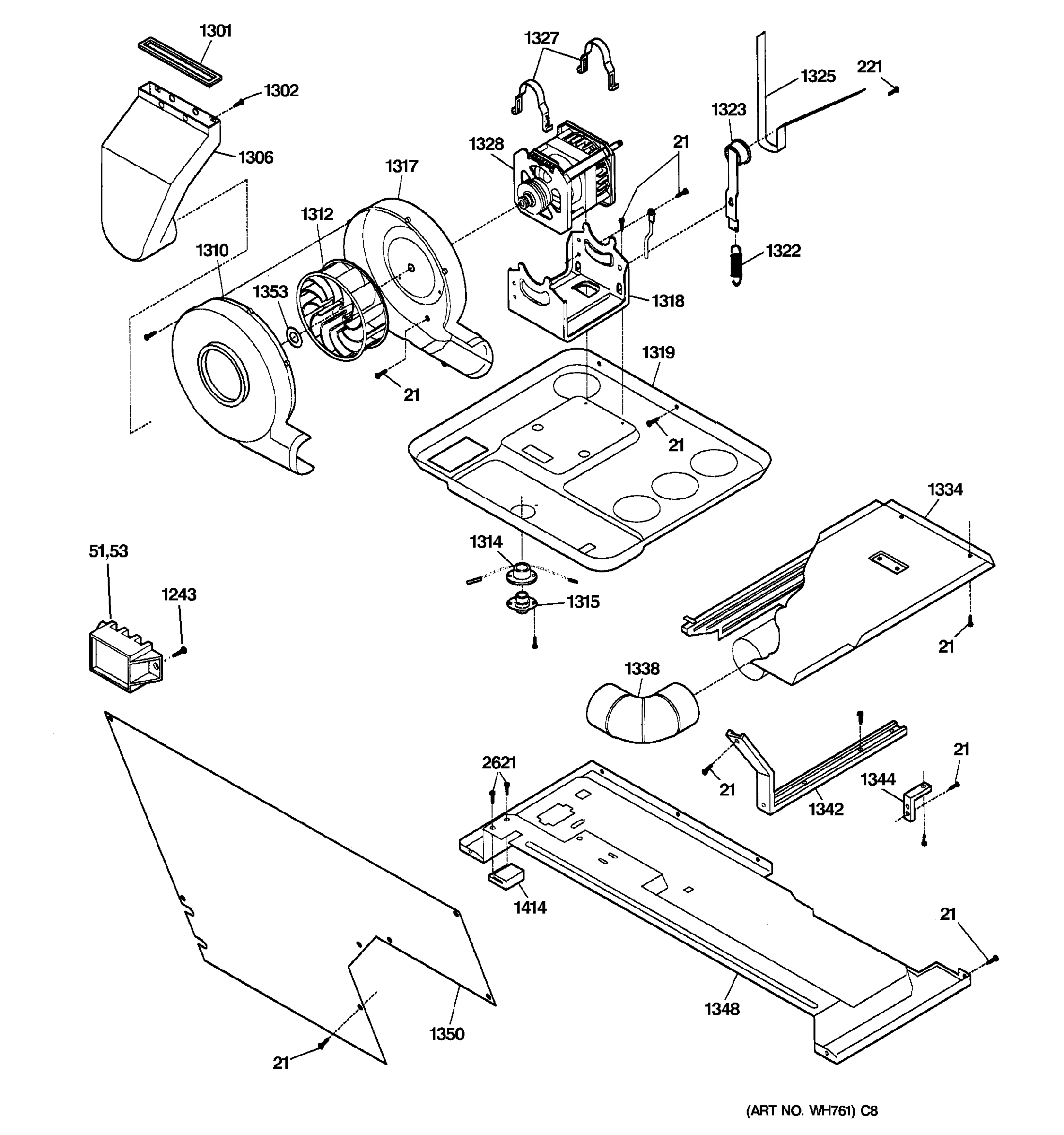

DRYER MOTOR, BLOWER & BELT

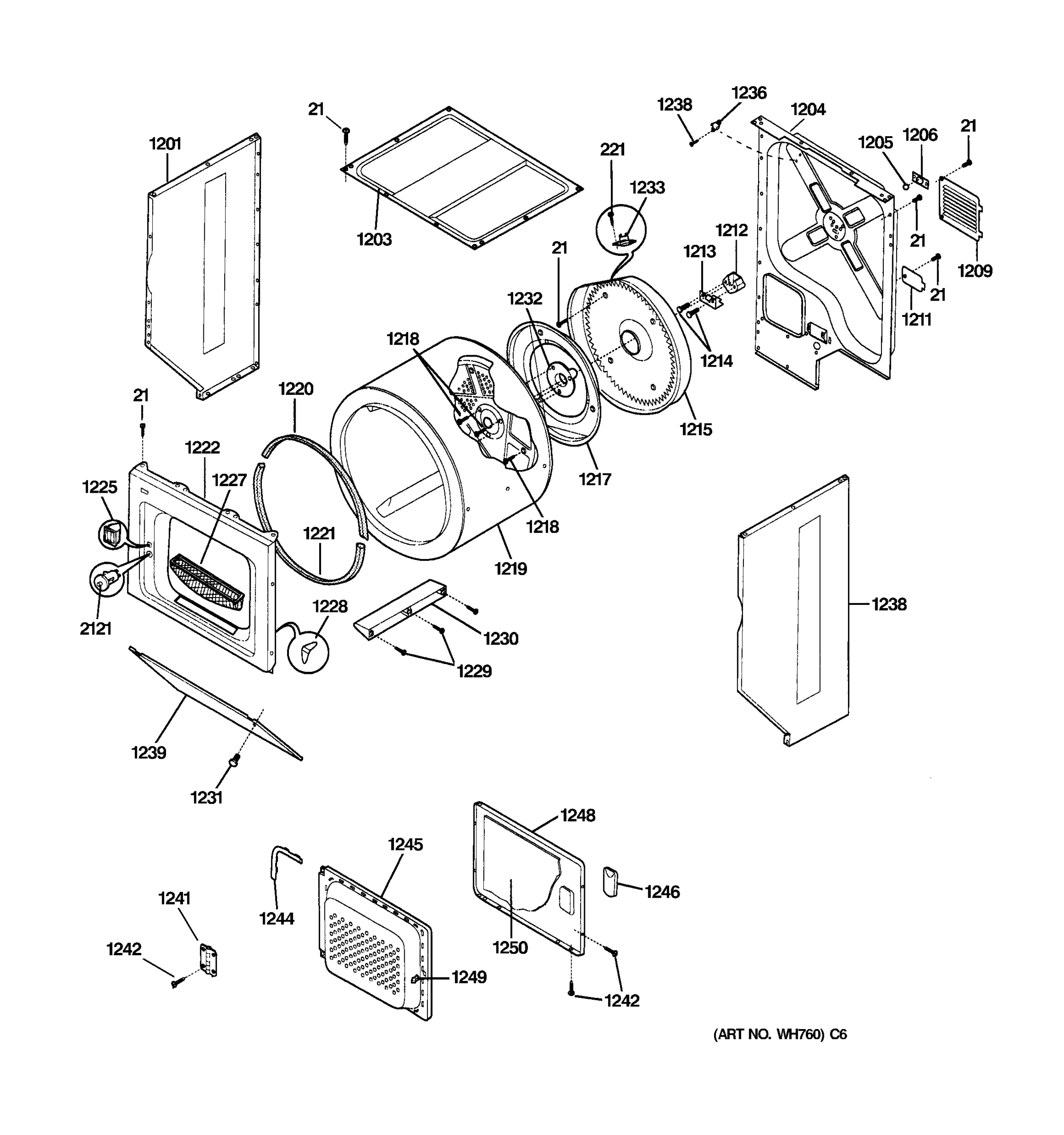

DRYER UPPER CABINET, DRUM & HEATER

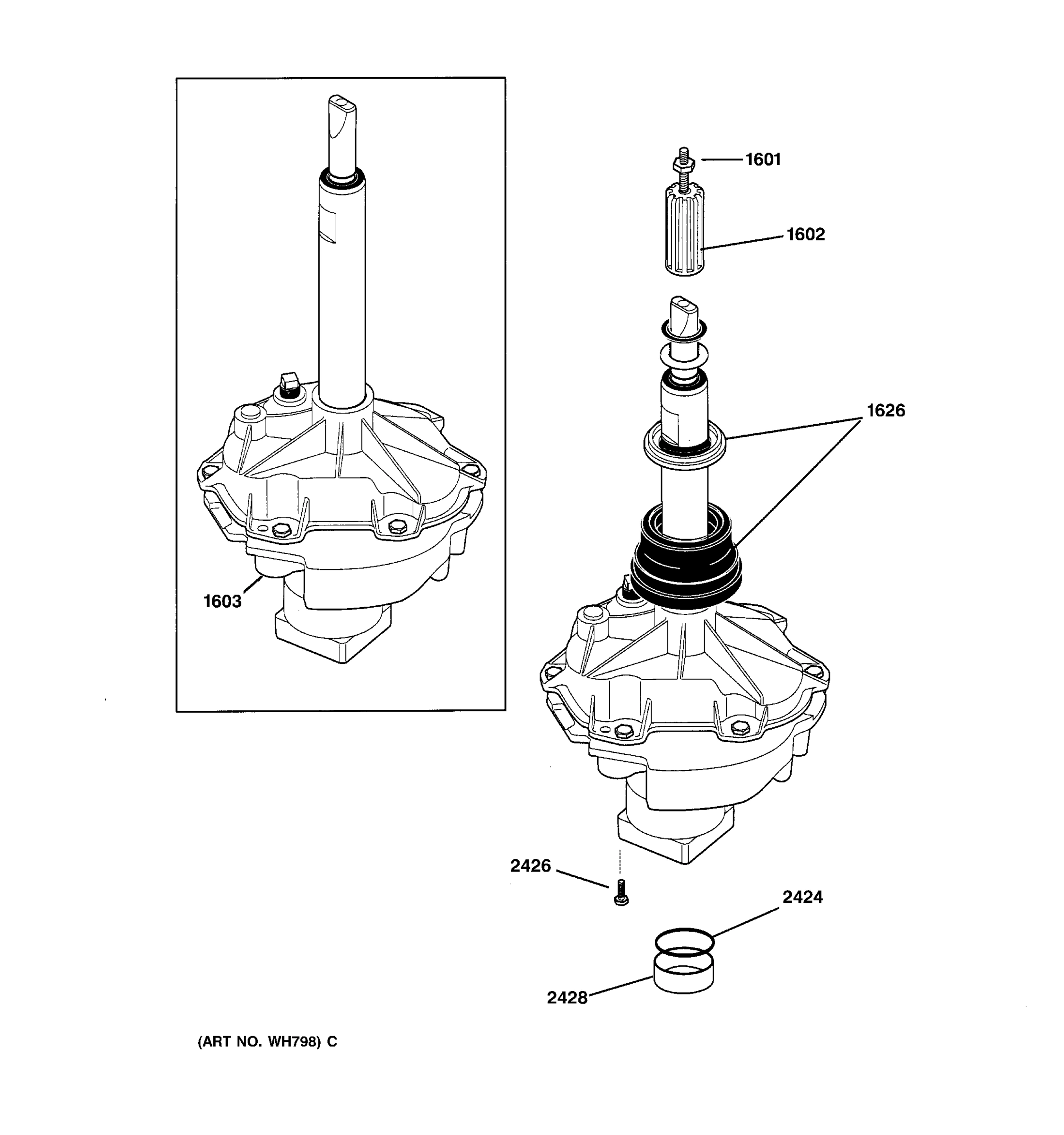

TRANSMISSION

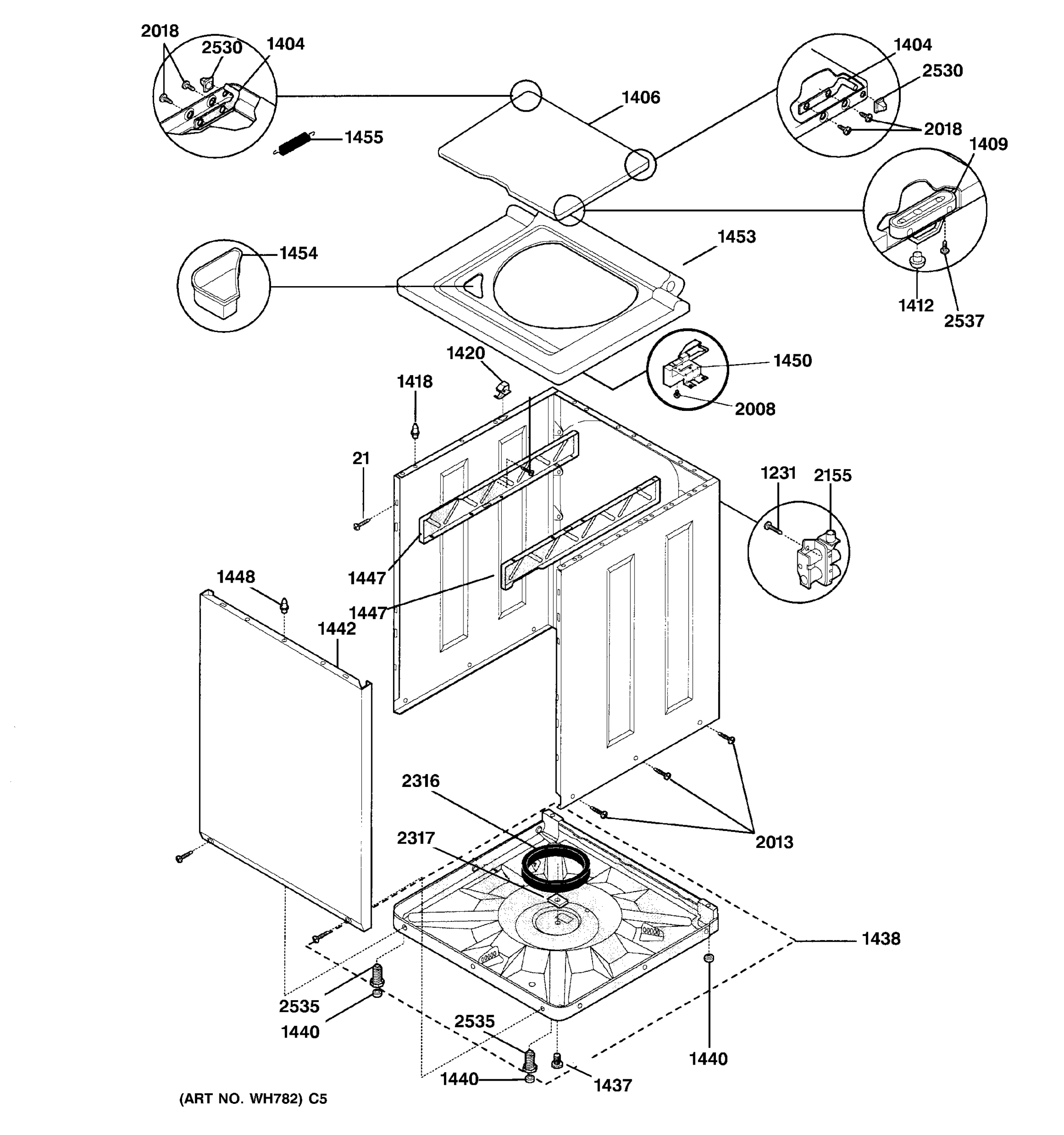

WASHER LOWER CABINET & TOP

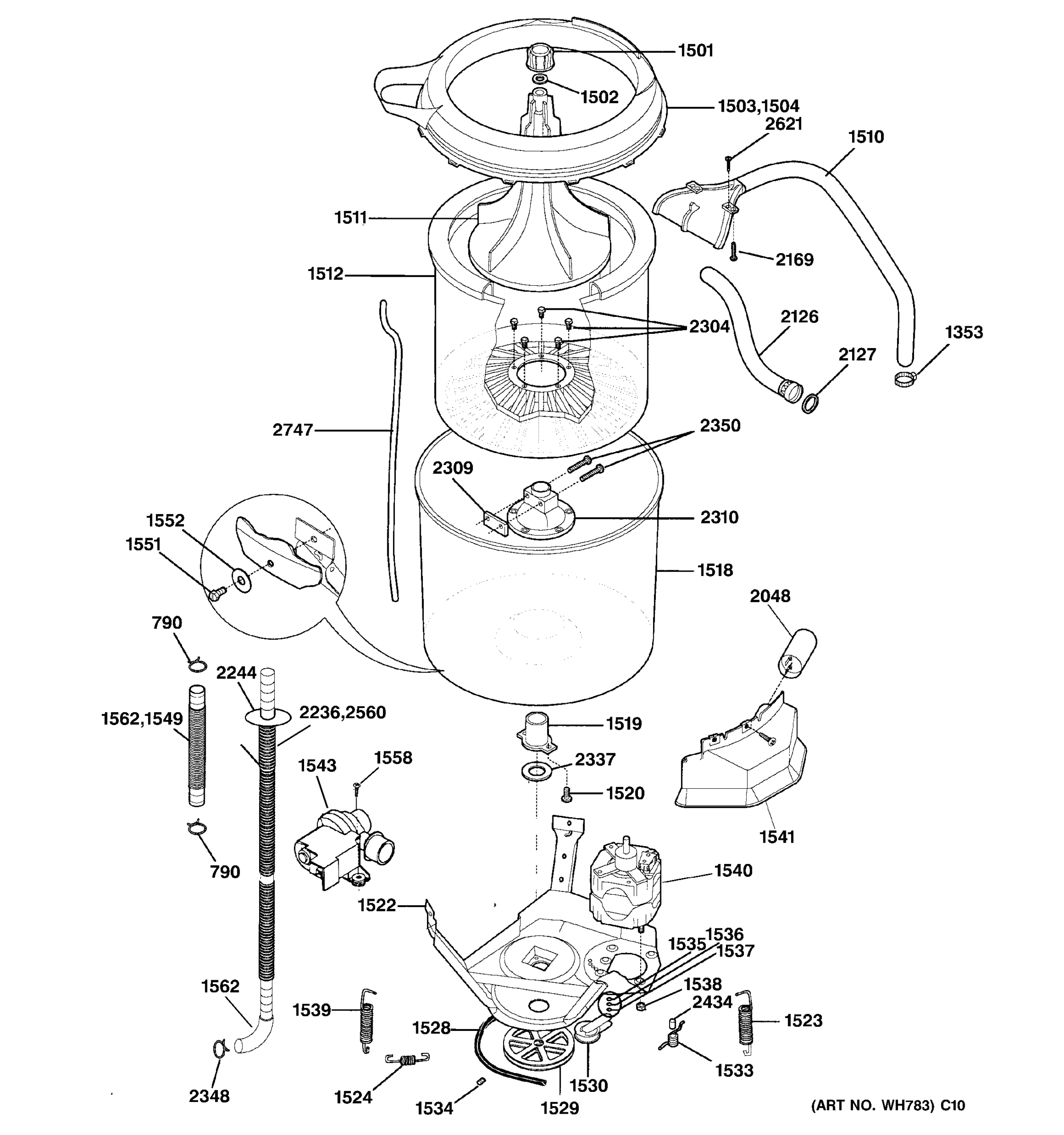

WASHER MOTOR & TUB
Common parts from model GE WSM2700WBAA Washer/Dryer Combo
21
SCREW 8-18 X 0.31 GEN WR02X9494 Contact Us For Availability
221
SCREW 8-18AB X .375 GEN WH01X10004 Contact Us For Availability
1102
SWITCH-PUSH START GEN WE04X10057 Contact Us For Availability
1105
SWITCH-PRESSURE GEN WH12X10083 Contact Us For Availability
1201
PANEL-LEFT SIDE AD GEN WE20X0767 Contact Us For Availability
1203
PANEL, GALVANIZED GEN WE20X0741 Contact Us For Availability
1204
PANEL-REAR GEN WE20X10015 Contact Us For Availability
1205
GEN WE01X1152 GEN WE01X1152 Contact Us For Availability
1206
CLIP-BALL GEN WE02X0358 Contact Us For Availability
1209
PANEL-ACCESS, DRYER GEN WE20X0743 Contact Us For Availability
1211
COVER-TERM BLOCK GEN WE20X0754 Contact Us For Availability
1212
GEN WE03X10002 GEN WE03X10002 Contact Us For Availability
1213
GEN WE13X10009 GEN WE13X10009 Contact Us For Availability
1214
SCREW 10-16B X 1.375 GEN WE02X10005 Contact Us For Availability
1217
BAFFLE-HEATER GEN WE14X0202 Contact Us For Availability
1218
SCREW 10-16 X .375 GEN WE02X10006 Contact Us For Availability
1219
DRUM ASSEMBLY GEN WE21X10006 Contact Us For Availability
1221
SEAL-BASKET LOWER GEN WE09X0105 Contact Us For Availability
1222
PANEL-FRONT AD GEN WE20X10007 Contact Us For Availability
1225
CATCH-DOOR GEN WE01X10023 Contact Us For Availability
1227
TRAP-LINT GEN WE18X10003 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
SCREW 10-14X1.00 GEN WE02X10007 Contact Us For Availability
1230
GEN WE21X0069 GEN WE21X0069 Contact Us For Availability
1231
SCREW 10-16 X .625 GEN WE02X10002 Contact Us For Availability
1236
GEN WE04X0774 GEN WE04X0774 Contact Us For Availability
1238
SCREW 6-20 X .230 GEN WE02X10033 Contact Us For Availability
1238
PANEL-RIGHT SIDE AD GEN WE20X0769 Contact Us For Availability
1239
PANEL-ACCESS AD GEN WE20X0773 Contact Us For Availability
1241
HINGE-DOOR GEN WE01X10012 Contact Us For Availability
1242
SCREW 8-18AB X .44 GEN WH02X10038 Contact Us For Availability
1243
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
1244
GEN WE09X0107 GEN WE09X0107 Contact Us For Availability
1245
DOOR-INNER AD GEN WE10X10006 Contact Us For Availability
1246
HANDLE-DOOR AD GEN WE01X10049 Contact Us For Availability
1248
DOOR-OUTER AD GEN WE10X10011 Contact Us For Availability
1249
STRIKE-DOOR GEN WE01X1158 Contact Us For Availability
1250
SHIELD-HEAT GEN WE10X0322 Contact Us For Availability
1301
SEAL-AIR DUCT GEN WE09X10001 Contact Us For Availability
1314
THERMOSTAT-HEATER GEN WE04X10039 Contact Us For Availability
1342
BRACKET-MARRIAGE GEN WE13X0188 Contact Us For Availability
1344
BRACKET-EXTERNAL GEN WE13X0189 Contact Us For Availability
1348
PAN-BOTTOM GEN WE13X10012 Contact Us For Availability
1350
COVER-SAFETY GEN WE20X0753 Contact Us For Availability
1353
CLAMP GEN WH01X10048 Contact Us For Availability
1404
HINGE-BAR GEN WH01X2600 Contact Us For Availability
1406
LID-ALMOND GEN WH44X1138 Contact Us For Availability
1409
STRIKE-LID GEN WH01X10041 Contact Us For Availability
1412
BUMPER-LID GEN WH01X2604 Contact Us For Availability
1414
GEN WH01X2622 GEN WH01X2622 Contact Us For Availability
1418
GEN WH01X10013 GEN WH01X10013 Contact Us For Availability
1420
PIN-SLIDE GEN WH01X2608 Contact Us For Availability
1437
GEN WH01X10105 GEN WH01X10105 Contact Us For Availability
1438
GEN WH46X10025 GEN WH46X10025 Contact Us For Availability
1440
PAD-LEVEL LEG GEN WH01X10044 Contact Us For Availability
1440
PAD-LEVELING LEG GEN WH01X10043 Contact Us For Availability
1442
PANEL-FRONT,ALMOND GEN WH46X0322 Contact Us For Availability
1447
BRACKET RH GEN WH16X0501 Contact Us For Availability
1447
BRACKET LH GEN WH16X0502 Contact Us For Availability
1448
PIN-LOCATING GEN WH01X10042 Contact Us For Availability
1450
LOCK-LID GEN WH12X10084 Contact Us For Availability
1453
PANEL-TOP AD GEN WH46X10027 Contact Us For Availability
1454
DISPENSER-BLEACH GEN WH47X0041 Contact Us For Availability
1455
SPRING-LID GEN WH01X2623 Contact Us For Availability
1501
CAP-AGITATOR GEN WH43X0118 Contact Us For Availability
1502
SEAL-CAP GEN WH08X0368 Contact Us For Availability
1503
ASMY-SPLASH TUB COVER GEN WH45X10039 Contact Us For Availability
1504
GEN WH45X10040 GEN WH45X10040 Contact Us For Availability
1510
HOSE AND NOZZLE GEN WH41X10039 Contact Us For Availability
1512
TUB-SPIN,AND TRUNNION GEN WH45X10017 Contact Us For Availability
1518
TUB-SPLASH,W\AIR DOME,BR GEN WH45X10018 Contact Us For Availability
1519
BEARING-OUTER TUB GEN WH04X0104 Contact Us For Availability
1520
SCREW 8-12 X .750 GEN WH01X10100 Contact Us For Availability
1522
LEG & DOME ASSY GEN WH01X2720 Contact Us For Availability
1523
SPRING-VERTICAL,SHORT GEN WH01X2624 Contact Us For Availability
1524
SPRING-HORIZONTAL GEN WH01X2718 Contact Us For Availability
1529
PULLEY-TRANSMISSION GEN WH07X0123 Contact Us For Availability
1530
ASMY-VAW IDLER ARM GEN WH07X10005 Contact Us For Availability
1533
SPRING-TORSION GEN WH01X2616 Contact Us For Availability
1534
SCREW 5/16-18X.85 GEN WH01X10045 Contact Us For Availability
1535
GEN WH02X1132 GEN WH02X1132 Contact Us For Availability
1536
WASHER-PIVOT SHAFT GEN WH02X1133 Contact Us For Availability
1537
WASHER-SPRING GEN WH02X1094 Contact Us For Availability
1538
NUT-MOTOR GEN WH01X10101 Contact Us For Availability
1539
GEN WH01X2625 GEN WH01X2625 Contact Us For Availability
1540
MTR/PULLEY 1SPD 1/2HP GEN WH20X10015 Contact Us For Availability
1541
SHIELD-MOTOR GEN WH16X0529 Contact Us For Availability
1543
ASMY-PUMP GEN WH23X10009 Contact Us For Availability
1549
HOSE-PUMP TO TUB GEN WH41X10027 Contact Us For Availability
1551
SCREW 5/16-18 X .875 GEN WH01X10102 Contact Us For Availability
1552
WASHER-LEG GEN WH01X10103 Contact Us For Availability
1558
SCREW-PUMP-TO BRACKET GEN WE02X10004 Contact Us For Availability
1562
GEN WH01X2769 GEN WH01X2769 Contact Us For Availability
1601
STUD-AGITATOR CAP GEN WH02X10039 Contact Us For Availability
1602
HUB-DRIVE,AGITATOR GEN WH40X10001 Contact Us For Availability
2008
SCREW 8-32 X .375 GEN WE02X10016 Contact Us For Availability
2013
SCREW 1/4-14 X 0.625 GEN WE02X10003 Contact Us For Availability
2018
GEN WH02X10060 GEN WH02X10060 Contact Us For Availability
2048
GEN WH12X1039 GEN WH12X1039 Contact Us For Availability
2119
SWITCH-TEMPERATURE GEN WH12X10036 Contact Us For Availability
2121
SWITCH-DOOR GEN WE04X10003 Contact Us For Availability
2127
WASHER-INLET HOSE GEN WH02X10041 Contact Us For Availability
2155
VALVE-WATER GEN WH13X10002 Contact Us For Availability
2169
GEN WH02X10061 GEN WH02X10061 Contact Us For Availability
2236
GEN WH01X2768 GEN WH01X2768 Contact Us For Availability
2236
GEN WH01X2786 GEN WH01X2786 Contact Us For Availability
2244
RING-DRAIN HOSE GEN WH01X10063 Contact Us For Availability
2304
SCREW-TRUNNION GEN WH02X1142 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X10004 GEN WH17X10004 Contact Us For Availability
2316
RING-SNUBBER GEN WH01X2312 Contact Us For Availability
2317
GEN WH01X10099 GEN WH01X10099 Contact Us For Availability
2337
WASHER,SPIN BEARING GEN WH02X1009 Contact Us For Availability
2348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
2350
SCREW .312-18 X.1.625 GEN WH02X1107 Contact Us For Availability
2424
WASHER-TRANS-BRG GEN WH02X10086 Contact Us For Availability
2426
SCREW GEN WH02X10040 Contact Us For Availability
2428
SPACER-TRANS BRG GEN WH01X10094 Contact Us For Availability
2434
SLEEVE-IDLER GEN WH02X1111 Contact Us For Availability
2530
GROMMET-HINGE GEN WH01X2592 Contact Us For Availability
2535
LEG-LEVELING, W/PAD GEN WH01X10049 Contact Us For Availability
2537
SCREW 6-20 X .375 GEN WH02X1126 Contact Us For Availability
2560
HOSE-DRAIN, 90 INCH GEN WH41X0378 Contact Us For Availability
2621
SCREW 10-10B X 0.50 GEN WH02X10007 Contact Us For Availability
2747
TUBE-PRESSURE GEN WH41X10038 Contact Us For Availability
× ![]()
