Model GE WSM2700WAWCC Washer/Dryer Combo – Common Parts & Diagrams
CONSOLE & CONTROLS
DRYER CABINET, DRUM & HEATER

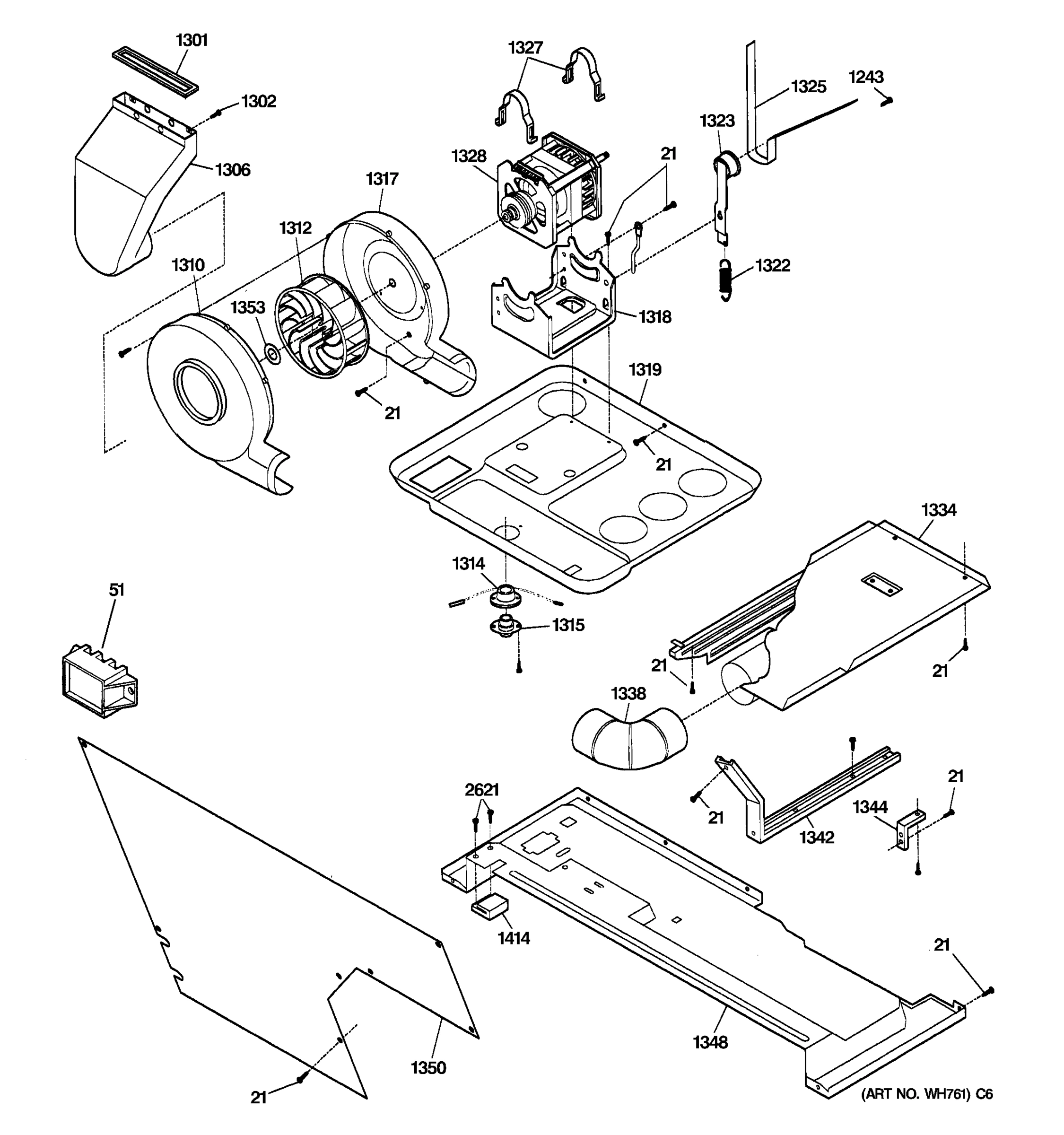

DRYER MOTOR, BLOWER & BELT

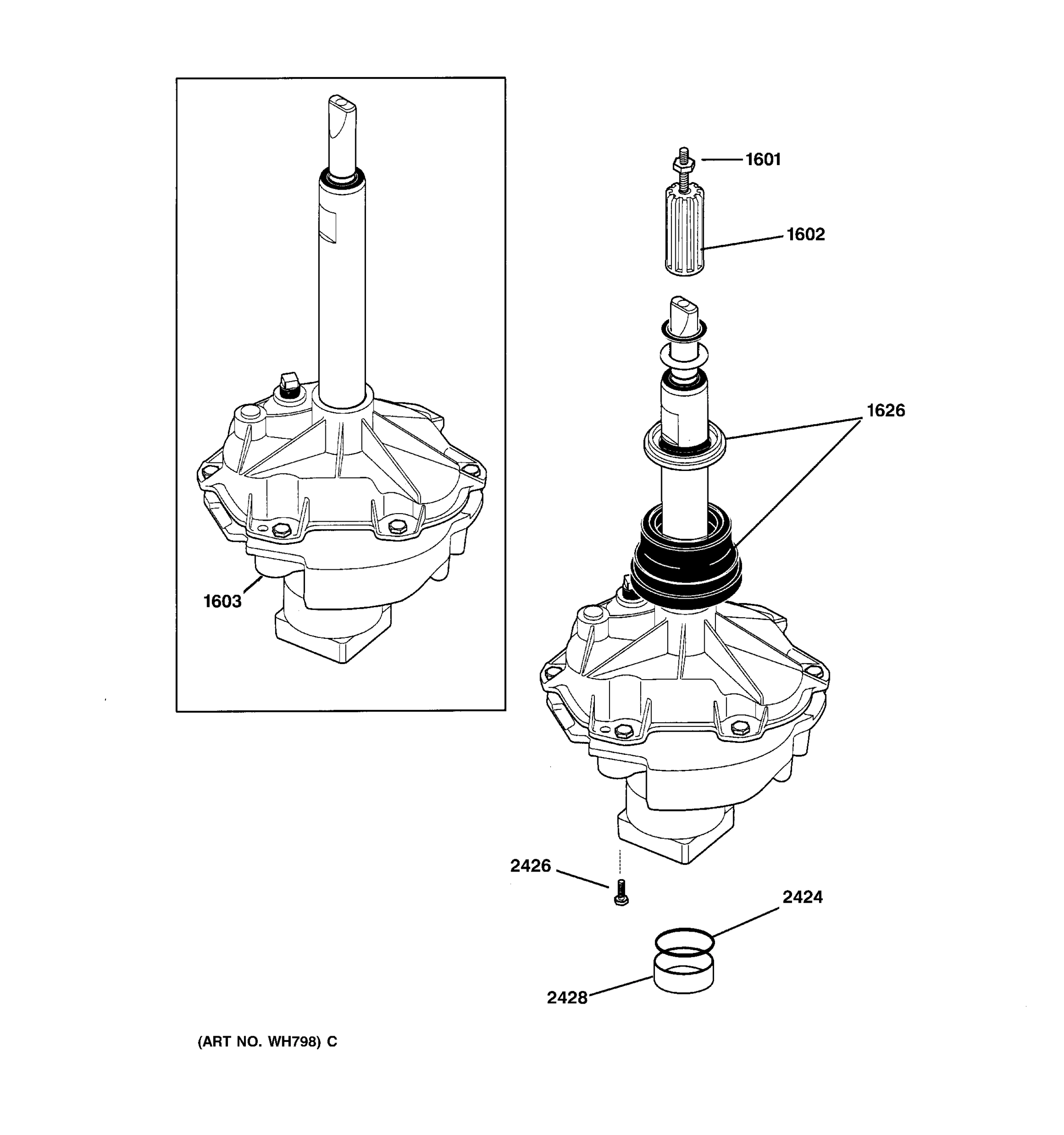

TRANSMISSION ASSEMBLY

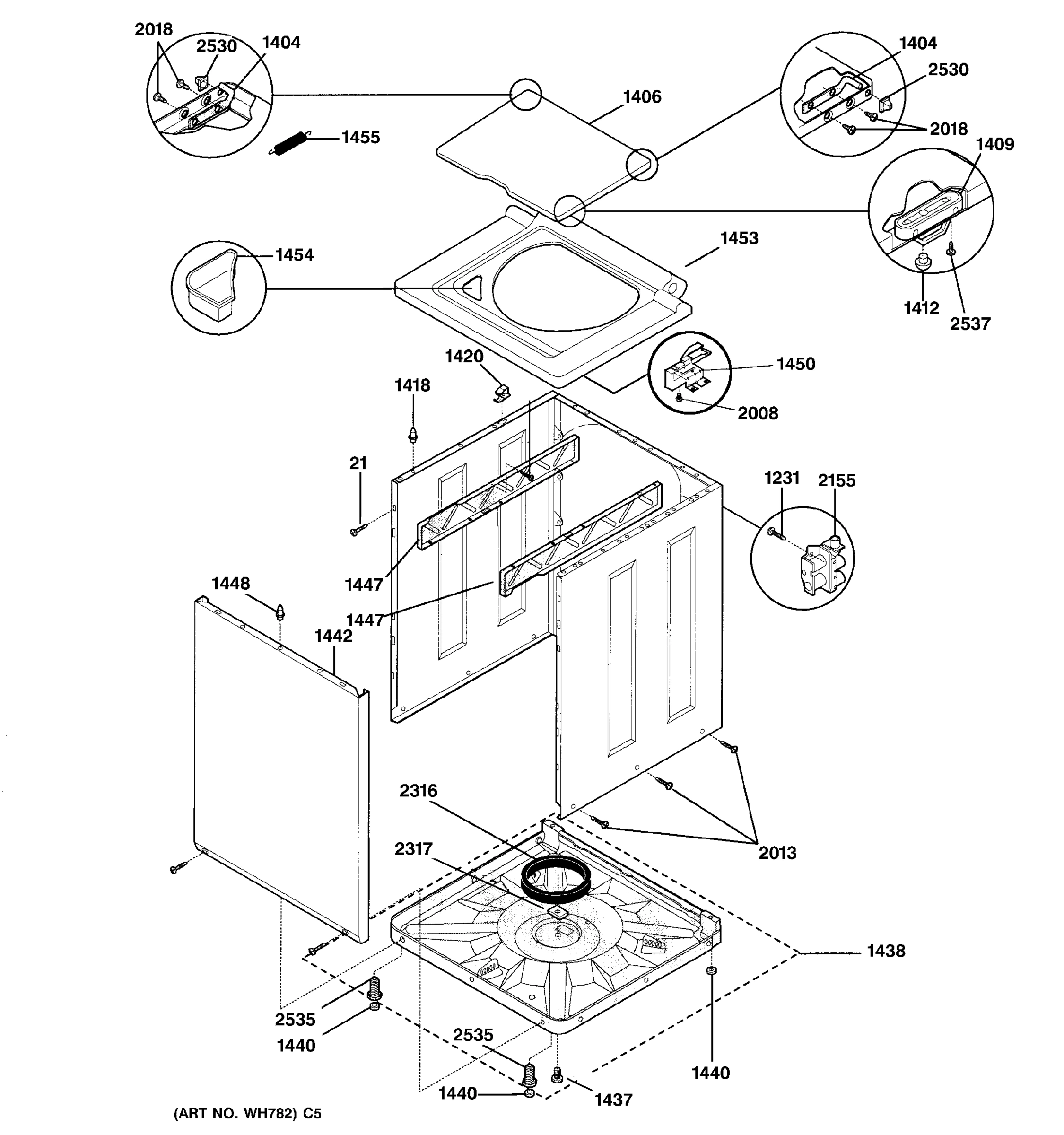

WASHER CABINET

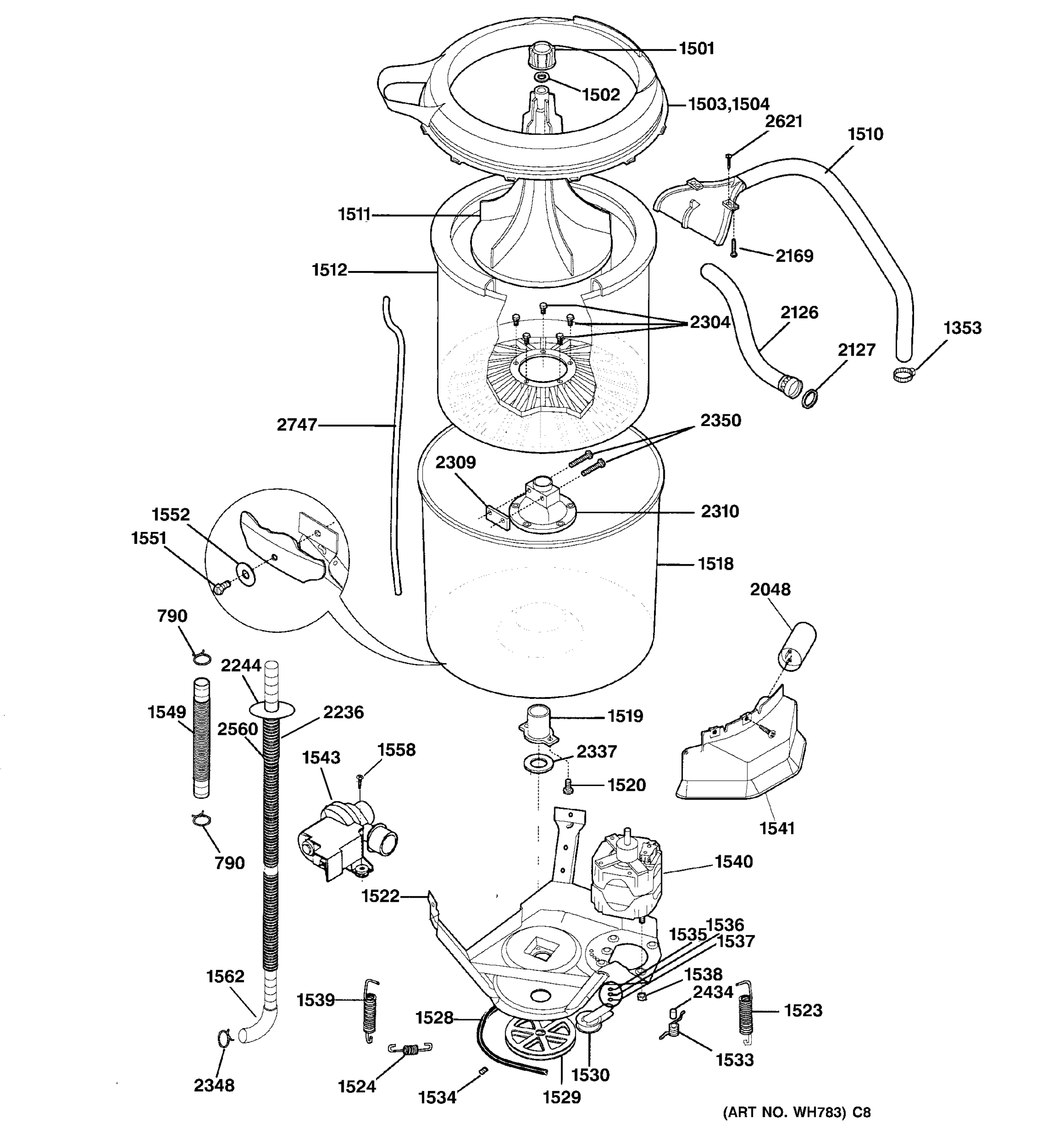

WASHER TUB, HOSES & MOTOR
Common parts from model GE WSM2700WAWCC Washer/Dryer Combo
21
SCREW GEN WR02X9494 Contact Us For Availability
51
BLOCK-TERMINAL GEN WE04X0716 Contact Us For Availability
221
SCREW 8-18 AB X .375 GEN WH01X10004 Contact Us For Availability
1102
GEN WE04X10057 GEN WE04X10057 Contact Us For Availability
1105
SWITCH WATER LEEVEL GEN WH12X10083 Contact Us For Availability
1121
GEN WE01X10164 GEN WE01X10164 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1225
CATCH DOOR GEN WE01X10023 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
SCREW-VANE GEN WE02X10007 Contact Us For Availability
1230
GEN WE21X0069 GEN WE21X0069 Contact Us For Availability
1231
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
1236
GEN WE04X0774 GEN WE04X0774 Contact Us For Availability
1238
GEN WE20X10068 GEN WE20X10068 Contact Us For Availability
1239
GEN WE20X10066 GEN WE20X10066 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1243
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
1244
GASKET DOOR GEN WE09X0107 Contact Us For Availability
1245
GEN WE10X10004 GEN WE10X10004 Contact Us For Availability
1246
GEN WE01X10162 GEN WE01X10162 Contact Us For Availability
1248
GEN WE10X10012 GEN WE10X10012 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1250
SHEILD HEAT GEN WE10X0322 Contact Us For Availability
1301
GEN WE09X10001 GEN WE09X10001 Contact Us For Availability
1302
FASTENER GEN WE01X1262 Contact Us For Availability
1306
GEN WE14X10019 GEN WE14X10019 Contact Us For Availability
1310
GEN WE14X10020 GEN WE14X10020 Contact Us For Availability
1314
GEN WE04X10039 GEN WE04X10039 Contact Us For Availability
1315
GEN WE04X0755 GEN WE04X0755 Contact Us For Availability
1317
GEN WE14X10004 GEN WE14X10004 Contact Us For Availability
1318
GEN WE13X0211 GEN WE13X0211 Contact Us For Availability
1319
GEN WE13X0210 GEN WE13X0210 Contact Us For Availability
1322
GEN WE01X1159 GEN WE01X1159 Contact Us For Availability
1327
CLAMP MOTOR GEN WE01X10003 Contact Us For Availability
1328
GEN WE17X0054 GEN WE17X0054 Contact Us For Availability
1334
GEN WE01X10043 GEN WE01X10043 Contact Us For Availability
1338
GEN WE14X0206 GEN WE14X0206 Contact Us For Availability
1342
GEN WE13X0188 GEN WE13X0188 Contact Us For Availability
1344
GEN WE13X0189 GEN WE13X0189 Contact Us For Availability
1348
GEN WE13X10012 GEN WE13X10012 Contact Us For Availability
1350
GEN WE20X0753 GEN WE20X0753 Contact Us For Availability
1353
GEN WH01X10048 GEN WH01X10048 Contact Us For Availability
1404
GEN WH01X2600 GEN WH01X2600 Contact Us For Availability
1406
GEN WH44X10107 GEN WH44X10107 Contact Us For Availability
1409
GEN WH01X10041 GEN WH01X10041 Contact Us For Availability
1412
BUMPER LID GEN WH01X2604 Contact Us For Availability
1414
GEN WH01X2622 GEN WH01X2622 Contact Us For Availability
1418
GEN WH01X10013 GEN WH01X10013 Contact Us For Availability
1420
GEN WH01X2608 GEN WH01X2608 Contact Us For Availability
1437
GEN WH01X10105 GEN WH01X10105 Contact Us For Availability
1438
GEN WH46X10025 GEN WH46X10025 Contact Us For Availability
1440
GEN WH01X10044 GEN WH01X10044 Contact Us For Availability
1440
GEN WH01X10043 GEN WH01X10043 Contact Us For Availability
1442
GEN WH46X10086 GEN WH46X10086 Contact Us For Availability
1447
GEN WH16X0501 GEN WH16X0501 Contact Us For Availability
1447
GEN WH16X0502 GEN WH16X0502 Contact Us For Availability
1448
GEN WH01X10042 GEN WH01X10042 Contact Us For Availability
1450
GEN WH12X10084 GEN WH12X10084 Contact Us For Availability
1453
GEN WH46X10087 GEN WH46X10087 Contact Us For Availability
1454
GEN WH47X0041 GEN WH47X0041 Contact Us For Availability
1455
SPRING LID GEN WH01X2623 Contact Us For Availability
1501
GEN WH43X0118 GEN WH43X0118 Contact Us For Availability
1502
GEN WH08X0368 GEN WH08X0368 Contact Us For Availability
1503
GEN WH45X10039 GEN WH45X10039 Contact Us For Availability
1504
GEN WH45X10040 GEN WH45X10040 Contact Us For Availability
1510
GEN WH41X10039 GEN WH41X10039 Contact Us For Availability
1512
GEN WH45X10017 GEN WH45X10017 Contact Us For Availability
1518
GEN WH45X10018 GEN WH45X10018 Contact Us For Availability
1519
GEN WH04X0104 GEN WH04X0104 Contact Us For Availability
1520
GEN WH01X10100 GEN WH01X10100 Contact Us For Availability
1522
GEN WH01X2720 GEN WH01X2720 Contact Us For Availability
1523
GEN WH01X2624 GEN WH01X2624 Contact Us For Availability
1524
GEN WH01X2718 GEN WH01X2718 Contact Us For Availability
1529
GEN WH07X10006 GEN WH07X10006 Contact Us For Availability
1530
GEN WH07X10005 GEN WH07X10005 Contact Us For Availability
1533
GEN WH01X2616 GEN WH01X2616 Contact Us For Availability
1534
GEN WH01X10045 GEN WH01X10045 Contact Us For Availability
1535
GEN WH02X1132 GEN WH02X1132 Contact Us For Availability
1536
GEN WH02X1133 GEN WH02X1133 Contact Us For Availability
1537
WASHER SPRING GEN WH02X1094 Contact Us For Availability
1538
GEN WH01X10101 GEN WH01X10101 Contact Us For Availability
1539
GEN WH01X2625 GEN WH01X2625 Contact Us For Availability
1540
GEN WH20X10015 GEN WH20X10015 Contact Us For Availability
1541
GEN WH16X0529 GEN WH16X0529 Contact Us For Availability
1543
GEN WH23X10009 GEN WH23X10009 Contact Us For Availability
1549
GEN WH41X10027 GEN WH41X10027 Contact Us For Availability
1551
GEN WH01X10102 GEN WH01X10102 Contact Us For Availability
1552
GEN WH01X10103 GEN WH01X10103 Contact Us For Availability
1558
GEN WE02X10004 GEN WE02X10004 Contact Us For Availability
1562
GEN WH01X2769 GEN WH01X2769 Contact Us For Availability
1601
GEN WH02X10039 GEN WH02X10039 Contact Us For Availability
1602
GEN WH40X10001 GEN WH40X10001 Contact Us For Availability
2008
GEN WE02X10016 GEN WE02X10016 Contact Us For Availability
2013
GEN WE02X10003 GEN WE02X10003 Contact Us For Availability
2018
GEN WH02X10060 GEN WH02X10060 Contact Us For Availability
2048
GEN WH12X1039 GEN WH12X1039 Contact Us For Availability
2119
GEN WH12X10036 GEN WH12X10036 Contact Us For Availability
2121
GEN WE04X10003 GEN WE04X10003 Contact Us For Availability
2127
GEN WH02X10041 GEN WH02X10041 Contact Us For Availability
2155
GEN WH13X10002 GEN WH13X10002 Contact Us For Availability
2169
GEN WH02X10061 GEN WH02X10061 Contact Us For Availability
2236
GEN WH01X2768 GEN WH01X2768 Contact Us For Availability
2236
GEN WH01X2786 GEN WH01X2786 Contact Us For Availability
2244
GEN WH01X10063 GEN WH01X10063 Contact Us For Availability
2304
GEN WH02X1142 GEN WH02X1142 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X10004 GEN WH17X10004 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2317
GEN WH01X10099 GEN WH01X10099 Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
2350
GEN WH02X1107 GEN WH02X1107 Contact Us For Availability
2424
GEN WH02X10086 GEN WH02X10086 Contact Us For Availability
2426
SCREW GEN WH02X10040 Contact Us For Availability
2428
GEN WH01X10094 GEN WH01X10094 Contact Us For Availability
2434
SLEEVE IDLER GEN WH02X1111 Contact Us For Availability
2530
GEN WH01X2592 GEN WH01X2592 Contact Us For Availability
2535
GEN WH01X10049 GEN WH01X10049 Contact Us For Availability
2537
SCREW 6-20 X 3/8 GEN WH02X1126 Contact Us For Availability
2560
HOSE-DRAIN, 90" GEN WH41X0378 Contact Us For Availability
2621
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
2747
GEN WH41X10038 GEN WH41X10038 Contact Us For Availability
× ![]()
