Model GE WSM2700LDW – Common Parts & Diagrams

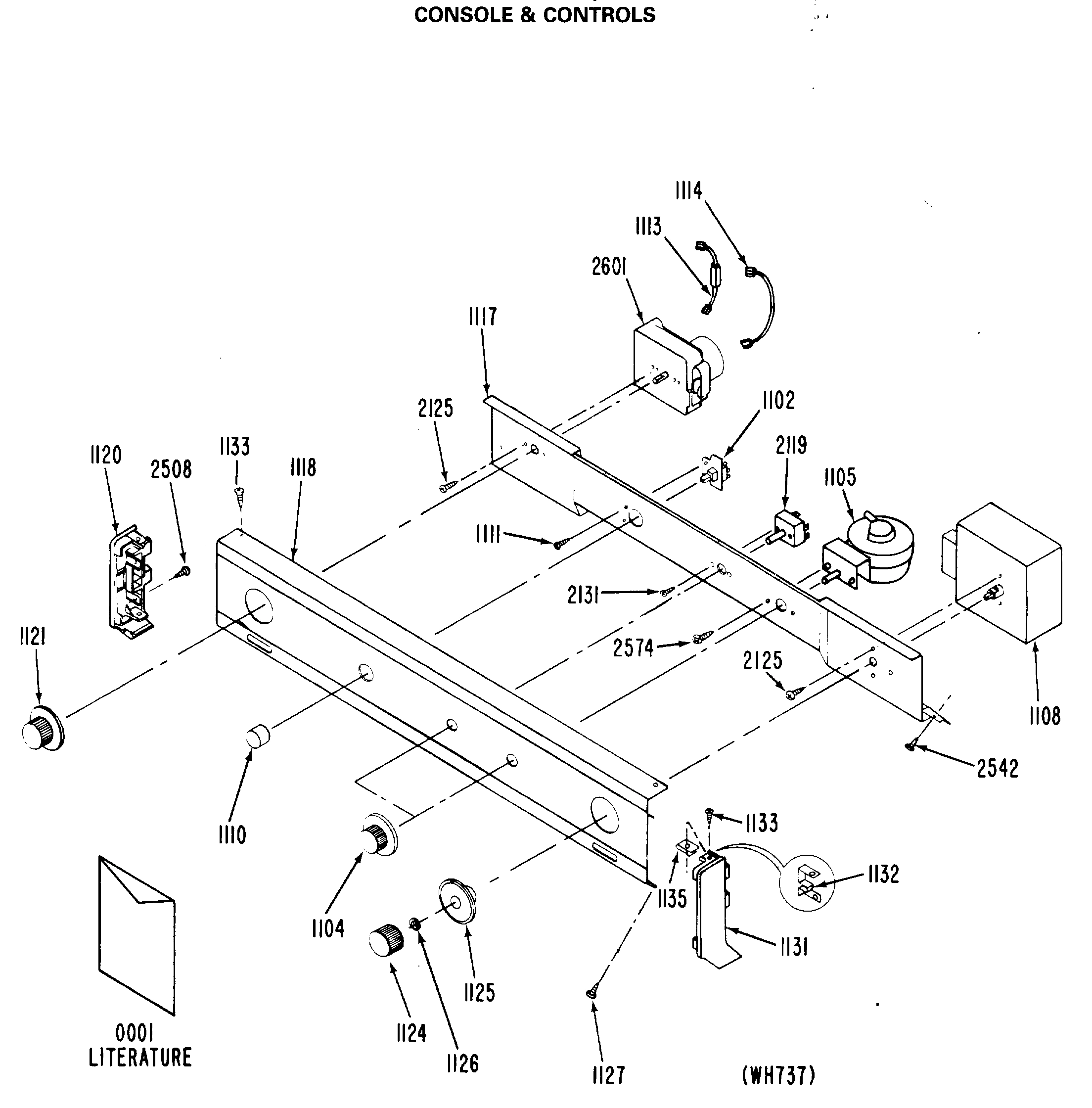

CONSOLE & CONTROLS

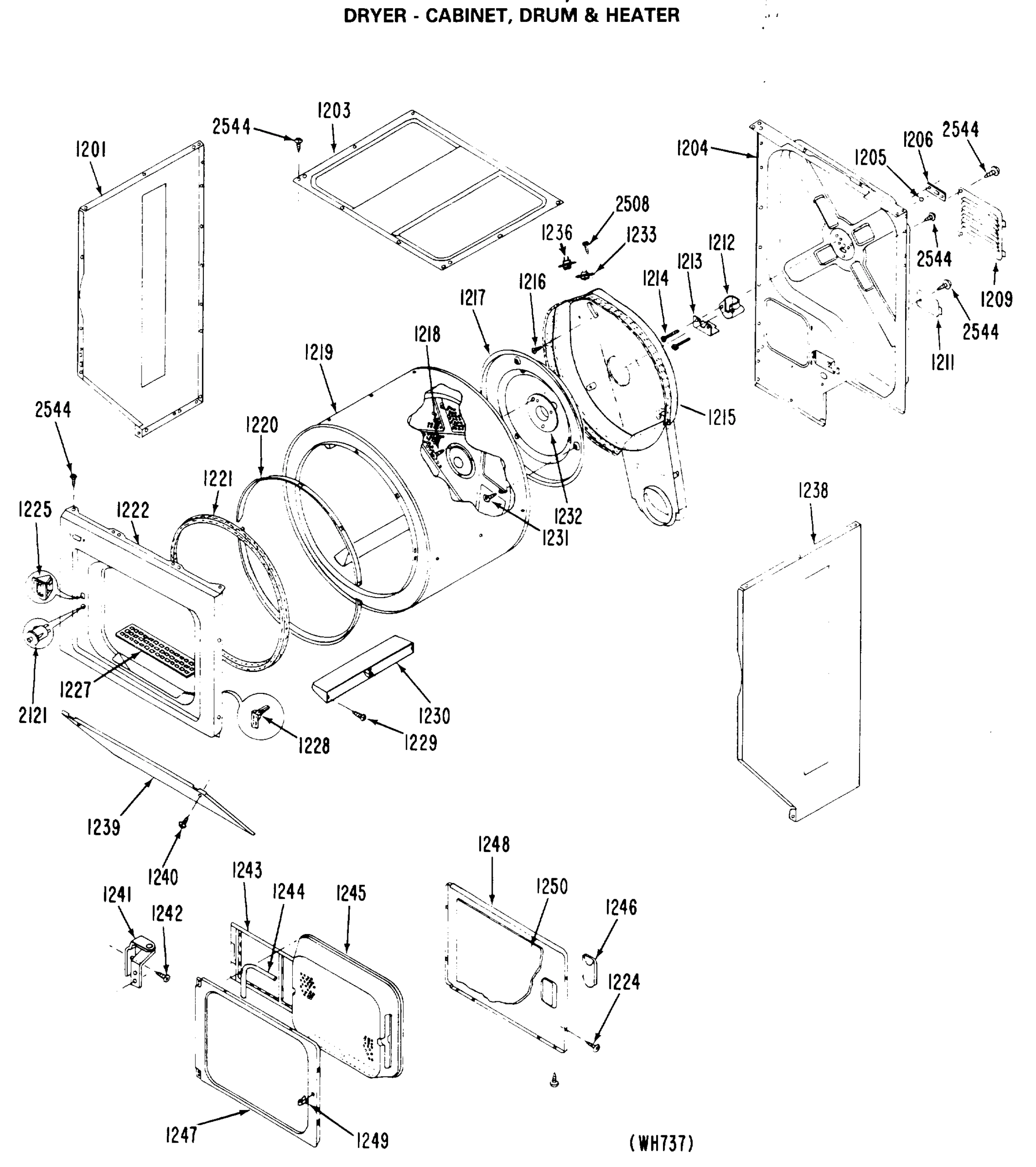

DRYER - CABINET, DRUM & HEATER

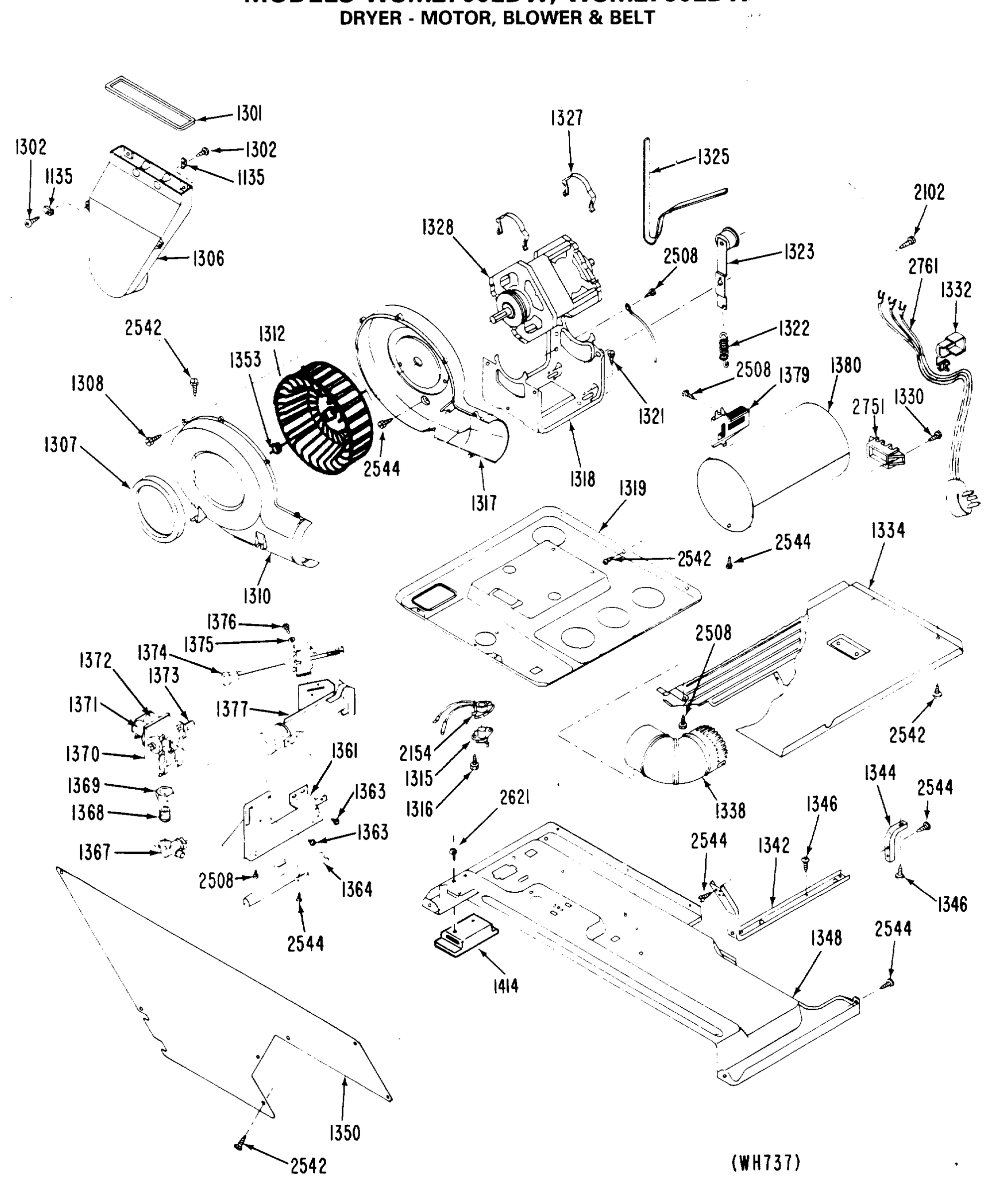

DRYER - MOTOR, BLOWER & BELT

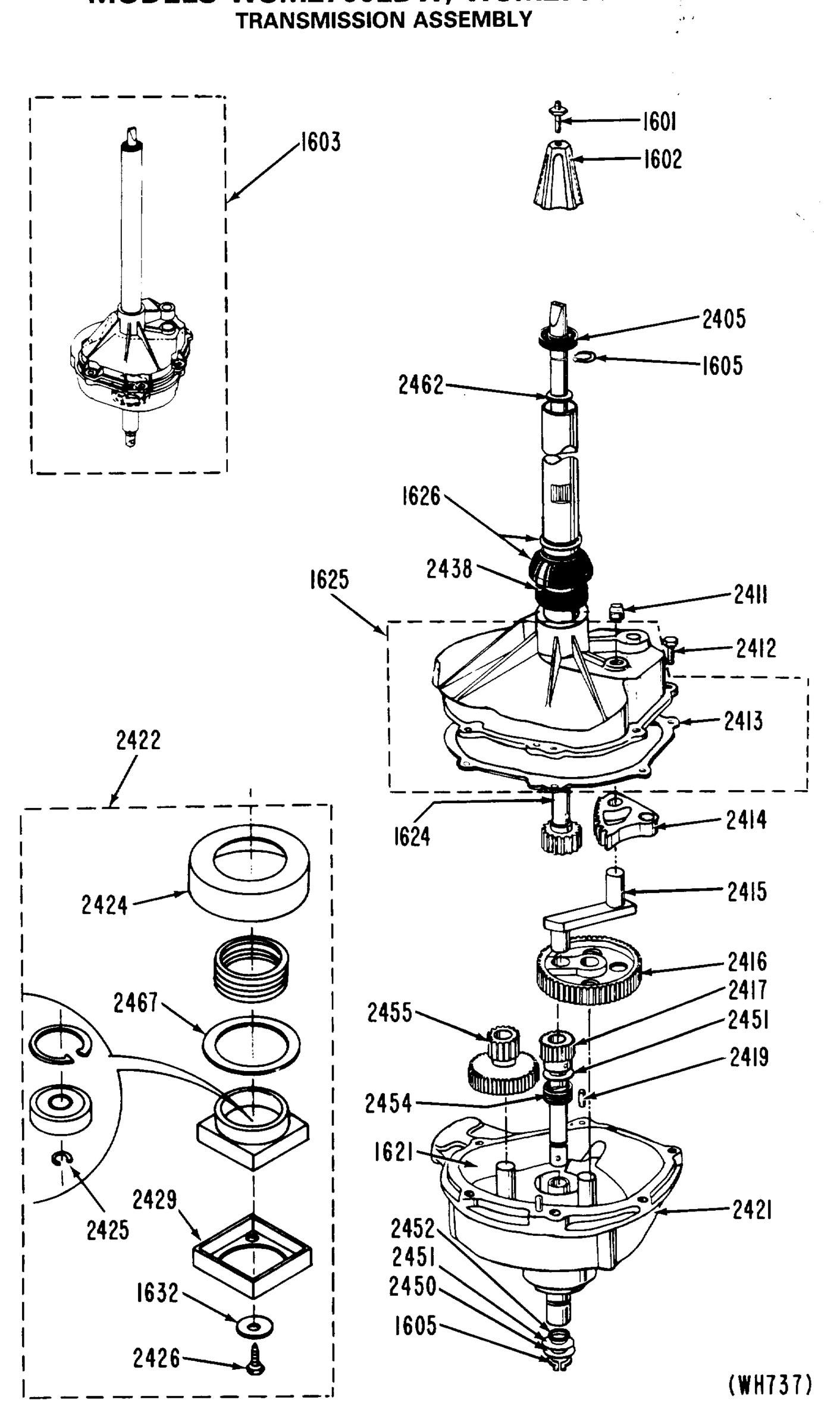

TRANSMISSION ASSEMBLY

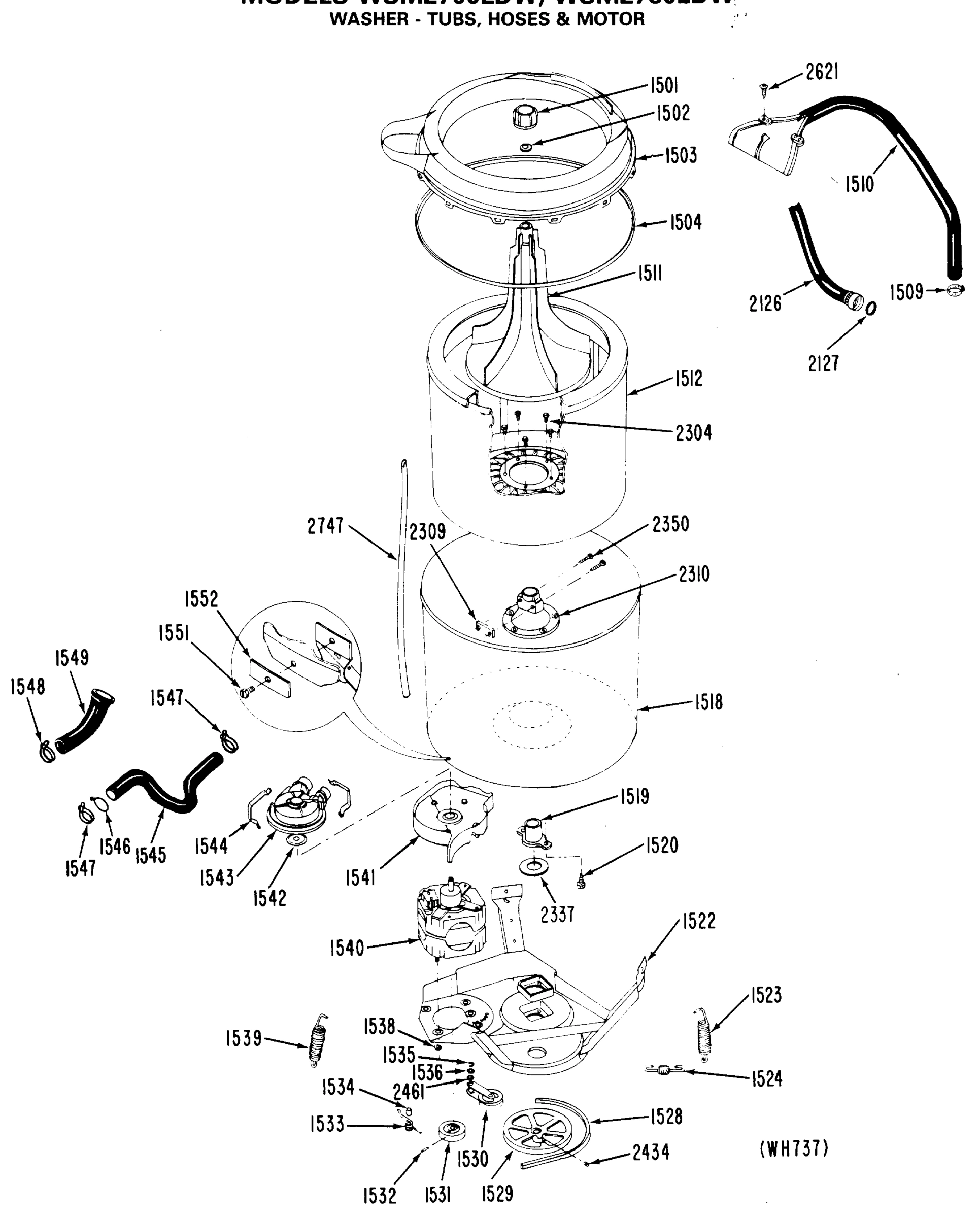

WASHER - TUBS, HOSES & MOTOR

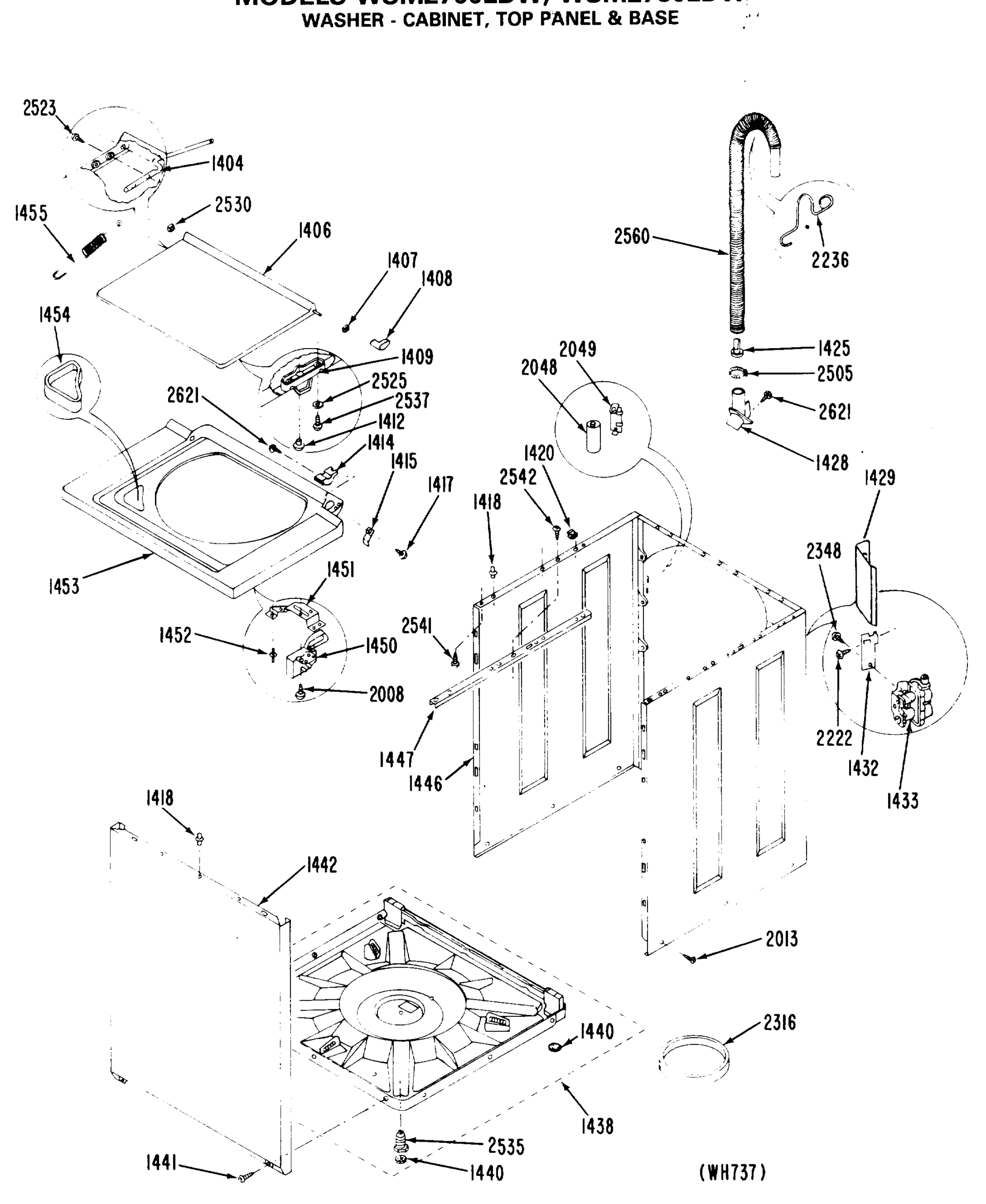

WASHER -CABINET, TOP PANEL & BASE
Common parts from model GE WSM2700LDW
1
GEN 31-2422 GEN 31-2422 Contact Us For Availability
1
GEN 31-2534 GEN 31-2534 Contact Us For Availability
1
GEN 31-2535 GEN 31-2535 Contact Us For Availability
1
GEN 49-9632 GEN 49-9632 Contact Us For Availability
1102
GEN WE04X0743 GEN WE04X0743 Contact Us For Availability
1104
GEN WE01X1149 GEN WE01X1149 Contact Us For Availability
1105
GEN WH12X0867 GEN WH12X0867 Contact Us For Availability
1108
GEN WH12X0868 GEN WH12X0868 Contact Us For Availability
1110
GEN WE01X1150 GEN WE01X1150 Contact Us For Availability
1113
RESISTOR 3K 1/2 W GEN WE04X0744 Contact Us For Availability
1114
RESISTOR POWER GEN WE04X0752 Contact Us For Availability
1117
GEN WH16X0494 GEN WH16X0494 Contact Us For Availability
1118
GEN WH42X2170 GEN WH42X2170 Contact Us For Availability
1120
GEN WH42X2171 GEN WH42X2171 Contact Us For Availability
1121
GEN WE01X1151 GEN WE01X1151 Contact Us For Availability
1124
GEN WH01X2598 GEN WH01X2598 Contact Us For Availability
1125
GEN WH01X2599 GEN WH01X2599 Contact Us For Availability
1126
GEN WH02X1127 GEN WH02X1127 Contact Us For Availability
1127
GEN WH02X1128 GEN WH02X1128 Contact Us For Availability
1131
GEN WH42X2172 GEN WH42X2172 Contact Us For Availability
1132
GEN WH02X1129 GEN WH02X1129 Contact Us For Availability
1133
GEN WH02X1130 GEN WH02X1130 Contact Us For Availability
1135
CLIP GEN WH02X1131 Contact Us For Availability
1201
GEN WE20X0739 GEN WE20X0739 Contact Us For Availability
1201
GEN WE20X0740 GEN WE20X0740 Contact Us For Availability
1203
GEN WE20X0741 GEN WE20X0741 Contact Us For Availability
1204
GEN WE20X0758 GEN WE20X0758 Contact Us For Availability
1205
GEN WE01X1152 GEN WE01X1152 Contact Us For Availability
1206
CLIP GEN WE02X0358 Contact Us For Availability
1209
PANEL ACCESS MOTOR GEN WE20X0743 Contact Us For Availability
1211
GEN WE20X0754 GEN WE20X0754 Contact Us For Availability
1212
BEARING GEN WE03X0070 Contact Us For Availability
1213
GEN WE13X0184 GEN WE13X0184 Contact Us For Availability
1214
GEN WE02X0359 GEN WE02X0359 Contact Us For Availability
1215
GEN WE11X0092 GEN WE11X0092 Contact Us For Availability
1217
BAFFLE HEAT GEN WE14X0202 Contact Us For Availability
1218
GEN WE02X0360 GEN WE02X0360 Contact Us For Availability
1219
GEN WE21X0070 GEN WE21X0070 Contact Us For Availability
1221
SEAL LOWER FELT GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X0745 GEN WE20X0745 Contact Us For Availability
1222
GEN WE20X0746 GEN WE20X0746 Contact Us For Availability
1225
GEN WE01X1153 GEN WE01X1153 Contact Us For Availability
1227
GEN WE20X0747 GEN WE20X0747 Contact Us For Availability
1227
GEN WE20X0748 GEN WE20X0748 Contact Us For Availability
1228
CLIP GUIDE GEN WE02X0361 Contact Us For Availability
1229
GEN WE02X0362 GEN WE02X0362 Contact Us For Availability
1230
VANE DRUM GEN WE21X0069 Contact Us For Availability
1231
GEN WE02X0363 GEN WE02X0363 Contact Us For Availability
1232
GEN WE13X0185 GEN WE13X0185 Contact Us For Availability
1236
LIMITER THERMAL GEN WE04X0774 Contact Us For Availability
1238
GEN WE20X0749 GEN WE20X0749 Contact Us For Availability
1238
GEN WE20X0750 GEN WE20X0750 Contact Us For Availability
1239
GEN WE20X0751 GEN WE20X0751 Contact Us For Availability
1239
GEN WE20X0752 GEN WE20X0752 Contact Us For Availability
1240
GEN WE02X0364 GEN WE02X0364 Contact Us For Availability
1241
GEN WE01X1154 GEN WE01X1154 Contact Us For Availability
1241
GEN WE01X1155 GEN WE01X1155 Contact Us For Availability
1242
GEN WE02X0365 GEN WE02X0365 Contact Us For Availability
1242
GEN WE02X0366 GEN WE02X0366 Contact Us For Availability
1243
GEN WE18X0052 GEN WE18X0052 Contact Us For Availability
1244
GEN WE09X0102 GEN WE09X0102 Contact Us For Availability
1245
GEN WE10X0317 GEN WE10X0317 Contact Us For Availability
1246
GEN WE01X1156 GEN WE01X1156 Contact Us For Availability
1246
GEN WE01X1157 GEN WE01X1157 Contact Us For Availability
1247
GEN WE10X0318 GEN WE10X0318 Contact Us For Availability
1247
GEN WE10X0319 GEN WE10X0319 Contact Us For Availability
1248
GEN WE10X0320 GEN WE10X0320 Contact Us For Availability
1248
GEN WE10X0321 GEN WE10X0321 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1250
SHIELD DOOR GEN WE10X0322 Contact Us For Availability
1301
GEN WE09X0103 GEN WE09X0103 Contact Us For Availability
1306
GEN WE14X0203 GEN WE14X0203 Contact Us For Availability
1307
GEN WE09X0104 GEN WE09X0104 Contact Us For Availability
1310
GEN WE14X0210 GEN WE14X0210 Contact Us For Availability
1315
GEN WE04X0755 GEN WE04X0755 Contact Us For Availability
1317
GEN WE14X0211 GEN WE14X0211 Contact Us For Availability
1318
GEN WE13X0186 GEN WE13X0186 Contact Us For Availability
1319
GEN WE13X0187 GEN WE13X0187 Contact Us For Availability
1322
GEN WE01X1159 GEN WE01X1159 Contact Us For Availability
1323
GEN WE01X1160 GEN WE01X1160 Contact Us For Availability
1327
GEN WE01X1161 GEN WE01X1161 Contact Us For Availability
1328
GEN WE17X0047 GEN WE17X0047 Contact Us For Availability
1334
GEN WE01X1170 GEN WE01X1170 Contact Us For Availability
1338
ELBOW GEN WE14X0206 Contact Us For Availability
1342
GEN WE13X0188 GEN WE13X0188 Contact Us For Availability
1344
GEN WE13X0189 GEN WE13X0189 Contact Us For Availability
1348
GEN WE13X0193 GEN WE13X0193 Contact Us For Availability
1350
GEN WE20X0753 GEN WE20X0753 Contact Us For Availability
1352
GEN WE02X0368 GEN WE02X0368 Contact Us For Availability
1353
GEN WE02X0372 GEN WE02X0372 Contact Us For Availability
1404
GEN WH01X2600 GEN WH01X2600 Contact Us For Availability
1406
LID WASHER WH GEN WH44X1137 Contact Us For Availability
1406
GEN WH44X1138 GEN WH44X1138 Contact Us For Availability
1407
GEN WH01X2601 GEN WH01X2601 Contact Us For Availability
1409
GEN WH01X2603 GEN WH01X2603 Contact Us For Availability
1412
GEN WH01X2604 GEN WH01X2604 Contact Us For Availability
1414
BLOCK HINGE SUPPORT GEN WH01X2622 Contact Us For Availability
1415
GEN WH01X2606 GEN WH01X2606 Contact Us For Availability
1418
GEN WH01X2607 GEN WH01X2607 Contact Us For Availability
1420
GEN WH01X2608 GEN WH01X2608 Contact Us For Availability
1425
GEN WH41X0327 GEN WH41X0327 Contact Us For Availability
1428
GEN WH41X0328 GEN WH41X0328 Contact Us For Availability
1429
GEN WH01X2609 GEN WH01X2609 Contact Us For Availability
1432
GEN WH16X0495 GEN WH16X0495 Contact Us For Availability
1438
GEN WH46X0297 GEN WH46X0297 Contact Us For Availability
1440
GEN WH01X2610 GEN WH01X2610 Contact Us For Availability
1442
GEN WH46X0298 GEN WH46X0298 Contact Us For Availability
1442
GEN WH46X0299 GEN WH46X0299 Contact Us For Availability
1447
GEN WH16X0496 GEN WH16X0496 Contact Us For Availability
1450
GEN WH12X0869 GEN WH12X0869 Contact Us For Availability
1451
GEN WH16X0497 GEN WH16X0497 Contact Us For Availability
1453
GEN WH46X0302 GEN WH46X0302 Contact Us For Availability
1453
GEN WH46X0303 GEN WH46X0303 Contact Us For Availability
1454
GEN WH47X0041 GEN WH47X0041 Contact Us For Availability
1455
GEN WH01X2623 GEN WH01X2623 Contact Us For Availability
1501
GEN WH43X0118 GEN WH43X0118 Contact Us For Availability
1502
GEN WH08X0368 GEN WH08X0368 Contact Us For Availability
1503
GEN WH45X0129 GEN WH45X0129 Contact Us For Availability
1504
GEN WH08X0369 GEN WH08X0369 Contact Us For Availability
1510
GEN WH41X0329 GEN WH41X0329 Contact Us For Availability
1512
GEN WH45X0134 GEN WH45X0134 Contact Us For Availability
1518
GEN WH45X0131 GEN WH45X0131 Contact Us For Availability
1519
GEN WH04X0104 GEN WH04X0104 Contact Us For Availability
1522
GEN WH01X2612 GEN WH01X2612 Contact Us For Availability
1523
GEN WH01X2624 GEN WH01X2624 Contact Us For Availability
1524
GEN WH01X2614 GEN WH01X2614 Contact Us For Availability
1529
GEN WH07X0114 GEN WH07X0114 Contact Us For Availability
1530
GEN WH07X0115 GEN WH07X0115 Contact Us For Availability
1531
GEN WH07X0116 GEN WH07X0116 Contact Us For Availability
1532
GEN WH01X2615 GEN WH01X2615 Contact Us For Availability
1533
GEN WH01X2616 GEN WH01X2616 Contact Us For Availability
1534
GEN WH01X2617 GEN WH01X2617 Contact Us For Availability
1535
RING RETAINING GEN WH02X1132 Contact Us For Availability
1536
GEN WH02X1133 GEN WH02X1133 Contact Us For Availability
1539
SPRING VERTICAL GEN WH01X2625 Contact Us For Availability
1540
GEN WH20X0088 GEN WH20X0088 Contact Us For Availability
1541
GEN WH01X2619 GEN WH01X2619 Contact Us For Availability
1542
GEN WH01X2620 GEN WH01X2620 Contact Us For Availability
1543
GEN WH23X0077 GEN WH23X0077 Contact Us For Availability
1544
GEN WH02X1134 GEN WH02X1134 Contact Us For Availability
1545
GEN WH41X0330 GEN WH41X0330 Contact Us For Availability
1549
GEN WH41X0338 GEN WH41X0338 Contact Us For Availability
1552
GEN WH16X0498 GEN WH16X0498 Contact Us For Availability
1601
GEN WH02X1135 GEN WH02X1135 Contact Us For Availability
1602
GEN WH40X0175 GEN WH40X0175 Contact Us For Availability
1605
GEN WH02X1136 GEN WH02X1136 Contact Us For Availability
1621
GEN WH60X0018 GEN WH60X0018 Contact Us For Availability
1624
GEN WH40X0176 GEN WH40X0176 Contact Us For Availability
1625
GEN WH37X0044 GEN WH37X0044 Contact Us For Availability
1626
GEN WH08X0370 GEN WH08X0370 Contact Us For Availability
1632
GEN WH01X2621 GEN WH01X2621 Contact Us For Availability
2048
GEN WH12X0845 GEN WH12X0845 Contact Us For Availability
2049
GEN WH16X0476 GEN WH16X0476 Contact Us For Availability
2119
GEN WH12X0738 GEN WH12X0738 Contact Us For Availability
2121
DOOR SWITCH GEN WE04X0640 Contact Us For Availability
2154
HEATER THERMOSTAT GEN WE04X0671 Contact Us For Availability
2155
WATER VALVE GEN WH13X0080 Contact Us For Availability
2236
GEN WH01X2588 GEN WH01X2588 Contact Us For Availability
2304
SCREW GEN WH02X1150 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X0089 GEN WH17X0089 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2405
GEN WH08X0364 GEN WH08X0364 Contact Us For Availability
2411
GEN WH01X2320 GEN WH01X2320 Contact Us For Availability
2413
GEN WH08X0365 GEN WH08X0365 Contact Us For Availability
2414
GEN WH05X0240 GEN WH05X0240 Contact Us For Availability
2415
GEN WH40X0162 GEN WH40X0162 Contact Us For Availability
2416
GEN WH05X0241 GEN WH05X0241 Contact Us For Availability
2417
GEN WH40X0174 GEN WH40X0174 Contact Us For Availability
2419
GEN WH01X2331 GEN WH01X2331 Contact Us For Availability
2421
GEN WH39X0045 GEN WH39X0045 Contact Us For Availability
2422
GEN WH04X0094 GEN WH04X0094 Contact Us For Availability
2424
GEN WH01X2519 GEN WH01X2519 Contact Us For Availability
2425
GEN WH02X1113 GEN WH02X1113 Contact Us For Availability
2429
GEN WH01X2322 GEN WH01X2322 Contact Us For Availability
2434
GEN WH02X1111 GEN WH02X1111 Contact Us For Availability
2438
GEN WH01X2332 GEN WH01X2332 Contact Us For Availability
2450
GEN WH02X1031 GEN WH02X1031 Contact Us For Availability
2451
GEN WH02X1016 GEN WH02X1016 Contact Us For Availability
2452
GEN WH08X0328 GEN WH08X0328 Contact Us For Availability
2454
GEN WH01X2324 GEN WH01X2324 Contact Us For Availability
2455
GEN WH05X0242 GEN WH05X0242 Contact Us For Availability
2461
GEN WH02X1094 GEN WH02X1094 Contact Us For Availability
2462
GEN WH02X1032 GEN WH02X1032 Contact Us For Availability
2467
GEN WH02X1114 GEN WH02X1114 Contact Us For Availability
2523
GEN WH02X1125 GEN WH02X1125 Contact Us For Availability
2525
GEN WH02X1124 GEN WH02X1124 Contact Us For Availability
2530
GEN WH01X2592 GEN WH01X2592 Contact Us For Availability
2535
LEVELING LEG & PAD GEN WH01X2293 Contact Us For Availability
2537
GEN WH02X1126 GEN WH02X1126 Contact Us For Availability
2560
GEN WH41X0326 GEN WH41X0326 Contact Us For Availability
2574
SCREW 8-18 X 5/16 PPH B GEN NOT STOCKD Contact Us For Availability
2621
GEN WH02X1118 GEN WH02X1118 Contact Us For Availability
2747
GEN WH01X2573 GEN WH01X2573 Contact Us For Availability
2751
GEN WE04X0716 GEN WE04X0716 Contact Us For Availability
2761
GEN WE08X0041 GEN WE08X0041 Contact Us For Availability
× ![]()
