Model GE WSM2700DAWWW – Common Parts & Diagrams

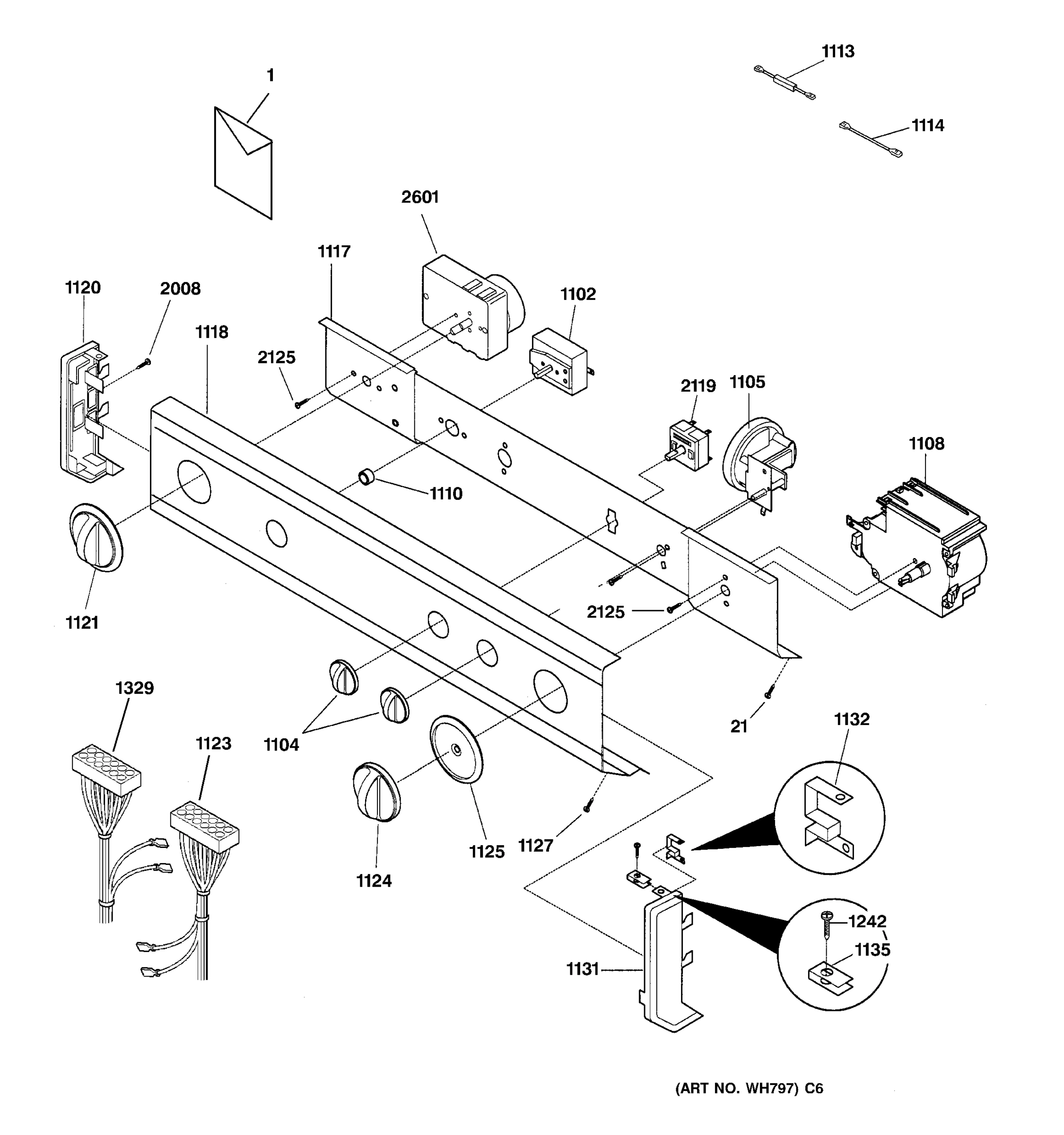

CONTROL PANEL

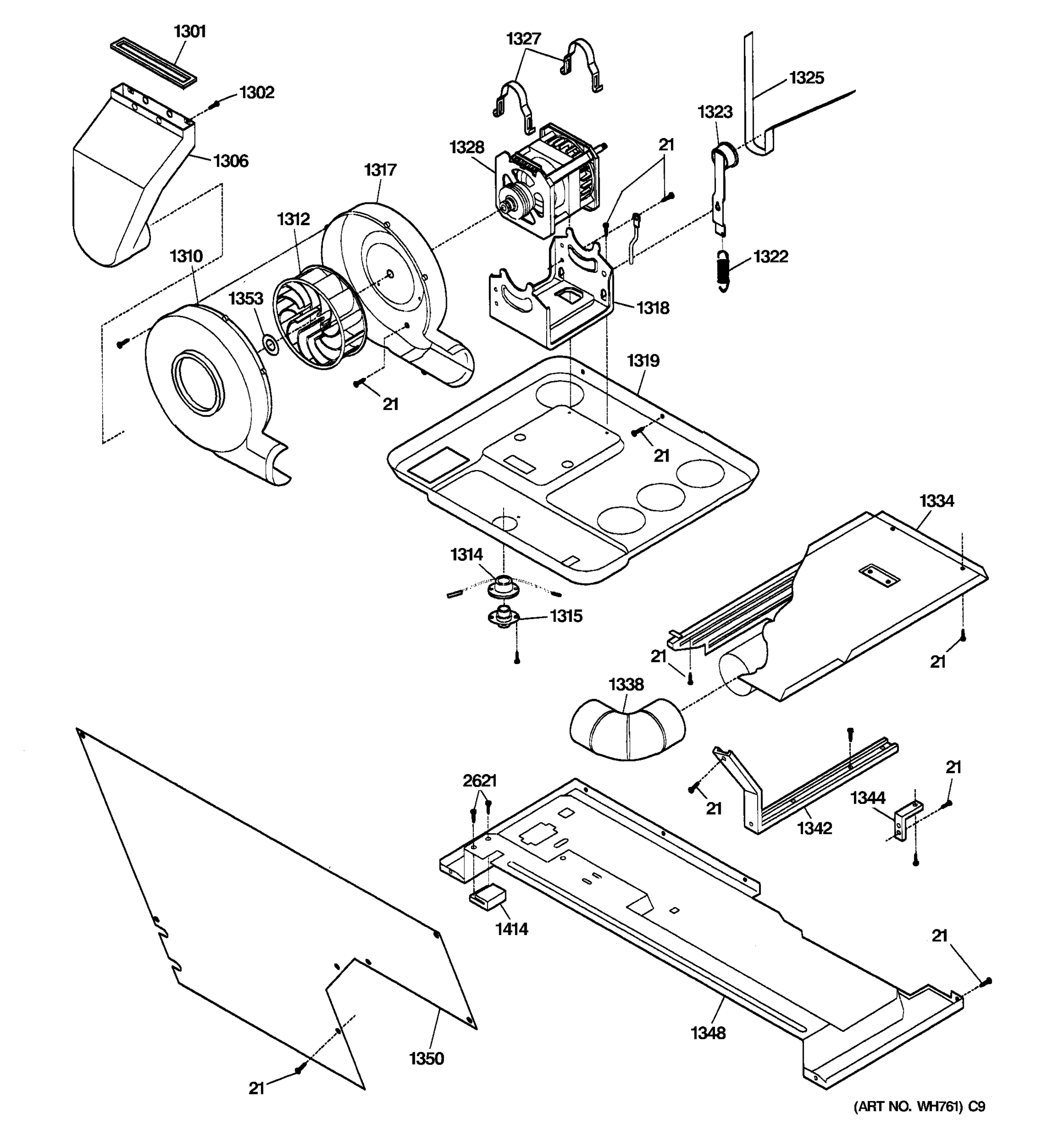

DRYER MOTOR, BLOWER & BELT

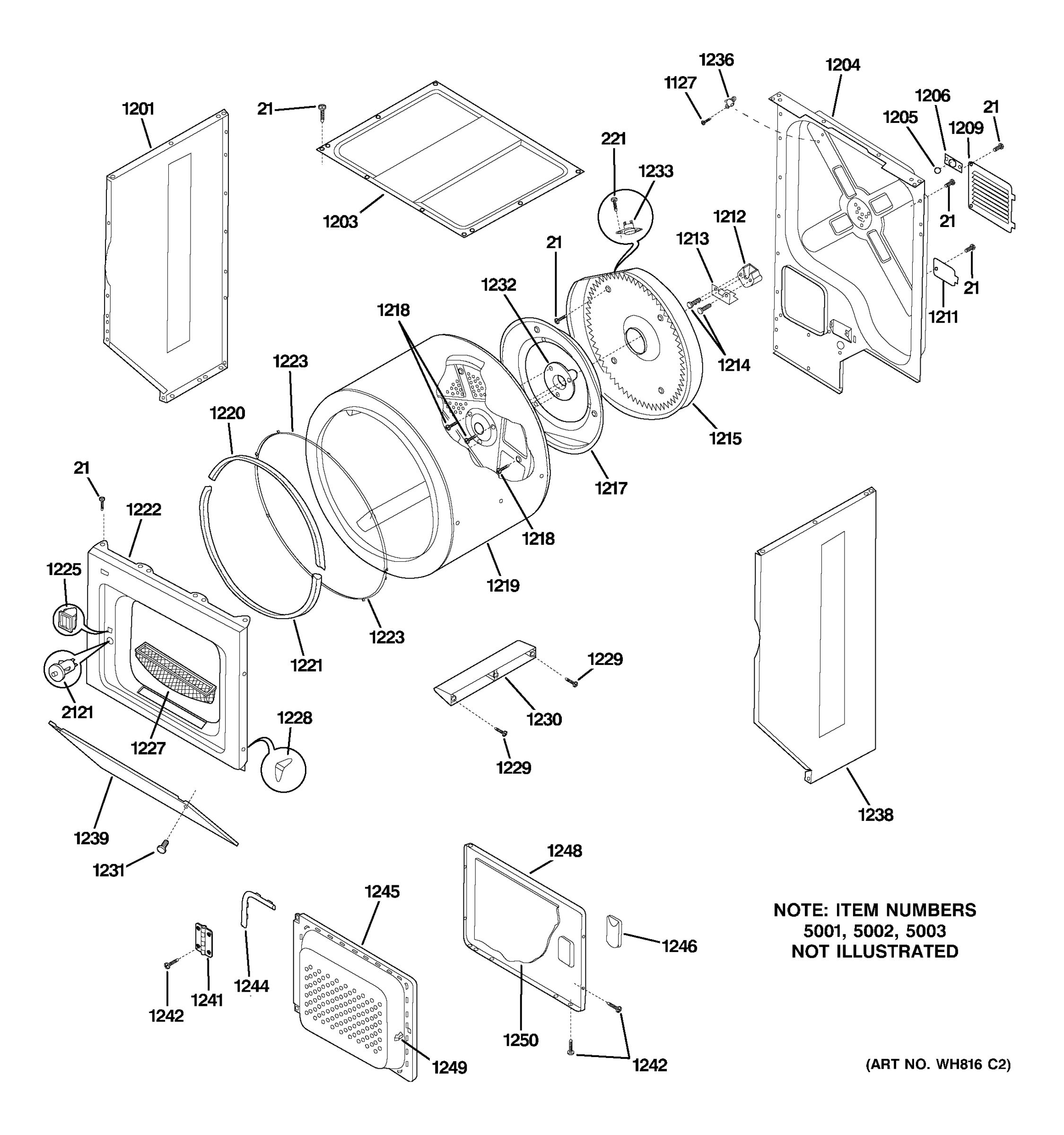

DRYER UPPER CABINET, DRUM & HEATER

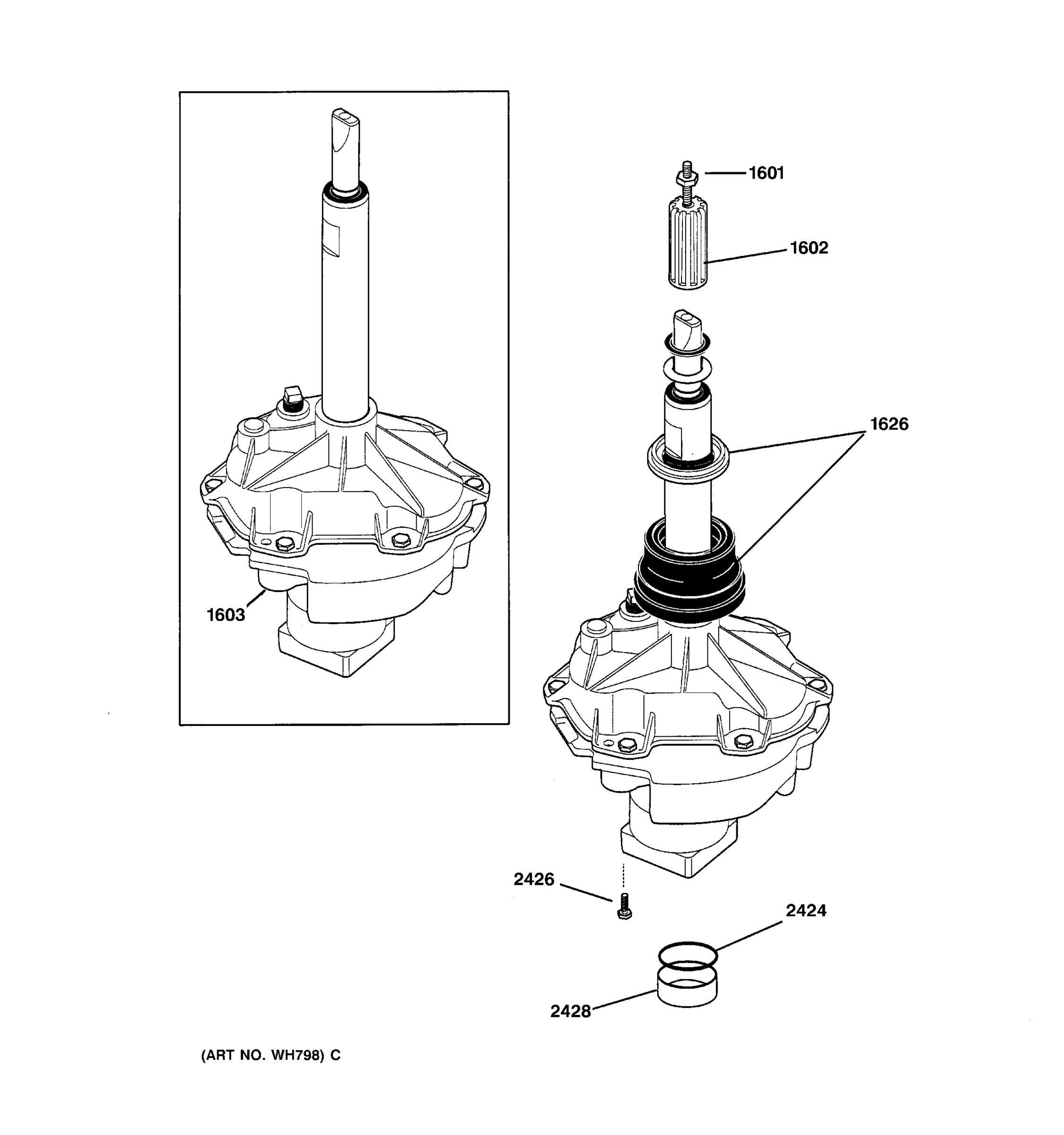

TRANSMISSION

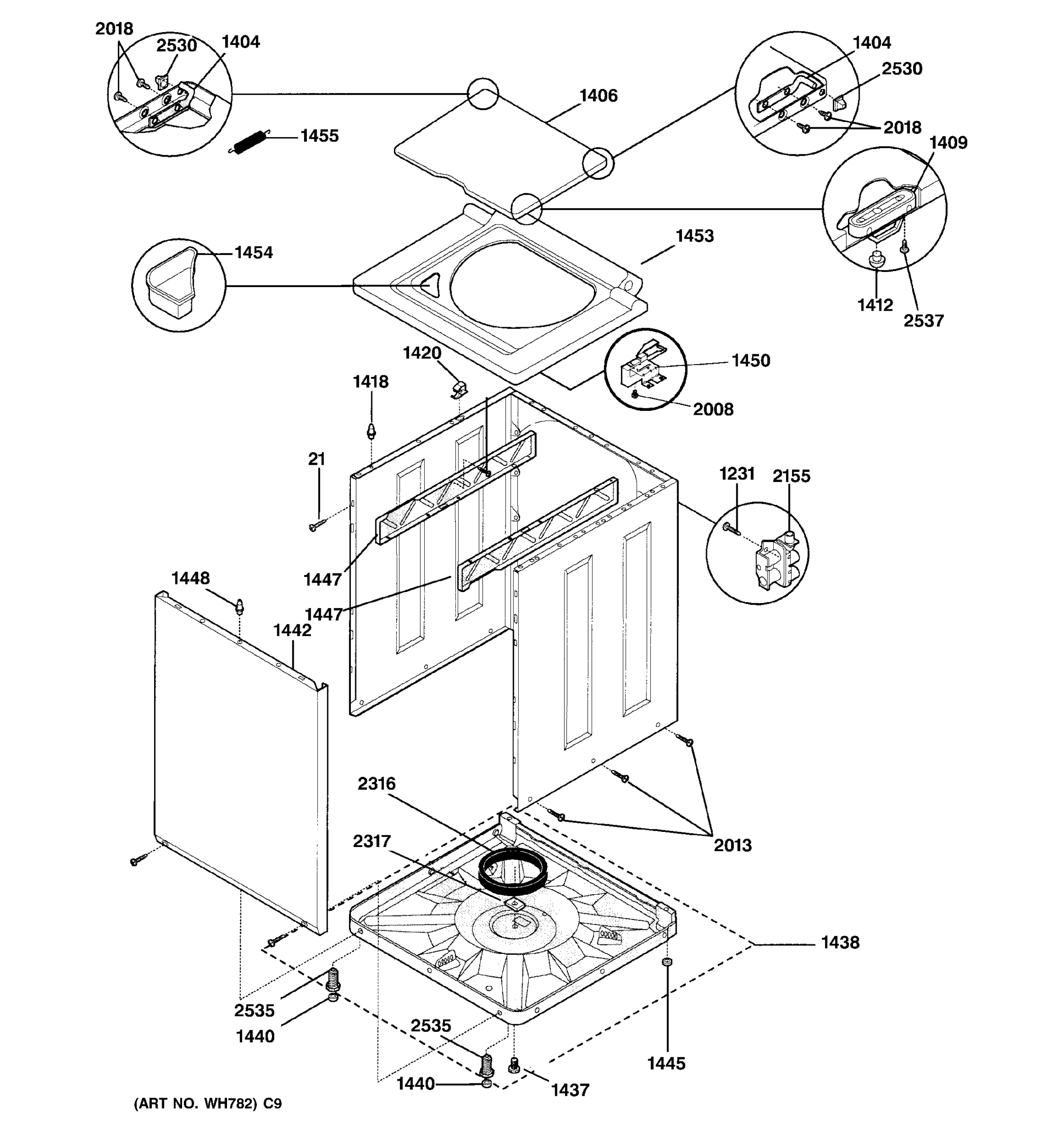

WASHER LOWER CABINET & TOP

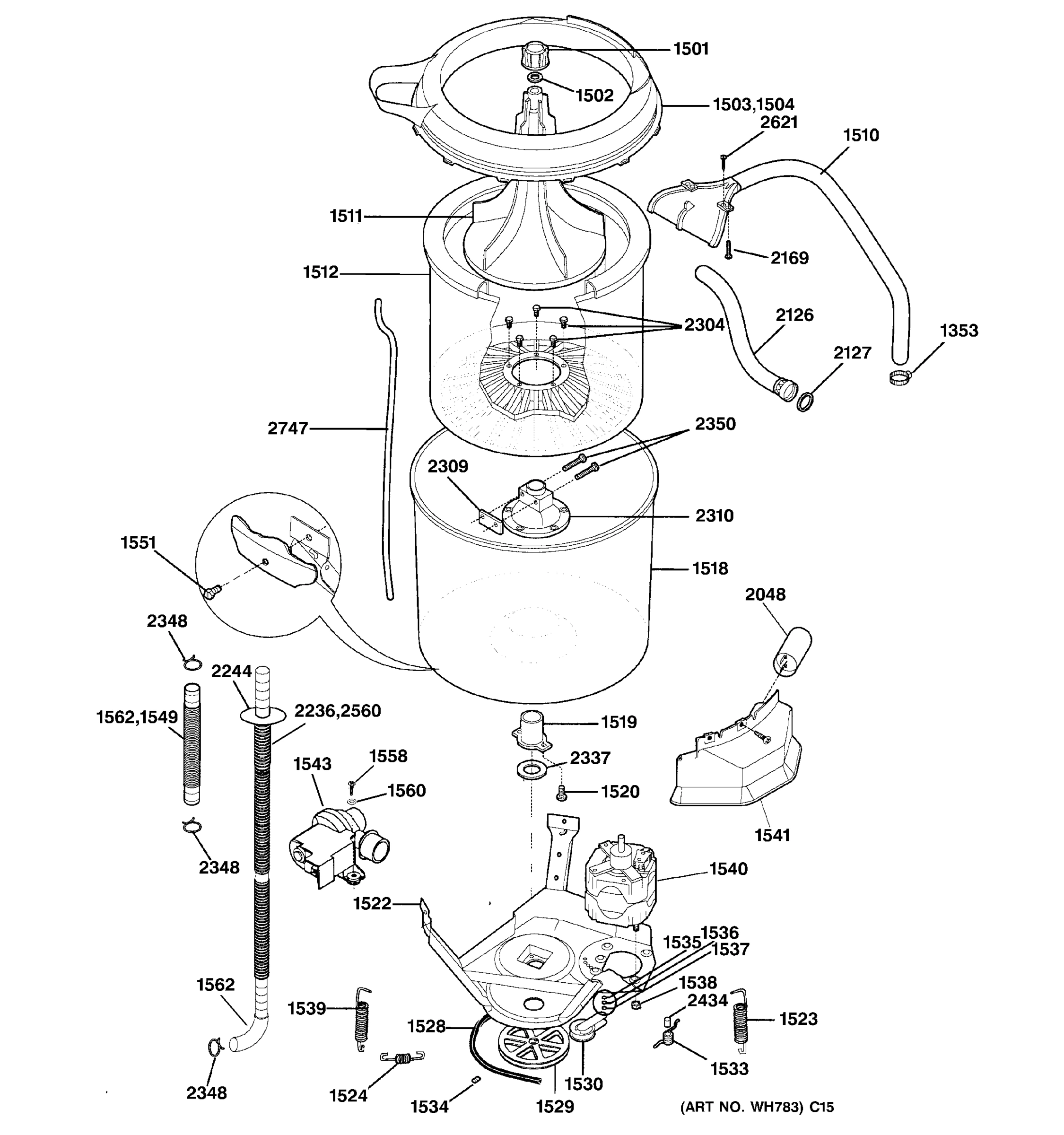

WASHER MOTOR & TUB
Common parts from model GE WSM2700DAWWW
21
SCREW GEN WR02X9494 Contact Us For Availability
1102
GEN WE04X10057 GEN WE04X10057 Contact Us For Availability
1105
GEN WH12X10083 GEN WH12X10083 Contact Us For Availability
1110
GEN WE01X10068 GEN WE01X10068 Contact Us For Availability
1118
GEN WH42X10290 GEN WH42X10290 Contact Us For Availability
1120
GEN WH42X10224 GEN WH42X10224 Contact Us For Availability
1123
GEN WH08X10015 GEN WH08X10015 Contact Us For Availability
1124
GEN WH01X10125 GEN WH01X10125 Contact Us For Availability
1125
GEN WH11X10019 GEN WH11X10019 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1219
GEN WE21X10013 GEN WE21X10013 Contact Us For Availability
1220
GEN WE09X10013 GEN WE09X10013 Contact Us For Availability
1221
GEN WE09X10014 GEN WE09X10014 Contact Us For Availability
1222
GEN WE20X10071 GEN WE20X10071 Contact Us For Availability
1225
CATCH DOOR GEN WE01X10023 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1231
GEN WE02X10002 GEN WE02X10002 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1245
GEN WE10X10004 GEN WE10X10004 Contact Us For Availability
1246
GEN WE01X10050 GEN WE01X10050 Contact Us For Availability
1301
GEN WE09X10001 GEN WE09X10001 Contact Us For Availability
1314
GEN WE04X10039 GEN WE04X10039 Contact Us For Availability
1327
GEN WE01X10211 GEN WE01X10211 Contact Us For Availability
1328
GEN WE17X10009 GEN WE17X10009 Contact Us For Availability
1353
GEN WH01X10048 GEN WH01X10048 Contact Us For Availability
1404
GEN WH01X2600 GEN WH01X2600 Contact Us For Availability
1406
GEN WH44X1137 GEN WH44X1137 Contact Us For Availability
1409
GEN WH01X10041 GEN WH01X10041 Contact Us For Availability
1412
GEN WH01X10188 GEN WH01X10188 Contact Us For Availability
1418
GEN WH01X10013 GEN WH01X10013 Contact Us For Availability
1420
GEN WH01X2608 GEN WH01X2608 Contact Us For Availability
1437
GEN WH01X10105 GEN WH01X10105 Contact Us For Availability
1438
GEN WH46X10025 GEN WH46X10025 Contact Us For Availability
1440
GEN WH01X10043 GEN WH01X10043 Contact Us For Availability
1442
GEN WH46X0321 GEN WH46X0321 Contact Us For Availability
1445
GEN WH01X10044 GEN WH01X10044 Contact Us For Availability
1447
GEN WH16X0501 GEN WH16X0501 Contact Us For Availability
1447
GEN WH16X0502 GEN WH16X0502 Contact Us For Availability
1448
GEN WH01X10042 GEN WH01X10042 Contact Us For Availability
1450
GEN WH12X10216 GEN WH12X10216 Contact Us For Availability
1453
GEN WH46X10026 GEN WH46X10026 Contact Us For Availability
1454
GEN WH47X0041 GEN WH47X0041 Contact Us For Availability
1455
SPRING LID GEN WH01X2623 Contact Us For Availability
1501
GEN WH43X0118 GEN WH43X0118 Contact Us For Availability
1502
GEN WH08X0368 GEN WH08X0368 Contact Us For Availability
1503
GEN WJ45X10027 GEN WJ45X10027 Contact Us For Availability
1504
GEN WH45X10040 GEN WH45X10040 Contact Us For Availability
1510
GEN WH41X10039 GEN WH41X10039 Contact Us For Availability
1512
GEN WH45X10017 GEN WH45X10017 Contact Us For Availability
1518
GEN WH45X10018 GEN WH45X10018 Contact Us For Availability
1519
GEN WH04X0104 GEN WH04X0104 Contact Us For Availability
1520
GEN WH01X10100 GEN WH01X10100 Contact Us For Availability
1522
GEN WH01X2720 GEN WH01X2720 Contact Us For Availability
1523
GEN WH01X2624 GEN WH01X2624 Contact Us For Availability
1524
GEN WH01X2718 GEN WH01X2718 Contact Us For Availability
1529
GEN WH07X10006 GEN WH07X10006 Contact Us For Availability
1530
GEN WH07X10005 GEN WH07X10005 Contact Us For Availability
1533
GEN WH01X2616 GEN WH01X2616 Contact Us For Availability
1534
GEN WH01X10045 GEN WH01X10045 Contact Us For Availability
1535
GEN WH02X1132 GEN WH02X1132 Contact Us For Availability
1536
GEN WH02X1133 GEN WH02X1133 Contact Us For Availability
1537
WASHER SPRING GEN WH02X1094 Contact Us For Availability
1538
GEN WH01X10101 GEN WH01X10101 Contact Us For Availability
1539
GEN WH01X2625 GEN WH01X2625 Contact Us For Availability
1540
GEN WH20X10026 GEN WH20X10026 Contact Us For Availability
1541
GEN WH16X0529 GEN WH16X0529 Contact Us For Availability
1543
GEN WH23X10017 GEN WH23X10017 Contact Us For Availability
1549
GEN WH41X10027 GEN WH41X10027 Contact Us For Availability
1551
GEN WH01X10102 GEN WH01X10102 Contact Us For Availability
1558
GEN WH02X10142 GEN WH02X10142 Contact Us For Availability
1560
GEN WH02X10008 GEN WH02X10008 Contact Us For Availability
1562
GEN WH01X2769 GEN WH01X2769 Contact Us For Availability
1601
GEN WH02X10039 GEN WH02X10039 Contact Us For Availability
1626
GEN WH08X10004 GEN WH08X10004 Contact Us For Availability
2008
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
2013
GEN WE02X10003 GEN WE02X10003 Contact Us For Availability
2018
GEN WH02X10060 GEN WH02X10060 Contact Us For Availability
2048
GEN WH12X1039 GEN WH12X1039 Contact Us For Availability
2119
GEN WH12X10036 GEN WH12X10036 Contact Us For Availability
2121
GEN WE04X10003 GEN WE04X10003 Contact Us For Availability
2127
GEN WH02X10041 GEN WH02X10041 Contact Us For Availability
2155
GEN WH13X10020 GEN WH13X10020 Contact Us For Availability
2169
GEN WH02X10061 GEN WH02X10061 Contact Us For Availability
2236
GEN WH01X2768 GEN WH01X2768 Contact Us For Availability
2236
GEN WH01X2786 GEN WH01X2786 Contact Us For Availability
2244
RING-DRAIN HOSE GEN WH01X10063 Contact Us For Availability
2304
GEN WH02X1142 GEN WH02X1142 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X10004 GEN WH17X10004 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2317
GEN WH01X10099 GEN WH01X10099 Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
2350
GEN WH02X1107 GEN WH02X1107 Contact Us For Availability
2426
GEN WE02X10067 GEN WE02X10067 Contact Us For Availability
2428
GEN WH01X10094 GEN WH01X10094 Contact Us For Availability
2434
SLEEVE IDLER GEN WH02X1111 Contact Us For Availability
2530
GEN WH01X10203 GEN WH01X10203 Contact Us For Availability
2535
GEN WH01X10049 GEN WH01X10049 Contact Us For Availability
2537
SCREW 6-20 X 3/8 GEN WH02X1126 Contact Us For Availability
2560
GEN WH01X10189 GEN WH01X10189 Contact Us For Availability
2621
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
2747
GEN WH41X10038 GEN WH41X10038 Contact Us For Availability
5002
GEN WE01X10137 GEN WE01X10137 Contact Us For Availability
× ![]()
