Model GE WSM2480D3WW – Common Parts & Diagrams
BRAKE & DRIVE TUBE PARTS
BURNER ASSEMBLY

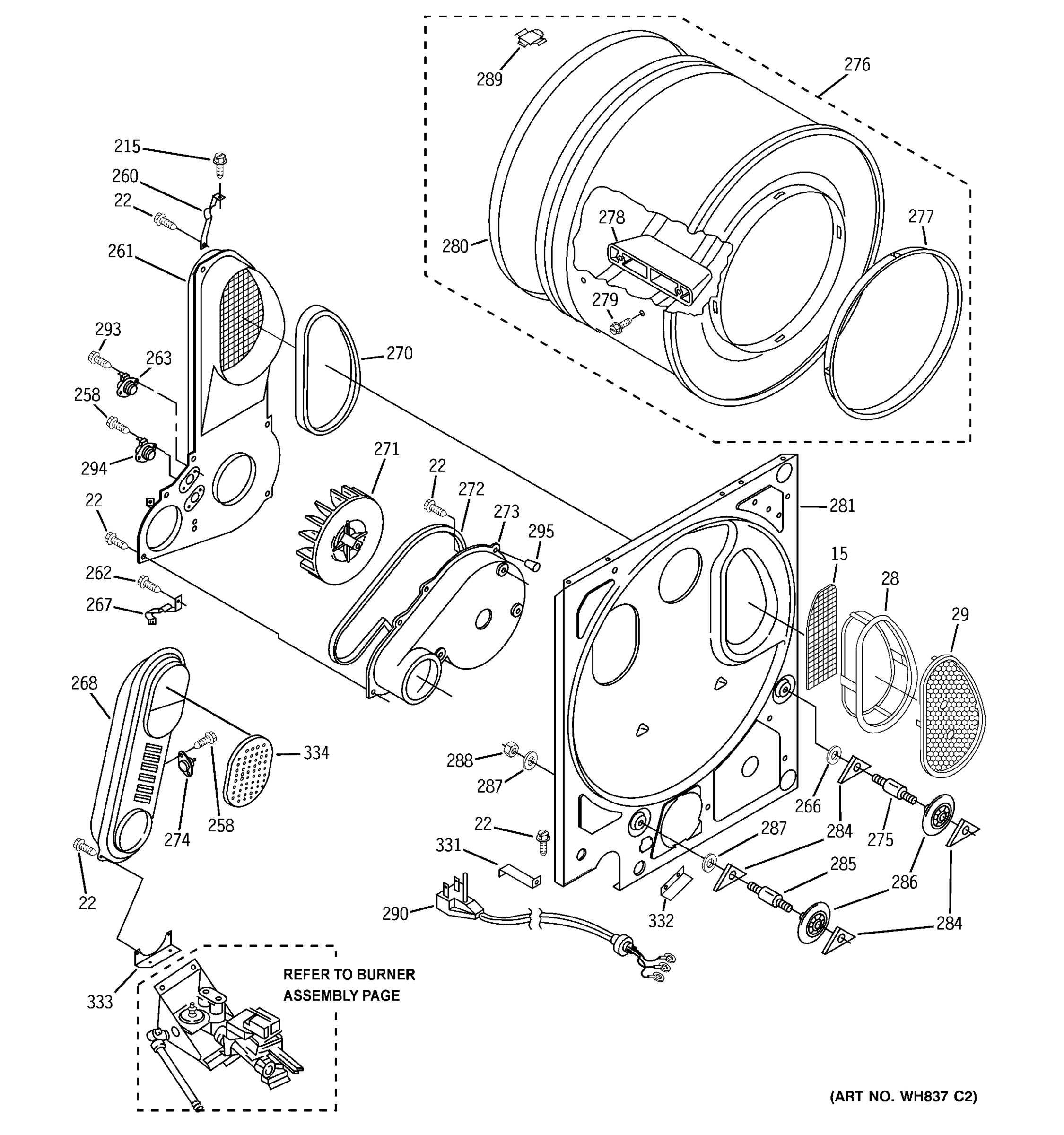

DRYER BULKHEAD PARTS

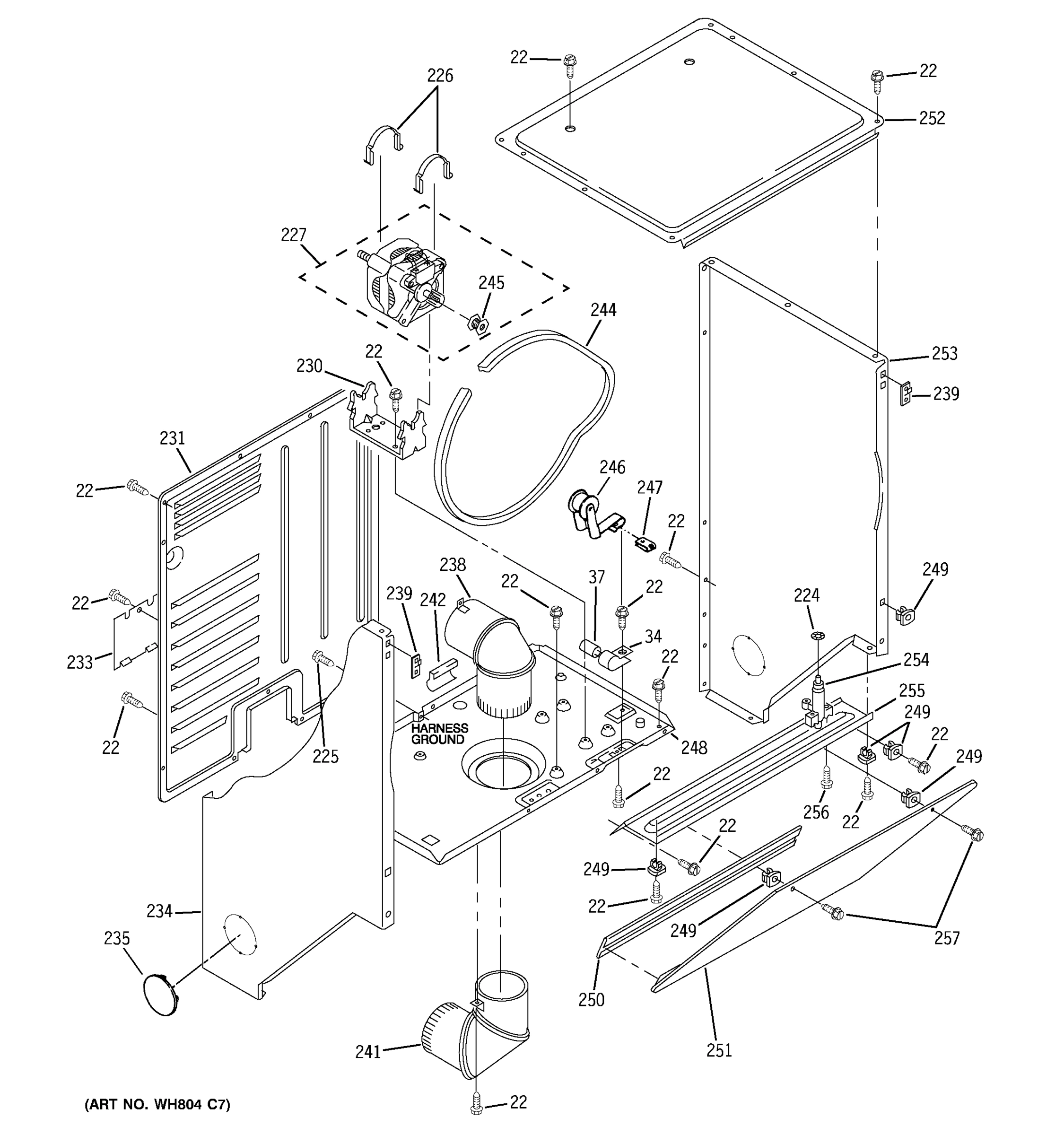

DRYER CABINET & MOTOR

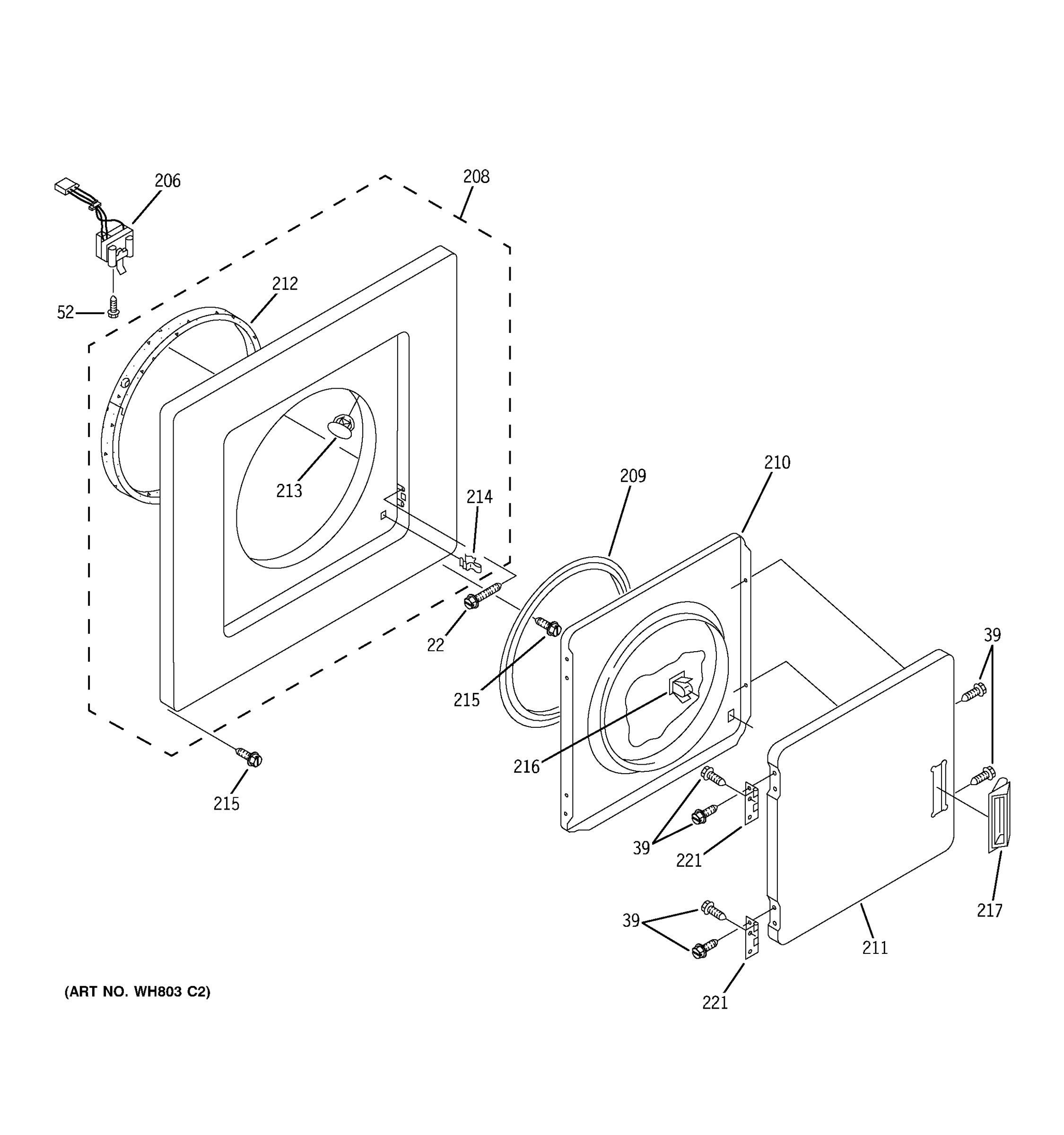

DRYER FRONT PANEL & DOOR

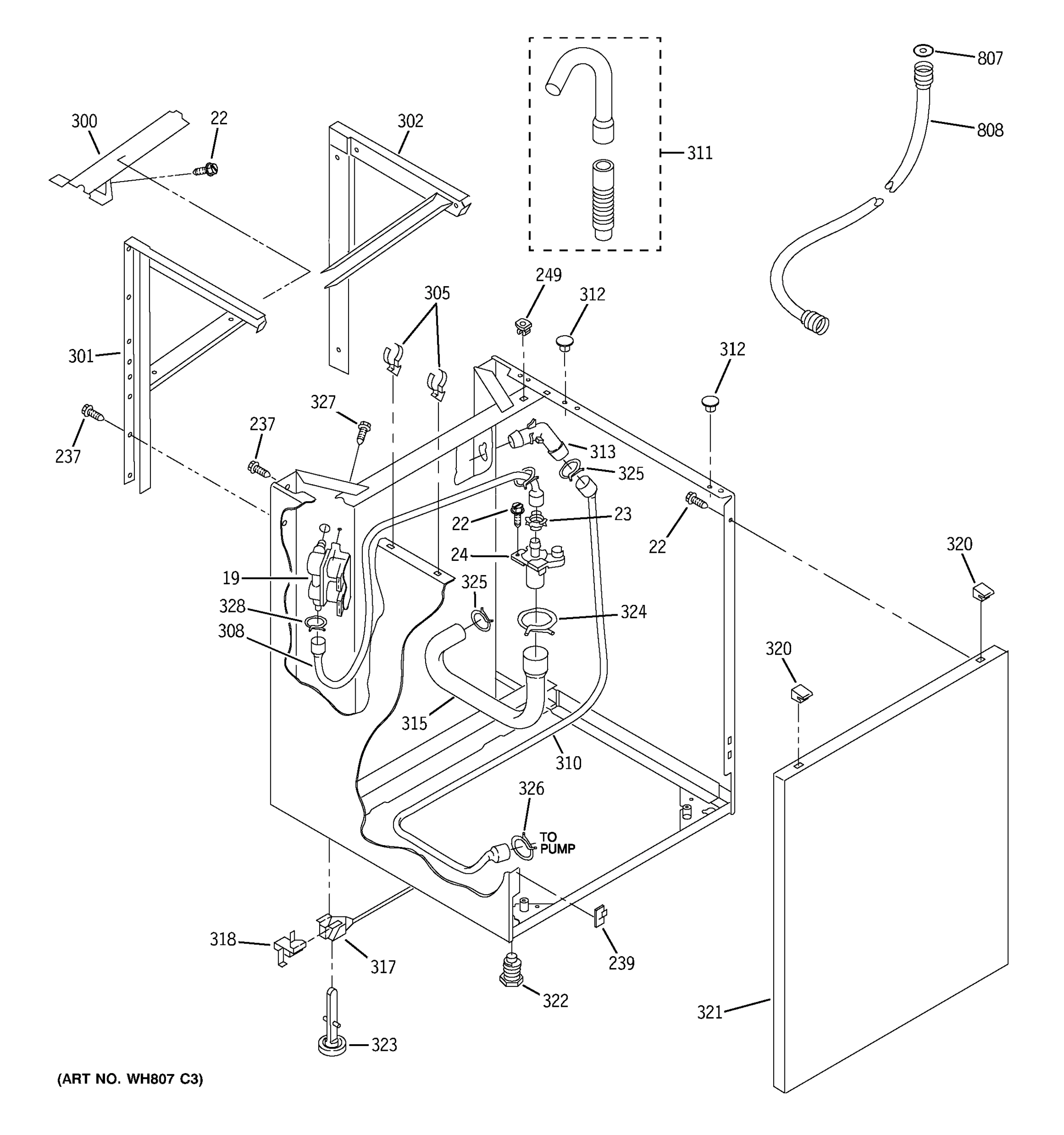

DRYER SUPPORT & WASHER CABINET

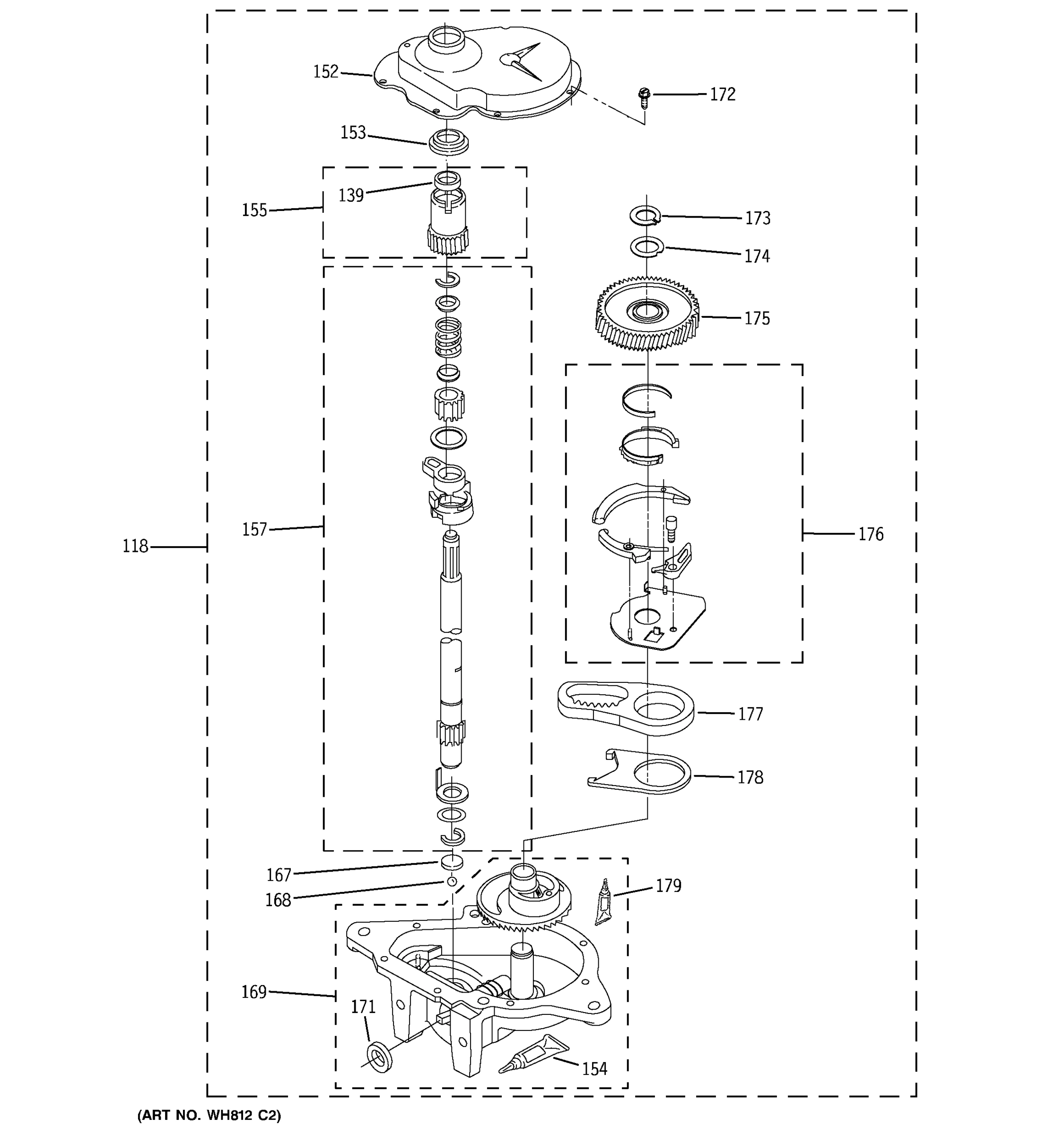

GEARCASE PRTS

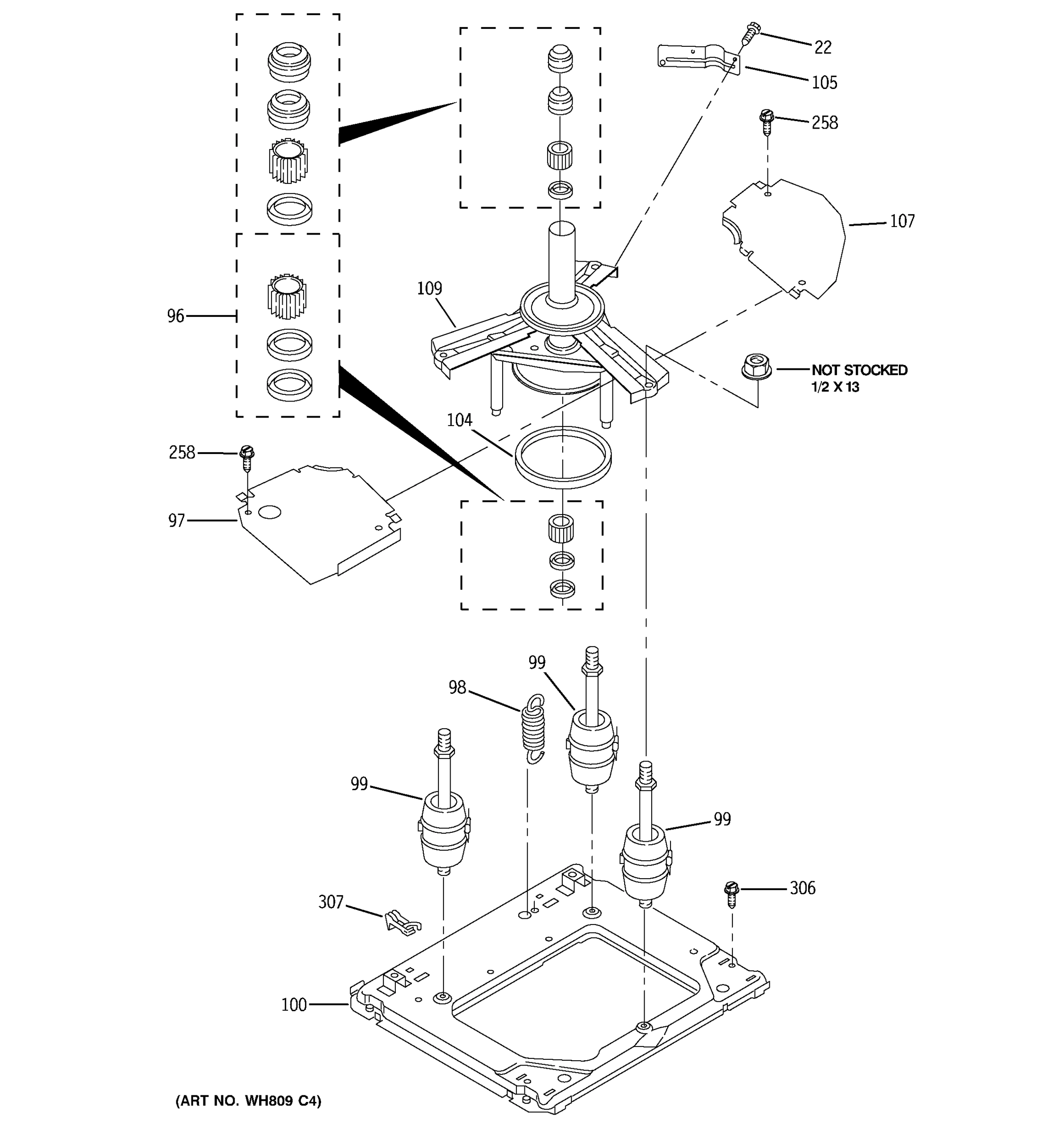

MACHINE BASE PARTS

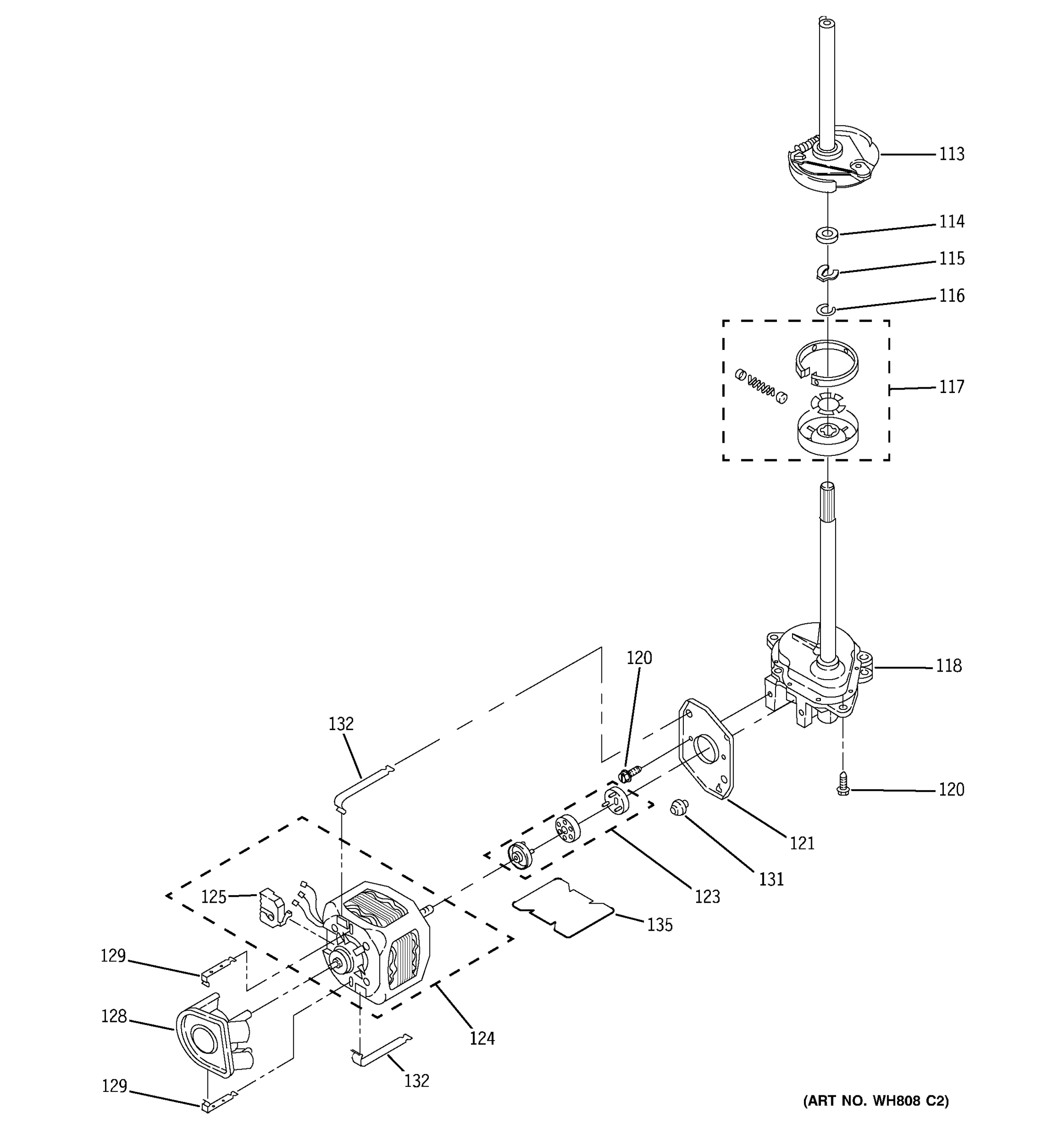

MOTOR & PUMP PARTS

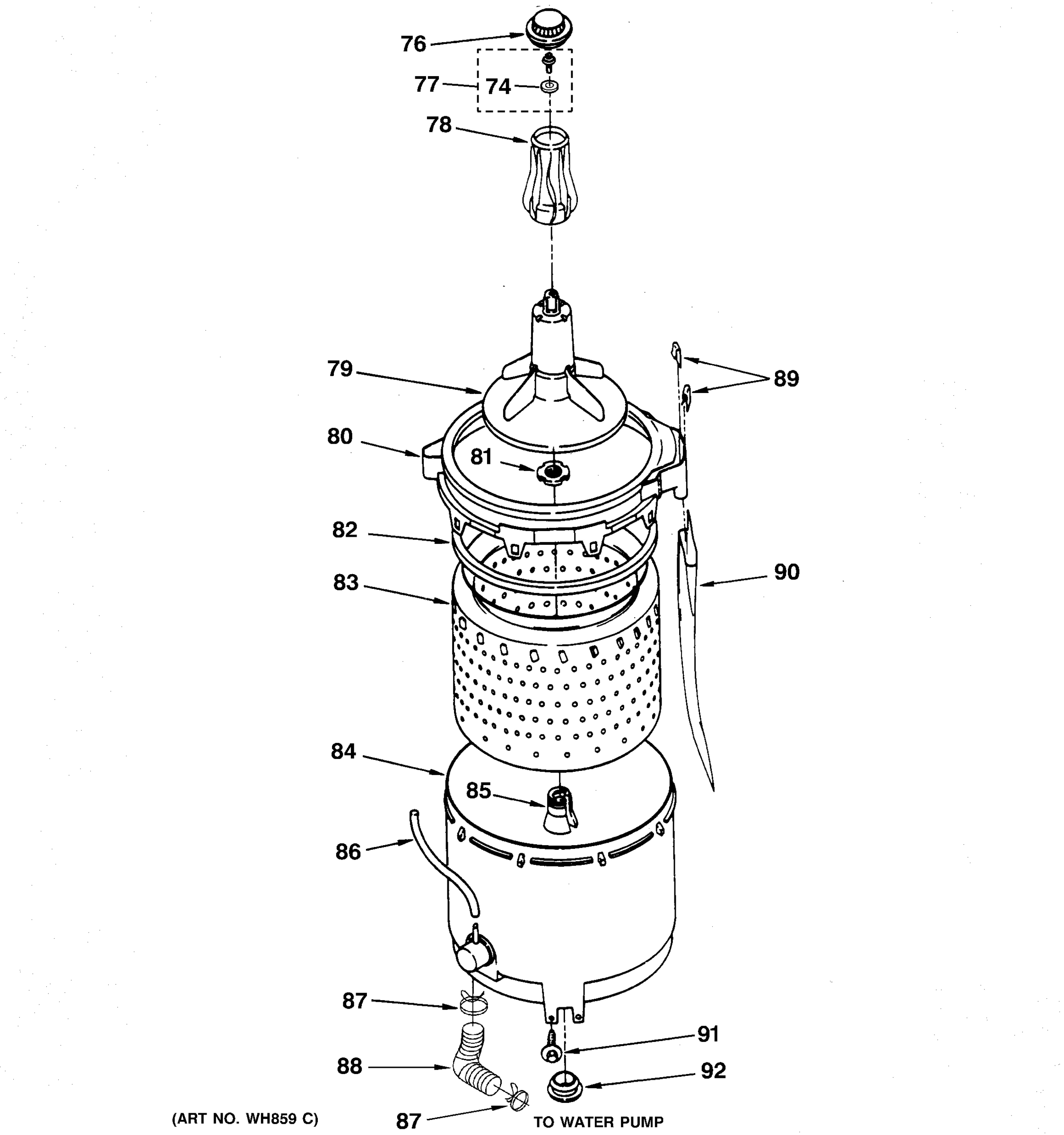

TUB, BASKET & AGITATOR

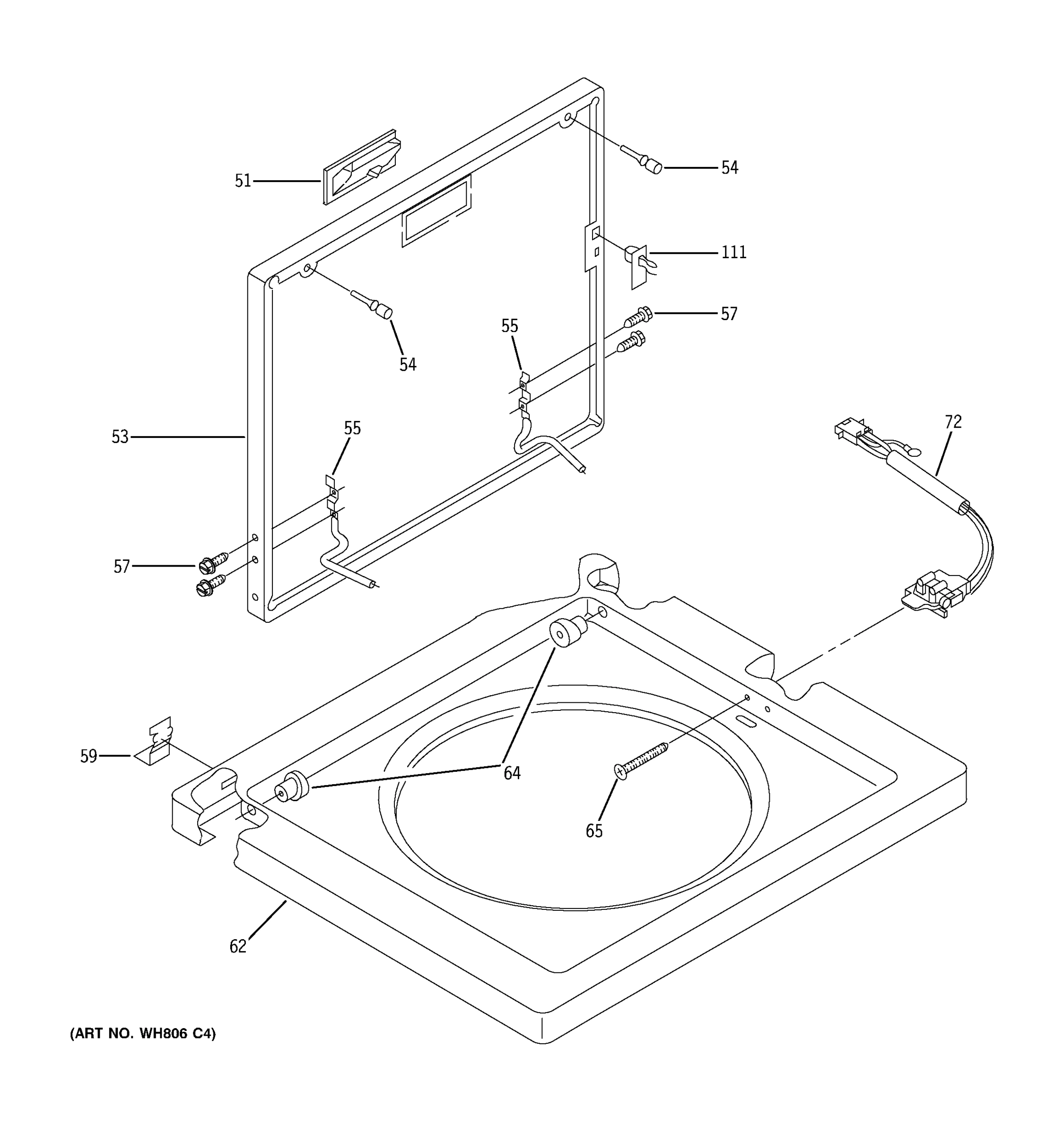

WASHER TOP & LID

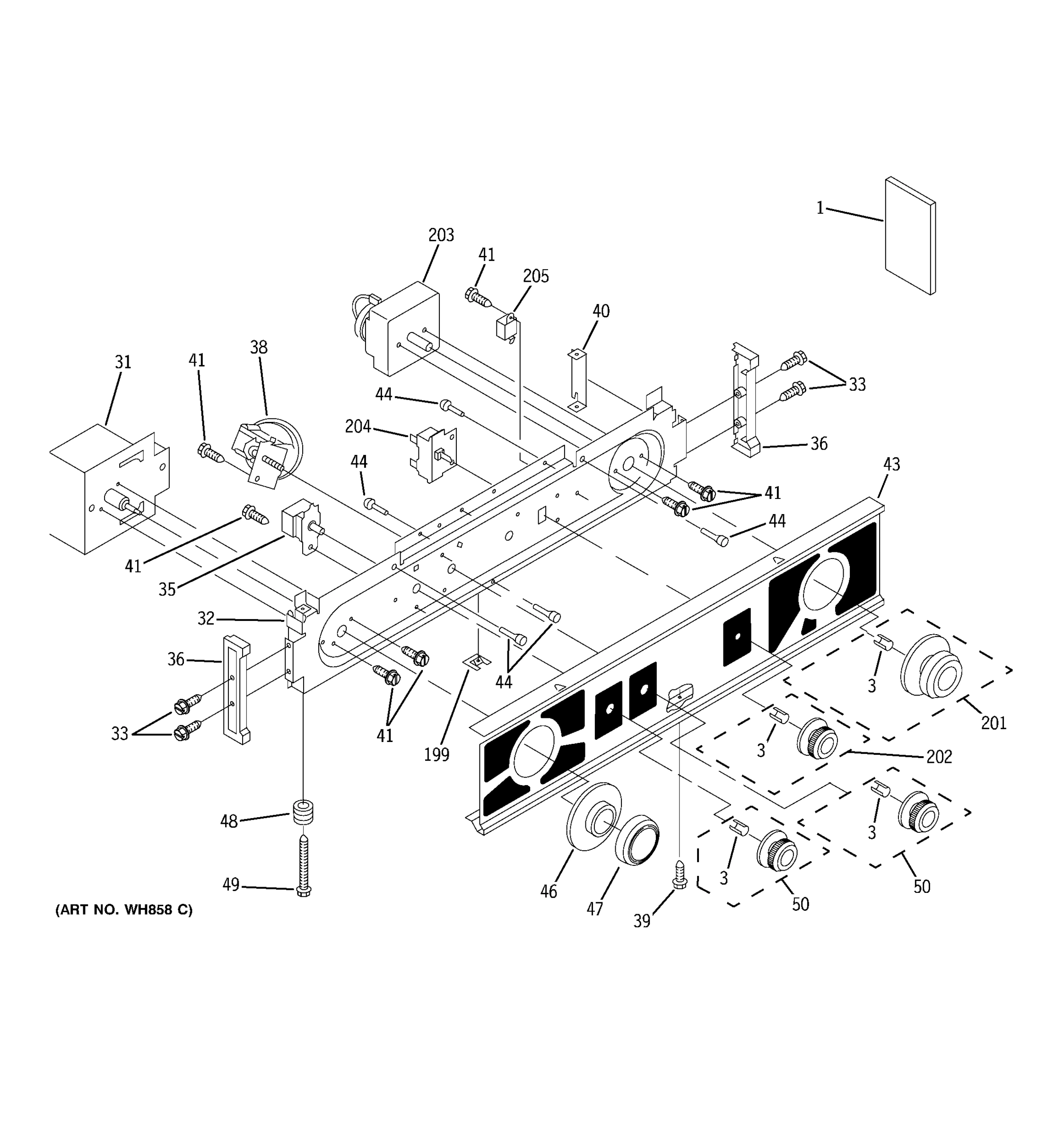

WASHER/DRYER CONTROL PANEL
Common parts from model GE WSM2480D3WW
1
GEN 31-2730 GEN 31-2730 Contact Us For Availability
1
GEN 49-9904 GEN 49-9904 Contact Us For Availability
3
GEN WH01X10297 GEN WH01X10297 Contact Us For Availability
15
GEN WE18X10012 GEN WE18X10012 Contact Us For Availability
22
GEN WH02X10130 GEN WH02X10130 Contact Us For Availability
23
GEN WH01X2661 GEN WH01X2661 Contact Us For Availability
24
GEN WH01X2662 GEN WH01X2662 Contact Us For Availability
32
GEN WH16X10049 GEN WH16X10049 Contact Us For Availability
33
GEN WR01X10136 GEN WR01X10136 Contact Us For Availability
34
GEN WH02X1158 GEN WH02X1158 Contact Us For Availability
35
GEN WH12X10098 GEN WH12X10098 Contact Us For Availability
36
END CAP GEN WH42X2313 Contact Us For Availability
37
GEN WE04X10092 GEN WE04X10092 Contact Us For Availability
38
GEN WH12X0951 GEN WH12X0951 Contact Us For Availability
39
GEN WH02X1178 GEN WH02X1178 Contact Us For Availability
40
GEN WH01X2693 GEN WH01X2693 Contact Us For Availability
41
SCREW 8-18 X 5/16 GEN WH02X10066 Contact Us For Availability
43
GEN WH42X2314 GEN WH42X2314 Contact Us For Availability
44
GEN WH01X2685 GEN WH01X2685 Contact Us For Availability
46
GEN WH11X10045 GEN WH11X10045 Contact Us For Availability
47
GEN WH01X10290 GEN WH01X10290 Contact Us For Availability
48
SPRING, CONSOLE LOCK GEN WH01X2684 Contact Us For Availability
49
GEN WH02X10067 GEN WH02X10067 Contact Us For Availability
50
GEN WH01X10291 GEN WH01X10291 Contact Us For Availability
51
GEN WH01X2665 GEN WH01X2665 Contact Us For Availability
52
GEN WE02X10032 GEN WE02X10032 Contact Us For Availability
53
GEN WH44X1156 GEN WH44X1156 Contact Us For Availability
54
GEN WH01X2667 GEN WH01X2667 Contact Us For Availability
55
GEN WH16X10061 GEN WH16X10061 Contact Us For Availability
57
GEN WH02X1160 GEN WH02X1160 Contact Us For Availability
59
GEN WH01X2694 GEN WH01X2694 Contact Us For Availability
62
GEN WH44X1160 GEN WH44X1160 Contact Us For Availability
64
BEARING, LID HINGE GEN WH04X0105 Contact Us For Availability
65
GEN WH02X1161 GEN WH02X1161 Contact Us For Availability
74
GEN WH02X10131 GEN WH02X10131 Contact Us For Availability
76
GEN WH43X0133 GEN WH43X0133 Contact Us For Availability
77
GEN WH02X1162 GEN WH02X1162 Contact Us For Availability
79
GEN WH43X10025 GEN WH43X10025 Contact Us For Availability
80
GEN WH45X0145 GEN WH45X0145 Contact Us For Availability
81
GEN WH02X1163 GEN WH02X1163 Contact Us For Availability
82
GEN WH08X0372 GEN WH08X0372 Contact Us For Availability
83
GEN WH45X0146 GEN WH45X0146 Contact Us For Availability
84
GEN WH45X10048 GEN WH45X10048 Contact Us For Availability
85
GEN WH40X0180 GEN WH40X0180 Contact Us For Availability
86
GEN WH41X10074 GEN WH41X10074 Contact Us For Availability
87
GEN WH02X10231 GEN WH02X10231 Contact Us For Availability
88
GEN WH41X10135 GEN WH41X10135 Contact Us For Availability
89
GEN WH01X2704 GEN WH01X2704 Contact Us For Availability
90
GEN WH41X0351 GEN WH41X0351 Contact Us For Availability
91
SCR/ WSHR (TUB MNT) GEN WH01X10183 Contact Us For Availability
96
GEN WH04X0106 GEN WH04X0106 Contact Us For Availability
97
GEN WH16X0508 GEN WH16X0508 Contact Us For Availability
98
GEN WH01X2675 GEN WH01X2675 Contact Us For Availability
99
GEN WH17X10005 GEN WH17X10005 Contact Us For Availability
100
GEN WH46X10144 GEN WH46X10144 Contact Us For Availability
104
GEN WH08X0374 GEN WH08X0374 Contact Us For Availability
105
GEN WH16X0509 GEN WH16X0509 Contact Us For Availability
107
GEN WH16X0510 GEN WH16X0510 Contact Us For Availability
109
GEN WH17X0091 GEN WH17X0091 Contact Us For Availability
111
GEN WH01X2793 GEN WH01X2793 Contact Us For Availability
113
GEN WH38X0054 GEN WH38X0054 Contact Us For Availability
114
GEN WH02X1165 GEN WH02X1165 Contact Us For Availability
115
GEN WH02X1166 GEN WH02X1166 Contact Us For Availability
116
GEN WH02X1167 GEN WH02X1167 Contact Us For Availability
117
GEN WH39X10002 GEN WH39X10002 Contact Us For Availability
118
GEN WH37X0046 GEN WH37X0046 Contact Us For Availability
120
GEN WH02X1168 GEN WH02X1168 Contact Us For Availability
121
GEN WH17X0092 GEN WH17X0092 Contact Us For Availability
123
GEN WH17X10009 GEN WH17X10009 Contact Us For Availability
125
GEN WH12X10215 GEN WH12X10215 Contact Us For Availability
129
GEN WH01X2676 GEN WH01X2676 Contact Us For Availability
131
GEN WH02X1169 GEN WH02X1169 Contact Us For Availability
132
GEN WH01X2677 GEN WH01X2677 Contact Us For Availability
135
GEN WH16X10050 GEN WH16X10050 Contact Us For Availability
139
GEN WH08X0376 GEN WH08X0376 Contact Us For Availability
152
GEN WH37X10003 GEN WH37X10003 Contact Us For Availability
153
GEN WH08X10012 GEN WH08X10012 Contact Us For Availability
154
GEN WH60X0028 GEN WH60X0028 Contact Us For Availability
155
GEN WH05X0249 GEN WH05X0249 Contact Us For Availability
157
GEN WH40X0181 GEN WH40X0181 Contact Us For Availability
167
GEN WH04X0108 GEN WH04X0108 Contact Us For Availability
168
GEN WH04X0109 GEN WH04X0109 Contact Us For Availability
169
GEN WH37X10004 GEN WH37X10004 Contact Us For Availability
171
GEN WH08X0378 GEN WH08X0378 Contact Us For Availability
172
GEN WH01X10184 GEN WH01X10184 Contact Us For Availability
173
GEN WH02X10128 GEN WH02X10128 Contact Us For Availability
174
GEN WH02X10129 GEN WH02X10129 Contact Us For Availability
175
GEN WH05X0250 GEN WH05X0250 Contact Us For Availability
176
GEN WH07X0122 GEN WH07X0122 Contact Us For Availability
177
GEN WH05X10008 GEN WH05X10008 Contact Us For Availability
178
GEN WH05X0252 GEN WH05X0252 Contact Us For Availability
179
GEN WH60X0029 GEN WH60X0029 Contact Us For Availability
199
GEN WH01X2686 GEN WH01X2686 Contact Us For Availability
201
GEN WE01X10219 GEN WE01X10219 Contact Us For Availability
202
GEN WH01X10292 GEN WH01X10292 Contact Us For Availability
204
SWITCH, START GEN WH12X10209 Contact Us For Availability
205
GEN WH12X0954 GEN WH12X0954 Contact Us For Availability
206
GEN WE04X10052 GEN WE04X10052 Contact Us For Availability
208
GEN WE20X0776 GEN WE20X0776 Contact Us For Availability
209
SEAL, DOOR GEN WE09X0111 Contact Us For Availability
210
GEN WE10X0327 GEN WE10X0327 Contact Us For Availability
211
GEN WE10X0328 GEN WE10X0328 Contact Us For Availability
212
GEN WE03X10006 GEN WE03X10006 Contact Us For Availability
213
GEN WE01X1193 GEN WE01X1193 Contact Us For Availability
214
GEN WE01X1194 GEN WE01X1194 Contact Us For Availability
215
SCREW, 10-16 X 1/2 GEN WE02X10029 Contact Us For Availability
217
GEN WE01X1196 GEN WE01X1196 Contact Us For Availability
221
HINGE & PIN, DOOR GEN WE01X1198 Contact Us For Availability
224
GEN WC36X5084 GEN WC36X5084 Contact Us For Availability
225
GRND SCREW 10-32 X 5/8 GEN WE02X10031 Contact Us For Availability
226
GEN WE02X0383 GEN WE02X0383 Contact Us For Availability
230
GEN WE13X0201 GEN WE13X0201 Contact Us For Availability
231
GEN WE20X0778 GEN WE20X0778 Contact Us For Availability
233
GEN WE13X10014 GEN WE13X10014 Contact Us For Availability
234
GEN WE20X0779 GEN WE20X0779 Contact Us For Availability
235
GEN WE01X1210 GEN WE01X1210 Contact Us For Availability
237
GEN WH01X10185 GEN WH01X10185 Contact Us For Availability
238
GEN WE14X0222 GEN WE14X0222 Contact Us For Availability
239
CLIP, FRT PANEL GEN WE01X1212 Contact Us For Availability
241
GEN WE14X0223 GEN WE14X0223 Contact Us For Availability
242
GEN WE01X1214 GEN WE01X1214 Contact Us For Availability
245
GEN WE12X10003 GEN WE12X10003 Contact Us For Availability
246
IDLER BRACKET ASM GEN WE12X0095 Contact Us For Availability
247
GEN WE02X0384 GEN WE02X0384 Contact Us For Availability
248
GEN WE20X0799 GEN WE20X0799 Contact Us For Availability
249
GEN WE02X0385 GEN WE02X0385 Contact Us For Availability
250
GEN WE20X0782 GEN WE20X0782 Contact Us For Availability
251
GEN WE20X0783 GEN WE20X0783 Contact Us For Availability
252
GEN WE20X0785 GEN WE20X0785 Contact Us For Availability
253
GEN WE20X0786 GEN WE20X0786 Contact Us For Availability
254
GEN WE01X1216 GEN WE01X1216 Contact Us For Availability
255
GEN WE20X0788 GEN WE20X0788 Contact Us For Availability
256
GEN WE02X0386 GEN WE02X0386 Contact Us For Availability
257
GEN WE02X0387 GEN WE02X0387 Contact Us For Availability
258
SCREW 10-16X3/8 GEN WE02X10055 Contact Us For Availability
262
GEN WH01X10186 GEN WH01X10186 Contact Us For Availability
266
GEN WE02X0390 GEN WE02X0390 Contact Us For Availability
267
CLIP GEN WE01X1239 Contact Us For Availability
268
GEN WE11X0100 GEN WE11X0100 Contact Us For Availability
270
GEN WE09X0112 GEN WE09X0112 Contact Us For Availability
271
WHEEL, BLOWER GEN WE16X0029 Contact Us For Availability
272
GEN WE09X10012 GEN WE09X10012 Contact Us For Availability
273
GEN WE14X0225 GEN WE14X0225 Contact Us For Availability
274
GEN WE04X10100 GEN WE04X10100 Contact Us For Availability
275
GEN WE03X0085 GEN WE03X0085 Contact Us For Availability
276
GEN WE21X0072 GEN WE21X0072 Contact Us For Availability
277
RING, BEARING GEN WE03X0080 Contact Us For Availability
278
GEN WE21X0073 GEN WE21X0073 Contact Us For Availability
279
GEN WE02X0391 GEN WE02X0391 Contact Us For Availability
280
GEN WE09X0114 GEN WE09X0114 Contact Us For Availability
281
GEN WE20X10063 GEN WE20X10063 Contact Us For Availability
284
GEN WE02X0392 GEN WE02X0392 Contact Us For Availability
285
GEN WE03X0086 GEN WE03X0086 Contact Us For Availability
287
GEN WE02X0393 GEN WE02X0393 Contact Us For Availability
288
SCREW 10-16X3/8 GEN NOT STOCKED Contact Us For Availability
289
GEN WH01X10172 GEN WH01X10172 Contact Us For Availability
290
GEN WE08X10051 GEN WE08X10051 Contact Us For Availability
293
GEN WE02X0394 GEN WE02X0394 Contact Us For Availability
294
GEN WE04X10133 GEN WE04X10133 Contact Us For Availability
295
GEN WE01X1219 GEN WE01X1219 Contact Us For Availability
301
GEN WE13X0204 GEN WE13X0204 Contact Us For Availability
302
GEN WE13X0205 GEN WE13X0205 Contact Us For Availability
305
GEN WH02X1181 GEN WH02X1181 Contact Us For Availability
306
SCREW & WASHER ASM GEN WH02X1184 Contact Us For Availability
307
GEN WH01X2703 GEN WH01X2703 Contact Us For Availability
308
GEN WH41X0353 GEN WH41X0353 Contact Us For Availability
310
GEN WH41X0354 GEN WH41X0354 Contact Us For Availability
311
HOSE DRAIN 9 FT. GEN WH41X0364 Contact Us For Availability
311
GEN WH41X10076 GEN WH41X10076 Contact Us For Availability
312
GEN WH01X1182 GEN WH01X1182 Contact Us For Availability
313
GEN WH41X0355 GEN WH41X0355 Contact Us For Availability
315
GEN WH41X0356 GEN WH41X0356 Contact Us For Availability
317
GEN WH01X2697 GEN WH01X2697 Contact Us For Availability
318
GEN WH01X2698 GEN WH01X2698 Contact Us For Availability
320
GEN WH01X2700 GEN WH01X2700 Contact Us For Availability
321
GEN WH46X0332 GEN WH46X0332 Contact Us For Availability
322
GEN WH01X2701 GEN WH01X2701 Contact Us For Availability
323
GEN WH01X2702 GEN WH01X2702 Contact Us For Availability
324
GEN WH01X10180 GEN WH01X10180 Contact Us For Availability
325
GEN WH01X10181 GEN WH01X10181 Contact Us For Availability
326
GEN WH01X10182 GEN WH01X10182 Contact Us For Availability
327
SCREW, MIXING VALVE MOUN GEN NOT_STOCKED Contact Us For Availability
328
GEN WH01X10192 GEN WH01X10192 Contact Us For Availability
331
GEN WE13X0207 GEN WE13X0207 Contact Us For Availability
332
GEN WE01X1227 GEN WE01X1227 Contact Us For Availability
333
GEN WE13X0206 GEN WE13X0206 Contact Us For Availability
334
GEN WE13X0208 GEN WE13X0208 Contact Us For Availability
807
WASHER, HOSE GEN WH08X10005 Contact Us For Availability
× ![]()
