Model GE WSM2420TBAAA Washer/Dryer Combo – Common Parts & Diagrams

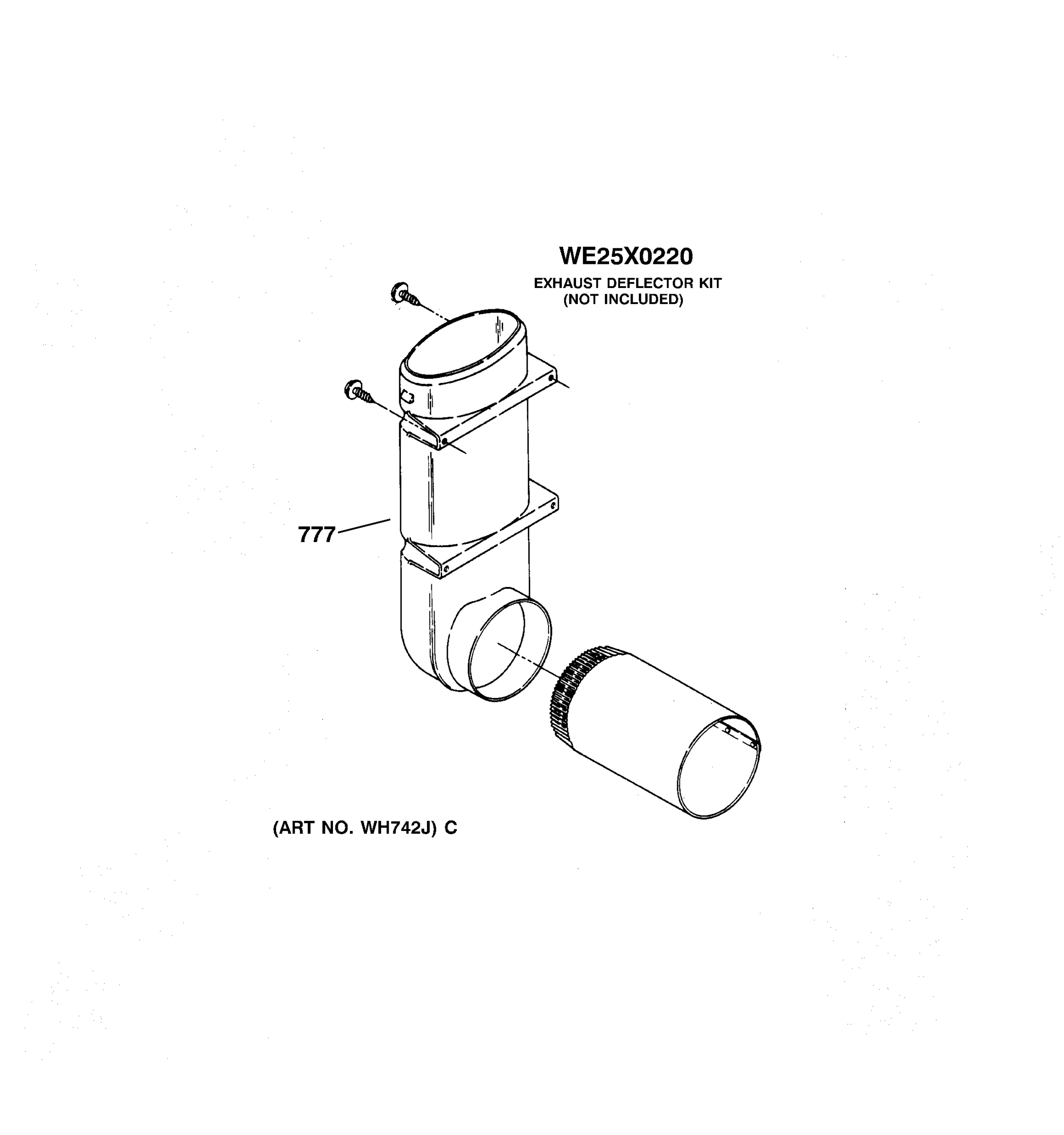

ACCESSORIES

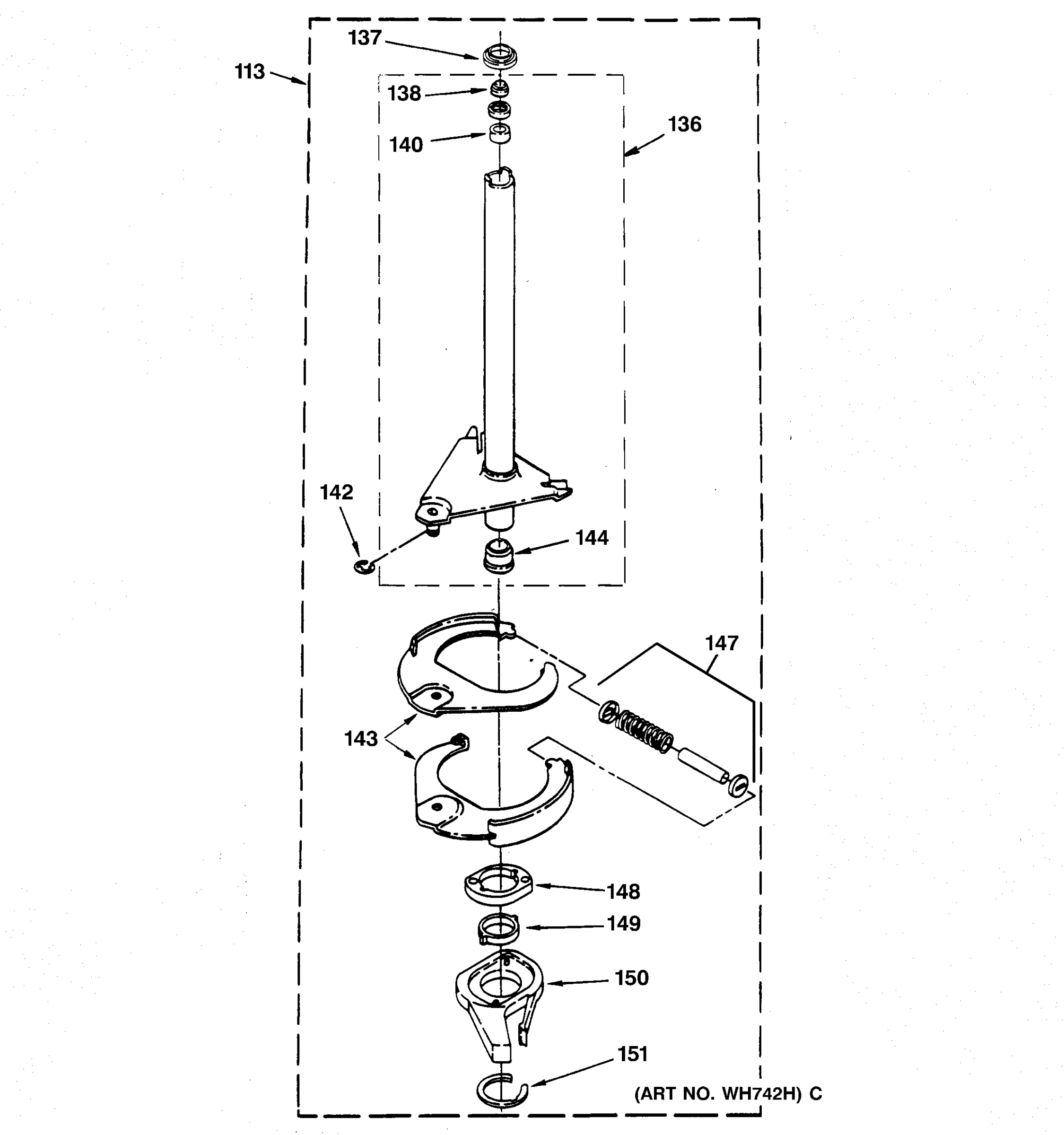

BRAKE & DRIVE PARTS

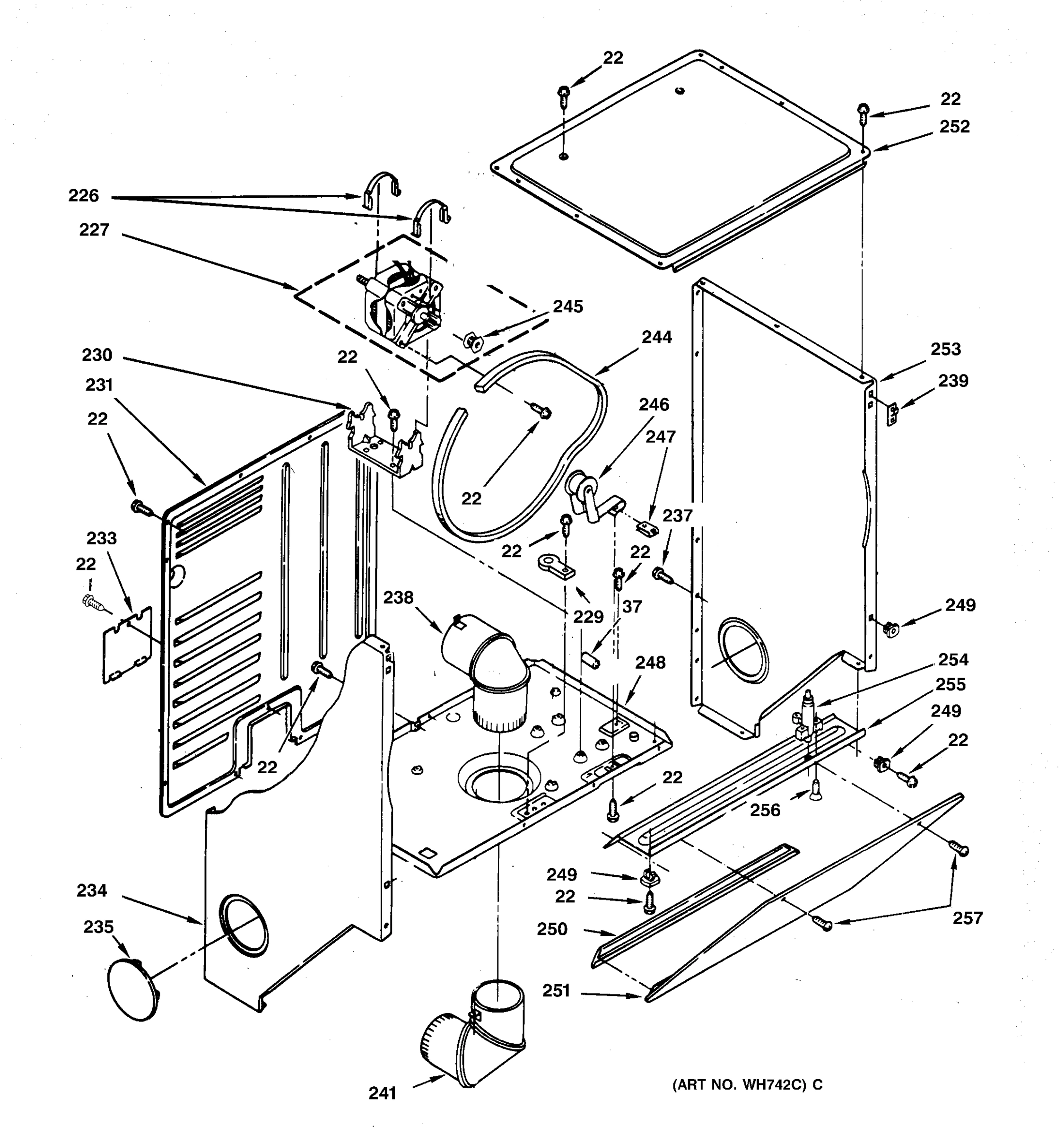

DRYER CABINET & MOTOR PARTS

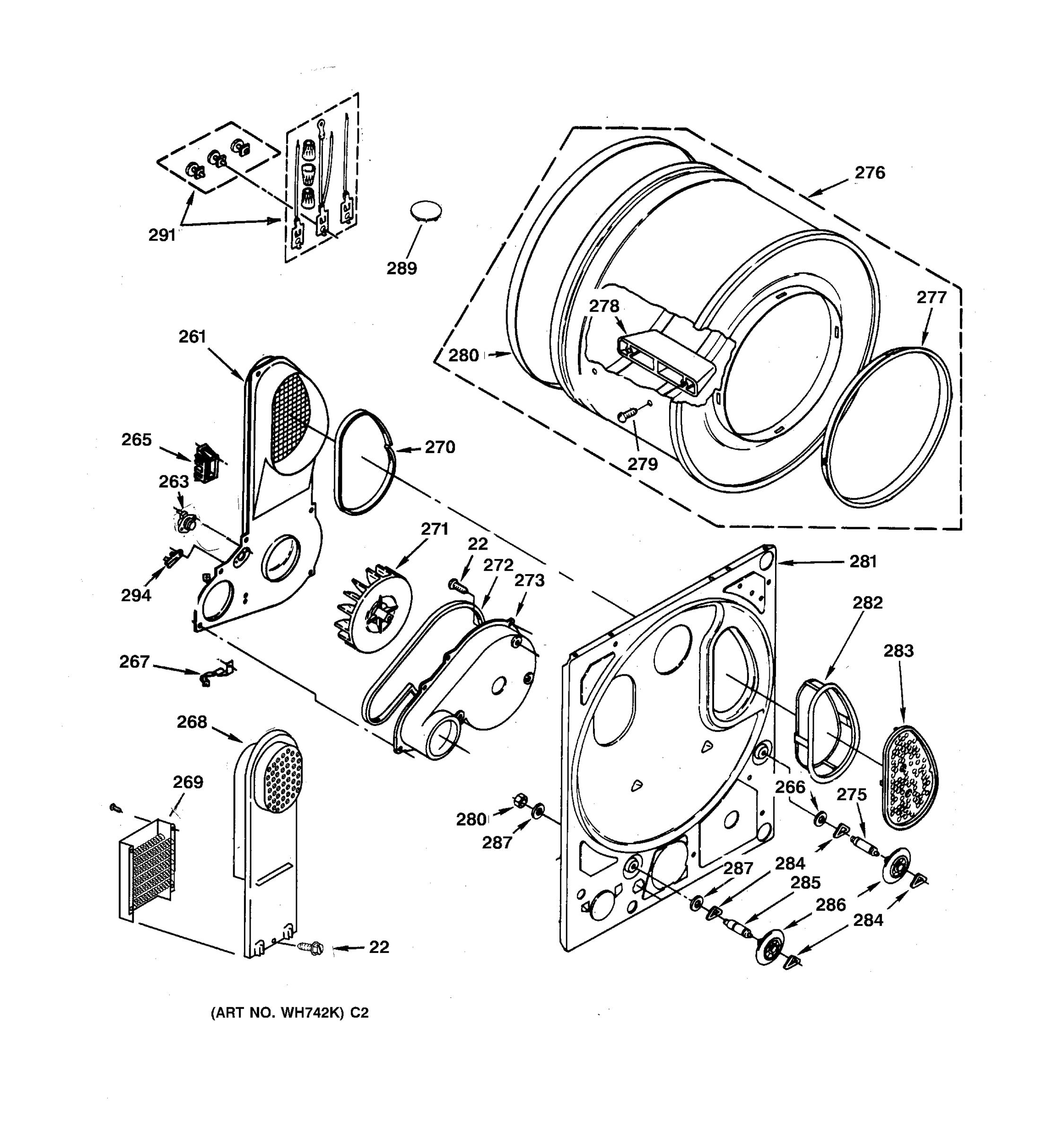

DRYER DRUM & BACK PANEL

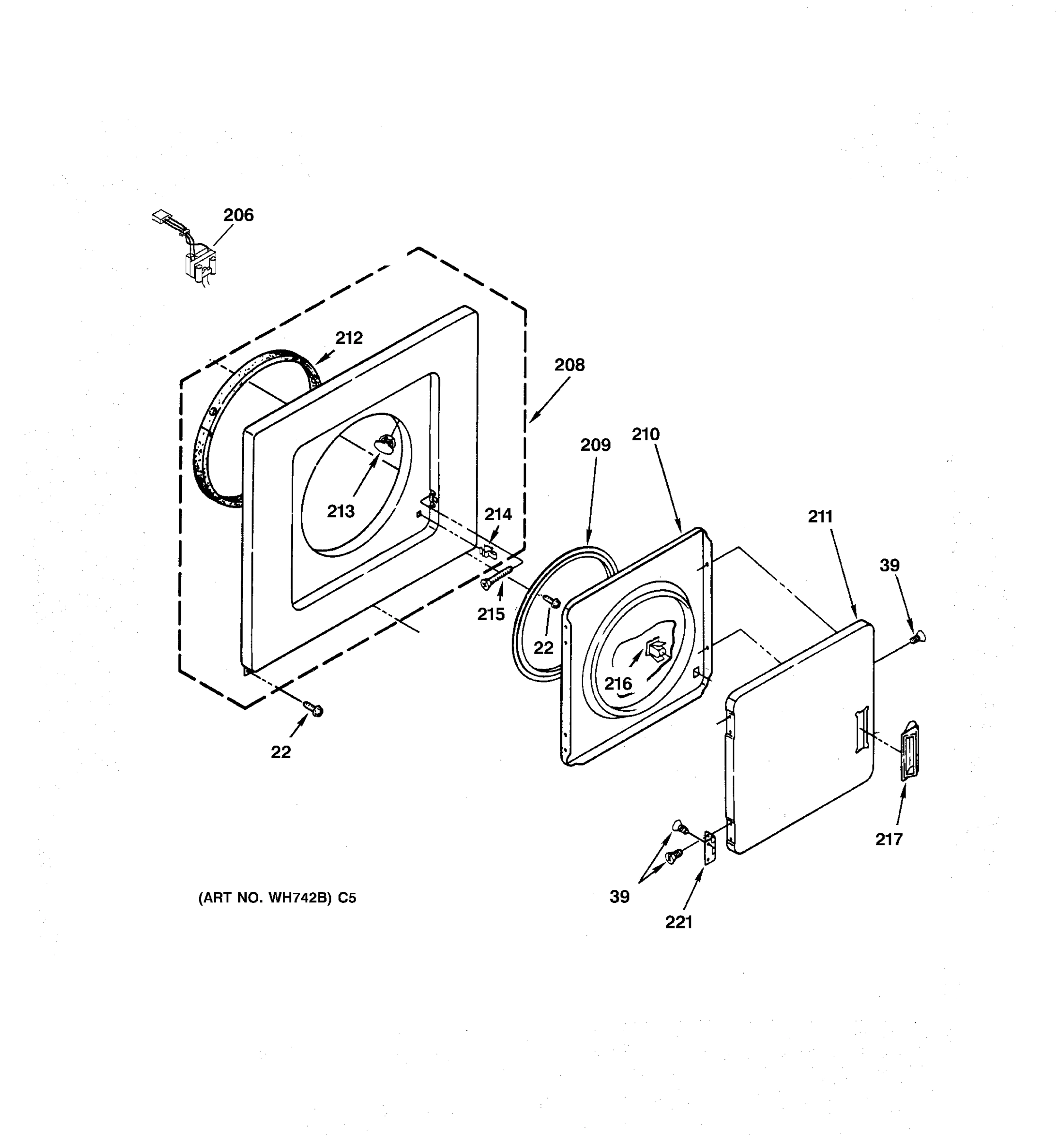

DRYER FRONT PANEL & DOOR PARTS

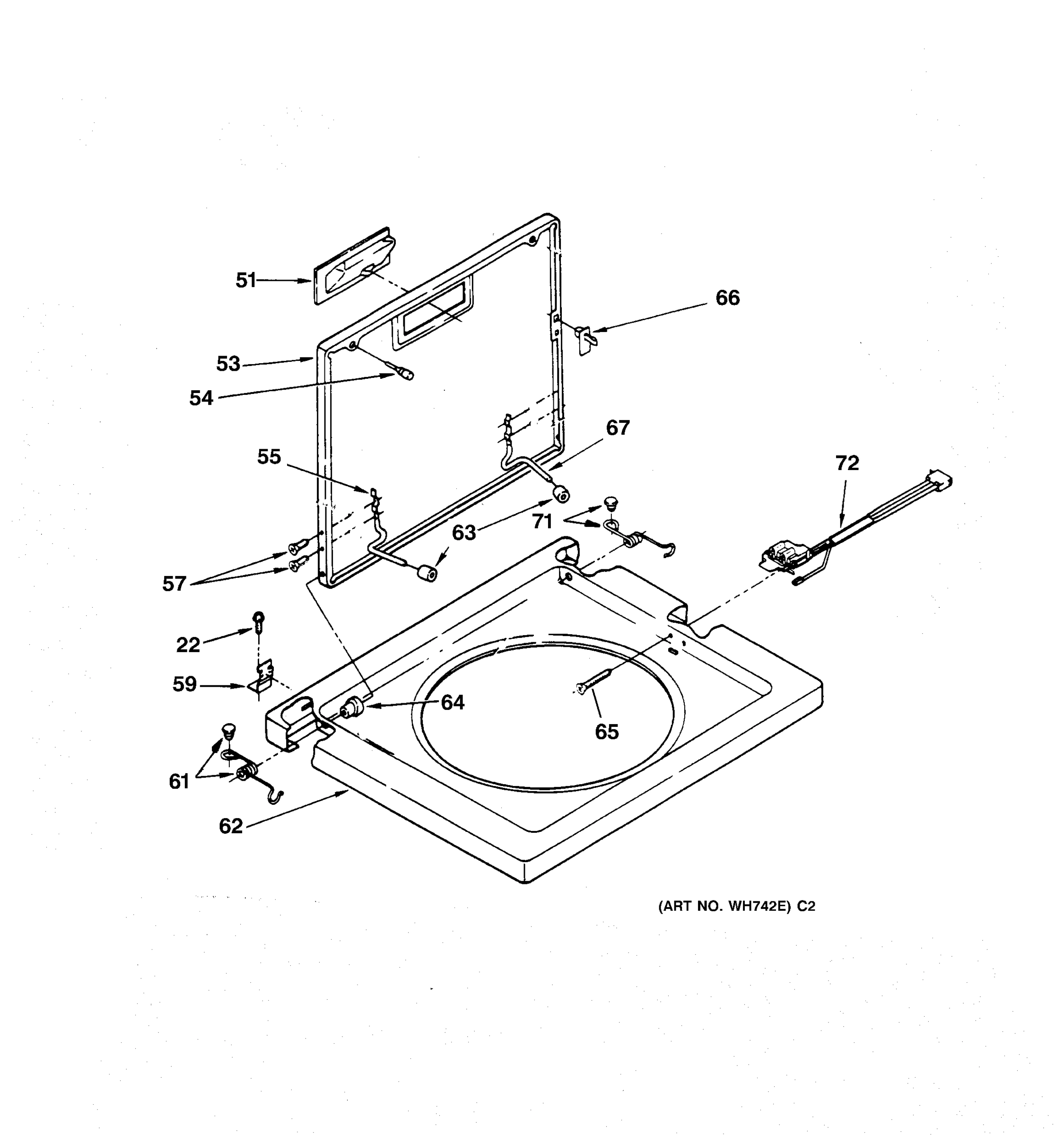

LID PARTS

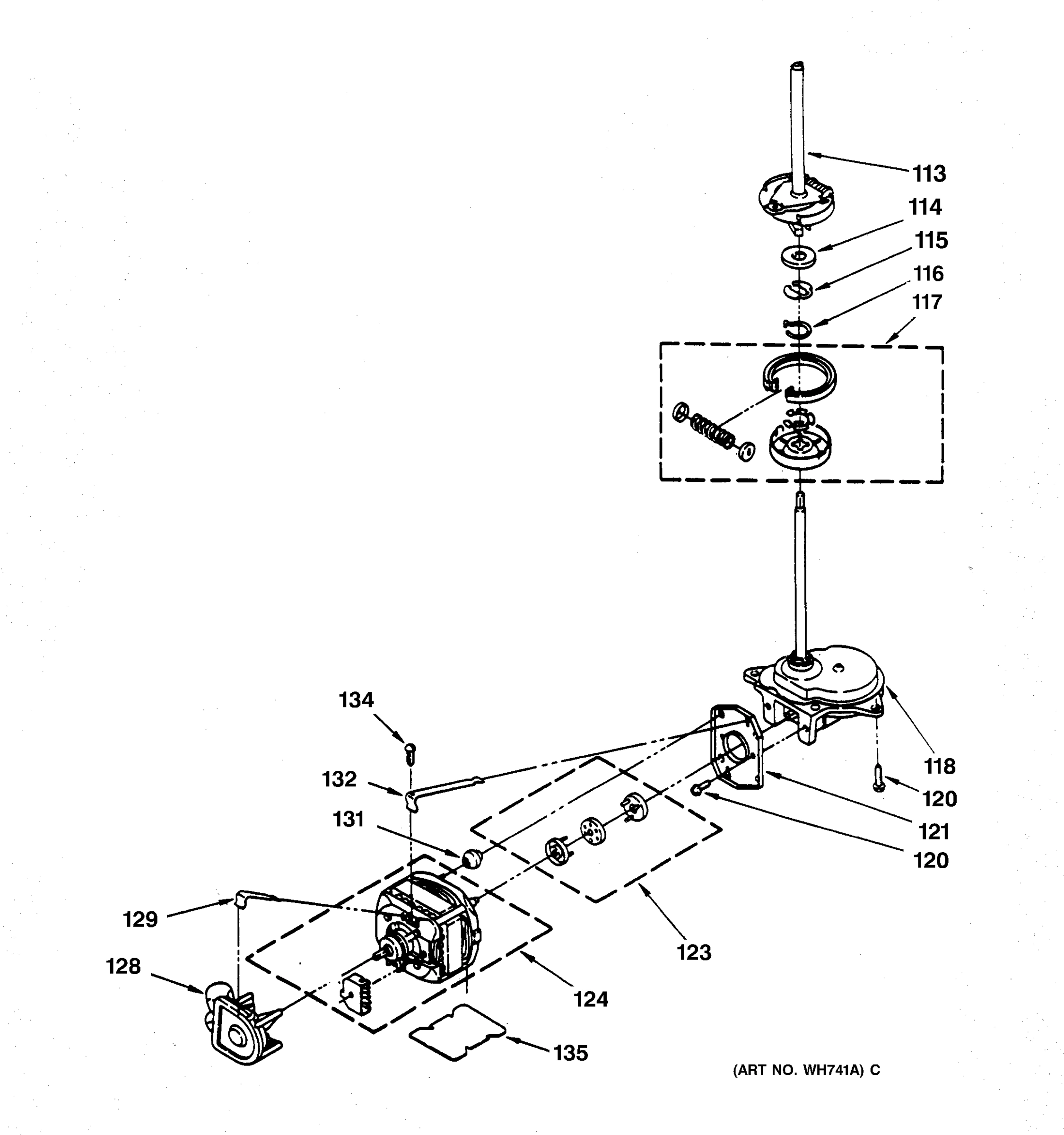

MOTOR & TRANSMISSION ASSSEMBLY

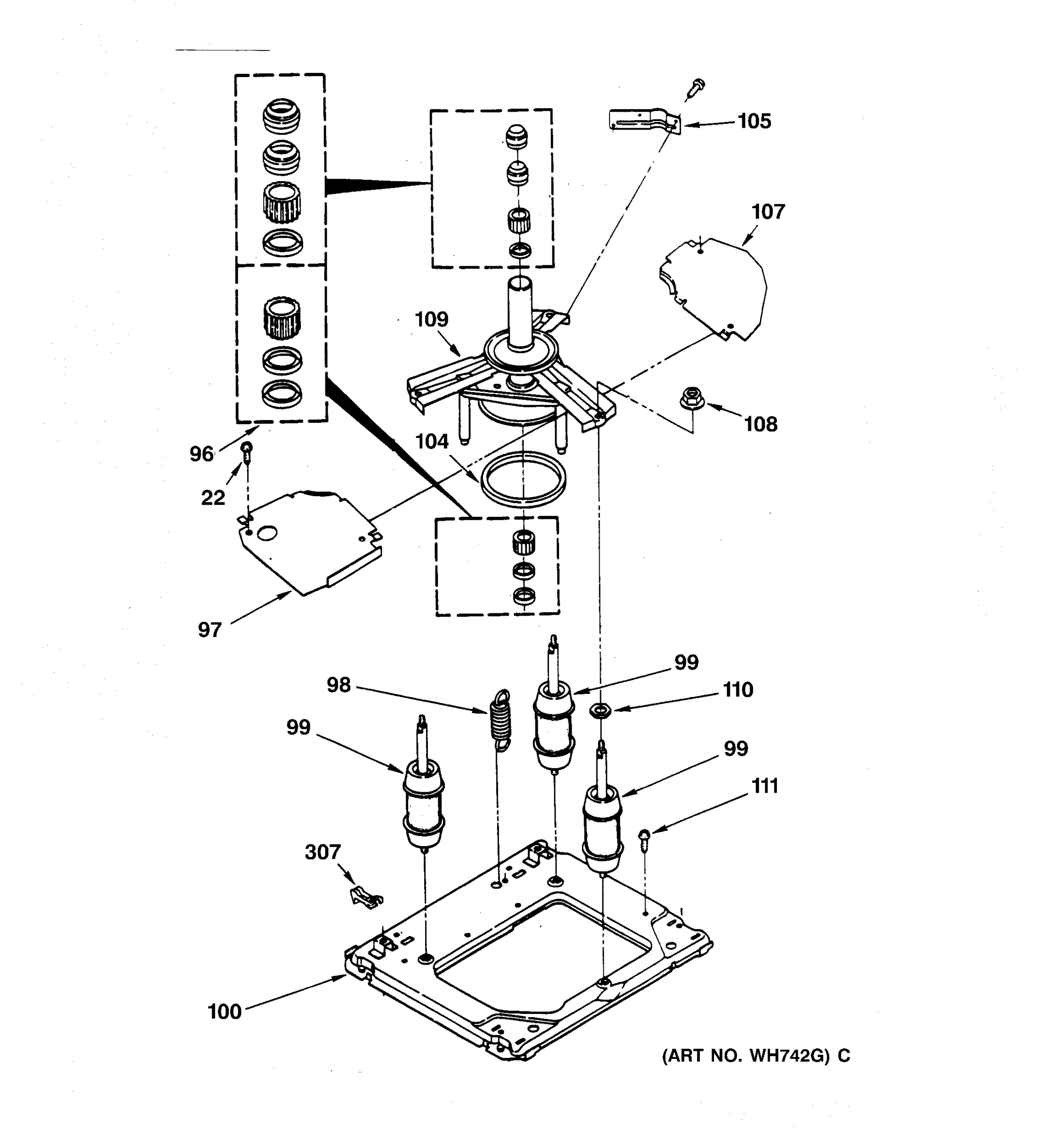

SUSPENSION ASSSEMBLY

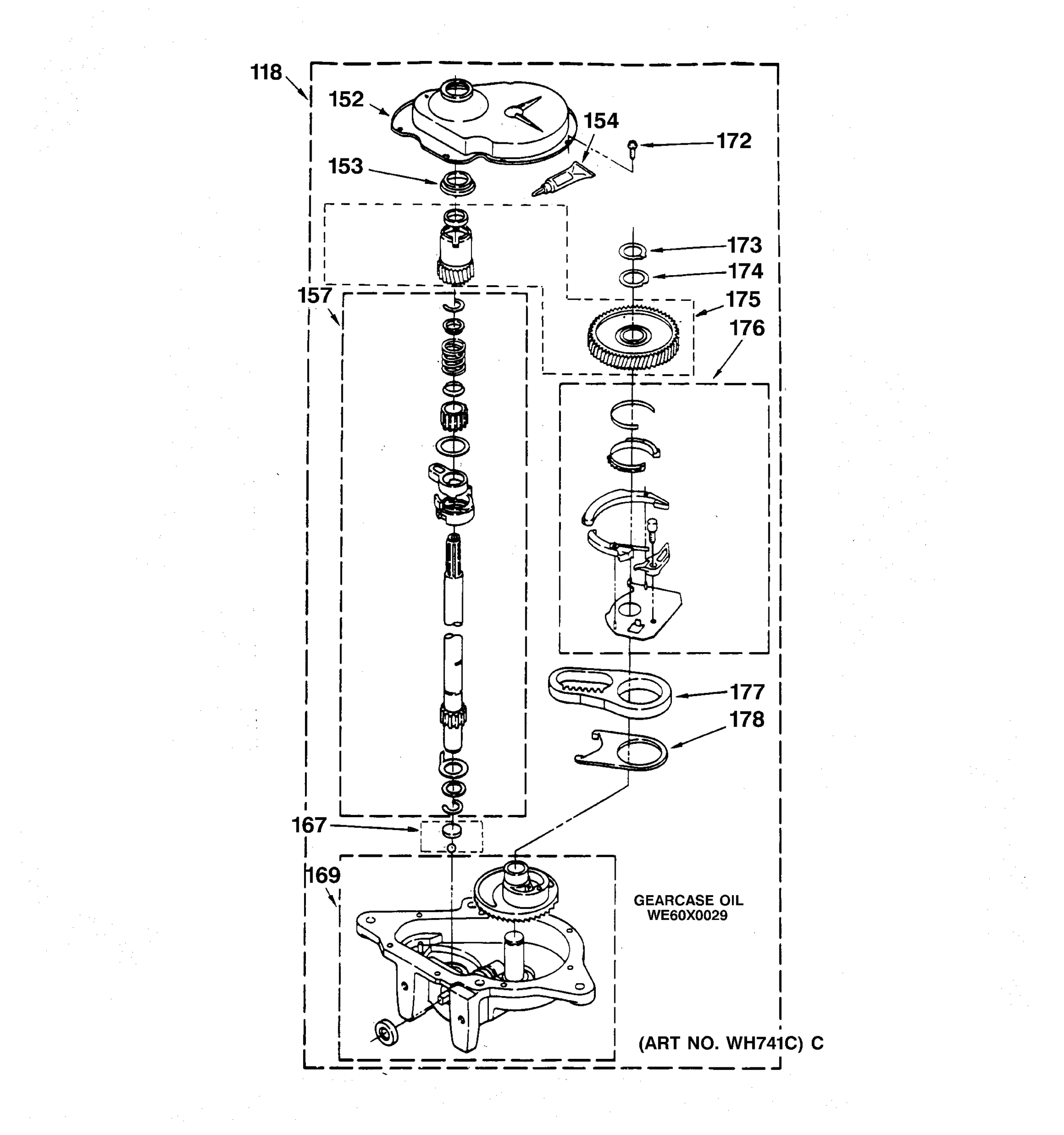

TRANSMISSION PARTS

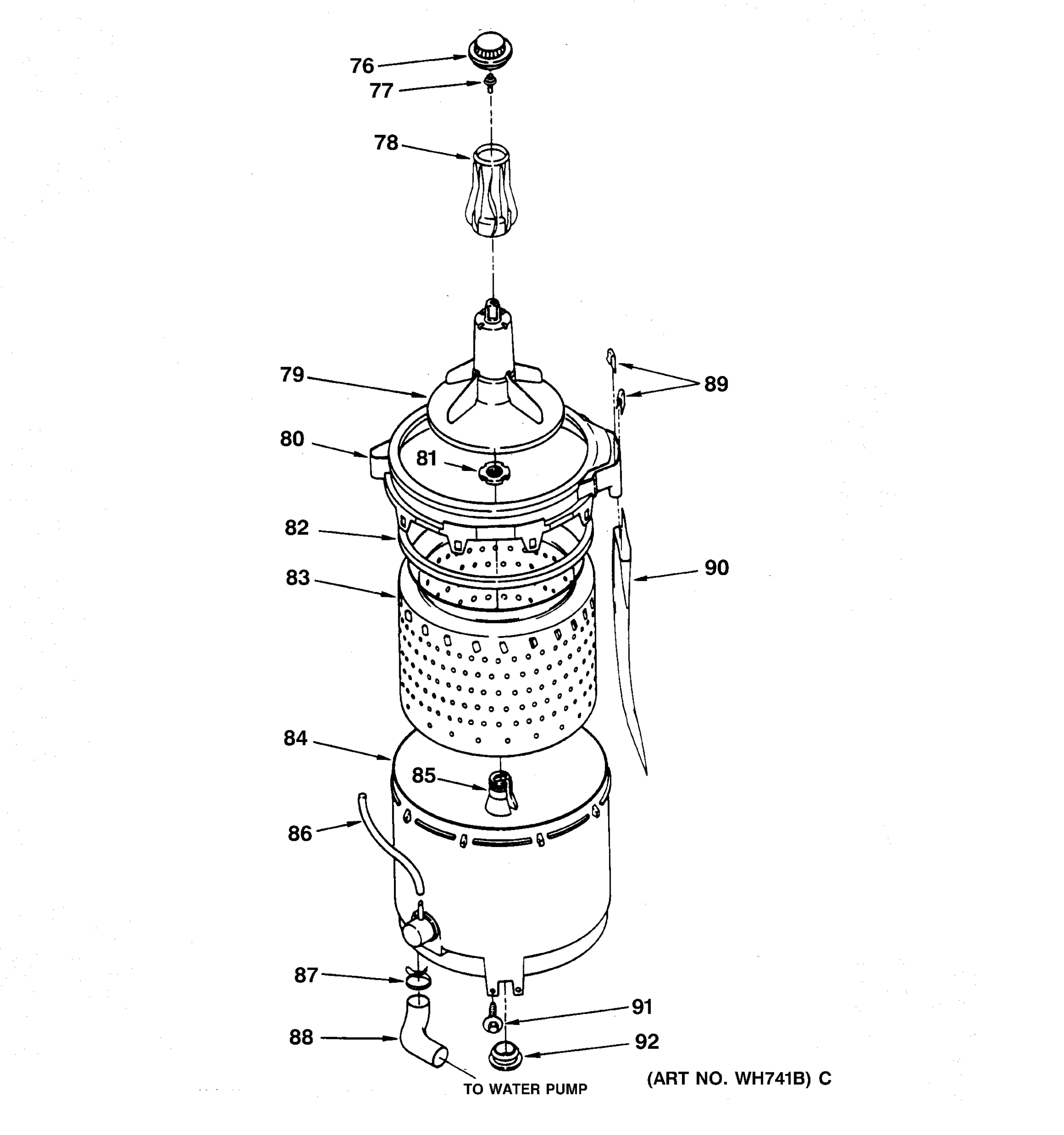

TUB

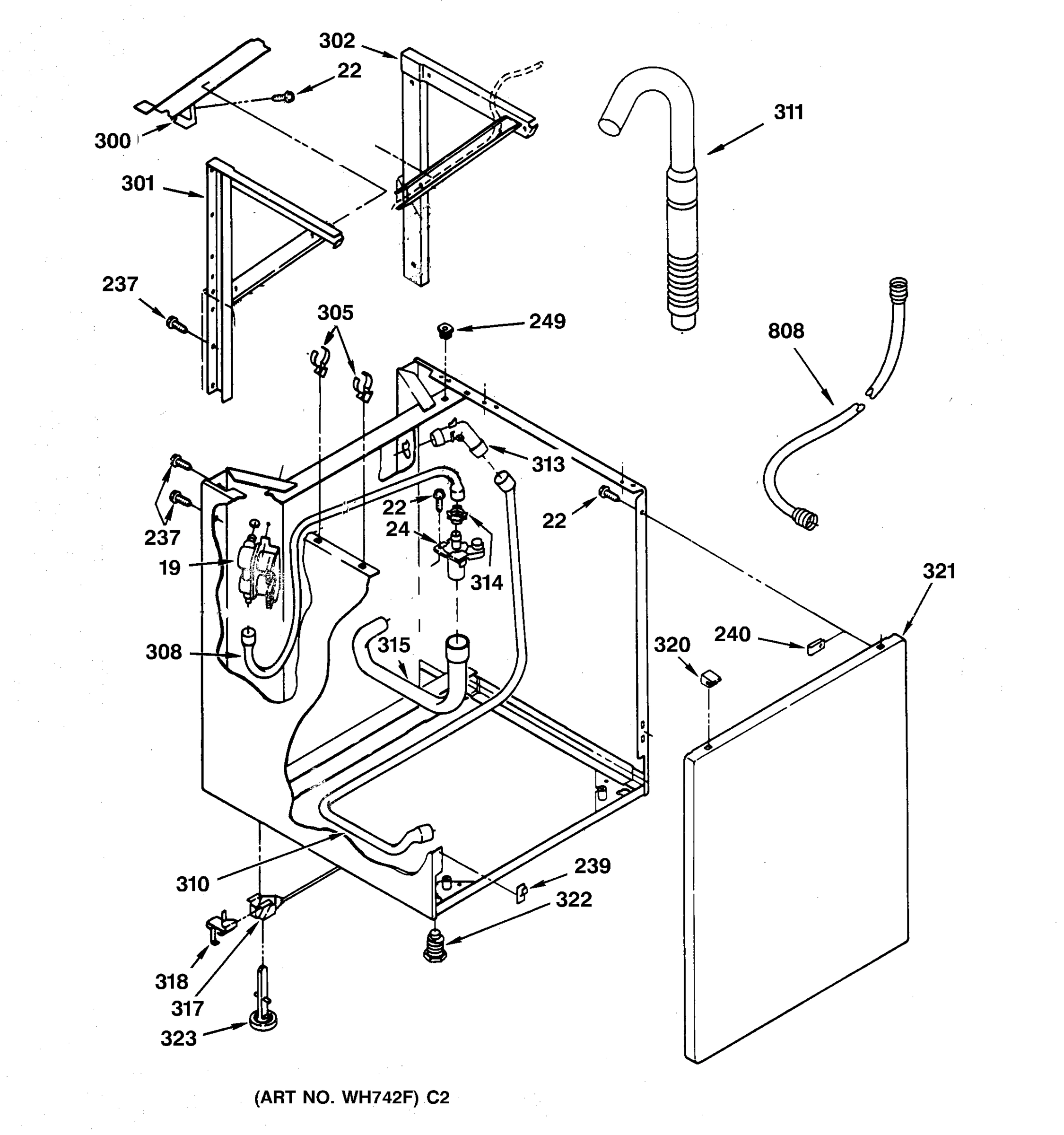

WASHER CABINET PARTS

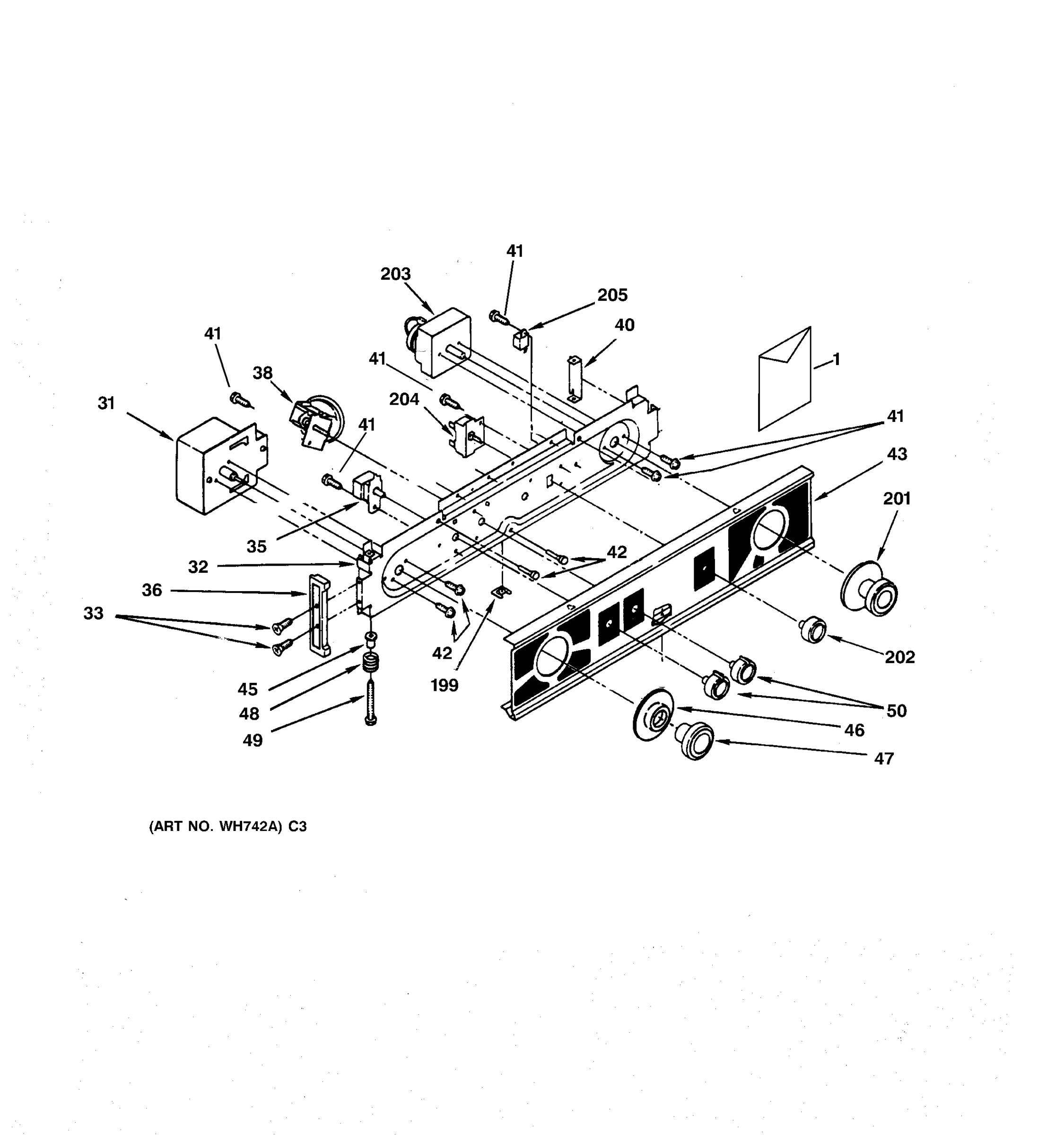

WASHER/DRYER CONTROL PANEL PARTS
Common parts from model GE WSM2420TBAAA Washer/Dryer Combo
1
GEN 31-2653 GEN 31-2653 Contact Us For Availability
1
GEN 31-2729 GEN 31-2729 Contact Us For Availability
1
GUIDE, USE CARE GEN 49-9799 Contact Us For Availability
24
GEN WH01X2662 GEN WH01X2662 Contact Us For Availability
32
GEN WH16X10032 GEN WH16X10032 Contact Us For Availability
33
GEN WR01X10136 GEN WR01X10136 Contact Us For Availability
35
GEN WH12X10098 GEN WH12X10098 Contact Us For Availability
36
END CAP GEN WH42X2313 Contact Us For Availability
37
GEN WH12X0949 GEN WH12X0949 Contact Us For Availability
38
GEN WH12X0951 GEN WH12X0951 Contact Us For Availability
39
SCREW, MOUNTING GEN WH02X1178 Contact Us For Availability
40
GEN WH01X2693 GEN WH01X2693 Contact Us For Availability
41
GEN WH02X10066 GEN WH02X10066 Contact Us For Availability
42
SCR, TIMER MNTG GEN WH02X1159 Contact Us For Availability
43
GEN WH42X2315 GEN WH42X2315 Contact Us For Availability
45
GEN WH01X2683 GEN WH01X2683 Contact Us For Availability
46
GEN WH01X2690 GEN WH01X2690 Contact Us For Availability
47
KNOB, TIMER GEN WH01X2664 Contact Us For Availability
48
GEN WH01X2684 GEN WH01X2684 Contact Us For Availability
49
GEN WH02X10067 GEN WH02X10067 Contact Us For Availability
50
KNOB, WATER TEMP GEN WH01X2678 Contact Us For Availability
51
HANDLE, LID GEN WH01X2666 Contact Us For Availability
53
LID GEN WH44X1157 Contact Us For Availability
54
GEN WH01X2667 GEN WH01X2667 Contact Us For Availability
55
HINGE, LID GEN WH16X0506 Contact Us For Availability
57
GEN WH02X1160 GEN WH02X1160 Contact Us For Availability
59
GEN WH01X2694 GEN WH01X2694 Contact Us For Availability
61
SPRING BUTTON GEN WH01X2670 Contact Us For Availability
62
GEN WH44X1161 GEN WH44X1161 Contact Us For Availability
63
GEN WH01X2671 GEN WH01X2671 Contact Us For Availability
64
GEN WH04X0105 GEN WH04X0105 Contact Us For Availability
65
GEN WH02X1161 GEN WH02X1161 Contact Us For Availability
66
GEN WH01X2672 GEN WH01X2672 Contact Us For Availability
67
GEN WH16X0507 GEN WH16X0507 Contact Us For Availability
71
SPRING BUTTON GEN WH01X2673 Contact Us For Availability
76
GEN WH43X0133 GEN WH43X0133 Contact Us For Availability
77
GEN WH02X1162 GEN WH02X1162 Contact Us For Availability
79
GEN WH43X0134 GEN WH43X0134 Contact Us For Availability
80
GEN WH45X0145 GEN WH45X0145 Contact Us For Availability
81
GEN WH02X1163 GEN WH02X1163 Contact Us For Availability
82
GEN WH08X0372 GEN WH08X0372 Contact Us For Availability
83
GEN WH45X0146 GEN WH45X0146 Contact Us For Availability
84
GEN WH45X10032 GEN WH45X10032 Contact Us For Availability
85
GEN WH40X0180 GEN WH40X0180 Contact Us For Availability
86
HOSE, PRESSURE SWITCH GEN WH41X0357 Contact Us For Availability
88
GEN WH41X0350 GEN WH41X0350 Contact Us For Availability
90
GEN WH41X0351 GEN WH41X0351 Contact Us For Availability
91
SCR.WASHER GEN WH02X1164 Contact Us For Availability
96
GEN WH04X0106 GEN WH04X0106 Contact Us For Availability
97
GEN WH16X0508 GEN WH16X0508 Contact Us For Availability
98
GEN WH01X2675 GEN WH01X2675 Contact Us For Availability
99
GEN WH17X10005 GEN WH17X10005 Contact Us For Availability
100
GEN WH46X0329 GEN WH46X0329 Contact Us For Availability
104
GEN WH08X0374 GEN WH08X0374 Contact Us For Availability
105
GEN WH16X0509 GEN WH16X0509 Contact Us For Availability
107
GEN WH16X0510 GEN WH16X0510 Contact Us For Availability
109
GEN WH17X0091 GEN WH17X0091 Contact Us For Availability
113
GEN WH38X0054 GEN WH38X0054 Contact Us For Availability
114
GEN WH02X1165 GEN WH02X1165 Contact Us For Availability
115
GEN WH02X1166 GEN WH02X1166 Contact Us For Availability
116
GEN WH02X1167 GEN WH02X1167 Contact Us For Availability
117
GEN WH39X10002 GEN WH39X10002 Contact Us For Availability
118
GEN WH37X0046 GEN WH37X0046 Contact Us For Availability
120
GEN WH02X1168 GEN WH02X1168 Contact Us For Availability
121
GEN WH17X0092 GEN WH17X0092 Contact Us For Availability
123
GEN WH17X0093 GEN WH17X0093 Contact Us For Availability
129
GEN WH01X2676 GEN WH01X2676 Contact Us For Availability
131
GEN WH02X1169 GEN WH02X1169 Contact Us For Availability
132
GEN WH01X2677 GEN WH01X2677 Contact Us For Availability
135
GEN WH16X0511 GEN WH16X0511 Contact Us For Availability
147
SLEEVE/SPRING BRAKE GEN WH01X2682 Contact Us For Availability
148
GEN WH05X0246 GEN WH05X0246 Contact Us For Availability
149
GEN WH05X0247 GEN WH05X0247 Contact Us For Availability
150
GEN WH05X0248 GEN WH05X0248 Contact Us For Availability
151
GEN WH02X1174 GEN WH02X1174 Contact Us For Availability
152
GEN WH37X0047 GEN WH37X0047 Contact Us For Availability
153
GEN WH08X0377 GEN WH08X0377 Contact Us For Availability
154
GEN WH60X0028 GEN WH60X0028 Contact Us For Availability
157
GEN WH40X0181 GEN WH40X0181 Contact Us For Availability
167
GEN WH04X0108 GEN WH04X0108 Contact Us For Availability
169
GEN WH37X0048 GEN WH37X0048 Contact Us For Availability
172
GEN WH02X1175 GEN WH02X1175 Contact Us For Availability
173
GEN WH02X1176 GEN WH02X1176 Contact Us For Availability
174
GEN WH02X1177 GEN WH02X1177 Contact Us For Availability
175
GEN WH05X0250 GEN WH05X0250 Contact Us For Availability
176
GEN WH07X0122 GEN WH07X0122 Contact Us For Availability
177
GEN WH05X0251 GEN WH05X0251 Contact Us For Availability
178
GEN WH05X0252 GEN WH05X0252 Contact Us For Availability
199
GEN WH01X2686 GEN WH01X2686 Contact Us For Availability
201
GEN WE01X1209 GEN WE01X1209 Contact Us For Availability
202
GEN WH01X2688 GEN WH01X2688 Contact Us For Availability
204
GEN WH12X10100 GEN WH12X10100 Contact Us For Availability
205
GEN WH12X0954 GEN WH12X0954 Contact Us For Availability
206
GEN WE04X10052 GEN WE04X10052 Contact Us For Availability
208
PANEL, FRONT AD. GEN WE20X0777 Contact Us For Availability
209
SEAL, DOOR GEN WE09X0111 Contact Us For Availability
210
GEN WE10X0327 GEN WE10X0327 Contact Us For Availability
211
GEN WE10X0329 GEN WE10X0329 Contact Us For Availability
212
GEN WE03X0078 GEN WE03X0078 Contact Us For Availability
213
GEN WE01X1193 GEN WE01X1193 Contact Us For Availability
214
GEN WE01X1194 GEN WE01X1194 Contact Us For Availability
215
SCREW, DOOR SWITCH GEN WE02X10029 Contact Us For Availability
217
GEN WE01X1191 GEN WE01X1191 Contact Us For Availability
221
GEN WE01X1198 GEN WE01X1198 Contact Us For Availability
226
GEN WE02X0383 GEN WE02X0383 Contact Us For Availability
229
GEN WE04X0855 GEN WE04X0855 Contact Us For Availability
230
GEN WE13X0201 GEN WE13X0201 Contact Us For Availability
231
GEN WE20X0778 GEN WE20X0778 Contact Us For Availability
233
GEN WE13X10014 GEN WE13X10014 Contact Us For Availability
234
PANEL, SIDE AD GEN WE20X0780 Contact Us For Availability
235
GEN WE01X1211 GEN WE01X1211 Contact Us For Availability
238
GEN WE14X0222 GEN WE14X0222 Contact Us For Availability
239
CLIP, FRT PANEL GEN WE01X1212 Contact Us For Availability
241
GEN WE14X0223 GEN WE14X0223 Contact Us For Availability
245
GEN WE12X10003 GEN WE12X10003 Contact Us For Availability
246
IDLER BRACKET GEN WE12X0095 Contact Us For Availability
247
GEN WE02X0384 GEN WE02X0384 Contact Us For Availability
248
GEN WE20X0798 GEN WE20X0798 Contact Us For Availability
249
GEN WE02X0385 GEN WE02X0385 Contact Us For Availability
250
COVE, TRANS PANEL BL GEN WE20X0782 Contact Us For Availability
251
GEN WE20X0784 GEN WE20X0784 Contact Us For Availability
252
GEN WE20X0785 GEN WE20X0785 Contact Us For Availability
253
GEN WE20X0787 GEN WE20X0787 Contact Us For Availability
254
GEN WE01X1216 GEN WE01X1216 Contact Us For Availability
255
GEN WE20X0789 GEN WE20X0789 Contact Us For Availability
256
SCREW WASHER GEN WE02X0386 Contact Us For Availability
257
SCREW WASHER GEN WE02X0387 Contact Us For Availability
261
GEN WE14X0224 GEN WE14X0224 Contact Us For Availability
265
GEN WE04X0825 GEN WE04X0825 Contact Us For Availability
266
GEN WE02X0390 GEN WE02X0390 Contact Us For Availability
267
CLIP GEN WE01X1239 Contact Us For Availability
268
GEN WE11X0097 GEN WE11X0097 Contact Us For Availability
269
GEN WE11X10004 GEN WE11X10004 Contact Us For Availability
270
GEN WE09X0112 GEN WE09X0112 Contact Us For Availability
271
WHEEL, BLOWER GEN WE16X0029 Contact Us For Availability
272
SEAL, FAN SCROLL GEN WE09X0116 Contact Us For Availability
273
GEN WE14X0225 GEN WE14X0225 Contact Us For Availability
275
GEN WE03X0085 GEN WE03X0085 Contact Us For Availability
276
GEN WE21X0072 GEN WE21X0072 Contact Us For Availability
277
RING, BEARING GEN WE03X0080 Contact Us For Availability
278
GEN WE21X0073 GEN WE21X0073 Contact Us For Availability
279
GEN WE02X0391 GEN WE02X0391 Contact Us For Availability
280
SEAL GEN WE09X0114 Contact Us For Availability
281
GEN WE20X0790 GEN WE20X0790 Contact Us For Availability
284
GEN WE02X0392 GEN WE02X0392 Contact Us For Availability
285
GEN WE03X0086 GEN WE03X0086 Contact Us For Availability
287
GEN WE02X0393 GEN WE02X0393 Contact Us For Availability
289
GEN WH01X10074 GEN WH01X10074 Contact Us For Availability
291
TERMINAL NUTS GEN WE08X0046 Contact Us For Availability
301
GEN WE13X0204 GEN WE13X0204 Contact Us For Availability
302
GEN WE13X0205 GEN WE13X0205 Contact Us For Availability
305
GEN WH02X1181 GEN WH02X1181 Contact Us For Availability
307
GEN WH01X2703 GEN WH01X2703 Contact Us For Availability
308
GEN WH41X0353 GEN WH41X0353 Contact Us For Availability
310
GEN WH41X0354 GEN WH41X0354 Contact Us For Availability
311
GEN WH41X0364 GEN WH41X0364 Contact Us For Availability
313
GEN WH41X0355 GEN WH41X0355 Contact Us For Availability
314
GEN WH01X2661 GEN WH01X2661 Contact Us For Availability
315
GEN WH41X0356 GEN WH41X0356 Contact Us For Availability
317
GEN WH01X2697 GEN WH01X2697 Contact Us For Availability
318
GEN WH01X2698 GEN WH01X2698 Contact Us For Availability
320
GEN WH01X2700 GEN WH01X2700 Contact Us For Availability
321
GEN WH46X0333 GEN WH46X0333 Contact Us For Availability
322
GEN WH01X2701 GEN WH01X2701 Contact Us For Availability
323
GEN WH01X2702 GEN WH01X2702 Contact Us For Availability
× ![]()
