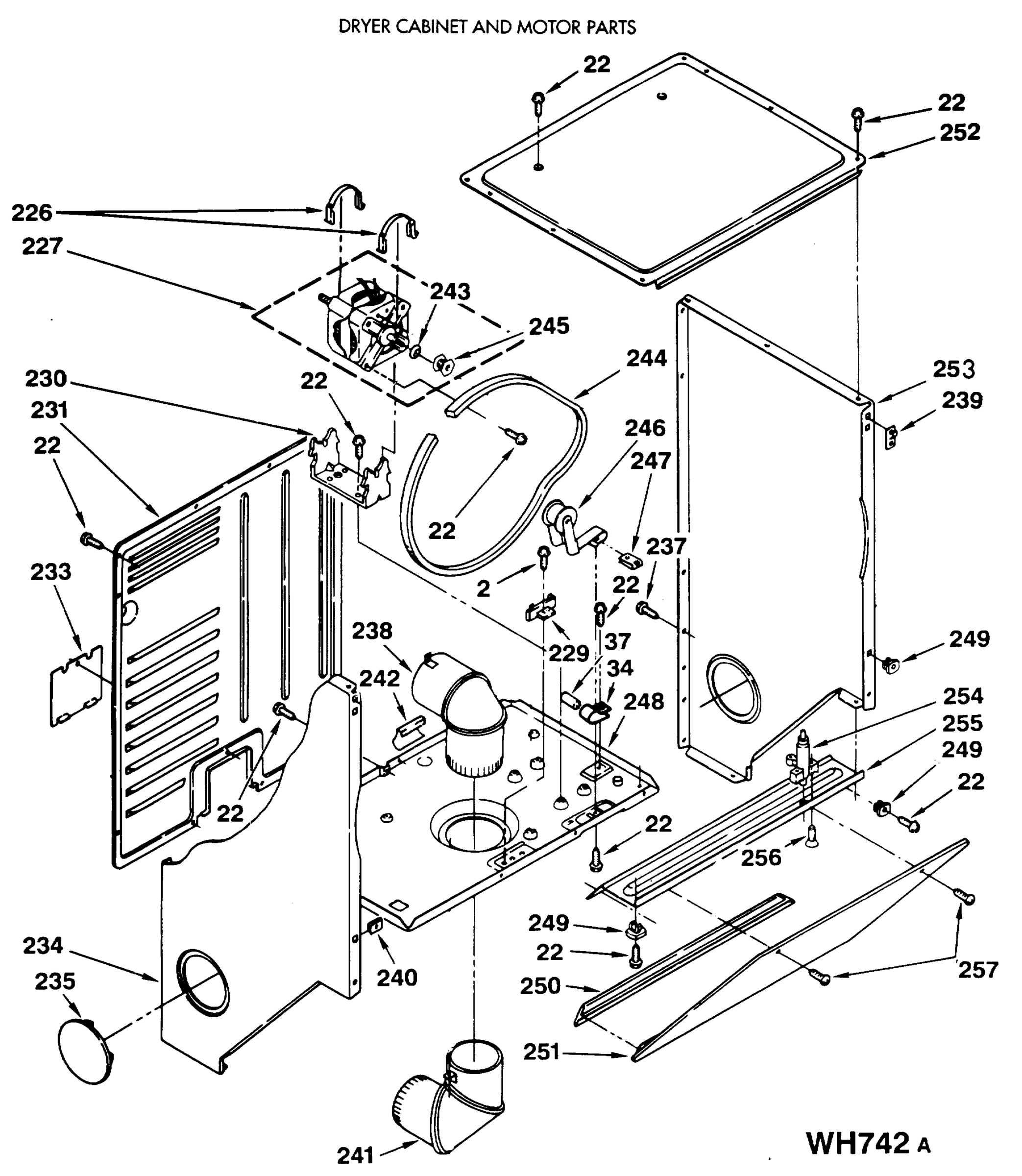

DRYER CABINET AND MOTOR PARTS

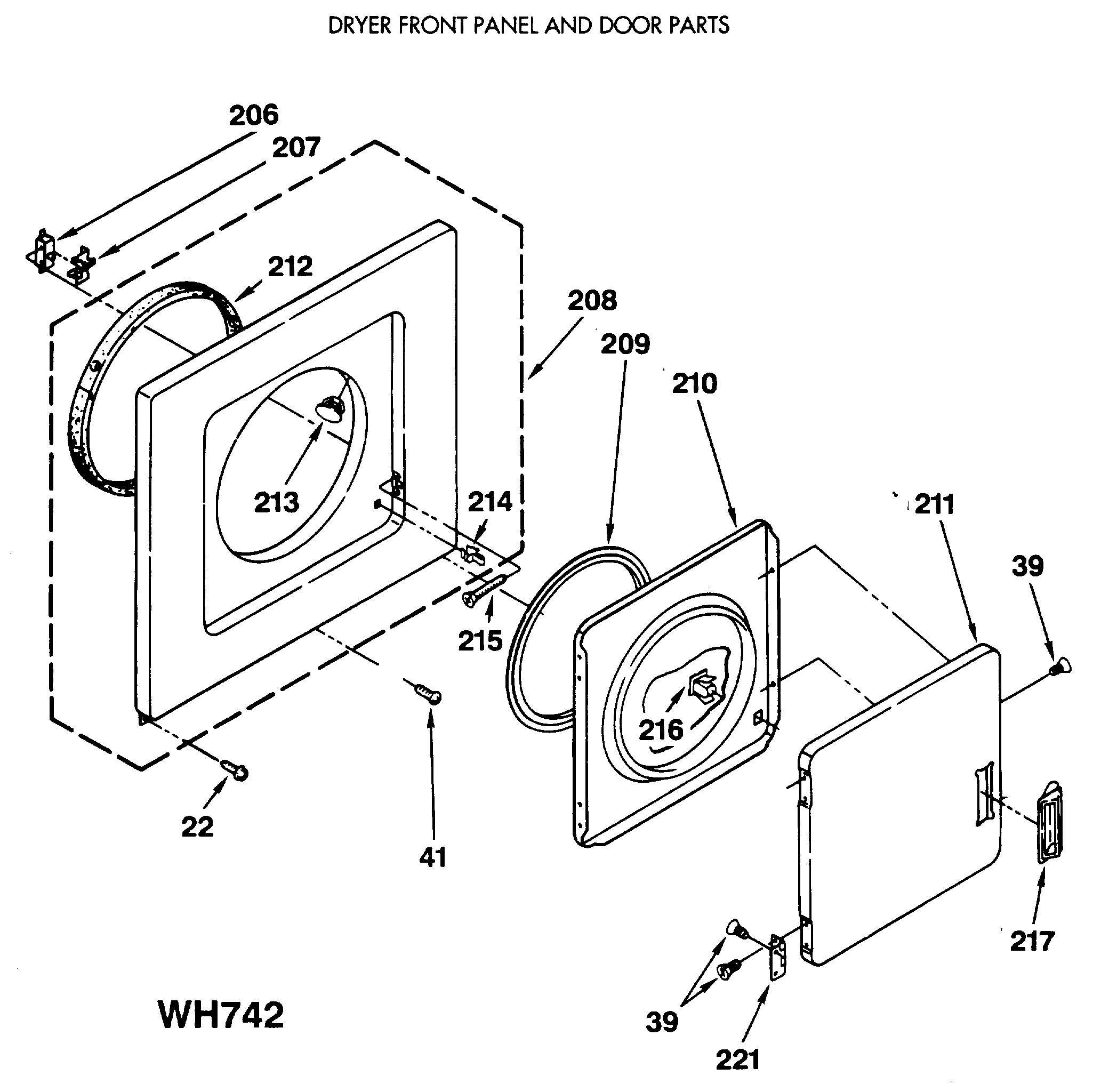

DRYER FRONT PANEL AND DOOR PARTS

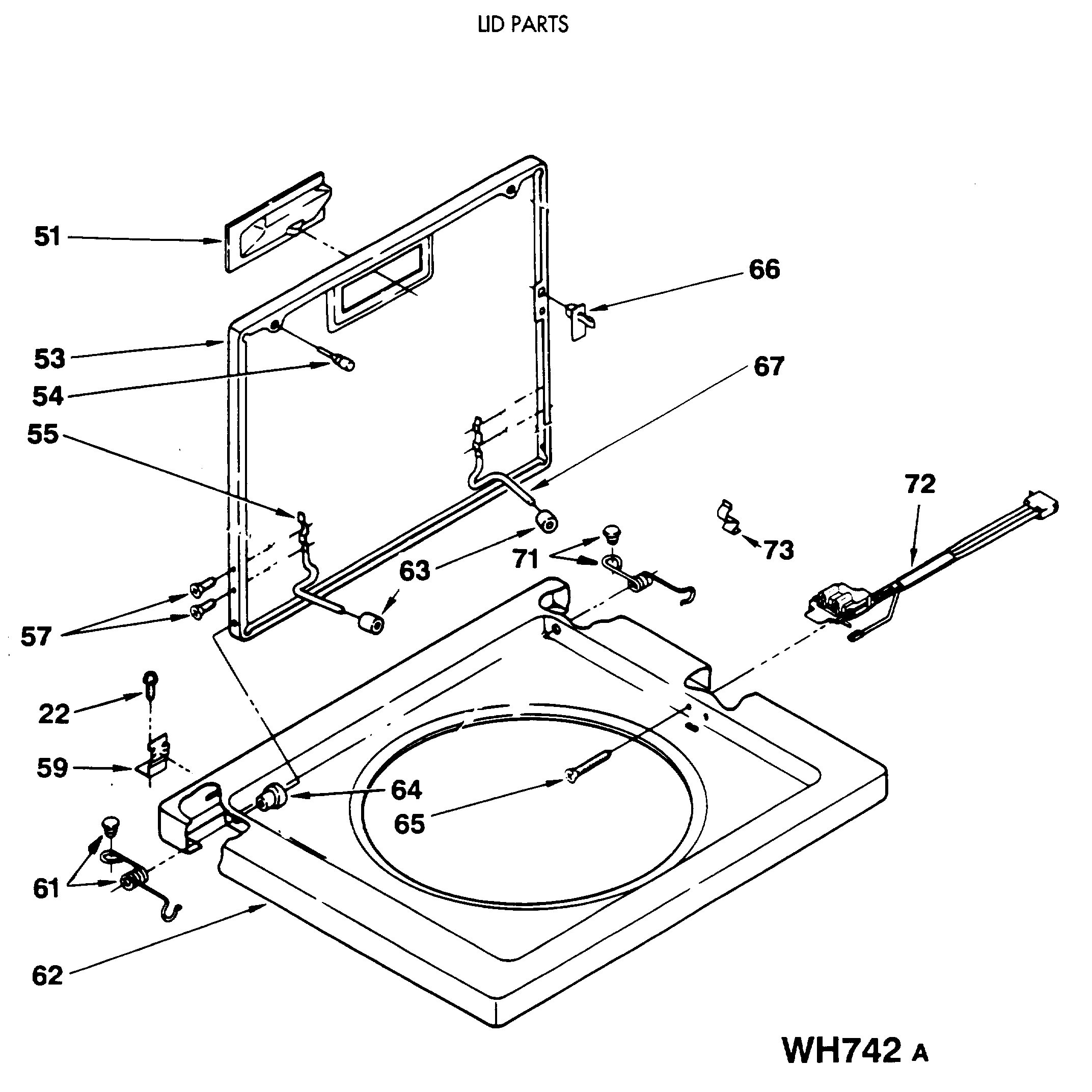

LID PARTS

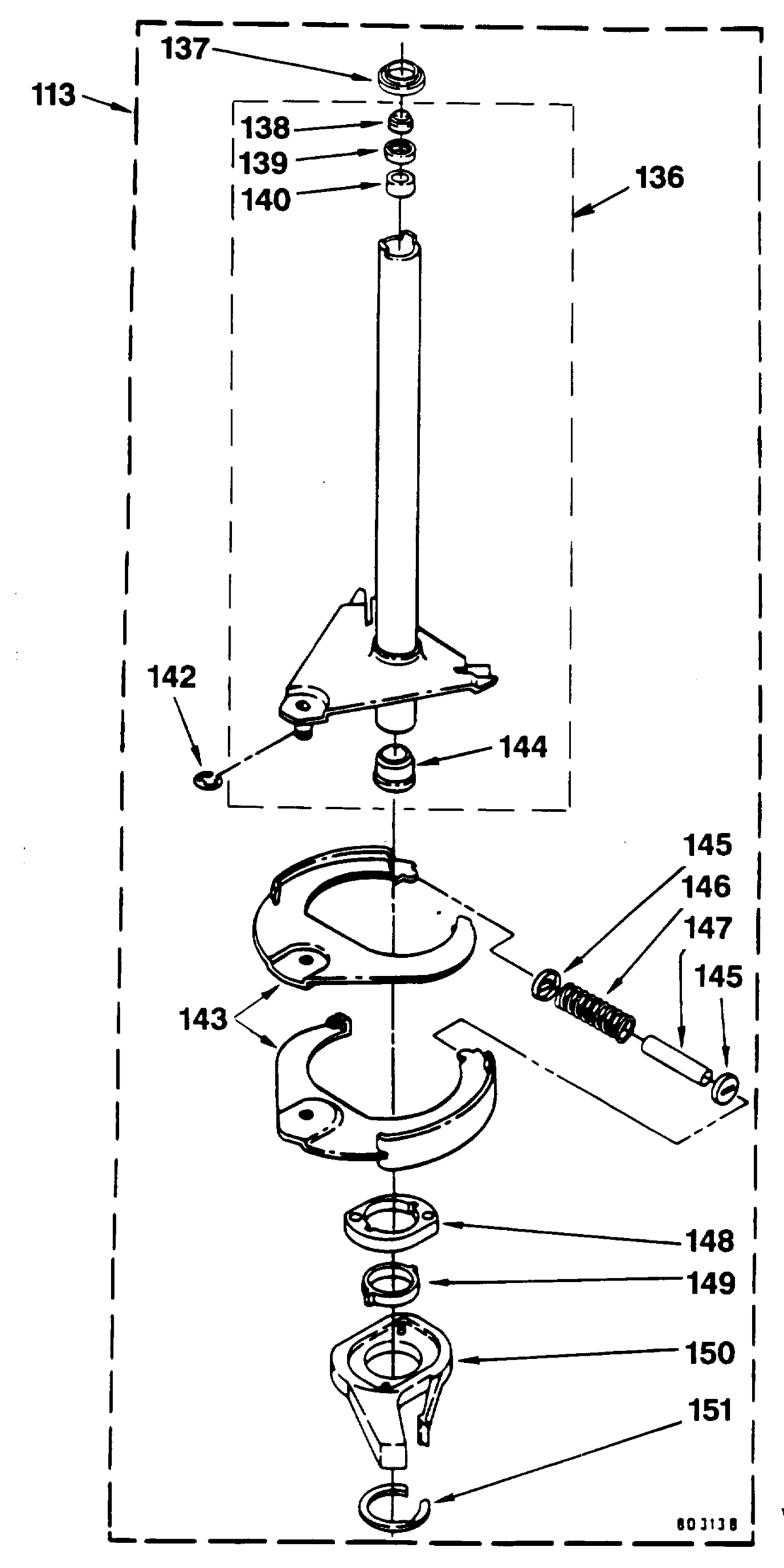

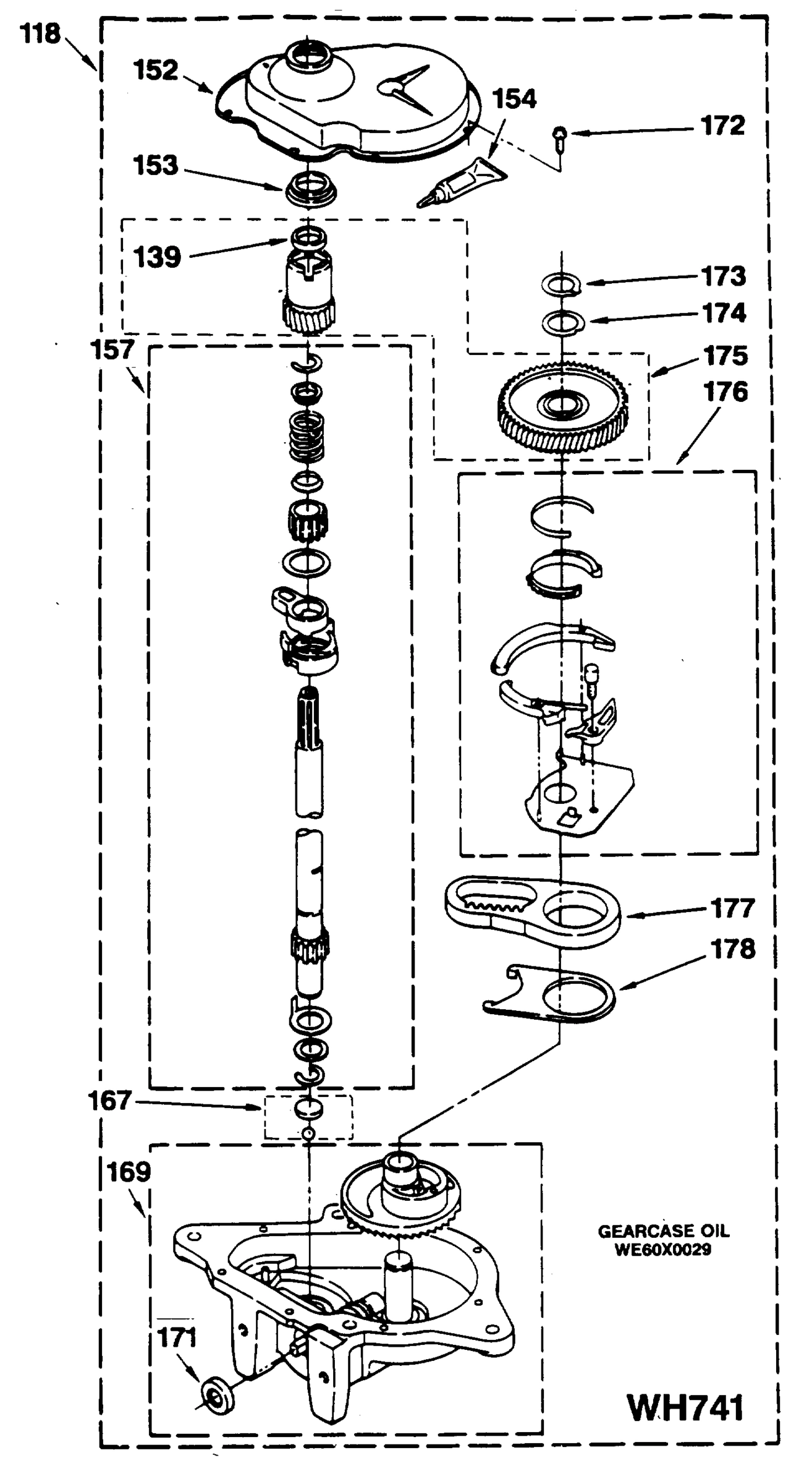

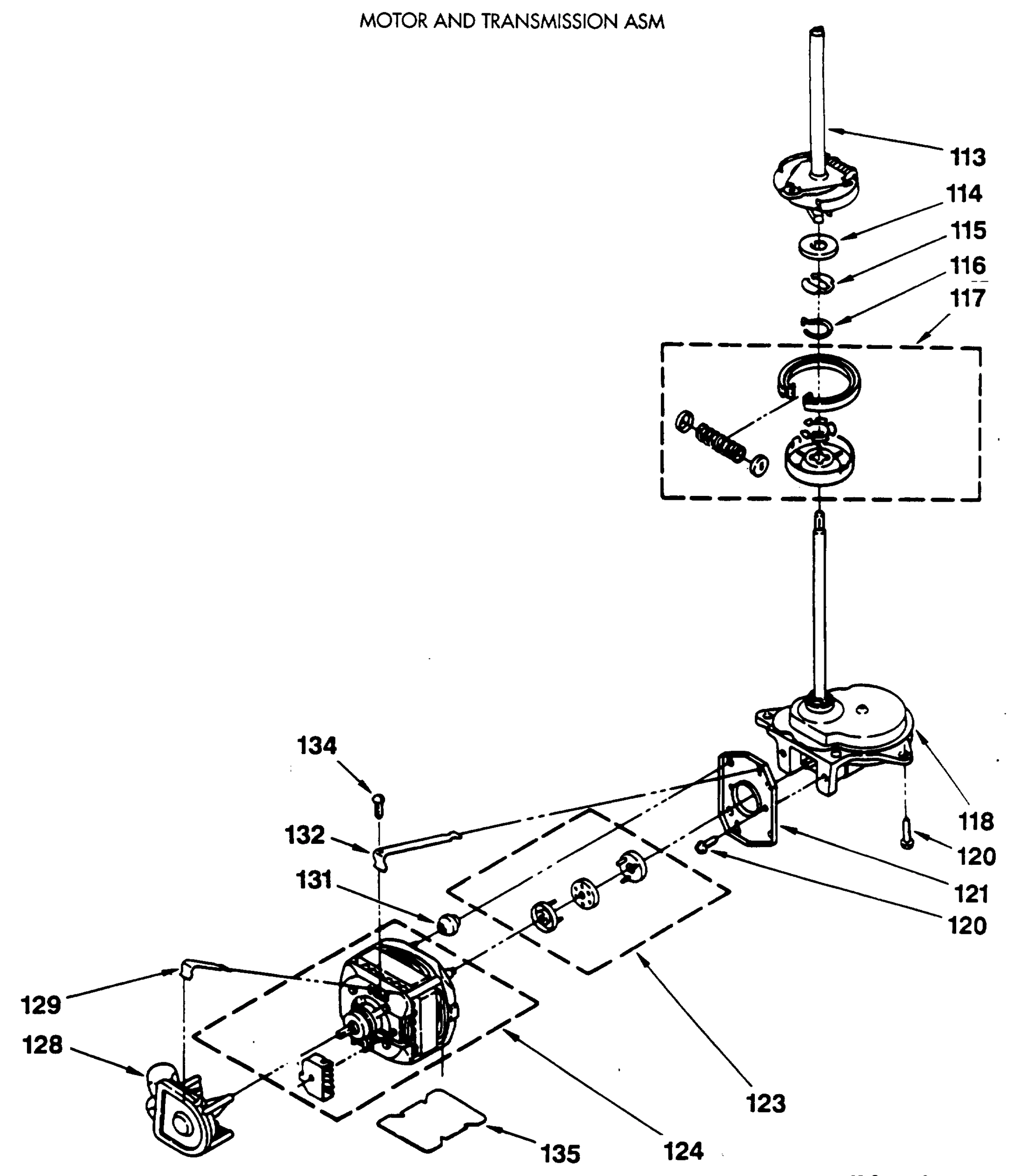

MOTOR AND TRANSMISSION ASM

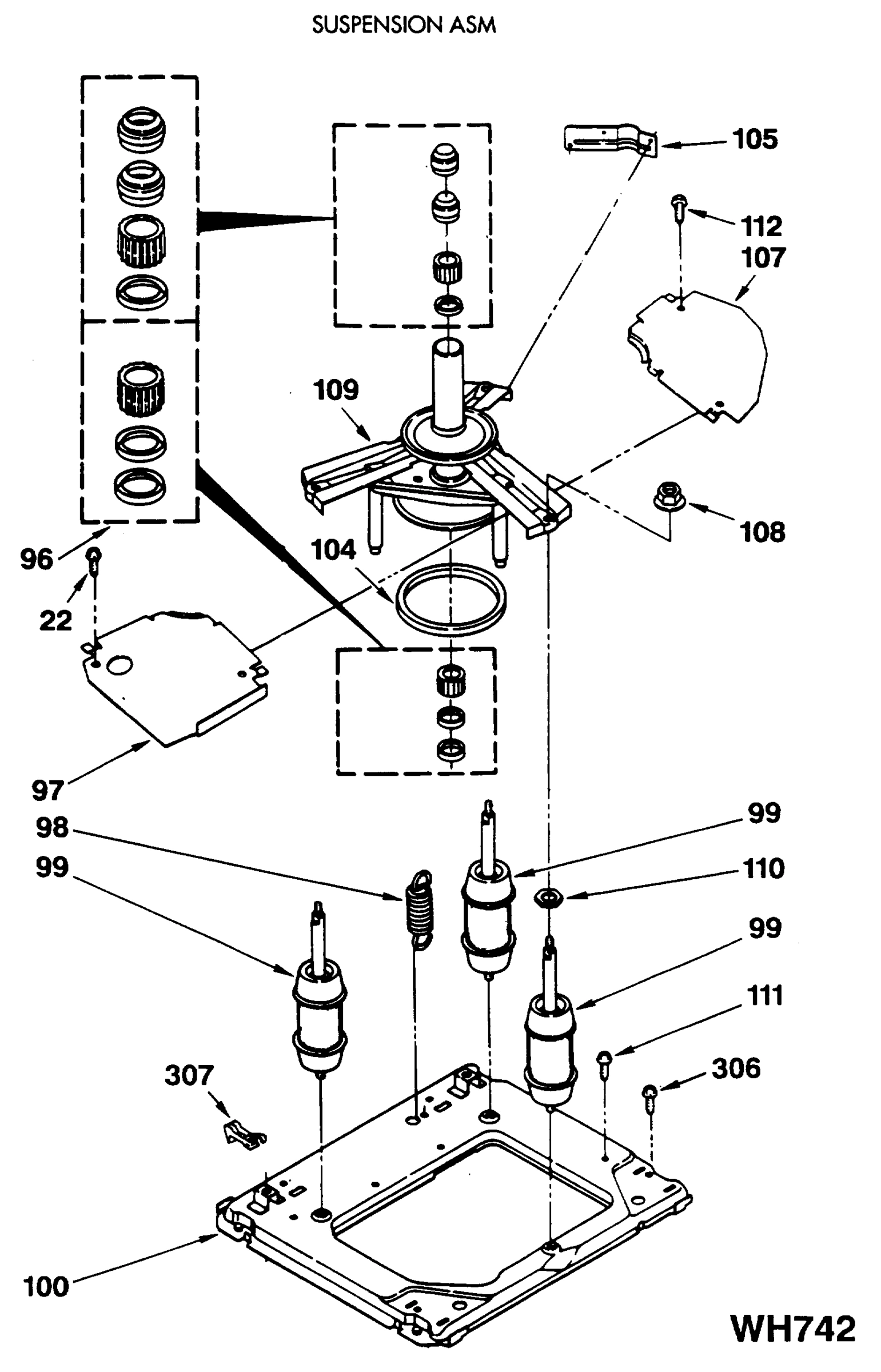

SUSPENSION ASM

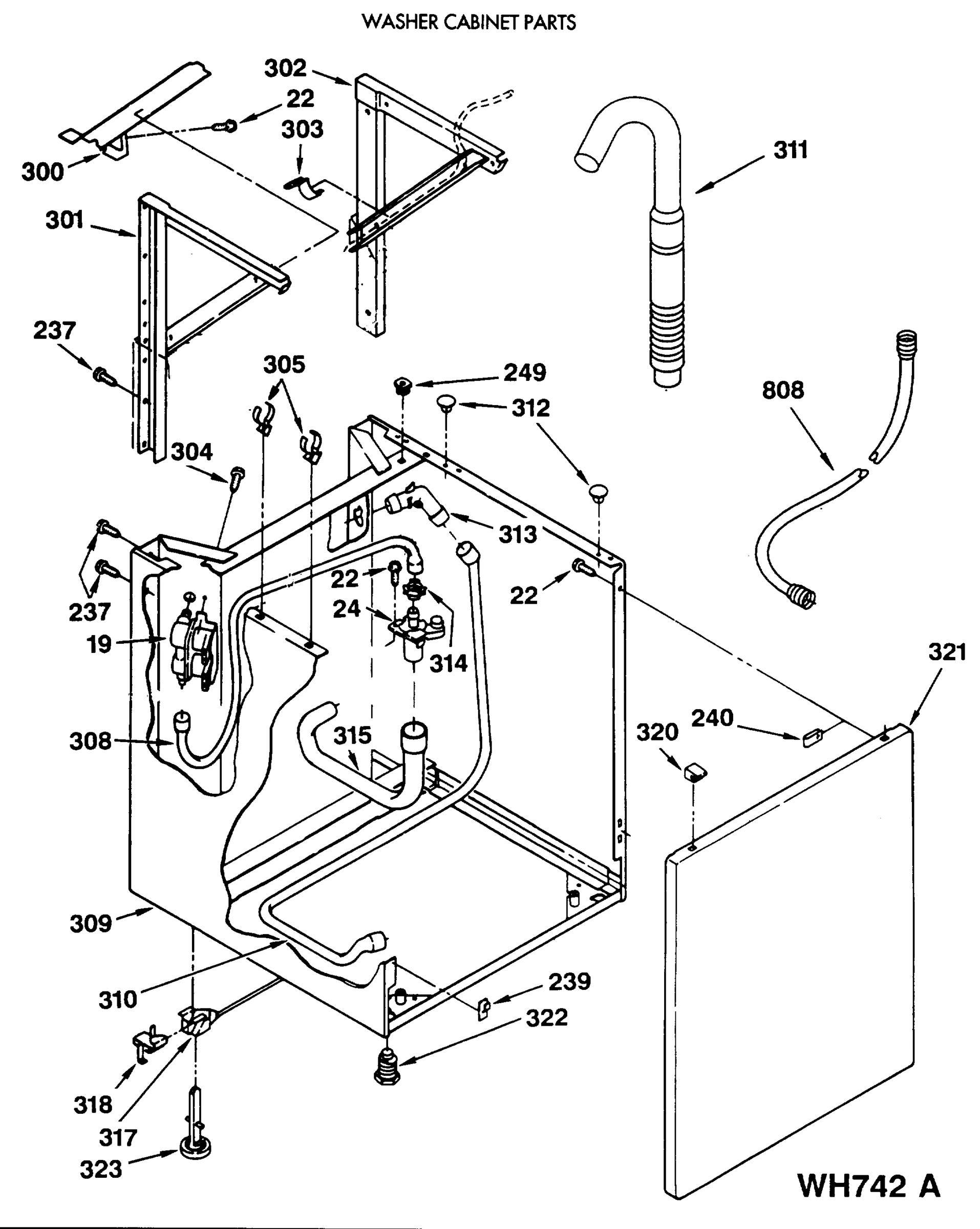

WASHER CABINET PARTS

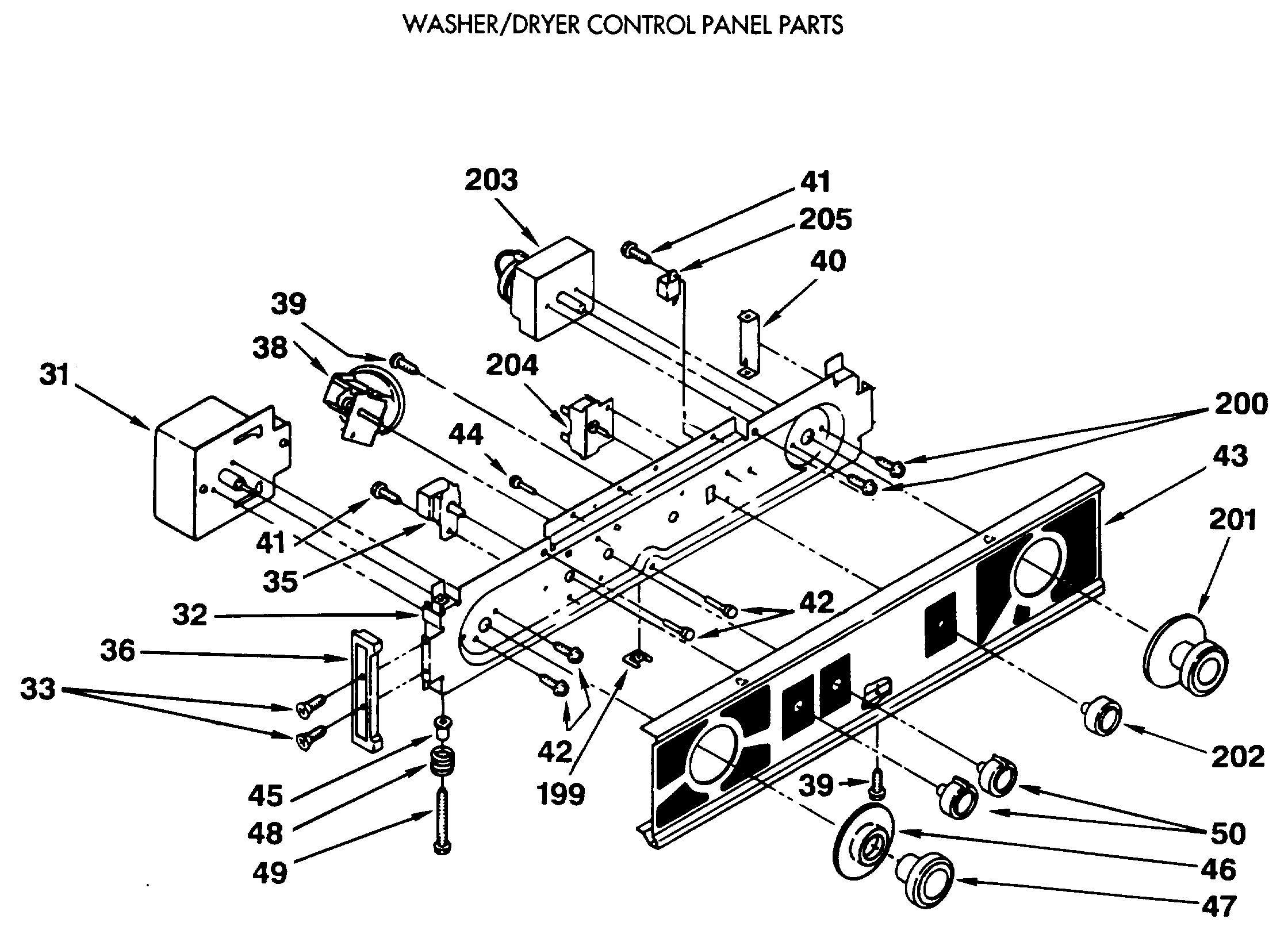

WASHER/DRYER CONTROL PANEL PARTS
Common parts from model GE WSM2420SCZAA
1
GEN 31-2653 GEN 31-2653 Contact Us For Availability
1
GEN 31-2729 GEN 31-2729 Contact Us For Availability
1
GEN 49-9799 GEN 49-9799 Contact Us For Availability
24
GEN WH01X2662 GEN WH01X2662 Contact Us For Availability
32
GEN WH16X0512 GEN WH16X0512 Contact Us For Availability
34
GEN WH02X1158 GEN WH02X1158 Contact Us For Availability
35
GEN WH12X0952 GEN WH12X0952 Contact Us For Availability
36
END CAP GEN WH42X2313 Contact Us For Availability
37
GEN WH12X0949 GEN WH12X0949 Contact Us For Availability
38
GEN WH12X0951 GEN WH12X0951 Contact Us For Availability
39
SCREW, MOUNTING GEN WH02X1178 Contact Us For Availability
40
GEN WH01X2693 GEN WH01X2693 Contact Us For Availability
41
GEN WE02X0381 GEN WE02X0381 Contact Us For Availability
42
GEN WH02X1159 GEN WH02X1159 Contact Us For Availability
43
GEN WH42X2315 GEN WH42X2315 Contact Us For Availability
44
GEN WH01X2685 GEN WH01X2685 Contact Us For Availability
45
GEN WH01X2683 GEN WH01X2683 Contact Us For Availability
46
GEN WH01X2690 GEN WH01X2690 Contact Us For Availability
47
GEN WH01X2692 GEN WH01X2692 Contact Us For Availability
48
GEN WH01X2684 GEN WH01X2684 Contact Us For Availability
49
GEN WH02X1179 GEN WH02X1179 Contact Us For Availability
50
GEN WH01X2678 GEN WH01X2678 Contact Us For Availability
51
GEN WH01X2666 GEN WH01X2666 Contact Us For Availability
53
GEN WH44X1157 GEN WH44X1157 Contact Us For Availability
54
GEN WH01X2667 GEN WH01X2667 Contact Us For Availability
55
HINGE, LID GEN WH16X0506 Contact Us For Availability
57
SCR, LID HINGE GEN WH02X1160 Contact Us For Availability
59
GEN WH01X2694 GEN WH01X2694 Contact Us For Availability
61
GEN WH01X2670 GEN WH01X2670 Contact Us For Availability
62
GEN WH44X1161 GEN WH44X1161 Contact Us For Availability
63
GEN WH01X2671 GEN WH01X2671 Contact Us For Availability
64
GEN WH04X0105 GEN WH04X0105 Contact Us For Availability
65
GEN WH02X1180 GEN WH02X1180 Contact Us For Availability
66
GEN WH01X2672 GEN WH01X2672 Contact Us For Availability
67
GEN WH16X0507 GEN WH16X0507 Contact Us For Availability
71
GEN WH01X2673 GEN WH01X2673 Contact Us For Availability
76
GEN WH43X0133 GEN WH43X0133 Contact Us For Availability
77
SCREW & WASHER GEN WH02X1162 Contact Us For Availability
79
GEN WH43X0134 GEN WH43X0134 Contact Us For Availability
80
TUB RING & GASKET GEN WH45X0145 Contact Us For Availability
81
GEN WH02X1163 GEN WH02X1163 Contact Us For Availability
82
GEN WH08X0372 GEN WH08X0372 Contact Us For Availability
83
GEN WH45X0146 GEN WH45X0146 Contact Us For Availability
84
GEN WH45X0147 GEN WH45X0147 Contact Us For Availability
85
BLOCK, DRIVE GEN WH40X0180 Contact Us For Availability
86
GEN WH41X0357 GEN WH41X0357 Contact Us For Availability
88
HOSE, TUB TO PUMP GEN WH41X0350 Contact Us For Availability
89
CLIP GEN WH01X2704 Contact Us For Availability
90
GEN WH41X0351 GEN WH41X0351 Contact Us For Availability
91
GEN WH02X1164 GEN WH02X1164 Contact Us For Availability
96
GEN WH04X0106 GEN WH04X0106 Contact Us For Availability
97
GEN WH16X0508 GEN WH16X0508 Contact Us For Availability
98
GEN WH01X2675 GEN WH01X2675 Contact Us For Availability
99
GEN WH17X0094 GEN WH17X0094 Contact Us For Availability
100
GEN WH46X0329 GEN WH46X0329 Contact Us For Availability
104
GEN WH08X0374 GEN WH08X0374 Contact Us For Availability
105
GEN WH16X0509 GEN WH16X0509 Contact Us For Availability
107
GEN WH16X0510 GEN WH16X0510 Contact Us For Availability
109
GEN WH17X0091 GEN WH17X0091 Contact Us For Availability
112
GEN WE02X0388 GEN WE02X0388 Contact Us For Availability
113
BRAKE & DRIVE TUBE GEN WH38X0054 Contact Us For Availability
114
GEN WH02X1165 GEN WH02X1165 Contact Us For Availability
115
GEN WH02X1166 GEN WH02X1166 Contact Us For Availability
116
GEN WH02X1167 GEN WH02X1167 Contact Us For Availability
117
GEN WH39X0047 GEN WH39X0047 Contact Us For Availability
118
GEN WH37X0046 GEN WH37X0046 Contact Us For Availability
120
GEN WH02X1168 GEN WH02X1168 Contact Us For Availability
121
GEN WH17X0092 GEN WH17X0092 Contact Us For Availability
123
GEN WH17X0093 GEN WH17X0093 Contact Us For Availability
129
GEN WH01X2676 GEN WH01X2676 Contact Us For Availability
131
GEN WH02X1169 GEN WH02X1169 Contact Us For Availability
132
GEN WH01X2677 GEN WH01X2677 Contact Us For Availability
135
GEN WH16X0511 GEN WH16X0511 Contact Us For Availability
136
TUBE, DRIVE GEN WH40X0182 Contact Us For Availability
137
GEN WH02X1171 GEN WH02X1171 Contact Us For Availability
138
GEN WH08X0375 GEN WH08X0375 Contact Us For Availability
139
SEAL GEN WH08X0376 Contact Us For Availability
140
GEN WH02X1172 GEN WH02X1172 Contact Us For Availability
141
GEN WE60X0030 GEN WE60X0030 Contact Us For Availability
142
GEN WH02X1173 GEN WH02X1173 Contact Us For Availability
143
GEN WH07X0121 GEN WH07X0121 Contact Us For Availability
144
GEN WH04X0107 GEN WH04X0107 Contact Us For Availability
145
GEN WH01X2680 GEN WH01X2680 Contact Us For Availability
146
GEN WH01X2681 GEN WH01X2681 Contact Us For Availability
147
GEN WH01X2682 GEN WH01X2682 Contact Us For Availability
148
GEN WH05X0246 GEN WH05X0246 Contact Us For Availability
149
GEN WH05X0247 GEN WH05X0247 Contact Us For Availability
150
GEN WH05X0248 GEN WH05X0248 Contact Us For Availability
151
GEN WH02X1174 GEN WH02X1174 Contact Us For Availability
152
GEN WH37X0047 GEN WH37X0047 Contact Us For Availability
153
GEN WH08X0377 GEN WH08X0377 Contact Us For Availability
154
GEN WH60X0028 GEN WH60X0028 Contact Us For Availability
155
GEN WH05X0249 GEN WH05X0249 Contact Us For Availability
157
GEN WH40X0181 GEN WH40X0181 Contact Us For Availability
167
GEN WH04X0108 GEN WH04X0108 Contact Us For Availability
168
GEN WH04X0109 GEN WH04X0109 Contact Us For Availability
169
GEN WH37X0048 GEN WH37X0048 Contact Us For Availability
171
GEN WH08X0378 GEN WH08X0378 Contact Us For Availability
172
GEN WH02X1175 GEN WH02X1175 Contact Us For Availability
173
GEN WH02X1176 GEN WH02X1176 Contact Us For Availability
174
GEN WH02X1177 GEN WH02X1177 Contact Us For Availability
175
GEN WH05X0250 GEN WH05X0250 Contact Us For Availability
176
GEN WH07X0122 GEN WH07X0122 Contact Us For Availability
177
GEN WH05X0251 GEN WH05X0251 Contact Us For Availability
178
GEN WH05X0252 GEN WH05X0252 Contact Us For Availability
199
GEN WH01X2686 GEN WH01X2686 Contact Us For Availability
200
SCREW, 8-32X5/16 GEN WE02X0380 Contact Us For Availability
201
GEN WE01X1209 GEN WE01X1209 Contact Us For Availability
202
GEN WH01X2688 GEN WH01X2688 Contact Us For Availability
203
GEN WE04X0822 GEN WE04X0822 Contact Us For Availability
204
GEN WH12X0953 GEN WH12X0953 Contact Us For Availability
205
GEN WH12X0954 GEN WH12X0954 Contact Us For Availability
206
GEN WE04X0814 GEN WE04X0814 Contact Us For Availability
207
GEN WE04X0815 GEN WE04X0815 Contact Us For Availability
208
GEN WE20X0777 GEN WE20X0777 Contact Us For Availability
209
SEAL, DOOR GEN WE09X0111 Contact Us For Availability
210
GEN WE10X0327 GEN WE10X0327 Contact Us For Availability
211
GEN WE10X0329 GEN WE10X0329 Contact Us For Availability
212
BEARING & SEAL GEN WE03X0078 Contact Us For Availability
213
GEN WE01X1193 GEN WE01X1193 Contact Us For Availability
214
GEN WE01X1194 GEN WE01X1194 Contact Us For Availability
215
SCREW, DOOR SW. GEN WE02X0379 Contact Us For Availability
217
HANDLE, DOOR AD GEN WE01X1191 Contact Us For Availability
221
HINGE & PIN GEN WE01X1198 Contact Us For Availability
226
GEN WE02X0383 GEN WE02X0383 Contact Us For Availability
227
GEN WE17X0050 GEN WE17X0050 Contact Us For Availability
229
GEN WE04X0855 GEN WE04X0855 Contact Us For Availability
230
GEN WE13X0201 GEN WE13X0201 Contact Us For Availability
231
GEN WE20X0778 GEN WE20X0778 Contact Us For Availability
233
GEN WE13X0202 GEN WE13X0202 Contact Us For Availability
234
GEN WE20X0780 GEN WE20X0780 Contact Us For Availability
235
GEN WE01X1211 GEN WE01X1211 Contact Us For Availability
238
GEN WE14X0222 GEN WE14X0222 Contact Us For Availability
239
CLIP, FRT PANEL GEN WE01X1212 Contact Us For Availability
240
GEN WE01X1213 GEN WE01X1213 Contact Us For Availability
241
GEN WE14X0223 GEN WE14X0223 Contact Us For Availability
242
GEN WE01X1214 GEN WE01X1214 Contact Us For Availability
243
GEN WE01X1215 GEN WE01X1215 Contact Us For Availability
245
GEN WE12X0096 GEN WE12X0096 Contact Us For Availability
246
GEN WE12X0095 GEN WE12X0095 Contact Us For Availability
247
GEN WE02X0384 GEN WE02X0384 Contact Us For Availability
248
GEN WE20X0798 GEN WE20X0798 Contact Us For Availability
249
GEN WE02X0385 GEN WE02X0385 Contact Us For Availability
250
COVE, TRANS PANEL BL GEN WE20X0782 Contact Us For Availability
251
GEN WE20X0784 GEN WE20X0784 Contact Us For Availability
252
GEN WE20X0785 GEN WE20X0785 Contact Us For Availability
253
GEN WE20X0787 GEN WE20X0787 Contact Us For Availability
254
GEN WE01X1216 GEN WE01X1216 Contact Us For Availability
255
GEN WE20X0789 GEN WE20X0789 Contact Us For Availability
256
GEN WE02X0386 GEN WE02X0386 Contact Us For Availability
257
GEN WE02X0387 GEN WE02X0387 Contact Us For Availability
260
CLIP GEN WE01X1217 Contact Us For Availability
261
AIR DUCT & BRKT GEN WE14X0224 Contact Us For Availability
264
GEN WE02X0389 GEN WE02X0389 Contact Us For Availability
265
GEN WE04X0825 GEN WE04X0825 Contact Us For Availability
266
GEN WE02X0390 GEN WE02X0390 Contact Us For Availability
267
CLIP GEN WE01X1239 Contact Us For Availability
268
GEN WE11X0097 GEN WE11X0097 Contact Us For Availability
269
GEN WE11X0104 GEN WE11X0104 Contact Us For Availability
270
GEN WE09X0112 GEN WE09X0112 Contact Us For Availability
271
WHEEL, BLOWER GEN WE16X0029 Contact Us For Availability
272
GEN WE09X0113 GEN WE09X0113 Contact Us For Availability
273
GEN WE14X0225 GEN WE14X0225 Contact Us For Availability
274
GEN WE04X0826 GEN WE04X0826 Contact Us For Availability
275
GEN WE03X0085 GEN WE03X0085 Contact Us For Availability
276
GEN WE21X0072 GEN WE21X0072 Contact Us For Availability
277
RING, BEARING GEN WE03X0080 Contact Us For Availability
278
GEN WE21X0073 GEN WE21X0073 Contact Us For Availability
279
GEN WE02X0391 GEN WE02X0391 Contact Us For Availability
280
SEAL GEN WE09X0114 Contact Us For Availability
281
GEN WE20X0790 GEN WE20X0790 Contact Us For Availability
284
GEN WE02X0392 GEN WE02X0392 Contact Us For Availability
285
GEN WE03X0086 GEN WE03X0086 Contact Us For Availability
287
GEN WE02X0393 GEN WE02X0393 Contact Us For Availability
288
NUT 3/8-16 GEN NOT STOCKED Contact Us For Availability
291
TERMINAL & NUTS GEN WE08X0046 Contact Us For Availability
292
GEN WE04X0827 GEN WE04X0827 Contact Us For Availability
293
SCREW 8-18 X 1/2 GEN WE02X0394 Contact Us For Availability
295
GEN WE01X1219 GEN WE01X1219 Contact Us For Availability
296
GEN WE01X1220 GEN WE01X1220 Contact Us For Availability
301
GEN WE13X0204 GEN WE13X0204 Contact Us For Availability
302
GEN WE13X0205 GEN WE13X0205 Contact Us For Availability
305
GEN WH02X1181 GEN WH02X1181 Contact Us For Availability
306
SCREW & WASHER GEN WH02X1184 Contact Us For Availability
307
GEN WH01X2703 GEN WH01X2703 Contact Us For Availability
308
GEN WH41X0353 GEN WH41X0353 Contact Us For Availability
310
GEN WH41X0354 GEN WH41X0354 Contact Us For Availability
311
HOSE, DRAIN EXTERNAL GEN WH41X0364 Contact Us For Availability
312
GEN WH01X1182 GEN WH01X1182 Contact Us For Availability
313
GEN WH41X0355 GEN WH41X0355 Contact Us For Availability
314
GEN WH01X2695 GEN WH01X2695 Contact Us For Availability
315
GEN WH41X0356 GEN WH41X0356 Contact Us For Availability
317
GEN WH01X2697 GEN WH01X2697 Contact Us For Availability
318
GEN WH01X2698 GEN WH01X2698 Contact Us For Availability
320
GEN WH01X2700 GEN WH01X2700 Contact Us For Availability
321
GEN WH46X0333 GEN WH46X0333 Contact Us For Availability
322
GEN WH01X2701 GEN WH01X2701 Contact Us For Availability
323
GEN WH01X2702 GEN WH01X2702 Contact Us For Availability
32767
GEN WE25X0220 GEN WE25X0220 Contact Us For Availability
× ![]()
