Model GE WSM2000HAW Washer/Dryer Combo – Common Parts & Diagrams

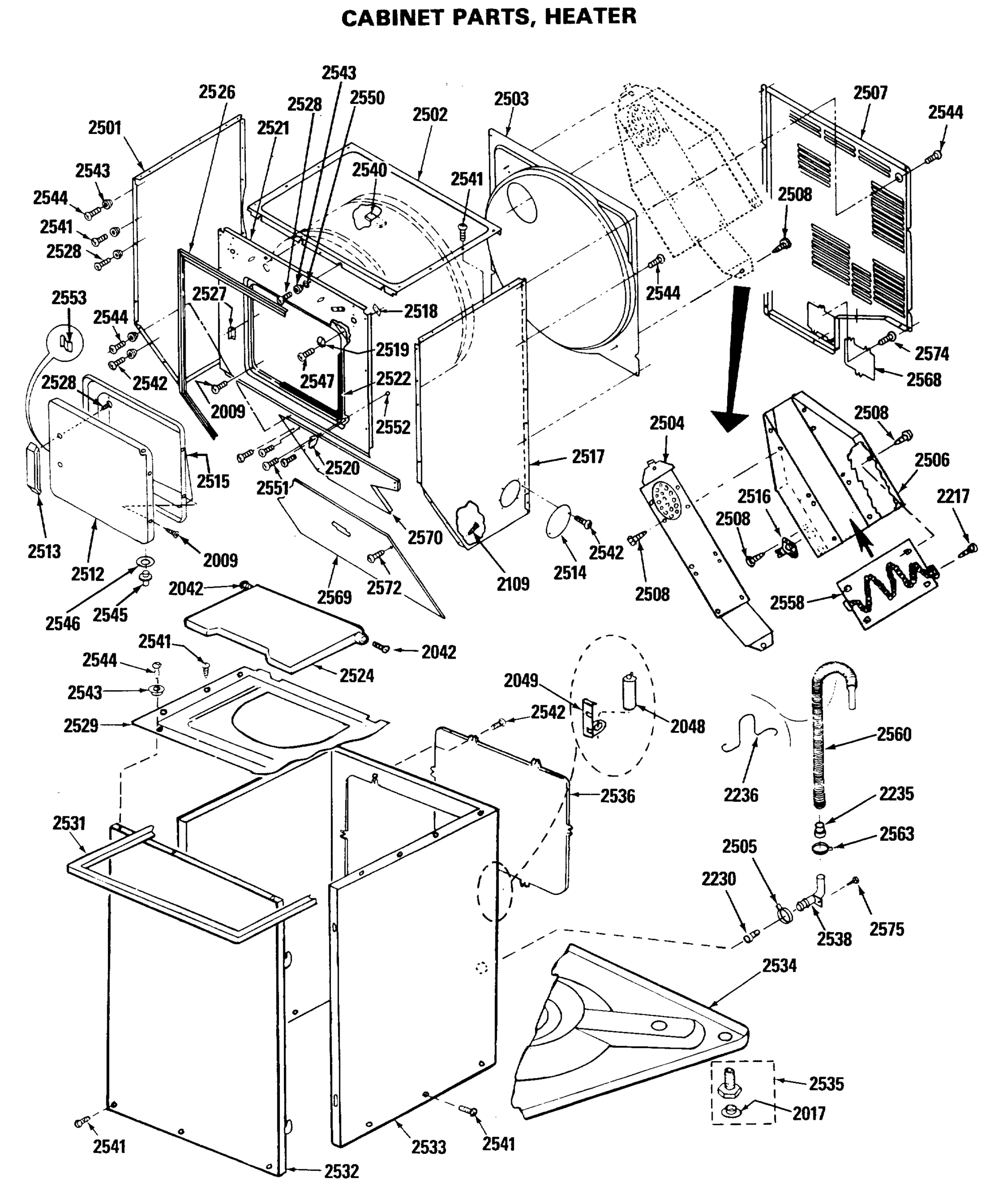

CABINET PARTS, HEATER

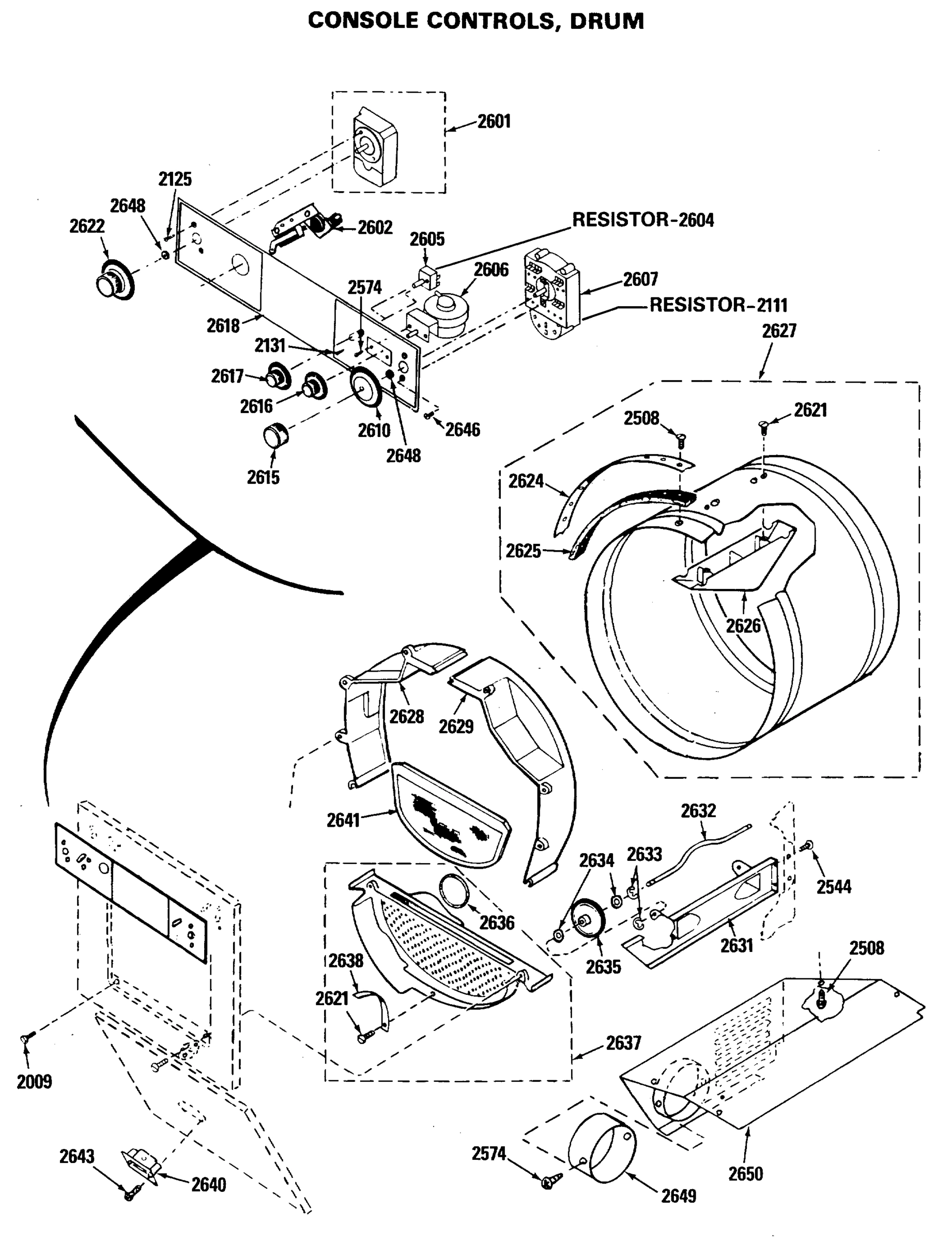

CONSOLE CONTROLS, DRUM

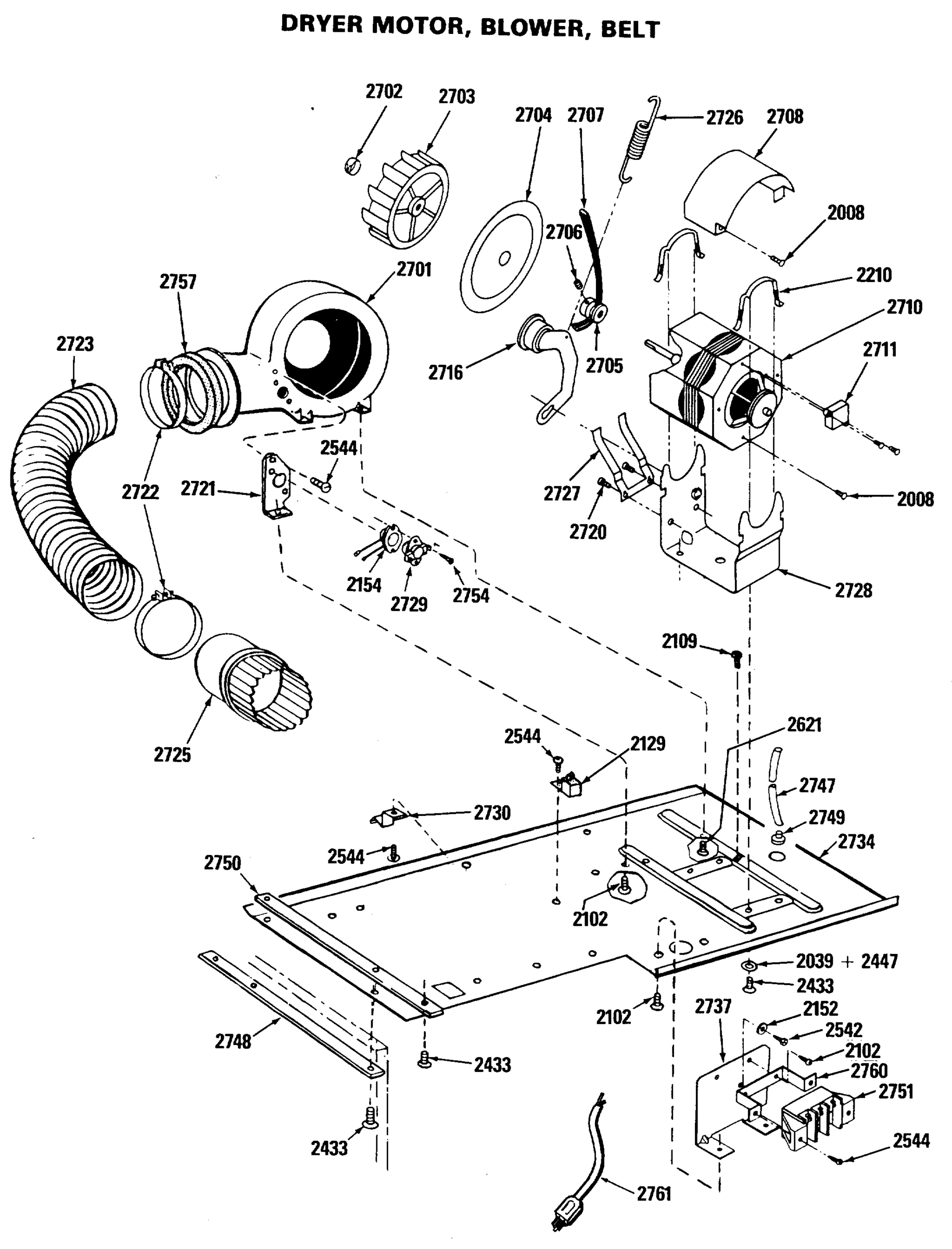

DRYER MOTOR, BLOWER, BELT

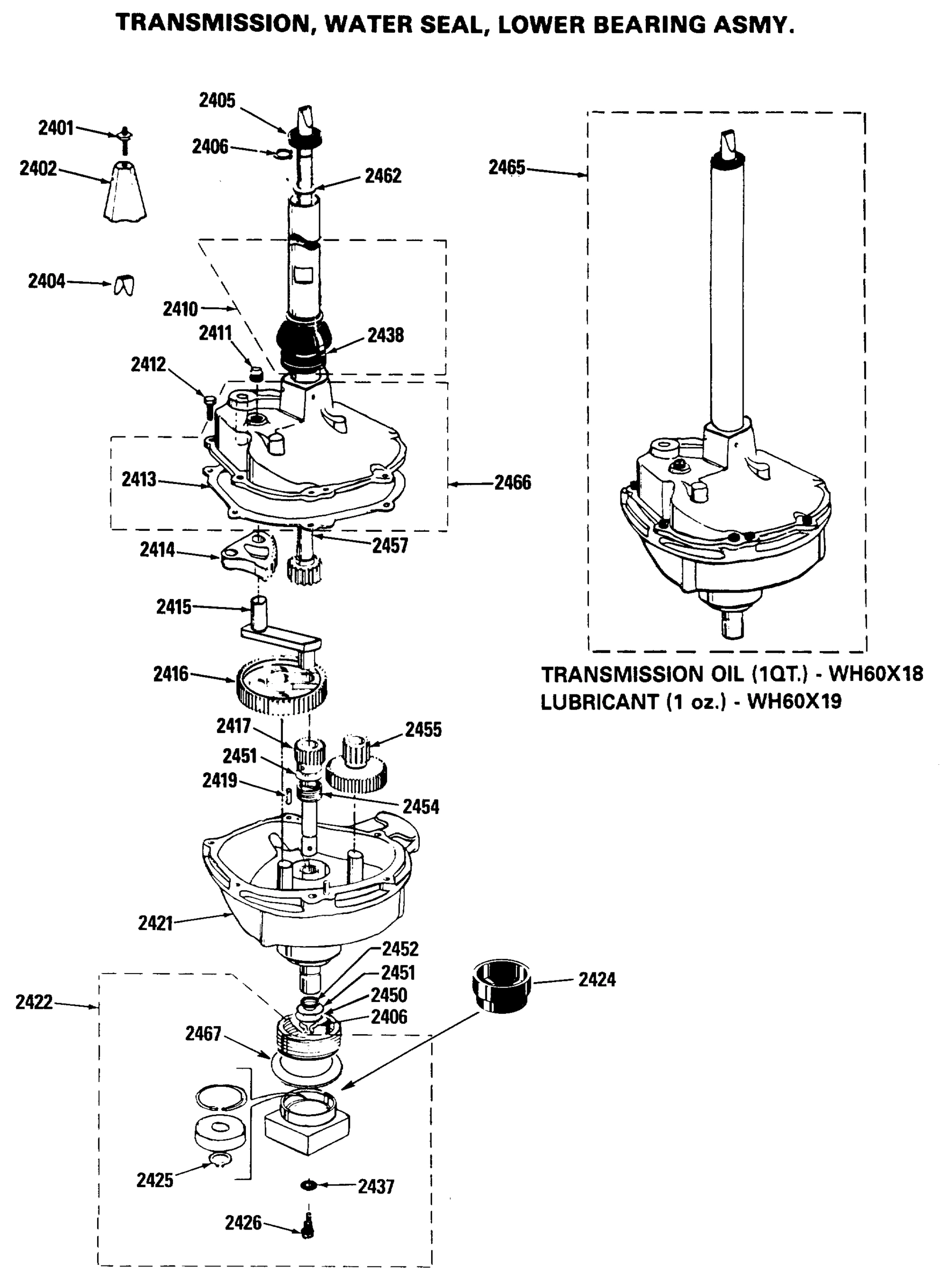

TRANSMISSION, WATER SEAL, LOWER BEARING ASMY.

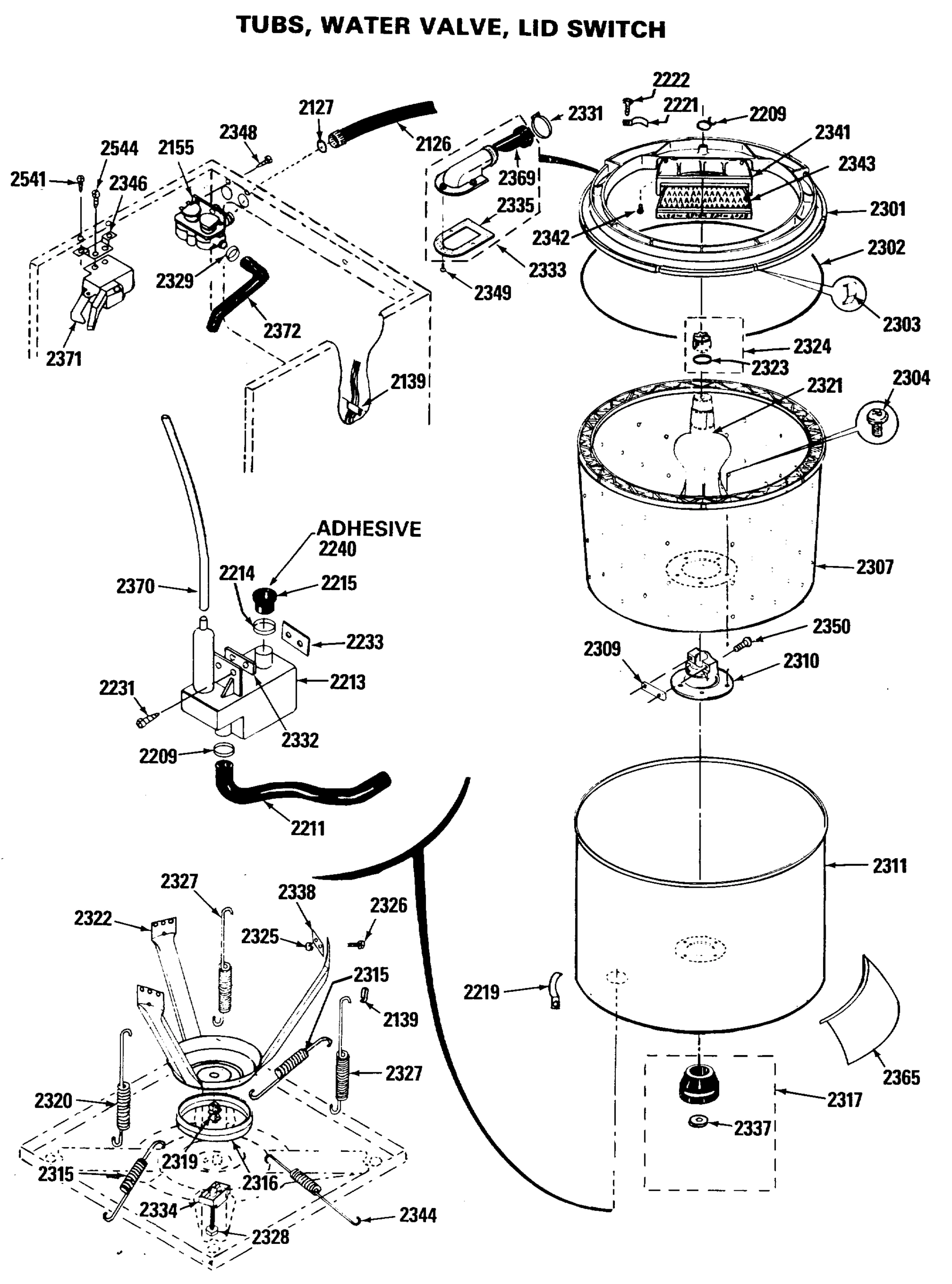

TUBS, WATER VALVE, LID SWITCH

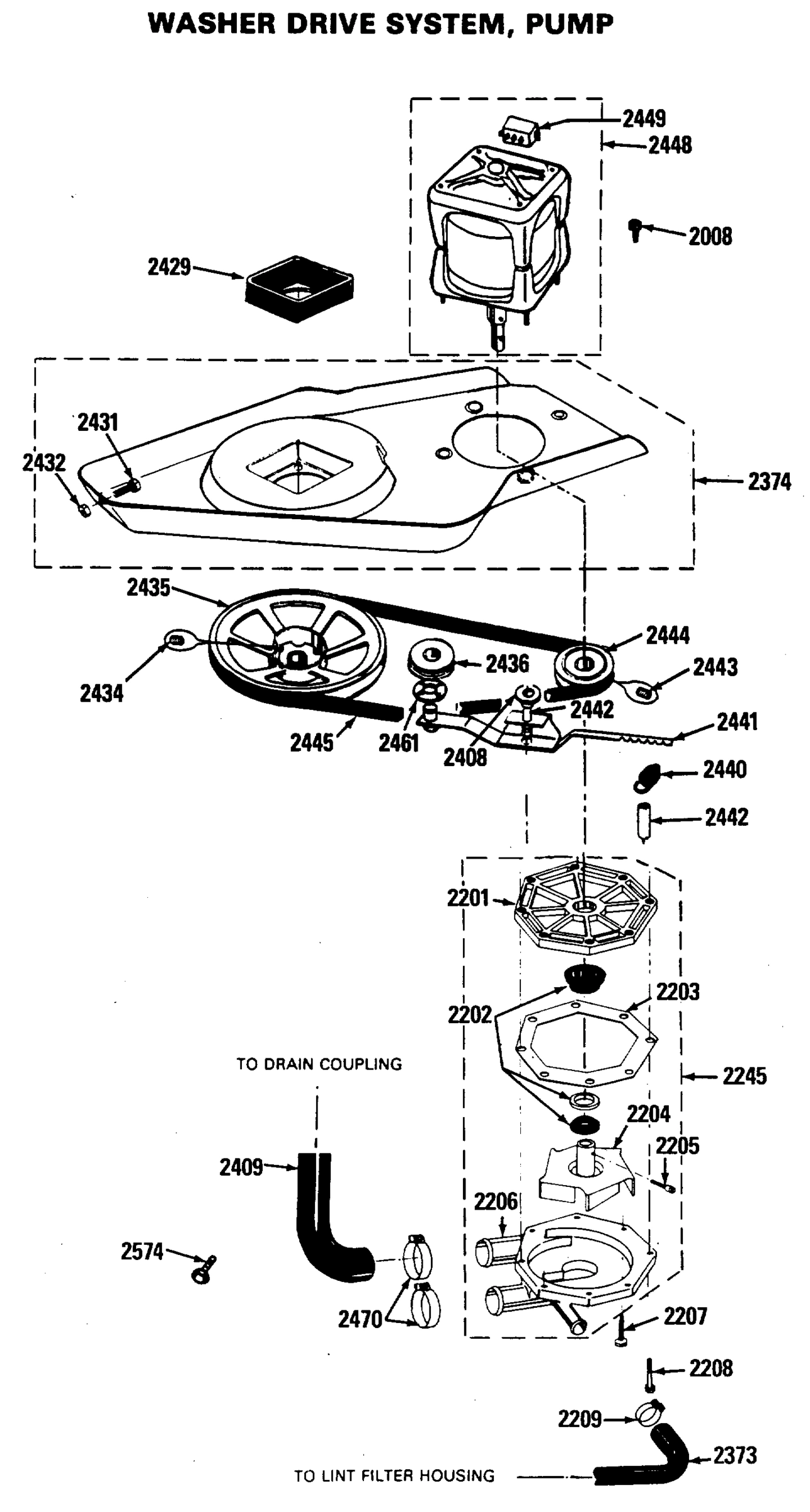

WASHER DRIVE SYSTEM, PUMP
Common parts from model GE WSM2000HAW Washer/Dryer Combo
2009
SCREW GEN WH02X0979 Contact Us For Availability
2017
GEN WH01X2294 GEN WH01X2294 Contact Us For Availability
2039
GEN WH02X0985 GEN WH02X0985 Contact Us For Availability
2042
GEN WH02X1055 GEN WH02X1055 Contact Us For Availability
2048
GEN WH12X0845 GEN WH12X0845 Contact Us For Availability
2049
GEN WH16X0476 GEN WH16X0476 Contact Us For Availability
2111
RESISTOR TIMER 4.4K OHM GEN WE04X0638 Contact Us For Availability
2120
GEN WH12X0855 GEN WH12X0855 Contact Us For Availability
2129
GEN WE01X0993 GEN WE01X0993 Contact Us For Availability
2139
CLIP GEN WE02X0296 Contact Us For Availability
2152
GROUND WASHER GEN WE02X0292 Contact Us For Availability
2154
HEATER THERMOSTAT GEN WE04X0671 Contact Us For Availability
2155
GEN WH13X0078 GEN WH13X0078 Contact Us For Availability
2201
GEN WH23X0060 GEN WH23X0060 Contact Us For Availability
2202
GEN WH08X0320 GEN WH08X0320 Contact Us For Availability
2203
GEN WH08X0321 GEN WH08X0321 Contact Us For Availability
2204
GEN WH01X2302 GEN WH01X2302 Contact Us For Availability
2205
GEN WH02X0969 GEN WH02X0969 Contact Us For Availability
2206
GEN WH23X0075 GEN WH23X0075 Contact Us For Availability
2210
MOTOR CLIP GEN WE02X0301 Contact Us For Availability
2211
MOTOR SWITCH (G E) GEN WE04X0714 Contact Us For Availability
2211
GEN WH41X0201 GEN WH41X0201 Contact Us For Availability
2213
GEN WH01X2305 GEN WH01X2305 Contact Us For Availability
2215
GEN WH01X2306 GEN WH01X2306 Contact Us For Availability
2219
GEN WH01X2333 GEN WH01X2333 Contact Us For Availability
2221
GEN WH01X2334 GEN WH01X2334 Contact Us For Availability
2230
GEN WH41X0292 GEN WH41X0292 Contact Us For Availability
2233
GEN WH02X1093 GEN WH02X1093 Contact Us For Availability
2235
GEN WH41X0261 GEN WH41X0261 Contact Us For Availability
2236
GEN WH01X2433 GEN WH01X2433 Contact Us For Availability
2240
ADHESIVE (1 OZ) GEN WH60X0015 Contact Us For Availability
2245
GEN WH23X0061 GEN WH23X0061 Contact Us For Availability
2301
GEN WH01X2554 GEN WH01X2554 Contact Us For Availability
2302
GEN WH08X0322 GEN WH08X0322 Contact Us For Availability
2303
GEN WH02X1001 GEN WH02X1001 Contact Us For Availability
2307
GEN WH45X0109 GEN WH45X0109 Contact Us For Availability
2309
GEN WH01X2549 GEN WH01X2549 Contact Us For Availability
2310
GEN WH17X0085 GEN WH17X0085 Contact Us For Availability
2311
GEN WH45X0110 GEN WH45X0110 Contact Us For Availability
2315
GEN WH01X2311 GEN WH01X2311 Contact Us For Availability
2316
GEN WH01X2312 GEN WH01X2312 Contact Us For Availability
2317
GEN WH04X0103 GEN WH04X0103 Contact Us For Availability
2319
GEN WH02X1003 GEN WH02X1003 Contact Us For Availability
2320
GEN WH01X2313 GEN WH01X2313 Contact Us For Availability
2321
GEN WH43X0114 GEN WH43X0114 Contact Us For Availability
2322
GEN WH01X2314 GEN WH01X2314 Contact Us For Availability
2323
GEN WH08X0323 GEN WH08X0323 Contact Us For Availability
2324
GEN WH43X0107 GEN WH43X0107 Contact Us For Availability
2325
GEN WH02X1004 GEN WH02X1004 Contact Us For Availability
2327
GEN WH01X2315 GEN WH01X2315 Contact Us For Availability
2332
GEN WH01X2575 GEN WH01X2575 Contact Us For Availability
2333
GEN WH41X0208 GEN WH41X0208 Contact Us For Availability
2335
GEN WH08X0324 GEN WH08X0324 Contact Us For Availability
2337
GEN WH02X1009 GEN WH02X1009 Contact Us For Availability
2338
GEN WH16X0449 GEN WH16X0449 Contact Us For Availability
2341
GEN WH01X2550 GEN WH01X2550 Contact Us For Availability
2343
GEN WH01X2551 GEN WH01X2551 Contact Us For Availability
2344
GEN WH01X2318 GEN WH01X2318 Contact Us For Availability
2346
GEN WH16X0484 GEN WH16X0484 Contact Us For Availability
2349
GEN WH02X1119 GEN WH02X1119 Contact Us For Availability
2365
GEN WH01X2577 GEN WH01X2577 Contact Us For Availability
2369
GEN WH41X0306 GEN WH41X0306 Contact Us For Availability
2370
GEN WH01X2576 GEN WH01X2576 Contact Us For Availability
2371
GEN WH12X0853 GEN WH12X0853 Contact Us For Availability
2372
GEN WH41X0307 GEN WH41X0307 Contact Us For Availability
2373
GEN WH41X0309 GEN WH41X0309 Contact Us For Availability
2374
GEN WH01X2578 GEN WH01X2578 Contact Us For Availability
2401
GEN WH02X0972 GEN WH02X0972 Contact Us For Availability
2402
GEN WH40X0173 GEN WH40X0173 Contact Us For Availability
2405
GEN WH08X0364 GEN WH08X0364 Contact Us For Availability
2406
GEN WH02X1011 GEN WH02X1011 Contact Us For Availability
2408
GEN WH02X1026 GEN WH02X1026 Contact Us For Availability
2409
GEN WH41X0308 GEN WH41X0308 Contact Us For Availability
2410
GEN WH08X0326 GEN WH08X0326 Contact Us For Availability
2411
GEN WH01X2320 GEN WH01X2320 Contact Us For Availability
2413
GEN WH08X0365 GEN WH08X0365 Contact Us For Availability
2414
GEN WH05X0240 GEN WH05X0240 Contact Us For Availability
2415
GEN WH40X0162 GEN WH40X0162 Contact Us For Availability
2416
GEN WH05X0241 GEN WH05X0241 Contact Us For Availability
2417
GEN WH40X0174 GEN WH40X0174 Contact Us For Availability
2419
GEN WH01X2331 GEN WH01X2331 Contact Us For Availability
2421
GEN WH39X0045 GEN WH39X0045 Contact Us For Availability
2422
GEN WH04X0094 GEN WH04X0094 Contact Us For Availability
2424
GEN WH01X2519 GEN WH01X2519 Contact Us For Availability
2425
GEN WH02X1113 GEN WH02X1113 Contact Us For Availability
2429
GEN WH01X2322 GEN WH01X2322 Contact Us For Availability
2432
GEN WH02X1019 GEN WH02X1019 Contact Us For Availability
2434
GEN WH02X1111 GEN WH02X1111 Contact Us For Availability
2435
GEN WH07X0109 GEN WH07X0109 Contact Us For Availability
2436
GEN WH07X0108 GEN WH07X0108 Contact Us For Availability
2437
GEN WH02X1022 GEN WH02X1022 Contact Us For Availability
2438
GEN WH01X2332 GEN WH01X2332 Contact Us For Availability
2440
GEN WH01X2434 GEN WH01X2434 Contact Us For Availability
2441
GEN WH40X0164 GEN WH40X0164 Contact Us For Availability
2442
GEN WH02X1105 GEN WH02X1105 Contact Us For Availability
2443
GEN WH02X1028 GEN WH02X1028 Contact Us For Availability
2444
GEN WH07X0085 GEN WH07X0085 Contact Us For Availability
2445
GEN WH07X0086 GEN WH07X0086 Contact Us For Availability
2447
GEN WH02X1023 GEN WH02X1023 Contact Us For Availability
2448
GEN WH20X0085 GEN WH20X0085 Contact Us For Availability
2449
GEN WH12X0840 GEN WH12X0840 Contact Us For Availability
2450
GEN WH02X1031 GEN WH02X1031 Contact Us For Availability
2451
GEN WH02X1016 GEN WH02X1016 Contact Us For Availability
2452
GEN WH08X0328 GEN WH08X0328 Contact Us For Availability
2454
GEN WH01X2324 GEN WH01X2324 Contact Us For Availability
2455
GEN WH05X0242 GEN WH05X0242 Contact Us For Availability
2457
GEN WH40X0171 GEN WH40X0171 Contact Us For Availability
2461
GEN WH02X1094 GEN WH02X1094 Contact Us For Availability
2462
GEN WH02X1032 GEN WH02X1032 Contact Us For Availability
2465
GEN WH38X0050 GEN WH38X0050 Contact Us For Availability
2466
GEN WH37X0043 GEN WH37X0043 Contact Us For Availability
2467
GEN WH02X1114 GEN WH02X1114 Contact Us For Availability
2501
GEN WE20X0711 GEN WE20X0711 Contact Us For Availability
2501
GEN WE20X0712 GEN WE20X0712 Contact Us For Availability
2502
GEN WE20X0713 GEN WE20X0713 Contact Us For Availability
2502
GEN WE20X0714 GEN WE20X0714 Contact Us For Availability
2503
GEN WE20X0715 GEN WE20X0715 Contact Us For Availability
2504
GEN WE14X0185 GEN WE14X0185 Contact Us For Availability
2506
GEN WE14X0195 GEN WE14X0195 Contact Us For Availability
2507
GEN WE20X0716 GEN WE20X0716 Contact Us For Availability
2512
GEN WE10X0313 GEN WE10X0313 Contact Us For Availability
2512
GEN WE10X0314 GEN WE10X0314 Contact Us For Availability
2513
GEN WE01X1111 GEN WE01X1111 Contact Us For Availability
2514
GEN WE01X1112 GEN WE01X1112 Contact Us For Availability
2514
GEN WE01X1113 GEN WE01X1113 Contact Us For Availability
2515
GEN WE10X0315 GEN WE10X0315 Contact Us For Availability
2515
GEN WE10X0316 GEN WE10X0316 Contact Us For Availability
2516
GEN WE04X0711 GEN WE04X0711 Contact Us For Availability
2517
GEN WE20X0717 GEN WE20X0717 Contact Us For Availability
2517
GEN WE20X0718 GEN WE20X0718 Contact Us For Availability
2518
GEN WE02X0344 GEN WE02X0344 Contact Us For Availability
2519
GEN WE01X1114 GEN WE01X1114 Contact Us For Availability
2520
GEN WE01X1115 GEN WE01X1115 Contact Us For Availability
2521
GEN WE20X0719 GEN WE20X0719 Contact Us For Availability
2521
GEN WE20X0720 GEN WE20X0720 Contact Us For Availability
2522
GEN WE09X0091 GEN WE09X0091 Contact Us For Availability
2524
GEN WH44X1114 GEN WH44X1114 Contact Us For Availability
2524
GEN WH44X1115 GEN WH44X1115 Contact Us For Availability
2526
GEN WE19X0877 GEN WE19X0877 Contact Us For Availability
2527
GEN WE01X1131 GEN WE01X1131 Contact Us For Availability
2528
GEN WE02X0353 GEN WE02X0353 Contact Us For Availability
2529
GEN WH44X1116 GEN WH44X1116 Contact Us For Availability
2529
GEN WH44X1117 GEN WH44X1117 Contact Us For Availability
2531
GEN WH42X2143 GEN WH42X2143 Contact Us For Availability
2532
GEN WH46X0264 GEN WH46X0264 Contact Us For Availability
2532
GEN WH46X0265 GEN WH46X0265 Contact Us For Availability
2533
GEN WH46X0266 GEN WH46X0266 Contact Us For Availability
2533
GEN WH46X0267 GEN WH46X0267 Contact Us For Availability
2534
GEN WH46X0268 GEN WH46X0268 Contact Us For Availability
2535
LEVELING LEG & PAD GEN WH01X2293 Contact Us For Availability
2536
GEN WH46X0269 GEN WH46X0269 Contact Us For Availability
2538
GEN WH41X0310 GEN WH41X0310 Contact Us For Availability
2540
GEN WE01X1116 GEN WE01X1116 Contact Us For Availability
2543
GEN WH02X1115 GEN WH02X1115 Contact Us For Availability
2545
GEN WE01X1117 GEN WE01X1117 Contact Us For Availability
2546
GEN WE02X0354 GEN WE02X0354 Contact Us For Availability
2547
GEN WH02X1116 GEN WH02X1116 Contact Us For Availability
2550
GEN WE02X0345 GEN WE02X0345 Contact Us For Availability
2553
STRIKE PLATE DOOR GEN WE01X1118 Contact Us For Availability
2558
GEN WE11X0085 GEN WE11X0085 Contact Us For Availability
2560
GEN WH41X0311 GEN WH41X0311 Contact Us For Availability
2568
GEN WE01X1119 GEN WE01X1119 Contact Us For Availability
2569
GEN WE20X0721 GEN WE20X0721 Contact Us For Availability
2569
GEN WE20X0722 GEN WE20X0722 Contact Us For Availability
2570
GEN WE01X1120 GEN WE01X1120 Contact Us For Availability
2574
SCREW 8-18 X 5/16 PPH B GEN NOT STOCKD Contact Us For Availability
2601
GEN WE04X0712 GEN WE04X0712 Contact Us For Availability
2602
GEN WE04X0713 GEN WE04X0713 Contact Us For Availability
2604
GEN WE04X0717 GEN WE04X0717 Contact Us For Availability
2605
GEN WH12X0854 GEN WH12X0854 Contact Us For Availability
2607
GEN WH12X0856 GEN WH12X0856 Contact Us For Availability
2610
GEN WH11X0132 GEN WH11X0132 Contact Us For Availability
2615
GEN WH01X2579 GEN WH01X2579 Contact Us For Availability
2616
GEN WH01X2580 GEN WH01X2580 Contact Us For Availability
2617
GEN WH01X2581 GEN WH01X2581 Contact Us For Availability
2618
GEN WH42X2144 GEN WH42X2144 Contact Us For Availability
2621
GEN WH02X1118 GEN WH02X1118 Contact Us For Availability
2622
GEN WE01X1121 GEN WE01X1121 Contact Us For Availability
2624
GEN WE01X1122 GEN WE01X1122 Contact Us For Availability
2625
GEN WE09X0092 GEN WE09X0092 Contact Us For Availability
2625
GEN WE09X0093 GEN WE09X0093 Contact Us For Availability
2626
GEN WE21X0064 GEN WE21X0064 Contact Us For Availability
2627
GEN WE21X0063 GEN WE21X0063 Contact Us For Availability
2628
GEN WE21X0065 GEN WE21X0065 Contact Us For Availability
2629
GEN WE21X0066 GEN WE21X0066 Contact Us For Availability
2631
GEN WE13X0173 GEN WE13X0173 Contact Us For Availability
2631
GEN WE13X0174 GEN WE13X0174 Contact Us For Availability
2632
GEN WE03X0068 GEN WE03X0068 Contact Us For Availability
2633
GEN WE02X0346 GEN WE02X0346 Contact Us For Availability
2634
GEN WE02X0347 GEN WE02X0347 Contact Us For Availability
2635
GEN WE01X1123 GEN WE01X1123 Contact Us For Availability
2636
GEN WE09X0094 GEN WE09X0094 Contact Us For Availability
2637
GEN WE14X0187 GEN WE14X0187 Contact Us For Availability
2638
GEN WE02X0348 GEN WE02X0348 Contact Us For Availability
2640
GEN WE01X1124 GEN WE01X1124 Contact Us For Availability
2640
GEN WE01X1125 GEN WE01X1125 Contact Us For Availability
2641
GEN WE18X0048 GEN WE18X0048 Contact Us For Availability
2643
GEN WH02X1117 GEN WH02X1117 Contact Us For Availability
2648
GEN WE01X1126 GEN WE01X1126 Contact Us For Availability
2649
GEN WE14X0188 GEN WE14X0188 Contact Us For Availability
2650
GEN WE01X1127 GEN WE01X1127 Contact Us For Availability
2701
GEN WE14X0189 GEN WE14X0189 Contact Us For Availability
2702
GEN WE02X0349 GEN WE02X0349 Contact Us For Availability
2703
GEN WE16X0025 GEN WE16X0025 Contact Us For Availability
2704
GEN WE14X0190 GEN WE14X0190 Contact Us For Availability
2705
GEN WE12X0084 GEN WE12X0084 Contact Us For Availability
2706
GEN WE02X0350 GEN WE02X0350 Contact Us For Availability
2707
GEN WE12X0085 GEN WE12X0085 Contact Us For Availability
2708
GEN WE01X1128 GEN WE01X1128 Contact Us For Availability
2710
GEN WE17X0041 GEN WE17X0041 Contact Us For Availability
2716
GEN WE12X0086 GEN WE12X0086 Contact Us For Availability
2721
GEN WE13X0175 GEN WE13X0175 Contact Us For Availability
2722
GEN WE02X0351 GEN WE02X0351 Contact Us For Availability
2723
GEN WE14X0191 GEN WE14X0191 Contact Us For Availability
2725
GEN WE14X0192 GEN WE14X0192 Contact Us For Availability
2726
GEN WE01X1129 GEN WE01X1129 Contact Us For Availability
2727
GEN WE01X1130 GEN WE01X1130 Contact Us For Availability
2728
GEN WE13X0176 GEN WE13X0176 Contact Us For Availability
2729
GEN WE04X0715 GEN WE04X0715 Contact Us For Availability
2730
GEN WE02X0352 GEN WE02X0352 Contact Us For Availability
2734
GEN WE20X0723 GEN WE20X0723 Contact Us For Availability
2737
GEN WE13X0177 GEN WE13X0177 Contact Us For Availability
2747
GEN WH01X2573 GEN WH01X2573 Contact Us For Availability
2748
GEN WE13X0178 GEN WE13X0178 Contact Us For Availability
2749
GEN WH01X2574 GEN WH01X2574 Contact Us For Availability
2750
GEN WE13X0179 GEN WE13X0179 Contact Us For Availability
2751
GEN WE04X0716 GEN WE04X0716 Contact Us For Availability
2757
GEN WE09X0095 GEN WE09X0095 Contact Us For Availability
2760
GEN WE13X0180 GEN WE13X0180 Contact Us For Availability
2761
GEN WE08X0041 GEN WE08X0041 Contact Us For Availability
32767
GEN 31-1810 GEN 31-1810 Contact Us For Availability
× ![]()
