Model GE WSLP1100D0WW – Common Parts & Diagrams

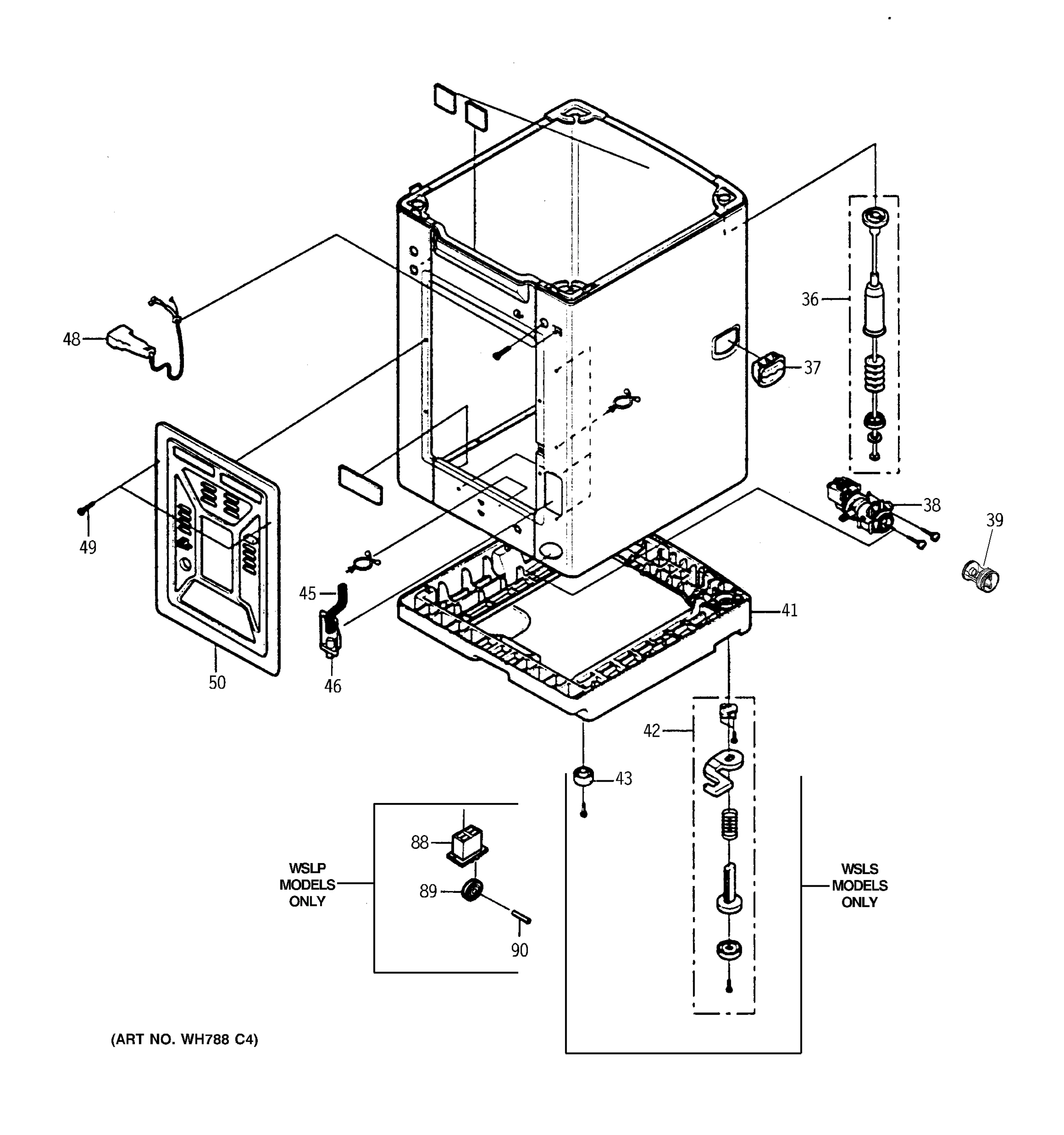

CABINET & BASE

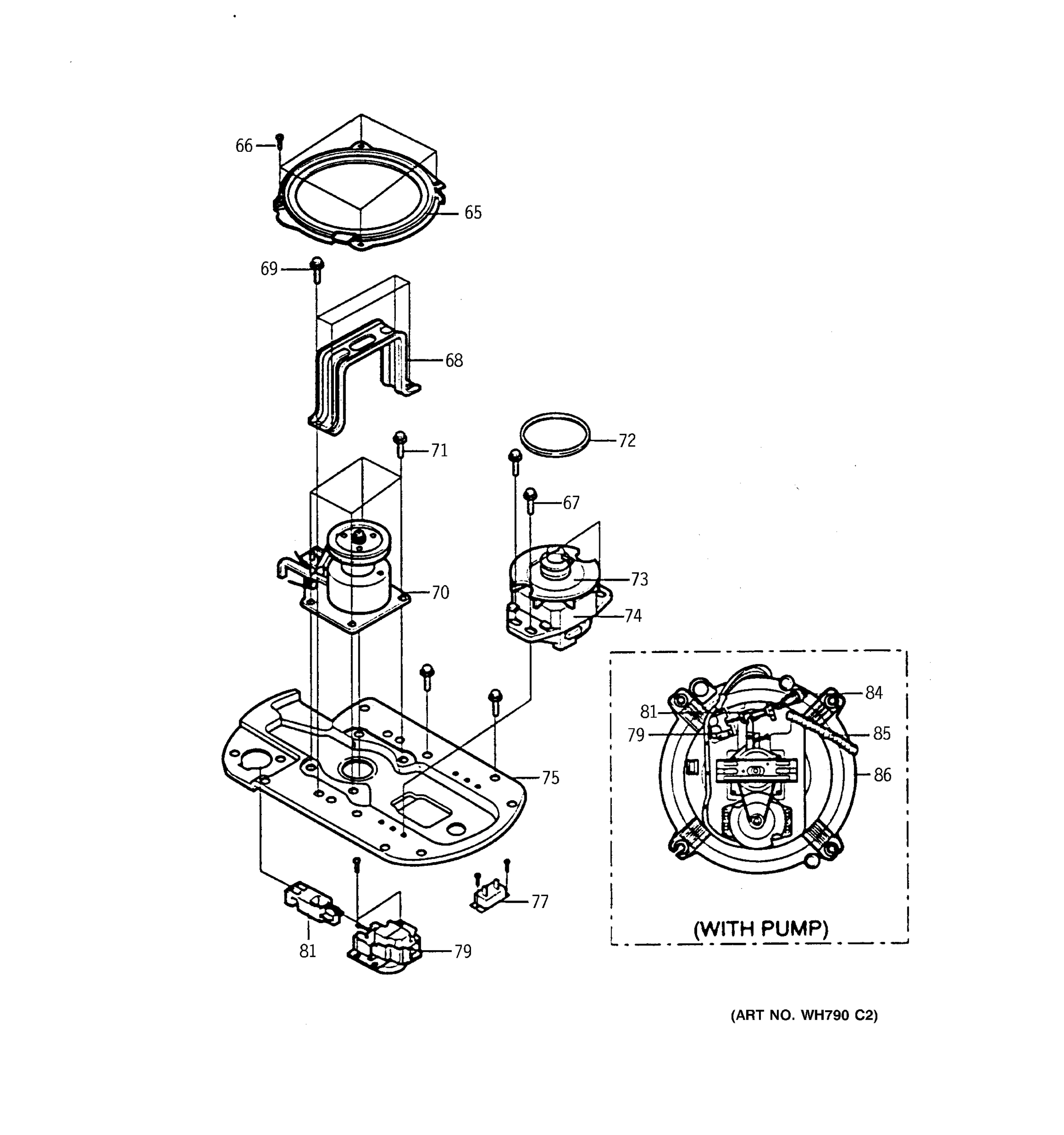

DRIVE ASSEMBLY

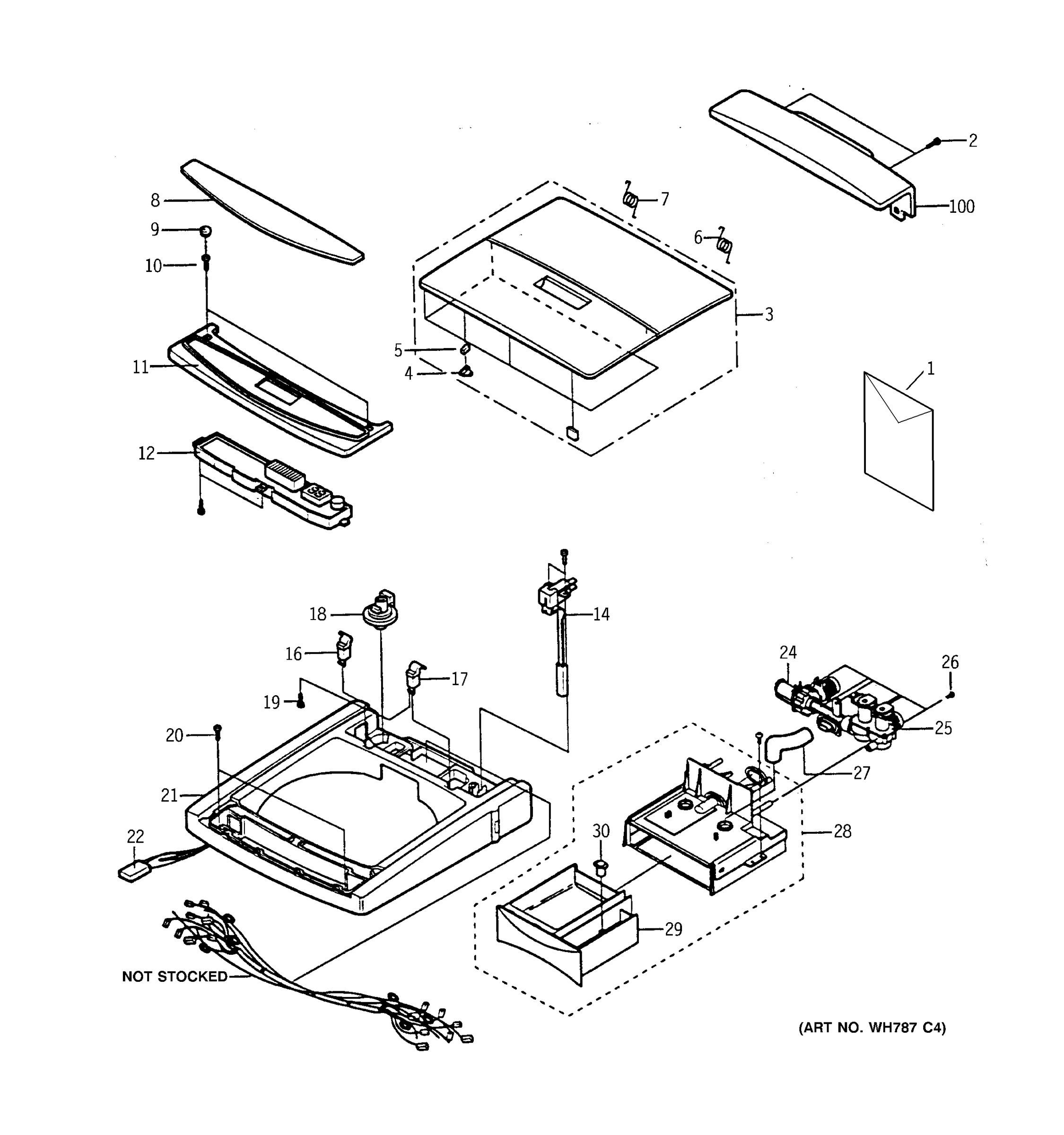

LID & TOP

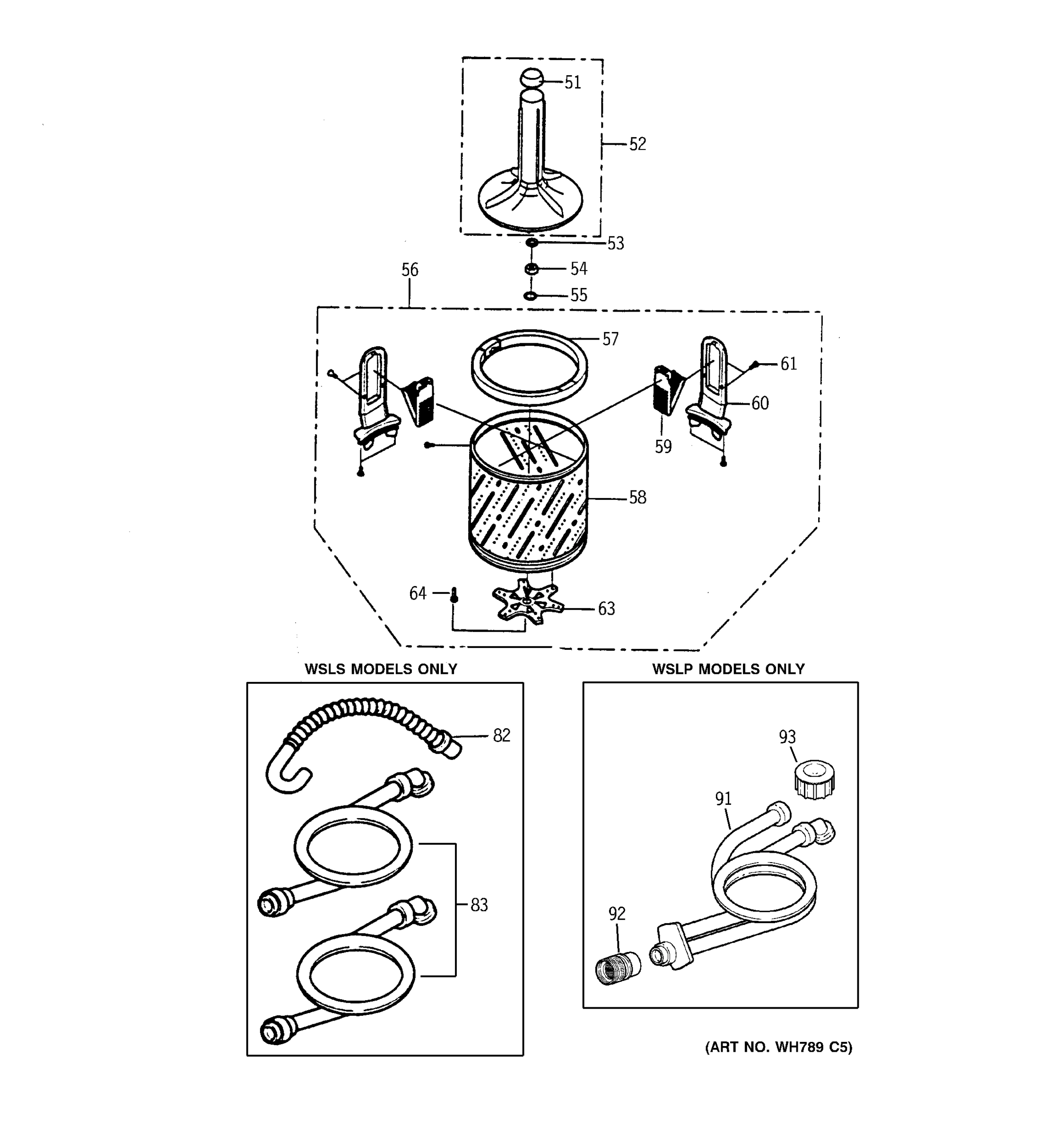

TUB & AGITATOR
Common parts from model GE WSLP1100D0WW
4
GEN WH01X10075 GEN WH01X10075 Contact Us For Availability
5
GEN WH01X10076 GEN WH01X10076 Contact Us For Availability
6
GEN WH01X10077 GEN WH01X10077 Contact Us For Availability
7
GEN WH01X10078 GEN WH01X10078 Contact Us For Availability
8
GEN WH42X10511 GEN WH42X10511 Contact Us For Availability
8
GEN WH42X10536 GEN WH42X10536 Contact Us For Availability
9
GEN WH02X10070 GEN WH02X10070 Contact Us For Availability
10
GEN WH02X10071 GEN WH02X10071 Contact Us For Availability
11
GEN WH42X10197 GEN WH42X10197 Contact Us For Availability
12
GEN WH12X10269 GEN WH12X10269 Contact Us For Availability
14
GEN WH12X10102 GEN WH12X10102 Contact Us For Availability
16
GEN WH16X10033 GEN WH16X10033 Contact Us For Availability
17
GEN WH16X10034 GEN WH16X10034 Contact Us For Availability
18
GEN WH12X10103 GEN WH12X10103 Contact Us For Availability
19
GEN WH02X10072 GEN WH02X10072 Contact Us For Availability
20
GEN WH02X10073 GEN WH02X10073 Contact Us For Availability
21
GEN WH44X10047 GEN WH44X10047 Contact Us For Availability
22
GEN WH12X10104 GEN WH12X10104 Contact Us For Availability
24
VALVE WATER (HOT) GEN WH13X10007 Contact Us For Availability
25
VALVE WATER (COLD) GEN WH13X10008 Contact Us For Availability
26
GEN WH02X10074 GEN WH02X10074 Contact Us For Availability
27
GEN WH41X10043 GEN WH41X10043 Contact Us For Availability
28
GEN WH43X10015 GEN WH43X10015 Contact Us For Availability
29
GEN WH43X10016 GEN WH43X10016 Contact Us For Availability
30
GEN WH43X10017 GEN WH43X10017 Contact Us For Availability
36
GEN WH16X10035 GEN WH16X10035 Contact Us For Availability
39
GEN WH01X10366 GEN WH01X10366 Contact Us For Availability
45
GEN WH41X10045 GEN WH41X10045 Contact Us For Availability
46
GEN WH41X10044 GEN WH41X10044 Contact Us For Availability
51
GEN WH43X10018 GEN WH43X10018 Contact Us For Availability
52
GEN WH43X10019 GEN WH43X10019 Contact Us For Availability
53
GEN WH02X10076 GEN WH02X10076 Contact Us For Availability
54
GEN WH02X10077 GEN WH02X10077 Contact Us For Availability
55
GEN WH02X10078 GEN WH02X10078 Contact Us For Availability
56
GEN WH45X10033 GEN WH45X10033 Contact Us For Availability
57
GEN WH45X10034 GEN WH45X10034 Contact Us For Availability
58
GEN WH45X10035 GEN WH45X10035 Contact Us For Availability
59
ASSY FILTER GEN WH43X10020 Contact Us For Availability
60
GUIDE W.F(S) GEN WH43X10021 Contact Us For Availability
61
GEN WH02X10079 GEN WH02X10079 Contact Us For Availability
63
GEN WH40X10003 GEN WH40X10003 Contact Us For Availability
64
GEN WH02X10080 GEN WH02X10080 Contact Us For Availability
72
BELT V GEN WH01X10081 Contact Us For Availability
74
GEN WH20X10011 GEN WH20X10011 Contact Us For Availability
77
GEN WH12X10105 GEN WH12X10105 Contact Us For Availability
82
GEN WH41X10046 GEN WH41X10046 Contact Us For Availability
83
GEN WH01X10083 GEN WH01X10083 Contact Us For Availability
85
GEN WH01X10085 GEN WH01X10085 Contact Us For Availability
90
GEN WH09X10002 GEN WH09X10002 Contact Us For Availability
91
GEN WH41X10047 GEN WH41X10047 Contact Us For Availability
93
CAP WATER VALVE GEN WH01X1732 Contact Us For Availability
100
GEN WH44X10045 GEN WH44X10045 Contact Us For Availability
× ![]()
