Model Electrolux WRT22RRCD0 REFRIGERATOR – Common Parts & Diagrams

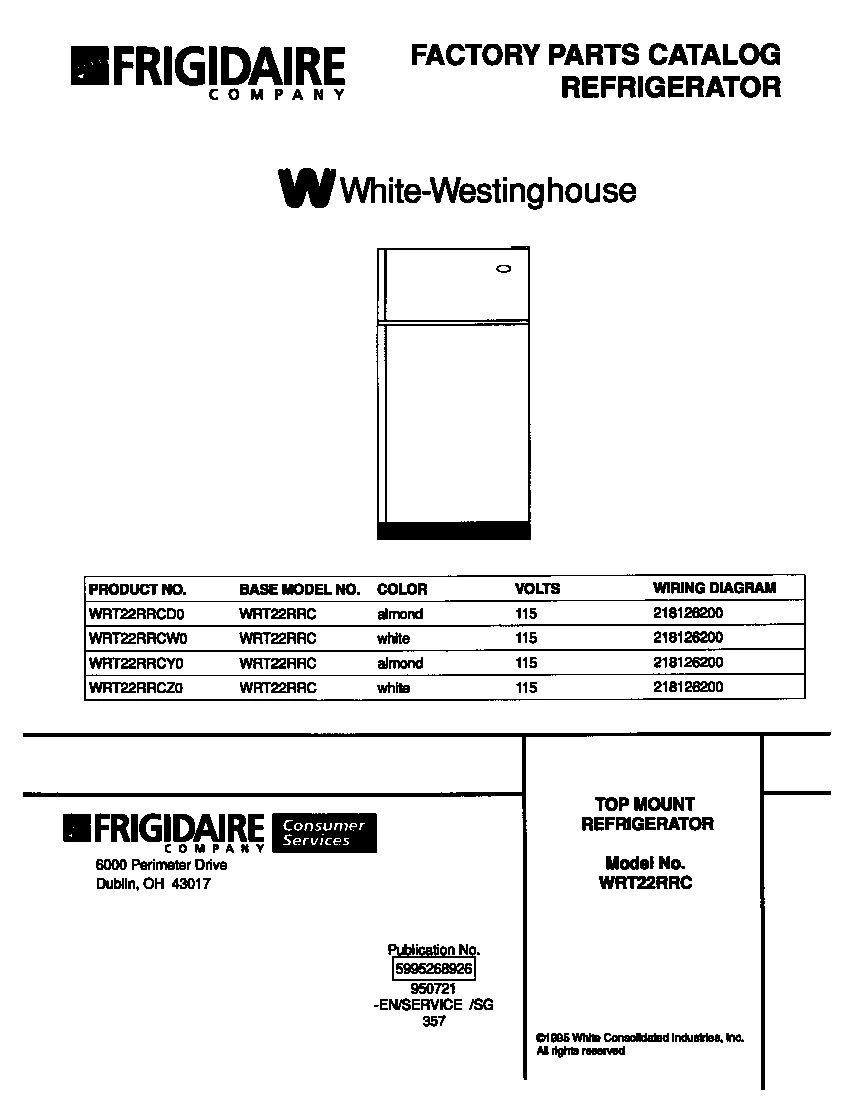

01 - COVER

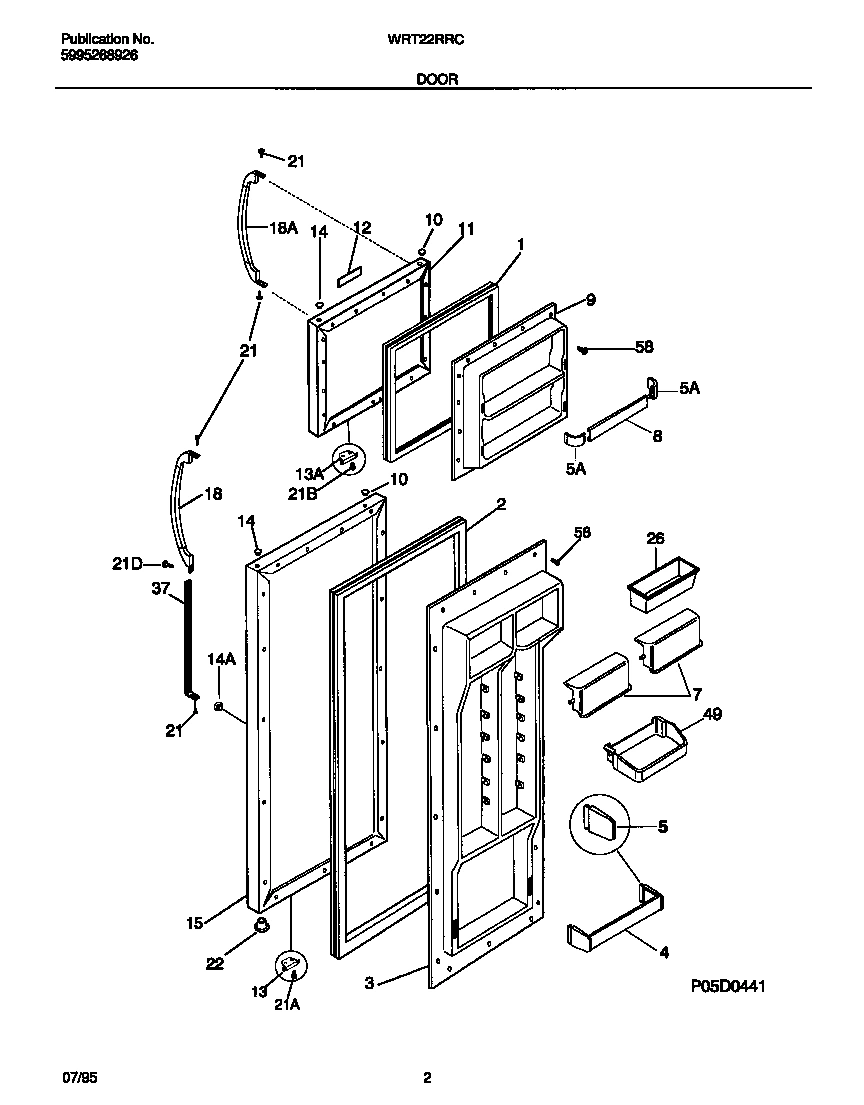

02 - DOOR

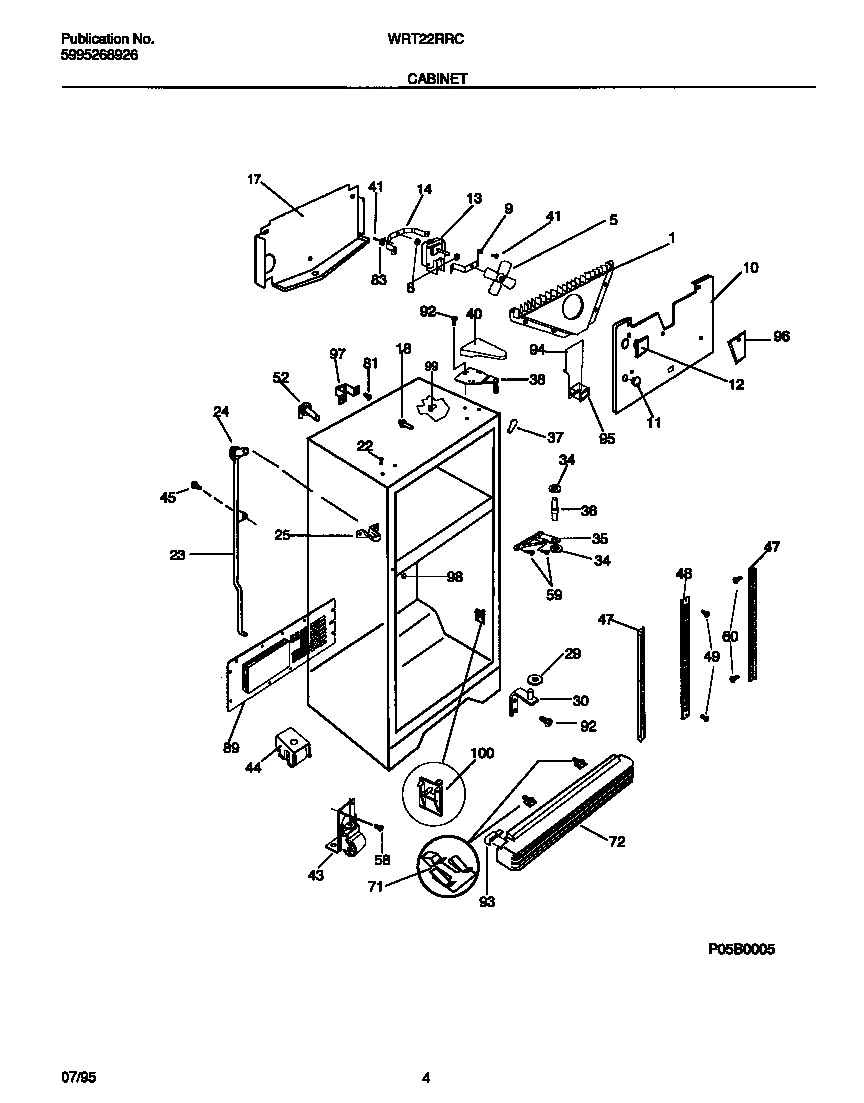

03 - CABINET

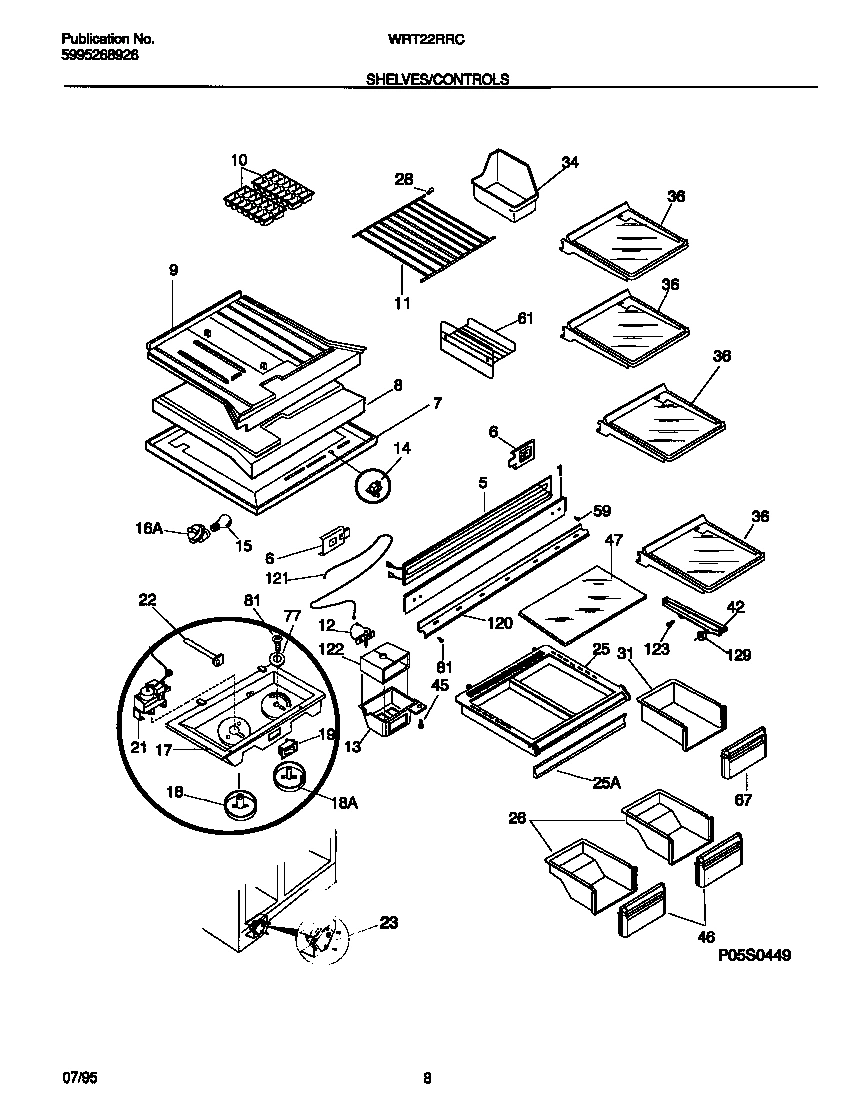

04 - SHELVES/CONTROLS

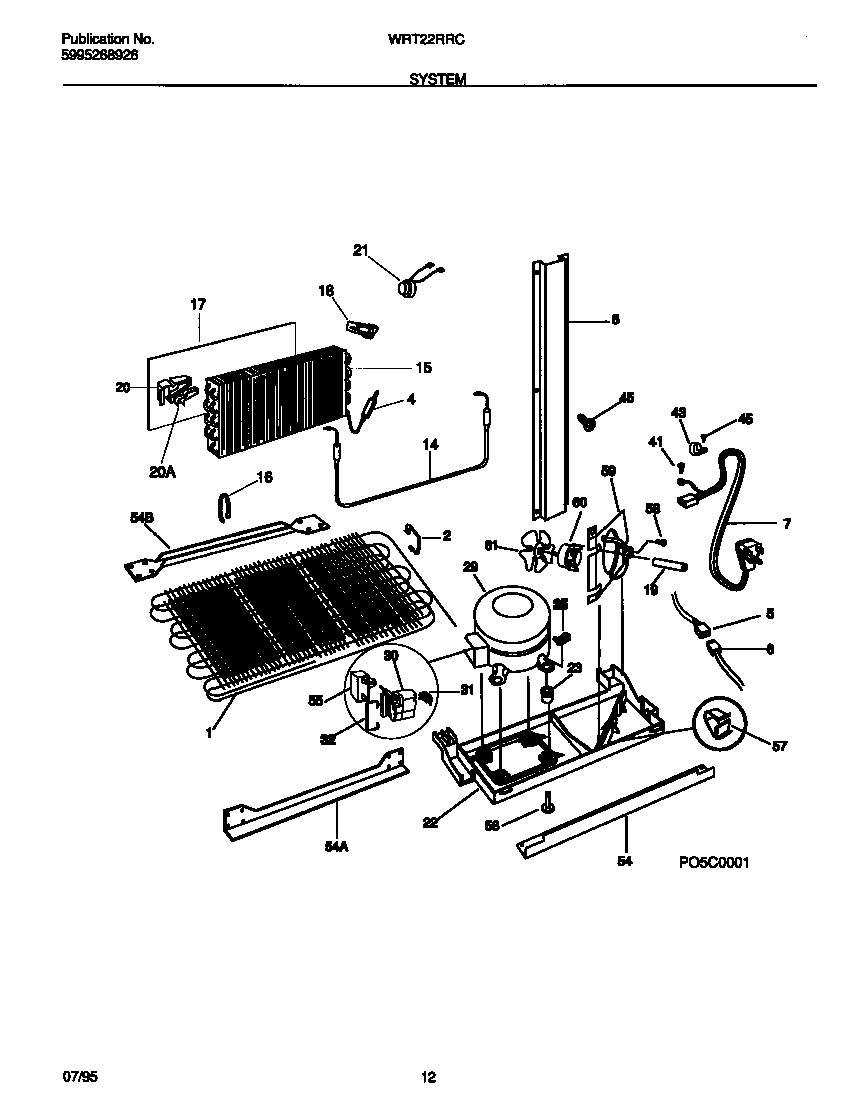

05 - SYSTEM

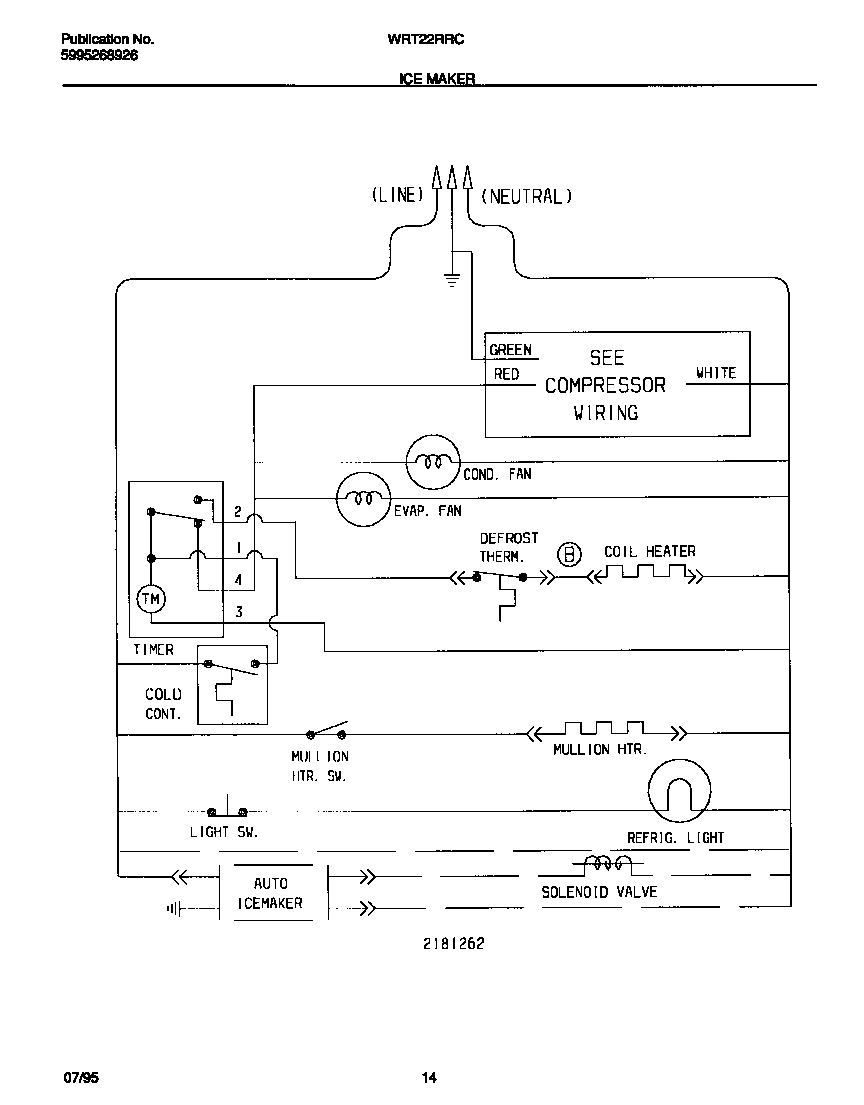

06 - ICE MAKER WIRING DIAGRAM
Common parts from model Electrolux WRT22RRCD0 REFRIGERATOR
*48640
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*48641
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*48644
WCI 215848000 WCI 215848000 Contact Us For Availability
*48645
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
1
WCI 215002201 WCI 215002201 Contact Us For Availability
1
WCI 5303289025 WCI 5303289025 Contact Us For Availability
1
WCI 218126200 WCI 218126200 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 215096800 WCI 215096800 Contact Us For Availability
5
WCI 215458301 WCI 215458301 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215501601 WCI 215501601 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 215055803 WCI 215055803 Contact Us For Availability
8
WCI 215062700 WCI 215062700 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215058300 WCI 215058300 Contact Us For Availability
11
WCI 5303297948 WCI 5303297948 Contact Us For Availability
12
WCI 215132300 WCI 215132300 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 215420300 WCI 215420300 Contact Us For Availability
15
WCI 215379601 WCI 215379601 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 215932904 WCI 215932904 Contact Us For Availability
18
WCI 5303308309 WCI 5303308309 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
18A
WCI 5303308310 WCI 5303308310 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
20A
WCI 5303292405 WCI 5303292405 Contact Us For Availability
21
WCI 5303305487 WCI 5303305487 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 215932100 WCI 215932100 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
25
WCI 215216636 WCI 215216636 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25A
WCI 5303310583 WCI 5303310583 Contact Us For Availability
26
WCI 5303292386 WCI 5303292386 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR WCI 215341200 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
COMPRESSOR W/O ELECTRICALS WCI 5303917328 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 5303292388 WCI 5303292388 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
36
WCI 215406121 WCI 215406121 Contact Us For Availability
42
WCI 215002301 WCI 215002301 Contact Us For Availability
43
WCI 218615300 WCI 218615300 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
46
WCI 215058508 WCI 215058508 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 218390550 WCI 218390550 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER, REFR WCI 5303292395 Contact Us For Availability
49
SCREW, HEX HEAD, 8-18AB X 1-1/2 WCI 215507300 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 215781501 WCI 215781501 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
67
WCI 215060207 WCI 215060207 Contact Us For Availability
71
WCI 215003300 WCI 215003300 Contact Us For Availability
72
WCI 215362911 WCI 215362911 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 5303288947 WCI 5303288947 Contact Us For Availability
93
WCI 215327111 WCI 215327111 Contact Us For Availability
94
WCI 5303292669 WCI 5303292669 Contact Us For Availability
95
WCI 215931300 WCI 215931300 Contact Us For Availability
96
WCI 215775900 WCI 215775900 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
99
WCI 5303294246 WCI 5303294246 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
120
WCI 218019201 WCI 218019201 Contact Us For Availability
121
WCI 215364001 WCI 215364001 Contact Us For Availability
122
WCI 218561201 WCI 218561201 Contact Us For Availability
129
WCI 5303299152 WCI 5303299152 Contact Us For Availability
NI
HANGER, PAN/TRAY, RH (NOT ILLUSTRATED) WCI 215002401 Contact Us For Availability
NI
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
NI
PLUG-WTR INLET TUBE (NOT ILLUSTRATED) WCI 215058000 Contact Us For Availability
NI
SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NO WCI 215608400 Contact Us For Availability
NI
SEAL, AIR DUCT COVER (NOT ILLUSTRATED) WCI 218044800 Contact Us For Availability
NI
PIN-MOUNTING, PUSH-IN, PLASTIC (NOT ILLUSTRAT WCI 5303001361 Contact Us For Availability
NI
TAPPING PLATE, LH (NOT ILLUSTRATED) WCI 5303289290 Contact Us For Availability
NI
TAPPING PLATE, RH (NOT ILLUSTRATED) WCI 5303289291 Contact Us For Availability
NI
GROMMET, SHELF MTG (NOT ILLUSTRATED) WCI 5303294247 Contact Us For Availability
NI
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16-18(23 WCI 5308017044 Contact Us For Availability
NI
NUT, PUSH, ON, DAMPER CABLE (NOT ILLUSTRATED WCI 215209400 Contact Us For Availability
NI
SPACER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363800 Contact Us For Availability
NI
WASHER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363900 Contact Us For Availability
NI
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 215934600 Contact Us For Availability
NI
NUT, ANCHOR, CONTROL BOX MTG (NOT ILLUSTRATE WCI 215935700 Contact Us For Availability
NI
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
NI
WCI 5303001260 WCI 5303001260 Contact Us For Availability
NI
WCI 5303001380 WCI 5303001380 Contact Us For Availability
NI
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
NI
BEARING-ROLLER (NOT ILLUSTRATED) WCI 5303299153 Contact Us For Availability
NI
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
NI
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
NI
GROMMET, SILENCER (NOT ILLUSTRATED) WCI 215223700 Contact Us For Availability
NI
SEAL, FOAM, COND FAN SHROUD (NOT ILLUSTRATED WCI 215226700 Contact Us For Availability
NI
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
× ![]()
