Model Electrolux WRT19NRBD2 REFRIGERATOR – Common Parts & Diagrams

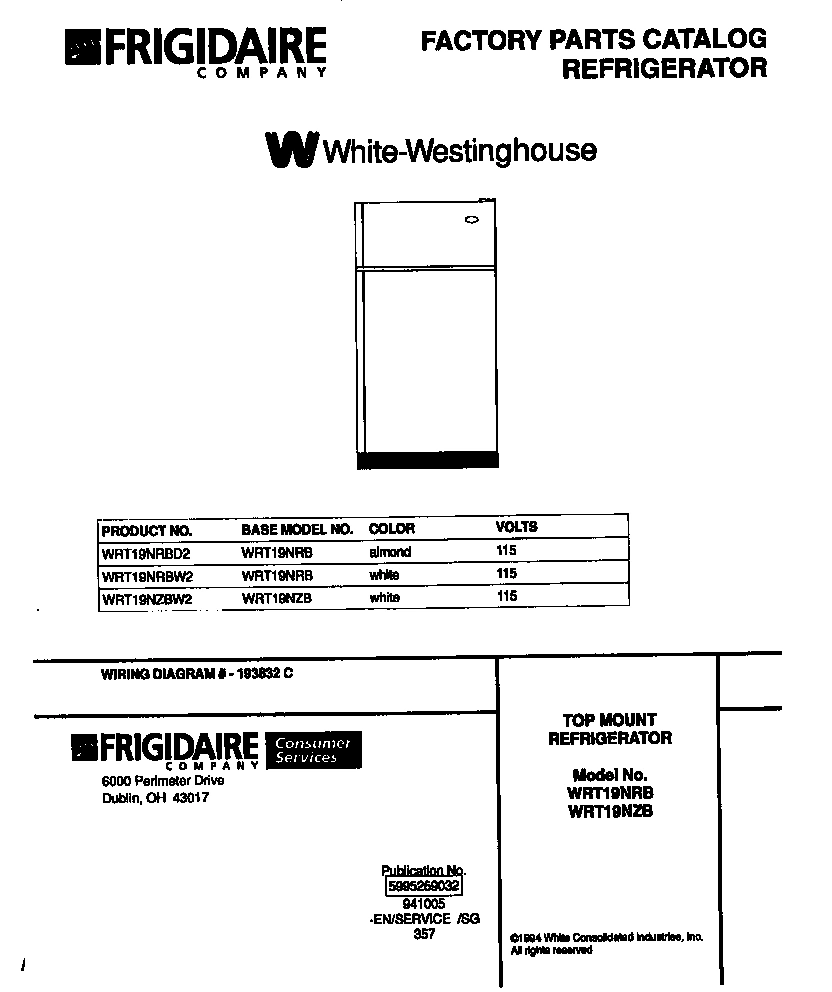

01 - TOP MOUNT REFRIGERATOR

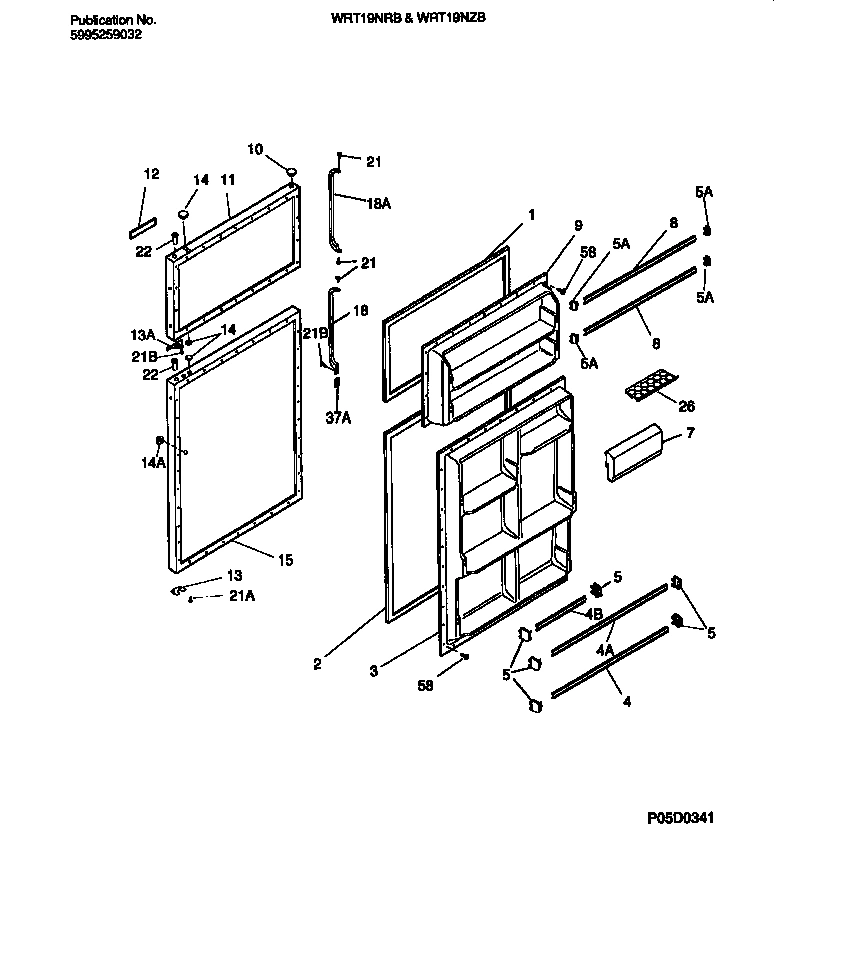

02 - DOOR SECTION
03 - CABINET W/FAN ASSEMBLY
04 - SHELVES, CONTROLS, DIVIDER, MULLION
05 - COOLING SYSTEM
Common parts from model Electrolux WRT19NRBD2 REFRIGERATOR
*10400
INSULATION - DOOR, FIBERGLASS, (BULK) (NON-IL WCI 5303917276 Contact Us For Availability
*10403
PLUG-BUTTON, CABINET LINER (NON-ILLUSTRATED) WCI 5308016571 Contact Us For Availability
*10404
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*10405
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET-MOUNTING, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
4
WCI 508000027 WCI 508000027 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR (NON-ILLUSTRATED) WCI 3018993 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
SHELF-FREEZER,FOXED/FLAT,FULL WIDTH WIRE WCI 5303283031 Contact Us For Availability
11A
WCI 218159700 WCI 218159700 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
13A
EXTENSION,AIR DEFLECTOR,W/INSULATION WCI 5303200590 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303299980 WCI 5303299980 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG,LH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
FRAME-FULL SHLF, CANTILEVER WCI 215919111 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
FRAME-MEAT KPR SHLF,CANTLEVER, W/HANGER TABS WCI 215919105 Contact Us For Availability
25
WCI 215774100 WCI 215774100 Contact Us For Availability
25
WCI 215363202 WCI 215363202 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
TRIM - CRISPER COVER WCI 5303299975 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN-CRISPER COVER WCI 215363301 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ,LNDG HEX HEAD, 1/4-28 X 2 3/4 WCI 5303271412 Contact Us For Availability
29
TRIM-SHELF,26.12``,FRONT WCI 215919704 Contact Us For Availability
29
WCI 5303925125 WCI 5303925125 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
30
START-PTC WCI 216008900 Contact Us For Availability
30A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
30B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
35
BRACKET-CTG HINGE, ALMOND WCI 218220102 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
41
WCI 215919804 WCI 215919804 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
ROLLER ASSY,READ,(2) WCI 5308009773 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
46
WCI 215363404 WCI 215363404 Contact Us For Availability
47
WCI 215789000 WCI 215789000 Contact Us For Availability
47
WCI 5303303763 WCI 5303303763 Contact Us For Availability
55
WCI 21636200 WCI 21636200 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
67
WCI 5303304686 WCI 5303304686 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
WCI 5303288973 No Longer Available
110
WCI 215363501 WCI 215363501 Contact Us For Availability
116
WCI 215426702 WCI 215426702 Contact Us For Availability
× ![]()
