Model Electrolux WRT17DRBW2 REFRIGERATOR – Common Parts & Diagrams

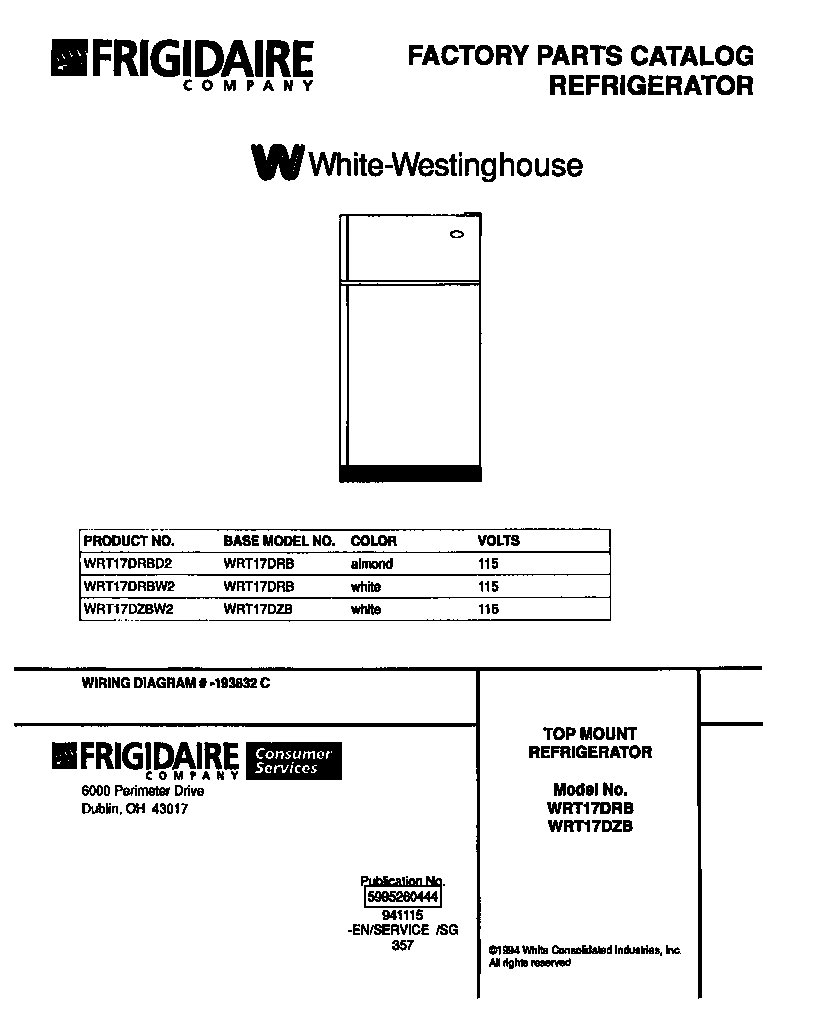

01 - TOP MOUNT REFRIGERATOR

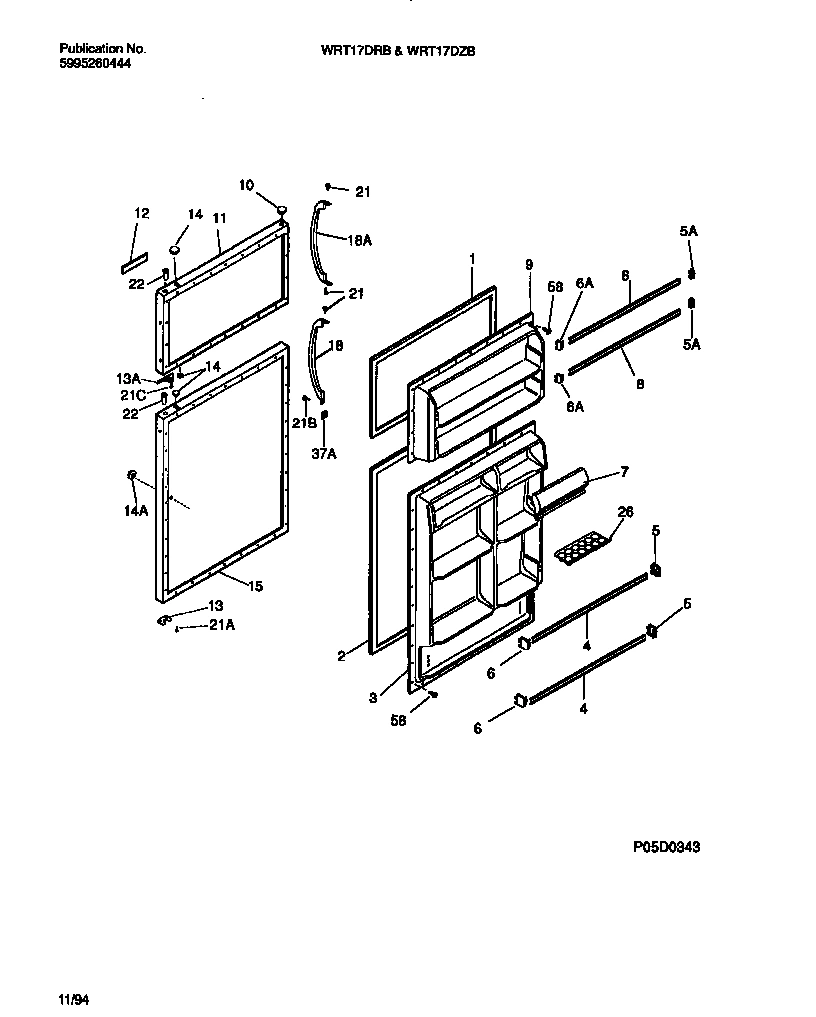

02 - DOOR

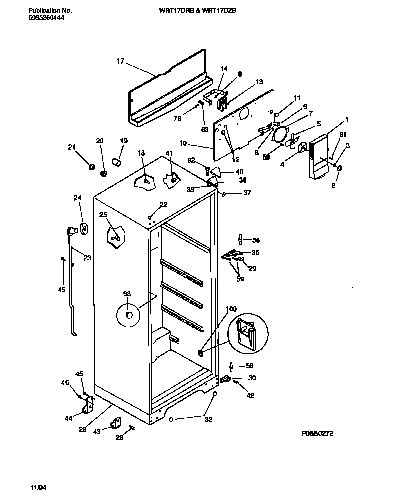

03 - CABINET W/FAN ASSEMBLY

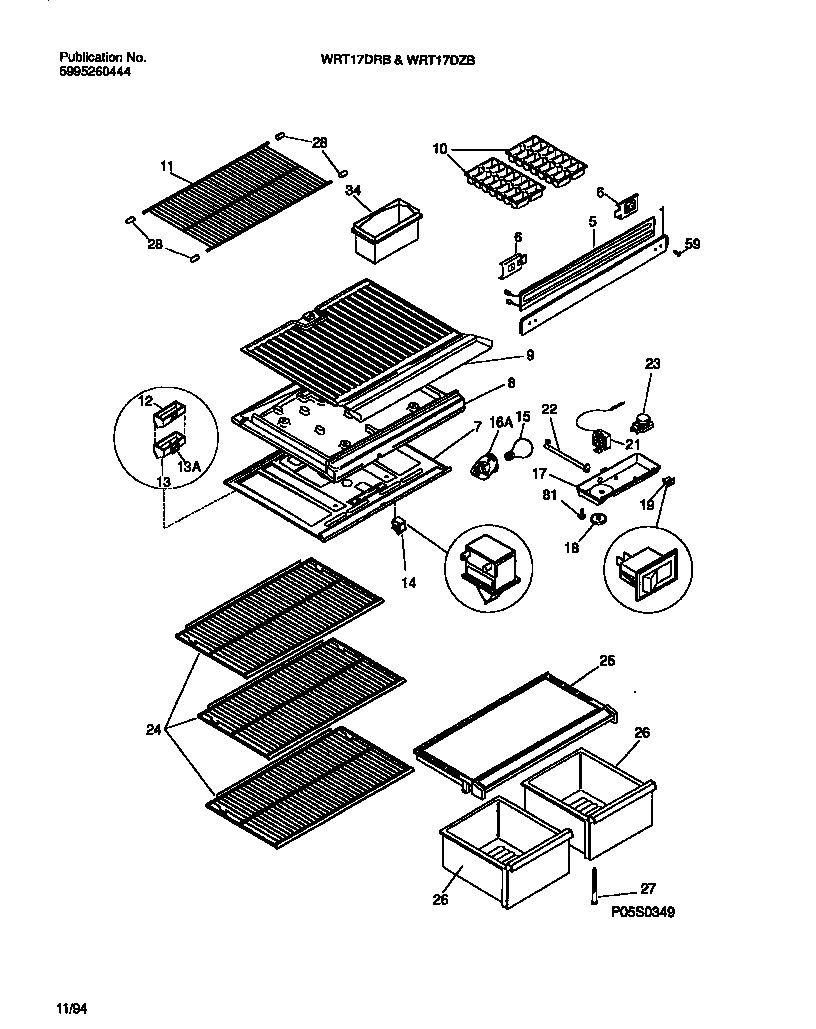

04 - SHELVES, CONTROLS, DIVIDER, MULLION

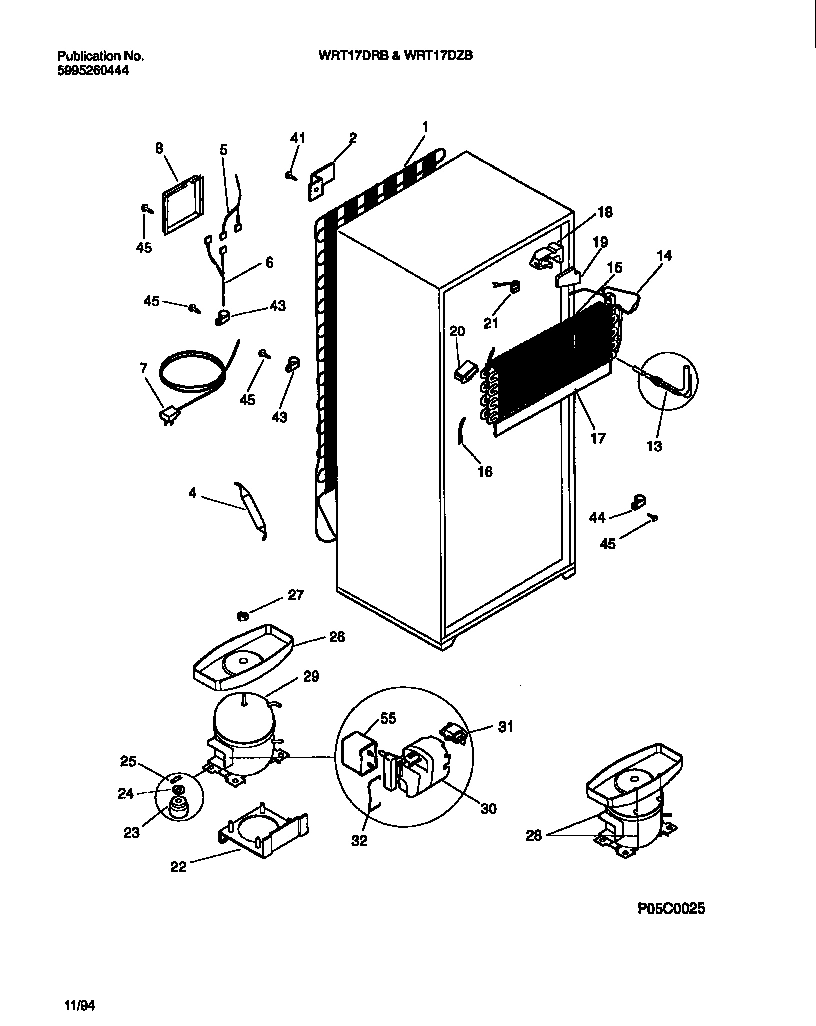

05 - COOLING SYSTEM
Common parts from model Electrolux WRT17DRBW2 REFRIGERATOR
*30280
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*30281
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*30284
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218252501 WCI 218252501 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
BRACKET-MOUNTING, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
5
WCI 218271401 WCI 218271401 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR WCI 3018881 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303018899 WCI 5303018899 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303001537 WCI 5303001537 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303283107 Contact Us For Availability
11A
WCI 218159700 WCI 218159700 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
12A
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
13A
DOOR STOP, WHTIE, FRZR WCI 218249001 Contact Us For Availability
13A
EXTENSION,AIR DEFLECTOR,W/INSULATION WCI 5303200590 Contact Us For Availability
14
WCI 5308009754 No Longer Available
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
TROUGH-DRAIN WCI 08010005 Contact Us For Availability
17
WCI 5303299980 WCI 5303299980 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
SEAL RING, DRAIN TUBE (INCL. IN ITEM 23) WCI 5303207353 Contact Us For Availability
24
SHELF-SLIDING, WIRE, REFR SECTION WCI 5303291236 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
WCI 5303283297 WCI 5303283297 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5349001603 WCI 5349001603 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
PIN-PUSH, PLASTIC (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
26
BASE-CABINET WCI 5303269889 Contact Us For Availability
26
WCI 215791927 WCI 215791927 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
SUPPORT-CRSPR COVER, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 5303917328 WCI 5303917328 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
30B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
32
WCI 5303212923 WCI 5303212923 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WCI 3018945 WCI 3018945 Contact Us For Availability
35
BRACKET-CTR HINGE, LIGHT GREY WCI 218220101 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
SUPPORT-CRSPR COVER WCI 5303288973 No Longer Available
× ![]()
