Model Electrolux WRT17CGCY1 REFRIGERATOR – Common Parts & Diagrams
01 - REFRIGERATOR

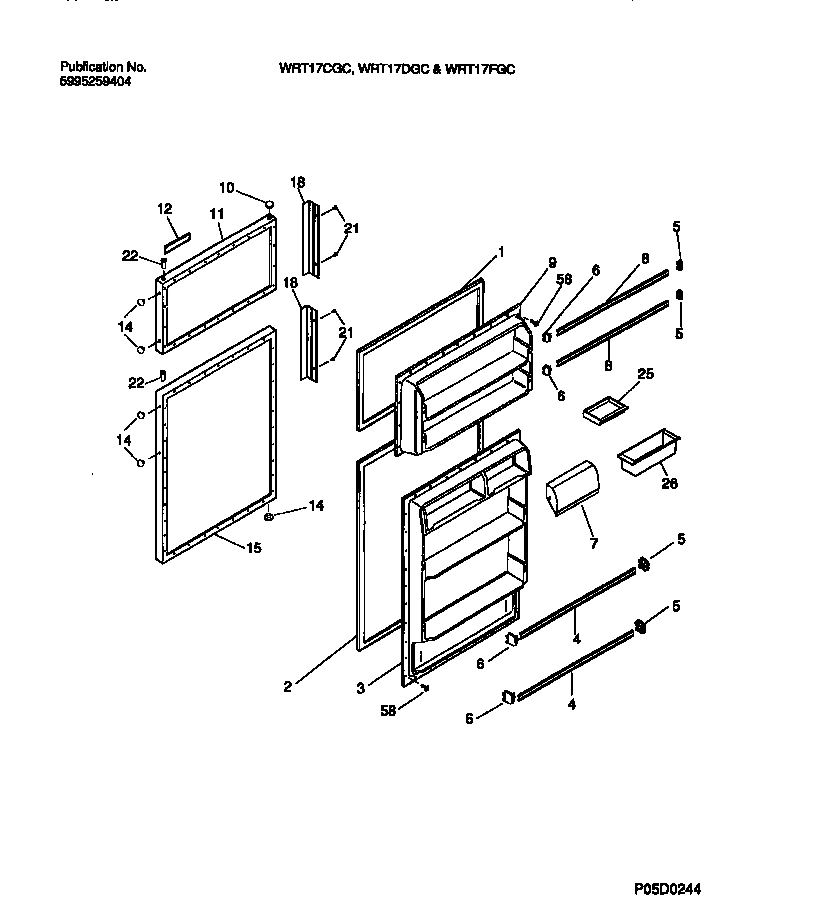

02 - DOOR SECTION

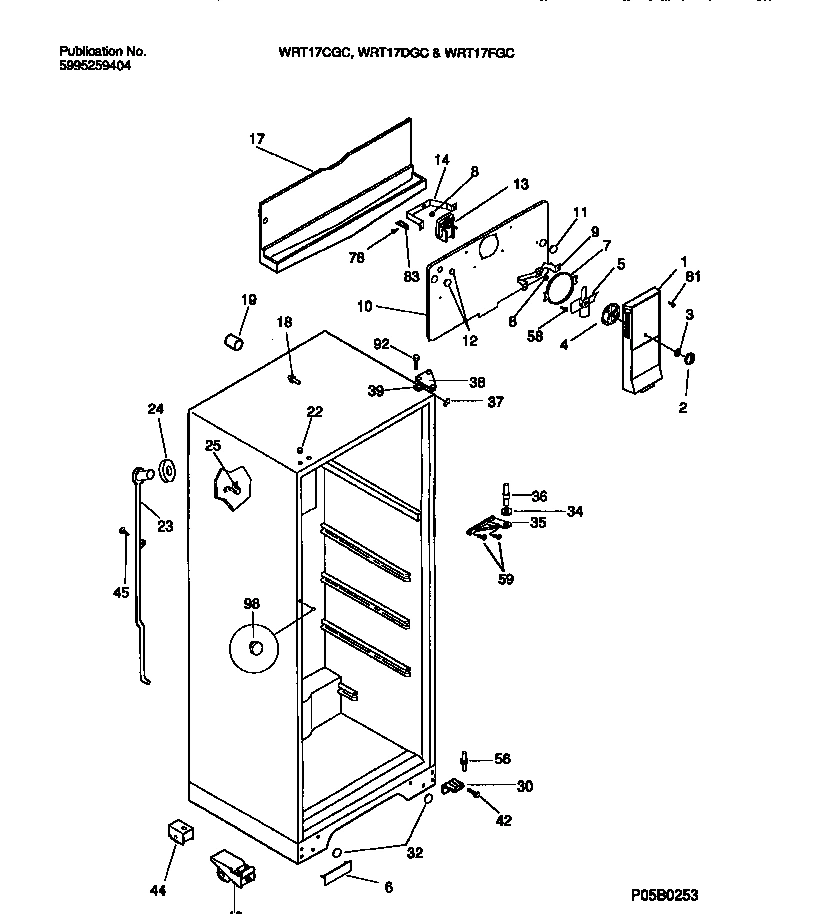

03 - CABINET W/ FAN ASSEMBLY

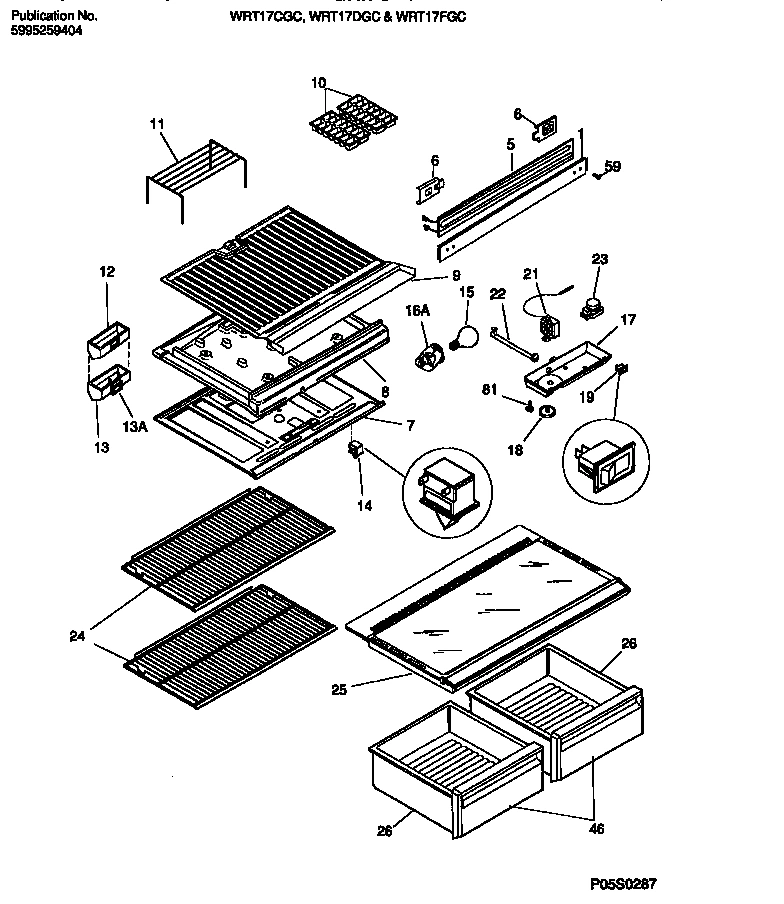

04 - SHELVES, CONTROLS, DIVIDER, MULLION

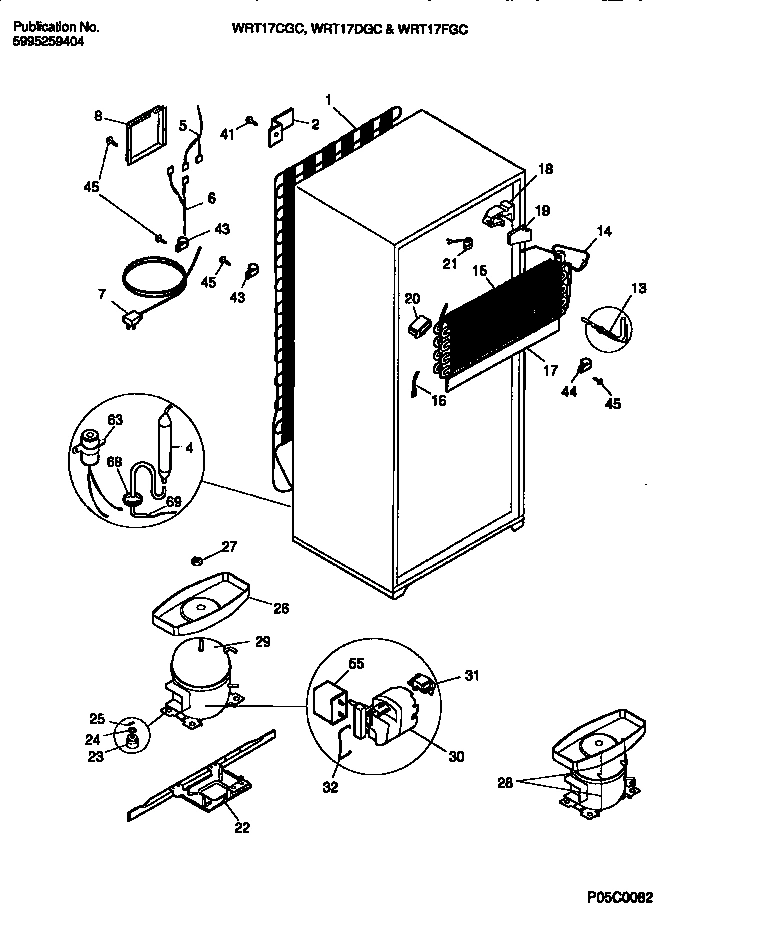

05 - COOLING SYSTEM

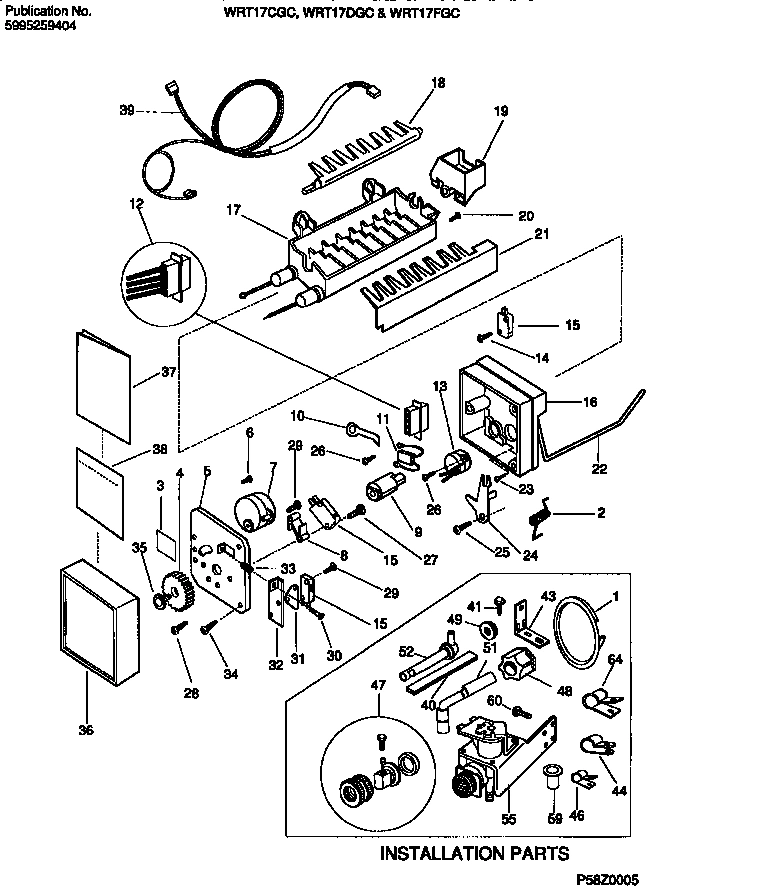

06 - ICE MAKER COMPONENTS
Common parts from model Electrolux WRT17CGCY1 REFRIGERATOR
*11600
INSULATION - DOOR, FIBERGLASS, (BULK) (NON-IL WCI 5303917276 Contact Us For Availability
*11601
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*11605
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 218430711 WCI 218430711 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
BRACKET - MTG, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
SUPPORT - DOOR RACK, RH WCI 5303207230 No Longer Available
5
WCI 218271301 WCI 218271301 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
SUPPORT - DOOR RACK, LH WCI 5303207229 No Longer Available
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257003 WCI 215257003 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206185 WCI 3206185 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3206186 WCI 3206186 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 3206187 WCI 3206187 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, INTERNAL IM, W/PLUG WCI 3206349 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
12A
WCI 215079100 WCI 215079100 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215257600 WCI 215257600 Contact Us For Availability
13A
EXTENSION,AIR DEFLECTOR,W/INSULATION WCI 5303200590 Contact Us For Availability
13B
WCI 5308016567 WCI 5308016567 Contact Us For Availability
14
WCI 5308009754 No Longer Available
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303299980 WCI 5303299980 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
PLATE-COMPR MTG, W/RAIL WCI 3206126 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF, SLIDING, WIRE, REFR SECTION WCI 5303283106 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215379500 WCI 215379500 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
COMPRESSOR W/O ELECTRICALS WCI 5303917328 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
30
WCI 216008901 WCI 216008901 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
30B
SHIM - LOWER HINGE (NON-ILLUSTRATED) WCI 218368500 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
44
SCREW, LEVELING, (2) (NON-ILLUSTRATED) WCI 3206141 Contact Us For Availability
46
WCI 5303208183 WCI 5303208183 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55
VALVE-WATER WCI 3206356 Contact Us For Availability
55
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
63
CAPACITOR ASSY, START, W / MTG CLAMP WCI 215814802 Contact Us For Availability
69
WCI 215116300 WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
× ![]()
