Model Electrolux WRT13CGBD2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

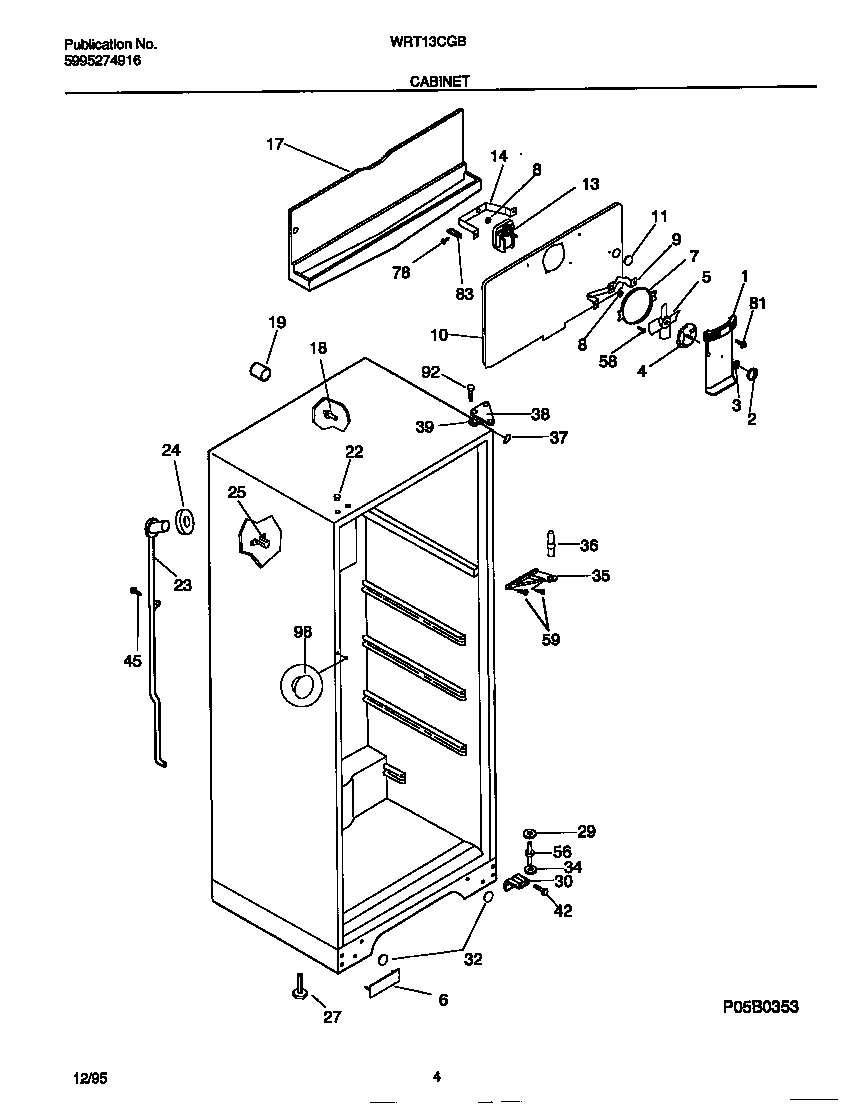

03 - CABINET

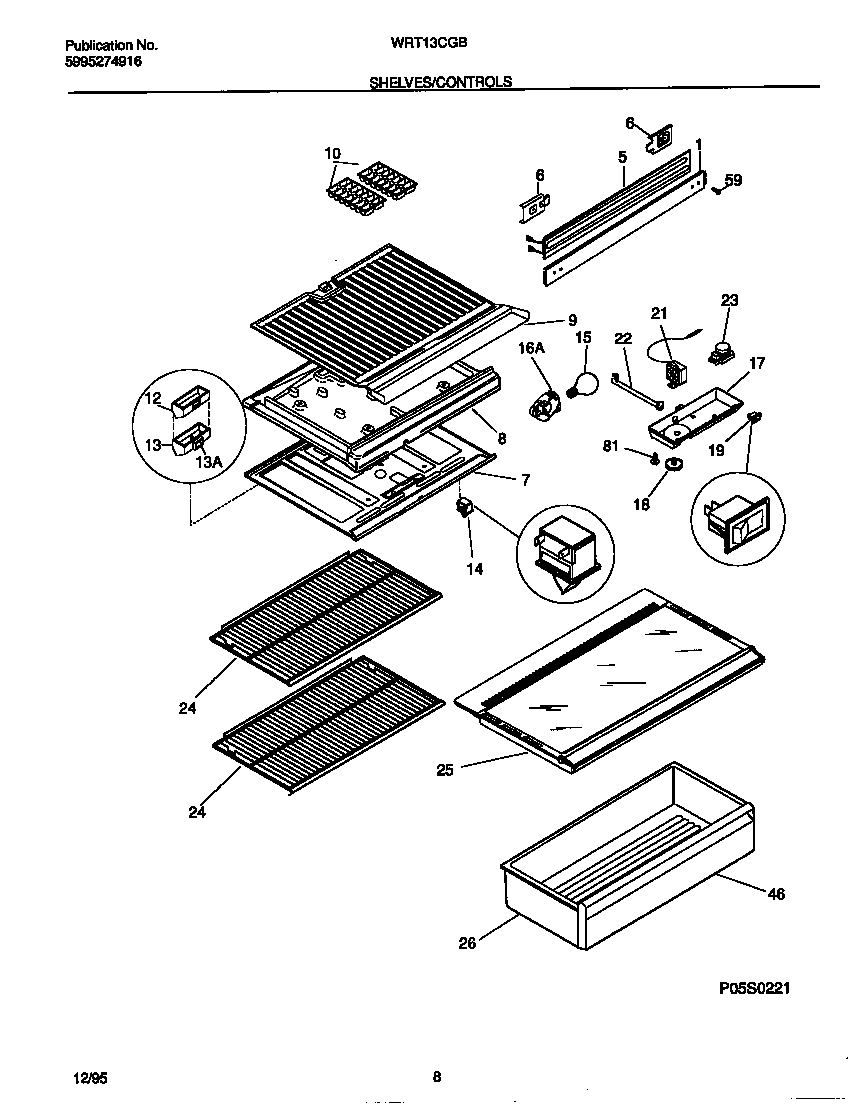

04 - SHELVES/CONTROLS

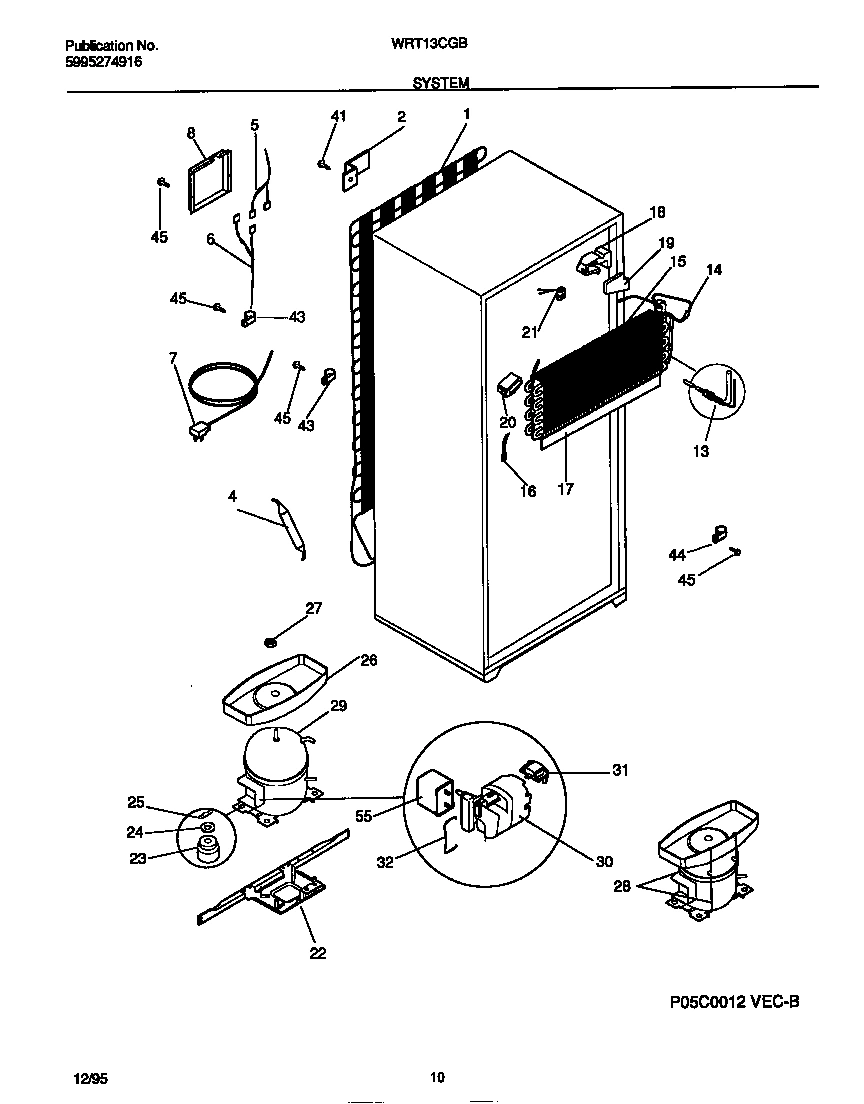

05 - SYSTEM
Common parts from model Electrolux WRT13CGBD2 REFRIGERATOR
*06400
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*06404
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 218430711 WCI 218430711 Contact Us For Availability
1
WCI 5303270924 WCI 5303270924 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
PANEL-INNER DOOR, REFR WCI 5303271483 Contact Us For Availability
5
SUPPORT-DOOR RACK, EXTENDS 1/81``, RH WCI 3206150 Contact Us For Availability
5
WCI 218271401 WCI 218271401 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 5303276174 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257003 WCI 215257003 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 218597300 WCI 218597300 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8A
WCI 5303270921 WCI 5303270921 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 5303270920 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
12A
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
13
WCI 215133500 WCI 215133500 Contact Us For Availability
13A
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
14
WCI 5308009754 No Longer Available
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 3206146 WCI 3206146 Contact Us For Availability
17
CONTROL BOX WCI 5303307349 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CRO WCI 218251900 Contact Us For Availability
21A
WCI 5303302297 WCI 5303302297 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 5303270923 Contact Us For Availability
22
WCI 3206126 WCI 3206126 Contact Us For Availability
23
TUBE-DRAIN, W/SEAL RING WCI 5303272327 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF-SLIDING, WIRE, REFR SECTION WCI 5303283125 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303270897 Contact Us For Availability
25
WCI 215774100 WCI 215774100 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN-CRISPER, FULL-WIDTH WCI 5303209937 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SCREW-LEVELING, (2) WCI 3206141 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
29
COMPRESSOR, W/O ELECTRICALS WCI 5303917249 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30A
WCI 3206136 WCI 3206136 Contact Us For Availability
30B
TAPPING PLATE, LOWER HINGE, (2) (NOT ILLUSTR WCI 215882300 Contact Us For Availability
30C
SHIM, LOWER HINGE (NOT ILLUSTRATED) WCI 218368500 Contact Us For Availability
31
WCI 5303295345 WCI 5303295345 Contact Us For Availability
32
PLUG-BUTTON, ALMOND, CABINET BASE WCI 215217703 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
35
WCI 218220102 WCI 218220102 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
46
FRONT-CRISPER PAN, FULL-WIDTH WCI 5303209521 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
× ![]()
